8Inch MultiParameter Portable Patient Monitor for ICUCUUET
Reference: 1600087759247
Examination Therapy Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Redefining Patient Monitoring with Precision and Innovation
Introducing the Next-Generation Multiparameter Vital Signs Monitor
GoldHealth Medical presents a cutting-edge 12-inch multiparameter patient monitor, meticulously designed for hospital ICUs, emergency care units, and portable monitoring needs. This state-of-the-art device delivers unparalleled accuracy, intuitive usability, and advanced functionality to meet the demands of modern healthcare environments.
Key Features and Parameters
ECG Monitoring
- Baseline Recovery: < 3 seconds post-defibrillation
- Heart Rate Range:
- Adult: 15 ~ 300 bpm
- Neonatal/Pediatric: 15 ~ 350 bpm
- Lead Modes: 5 leads (I, II, III, AVR, AVL, AVF, V)
- Signal Range: ±5 mV (Vp-p)
- Gain Settings: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
- Bandwidth:
- Monitor Mode: 0.5 ~ 40 Hz
- Diagnostic Mode: 0.05 ~ 130 Hz
- Surgery Mode: 1 ~ 20 Hz
- ST Measurement: -2.0 ~ +2.0 mV with ±0.02mV or ±10% accuracy
- Apnea Alarm: Adjustable range of 10 ~ 40 seconds
- Arrhythmia Detection: 13 types, including ASYSTOLE, VFIB/VTAC, and more
NIBP (Non-Invasive Blood Pressure)
- Measurement Modes: Manual, Auto, STAT
- Measurement Ranges:
- Adult: SYS: 40 ~ 280 mmHg, DIA: 10 ~ 220 mmHg, MEAN: 20 ~ 240 mmHg
- Pediatric: SYS: 40 ~ 220 mmHg, DIA: 10 ~ 160 mmHg, MEAN: 20 ~ 170 mmHg
- Neonatal: SYS: 35 ~ 135 mmHg, DIA: 10 ~ 100 mmHg, MEAN: 20 ~ 170 mmHg
- Overpressure Protection:
- Adult: 300 mmHg
- Pediatric: 240 mmHg
- Neonatal: 150 mmHg
SpO2 (Pulse Oximetry)
- Measurement Range: 0 ~ 100%
- Accuracy:
- 70% ~ 100%: ±2%
- 0% ~ 69%: Unspecified
- Pulse Rate Range: 40 ~ 240 bpm
- Resolution: 1 bpm
- Low Perfusion Performance: Reliable readings even under challenging conditions
Temperature Monitoring
- Measurement Range: 0 ~ 50°C
- Accuracy:
- ±0.2°C (32°C - 42°C)
- ±0.3°C (other ranges)
- Resolution: 0.1°C
Respiration Monitoring
- Measurement Method: Impedance between RA-LL or RA-LA
- Respiration Rate Range:
- Adult: 0 ~ 120 BrPM
- Neonatal/Pediatric: 0 ~ 150 BrPM
- Bandwidth: 0.3 ~ 2 Hz
- Apnea Alarm: Adjustable range of 10 ~ 40 seconds
Advanced Features
- Pace Pulse Detection and Rejection: ±2 ~ ±700mV range
- Differential Input Impedance: > 5 MΩ CMRR
- Leakage Current: < 10 μA
- Calibration Signal: 1 mV p-p with ±5% accuracy
Why Choose GoldHealth Medical?
GoldHealth Medical’s multiparameter patient monitor is engineered to deliver exceptional performance in critical care, surgery, and transport scenarios. Its sleek design, intuitive interface, and robust functionality make it an indispensable tool for healthcare professionals.
- Precision Engineering: Advanced algorithms ensure accurate and reliable readings across all parameters.
- Versatility: Suitable for adult, pediatric, and neonatal patients,
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Patient Monitor
Revolutionizing patient care with precision, portability, and reliability.
Product Highlights

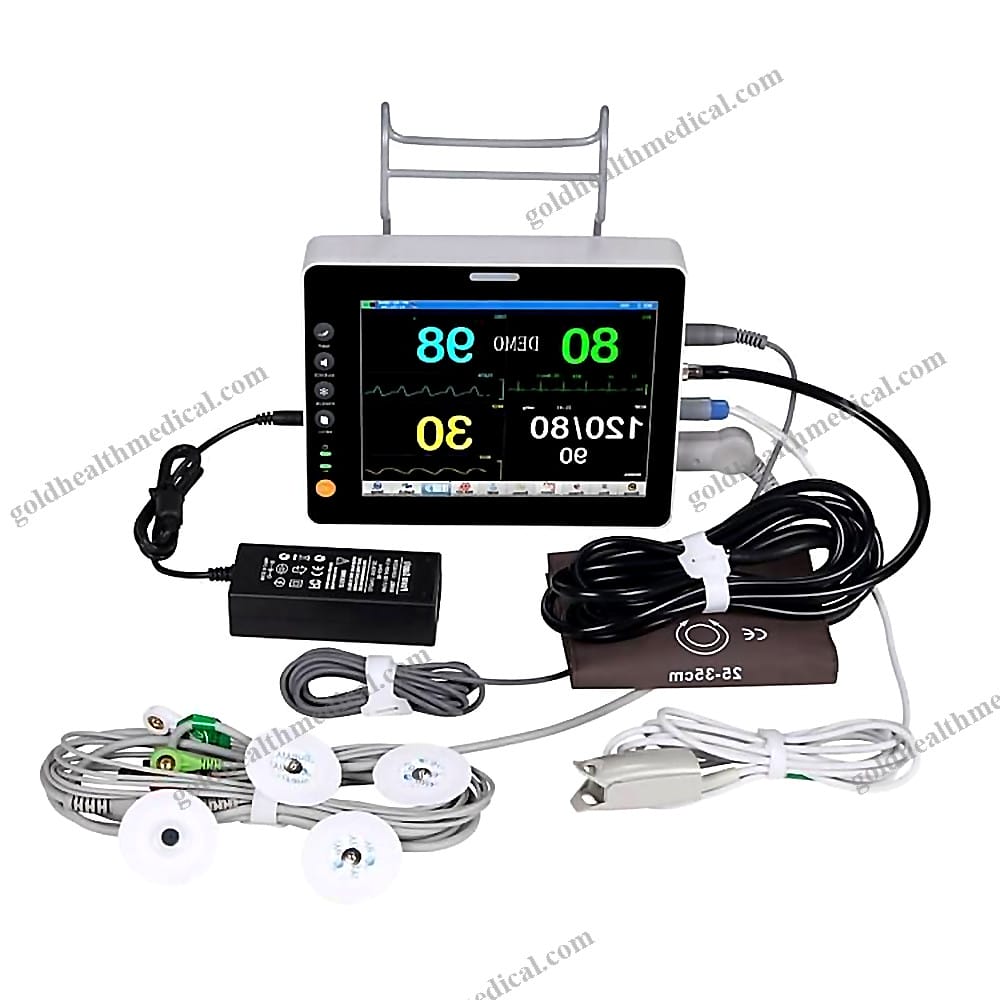

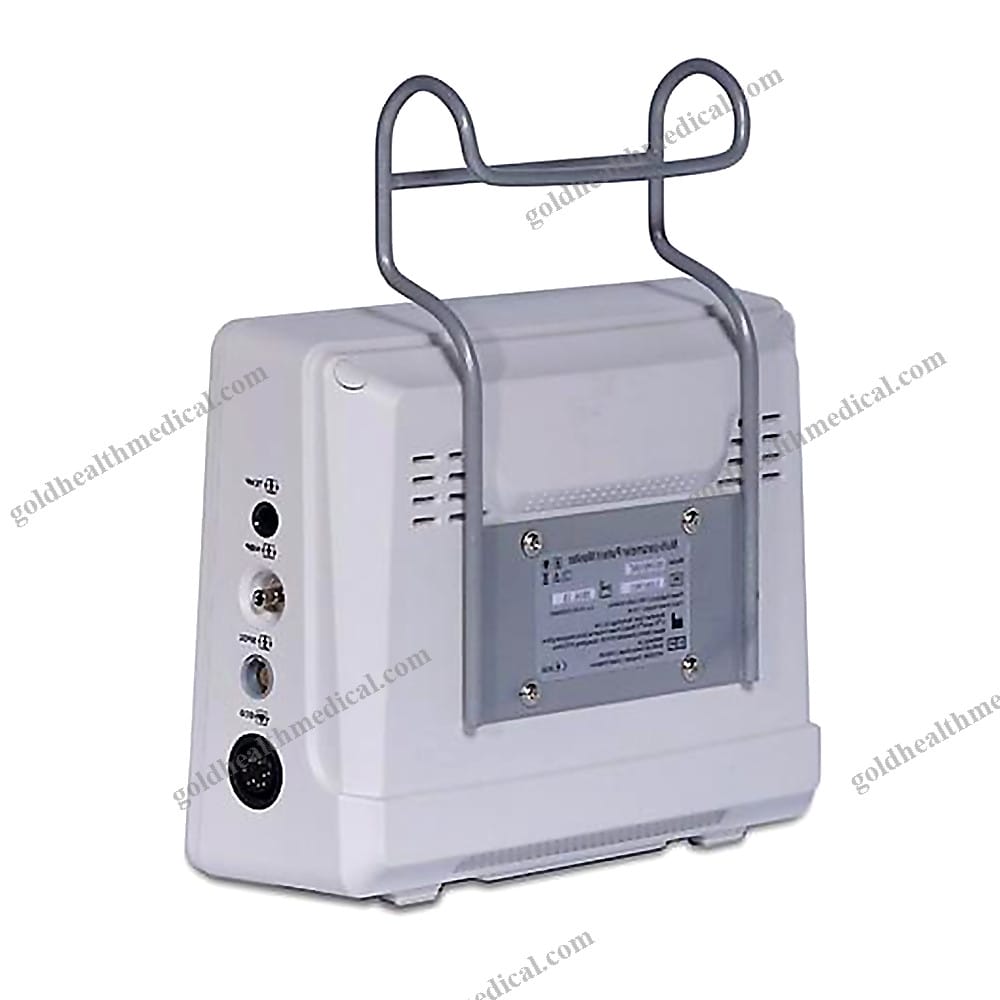

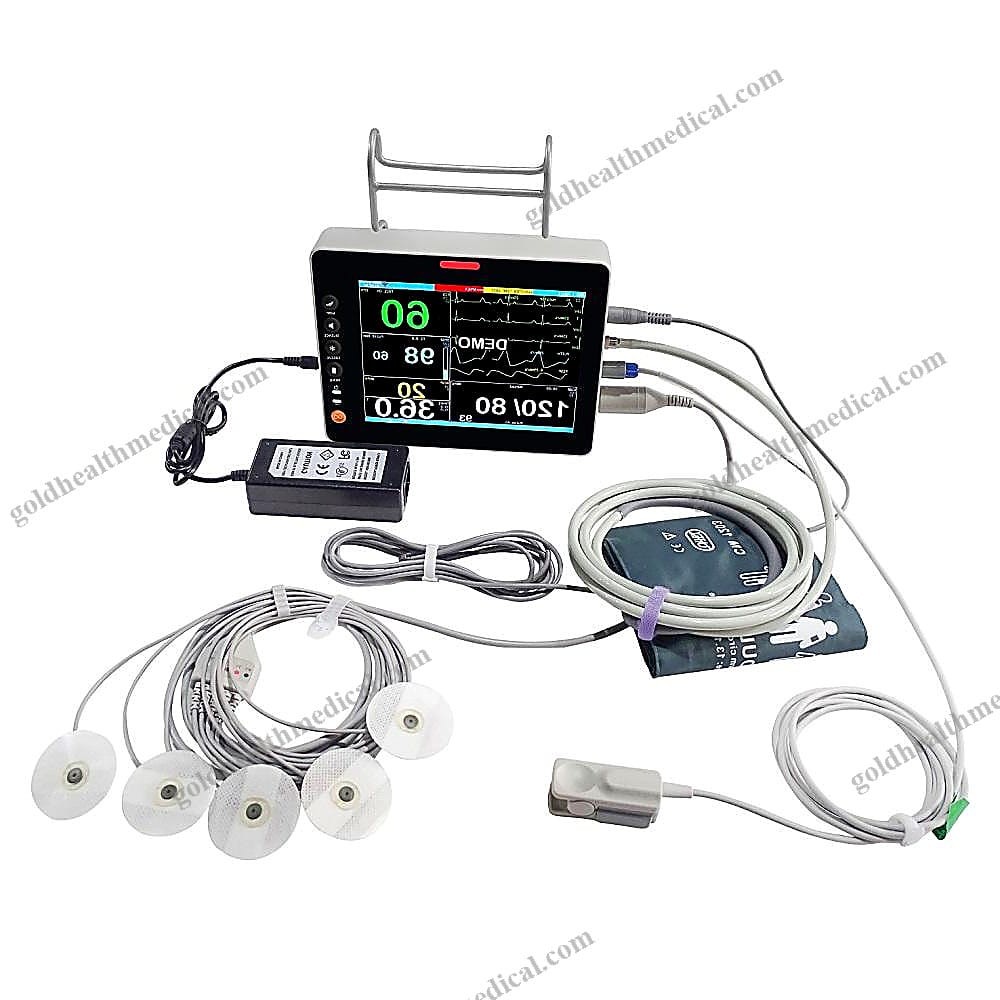

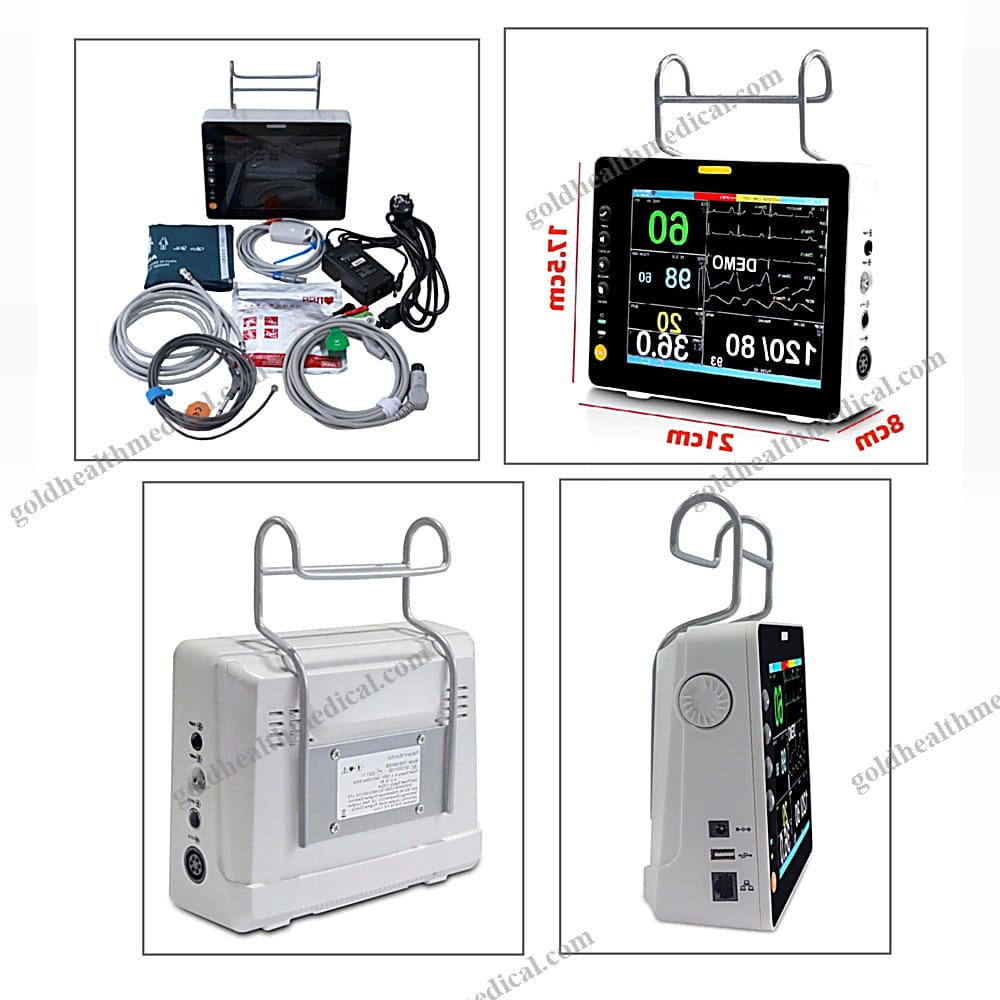

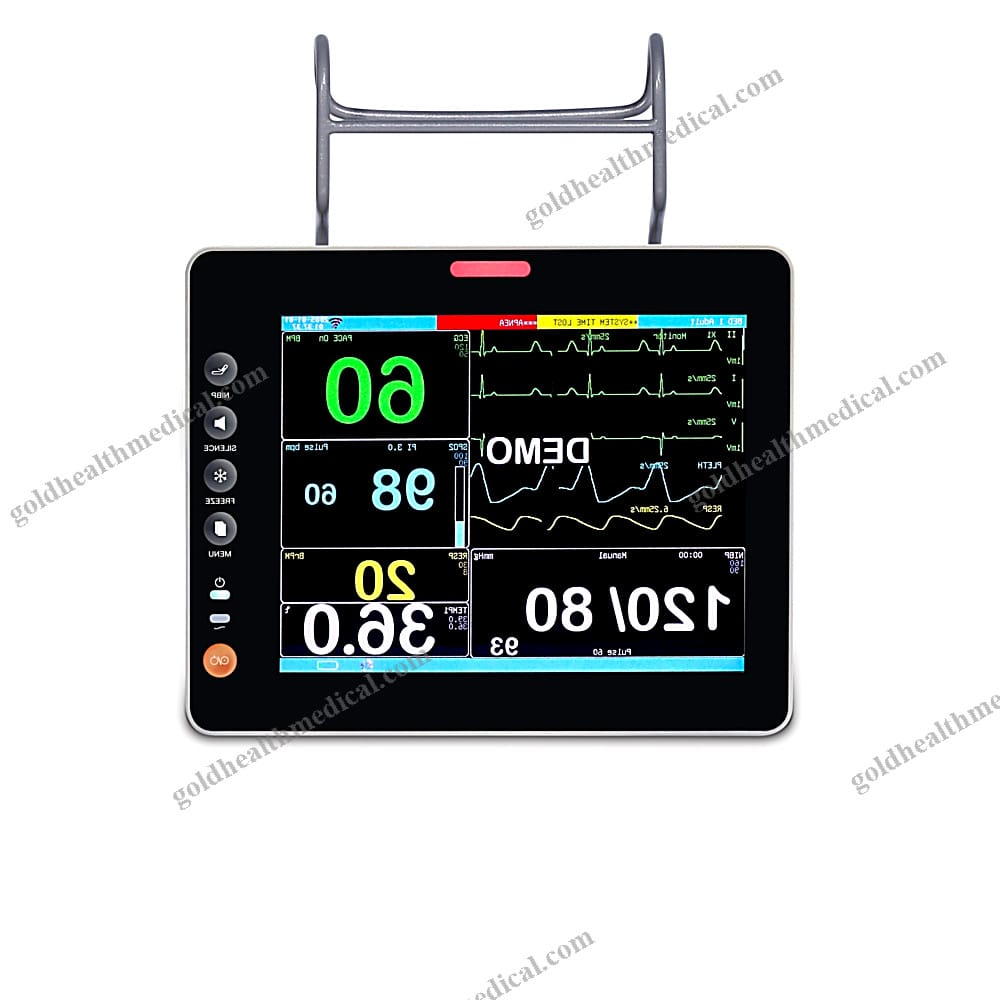

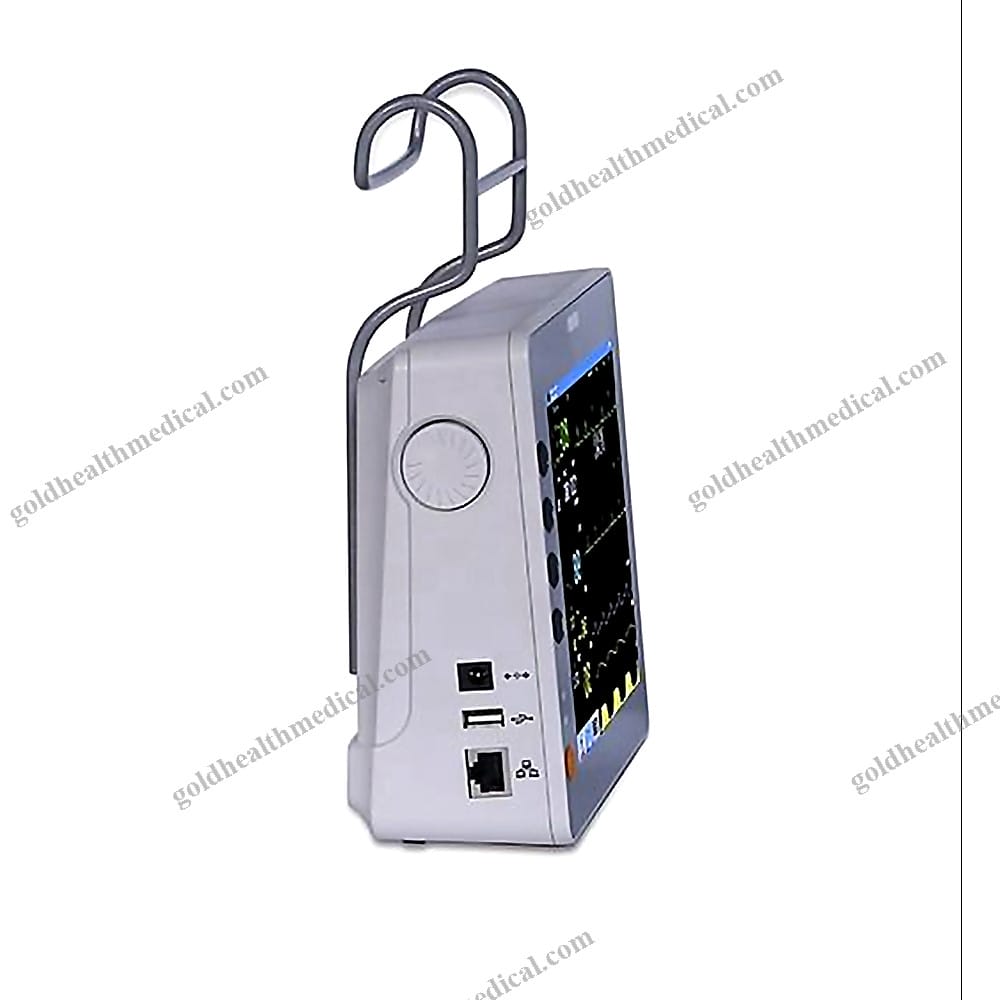

- Advanced Monitoring Technology: Equipped with a vibrant 8-inch TFT LCD display, this monitor delivers real-time, accurate readings of critical patient vitals.
- Standard 6 Parameters: Seamlessly tracks ECG, SPO2, PR, RESP, TEMP, and NIBP, ensuring comprehensive patient monitoring.
- Optional Enhancements: Expand functionality with optional parameters such as ETCO2, 2-IBP, Wall Mount, Trolley, or CMS integration.
- Portable and Rechargeable: Designed for mobility, this lightweight device is perfect for use in hospitals, ICUs, clinics, and even home care environments.
Key Features
- Material: Durable, high-quality plastic construction ensures longevity and resilience.
- Instrument Classification: Class II medical device, engineered for safety and performance.
- Power Source: Electric with rechargeable capability for uninterrupted operation.
- Color: Sleek black design for a professional aesthetic.
Technical Specifications
- Shelf Life: 1 year
- Quality Certification: ISO-certified for reliability and compliance with global standards.
- Packing Details:
- Package Dimensions: 29 x 25 x 23 cm
- Single Package Size: 27 x 23 x 20 cm
- Gross Weight: 2.5 kg
- Supply Ability: Up to 500 units per month, ensuring consistent availability for bulk orders.
Applications
- Hospitals and ICUs
- Clinics and laboratories
- Rehabilitation centers and nursing homes
- Home healthcare settings
After-Sale Support
- Warranty: Comprehensive 1-year warranty for peace of mind.
- Service: Hassle-free return and replacement policy to ensure customer satisfaction.
GoldHealth Medical’s Patient Monitor is the ultimate solution for healthcare professionals seeking precision, portability, and versatility in patient monitoring. Elevate your facility’s capabilities with a device designed to meet the demands of modern medicine.
