7 LCD Touch Screen 400W Electrosurgical Generator with
Reference: 11000018111724
Abdominal Surgery Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

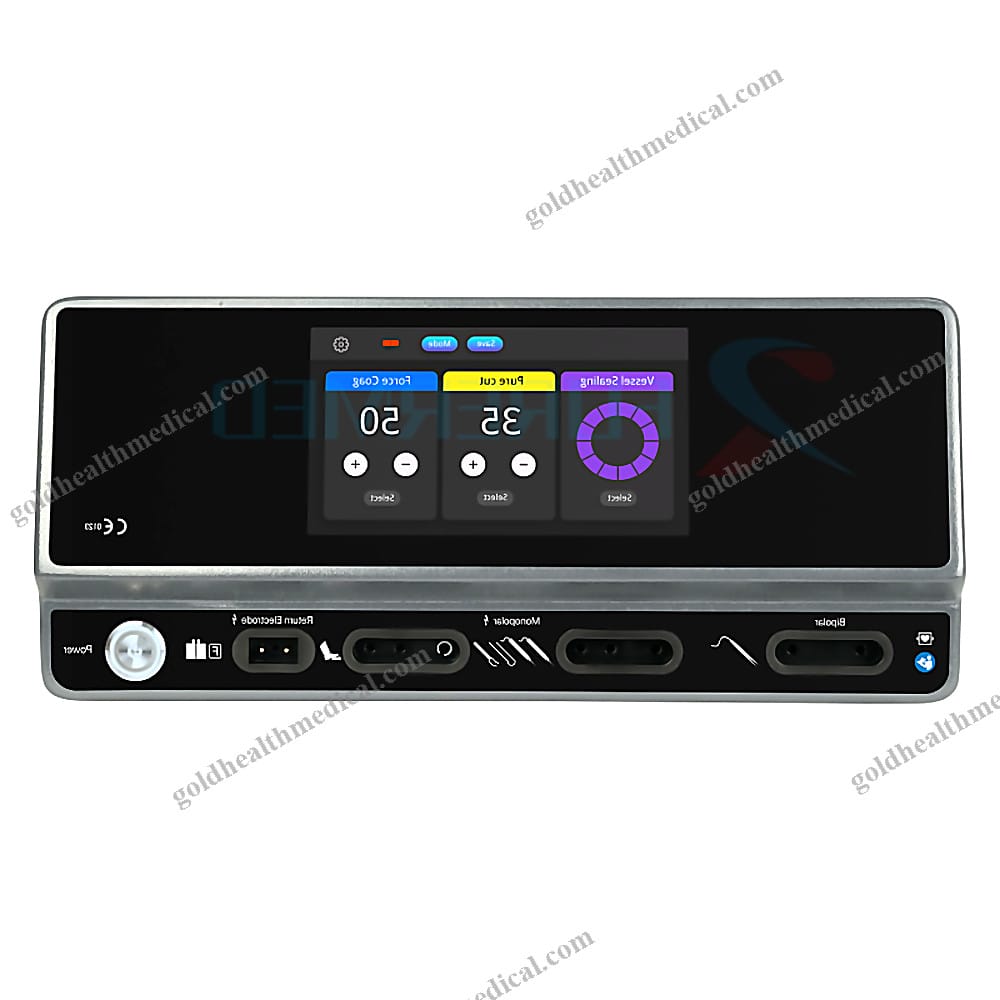

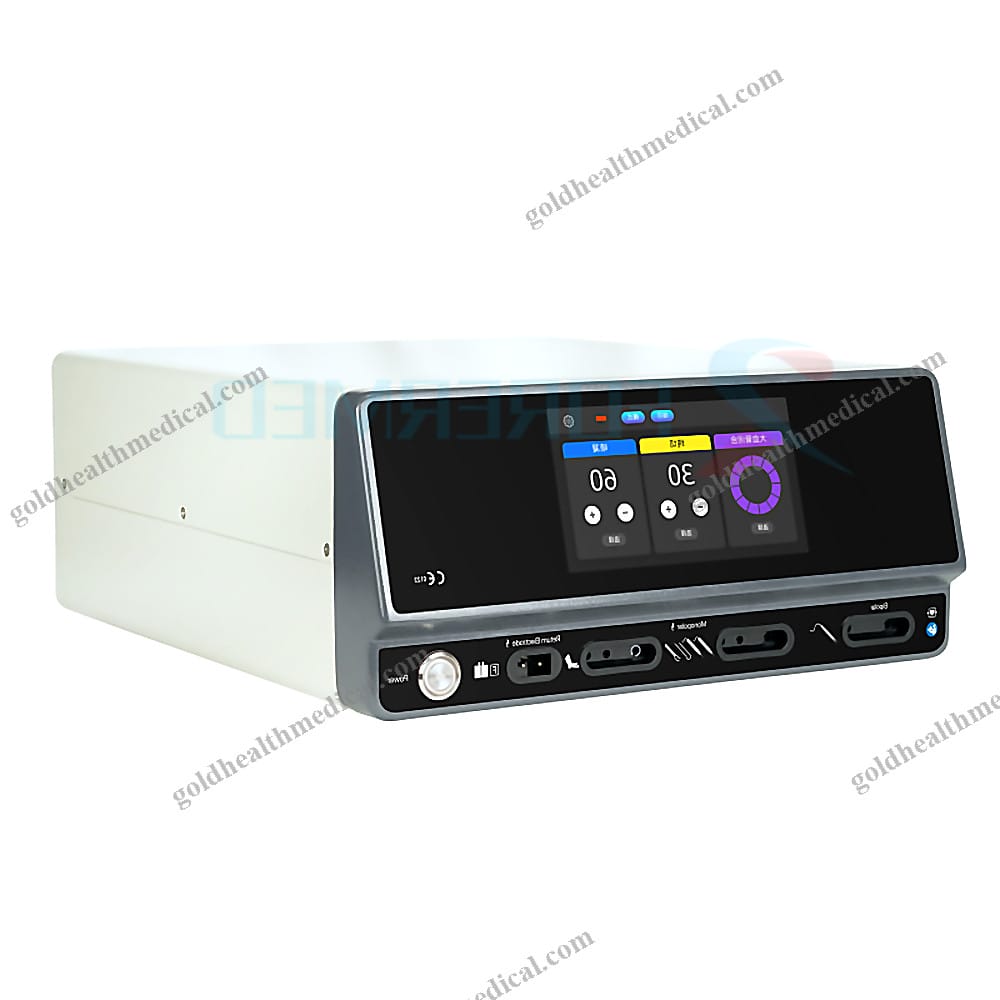

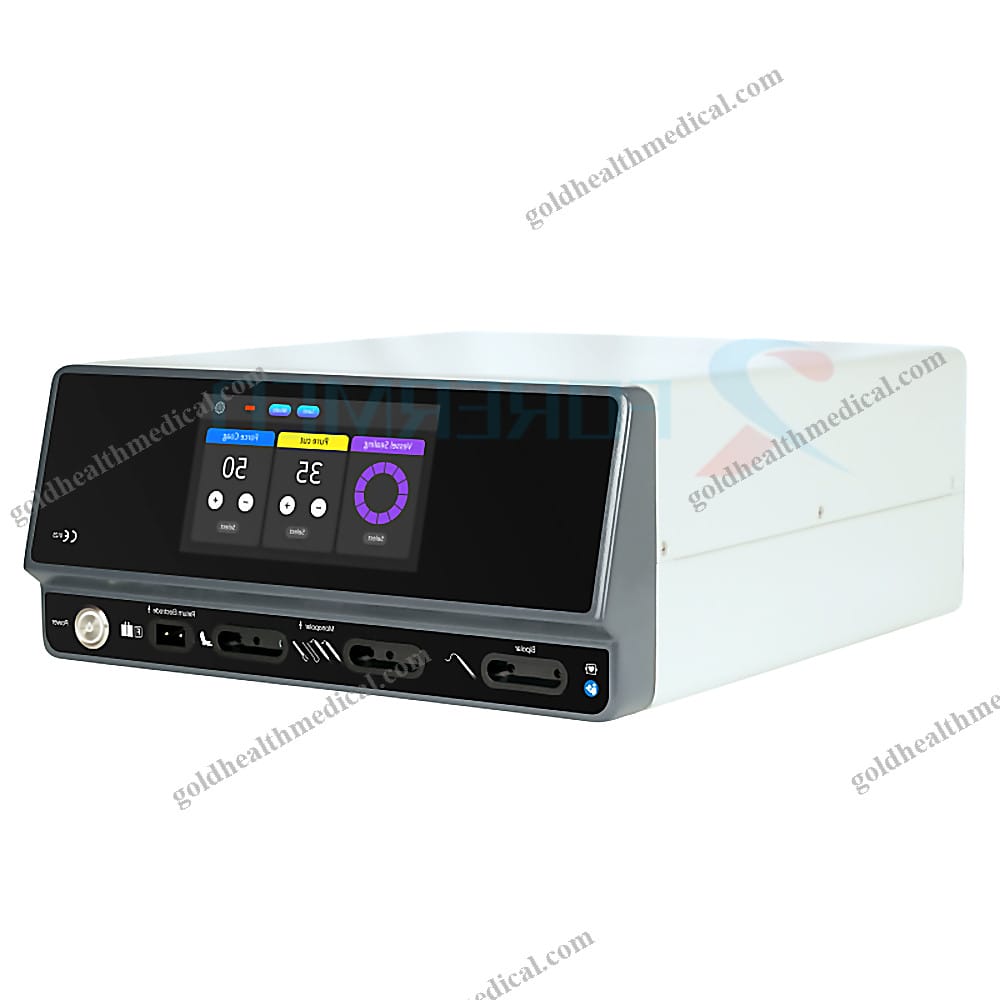

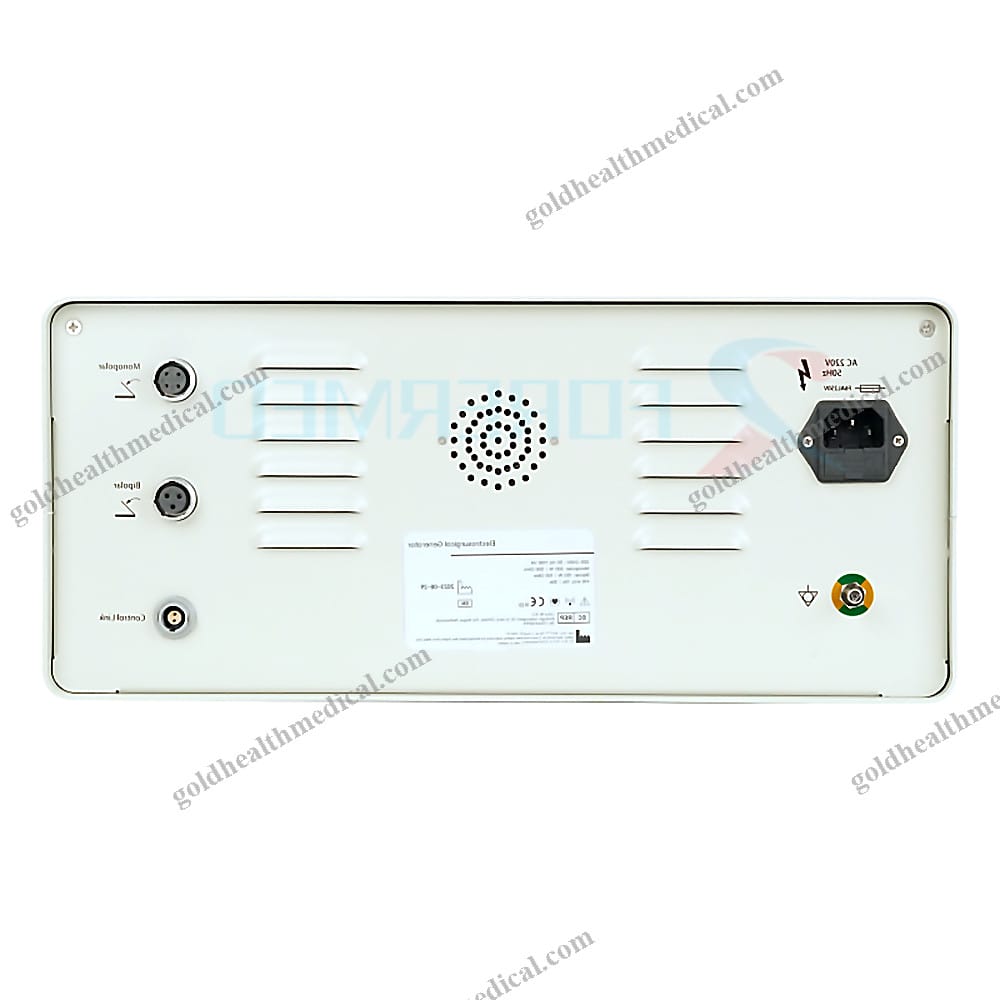

GoldHealth Medical Electrosurgical Generator
Engineered for precision and versatility, the GoldHealth Medical Electrosurgical Generator is designed to meet the demands of modern surgical environments. With its advanced features and intuitive interface, this device sets a new standard in electrosurgical technology.
Key Features
- 7-Inch Touch Screen: A responsive interface for seamless operation and real-time parameter adjustments.
- Dual Monopolar Output Ports: Supports multiple cutting modes including Pure Cut, Blend 1, Blend 2, and Blend 3.
- Advanced Coagulation Options: Offers Spray Coag, Forced Coag, and Soft Coag for precise tissue management.
- Triple Bipolar Output Modes: Includes Vessel Sealing, Standard, and Precise modes for enhanced versatility.
- COM Contact Quality Monitoring System: Ensures optimal contact quality for consistent performance.
- Simultaneous Cut and Coag: Controlled via electrosurgical pens and foot switch for uninterrupted workflow.
- Memory Functionality: Save up to 9 custom modes for quick access to preferred settings.
- Quick Power and Volume Adjustment: Simplifies operation during critical procedures.
- Intermittent Cut and Coag: Provides controlled energy delivery for delicate applications.
Technical Specifications
Monopolar Modes
- Pure Cut
- Max Output Power: 400W
- Load Impedance: 500Ω
- Max Output Voltage: 1300V
- Crest Factor: 1.8
- Blend 1
- Max Output Power: 250W
- Load Impedance: 500Ω
- Modulation Frequency: 20kHz
- Max Output Voltage: 1400V
- Crest Factor: 2.0
- Blend 2
- Max Output Power: 200W
- Load Impedance: 500Ω
- Modulation Frequency: 20kHz
- Max Output Voltage: 1300V
- Crest Factor: 2.0
- Blend 3
- Max Output Power: 150W
- Load Impedance: 500Ω
- Modulation Frequency: 20kHz
- Max Output Voltage: 1400V
- Crest Factor: 1.9
- Spray Coag
- Max Output Power: 120W
- Load Impedance: 500Ω
- Modulation Frequency: 12-24kHz
- Max Output Voltage: 4800V
- Crest Factor: 6.3
- Forced Coag
- Max Output Power: 120W
- Load Impedance: 500Ω
- Modulation Frequency: 25kHz
- Max Output Voltage: 4800V
- Crest Factor: 6.2
- Soft Coag
- Max Output Power: 120W
- Load Impedance: 500Ω
- Modulation Frequency: 20kHz
- Max Output Voltage: 1000V
- Crest Factor: 2.0
Bipolar Modes
- Vessel Sealing
- Max Output Power: 150W
- Load Impedance: 100Ω
- Modulation Frequency: 20kHz
- Max Output Voltage: 700V
- Crest Factor: 1.9
- Standard
- Max Output Power: 100W
- Load Impedance: 100Ω
- Modulation Frequency: 20kHz
- Max Output Voltage: 700V
- Crest Factor: 1.9
- Fine
- Max Output Power: 50W
- Load Impedance: 100Ω
- Modulation Frequency: 20kHz
- Max Output Voltage: 400V
- Crest Factor: 1.9
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals. Our electrosurgical generator combines cutting-edge technology with user-centric design, ensuring reliability, precision, and ease of use in every procedure. Whether in hospitals, clinics, or specialized research environments, our products are engineered to exceed expectations and enhance patient outcomes.
Experience the difference with GoldHealth Medical—where innovation meets excellence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Electrosurgical Generator
Brand: GoldHealth Medical
Product Overview
The Electrosurgical Generator by GoldHealth Medical is a state-of-the-art device designed for precision and reliability in cutting and coagulation procedures. Engineered with advanced technology, this portable and versatile system is ideal for hospitals, clinics, laboratories, and home healthcare settings. Its sleek design and robust performance make it an indispensable tool for medical professionals seeking efficiency and safety in surgical applications.
Key Features
- Precision and Control: Achieve unparalleled accuracy with a ±0.25D tolerance, ensuring consistent and reliable results.
- Versatile Modes: Equipped with 10 operational modes, offering flexibility for a wide range of surgical needs.
- Max Output Power: Delivers up to 400W for efficient cutting and coagulation.
- Foot Switch Control: Ergonomic foot pedal for seamless operation, allowing hands-free control during procedures.
- Portable Design: Compact and lightweight (15 kg), making it easy to transport and set up in various environments.
Technical Specifications
- Power Supply: AC100~240V, compatible with global electrical standards.
- Instrument Classification: Class II medical device, ensuring safety and reliability.
- Safety Standard Compliance: EN 149-2001+A1-2009 certified for respiratory protection.
- Material: Durable metal construction for long-lasting performance.
- Shelf Life: 1 year from the date of manufacture.
Packaging Details
- Single Package Size: 56 x 54 x 50 cm
- Single Gross Weight: 15.000 kg
Warranty and Support
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support, ensuring uninterrupted performance and assistance when needed.
Quality Assurance
- Certifications: CE-certified, meeting international quality and safety standards.
- Place of Origin: Proudly manufactured in Henan, China, with meticulous attention to detail and quality.
GoldHealth Medical’s Electrosurgical Generator is more than just a device—it’s a commitment to excellence in healthcare. Elevate your surgical capabilities with a tool designed to deliver precision, reliability, and innovation.
