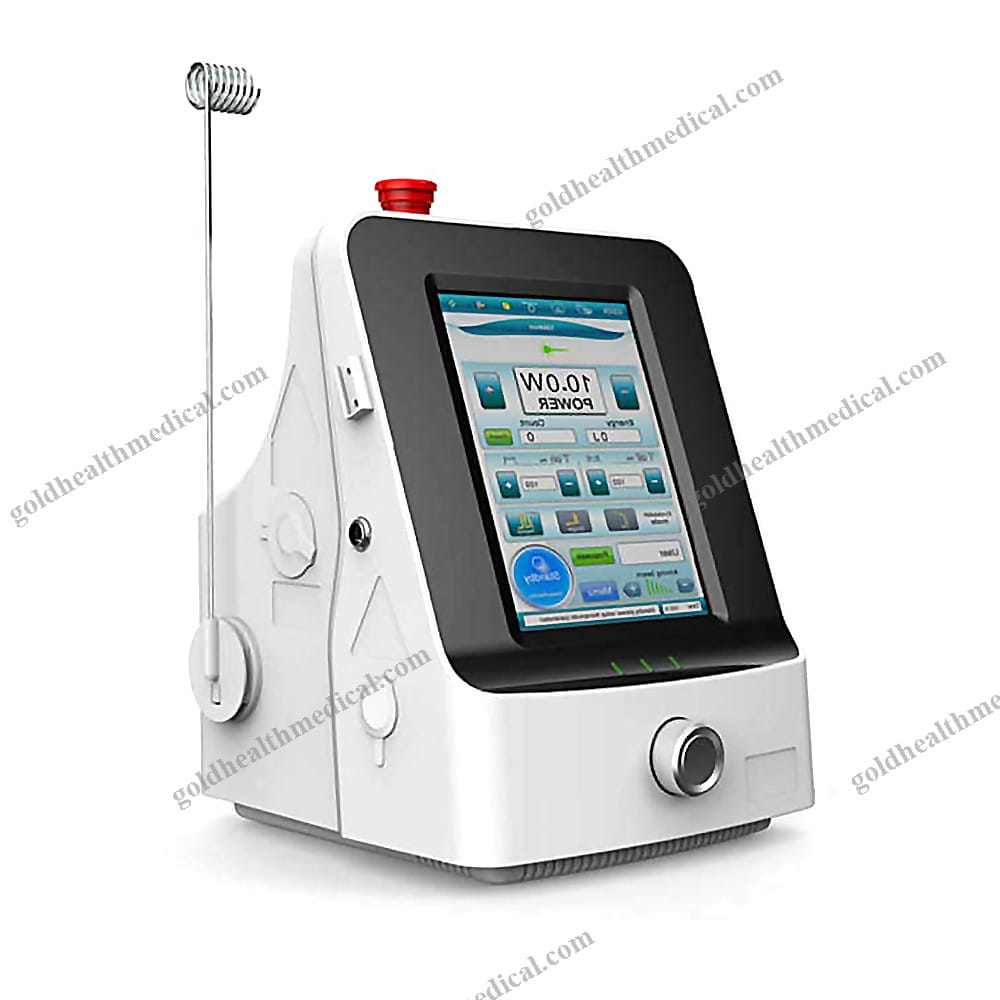

20W 980nm Medical Laser Liposuction Machine
Reference: 1600698833979
Medical Laser Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Lipolysis with Advanced Laser Technology
Why Choose Our 1470nm Laser for Lipolysis?
The peak absorption point for fat tissue is 1500nm. Lasers closer to this wavelength, such as our 1470nm laser, achieve superior fat absorption even at lower power levels. This minimizes side effects like carbonization, skin perforation, and hematomas. Currently, lasers ranging from 1320nm to 1470nm are recognized as the safest and most effective on the market. Additionally, our 1470nm laser excels in skin tightening procedures due to its high absorption in tissue water, resulting in more tightened skin post-lipolysis compared to 1000nm lasers, with minimal risk of perforation.
Technical Specifications
- Laser Type: GaAlAs Diode Laser
- Wavelength: 1470nm
- Maximum Power: 15W
- Operation Mode: Continuous Wave (CW), Pulsed
- Pulse Duration: 10µs–3s
- Repetition Rate: 0.2Hz–20kHz

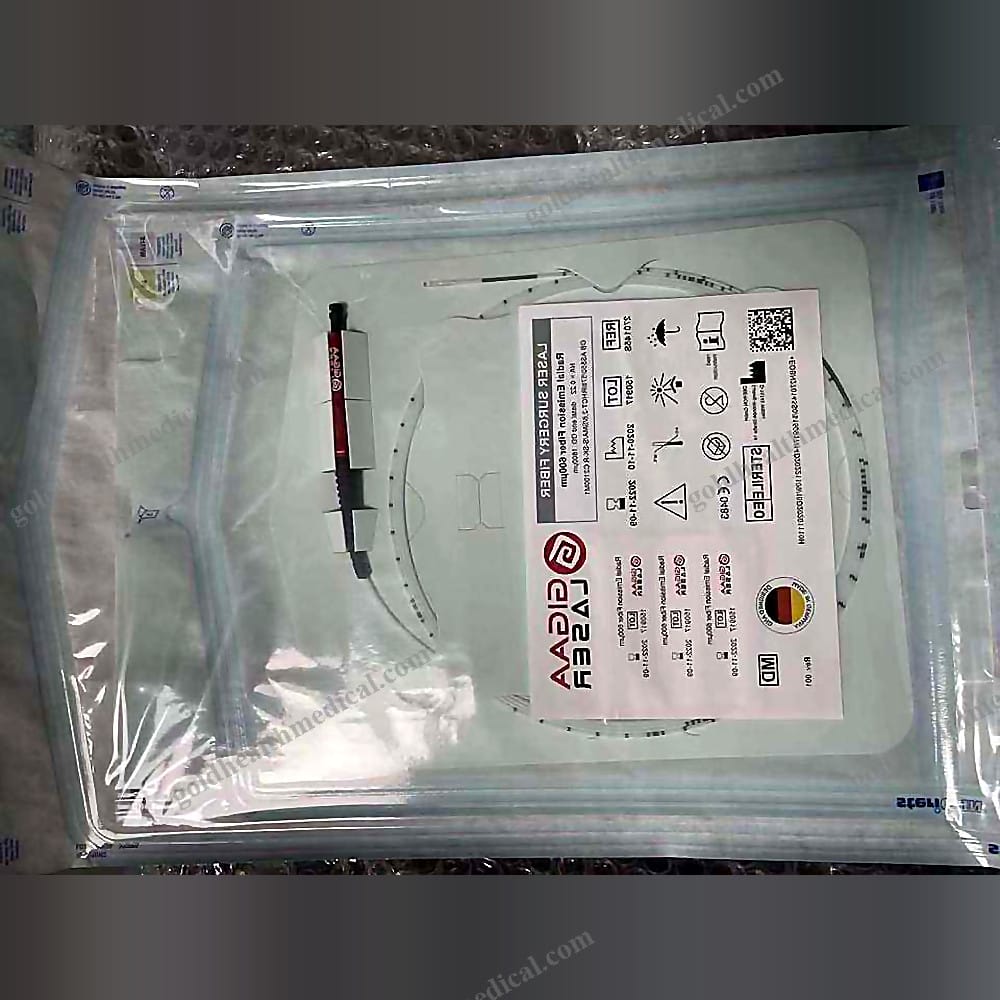

- Transmission System: Optical fibers of 400μm, 600μm with SMA905 connector
- Pilot Beam: Red diode laser of 635nm, power <5mW
- Control Mode: True color touch screen
- Voltage/Current Rating: 110/220VAC, 2A, 50/60Hz
- Dimensions: 400(W) x 385(L) x 200(H) mm
- Weight: 12.9kg
Clinical Explanation
Laser lipolysis is a non-invasive liposculpture procedure designed to remove fat from areas such as the abdomen, thighs, buttocks, neck, and arms. The laser energy is transmitted and absorbed by adipocytes, causing volume expansion and rupture. This process achieves selective adipose damage while facilitating fat removal, enhancing hemostasis, and promoting skin tightening.
Recommended Power Settings for Different Areas
- Chin, Arm, Knee: ~6W
- Abdomen, Back: ~10W
- Thigh, Hips, Buttock: ~15–18W
Operation Procedure
- Mark the treatment site with a surgical marker and prepare the area in a sterile manner.
- Administer local anesthesia (adrenaline 1:500,000) using the wet infiltration technique.
- After infiltration of the tumescent fluid, make a small incision of 1–2mm using an 18G needle.

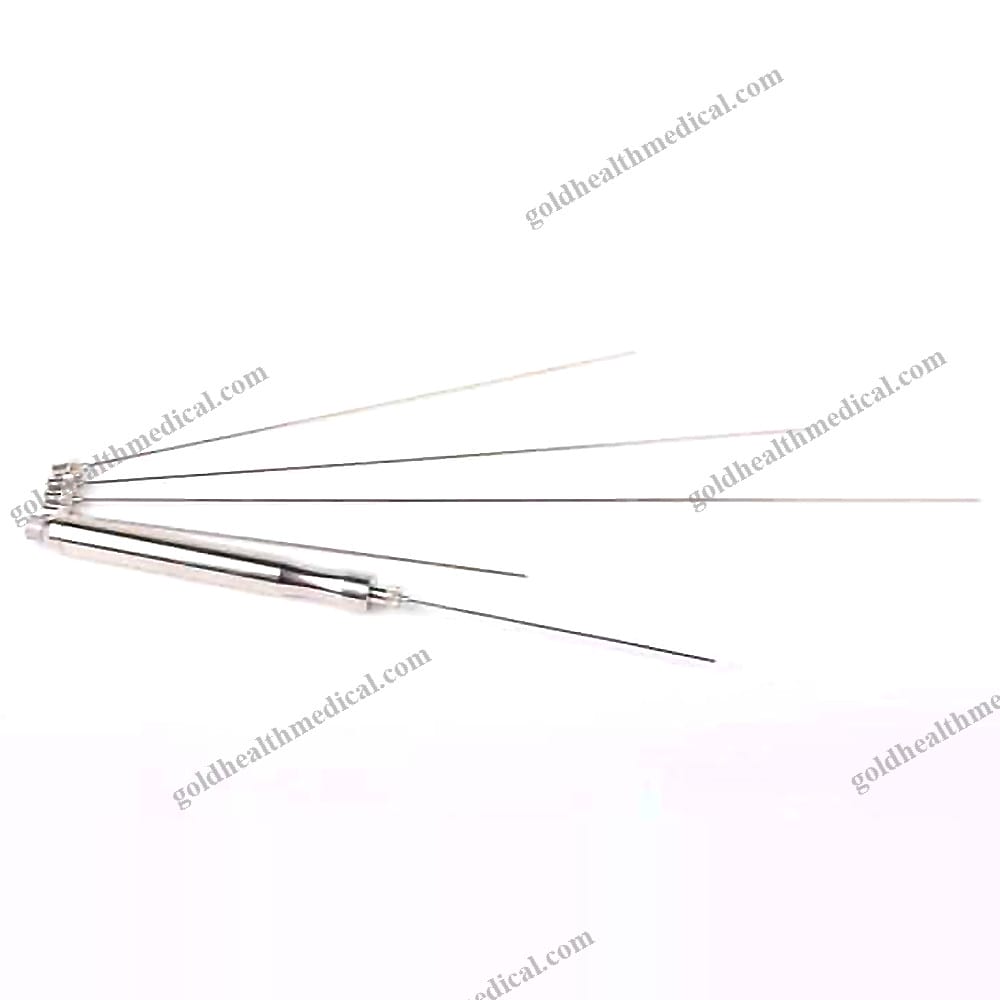

- Insert the fiber into the lipolysis handpiece and then insert the handpiece through the incision into the subcutaneous fat.
- Start the device, set the parameters, and wear laser safety goggles during the operation. Use the red pilot beam to guide the emission of laser energy to melt the fat.
- Move the handpiece back and forth in the fat layer in a vertical plane parallel to the surface. Repeat this motion 10–15 times while maintaining the same horizontal plane.
- After completing 10–15 back-and-forth motions, move the cannula to an adjacent area and repeat the process until the entire area has been treated.
- Use a 3mm cannula or massage immediately to extract the liquefied fat.
- Apply tape after the operation and keep it in place for one week.
Advantages
- Minimally invasive with no swelling, infection, burns, hypo-pigmentation, bruising, or edema.
- Excellent patient tolerance and quick recovery time.
- Reduces downtime, decreases operation fatigue, minimizes bleeding, and promotes skin contraction.
- Local anesthesia ensures enhanced safety.
Product Properties
- Place of Origin: China, Zhejiang
- Power Source: Electric
- Warranty: 1 Year
- Material: Metal, Plastic, Steel
- Shelf Life: 1 Year
- Quality Certification: CE
- Instrument Classification: Class II
- Safety Standard: MFDS
- Function: Surgery Medical
- Application: Weight Loss
Unique Selling Points
GoldHealth Medical’s 1470nm laser stands out for its precision, safety, and dual benefits of fat removal and skin tightening. Designed for professionals who demand excellence, this device combines cutting-edge technology with user-friendly features to deliver unparalleled results. Whether for clinical
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the cutting-edge 15W Laser Lipolysis device, a revolutionary solution for weight loss and microsurgery applications.
Product Highlights
- Advanced Dual Wavelength Technology: Equipped with 980nm and 1470nm wavelengths, this device ensures precise and efficient fat reduction with minimal invasiveness.
- Powerful Performance: Delivers up to 30W of power, making it ideal for both surgical and non-surgical procedures.
- Compact and Durable Design: Weighing just 10kg, the device is constructed with high-quality materials including metal, plastic, and steel, ensuring long-lasting reliability.
- Class II Medical Instrument: Meets stringent safety standards, including MFDS and CE certifications, guaranteeing safe and effective operation.
Key Features
- Functionality: Specifically designed for surgery and medical microsurgery equipment applications.
- Application: Perfect for weight loss treatments, offering a non-invasive alternative to traditional liposuction.
- Shelf Life: 1 year, ensuring consistent performance and reliability.
Technical Specifications
- Power Source: Electric
- Wavelength Options: 980nm, 1470nm
- Weight: 10kg
- Package Dimensions: 98 x 45.5 x 63.5 cm
- Gross Weight (Packaged): 19kg
Packaging and Delivery
- Packaging Details: Each unit is securely packed in a single carton.
- Port Options: Shanghai or Ningbo
After-Sales Support
- Warranty: Comprehensive 1-year warranty for peace of mind.
- Service: Access to online technical support, ensuring seamless operation and troubleshooting.
Supply Capability
- Monthly Supply: Up to 1000 units available per month, catering to large-scale demands from hospitals, clinics, and research institutions.
GoldHealth Medical’s 15W Laser Lipolysis device combines precision, power, and safety, setting a new benchmark in the field of medical aesthetics and microsurgery. Elevate your practice with a device that delivers exceptional results every time.
