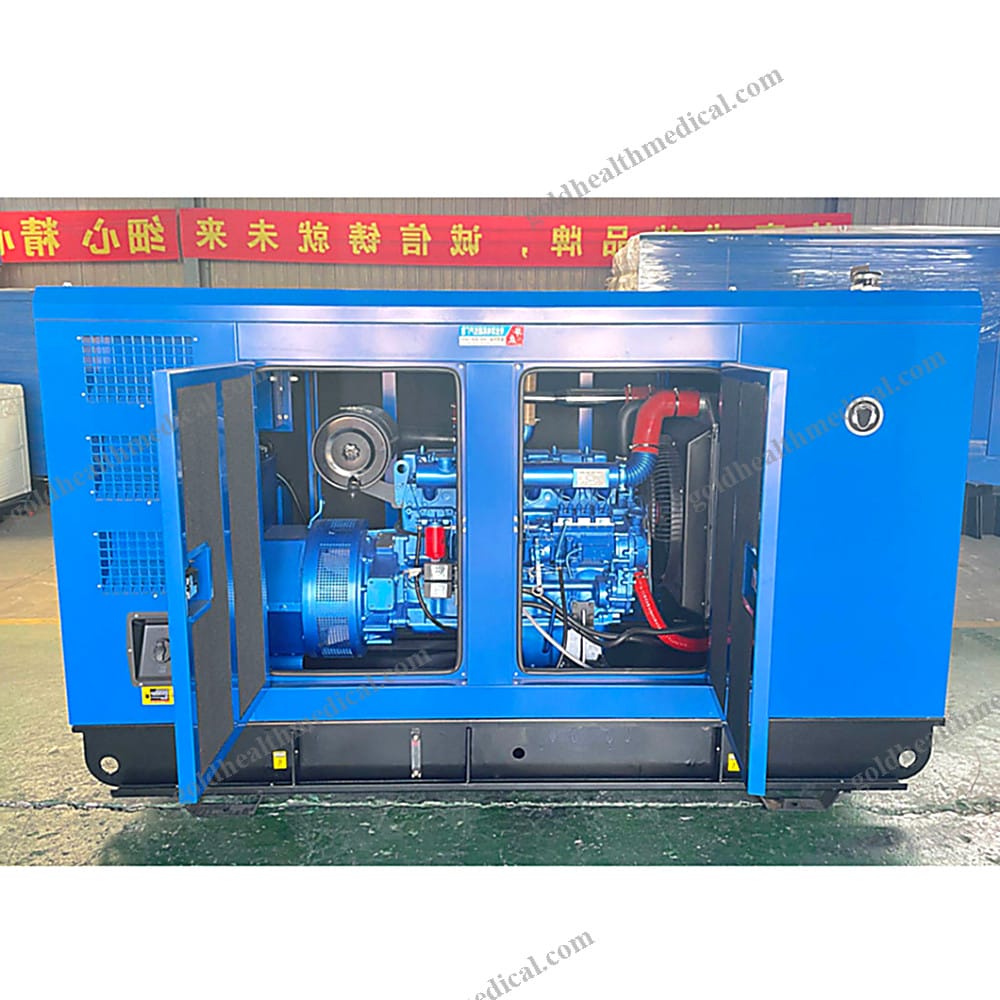

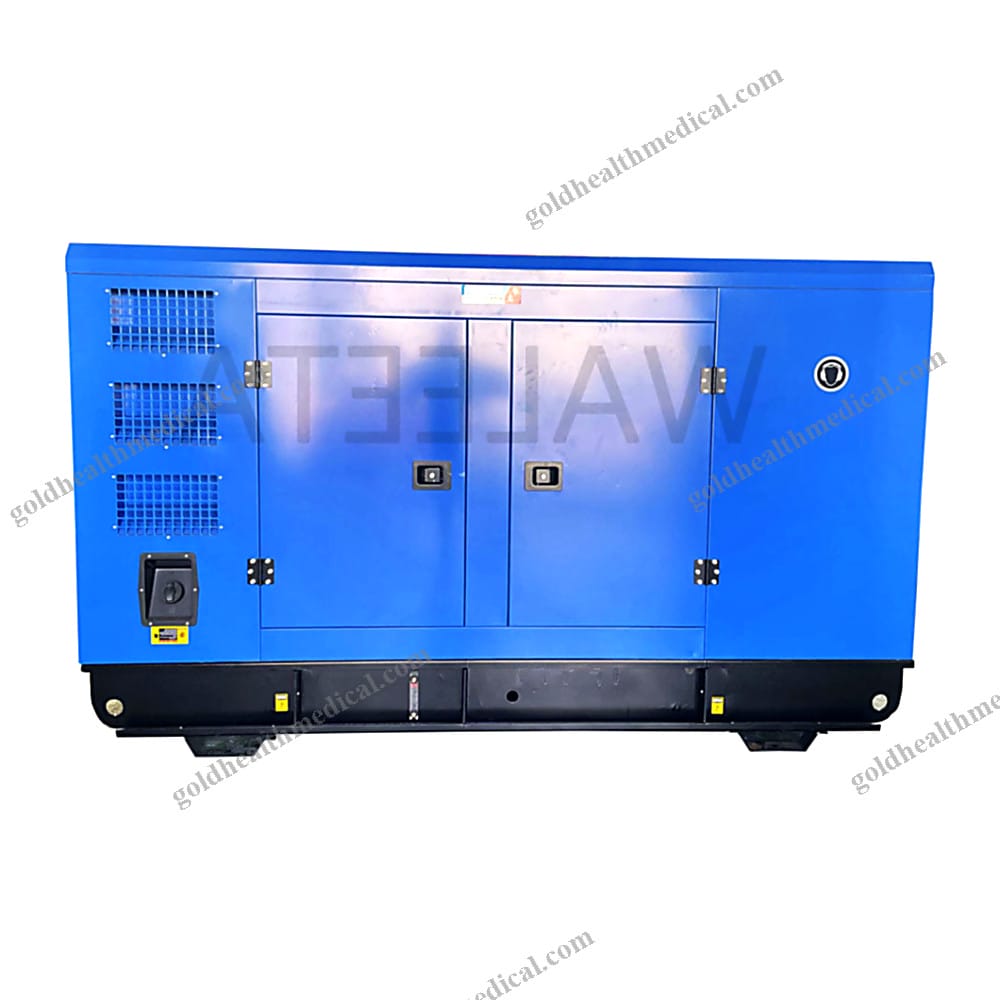

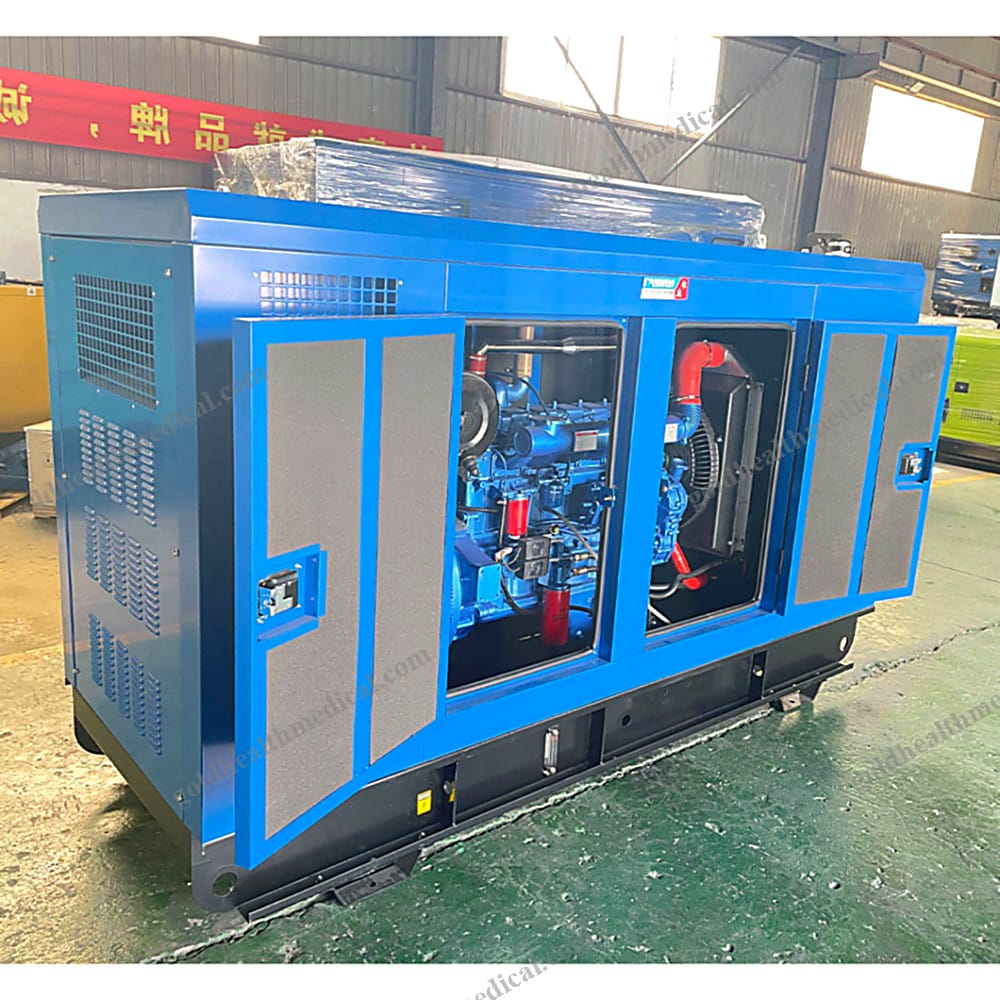

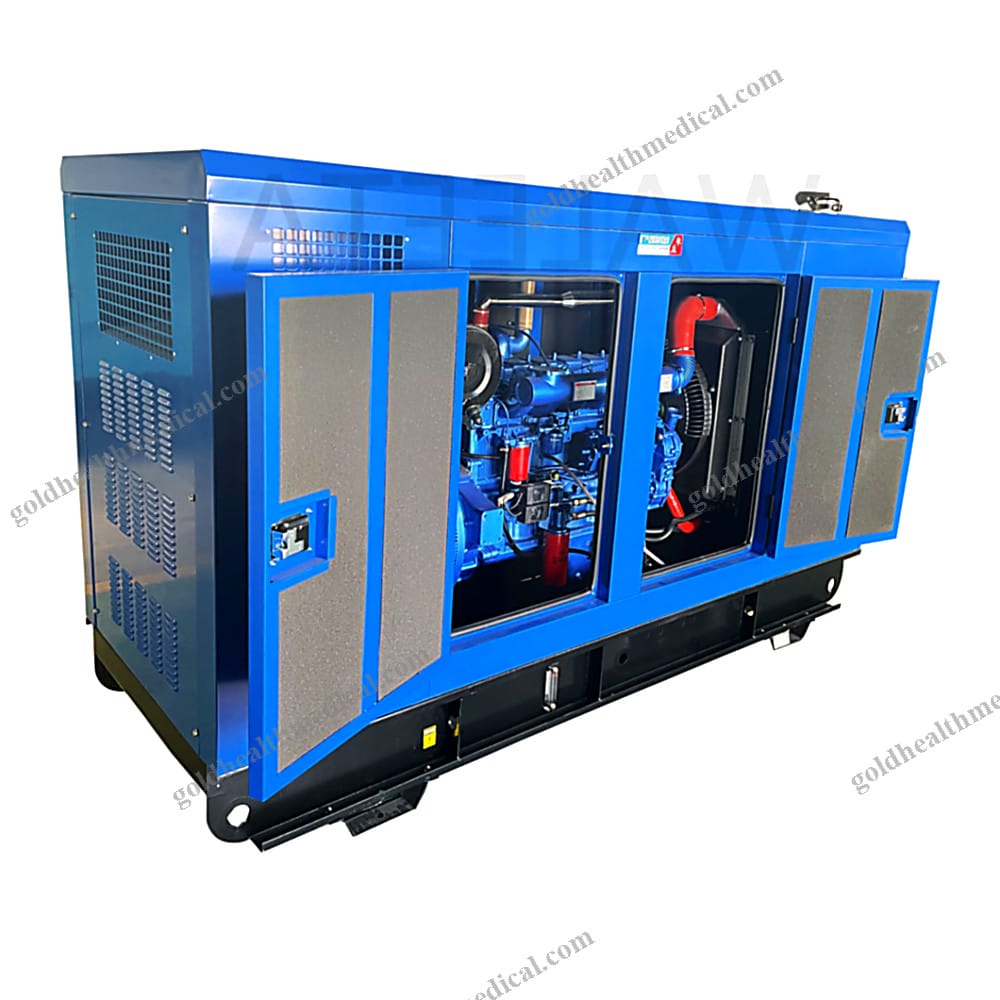

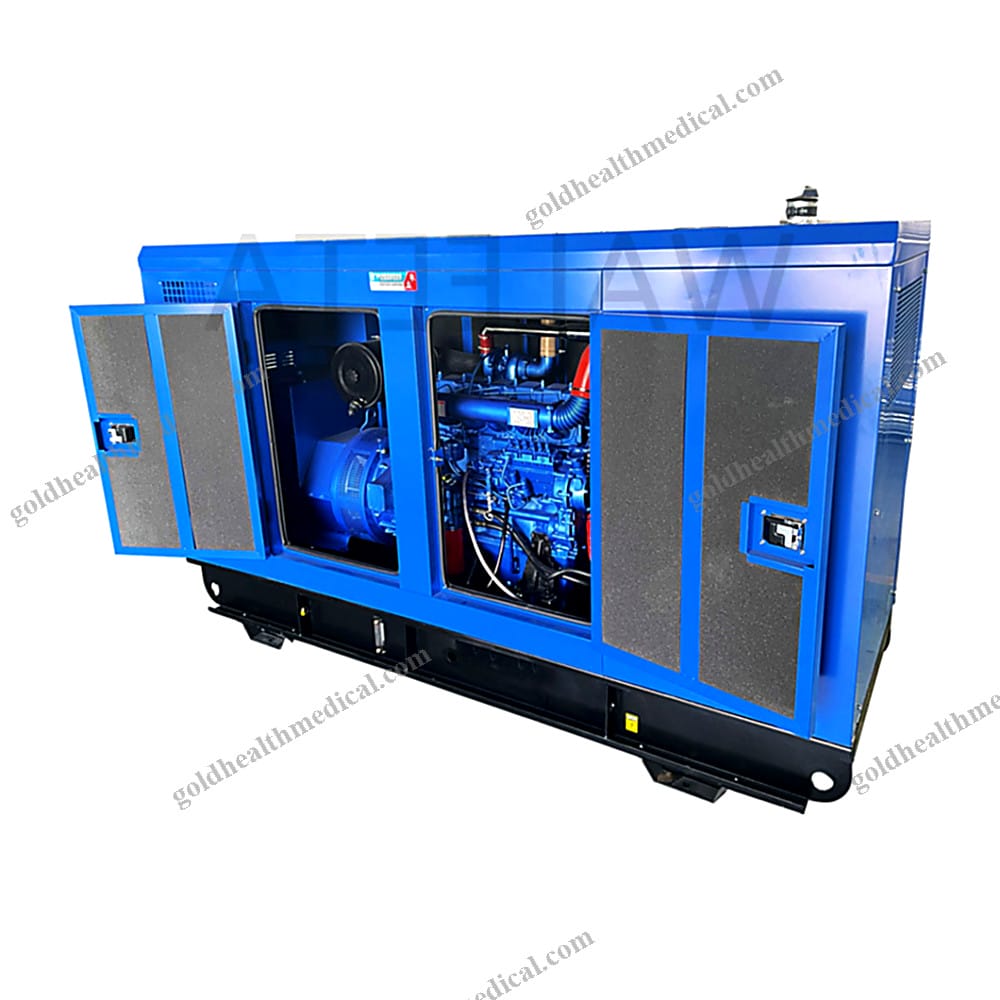

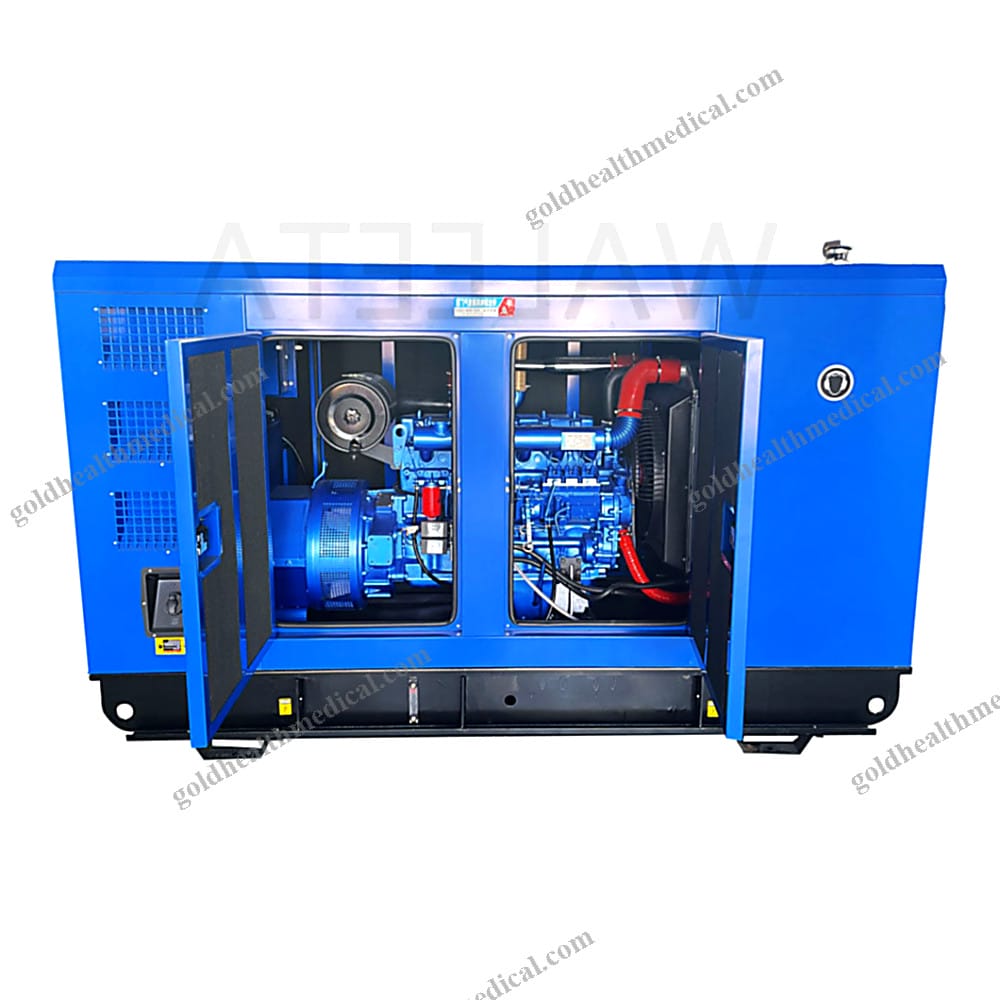

100KW 125KVA Diesel Generator for Hospital
Reference: 1601240404766
Hospital Furniture
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Three Phase Silent Diesel Generator
GoldHealth Medical presents a cutting-edge Three Phase Silent Diesel Generator, designed to deliver exceptional performance and reliability for a wide range of medical and industrial applications. Engineered with precision, this generator combines advanced technology with user-centric features to ensure seamless operation under demanding conditions.
Engine: Power and Efficiency Combined
- Advanced Injection Technology: Utilizes direct injection with turbocharged intercooling for optimal air intake, ensuring complete combustion and reduced fuel consumption.
- Electronically Controlled Fuel Injection: Delivers stable operation, excellent speed regulation, and robust load-handling capabilities.
- Electric Pre-Oil Supply: Protects moving parts, extending engine life and enhancing durability.
Generator: Unmatched Stability and Precision
- Brushless AC Design: Employs a 2/3 winding pitch to minimize excessive neutral line current, ensuring consistent performance.
- Maintenance-Free Bearings: Equipped with sealed bearings and an IP23 protection level for long-lasting reliability.
- Superior Voltage Regulation: Features EVR308AVR excitation with ±0.5% voltage regulation, delivering stable output at 400/230V, 3Ph, 50Hz, and 1500Rpm.
Cooling System: Engineered for Extreme Conditions
- High-Efficiency Radiator: Designed to meet heat dissipation demands in ambient temperatures up to 50°C.
- Corrosion-Resistant Materials: Adapts to various water qualities while maintaining compact dimensions and lightweight design.
- Enhanced Safety: Includes a protective shield for comprehensive coverage during operation.
Control System: Intelligent and User-Friendly
- Microprocessor-Based Core: Allows flexible parameter settings via intuitive panel buttons.
- Comprehensive Monitoring: Displays critical metrics such as battery voltage, engine speed, water temperature, oil pressure, and runtime.
- Customizable Programming: Supports multiple sensor types and accelerator configurations, ensuring adaptability to diverse operational needs.
- DIN72 Standard Housing: Simplifies installation, maintenance, and replacement through lockable pin terminals.
Silent Sound Body: Compact and Reliable
- Human-Centric Design: Combines a sleek, modern aesthetic with a compact footprint for space efficiency.
- Low Emissions and Fuel Consumption: Engineered for eco-friendly performance without compromising power output.
Key Engine Parameters
- Type: Four-stroke, water-cooled, in-line, direct injection
- Rated Power: 100kW at 1500Rpm
- Cylinders: 4
- Bore x Stroke: 105mm x 118mm
- Fuel Consumption: ≤195g/kWh
- Displacement: 4.087 liters
- Cooling Method: Closed water cooling
- Lubrication: Combined pressure and splash
- Starting Method: Electric starter
Accessories: Comprehensive and Ready-to-Use
Includes battery cables, mufflers, filters, oil inlet/outlet pipes, engine oil, batteries, antifreeze, documentation, and specialized tools.
GoldHealth Medical’s Three Phase Silent Diesel Generator stands out with its innovative engineering, robust build quality, and adaptability to diverse environments. Whether for hospitals, research labs, or remote facilities, this generator ensures uninterrupted power supply with minimal environmental impact. Elevate your operations with a solution designed to meet the highest standards of performance and reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge power solution designed to meet the rigorous demands of modern healthcare and research environments. Engineered for reliability, precision, and efficiency, this product ensures uninterrupted performance in critical applications such as hospitals, laboratories, and rehabilitation centers. Its robust design and advanced features make it an ideal choice for both professional and home healthcare settings.
Key Features and Specifications
- Material: Constructed from high-grade metal for enhanced durability and heat resistance.
- Standby Power: Delivers an impressive 100KW/125KVA to support high-demand medical equipment.
- Voltage: Operates at 400V/240V, ensuring compatibility with a wide range of devices.
- Frequency: Optimized for 50Hz operation, providing stable and consistent power output.
- Current: Supports up to 180A, enabling seamless functionality for power-intensive applications.
Warranty and Support
- Backed by a 1-Year Warranty, guaranteeing peace of mind and long-term reliability.
- Comprehensive Online Technical Support available to address any operational or technical queries.
Why Choose GoldHealth Medical?
Our product stands out with its unparalleled performance, precision engineering, and commitment to quality. Designed to empower healthcare professionals and enhance patient care, it is the ultimate power solution for demanding environments. Choose GoldHealth Medical for innovation you can trust.
