ZG2 DualScreen HighBrightness Medical LED Negatoscope
Reference: 1600057671291Medical X-Ray Protective Products
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents the Two-Screen High-Brightness Medical LED Negatoscope – a cutting-edge X-ray film viewer designed for precision and reliability in medical imaging.
Product Highlights
- Ultra-Slim Design: Engineered for modern medical environments, this LED negatoscope combines sleek aesthetics with advanced functionality.
- Superior Brightness: Equipped with high-performance SMD LEDs, it delivers exceptional clarity with a color temperature of ≥8000K and a luminance range of 0–4500 cd/m².
- Long Lifespan: Featuring 144 LEDs per bank, the light source boasts a lifespan exceeding 100,000 hours, ensuring uninterrupted performance.
- PWM Dimming System: A digital dimming system allows continuous modulation from 1% to 100%, offering precise control over brightness levels.
- Automatic Film Detection: The panel intelligently activates when a film is inserted and powers off when removed, enhancing efficiency and energy savings.
- Uniform Illumination: Achieves ≥90% uniformity, providing consistent brightness across the viewing area for accurate diagnostics.
- Eye Protection: Designed with a low-voltage PWM system to reduce eye strain during prolonged use.
- Advanced Materials: Utilizes imported acrylic panels and high-quality components for durability and clarity.
Technical Specifications
- Dimensions (L×W×H mm): 840×502×38
- Visual Area (L×W mm): 720×422
- Power Consumption: 60W
- LED Specifications: Super Bright SMD LEDs, 144pcs/bank; CCT ≥ 8000K; Lifespan ≥ 100,000 hours
- Adaptor: Global Adaptive Power; AC90V–240V, 50/60Hz
- View Panel Luminance: Adjustable from 0–4500 cd/m²
- Uniformity: ≥90%
- Fixture: Stainless steel roller oblique compression type
- Installation Options: Wall mounting or bracket mounting
Applications
- General X-ray films
- Digital X-ray films
- Breast mammography films
Key Features
- Full Digital Control: Ensures seamless operation and consistent performance.
- High-Frequency PWM Technology: Delivers flicker-free illumination for a high-definition reading experience.

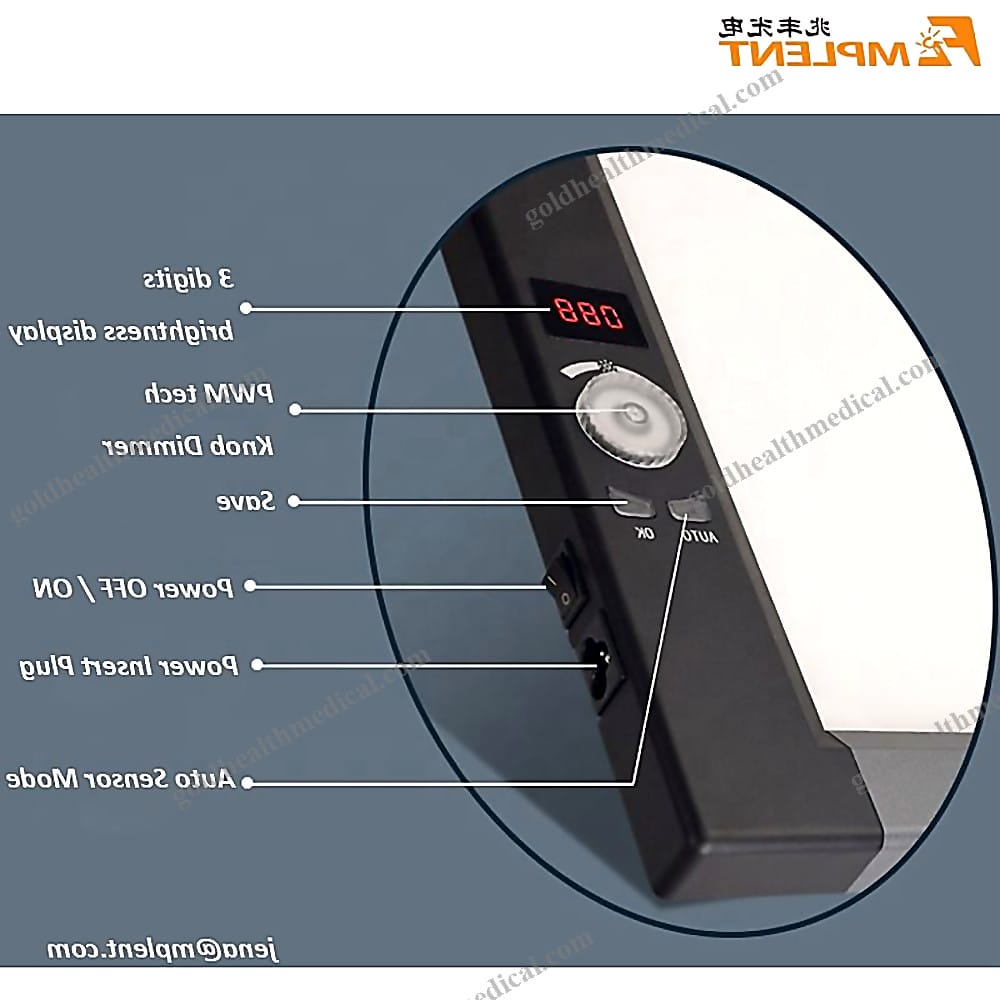

- Innovative Operation: Features an intuitive knob interface and LCD display for effortless adjustments.
- Reliable Film Clip: Equipped with a silicone film clip device for secure handling of films.
- Optimal Viewing Conditions: Designed for environments with room illuminance ≤ 100 lux.
Why Choose GoldHealth Medical?
GoldHealth Medical’s LED negatoscope is crafted to meet the rigorous demands of modern healthcare facilities. Its innovative design, combined with advanced LED technology, ensures unparalleled clarity and reliability. Whether for hospitals, clinics, or research labs, this viewer sets a new standard for diagnostic precision and user comfort.
Experience the future of medical imaging with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Description:
GoldHealth Medical presents an ultra-slim, high-brightness medical film viewer designed for precision and reliability in medical imaging diagnostics. Engineered with cutting-edge technology, this device ensures exceptional clarity and consistent performance, making it an indispensable tool for healthcare professionals.
Key Features:
- Ultra-Slim Design: A sleek 38mm thickness for space-saving installation without compromising performance.
- High Brightness: Backlight mode delivers superior illumination for accurate film viewing.
- Long-Lasting Performance: Equipped with LED bulbs that offer an impressive lifespan of 100,000 hours.
- Global Voltage Compatibility: Built-in power supply adapts to any voltage worldwide, ensuring seamless operation across regions.
Technical Specifications:
- Material: Durable acrylic, metal, and high-quality plastic construction for enhanced durability.
- Instrument Classification: Class I medical device.
- Safety Standard Compliance: ISO13485 certified for medical safety and reliability.
- Shelf Life: 3 years.
- Voltage: Adaptive to global voltage standards.
- LED Bulb Life: 100,000 hours.
- Thickness: 38mm.
Quality Assurance:
- Warranty: Comprehensive 3-year warranty for peace of mind.
- After-Sale Service: Free spare parts provided to ensure uninterrupted functionality.
- Certifications: CE and ISO13485 certified for uncompromising quality and safety.
Packaging Details:
- Packaging: Secure wooden box packaging to protect the device during transit.
- Single Package Size: 99 x 66 x 14 cm.
- Single Gross Weight: 7.000 kg.
Applications:
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare setups. This medical film viewer is a vital addition to any facility requiring precise diagnostic imaging solutions.
Why Choose GoldHealth Medical?
GoldHealth Medical combines innovation, precision engineering, and user-centric design to deliver medical equipment that meets the highest industry standards. Our products are crafted to empower healthcare providers with reliable tools that enhance diagnostic accuracy and patient care.
