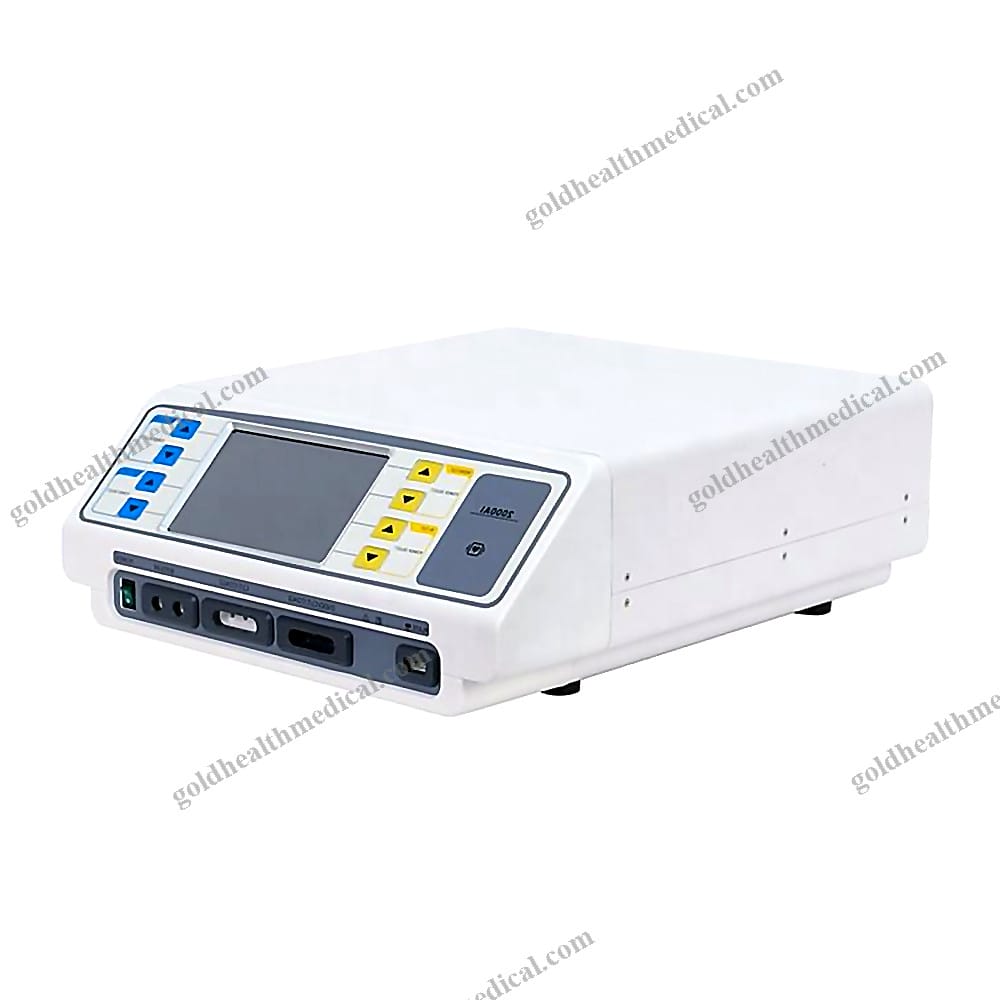

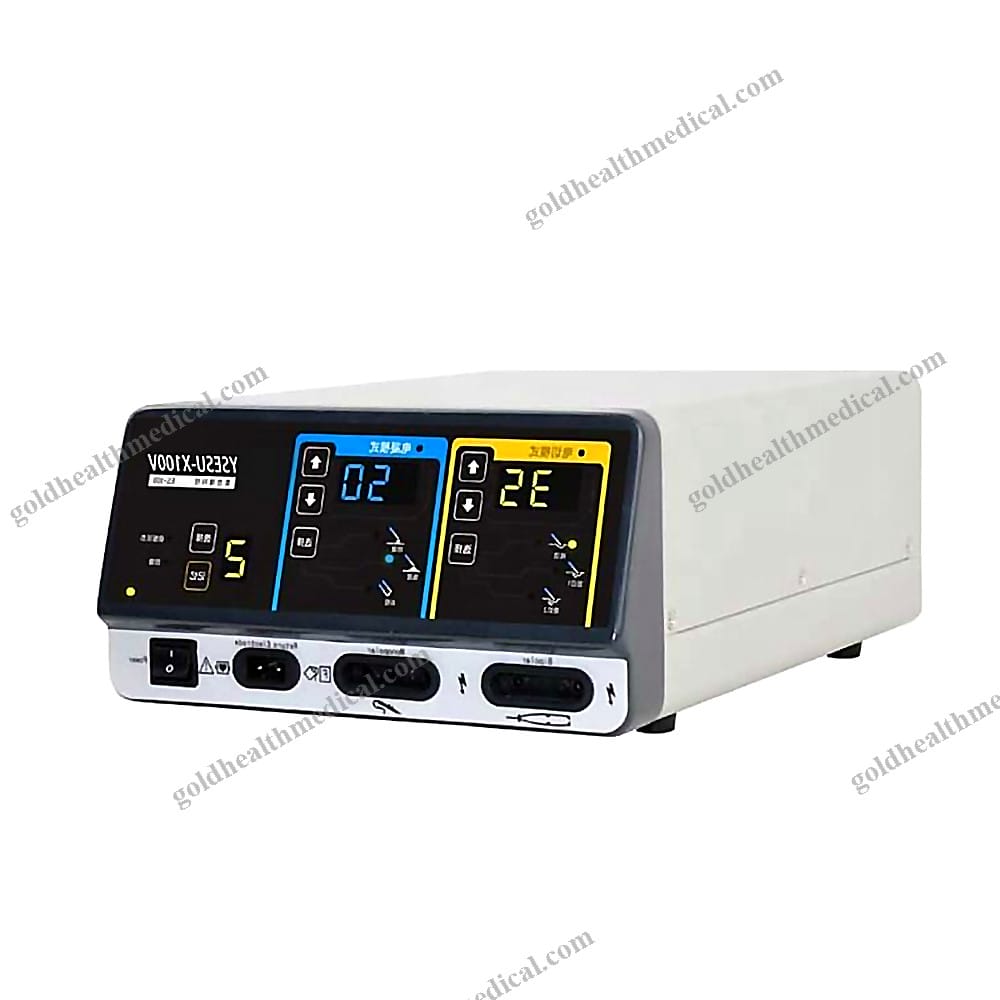

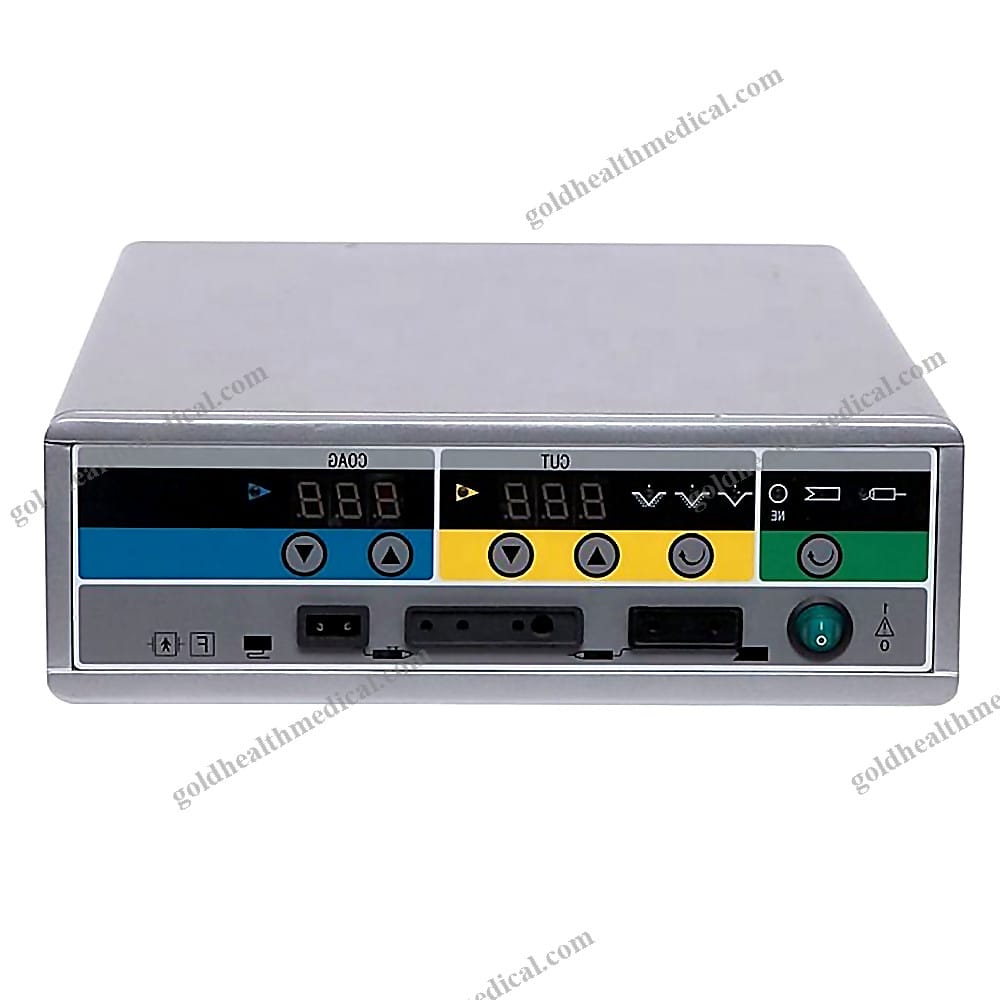

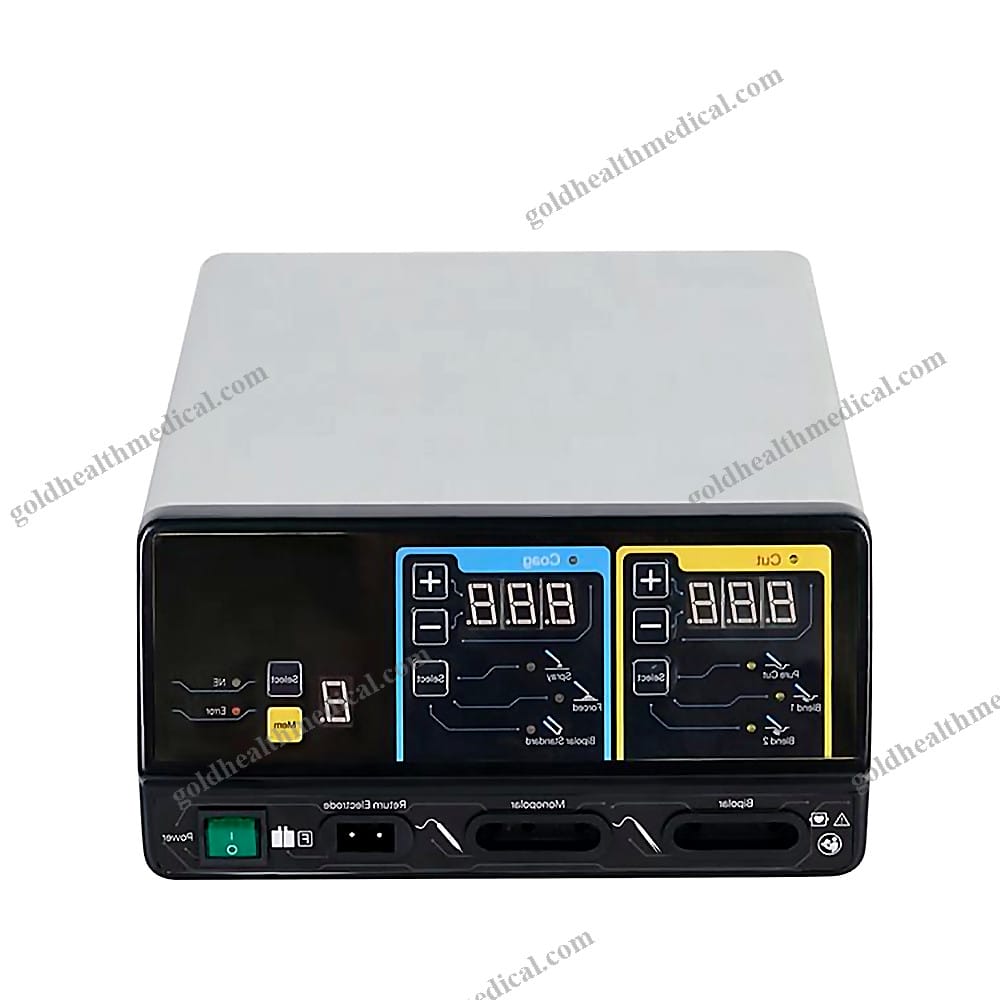

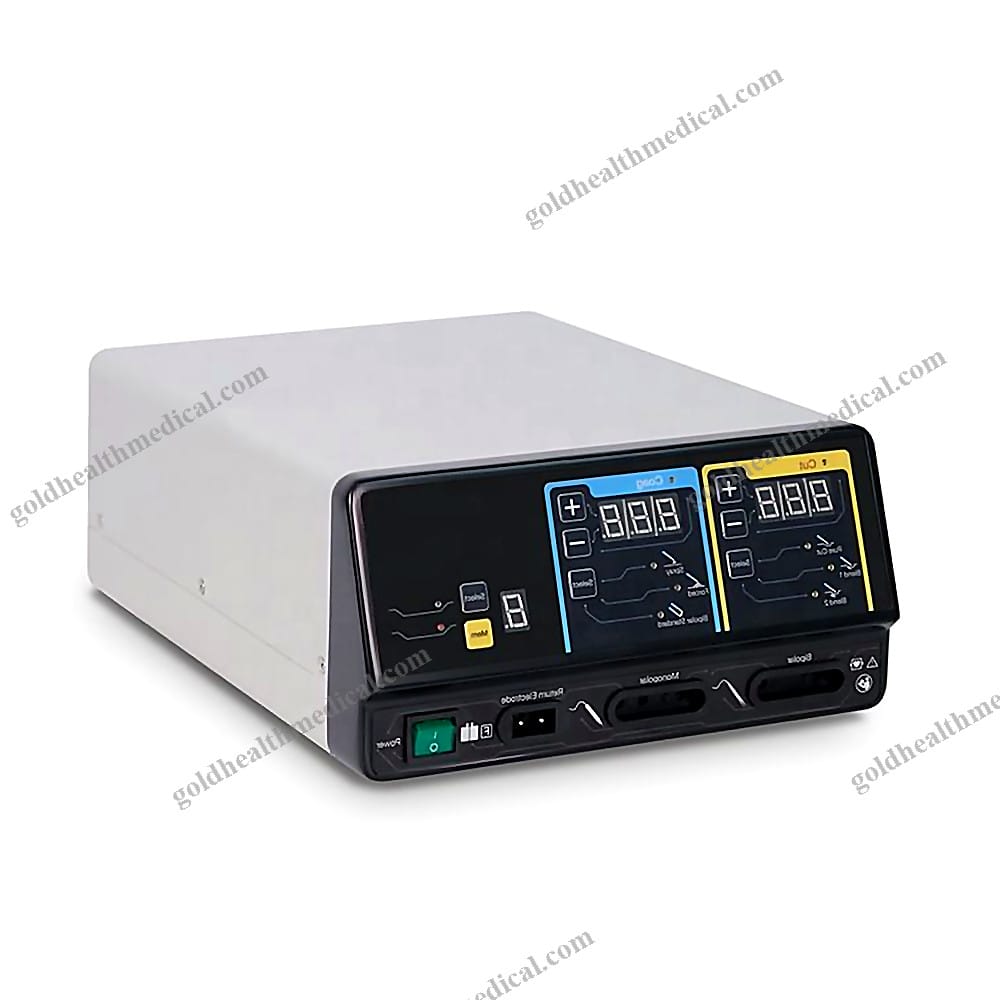

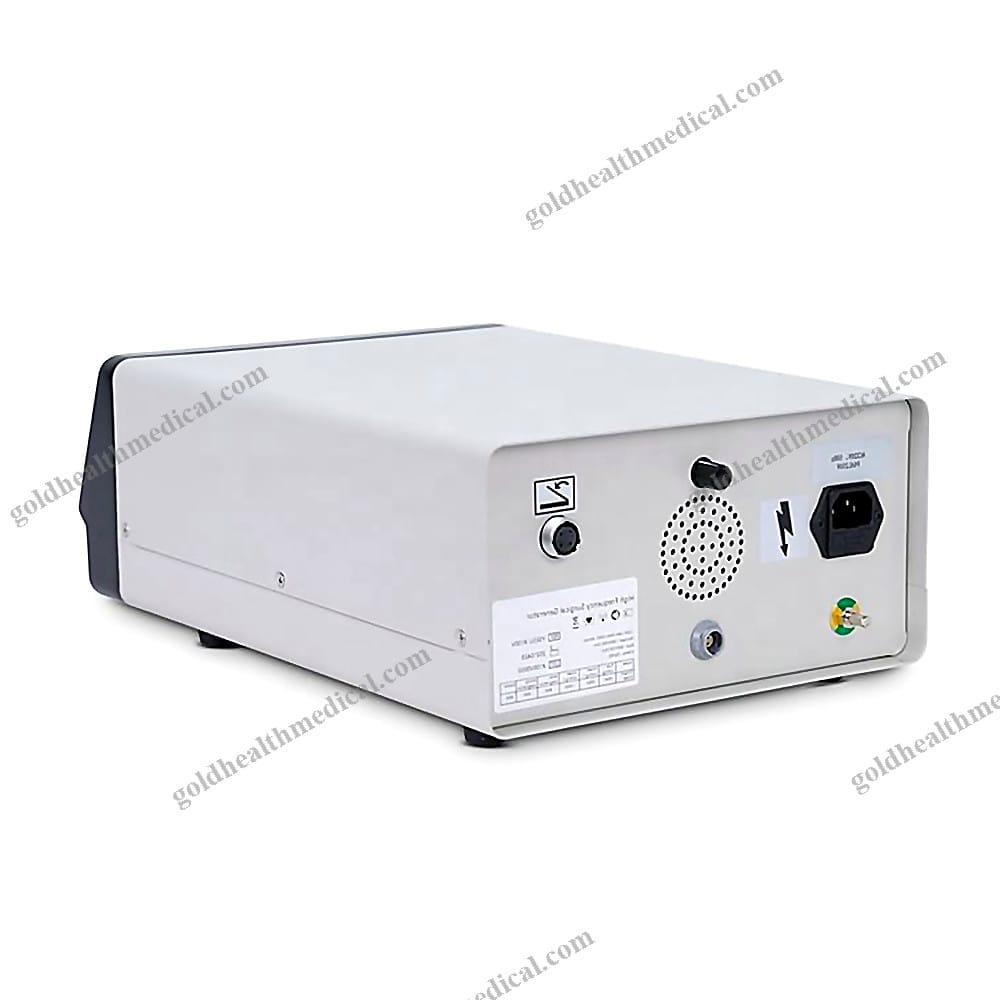

YSESUD5 Electrocautery Machine 5 Modes
Reference: 1600564092588Medical High-Frequency Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical High-Frequency Electrosurgical System
Experience precision and safety with the GoldHealth Medical Electrosurgical System, designed to meet the diverse needs of modern surgical procedures. Featuring five advanced working modes, this compact and lightweight device offers unparalleled versatility for medical professionals.
Key Features
- Advanced Working Modes: Includes Monopolar Cut (Pure Cut, Blend 1, Blend 2), Monopolar Coag (Fulgurate Coag, Spray Coag), and Bipolar Coag, ensuring optimal performance across a wide range of surgeries.
- Tissue Monitoring Technology: Smartly adjusts cutting and pausing intervals based on real-time tissue density monitoring. This ensures fine cutting with effective coagulation, especially beneficial for procedures like polypectomy and papillotomy.
- Patient Return Electrode Monitoring (PREM): Automatically halts high-frequency current and triggers an audible alarm if the contact area between the patient and neutral plate is inappropriate, significantly reducing the risk of burning incidents.
- Compatibility: Seamlessly integrates with other surgical equipment such as endoscopy systems, TURP, HV Argon Plasma Coagulators, and Optimum Smoke Evacuation Systems.
- Waterproof Panel Operation: Equipped with microcomputer auto control and a three-zone LED digital display for intuitive operation.
Technical Specifications
Working Modes and Power Ratings
- Monopolar Cut
- Pure Cut: 1W~300W, 1500V
- Blend 1: 1W~250W, 2000V
- Blend 2: 1W~150W, 2500V
- Monopolar Coag
- Standard Coag: 1W~120W, 3500V
- Bipolar Coag
- Bipolar Coag: 1W~50W, 620V
Electrical Requirements
- Operating Voltage: 220V±22V
- Measuring Frequency: 530KHz±2
- Monopolar Rate Load: 300Ω
- Bipolar Rate Load: 100Ω
- Max Input Currency: 1400VA
Environmental Conditions
- For Use
- Temperature: 10°C to 40°C
- Relative Humidity: 30%~75%
- Pressure: 700 hPa to 1060 hPa
- For Transport and Storage
- Temperature: -40°C to 55°C
- Relative Humidity: ≤ 93% non-condensing
- Pressure: 500 hPa to 1060 hPa
Dimensions and Weight
- Dimensions (L×W×H): 350mm×320mm×100mm
- Weight: 15kg
Standard Accessories
- Electrosurgical Unit: 1
- Single-use ESU Pencil with Cable: 2
- Single-use ESU Plate: 5
- Reusable ESU Plate Cable: 1
- Bipolar ESU Forceps: 1
- Reusable Bipolar Cable: 1
- Double Foot Switch: 1
- Power Cable: 1
- Service Manual: 1
GoldHealth Medical's Electrosurgical System is engineered to deliver exceptional performance, safety, and reliability, making it an indispensable tool for hospitals, clinics, and research institutions worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Five Working Mode Electrosurgical Unit
A cutting-edge electrosurgical machine designed for precision, safety, and versatility in medical procedures. Engineered to meet the demands of modern healthcare environments, this device delivers exceptional performance with advanced features tailored for both clinical and research applications.
Key Features and Specifications
- Power Source: Electricity
- Max Input Currency: 1400VA
- Max Power Consumption: 300W
- Max Monopolar Coagulation Power: 120W
- Bipolar Rated Load: 100Ω
- Monopolar Rated Load: 300Ω
Operating Conditions
- Temperature Range: 10°C to 40°C
- Relative Humidity: 30% to 75%
- Atmospheric Pressure: 700 hPa to 1060 hPa
Design and Build
- Material: Durable metal and high-grade plastic construction ensures longevity and reliability.
- Instrument Classification: Class II medical device, engineered for safety and precision.
- Safety Standards: Compliant with ISO quality certification and other international safety benchmarks.
Performance Highlights
- Five distinct working modes for versatile electrosurgical applications.
- Optimized for both monopolar and bipolar procedures, ensuring adaptability across a wide range of medical scenarios.
- Designed for seamless integration into hospitals, clinics, laboratories, and rehabilitation centers.
Support and Warranty
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Service: Access to online technical support, ensuring uninterrupted performance and quick resolution of queries.
Packaging and Delivery
- Packaging: Standard export-grade packaging ensures safe transit for the electrosurgical unit.
- Port of Origin: Guangzhou, China.
- Supply Capacity: Up to 8000 sets per quarter, ensuring reliable availability for bulk orders.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare professionals worldwide. Our Five Working Mode Electrosurgical Unit combines advanced engineering with user-centric design, making it an indispensable tool for precision-based medical procedures.
Experience the future of electrosurgical technology with GoldHealth Medical – where innovation meets reliability.
