YSCT32D Ysenmed 32Slice CT
Reference: 1601261802177Radiology Equipment & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

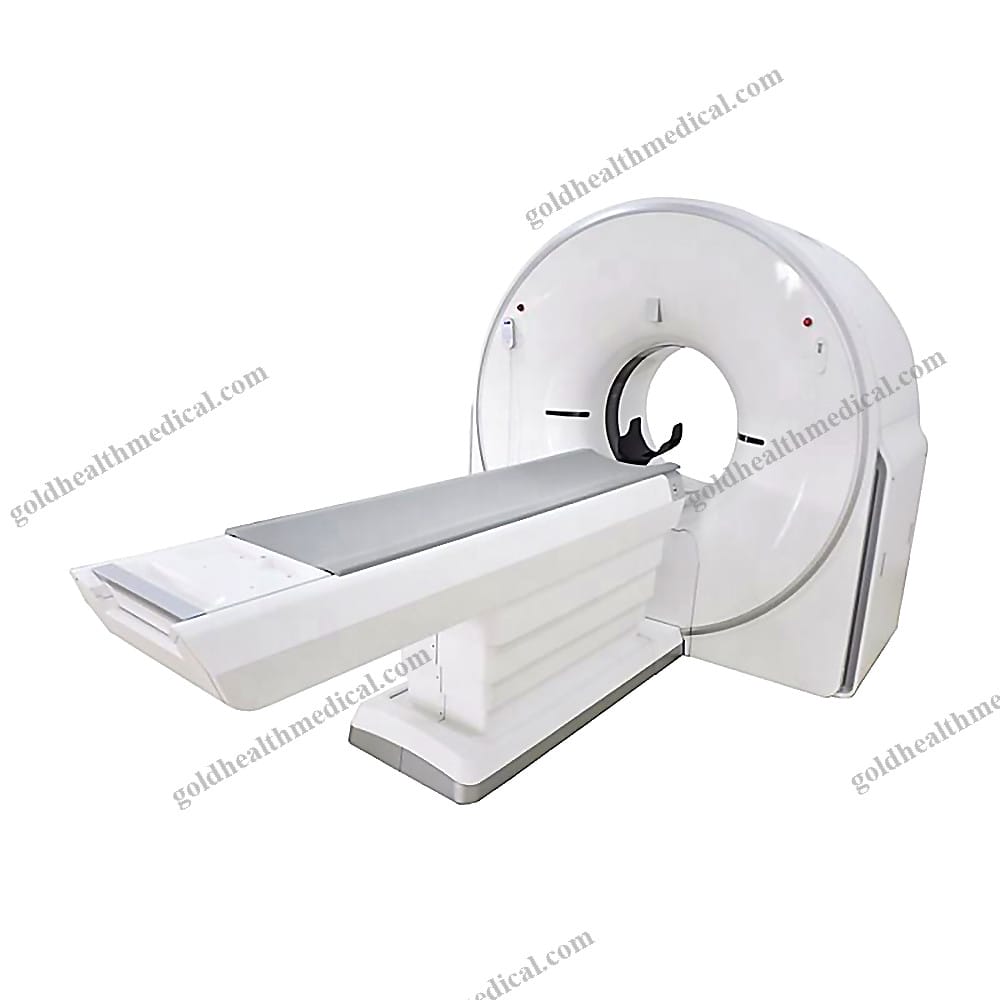

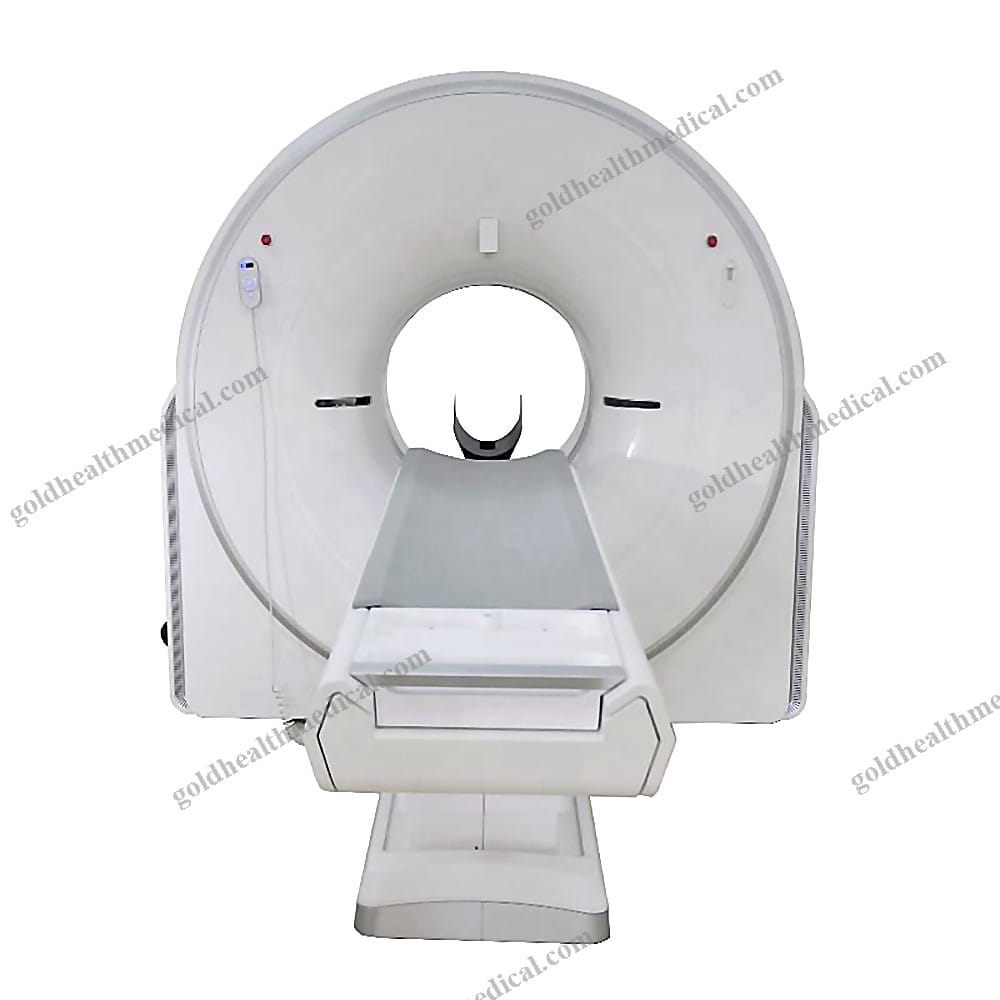

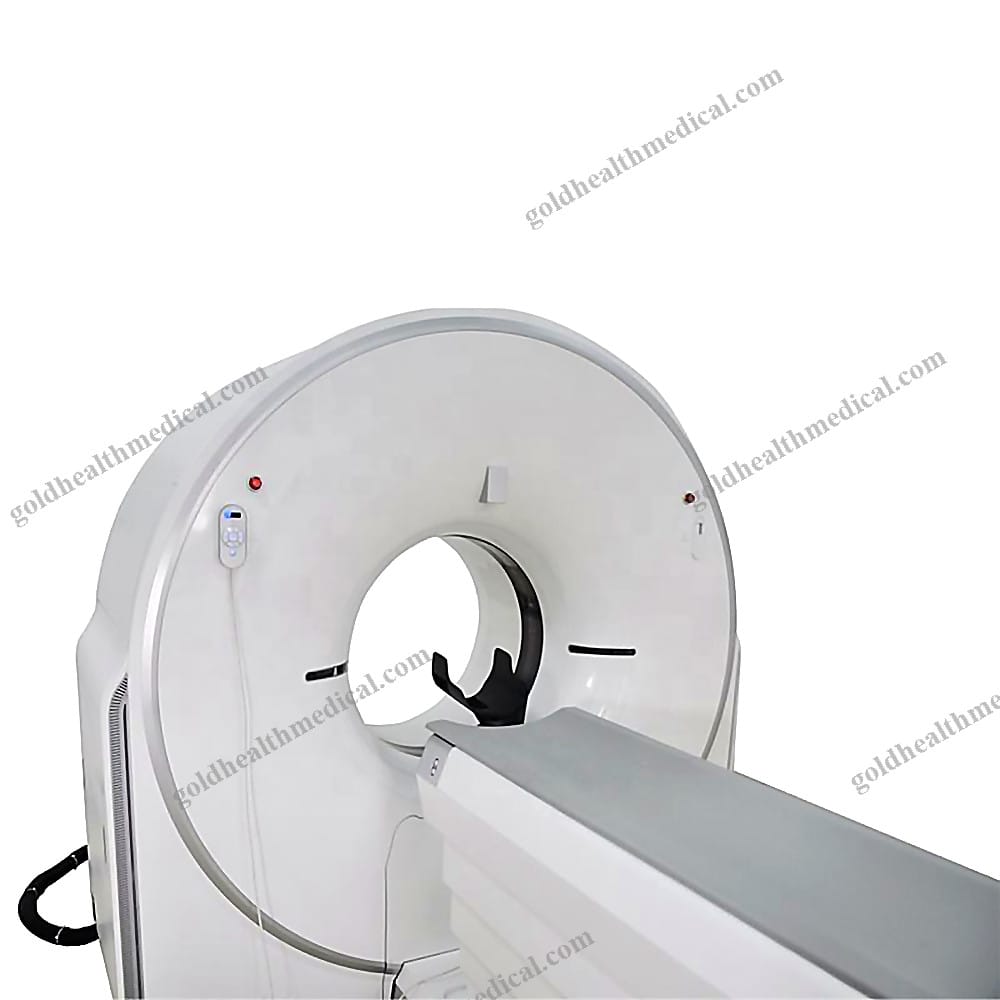

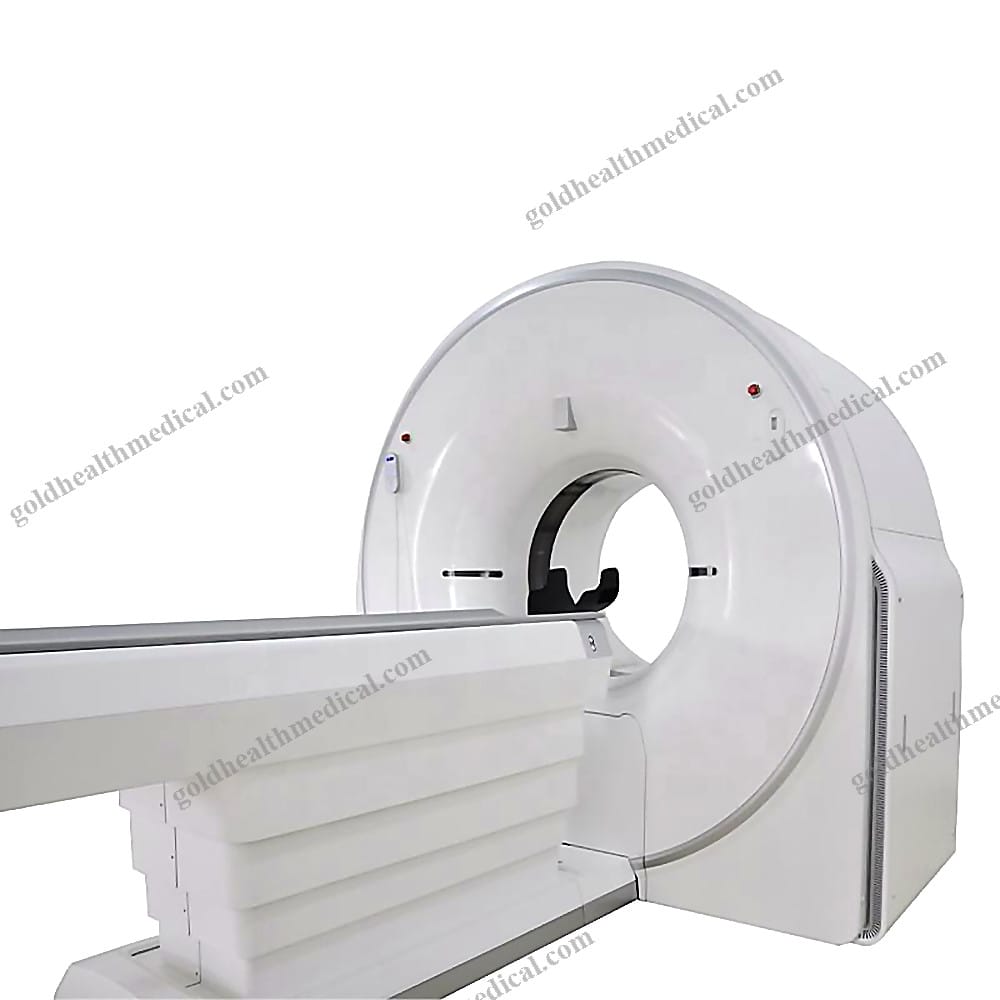

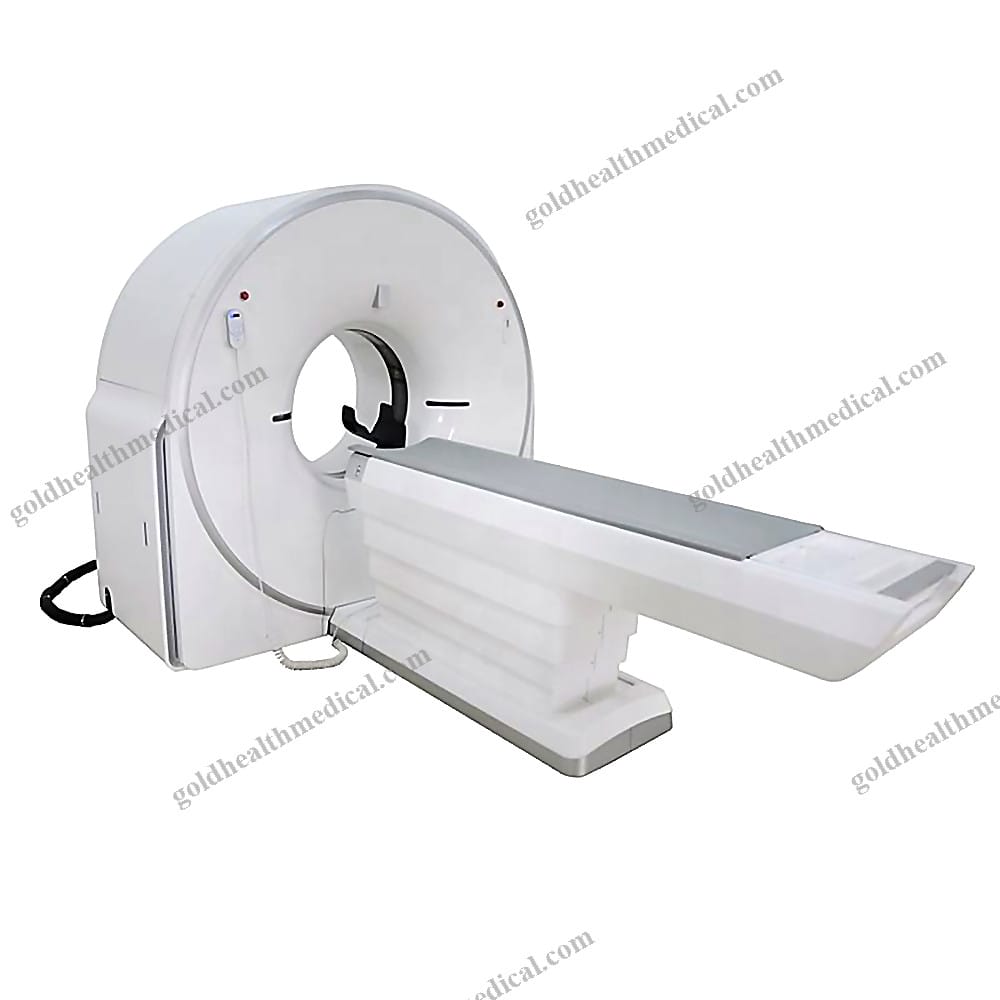

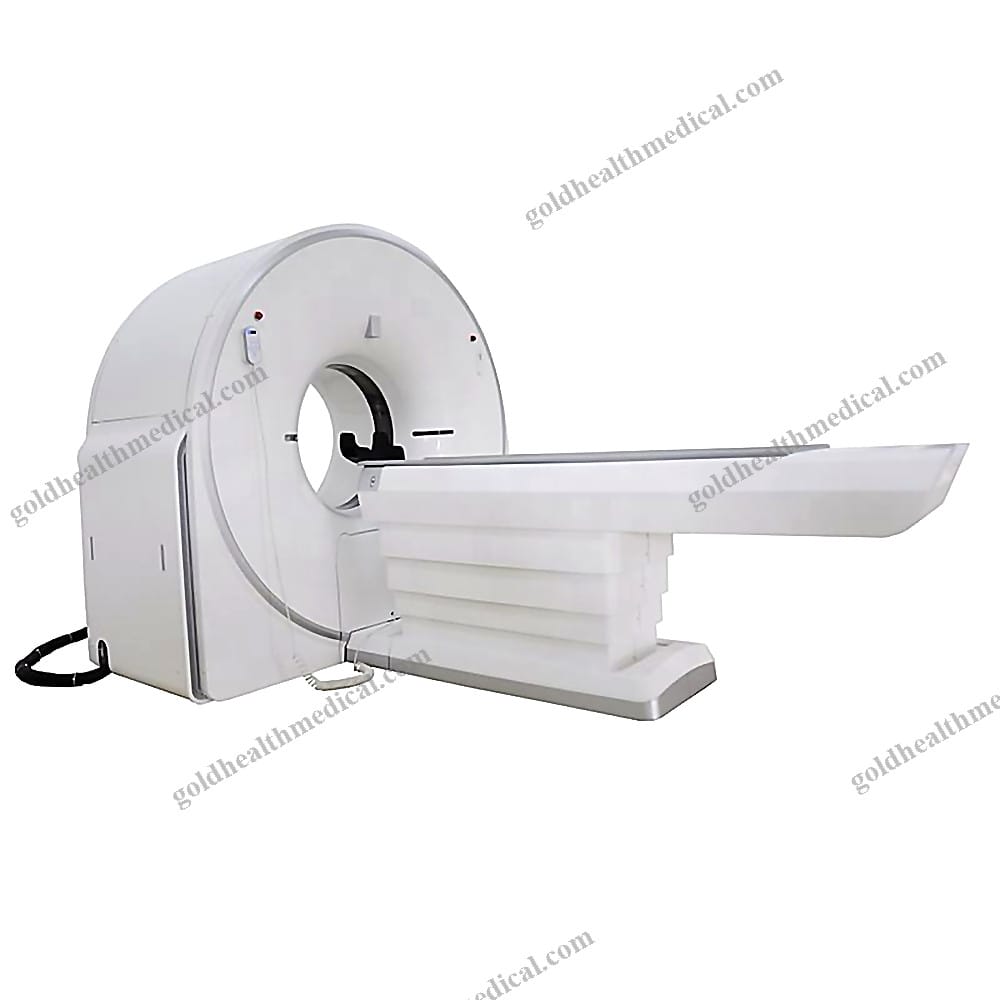

GoldHealth Medical CT / X-ray Computed Tomography Equipment
GoldHealth Medical presents a cutting-edge CT / X-ray Computed Tomography system designed to deliver unparalleled precision and versatility. The X-ray source assembly rotates a full 360°, enabling the acquisition of up to 32 scan layers in a single axial scan. This advanced technology ensures superior imaging capabilities for a wide range of medical applications.
Key Features and Parameters
- Maximum Scanning Range: 1200mm
- Pitch Coefficient Options: 0.25, 0.5, 0.75, 1, 1.25, 1.5, 1.75
- Scan Modes: Positioning scan, tomographic scan, spiral scan, enhanced scan, perfusion scan
- Software Functions:
- Patient file management
- Patient registration
- Scan functionality
- Reconstruction
- 2D and 3D image browsing and processing
- Film printing
- Data management
Scanning Frame
- Aperture: 700mm ± 10mm
- Rotation Speeds: 0.75s, 1.0s, 1.5s, 2.0s
- Scanning Field of View: 430mm
- Slip Ring Type: Contact slip ring
High Voltage Generator
- Tube Voltage Setting: 70~140kV
- Tube Current Range: 10~300mA
- Nominal Output Power: 32kW
Collimator
- Half Value Layer: ≥4.6mmAl
- Equivalent Aluminum Thickness: 2.3mmAl
X-ray Tube Sleeve
- Nominal Tube Voltage: 140kV
- Nominal Anode Input Power: 29kW/48kW
- Maximum Continuous Heat Dissipation of Anode: 3.5kW
- Focus Sizes: 0.7mm × 0.8mm, 1.2mm × 1.4mm
- Anode Rotation Speed: 60Hz/180Hz
- Diameter of Anode Target Surface: 140mm
- Target Angle: 7°
- Anode Type: Rotating anode
- Bearing Type: Mechanical bearing
- Anode Heat Capacity: 3.5MHU
Detector
- Scintillation Crystal Material: GOS crystal
- Pixel Matrix: 704×16
- Number of Detectors: 11
- Coverage (Projected to Center of Rotation): 430mm
- Pixel Size (Projected to Center of Rotation): 1.25mm × 1.25mm
- Scanning Angle: 0°/90°
- Scanning Field of View: 430mm
- Axial Scanning Layer Thickness:
- 1.25 mm ± 0.625 mm
- 2.50 mm ± 1.0 mm
- 5.00 mm ± 1.0 mm
- 10.0 mm ± 1.0 mm
- Spiral Scanning Layer Thickness:
- 1.25 mm ± 0.625 mm
- 2.50 mm ± 1.0 mm
- 3.75 mm ± 1.0 mm
- 5.00 mm ± 1.0 mm
- 7.50 mm ± 1.0 mm
- 10.0 mm ± 1.0 mm
- Collimation Combination: 16×1.25, 4×1.25
Diagnostic Bed
- Z-axis Positioning Accuracy: ≤±1mm
- Speed: 0~150mm/s
- Vertical Lifting Range: ≥440mm
- Maximum Load: 205kg
Laser
- Category: 2 types
- Positioning Accuracy: ±1mm
- Wavelength: 600~700nm
- Maximum Output Power: <1mW
Console
- Exposure Control
- Bed Motion Control
- Intercom Function
Computer
- Minimum Configuration Requirements:
- CPU Performance: Main frequency not less than 2 GHz, number of cores not less
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: X-ray Computed Tomography Equipment by GoldHealth Medical
Key Features and Benefits:
- Advanced Imaging Technology: Delivers precise and high-resolution imaging with a maximum scanning range of 1200mm, ensuring comprehensive diagnostic capabilities.
- Flexible Pitch Coefficients: Offers multiple pitch settings (0.25, 0.5, 0.75, 1, 1.25, 1.5, 1.75) for tailored scanning protocols, optimizing both speed and image quality.
- Electric Power Source: Reliable and efficient electric operation designed for consistent performance in demanding medical environments.
- Durable Construction: Crafted with premium materials to ensure long-lasting use and consistent accuracy.
Technical Specifications:
- Instrument Classification: Class II medical device, adhering to the highest industry standards.
- Safety Standards Compliance: Certified by MFDS and CE, guaranteeing safety and reliability for medical professionals and patients alike.
- Shelf Life: 3 years, ensuring extended usability and value.
Packaging Details:
- Single Package Size: 50x50x50 cm
- Single Gross Weight: 50.000 kg
Support and Services:
- Comprehensive Warranty: Backed by a robust warranty to provide peace of mind and protect your investment.
- Lifetime Support: Dedicated assistance throughout the product’s lifecycle to ensure optimal performance.
- Online Technical Support: Access to expert guidance and troubleshooting anytime, ensuring minimal downtime.
Unique Selling Points:
- Engineered for versatility, this CT equipment is ideal for hospitals, clinics, research labs, and rehabilitation centers.
- Combines cutting-edge technology with user-centric design, making it suitable for both professional and home healthcare settings.
- GoldHealth Medical’s commitment to innovation ensures that this product meets the evolving needs of modern healthcare providers.
Place of Origin: Guangdong, China
Experience the future of diagnostic imaging with GoldHealth Medical’s X-ray Computed Tomography Equipment—precision, reliability, and innovation in one powerful solution.
