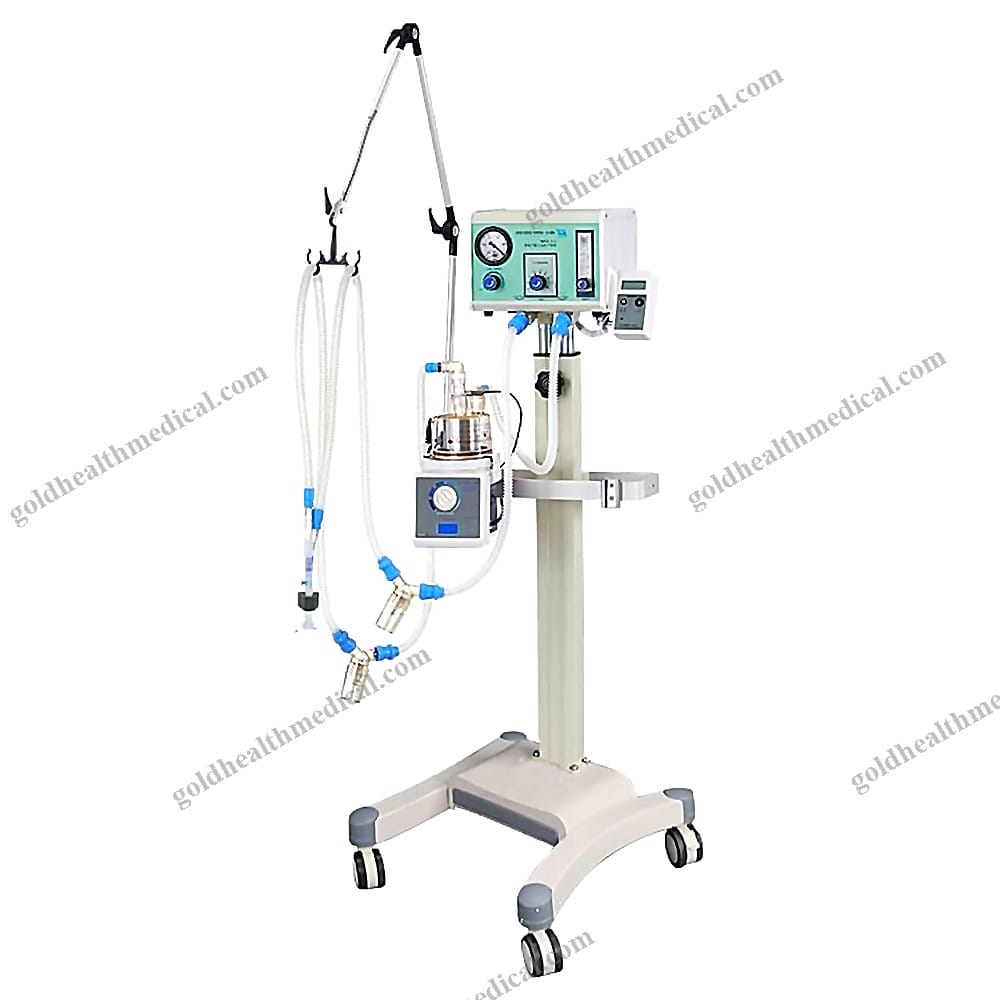

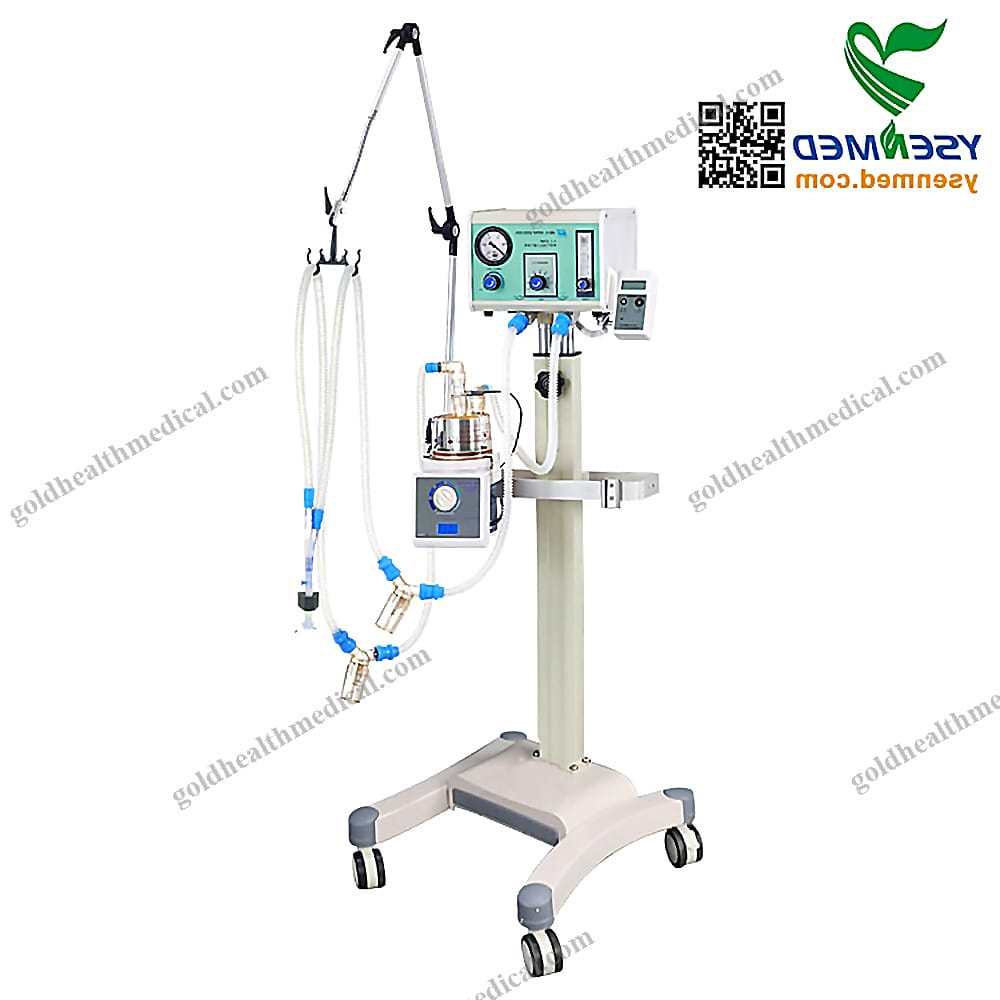

YSAV5BM1 Ysenmed Neonatal CPAP
Reference: 1601234645909
Infant Care Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Neonatal Respiratory Care
Product Introduction
GoldHealth Medical presents an advanced Bubble CPAP system, meticulously engineered to support neonatal and pediatric respiratory care. Designed for use in premature infants, neonates, and children up to 14 years old, this innovative device facilitates effective Nasal-CPAP ventilation treatment. By reducing the work of breathing while preserving autonomous respiration, our CPAP system ensures optimal respiratory support for fragile patients.
Key Features
- Space-Saving Design: Integrates the main unit, humidifier, and optional compressor into a compact configuration.
- Precision Oxygen Control: Equipped with an internal air-oxygen blender for continuous and adjustable FIO2 levels.
- Independent Adjustments: Allows separate control of oxygen concentration and flow rate.
- Enhanced Safety Monitoring: Simplifies FIO2 tracking to ensure safe oxygen delivery.
- High-Accuracy Regulation: Combines system pressure monitoring with a safety valve for unparalleled patient protection.
- Power-Free Operation: The main unit operates without electricity and is compatible with a support arm.
- Quiet and Efficient Compressor: Features an imported pump with minimal water retention and low noise levels.
- Optimized Humidification: Compatible with electric or automatic humidifiers for ideal moisture levels.
- Patient-Centric Design: Lightweight and versatile tubing, along with rhinobyon attachments, reduce work of breathing (WOB). Secure yet gentle fixation minimizes discomfort and nasal injuries.
- Versatile Applications: Ideal for use in NICUs, PICUs, PIIUCs, and emergency care settings.
Technical Specifications
- Ventilation Mode: CPAP mode
- FIO2 Range: 21%–100%
- Flow Rate: 0–18 LPM
- CPAP Adjustment: 0–1.0 kPa (0–10 cmH₂O)
Monitoring Capabilities
- Pressure Monitor: 0–2.5 kPa (0–25 cmH₂O)
- FIO2 Monitoring: 21%–100%
- Safety Valve: Automatically activates if tube pressure exceeds 1.5 times the set parameter.
Alarm System
- Differential Alarm: Activates for pressure differentials between 0.05 MPa and 0.12 MPa with audible alerts.
- Low Battery Alarm: Alerts via LCD when voltage drops to 6.8 ± 0.5V.
General Parameters
- Dimensions: W × H × D: 24.7 cm × 17.5 cm × 21 cm
- Weight: Approximately 6 kg
- Gas Source: 0.3 MPa–0.4 MPa
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to delivering cutting-edge medical solutions that prioritize patient safety, comfort, and clinical efficiency. Our Bubble CPAP system exemplifies our commitment to innovation, offering a seamless blend of advanced technology and user-friendly design. Trusted by healthcare professionals worldwide, our products are engineered to meet the highest standards of quality and reliability.
Explore Our Range of Medical Solutions
- Infant Transport Incubators: Designed for safe and comfortable neonatal transport.
- Radiant Warmers: Ensures stable thermal care for newborns.
- Phototherapy Devices: Advanced LED systems for effective jaundice treatment.
- Fetal Heart Monitors: Portable and precise monitoring for prenatal care.
- Gynecology Examination Beds: Ergonomic designs for enhanced patient comfort.
- Colposcopes: High-resolution imaging for accurate diagnostics.
GoldHealth Medical is your trusted partner in advancing healthcare. Discover how our solutions can elevate your practice today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Newborn BUBBLE CPAP System
Product Overview
The Newborn BUBBLE CPAP System by GoldHealth Medical is a cutting-edge solution designed to provide safe, reliable, and precise respiratory support for neonates. Engineered with advanced technology and user-centric design, this device ensures optimal care for newborns requiring continuous positive airway pressure (CPAP) therapy. Its compact, lightweight design and intuitive functionality make it ideal for hospitals, clinics, and home care environments.
Key Features
- Advanced Ventilation Mode: Operates in CPAP mode, ensuring consistent and gentle respiratory support for fragile newborns.
- Precision Control: Adjustable CPAP settings ranging from 0 to 1.0 kPa (0 to 10 cmH2O) for tailored therapy.
- Wide Oxygen Concentration Range: FIO2 adjustable from 21% to 100%, accommodating diverse clinical needs.
- Flow Customization: Flow rate adjustable from 0 to 18 LPM, ensuring flexibility in treatment.
- Real-Time Monitoring: Integrated pressure monitor with a range of 0 to 2.5 kPa (0 to 25 cmH2O) for accurate performance tracking.
- Compact and Portable: Dimensions of WHD 24.7 cm * 17.5 cm * 21 cm and a weight of approximately 6 kg, making it easy to transport and install.
- Durable Build: Constructed with high-quality materials to ensure long-lasting performance.
Technical Specifications
- Gas Source Pressure: 0.3 MPa to 0.4 MPa
- Instrument Classification: Class II medical device
- Safety Standards: Compliant with MFDS and CE certifications
- Shelf Life: 3 years
Packaging Details
- Single Package Size: 50 cm x 50 cm x 40 cm
- Single Gross Weight: 10.000 kg
Warranty and Support
- Warranty Period: 3 years, ensuring peace of mind for healthcare providers and users.
- After-Sale Service: Comprehensive online technical support to address any operational or technical queries promptly.
GoldHealth Medical’s Newborn BUBBLE CPAP System is more than just a medical device—it’s a commitment to improving neonatal care worldwide. With its innovative design, precision engineering, and unwavering reliability, it sets a new standard for neonatal respiratory support.
