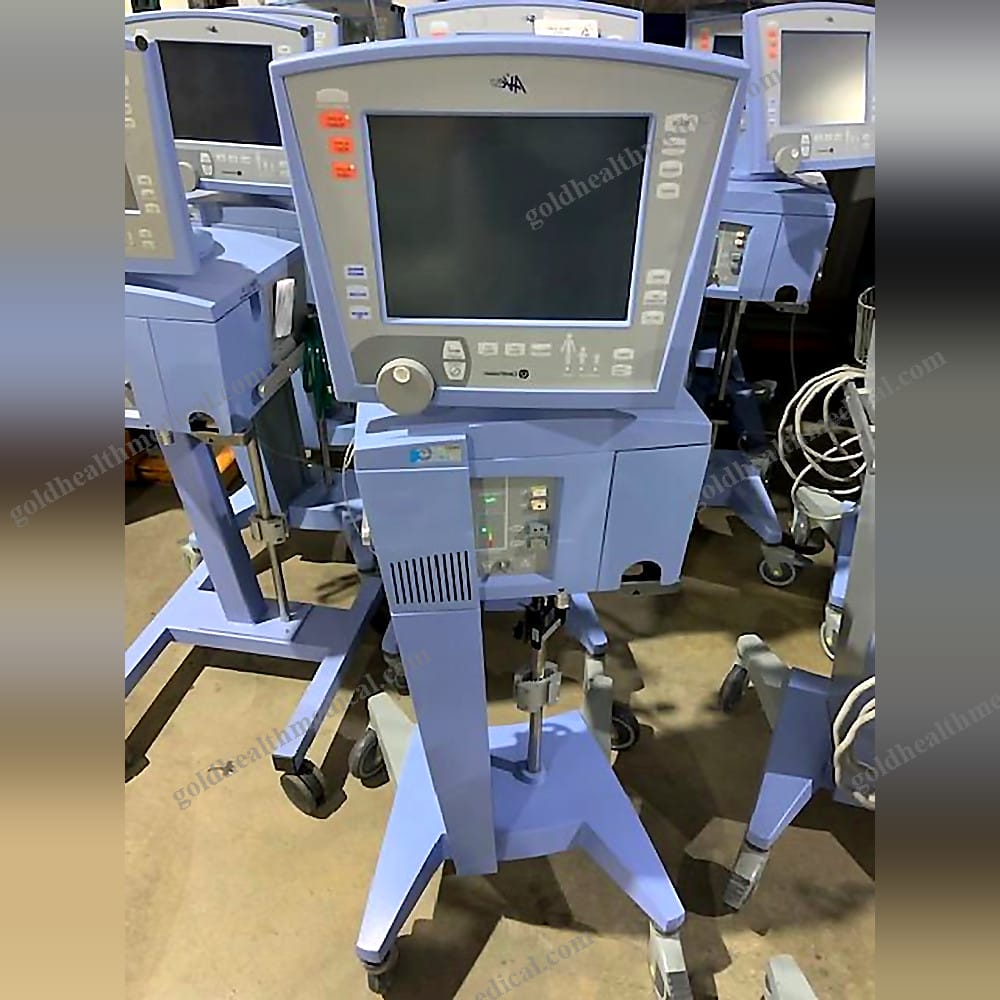

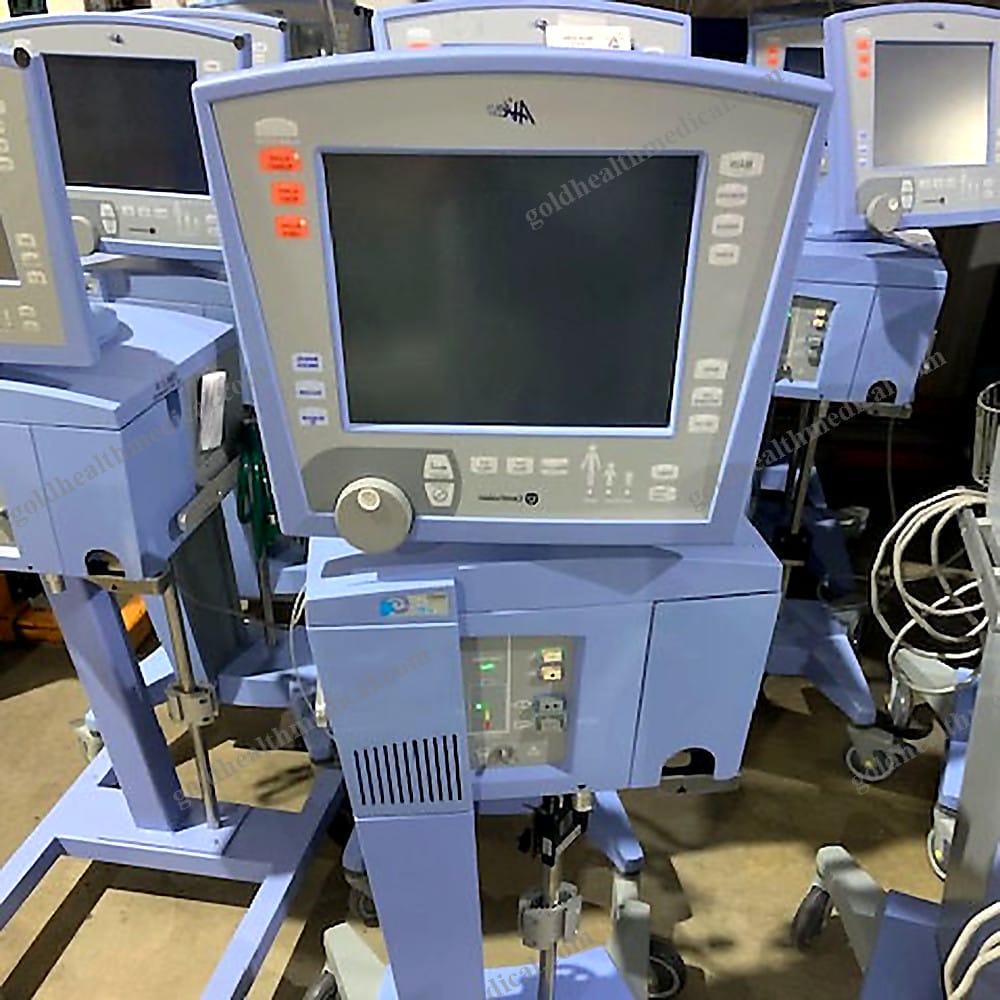

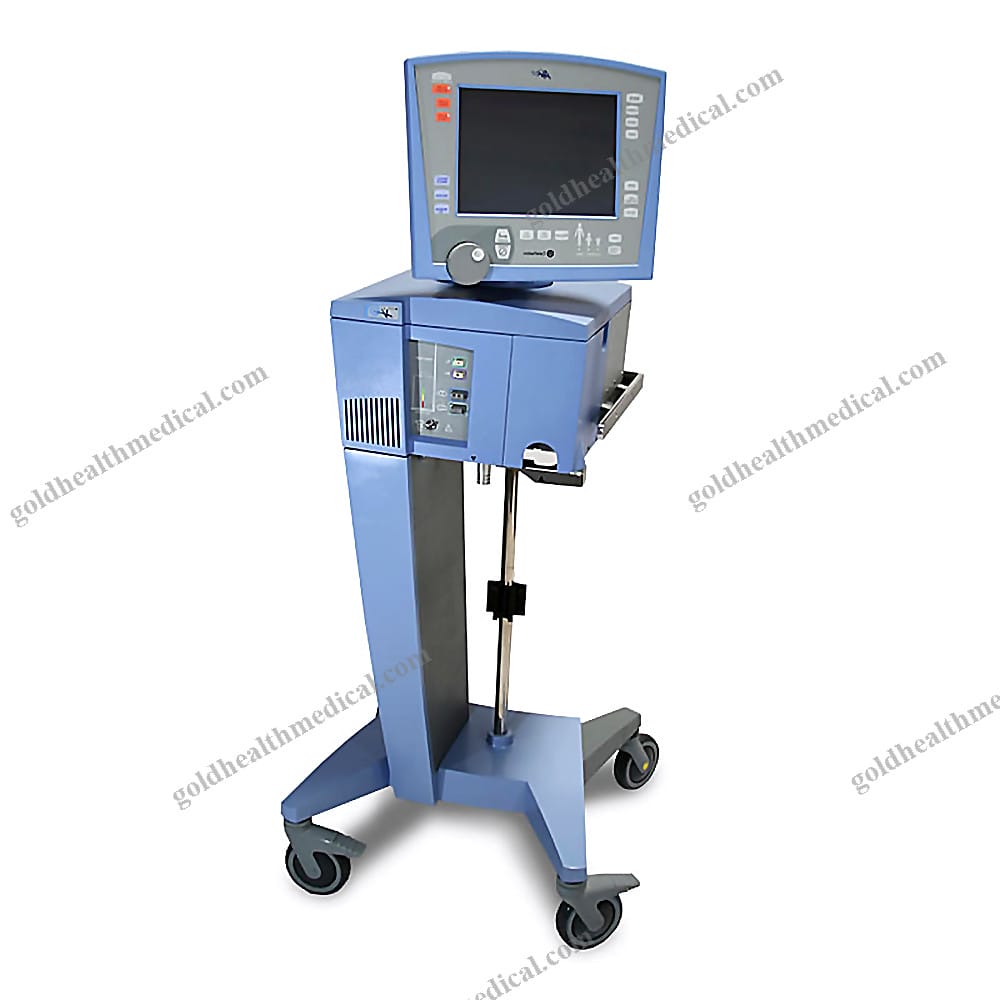

Vyaire CareFusion Avea Ventilator System
Reference: 11000005461888Washing,Ventilation & Vacuum Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Ventilator
GoldHealth Medical presents a cutting-edge ventilator designed to deliver unparalleled precision and adaptability in critical care environments. This advanced system supports both non-invasive and invasive ventilation modes, catering to neonatal, pediatric, and adult patients with clinical tools and advanced monitoring capabilities.
Key Features
- Comprehensive Ventilation Modes: Offers a wide array of modes including A/C, SIMV, CPAP/PSV, NPPV, and nasal CPAP/IMV, ensuring optimal care for diverse patient needs.
- Advanced Monitoring Tools:
- BiCore Pulmonary Monitoring for comprehensive respiratory insights.
- Heliox Administration to support patients with severe airway obstruction.
- Volumetric Capnography for enhanced accuracy in critical situations.
- Precision Gas Delivery: Delivers accurate tidal volumes from 2 mL to 2.5 L, with automatic compensation for heliox gas delivery.
- Active Exhalation Valve: Enhances patient comfort and synchrony during ventilation.
- On-Board Compressor: Optional feature capable of operating the ventilator for up to two hours on battery, ideal for ICU or during transport such as CT scans.
- User-Friendly Interface: Equipped with a large LCD touch screen for easy parameter monitoring and adjustments.
Technical Specifications
- Dimensions:
- Pneumatic Module: 10.5” h x 16.75” w x 16” d (26.7 cm x 43.2 cm x 40.6 cm)
- User Interface Module: 13.75” h x 16.25” w x 2.5” d (35 cm x 41.3 cm x 6.4 cm)
- Viewable Size: 12.1” (diagonal), Resolution: 800 x 600
- Weight:
- Ventilator with User Interface Module (without Compressor): < 73 lbs. (33.1 kg)
- Ventilator with User Interface Module and Compressor: < 80 lbs (36.3 kg)
- Battery Life:
- Internal Battery: 1 hour of ventilator use or 30 minutes with compressor
- External Battery: 4 hours of ventilator use or 2 hours with compressor
- Setup Options:
- Humidification: Active and passive
- Circuit Compliance Compensation: 0.0 to 7.5 mL/cmH2O
- Leak Compensation: ON/OFF
- Endotracheal Tube Setup: Diameter 2.0 to 10.0 mm, Length 2.0 to 30.0 cm, Automatic Tube Compensation: ON/OFF
- Patient Setup:
- Patient Weight: 0.1 to 300 kg
- Patient ID: Alphanumeric, 24 characters
- Primary Settings:
- Rate: 1 to 150 bpm (neonatal, pediatric), 1 to 120 bpm (adult)
- Tidal Volume: 2.0 mL to 2.5 L
- Inspiratory Pressure: 0 to 80 cmH2O (neonatal), 0 to 90 cmH2O (adult, pediatric)
- Peak Flow: 0.4 to 150 L/min
- Inspiratory Time: 0.15 to 5.0 sec
- Pressure Support Ventilation: 0 to 80 cmH2O (neonatal), 0 to 90 cmH2O (adult, pediatric)
- PEEP: 0 to 50 cmH2O
- Flow Trigger: 0.1 to 20 L/min
- %O2: 21% to 100%
- Advanced Settings:
- Bias Flow: 0.4 to 5.0 L/min
- Volume Limit: 2.0 mL to 2.5 L
- Inspiratory Rise: 1 to 9
- Flow Cycle: Off to 45%
- PSV Rise: 1 to 9
- PSV Cycle: 5% to 45%
- PSV Tmax: 0.15 to 5.0 sec
- Waveform: Decelerating, square
- Sigh: ON/OFF
- Pressure Trigger: 0.1 to 20 cmH2O
- Demand Flow: ON/OFF
- Volumetric Capnography:
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Viasys Avea Ventilator by GoldHealth Medical
Key Features and Benefits:
- Advanced Ventilation Technology: Designed for critical care environments, the Viasys Avea Ventilator delivers precise and reliable respiratory support tailored to meet the needs of ICU patients.
- Durable Construction: Crafted with high-quality metal and robust plastic components, ensuring long-lasting performance in demanding medical settings.
- Safety and Compliance: Meets Class I instrument classification and adheres to MOL safety standards, providing peace of mind for healthcare professionals and patients alike.
- Versatile Application: Specifically engineered for use in ICU rooms, offering adaptable solutions for a wide range of respiratory care requirements.
Technical Specifications:
- Power Source: Electric
- Instrument Classification: Class I
- Material Composition: Metal, Plastic
- Shelf Life: 3 years
- Quality Certifications: CE
Support and Service:
- Comprehensive Warranty: Backed by a 1-year warranty, ensuring reliability and performance.
- Dedicated After-Sales Support: Access to online technical support for seamless operation and troubleshooting.
Supply and Delivery:
- Global Reach: Ships worldwide via trusted logistics partners including DHL, FedEx, and IMS.
- Supply Capacity: Up to 100 sets per year, ensuring consistent availability for healthcare providers.
Unique Selling Points:
- Engineered with precision in Vietnam, combining global expertise with regional craftsmanship.
- A trusted solution for hospitals, clinics, research institutions, and home care environments, empowering better patient outcomes.
GoldHealth Medical – Elevating Respiratory Care Standards Worldwide.
