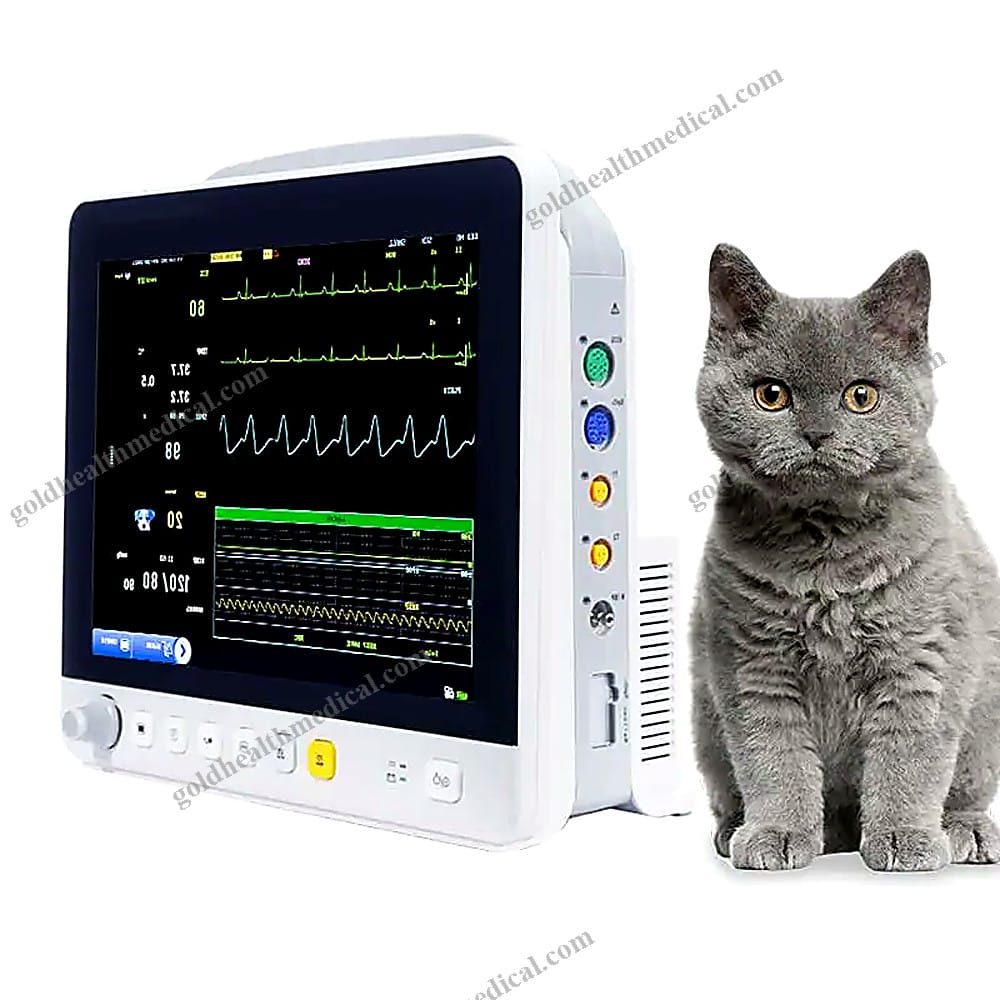

VSV598 12 Portable Multiparameter Veterinary Monitor
Reference: 1601291245902Veterinary Monitoring Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Multiparameter Patient Monitor
GoldHealth Medical presents a cutting-edge multiparameter patient monitor designed to elevate patient care with precision and versatility. This state-of-the-art device supports diagnosis, monitoring, and surgery modes, seamlessly integrating into both wired and wireless central monitoring systems.
Key Features
- Comprehensive Monitoring: Track 8 critical parameters including ECG, RESP, SPO2, NIBP, PR, TEMP, IBP, and ETCO2. The fully independent module ensures reliable ECG and Nellcor readings.
- Modular Design: Adapt effortlessly to diverse monitoring needs with a flexible modular setup.
- Advanced Functionality: Operate ETCO2 and dual IBP functions with ease, ensuring precise and reliable data.
- Extensive Data Storage: Access 400 groups of NIBP lists, 6000 seconds of ECG waveform recall, 60 alarm event records, and a 7-day trend chart.
- Patient Information Management: Efficiently input and manage patient data for streamlined operations.
- Intuitive Interface: A 12.1-inch color LCD touch screen displays multi-lead 8-channel waveforms and supports a multi-language system, enhancing usability with full touch screen operability.
- Real-Time Analysis: Benefit from real-time S-T segment analysis and pacemaker detection for accurate diagnostics.
- Emergency Power Backup: Equipped with a built-in high-capacity lithium battery providing up to 4 hours of power for emergencies or patient transfers.
Optional Configurations
- Recorder
- Mobile trolley
- Wall mounting
- Touch screen
- Thermal printer
Technical Specifications
ECG
- Input: 3/5 wire ECG cable
- Lead Selection: I, II, III, aVR, aVL, aVF, V
- Gain Selection: 0.25, 0.5, 1, 2, Auto
- Sweep Speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
- Heart Rate Range: 15-300bpm
- Accuracy: ±1bpm or ±1% (whichever is greater)
- Calibration: ±1mv
NIBP
- Measurement Type: Systolic, Diastolic, Mean
- Measurement Method: Oscillometer
- Accuracy: ±1bpm or ±1% (whichever is greater)
SPO2
- Measurement Range: 0-100%
- Accuracy: ±2% (between 70%-100%)
- Pulse Rate Range: 20-300bpm
- Resolution: 1bpm
- Refresh Cycle: 1s-2s
Temperature
- Channels: 2 (Rectal & Surface)
- Measurement Range: 0-50℃
- Accuracy: ±0.1℃
- Unit: ºC/ºF selection
Respiration
- Measurement Type: Impedance & Nasal Tube
- Measurement Range: 0-150rpm
- Accuracy: ±1bpm or ±5% (whichever is greater)
- Resolution: 1rpm
Standard Accessories
- NIBP cuff & tube
- ECG cable & electrodes
- SpO2 sensor
- TEMP probe
- Lithium-ion battery
- Power cable
- Operator’s manual
Optional Accessories
- IBP
- CO2
- Nellcor SpO2
- Printer
GoldHealth Medical's multiparameter patient monitor is designed to meet the rigorous demands of modern healthcare environments, ensuring reliable performance and exceptional patient care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Product Description:
Experience the future of medical innovation with our cutting-edge device, meticulously engineered to deliver unparalleled performance and reliability. Designed for healthcare professionals and caregivers alike, this product combines advanced technology with user-centric design to ensure optimal functionality in any setting.
Key Features and Specifications:
- Power Source: Electric, ensuring consistent and reliable operation
- Power Supply Mode: Built-in rechargeable battery for enhanced portability and convenience
- Materials: Crafted from high-grade plastic, acrylic, and metal for durability and a sleek aesthetic
- Shelf Life: 2 years, maintaining peak performance over time
- Quality Certification: CE-certified, meeting international standards for safety and quality
- Instrument Classification: Class II medical device, designed for precision and safety
- Safety Standard Compliance: Adheres to GB/T18830-2009, guaranteeing user safety and operational excellence
Warranty and Support:
- Warranty: Comprehensive 2-year warranty for peace of mind
- After-Sales Service: Access to online technical support, ensuring seamless assistance whenever needed
Place of Origin: Hubei, China – a hub of technological advancement and manufacturing excellence
Why Choose This Product?
Our device stands out with its robust construction, versatile power options, and adherence to the highest industry standards. Whether used in hospitals, clinics, research labs, or home care environments, it offers unmatched reliability and precision. Elevate your healthcare solutions with GoldHealth Medical’s commitment to innovation and quality.
