VSE002 6Channel 12Lead Portable
Reference: 1601259505705Medical Optical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

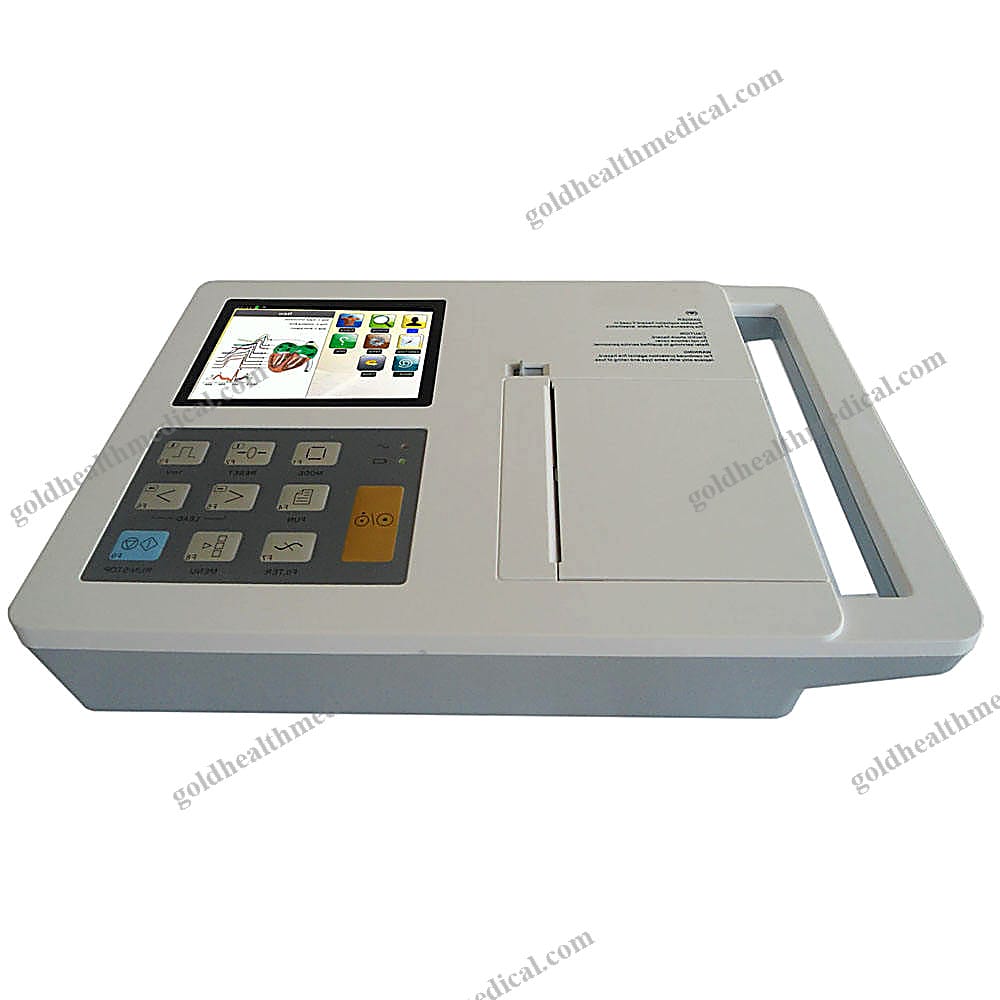

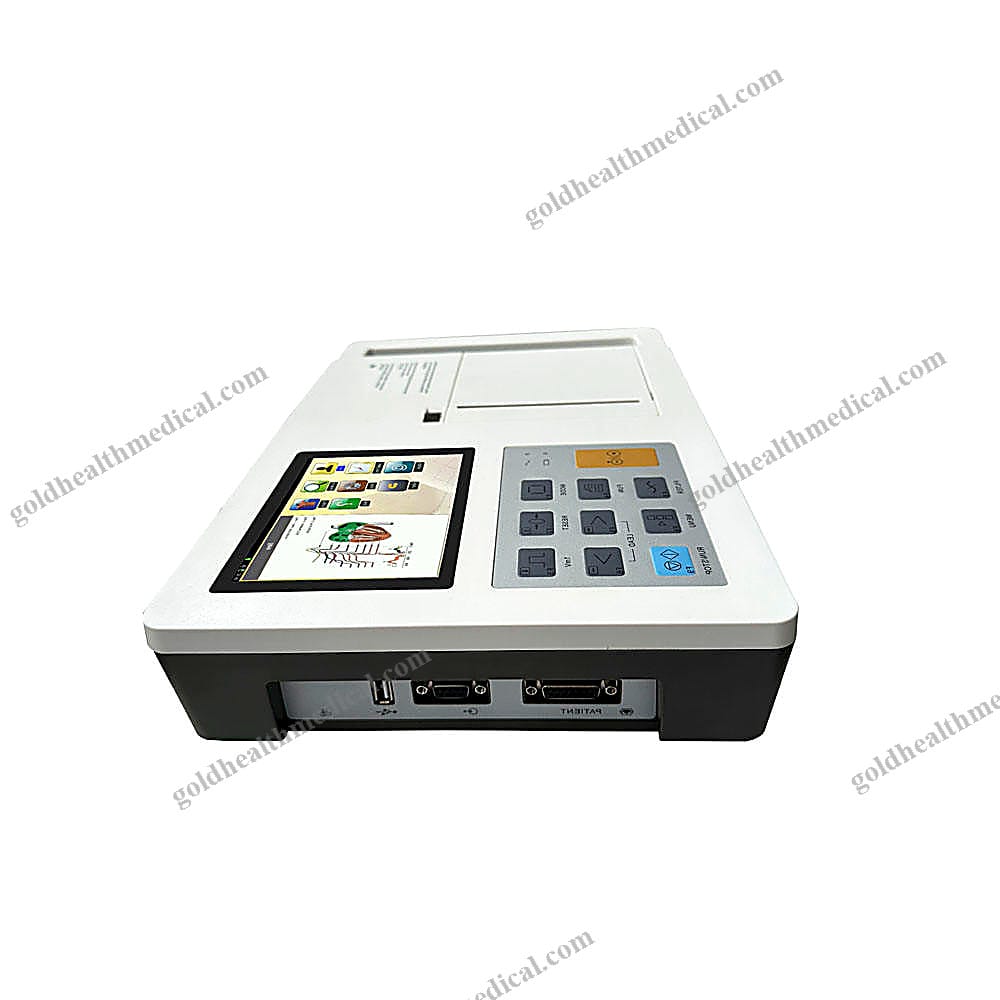

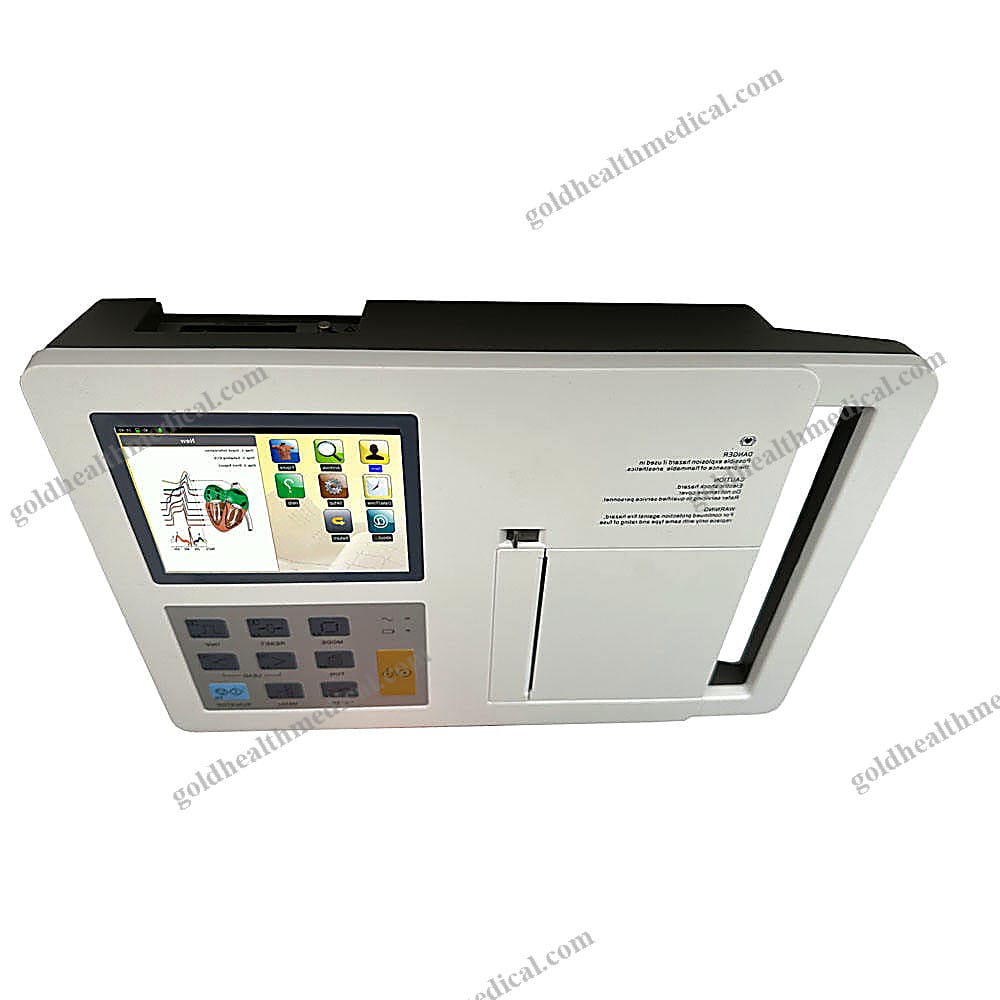

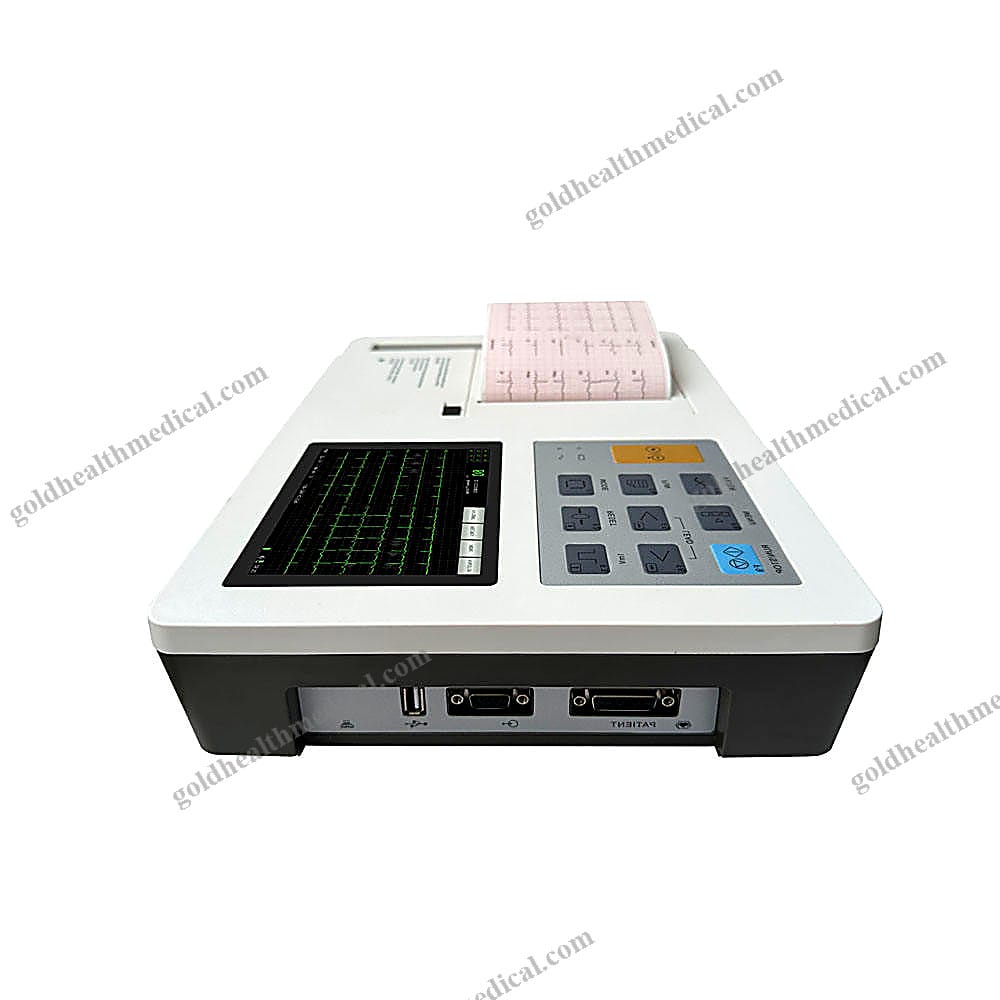

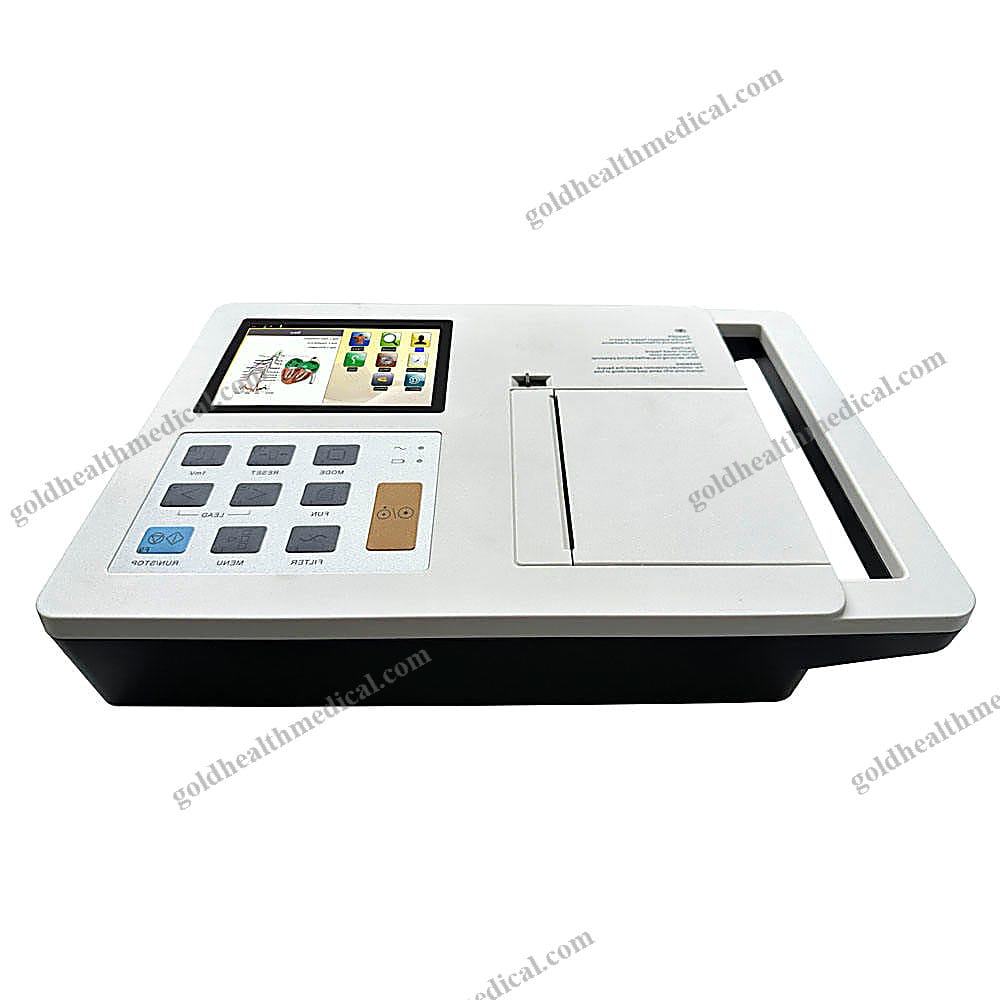

GoldHealth Medical ECG Machine: Revolutionizing Cardiac Diagnostics
Product Highlights and Features:
Sleek and Modern Design: Lightweight and compact, this ECG machine is crafted for effortless portability and seamless integration into any medical environment.
Advanced 12-Lead Acquisition: Capture and display all 12-channel ECG waveforms simultaneously on a vibrant 5.6" color touch-screen, offering both touch and push-button operation for maximum flexibility.
Optional Display Upgrade: Choose a 4.3" color touch screen for an alternative compact viewing experience.
Precision Filters: Equipped with sensitive ADS, HUM, and EMG filters to ensure clear and accurate readings, free from interference.
Automated Intelligence: Automatic measurement, calculation, analysis, and waveform freezing capabilities reduce the burden on medical professionals, enhancing efficiency and precision.
Optimal Baseline Adjustment: Ensures the highest quality recordings by automatically adjusting the baseline for clarity and accuracy.

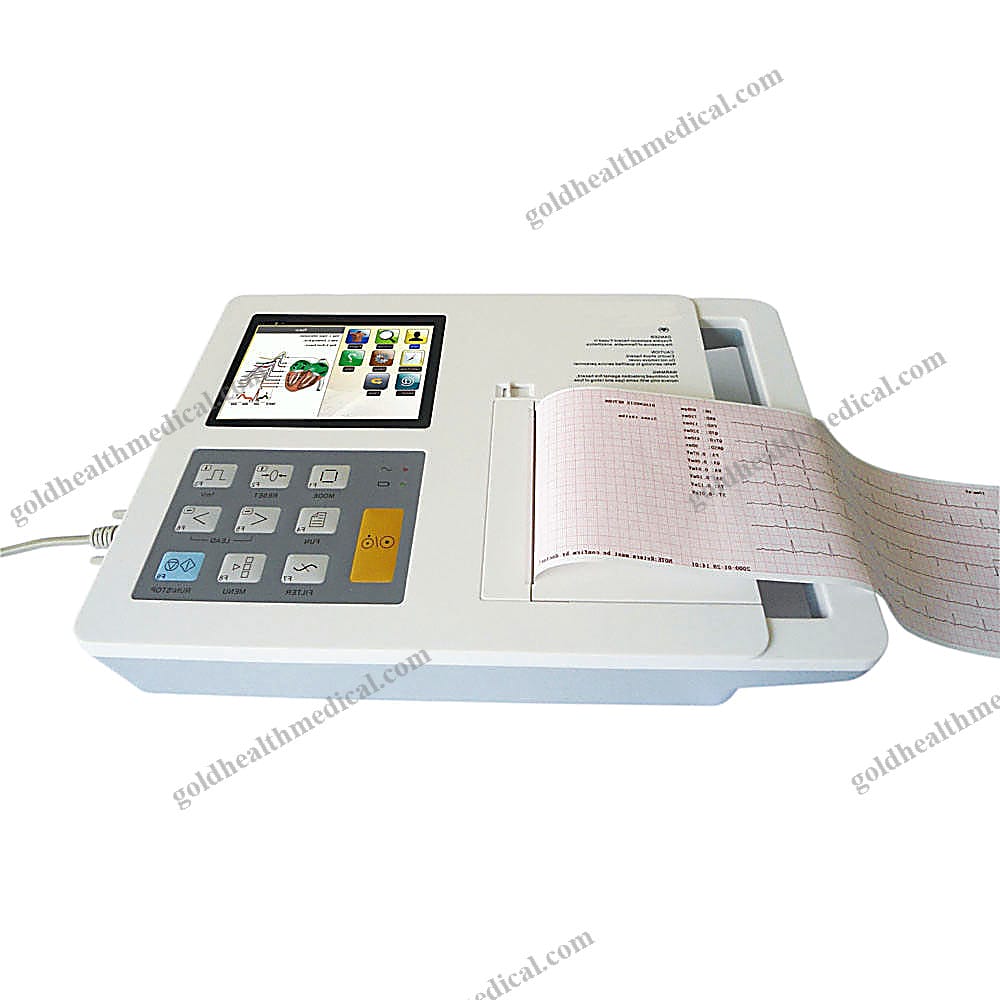

High-Quality Thermal Printing: Features a thermal printer with 112mm print paper for synchronized, high-resolution outputs. Includes lead-off and paper detection alerts.
Long-Lasting Battery Life: Powered by a built-in rechargeable lithium-ion battery (11.1V/4000mAh) with AC/DC power conversion, adaptable to 100-240V, 50/60Hz AC power supply.
Comprehensive Data Management: Review and print historical data and patient information directly from the device. Supports USB flash disks and SD memory for transferring reports to a PC via ECG playback software.
Extensive Storage Capacity: Store over 400 ECG reports in the built-in flash memory, ensuring easy access to critical patient data.
Versatile Connectivity: Standard RS232 and USB communication interfaces allow seamless connection to a PC through ECG workstation software.
Energy-Saving Features: Sleep mode extends LCD life and conserves energy, making it ideal for prolonged use.
Continuous Waveform Recording: Records real-time, clear, and exact 12-channel ECG waveforms with comprehensive remarks including lead sign, sensitivity, paper speed, and filter state.
Technical Specifications:
- CMRR: ≥ 100dB
- Calibrating Voltage: 1mV ± 3%
- Input Circuit: Floating
- Voltage Tolerance: ± 500mV
- Input Circuit Current: ≤ 0.1µA
- Time Constant: > 3.2s
- Frequency Response: 0.05Hz ~ 150Hz
- Operation Mode: Manual/Auto
- Noise Level: ≤ 15µVp-p
- Input Impedance: > 50MΩ
- Paper Speed: 12.5, 25, 50mm/s (± 3%)
- Resolution: 12bit/1000Hz
- Threshold: ≤ 20µV
- Sensitivity: 5, 10, 20mm/mV
- Battery: Built-in rechargeable Li-ion battery, 11.1V (4000mAh)
- Unit Package Dimensions: 450mm x 185mm x 350mm
GoldHealth Medical's ECG machine combines cutting-edge technology with user-centric design, setting a new standard in cardiac diagnostics. Its intelligent features and robust performance make it an indispensable tool for healthcare professionals worldwide.
