Veterinary Monitor 121 7Param Capn
Reference: 1600121824030Veterinary Monitoring Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Capnography Sensor
Product Overview
GoldHealth Medical presents a cutting-edge capnography sensor designed for precision and reliability in medical environments. Utilizing non-dispersive infrared technology with dual wavelengths, this sensor ensures accurate CO2 measurement without any moving parts, offering exceptional durability and performance.
Key Features
- Rapid Initialization: Capnogram displayed in under 4 seconds at 25℃ ambient temperature; full specifications available within 2 minutes.
- Advanced Measurement Range:
- CO2 Range: 0-114 mmHg, 0-15%, 0-15.2 kPa
- Resolution: 0.2 mmHg @ 0-59 mmHg; 0.5 mmHg @ 60-114 mmHg
- High Accuracy:
- 0-40 mmHg ± 2 mmHg
- 41-70 mmHg ± 5% of reading
- 71-100 mmHg ± 8% of reading
- 101-114 mmHg ± 10% of reading
- Above 80 breaths per minute ± 12% of reading
- Swift Response Time:
- Less than 2 seconds at 150 ml/min sampling flow
- Less than 3 seconds at 100 ml/min sampling flow
- Less than 4 seconds at 50 ml/min sampling flow
- Stable Performance:
- Short Term Drift: Maximum 1 mmHg over three hours
- Long Term Drift: Maintains accuracy over six hours
- Minimal Noise: RMS noise ≤ 0.5 mmHg at 5% CO2
- Efficient Sampling: 100Hz sampling rate
- Respiration Rate:
- Range: 2 to 150 breaths per minute
- Accuracy: ± 1 breath
- User-Friendly Calibration: No routine user calibration required
- Advanced Calculation Methods:
- EtCO2: Peak of the expired CO2 waveform
- Inspired CO2: Lowest reading of the CO2 waveform in the previous 20 seconds
Environmental Specifications
- Temperature:
- Operation: 0 to 40℃
- Storage: -40 to 70℃
- Transport: -40 to 70℃
- Humidity:
- Operation: 10 to 90% RH, Non-condensing
- Storage: 10 to 90% RH, Non-condensing
- Transport: 10 to 90% RH, Non-condensing
- Atmospheric Pressure:
- Operating: 400-800 mmHg
- Storage: 400-800 mmHg
- Transport: 400-800 mmHg
- Water Resistance: IPX4-Splash-Proof (sensor only)
Electrical Specifications
- Voltage Requirements: 5 VDC ±5%; Ripple not to exceed 100.0mV
- Power Rating:
- Typical: < 1.2W
- Warm-up: < 2.0W
Physical Specifications
- Sensor Weight: < 250 g
- Sensor Size: 1026238mm (DeepWideHigh)
- Cable Length: 75cm
Unique Selling Points
- Innovative Technology: Over 10 years of expertise in infrared spectroscopy, led by domestic experts.
- Certified Quality: CE-certified products ensuring safety and reliability.
- Global Reach: Trusted by clients across Western Europe, South America, Eastern Europe, North America, and more.
GoldHealth Medical's capnography sensor is engineered to deliver unparalleled accuracy and reliability, making it an indispensable tool for healthcare professionals worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical

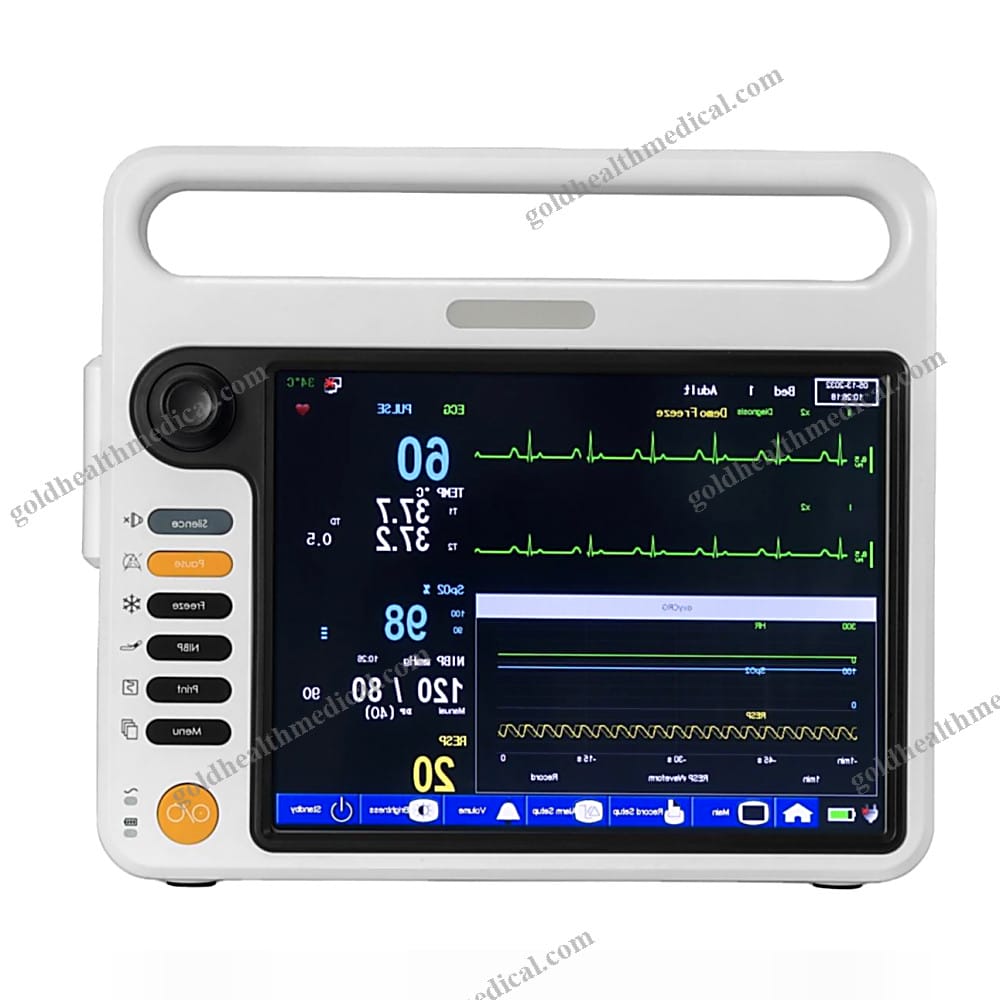

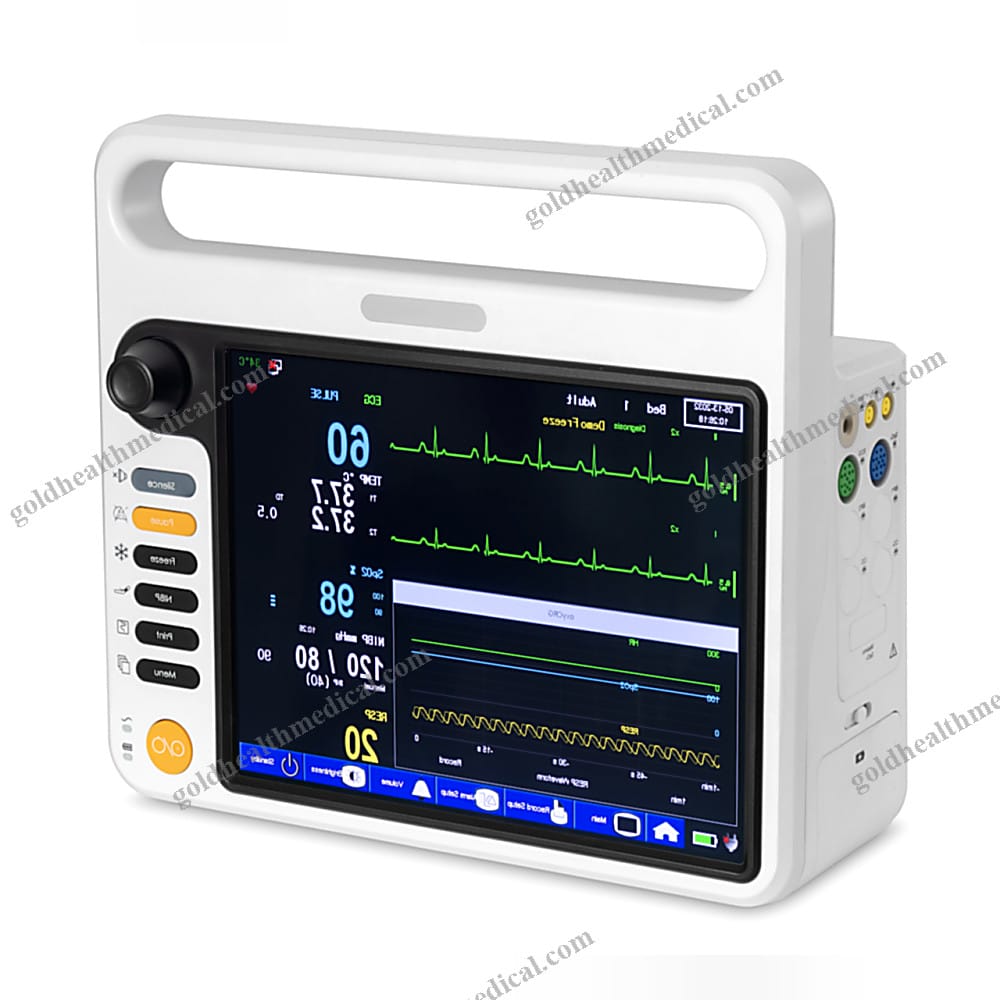

Product Name: Advanced Veterinary Monitor
Key Features:
- Comprehensive Monitoring: Equipped with SPO2, NIBP, TEMP, ECG, and ETCO2 functions for precise and reliable veterinary diagnostics.
- Durable Construction: Crafted from high-quality plastic and metal materials to ensure long-lasting performance in demanding environments.
- Versatile Application: Designed specifically for veterinary use, making it ideal for clinics, hospitals, research labs, and home care settings.
Technical Specifications:
- Power Supply: 220V, 50Hz
- Functions: SPO2, NIBP, TEMP, ECG, ETCO2
- Package Dimensions: 34 x 28 x 39 cm
- Gross Weight: 8.000 kg
- Minimum Order Quantity (MOQ): 1 Set
Packaging Details:
- Securely packed in a robust carton to ensure safe transportation and storage.
Why Choose GoldHealth Medical?
GoldHealth Medical’s veterinary monitor is engineered to deliver unparalleled accuracy and reliability, empowering veterinary professionals with the tools they need to provide exceptional care. Its intuitive design and advanced functionality make it an indispensable asset for modern veterinary practices.
