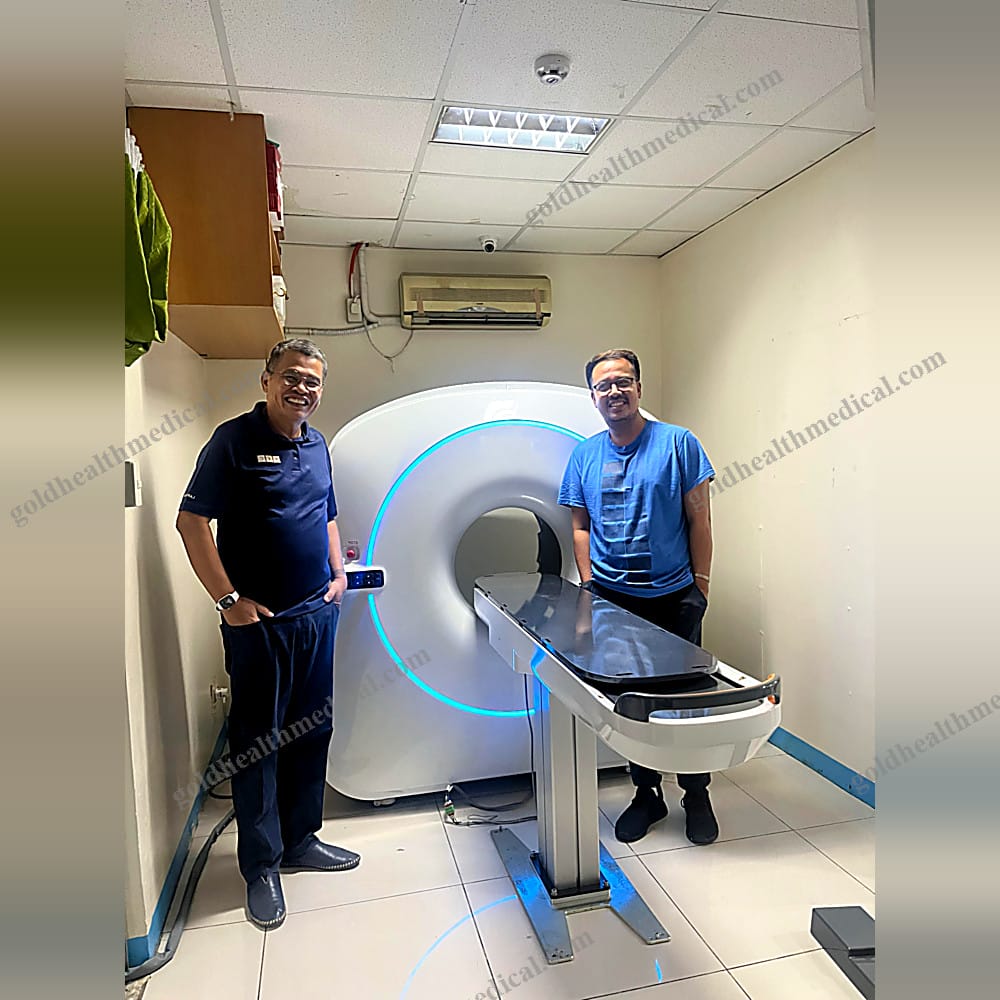

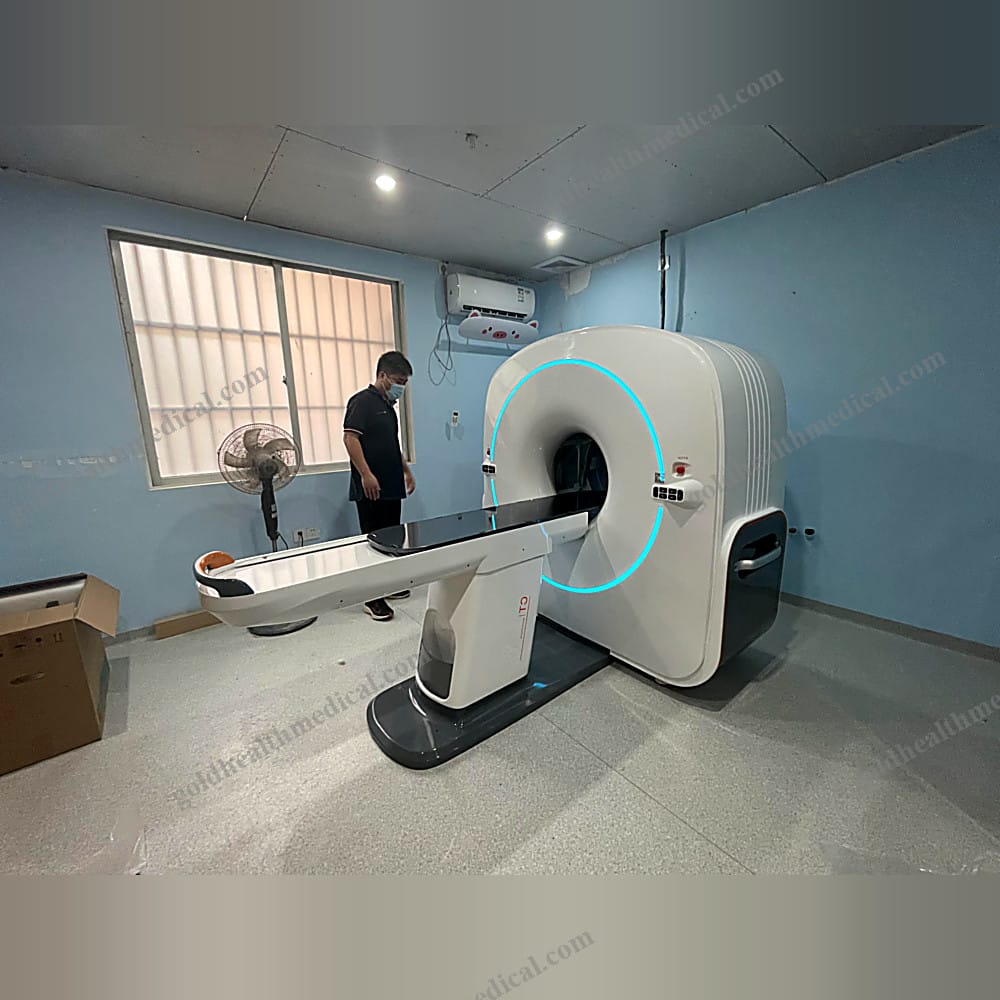

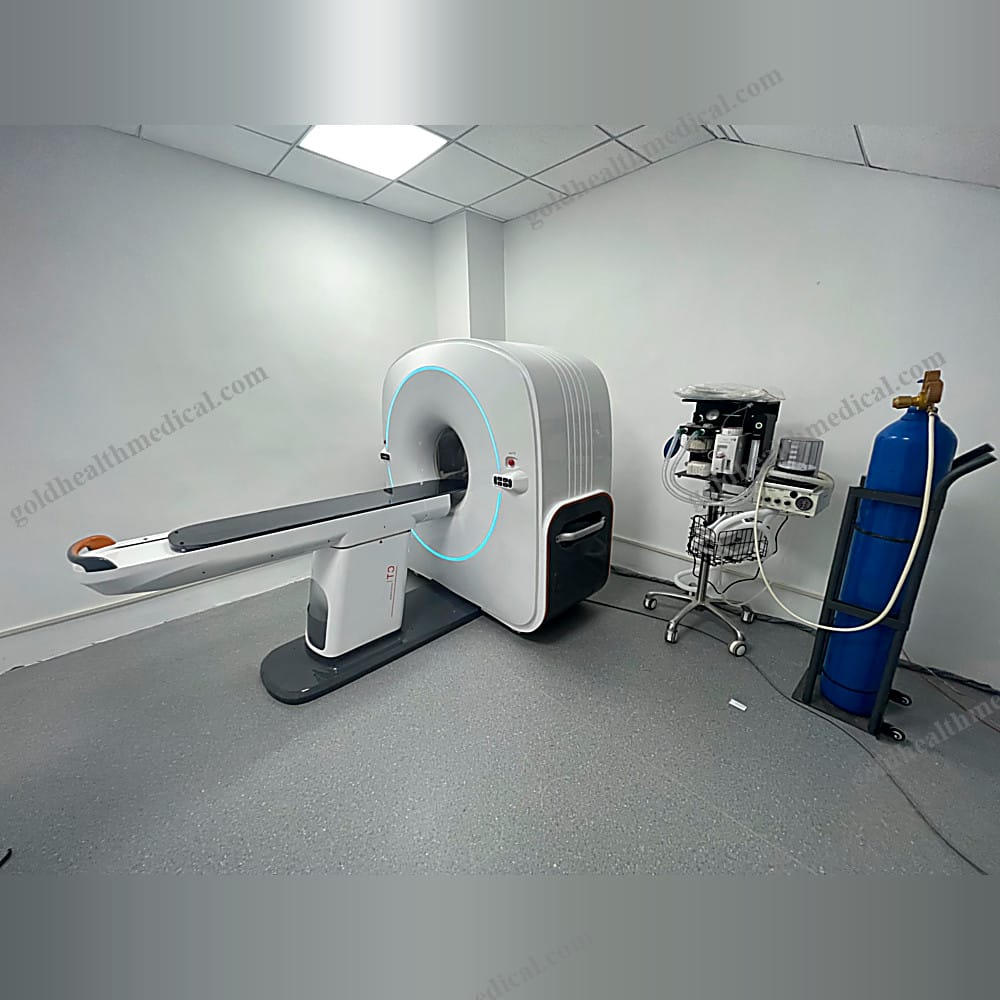

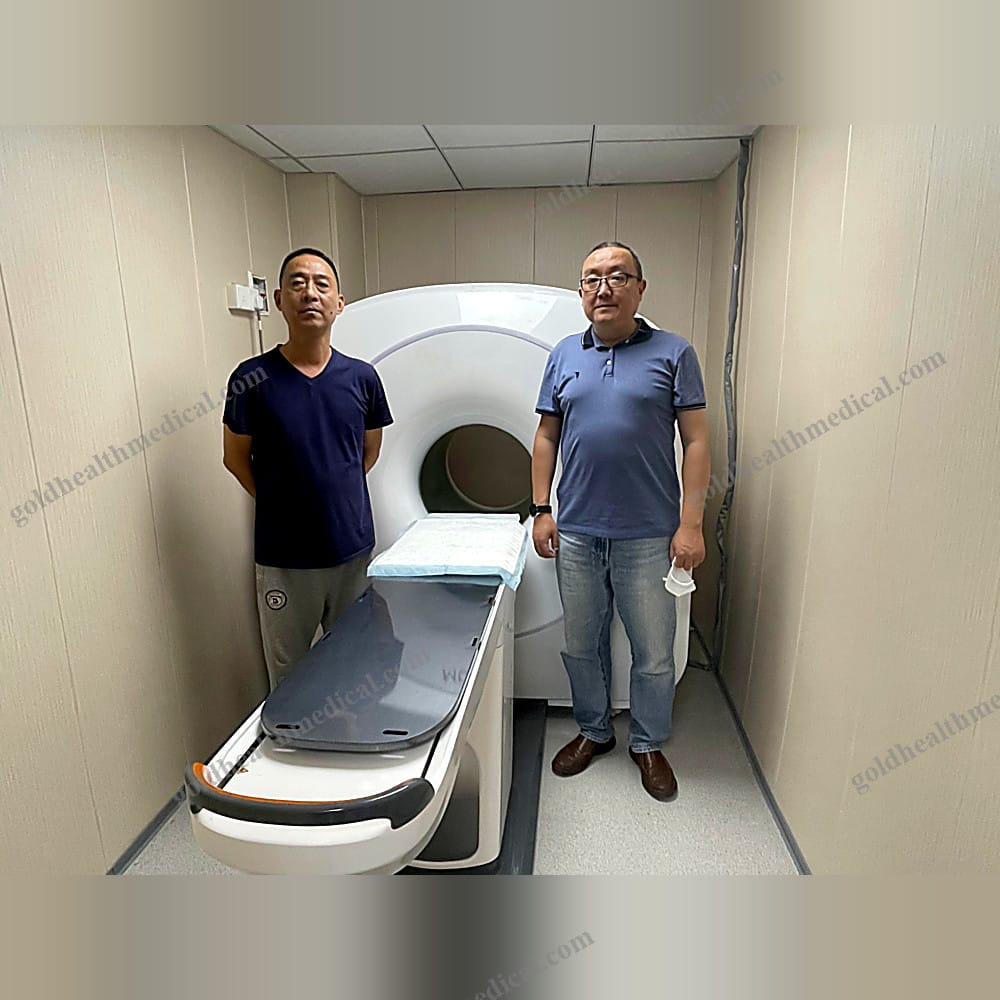

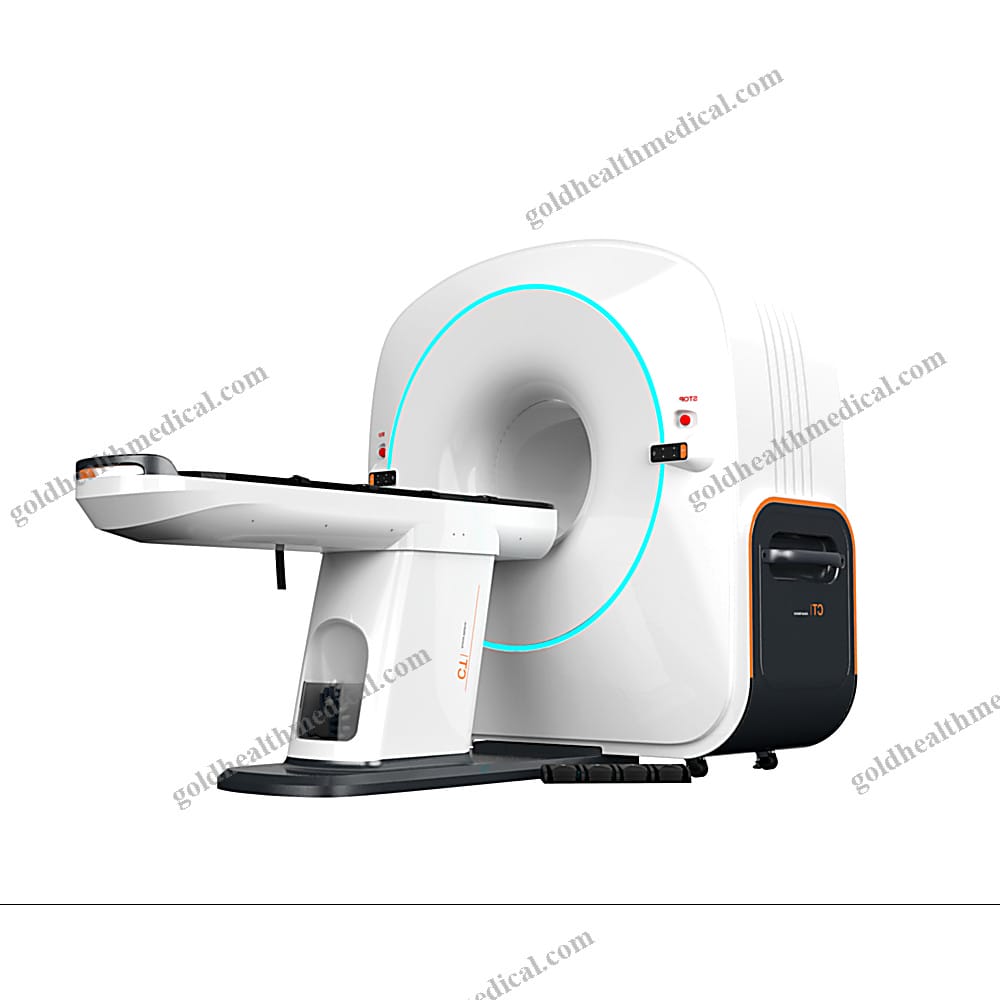

Veterinary CT Scanner for Animals
Reference: 1601216480994Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Diagnostic Imaging
GoldHealth Medical presents a cutting-edge 64-slice CT Scanner designed to deliver unparalleled precision and versatility for medical professionals. This high-resolution CT scanner is engineered to meet the demands of modern healthcare facilities, offering advanced imaging capabilities and exceptional diagnostic confidence.
Key Features
- Dual Hardware Configurations: Tailor the system to your budget and operational needs without compromising performance.
- Optimized Workflow: A robust hardware platform ensures seamless patient throughput, maximizing efficiency for busy clinical environments.
- Intuitive User Interface: Simplified workflows with guided operations and automated positioning presets streamline procedures—from routine head, chest, and abdomen scans to intricate cardiac imaging.
- Superior Image Quality: Achieve extraordinary clarity with a high-resolution output of 22lp/cm@0%MTF and 1024x1024 matrix, empowering clinicians with greater diagnostic accuracy.
- Expanded Clinical Applications: The 76cm gantry design supports advanced procedures like tumor biopsy and simulation, broadening the scope of potential clinical use cases.
Technical Specifications
Power Requirements
- Input Voltage: Single-phase AC220V
- Supply Frequency: 50Hz
- Power Capacity: ≥3.5 kVA
Mechanical Specifications
- Bed Dimensions: 1850mm (L) × 550mm (W) × 730mm (H), ±5% tolerance
- Scanning Frame Dimensions: 1670mm (L) × 810mm (W) × 1600mm (H), ±5% tolerance
- Bed Translation Range: 0–800mm, ±5% tolerance
- Bed Lifting Range: 0–150mm, ±5% tolerance
- Weight Capacity: 50kg
Electrical Performance
- Maximum Pulse Fluoroscopic Output: 1.875kW (15mA, 125kV, 10s)
- Maximum Continuous Fluoroscopic Output: 1.5kW (12mA, 125kV, 20s)
- Standard Pulse Fluoroscopy Output: 1.6kW (16mA, 100kV, 10s)
- Tube Voltage Range: 50kV–125kV, adjustable in 1kV increments, ≤±10% deviation
- Tube Current Range: 1mA–16mA, adjustable in 1mA increments, ±1mA accuracy
Imaging Capabilities
- Imaging Size: 307.2mm × 245.7mm
- Spatial Resolution: ≥1.7lp/mm
- Imaging Time: ≤40 seconds
Environmental Requirements
- Operating Temperature: 10°C–40°C
- Relative Humidity: 30%–75%
- Atmospheric Pressure: 70kPa–106kPa
Storage and Transport Conditions
- Temperature: -20°C–55°C
- Relative Humidity: 30%–93%
- Atmospheric Pressure: 70kPa–106kPa
Advanced Clinical Applications
- Coronary CTA Imaging: Achieve exceptional results even in challenging cases. Example: Heart rate 70bpm with premature beats, 120kVp, 620mAs, 0.39s rotation speed, 125mm scan range, 11s scan time, 0.625mm slice thickness.
- Skeletal Reconstruction: Generate 3D visualizations of bone structures with remarkable clarity, aiding in orthopedic and plastic surgery planning.
- Curved Planar Reformation (CPR): Transform 3D volumetric data into 2D panoramic images, ideal for dental evaluations and visualizing curved anatomical structures.
GoldHealth Medical’s 64-slice CT Scanner is designed to elevate diagnostic imaging standards, offering precision, versatility, and reliability for hospitals, clinics, and research institutions worldwide.
Experience the future of medical imaging with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
Introducing the GoldHealth Medical 64-Slice CT Scanner, a cutting-edge diagnostic tool designed to deliver unparalleled precision and efficiency for modern healthcare environments. Engineered with advanced technology, this CT scanner is ideal for hospitals, clinics, research institutions, and rehabilitation centers seeking exceptional imaging quality and reliability.
Key Features and Specifications
- Imaging Excellence: Achieve remarkable clarity with a slice thickness of just 0.625mm, enabling highly detailed diagnostic images.
- Rapid Scanning: A rotation speed of 0.39 seconds and a scan time of 11 seconds ensure swift and accurate results, minimizing patient discomfort.
- Wide Scan Range: Cover up to 125mm in a single scan, accommodating diverse clinical needs.
- Powerful Performance: Equipped with an 80kW generator and an 8.0MHU tube, this scanner delivers consistent and reliable performance.
- Modern Design: Sleek and ergonomic, it complements any medical facility while offering user-friendly operation.
Technical Specifications
- Instrument Classification: Class I
- Power Source: Electric
- Material: Durable metal construction for long-lasting use
- Shelf Life: 3 years
- Quality Certification: CE-approved for safety and performance
After-Sales Support
- Comprehensive 1-year warranty for peace of mind
- Online technical support to ensure uninterrupted operation
Packaging and Delivery
- Package Dimensions: 800 x 700 x 900 cm
- Gross Weight: 600 kg
- Minimum Order Quantity (MOQ): 1 unit
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to advancing healthcare through innovation. Our 64-slice CT scanner combines state-of-the-art technology with user-centric design, empowering medical professionals to deliver superior patient care. With a focus on precision, durability, and ease of use, this scanner is the ideal choice for modern diagnostic needs.
Place of Origin: Anhui, China
Transform your diagnostic capabilities with the GoldHealth Medical 64-Slice CT Scanner – where precision meets performance.
