USC60PLUS Portable Color Doppler Ultrasound Machine for Pregnancy and
Reference: 60754047090Medical High-Frequency Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

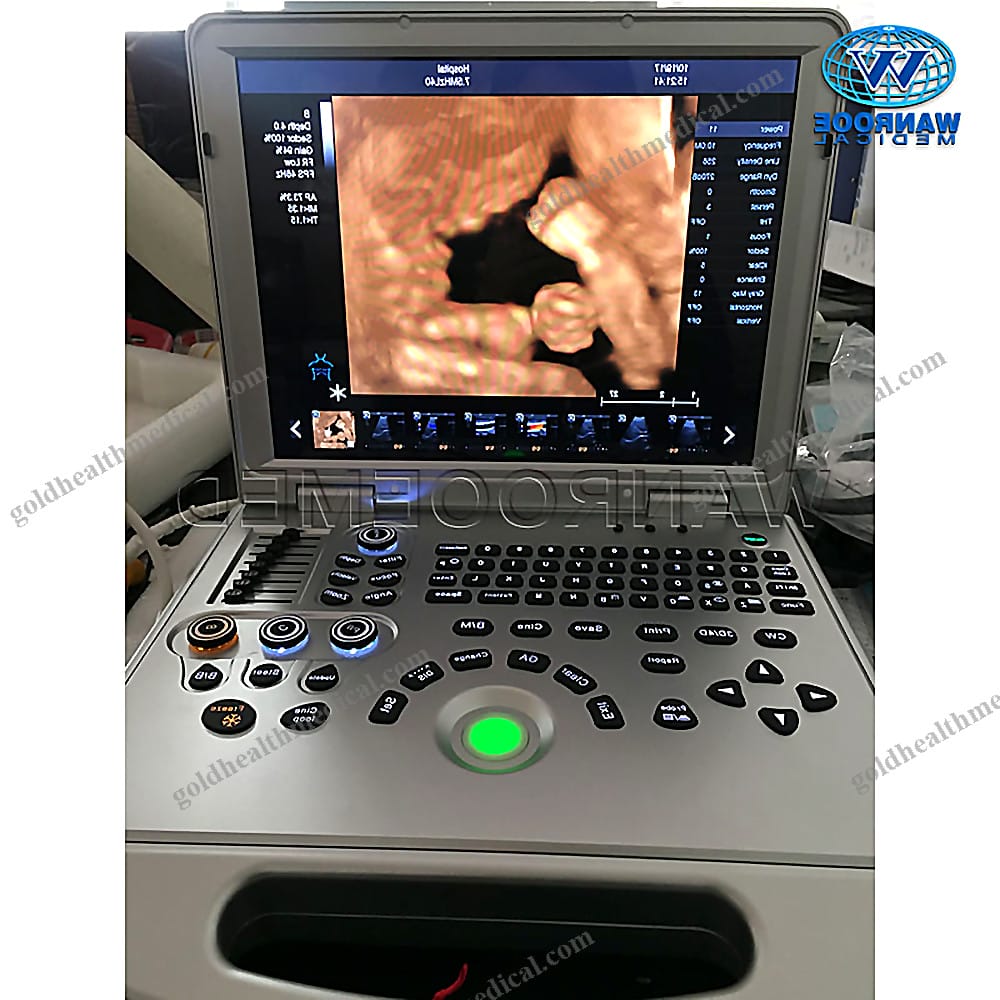

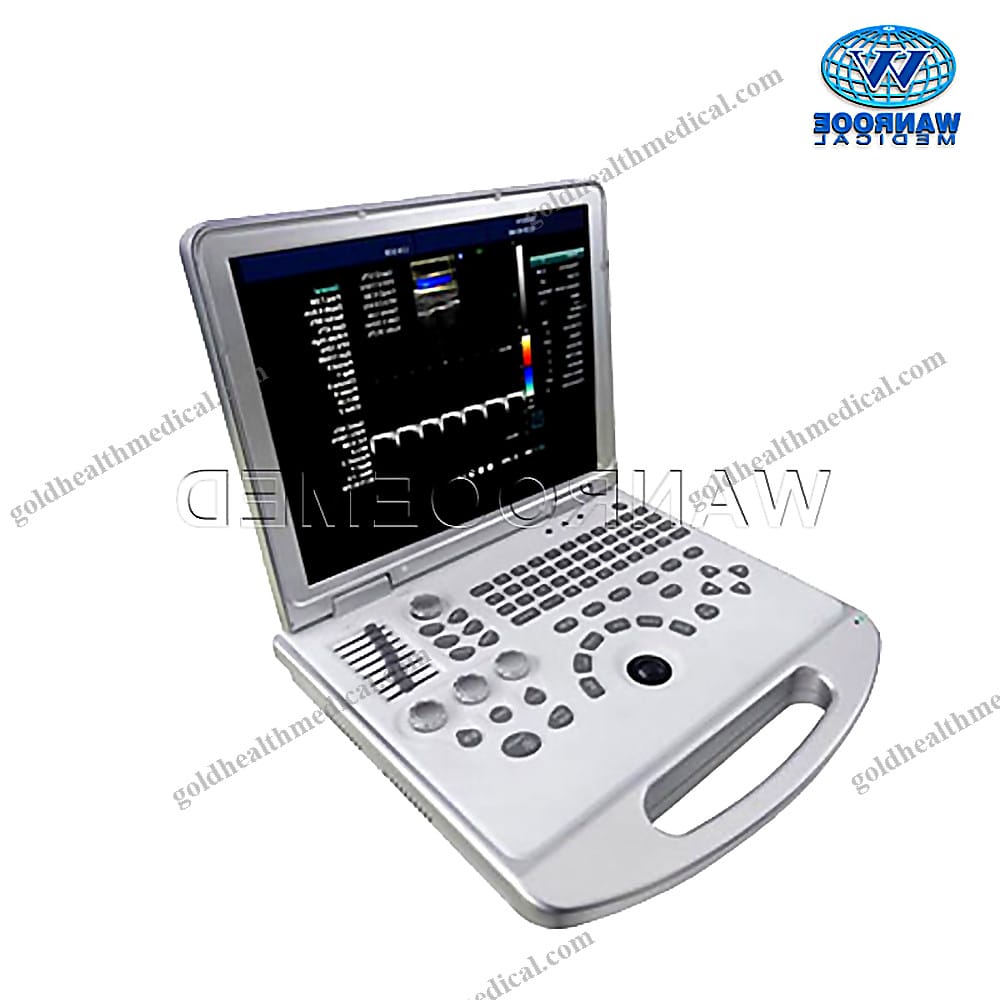

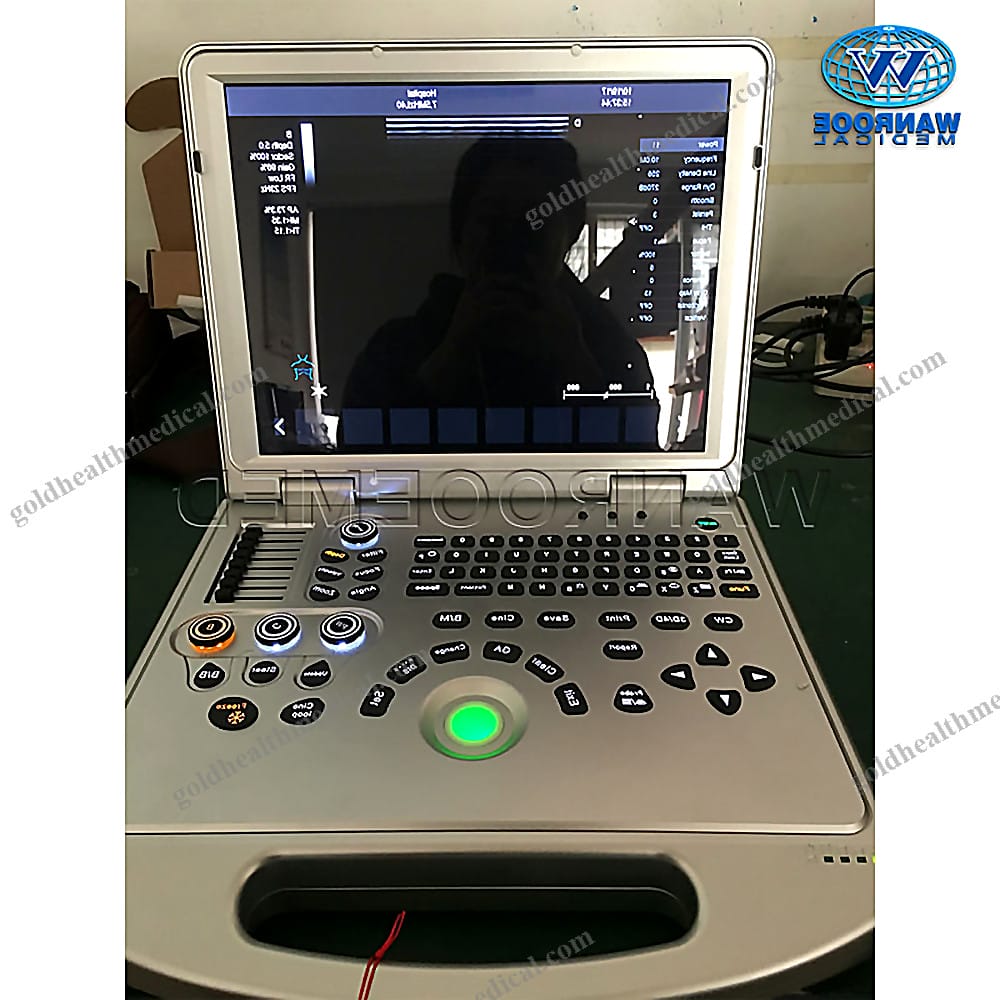

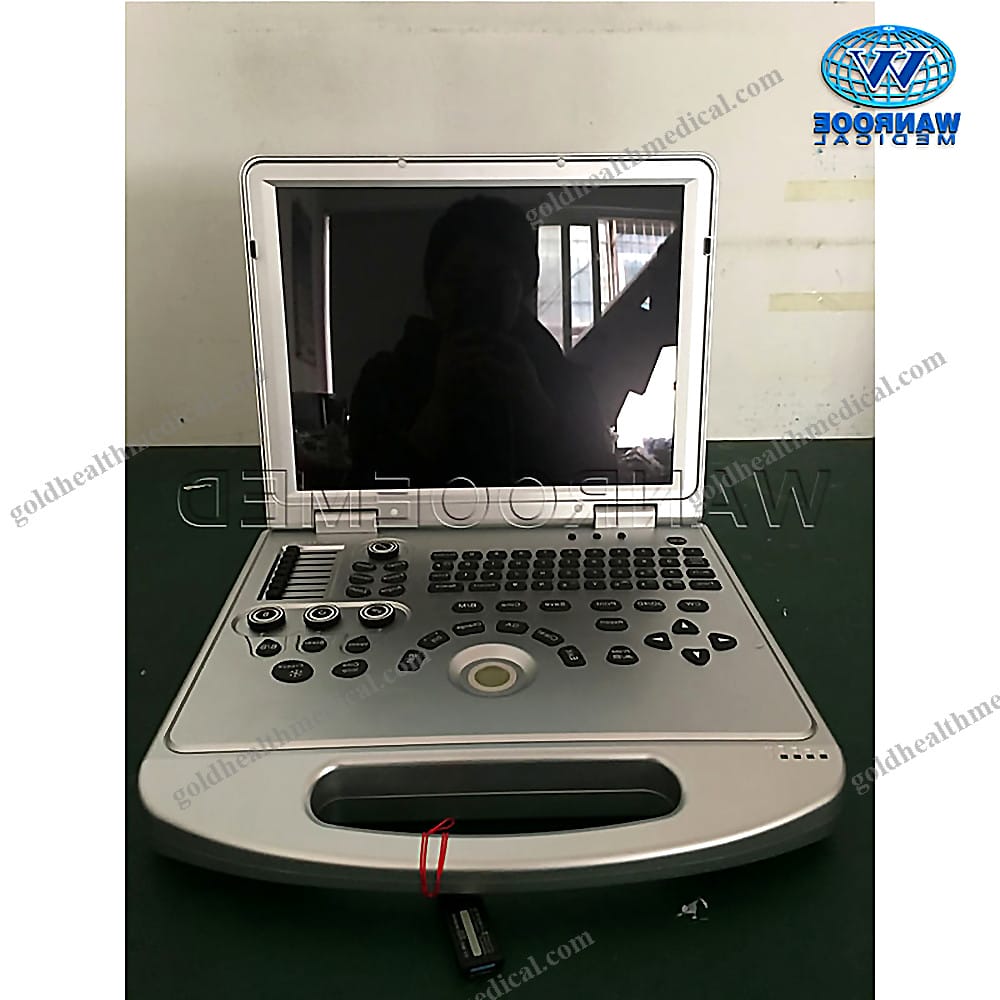

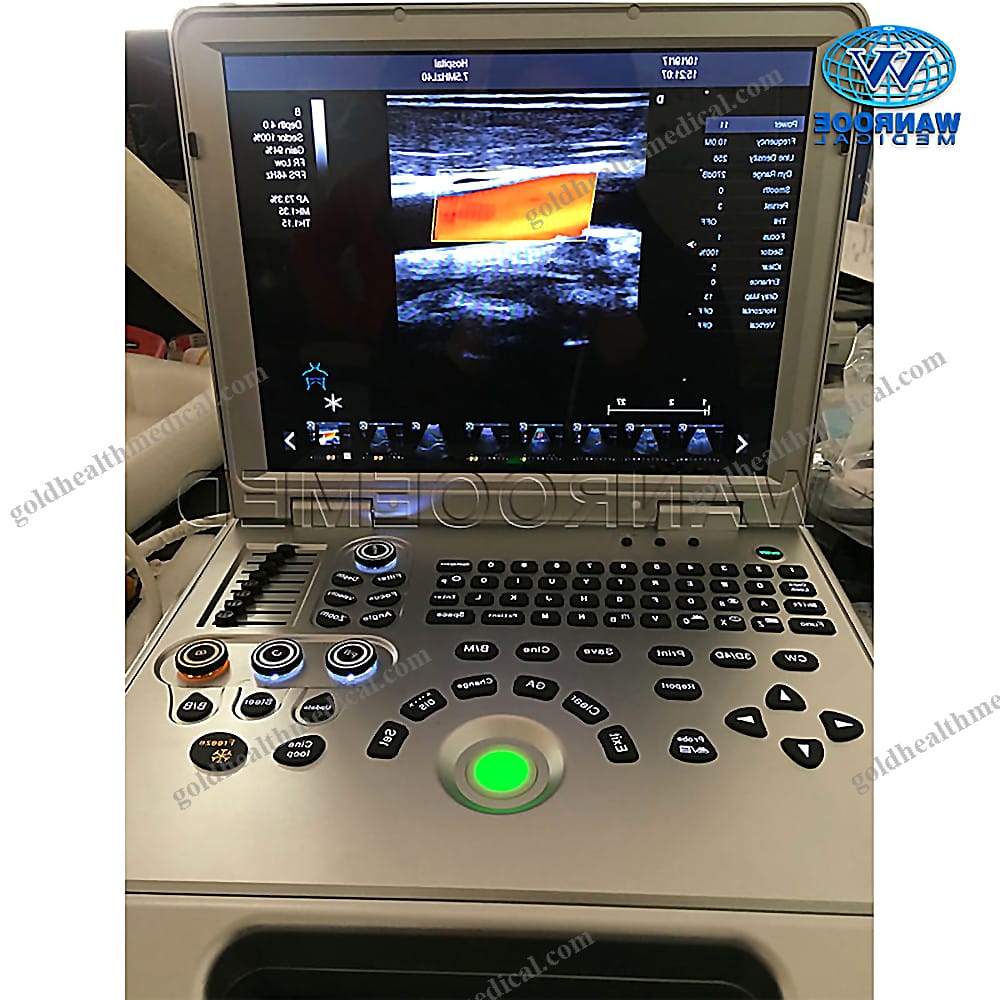

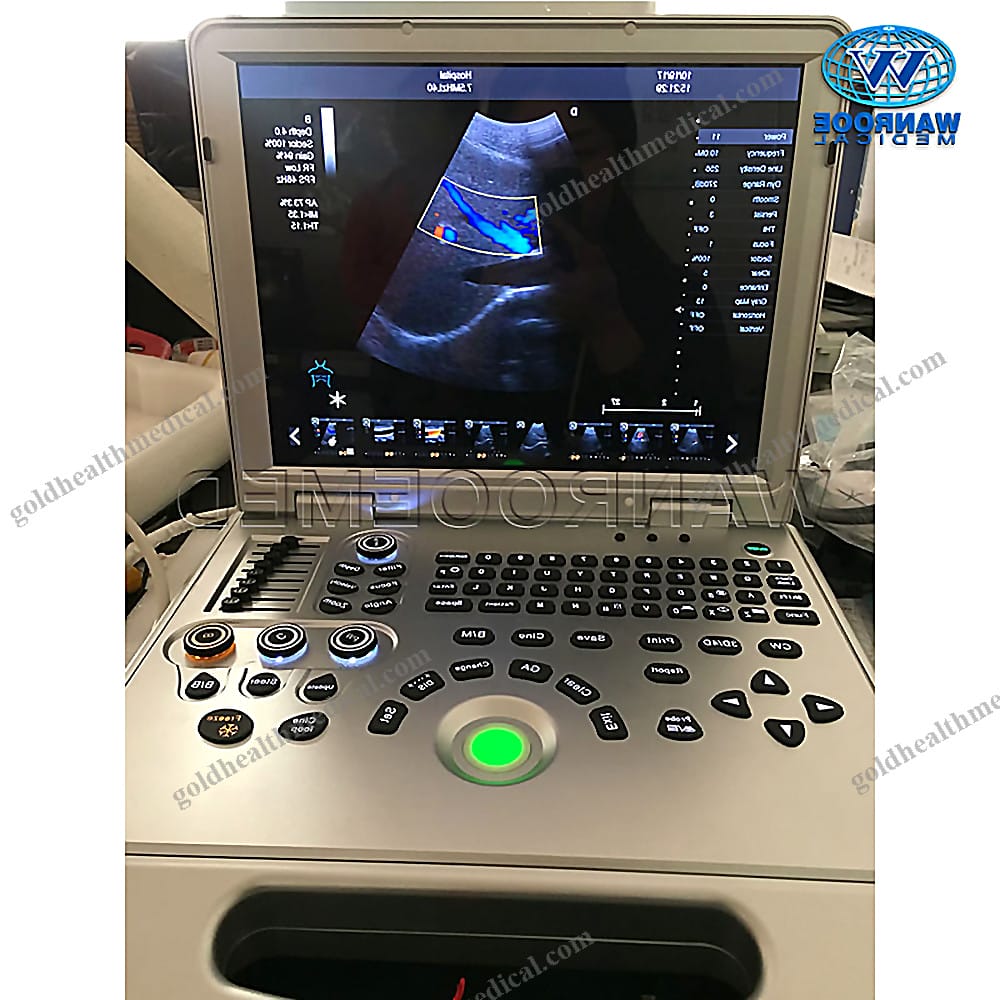

GoldHealth Medical Portable Ultrasound Machine
The GoldHealth Medical portable ultrasound system represents a groundbreaking advancement in diagnostic performance and workflow efficiency. Combining unparalleled image quality with a comprehensive suite of features, this system is designed to meet the rigorous demands of daily clinical use. With exceptional color Doppler, power Doppler, and pulsed wave Doppler capabilities, it significantly enhances diagnostic confidence. This powerful, convenient, and easy-to-operate system exceeds expectations while remaining budget-friendly.
Key Features and Benefits
- Superior Image Quality: Delivers best-in-class imaging for confident diagnostics.
- Versatile Applications: Suitable for abdomen, OB/GYN, cardiology, urology, peripheral vessels, and small parts.
- Advanced Display: Equipped with a 15-inch LED medical display for clear and precise imaging.
- Robust Battery: Built-in rechargeable lithium battery ensures uninterrupted performance.
Standard Features
- 3.5MHz Convex Probe
- 4D Imaging Software
- Portable Suitcase
- Continuous Wave (CW) Function
Optional Probes
- Trans-vaginal Probe
- Linear Probe
- Micro-convex Probe
- Phased Array Probe
- 4D Volume Probe
Display and Operation
- Display Modes: B, B+B, 4B, B+M, M, C, PW, CW, 4D, B/C, B/C/PW, B/PW
- Focus Segments: 4 segments
- Body Marks: Over 57 options
- Operation Interface: English (additional languages available)
Measurement Capabilities
- Distance, Circumference, Area, Volume
- Heart Rate, Diameter Stenosis Rate, Area Stenosis Rate
- Angle, Rhythm, Speed
Clinical Applications
- Abdomen, Cardiac, Skeletal Muscle
- Early, Middle, and Late Obstetrics
- Pelvic (Uterine Attachment), Small Parts, Urology
- Peripheral Blood Vessels, GW&EDD, Fetal Weight
Image Processing and Storage
- Image Processing: Up/Down, Left/Right, Angular Variation, Reverse
- Cine Loop: Supports up to 1200 frames with continuous playback or frame-by-frame viewing
- Storage: Save and transfer probe parameters, cine loops, measurement results, and reports to external storage devices
- Gray Scale: 256 levels
Advanced Features
- Puncture Guide: Available
- Gravel Positioning: Available
- Dynamic Range: 0-270dB
- TGC Control: 8 segments
- Pre-processing: Variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI
- Post-processing: Includes dynamic range, black and white afterglow, smoothing, gray curve, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment, spectral sampling volume, spectral sampling volume angle, and PRF
Technical Specifications
- Blind Zone: ≤4mm
- Max Display Depth: 320mm
- Geometric Accuracy: Horizontal ≤ 5%, Vertical ≤ 5%
- Resolution: Lateral ≤ 2mm, Axial ≤ 1mm
- External Interfaces: Video, USB, DICOM 3.0
- Display Magnification: 16 types
- Frame Rate: 5-1016fps
- Scanning Range: 5% - 100%
- Gain Adjustment: Overall Gain: 0 ~ 100%, PW Gain: 0-15, CFM Gain: 0-15
- Image Optimization: 6 levels
- Smoothing: 8 levels
- Edge Enhancement: 8 levels
- PRF: 16 levels
- Gray Scale Curve: 16 levels
- Acoustical Power: 15 levels
Physical Specifications
- Weight: Net Weight: 6.3kg, Gross Weight: 15kg
- Packing Size: 605027cm
GoldHealth Medical's portable ultrasound machine is not just a tool; it's a comprehensive solution designed to elevate your diagnostic capabilities. Whether you're in a hospital, clinic, or conducting fieldwork, this system ensures precision, reliability, and ease of use.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name:
GoldHealth Medical Portable Color Doppler Ultrasound Machine for Pregnancy
Key Features and Benefits:
- Advanced Imaging Technology: Delivers precise and clear imaging for a wide range of applications, including abdomen, cardiac, skeletal muscle, and early obstetrics.
- Large Cine Memory: Store up to 1200 frames for comprehensive review and analysis.
- Adjustable Cine Review Speed: Playback at variable speeds (1-5) for detailed examination.
- High-Quality Display: Equipped with a 15-inch LED medical-grade display for exceptional clarity and accuracy.
- User-Friendly Interface: Available in English with additional language options to suit global users.
Technical Specifications:
- Instrument Classification: Class I
- Safety Standard Compliance: EN 149-2001+A1-2009
- Operating Conditions:
- Temperature: -5°C to 40°C
- Humidity: ≤80%
- Pressure: 500hPa to 1060hPa
- Power Source: Electric
- Shelf Life: 1 year
Applications:
- Abdominal examinations
- Cardiac assessments
- Skeletal muscle evaluations
- Early obstetric monitoring
Packaging Details:
- Single package size: 60 x 50 x 30 cm
- Single gross weight: 15.000 kg
- Export carton packaging ensures safe and secure delivery
Supply and Support:
- Supply Capacity: 1000 sets per month
- Warranty: 1 year, ensuring peace of mind for your investment
- After-Sale Service: Comprehensive online technical support tailored to your needs
Why Choose GoldHealth Medical?
GoldHealth Medical’s portable ultrasound machine combines cutting-edge technology with user-centric design, making it an indispensable tool for hospitals, clinics, research institutions, and home healthcare. Its robust build, compliance with international safety standards, and versatile applications set it apart as a reliable and innovative solution for modern medical imaging needs.
