Advanced Movable Flat Panel Detector by GoldHealth Medical
GoldHealth Medical introduces a cutting-edge movable flat panel detector designed for versatility and precision in diverse environments. This detector is engineered to deliver exceptional performance across a wide range of applications, from medical diagnostics to industrial inspections.
Key Features
- Robust Design: Advanced encapsulation and a durable internal/external frame allow operation in extreme temperatures and high-vibration conditions.
- High-Resolution Imaging: Boasts a pixel size of 140μm and an image array of 3072x3072, delivering 9.43 million pixels for unparalleled clarity.
- Enhanced Sensitivity: Achieves fast exposure times of less than 5 ms with minimal X-ray dosage, ensuring safety without compromising image quality.
- Dynamic Range: Offers an impressive 9×10^7 saturated electrons and a maximum linear exposure dose exceeding 100μGy.
- Customizable Gain: Multi-stage gain adjustment allows users to effortlessly capture the best possible digital images.
Unique Advantages
- Innovative Technology: Fully independent development ensures cost-effectiveness while leveraging cesium iodide directly coupled with amorphous silicon for superior performance.
- Premium Components: Equipped with a TFT module from a globally renowned manufacturer for reliability and precision.
- Comprehensive Support: Delivers timely and effective quality services tailored to meet your needs.
- Versatile Applications: Ideal for medical diagnostics, imaging systems, veterinary diagnostics, industrial non-destructive testing (NDT), and safety inspections.
Core Structure
The amorphous silicon flat panel detector integrates: - A high-absorption X-ray scintillation screen. - A large-format amorphous silicon photodiode/TFT panel. - A sophisticated detector electronic control system.
Technical Specifications
- Application: General radiography.
- Scintillator: Cesium Iodide (CsI).
- Pixel Pitch: 140μm.
- Pixels: 3071x3071 pixels.
- Image Size: 427x427mm.
- Spatial Resolution: 3.74p/mm.
- A/D Conversion: 16 bits.
- Preview Image Access Time: Approximately 5 seconds post-exposure.
- Operating Environment: Sensor unit operates between 10-35°C and 30-80% RH (non-condensing).
- Dimensions: 46x46x15mm.
- Weight: 3.5kg.
Installation Guidelines
- Installation must be performed by qualified personnel.
- Ensure the detector is securely positioned to prevent slippage during setup.
- Minimize vibration and impact during installation to protect the detector.
Installation Steps
- Insert the detector into the film magazine and secure it with clamps.
- Route the detector’s connecting wire through the magazine’s wire hole.
- Connect the external wire in the air and link it to the power supply box.
- Use a network cable to connect the power supply box to the DROC workstation.
- Link the power supply box to the high-voltage generator via a hard synchronous line.
- Plug in the power cord and AC cable, then power on the detector for normal operation.

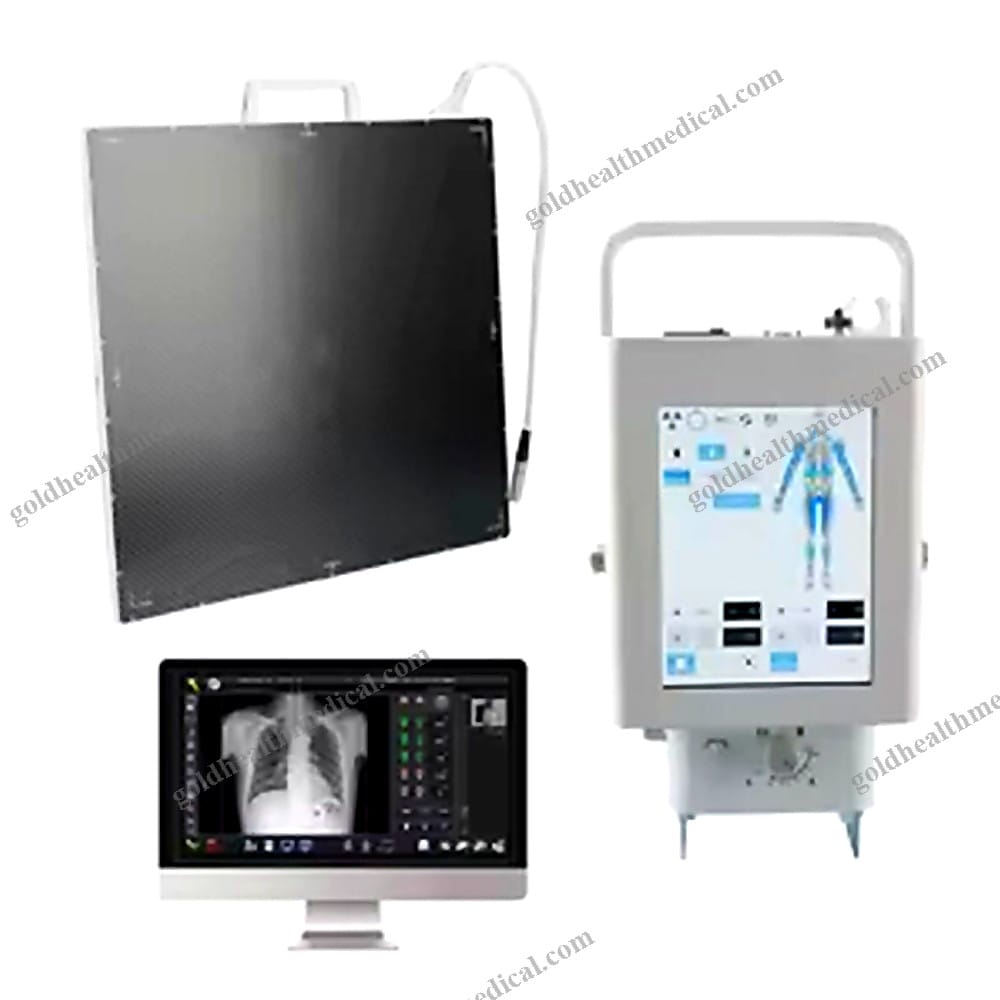

DR System Overview
The complete DR system includes: - X-ray tube. - X-ray generator. - Flat panel detector. - DROC workstation.
The detector connects directly to the power supply box, which interfaces with the DROC workstation and high-voltage generator via gigabit Ethernet and synchronous exposure cables. The power supply box can be powered by wall grid power or a rack system.
GoldHealth Medical’s flat panel detector redefines precision and reliability, empowering professionals across healthcare, research, and industrial sectors.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Flat Panel Detector by GoldHealth Medical
Key Features and Benefits:
- Unmatched Precision: Equipped with a CsI scintillator and 140 μm pixel pitch, this detector delivers ultra-sharp, high-resolution images for accurate diagnostics.
- Lightning-Fast Performance: Preview image time of less than 3 seconds ensures rapid results, optimizing workflow efficiency in demanding medical environments.
- Advanced Technology: Utilizes amorphous silicon detector technology to provide consistent, reliable imaging performance for a wide range of applications.
- Dual Network Capability: Dual 1000Mbit network support ensures seamless data transfer and integration with existing systems.
Technical Specifications:
- Image Size: 17" x 17"
- Detector Size: 460mm x 460mm x 15mm
- Power Source: Electric
- Material: Durable, medical-grade plastic
- Color: Professional black finish
- Instrument Classification: Class II medical device
- Safety Standard Compliance: GB2626-2006
Quality Assurance:
- Certifications: CE certified for global standards of safety and performance
- Shelf Life: 2 years from date of manufacture
- Warranty: Comprehensive 2-year warranty for peace of mind
After-Sale Support:
- Dedicated Online Technical Support: Access expert assistance anytime to ensure uninterrupted operation and address technical queries.
Applications:
- Designed for use in medical X-ray equipment and accessories, this flat panel detector is ideal for hospitals, clinics, research labs, and rehabilitation centers.
Packaging Details:
- Selling Unit: Single item
- Package Dimensions: Customizable based on client requirements
- Gross Weight: Lightweight design for easy handling and transportation
GoldHealth Medical’s Flat Panel Detector redefines imaging excellence with its cutting-edge technology, reliability, and user-focused design. Elevate your diagnostic capabilities with a product built to meet the highest industry standards.
