Medical equipment Select an image to inspect
Available for inquiry Specification-led inquiry
Medical equipment sourcing
TRIANGEL 9801470nm EV
Reference: 1601212110615Medical Laser Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

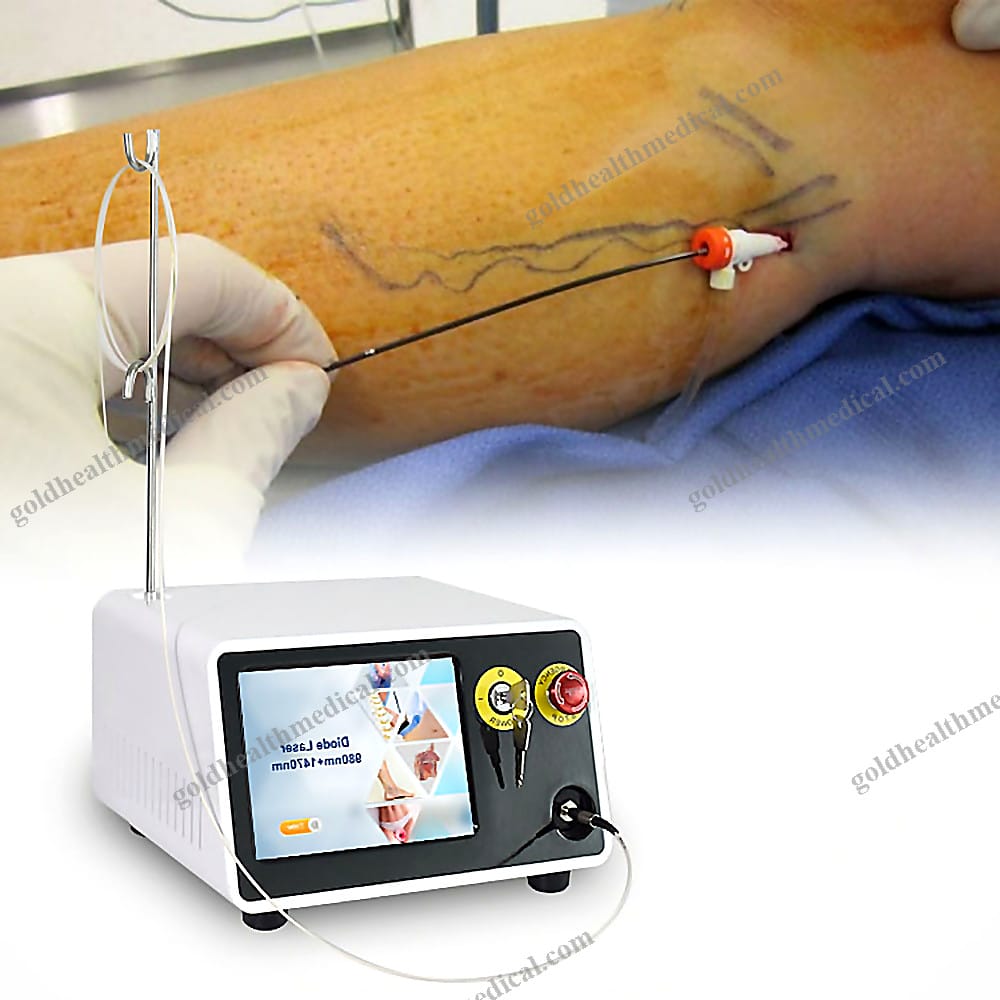

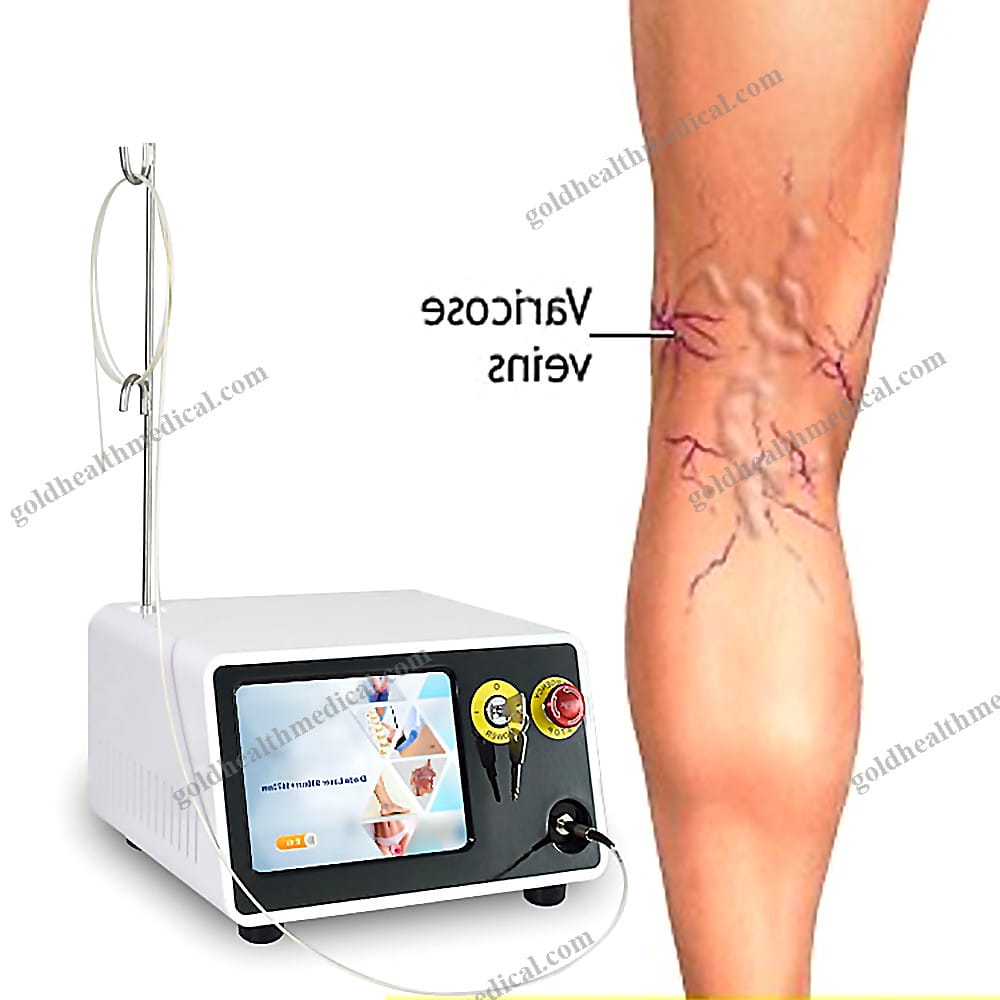

GoldHealth Medical presents an advanced solution for endovenous laser therapy, designed to redefine precision and efficiency in varicose vein treatment.
Treatment Theory
Laser interaction with tissue is determined by wavelength selection. GoldHealth Medical offers two cutting-edge wavelengths:
- 980nm Laser: Balanced absorption in water and blood, providing a versatile surgical tool with high power output (30/60W) for endovascular applications.
- 1470nm Laser: Superior water absorption, minimizing collateral thermal damage and delivering unparalleled precision for venous ablation.
The combination of 980nm and 1470nm wavelengths ensures optimal performance for diseased vein ablation. The 1470nm wavelength is at least five times more effective in targeting water and oxyhemoglobin than 980nm, enabling selective vein destruction with reduced energy and fewer side effects.
As a water-specific laser, the 1470nm wavelength targets water as the chromophore, efficiently heating endothelial cells while minimizing collateral damage. This results in superior vein ablation with minimal risk.
Key Features

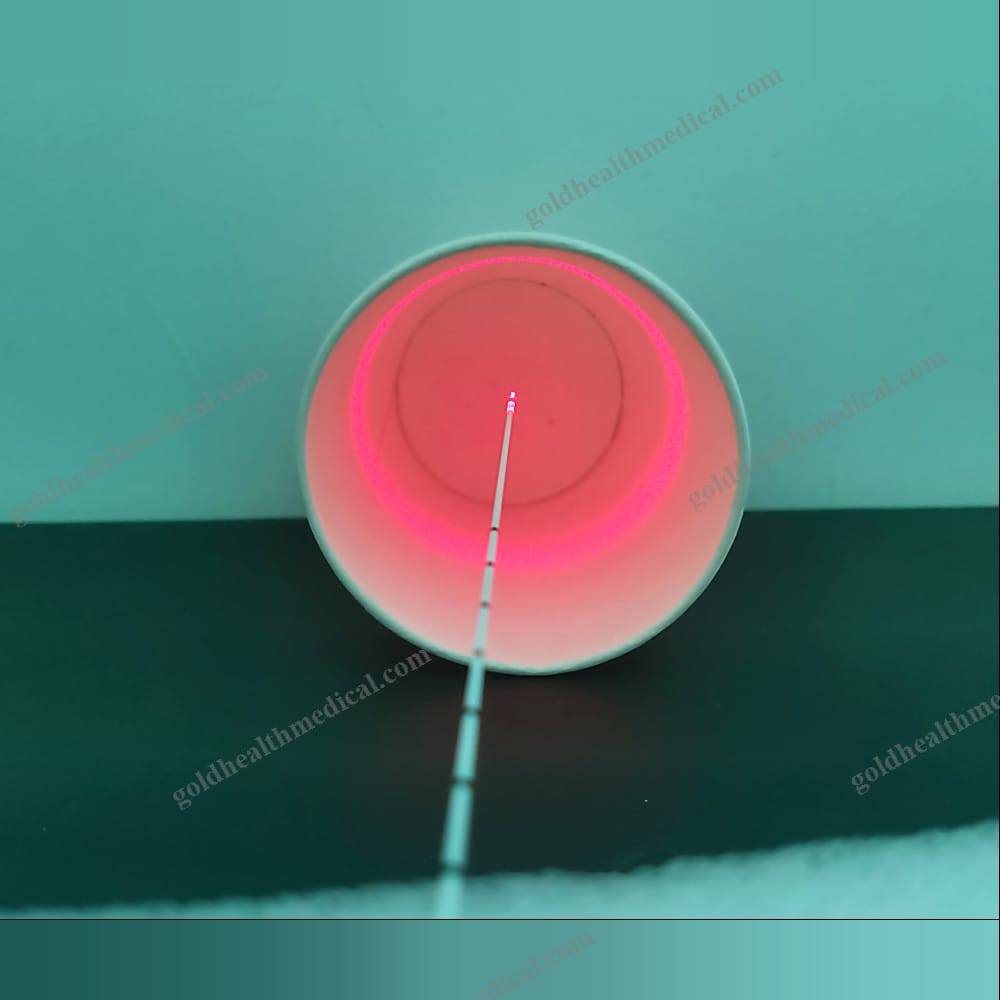

- 360° Radial Fiber Technology:
- Delivers circular emission for uniform energy deposition on the vessel wall.
- Features an ultra-smooth glass capillary tip for effortless insertion into veins.
Simplifies procedures with a short introducer, reducing steps and procedure time.
Dedicated Laser Marking: Ensures precise probe positioning for consistent results.
Advantages
- Circular Emission Technology: Maximizes energy efficiency and precision.
- Reduced Procedural Steps: Streamlines workflow for faster treatments.
- Safe and Smooth Insertion: Minimizes patient discomfort and procedural risks.
Clinical Benefits
- Endovenous Occlusion: Effectively treats great saphenous and small saphenous veins.
- Minimally Invasive: Performed in-clinic with topical anesthetic cream.
- Fast Recovery: Patients can resume normal activities immediately.
- No Downtime: No bruises, no post-operative effects, and showering is possible right away.
For optimal results, treatments should be spaced 6-8 weeks apart, with avoidance of direct sunlight recommended for the treated area.
Technical Specifications
- Laser Type: Diode Laser (Gallium-Aluminum-Arsenide GaAlAs)
- Wavelengths: 650nm (aiming beam), 980nm, 1470nm
- Power Output:
- 980nm: 1-30W
- 1470nm: 1-17W
- Working Modes: Continuous Wave (CW), Pulse, and Single
- Aiming Beam: Adjustable red indicator light (650nm)

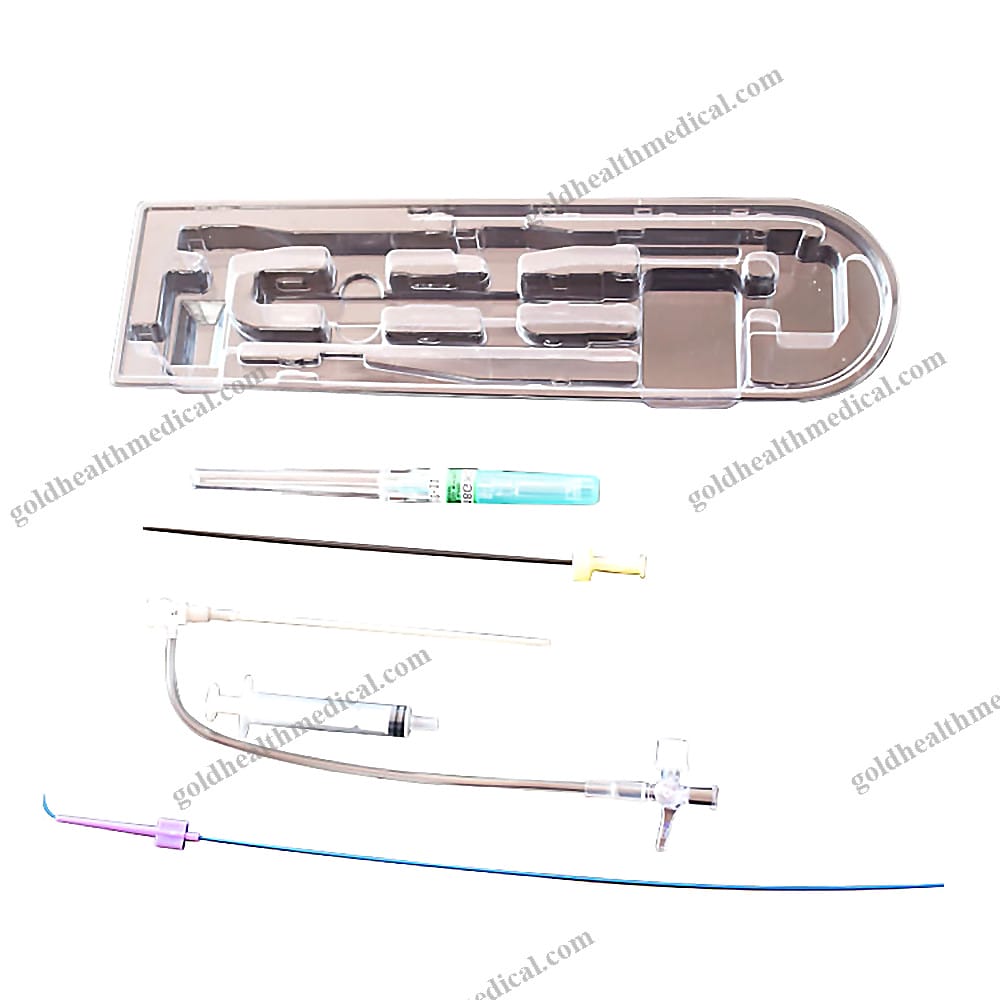

- Fiber Type: Bare fiber
- Fiber Diameter: 400/600 µm
- Fiber Connector: SMA-905 international standard interface
- Pulse Duration: 0.00s-1.00s
- Delay: 0.00s-1.00s
- Voltage: 100-240V, 50/60Hz
- Dimensions: 48 x 40 x 30 cm
- Weight: 5 kg

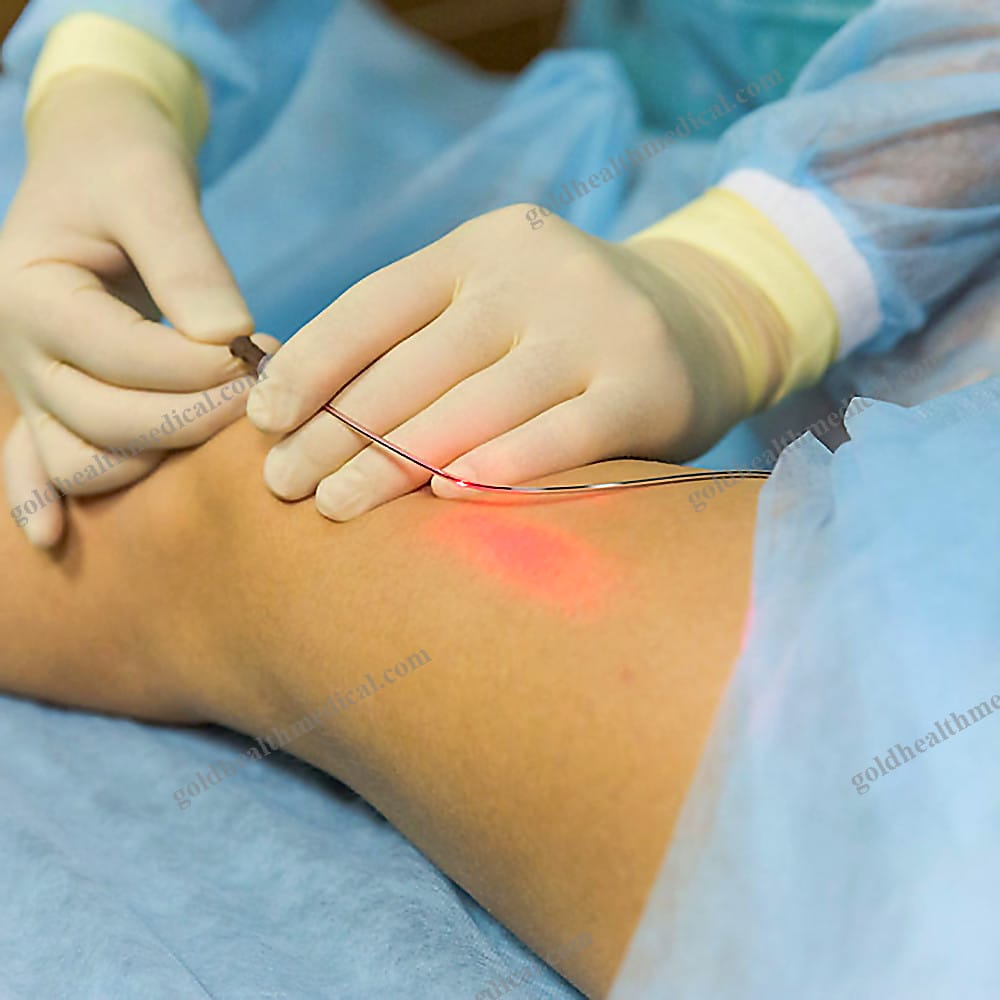

Procedure Overview
- The leg is cleaned, and a small amount of local anesthetic is applied.
- A catheter is inserted, followed by the endovenous laser fiber.
- A cool anesthetic is applied around the vein to protect surrounding tissues.
- Protective goggles are worn as the laser is activated.
- The laser is gradually pulled back to seal the vein, ensuring minimal discomfort.
- Post-procedure, patients wear compression stockings for 5-7 days and walk 30 minutes daily.
- Long-distance travel is restricted for 4 weeks, and a follow-up appointment is scheduled for potential ultrasound-guided sclerotherapy.
GoldHealth Medical’s advanced laser system is engineered to deliver exceptional outcomes, combining cutting-edge technology with user-friendly design. Elevate your practice with a solution that prioritizes precision, safety, and patient satisfaction.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the 1470nm Varicose Veins Laser – a cutting-edge solution for precision-based medical treatments.
- Laser Type: Advanced Diode Laser (Gallium-Aluminum-Arsenide GaAlAs)
- Wavelengths: Dual capability with 980nm and 1470nm for versatile treatment options
- Laser Power:
- 980nm: Adjustable from 1W to 30W
- 1470nm: Adjustable from 1W to 17W
- Working Modes: Continuous Wave (CW), Pulse, and Single modes for tailored procedures
- Aiming Beam: Adjustable red indicator light at 650nm for enhanced precision during operations
- Fiber Type: High-efficiency 600um Radial fiber
- Fiber Connector: SMA905 international standard for seamless compatibility
Key Features and Benefits: - Instrument Classification: Class II medical device, ensuring safety and reliability
- Safety Standard Compliance: Meets GB15979-2002 standards for peace of mind
- Material: Durable, high-quality plastic construction
- Weight: Lightweight at just 5kg for easy portability
- Shelf Life: 1 year, maintaining optimal performance
Packaging and Delivery Details: - Single Package Size: 52 x 47 x 53 cm
- Single Gross Weight: 25.000 kg
Quality Assurance: - Backed by CE certification for global trust and compliance
- Comprehensive 1-year warranty for long-term reliability
- After-Sale Service: Access to online technical support for uninterrupted performance
Why Choose GoldHealth Medical?
Our 1470nm Varicose Veins Laser combines advanced technology with user-focused design, empowering medical professionals to deliver exceptional patient outcomes. Whether in hospitals, clinics, or research labs, this device sets a new benchmark for precision, durability, and versatility.
Place of Origin: Beijing, China
Transform your practice with GoldHealth Medical’s state-of-the-art laser technology.
