Touch Screen MultiParameter ICU Patient Monitor
Reference: 1601033252507Examination Therapy Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

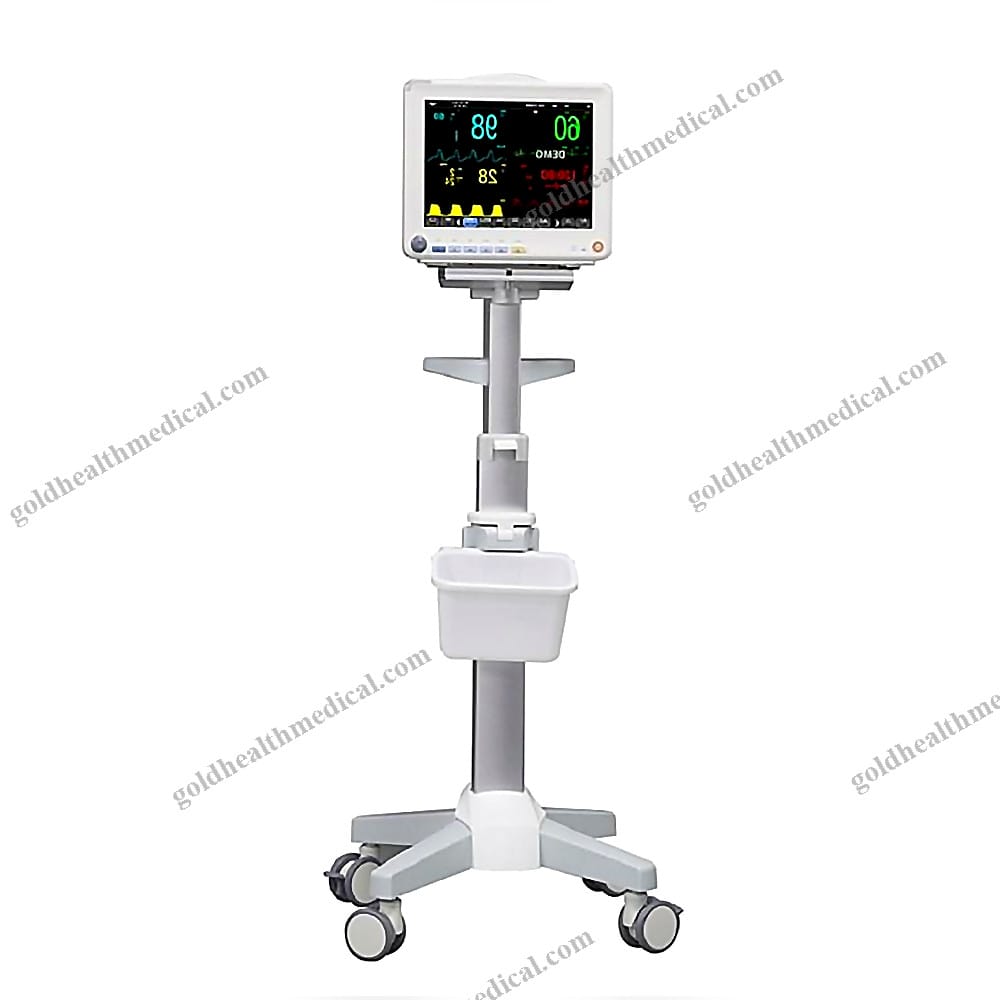

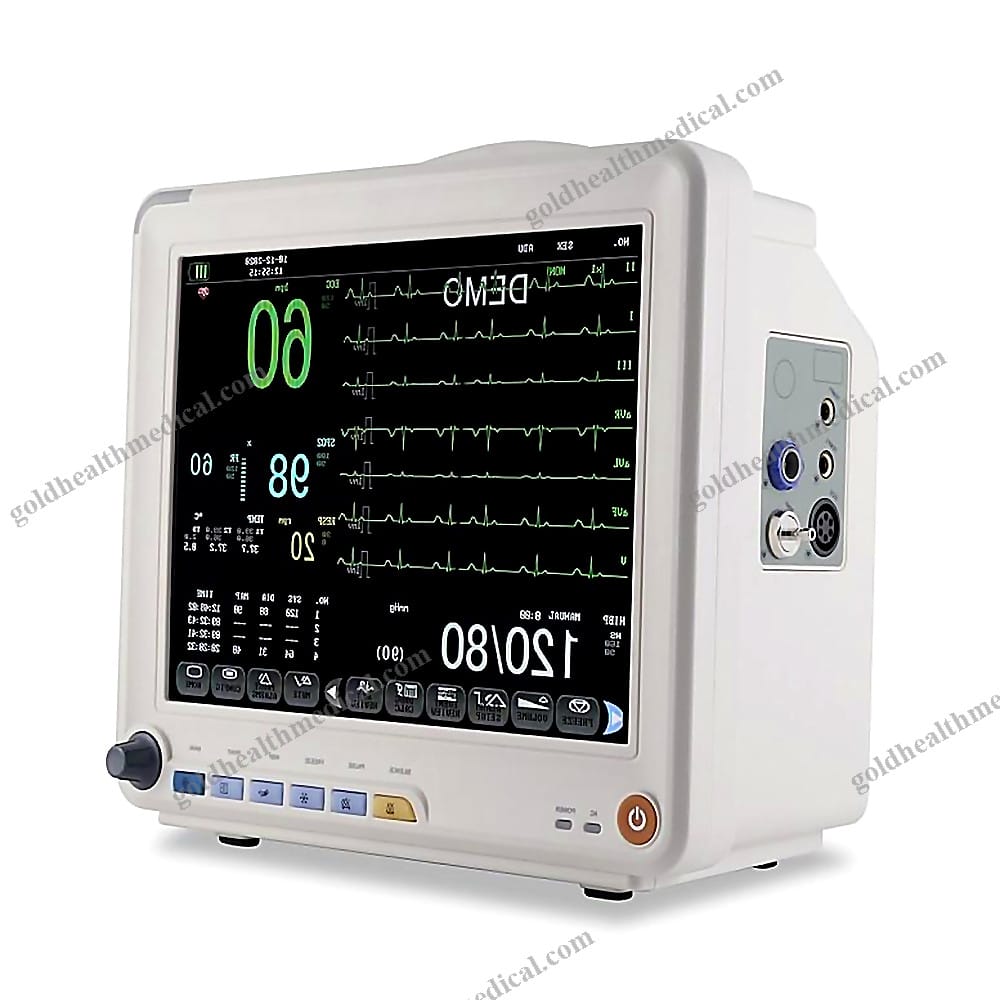

GoldHealth Medical presents a cutting-edge Portable Multi-Parameter Patient Monitor designed for unparalleled versatility and precision in patient care.
This state-of-the-art device is engineered to adapt seamlessly to adult, pediatric, and neonatal applications, offering comprehensive monitoring of vital signs including ECG, Respiratory Rate, SpO2, NIBP, TEMP, and IBP. Combining advanced parameter modules, an intuitive display, and an integrated recorder into a single compact unit, this monitor redefines portability and convenience. Its lightweight design and replaceable built-in battery ensure effortless mobility, making it ideal for both clinical and transport scenarios. The large high-resolution display delivers crystal-clear visualization of up to five waveforms and all monitoring parameters, ensuring critical data is always at your fingertips.

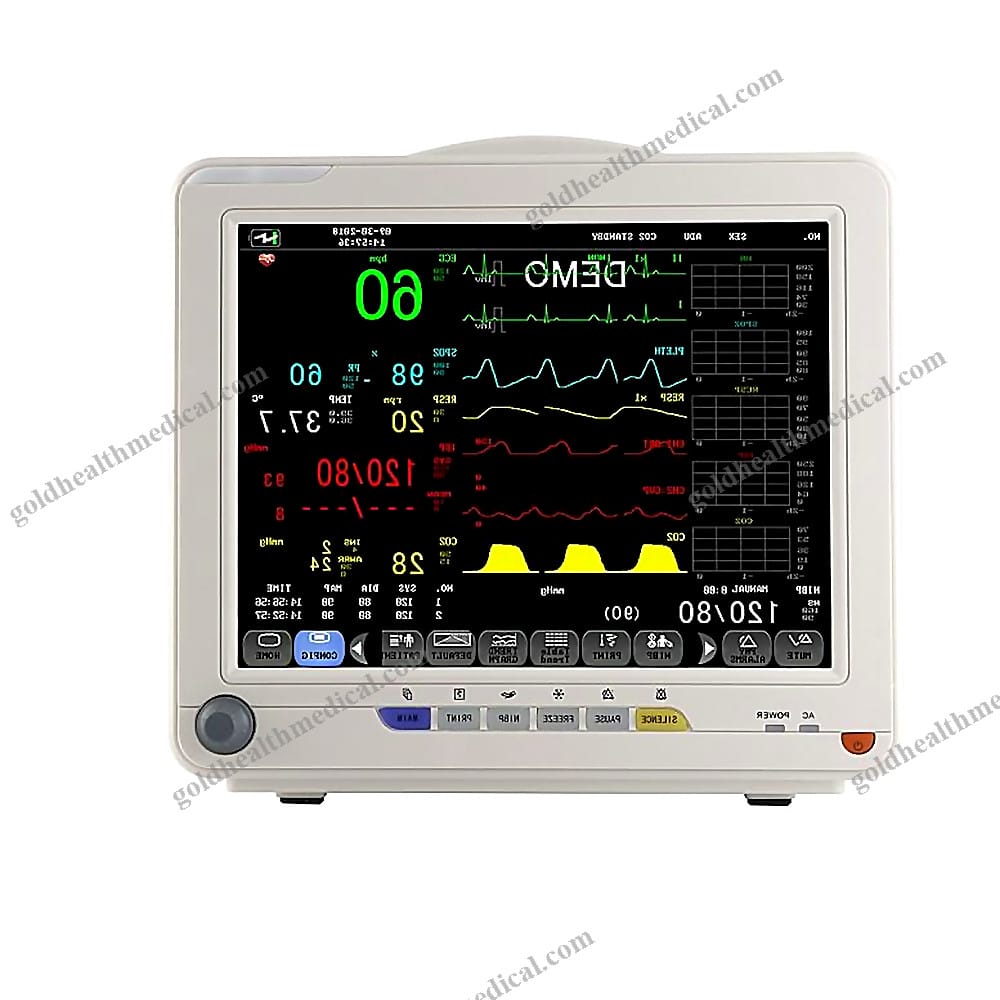

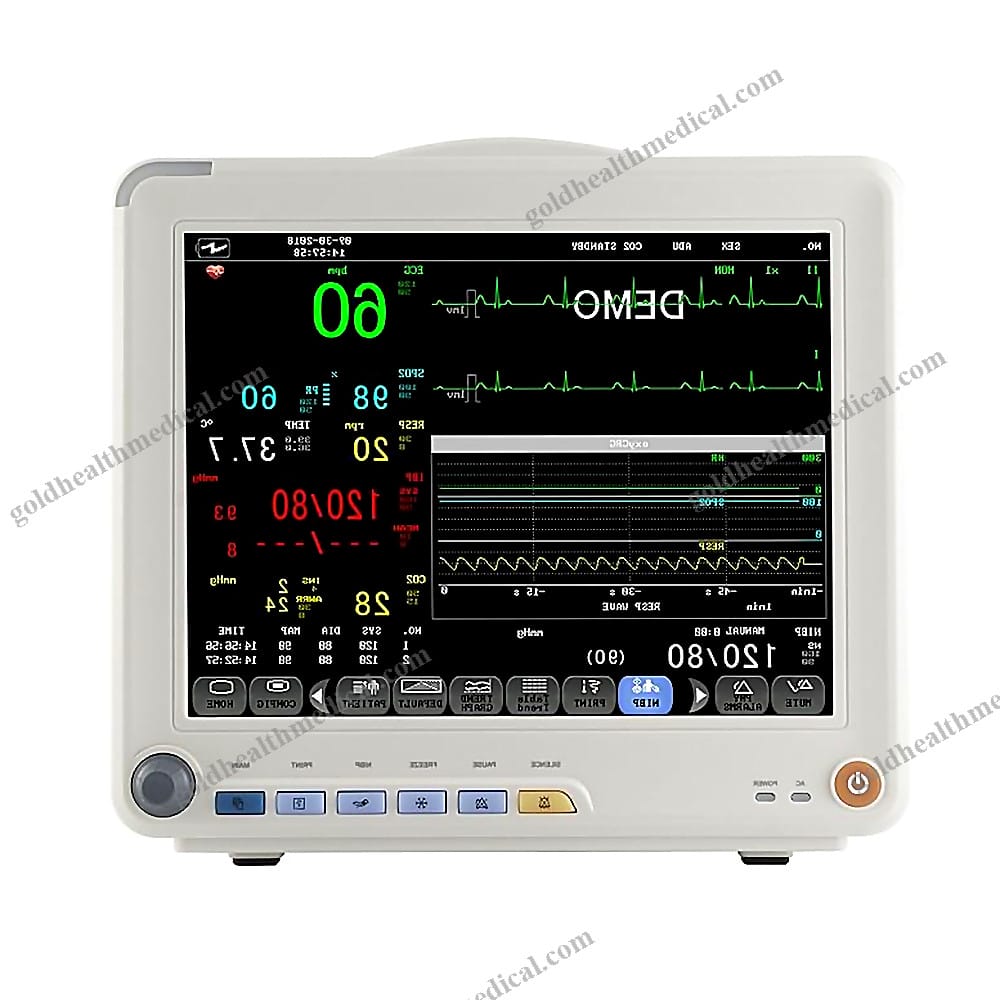

Key Features: - 12.1-inch Color Display: High-definition 800x600 resolution for exceptional clarity. - Three Operating Modes: Tailored for Monitoring, Surgery, and Diagnosis. - User-Friendly Interface: Simplified navigation with multiple display modes, including Standard, Large Font, ECG Full Display, OXY, Trend Table, and BP Trend. - Extended Battery Life: Built-in rechargeable Lithium battery supports up to 2 hours of continuous operation. - External Display Compatibility: Equipped with VGA output for enhanced viewing flexibility.
Technical Specifications:
ECG: - Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V) - Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV - Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal) - Resolution: 1 BPM - Accuracy: ±1% - Sensitivity: >200 uV (Peak to Peak) - ST Measurement Range: -2.0 ~ +2.0 mV - Sweep Speed: 12.5 mm/s, 25 mm/s, 50 mm/s - Bandwidth: - Diagnostic: 0.05~130 Hz - Monitor: 0.5~40 Hz - Surgery: 1~20 Hz
SpO2: - Measuring Range: 0 ~ 100% - Resolution: 1% - Accuracy: 70% ~ 100% (±2%) - Pulse Rate: 20-250 BPM - Resolution: 1 BPM - Accuracy: ±3 BPM
NIBP: - Method: Oscillometry - Measure Modes: Manual, Auto, STAT - Units: mmHg, kPa - Adult Mode: - SYS: 40 ~ 280 mmHg - DIA: 10 ~ 225 mmHg - MEAN: 20 ~ 240 mmHg - Pediatric Mode: - SYS: 40 ~ 220 mmHg - DIA: 10 ~ 160 mmHg - MEAN: 20 ~ 170 mmHg - Neonatal Mode: - SYS: 40 ~ 135 mmHg - DIA: 10 ~ 100 mmHg - MEAN: 20 ~ 110 mmHg - Resolution: 1 mmHg - Accuracy: ±5 mmHg
RESP: - Method: Impedance between RA-LL or RA-LA - Measurement Range: - Adult: 10 ~ 120 BrPM - Neonatal/Pediatric: 7 ~ 150 BrPM - Resolution: 1 BrPM - Accuracy: ±2 BrPM
TEMP: - Measurement and Alarm Range: 0 ~ 50°C - Resolution: 0.1°C - Accuracy: ±0.1°C
Standard Parameters: - ECG, RESP, TEMP, NIBP, SpO2, PR
Optional Parameters: - Recorder (Printer) - Central Monitoring System - Dual IBP - EtCO2 - 12-Lead ECG - Nellcor SpO2 - SunTech NIBP

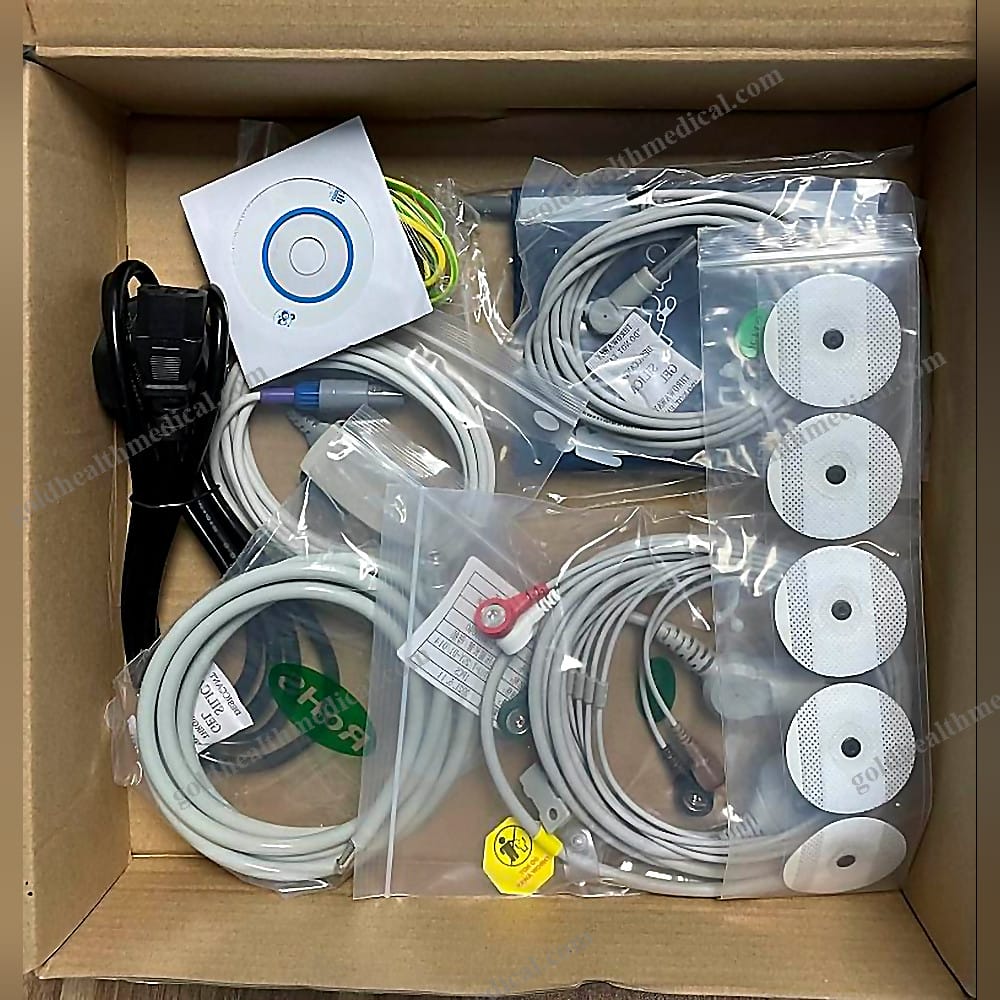

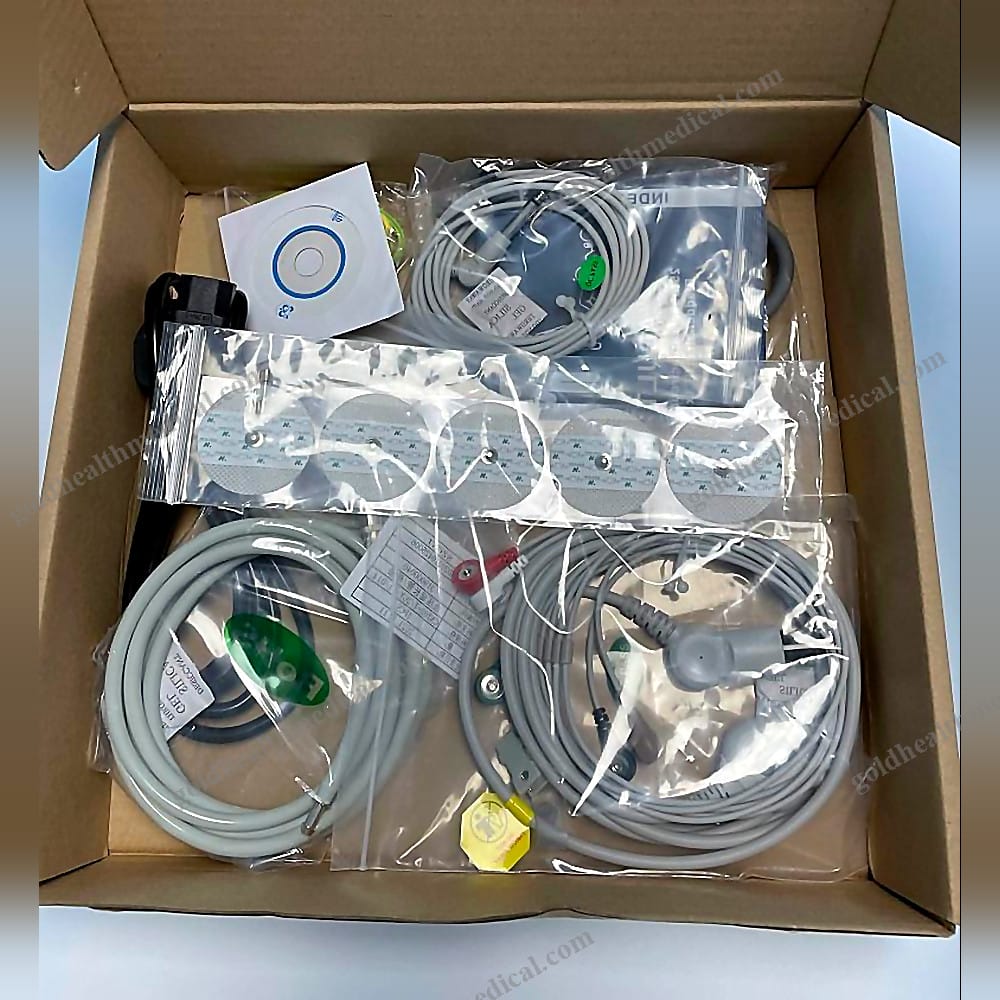

Standard Configuration: - Main Unit: 1 - 5-Lead ECG Cable: 1 - Disposable ECG Electrodes: 5 - Adult SpO2 Probe: 1 - Adult NIBP Cuff: 1
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company Name: GoldHealth Medical
Item Name: Multi-Parameter Patient Monitor
Product Overview
The Multi-Parameter Patient Monitor by GoldHealth Medical is a cutting-edge device designed to deliver precision, reliability, and ease of use in medical environments. Engineered for healthcare professionals, this monitor provides real-time, accurate data to support critical decision-making in hospitals, clinics, research labs, and home care settings. Its sleek design and advanced functionality make it an indispensable tool for modern healthcare.
Key Features
- Advanced Monitoring Capabilities: Equipped with multiple parameter tracking to ensure comprehensive patient assessment.
- Durable Construction: Crafted from high-quality materials including acrylic, metal, plastic, and steel for long-lasting performance.
- Safety Assurance: Compliant with EN 149-2001+A1-2009 safety standards, ensuring the highest level of protection for both patients and operators.
- Class II Instrument Classification: Designed for professional-grade accuracy and reliability.
- Electric Power Source: Ensures consistent and uninterrupted operation.
Technical Specifications
- Material Composition: Acrylic, Metal, Plastic, Steel
- Instrument Classification: Class II
- Safety Standard Compliance: EN 149-2001+A1-2009
- Place of Origin: China
- Shelf Life: 3 years
- Quality Certifications: CE
Support and Warranty
- Warranty Period: 3 years, offering peace of mind and long-term reliability.
- After-Sales Service: Access to online technical support, ensuring seamless operation and quick resolution of any issues.
Supply Capacity
- Monthly Supply Ability: 1000 sets, ensuring timely delivery to meet high demand.
GoldHealth Medical’s Multi-Parameter Patient Monitor is more than just a device—it’s a commitment to elevating patient care through innovation and precision.
