GoldHealth Medical: Revolutionizing Veterinary Care with Precision and Portability

Portable Animal Doppler Blood Pressure Monitor

Experience unparalleled accuracy and ease of use with our Portable Animal Doppler Blood Pressure Monitor, designed specifically for veterinary professionals. This device combines cutting-edge technology with user-friendly features to deliver reliable blood pressure readings for pets in any setting.

Key Features and Specifications

• Probe: High-sensitivity 9 MHz probe for precise detection of blood flow signals.
• Battery: Equipped with a long-lasting DC 7.4V 2600mAh lithium battery, ensuring extended operation without frequent recharging.
• Speaker: Integrated 4Ω 1W speaker for clear audio feedback during measurements.
• Earphone: Dual-rack 270Ω earphone with a 3.5mm plug for private listening and enhanced focus.
• Host Dimensions: Compact design at 160mm(L) x 90mm(W) x 40mm(H), making it highly portable.
• Package Dimensions: Lightweight and travel-friendly at 37mm(L) x 31mm(W) x 14mm(H).

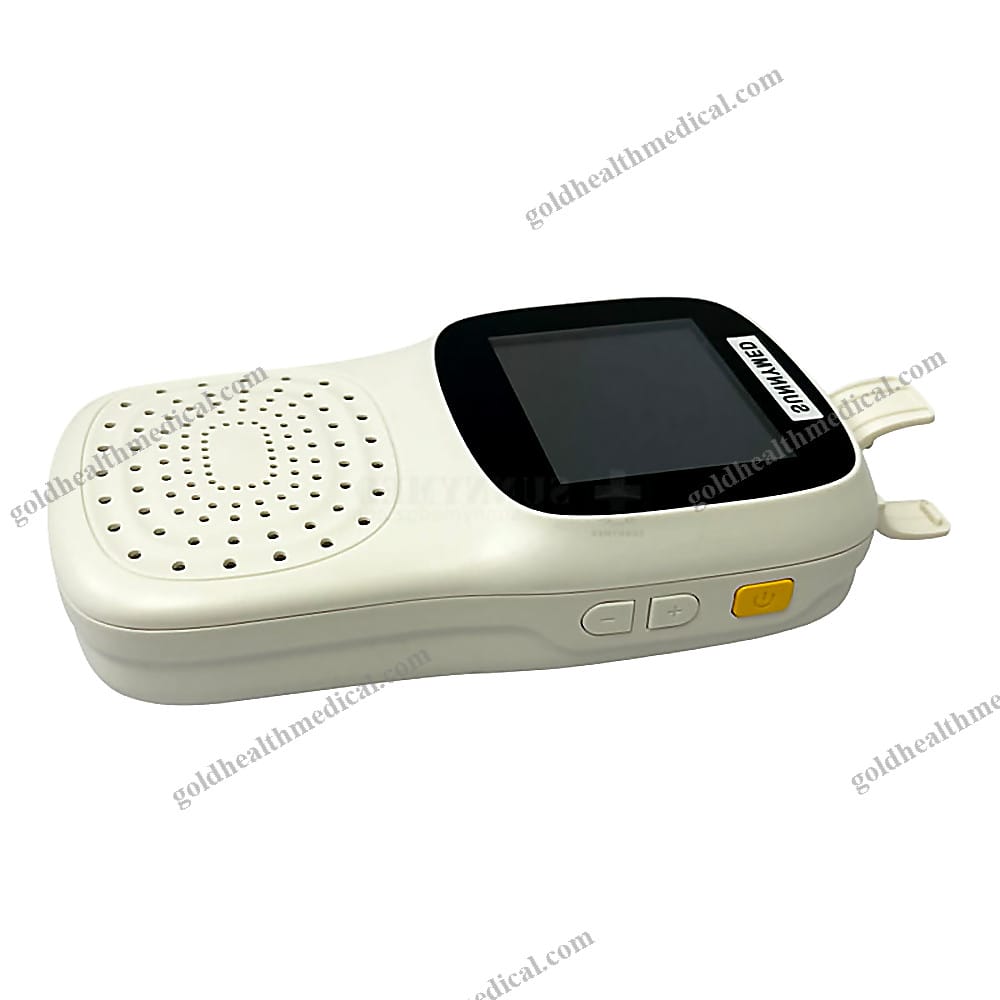

Host Controls and Ports

• Power off by long-pressing the designated button.
• Volume adjustment via intuitive long-press controls.

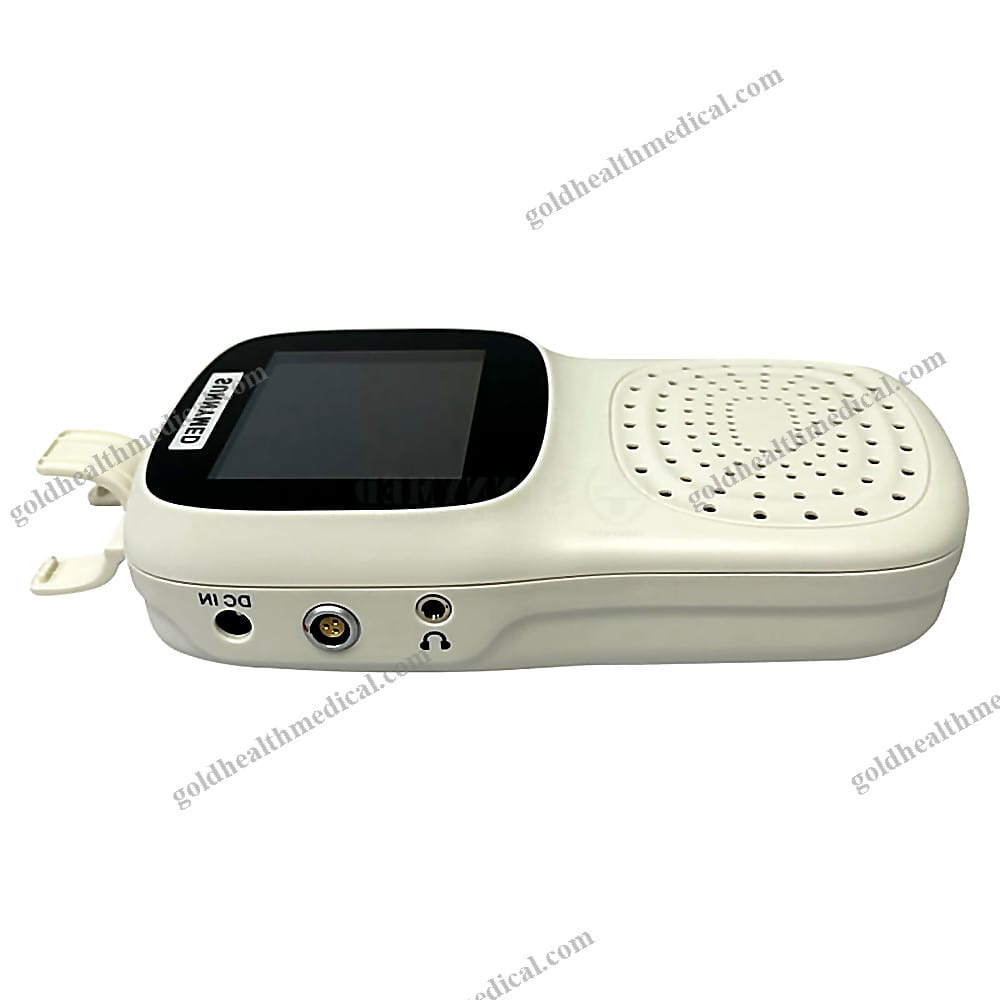

• Dedicated earphone jack for private audio monitoring.
• Connector for the high-sensitivity probe.
• Charging port for convenient battery recharging.

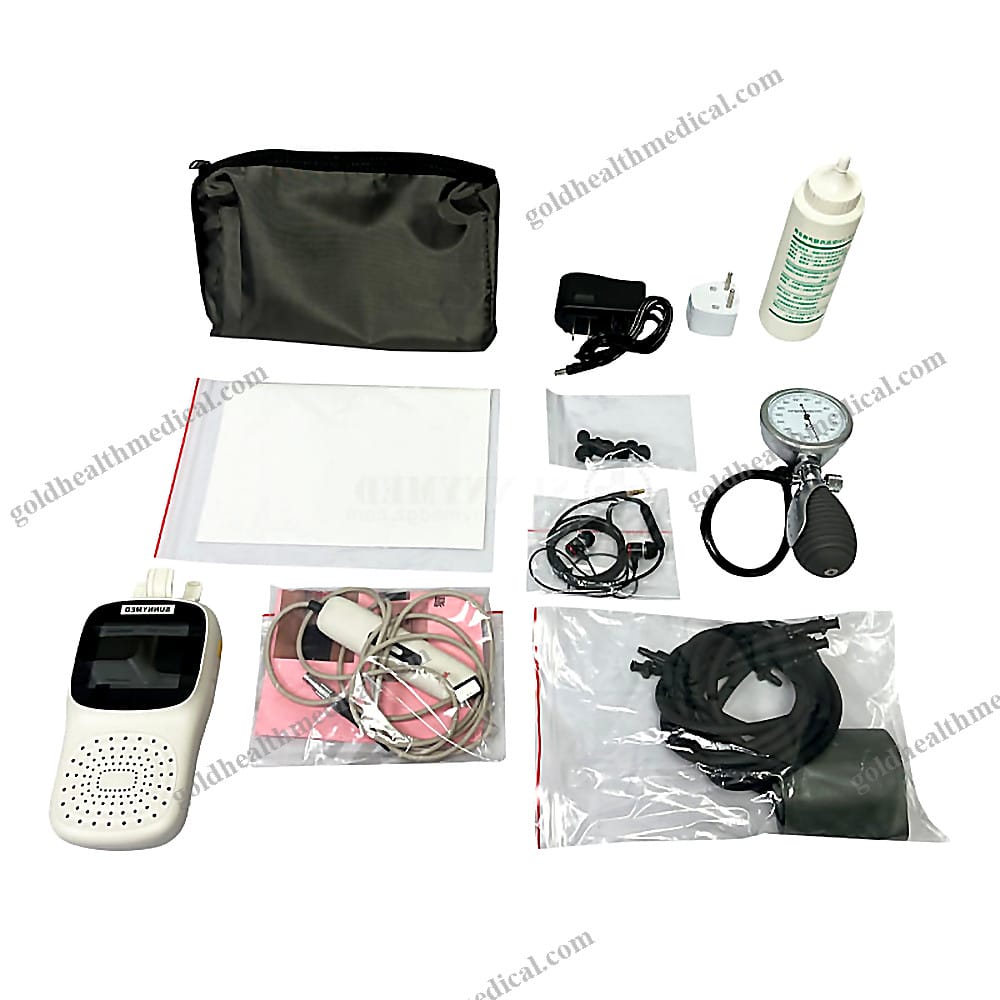

Comprehensive Kit Includes

• Doppler Blood Pressure Meter.
• Inflation/deflation valve for precise cuff control.
• Gasbag for smooth inflation and deflation processes.
• High-sensitivity probe for accurate readings.
• Five cuffs in varying sizes to accommodate different animals.
• Charger for the main unit.
• Earphone for focused listening.
• Medical ultrasonic couplant for optimal probe performance.

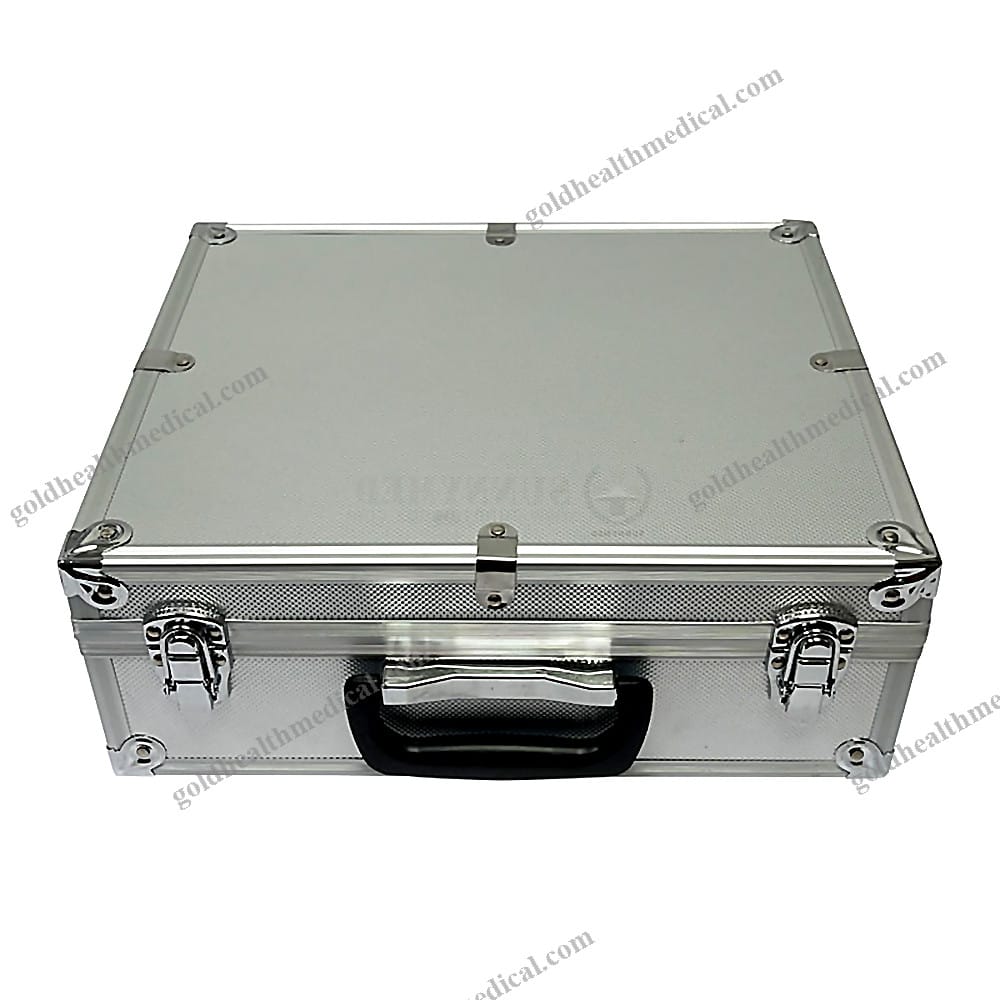

• Durable aluminum carrying case to store and protect all components.

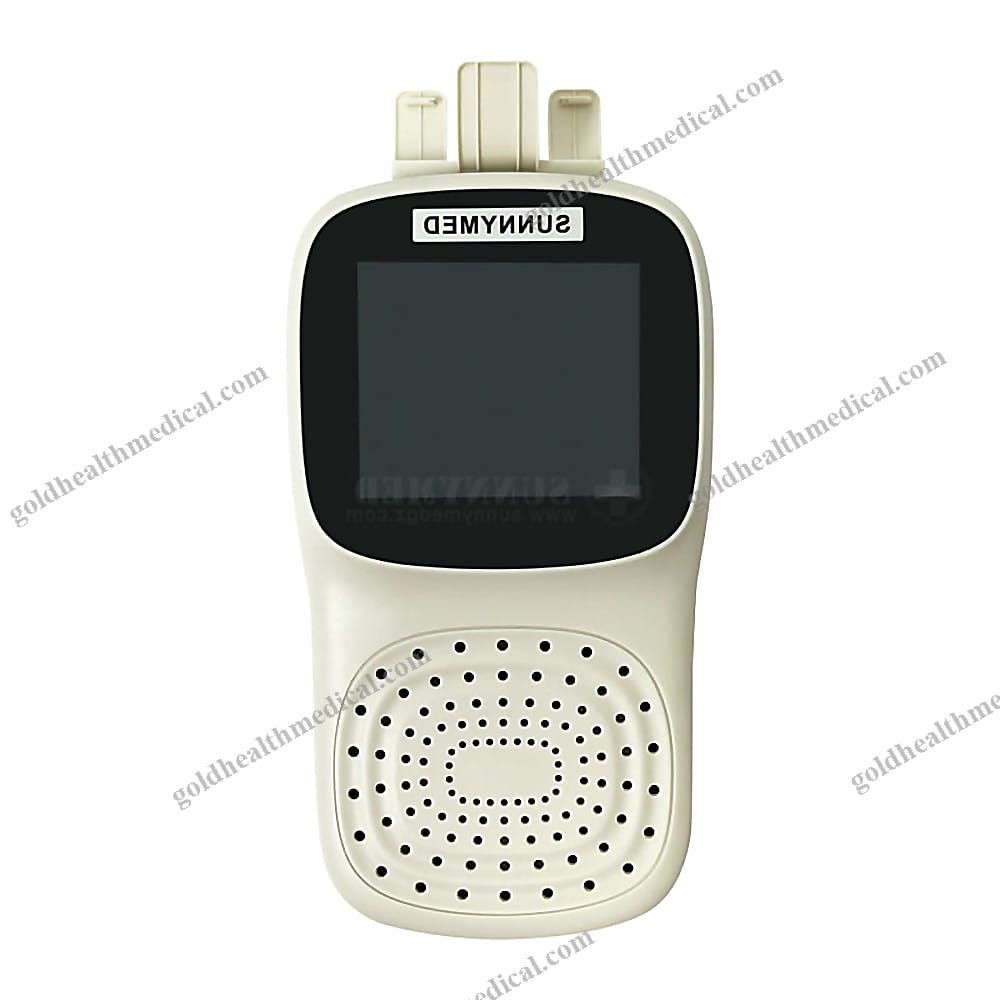

Host Display Interface

• Blood Flow Strength Indicator: Visual representation of blood flow intensity.
• Battery Capacity Indicator:
• 6 bars: 90% energy remaining.
• 5 bars: 70% energy remaining.
• 4 bars: 50% energy remaining.
• 3 bars: 30% energy remaining.
• 2 bars: 20% energy remaining.
• 1 bar: 10% energy remaining.

Operation Instructions

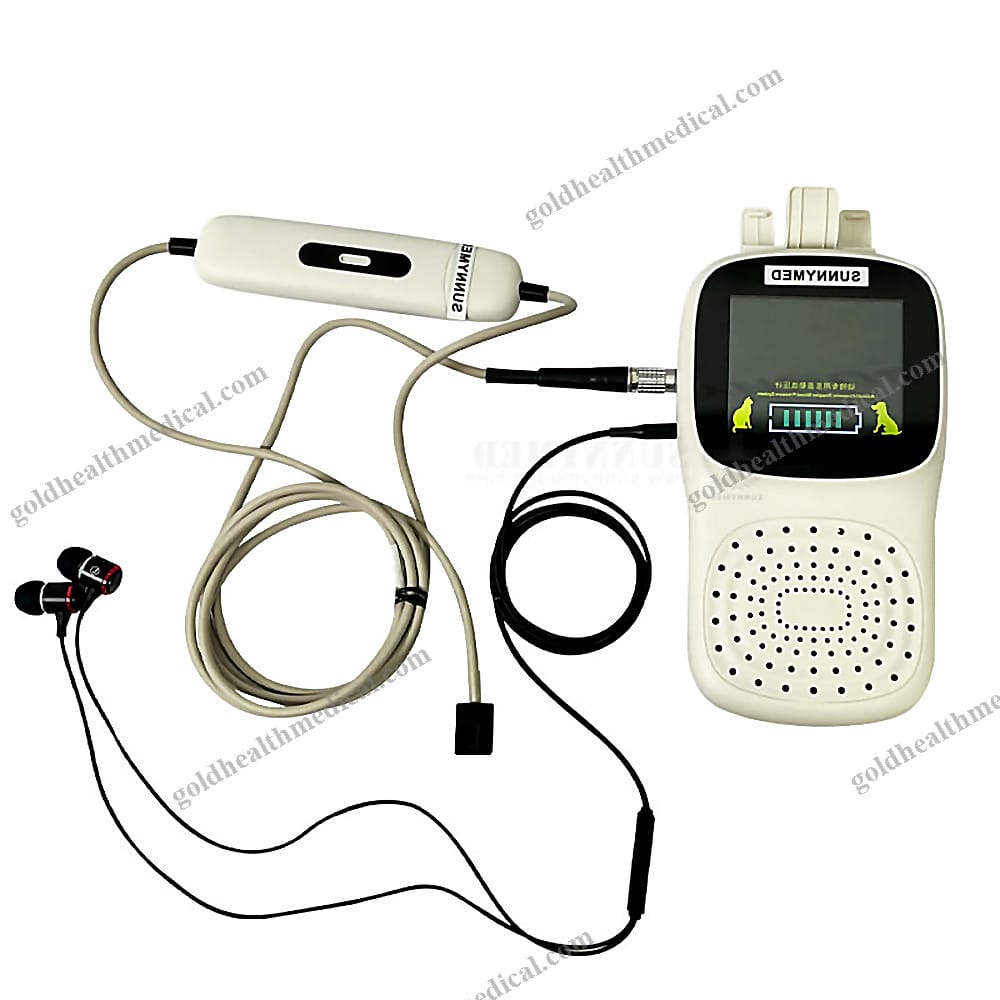

1. Connect the high-sensitivity probe to the main unit, ensuring alignment of connection points.
2. Apply medical ultrasonic couplant to both the probe tip and the animal’s skin at the testing area.
3. Place the probe gently on the testing area and move slowly to locate the strongest pulse.
4. When using the earphone, the speaker automatically deactivates for clearer Doppler sound.
5. Recharge the battery if the power indicator dims or stops functioning.

Notes for Optimal Use

• Probe Care: Turn off the device immediately after use. Handle the probe with care to avoid damage to its sensitive internal chip.
• Couplant Usage: Use only the provided medical ultrasonic couplant. Avoid ECG viscose, baby oil, or other oils that may corrode the probe.
• Battery Maintenance: Replace or recharge the battery when the power light dims or the speaker stops working.

Why Choose GoldHealth Medical?

GoldHealth Medical is committed to delivering innovative, high-quality medical equipment tailored to meet the needs of veterinary professionals. Our products are trusted by hospitals, clinics, and research institutions worldwide, offering precision, durability, and ease of use.

Transform your veterinary practice with the Portable Animal Doppler Blood Pressure Monitor—where advanced technology meets practical design.
