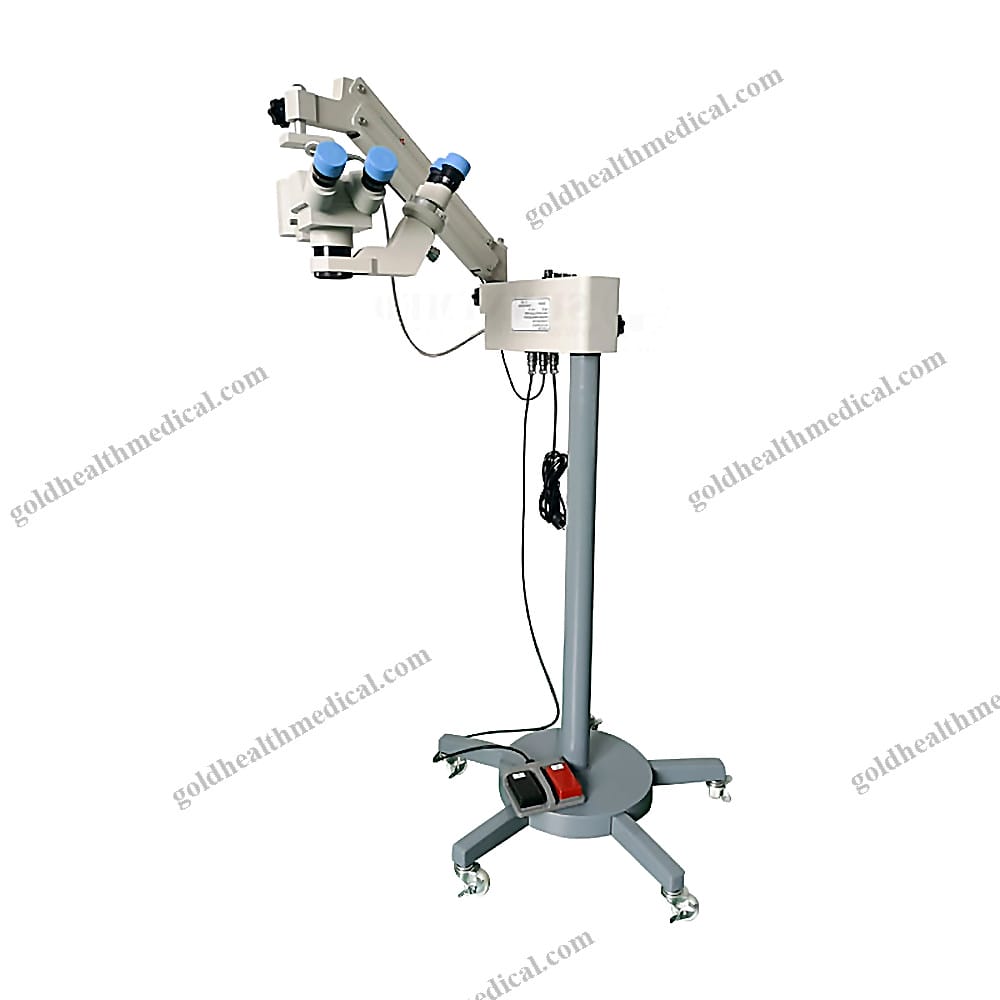

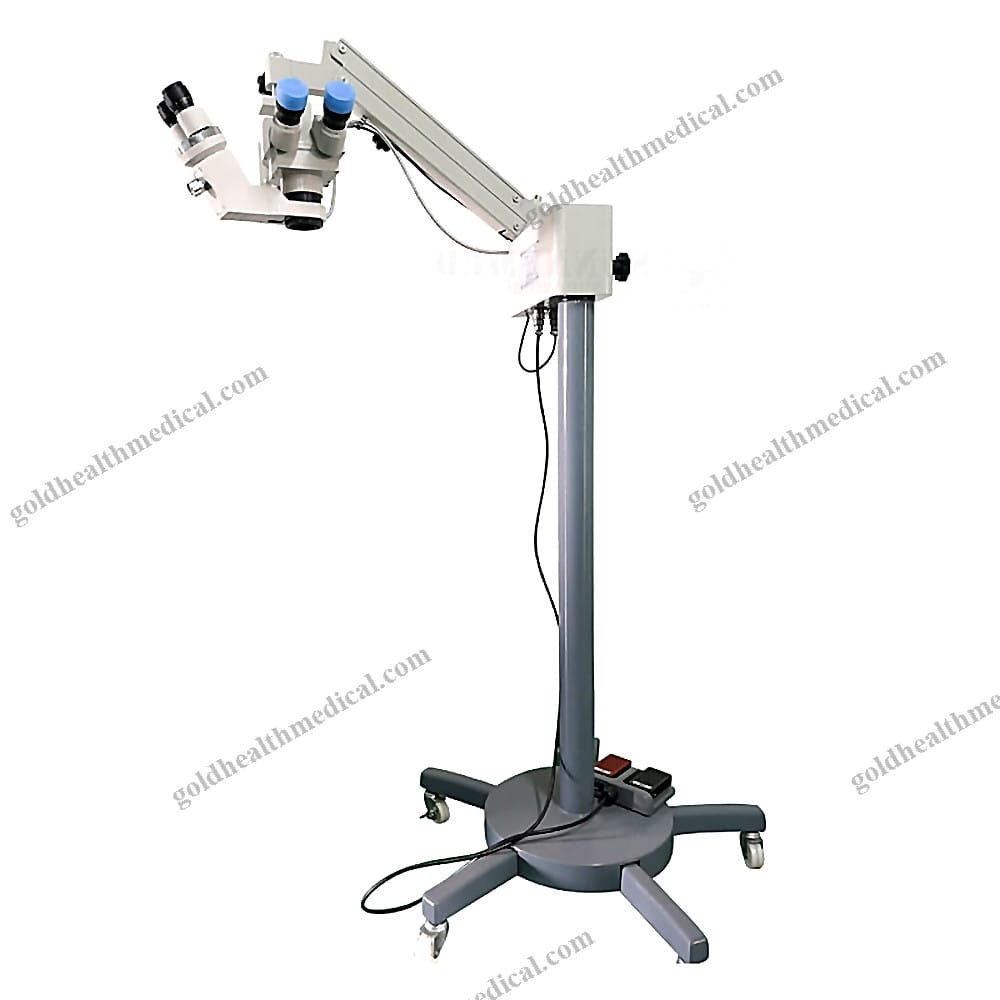

SYI064 Multifunctional Optical Surgical Microscope for Eye
Reference: 1601345607430Visual Acuity Examination Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Product Overview
GoldHealth Medical presents a state-of-the-art surgical microscope designed to elevate precision and efficiency in ophthalmology surgeries. Engineered for versatility, this microscope supports multiple users simultaneously, making it ideal for both clinical practice and teaching environments. Its advanced features ensure seamless operation, superior optical clarity, and adaptability to diverse surgical needs.
Key Features and Specifications

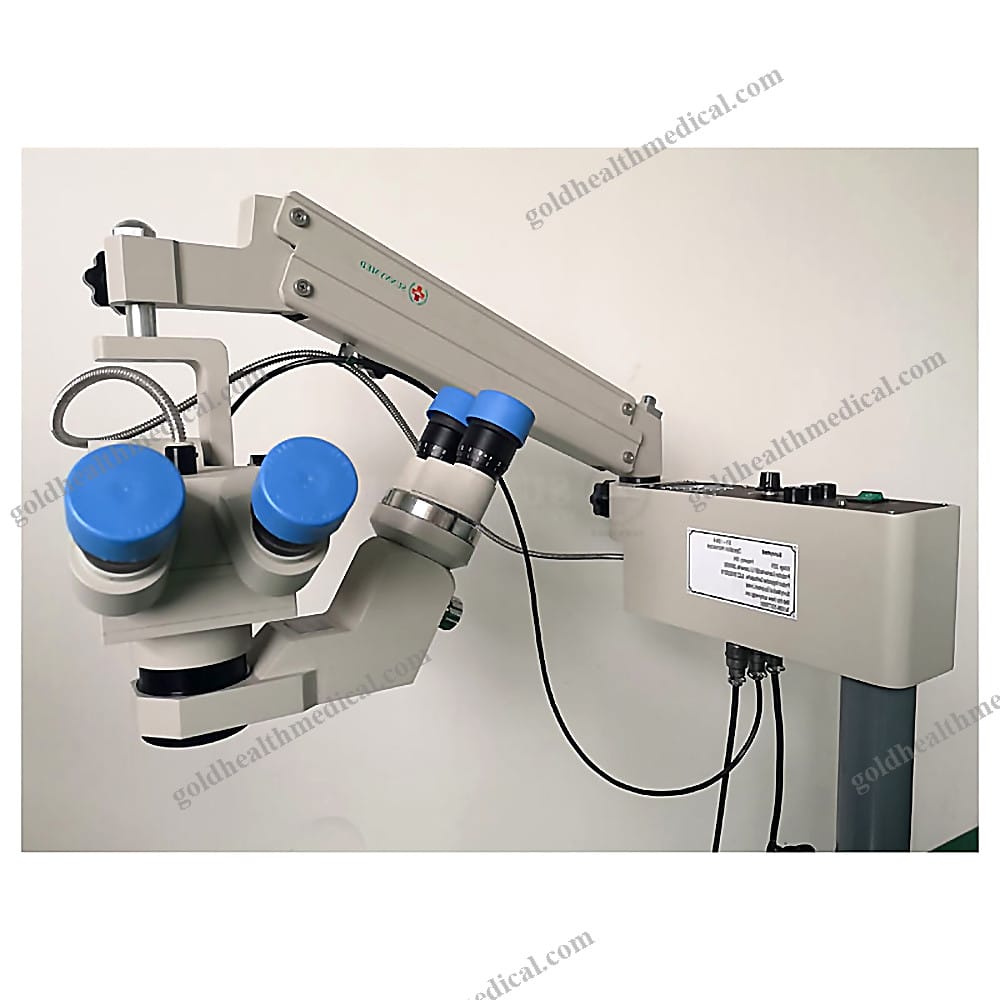

Optical System
- Apochromatic Optical System: Delivers exceptional color correction and sharpness for unparalleled clarity.

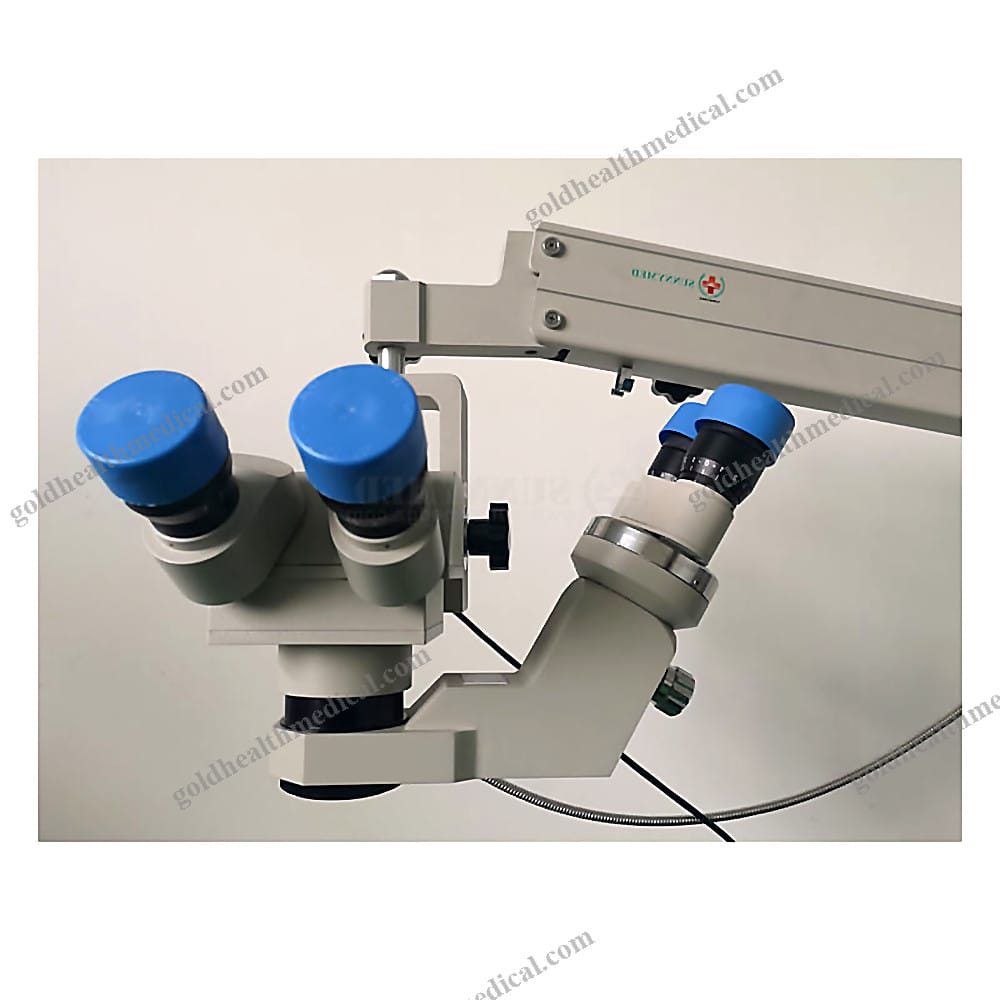

- Eyepieces:
- Main and assistant eyepieces: 12.5X wide-field eyepiece.
- Dioptric adjustment: +5/-5.
- Interpupillary distance (IPD) adjustment: 55mm to 75mm.
- View Head: 180° rotating for optimal positioning.
- Objectives:
- Focal length: 200mm.
- Main objective zoom: 10X.
- Assistant objective zoom: 4X.
- Continuously adjustable zoom via knob or foot panel for smooth transitions.
- Sight range: 27.5mm.
Illumination
- Coaxial Cold Light Illumination: Minimizes heat exposure to the surgical site.
- Light Source: 8V/50W OSRAM halogen lamp.
- Brightness Levels: Three adjustable levels with a maximum brightness of ≥50,000LX.
Ergonomic Design

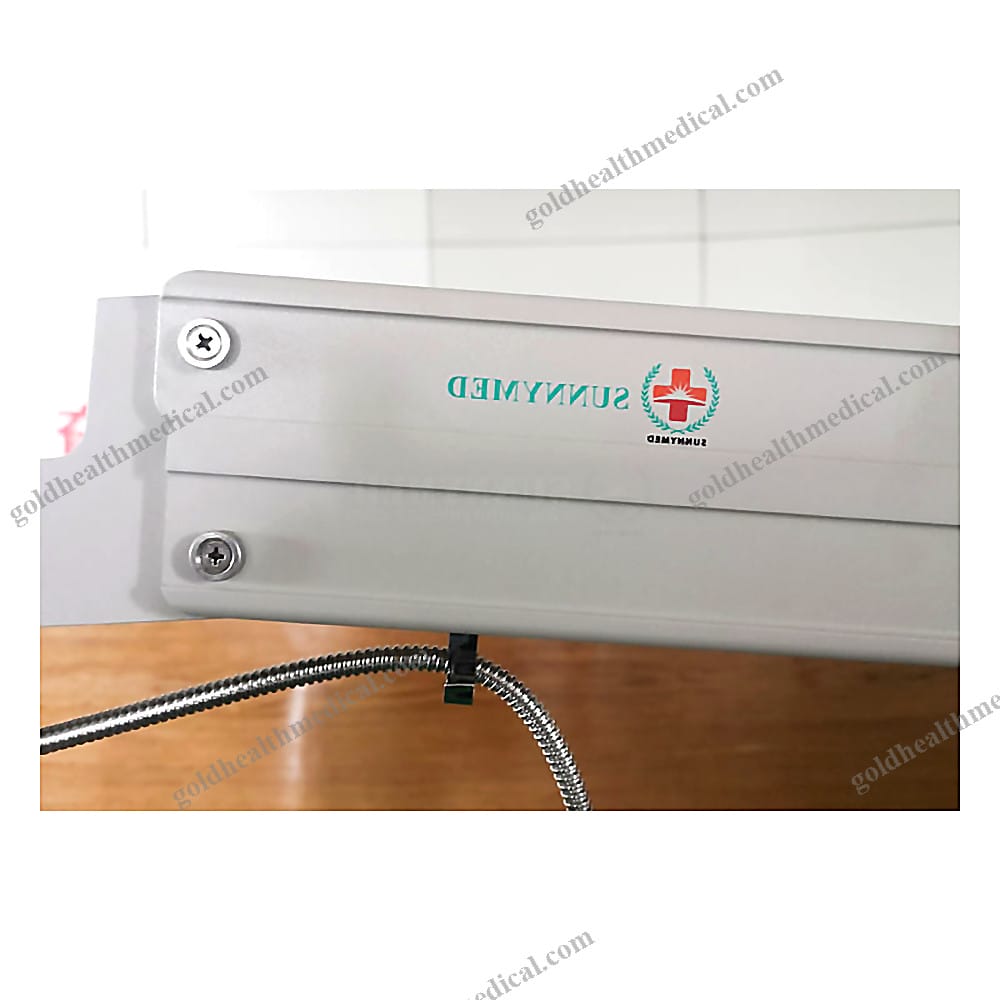

- Extension Arm: 800mm radius, rotatable around its axis for flexible positioning.
- Support System: Automatically balances at any position, ensuring stability during procedures.
- Height Adjustment: Adjustable from 1.8m to 2m for user comfort.
Precision Control
- Focusing System:
- Rapid focusing for small adjustments and retarded focusing for larger ones.
- Focusing speed: ≤2.5mm/s.
- Adjustment range: ≥40mm.
- Plain X-Y Movement: Controlled via foot panel with a movement range of 40mm x 40mm.

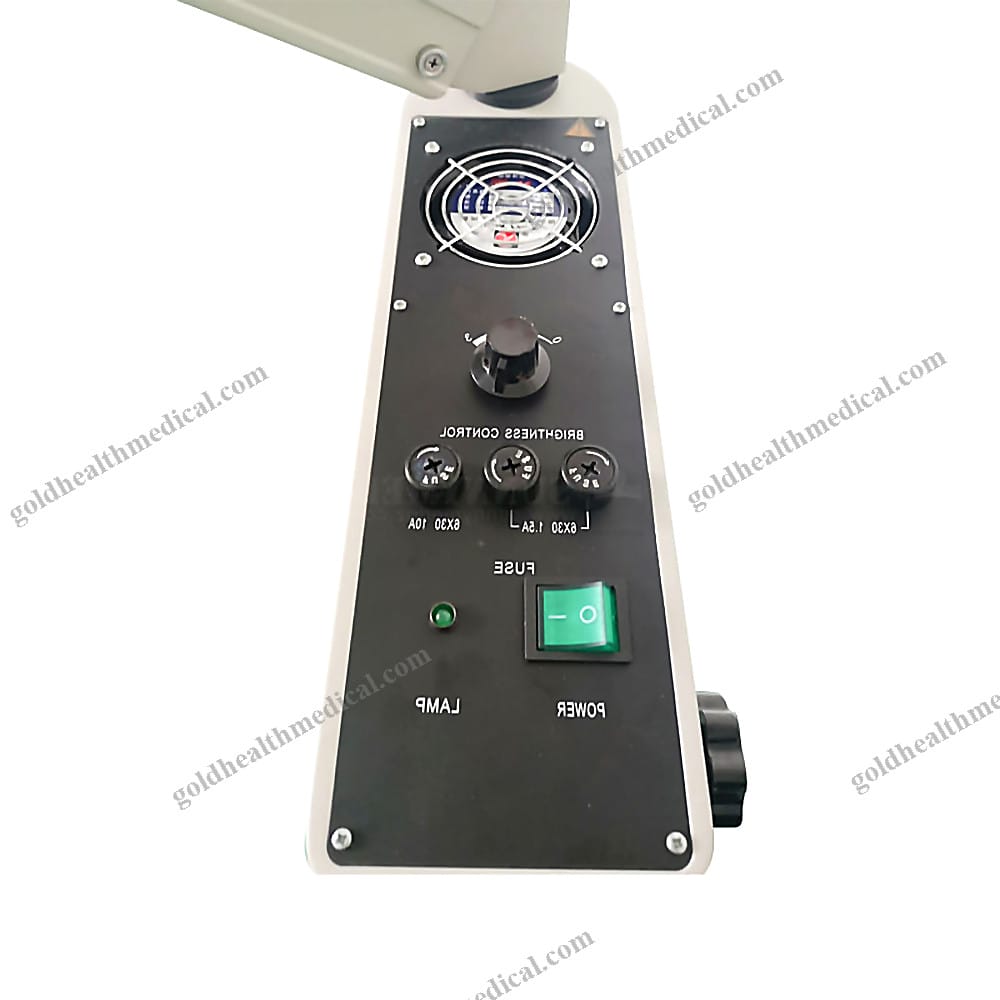

- Multifunctional Control Panel: Integrated into the support for intuitive operation.
Versatility
- Compatible with three types of objectives, catering to varying surgical depths.
- Optional camera integration for enhanced documentation and analysis.
Unique Selling Points
- Smooth Zooming: Achieve precise magnification adjustments effortlessly with dual control options (knob and foot panel).
- Teaching-Friendly Design: Supports up to three users simultaneously, fostering collaborative learning and practice.
- Automatic Balancing: Ensures stability and reduces user fatigue during prolonged procedures.
- Adaptable Illumination: Three-level brightness control ensures optimal visibility without compromising patient safety.
Applications
This microscope is tailored for ophthalmology surgeries but is versatile enough for other microsurgical disciplines. It is an invaluable tool for hospitals, clinics, research institutions, and teaching facilities.
Power Supply
- AC220V, 50Hz.
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions that empower healthcare professionals worldwide. Explore the future of surgical precision with our advanced microscope.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Surgical Operating Microscope by GoldHealth Medical
Overview:
The Surgical Operating Microscope is a cutting-edge precision instrument designed to deliver unparalleled clarity and reliability for medical professionals. Engineered with advanced optical technology, this microscope is ideal for intricate surgical procedures, diagnostic applications, and research in hospitals, clinics, laboratories, and home healthcare settings.
Key Features and Specifications:
- Magnification of Main Microscope: 10X, providing exceptional detail and precision for intricate tasks.
- Adjustable Range of Pupillary Distance (PD): 54-75mm, ensuring ergonomic comfort and adaptability for users.
- Working Distance: 200mm, offering optimal space for maneuverability during procedures.
- Maximum Illuminance: 30,000 lux, delivering bright, uniform lighting for enhanced visibility.
- Power Source: Electric, ensuring consistent performance without interruptions.
- Drawtube Type: Binocular design for a natural and immersive viewing experience.
- Applications: Perfectly suited for hospitals, clinics, research labs, and home healthcare environments.
- Test Items Supported: Protein and glucose analysis, expanding its versatility in medical diagnostics.
- Instrument Classification: Class II medical device, meeting rigorous safety and performance standards.
- Shelf Life: 1 year, ensuring long-term usability and reliability.
- Quality Certifications: CE-certified, guaranteeing compliance with international safety and quality benchmarks.
Unique Selling Points:
- Precision Redefined: The Surgical Operating Microscope combines advanced optics with user-centric design, enabling medical professionals to achieve superior accuracy in every procedure.
- Versatile Applications: From complex surgeries to detailed laboratory analysis, this microscope adapts seamlessly to diverse medical needs.
- Unmatched Illumination: With a maximum illuminance of 30,000 lux, it eliminates shadows and ensures crystal-clear visibility in any setting.
After-Sale Support:
GoldHealth Medical is committed to your success. Enjoy comprehensive online technical support and a 1-year warranty, ensuring peace of mind and uninterrupted performance.
Place of Origin: Guangdong, China – crafted with precision and quality assurance.
Experience the next level of medical innovation with the Surgical Operating Microscope by GoldHealth Medical.
