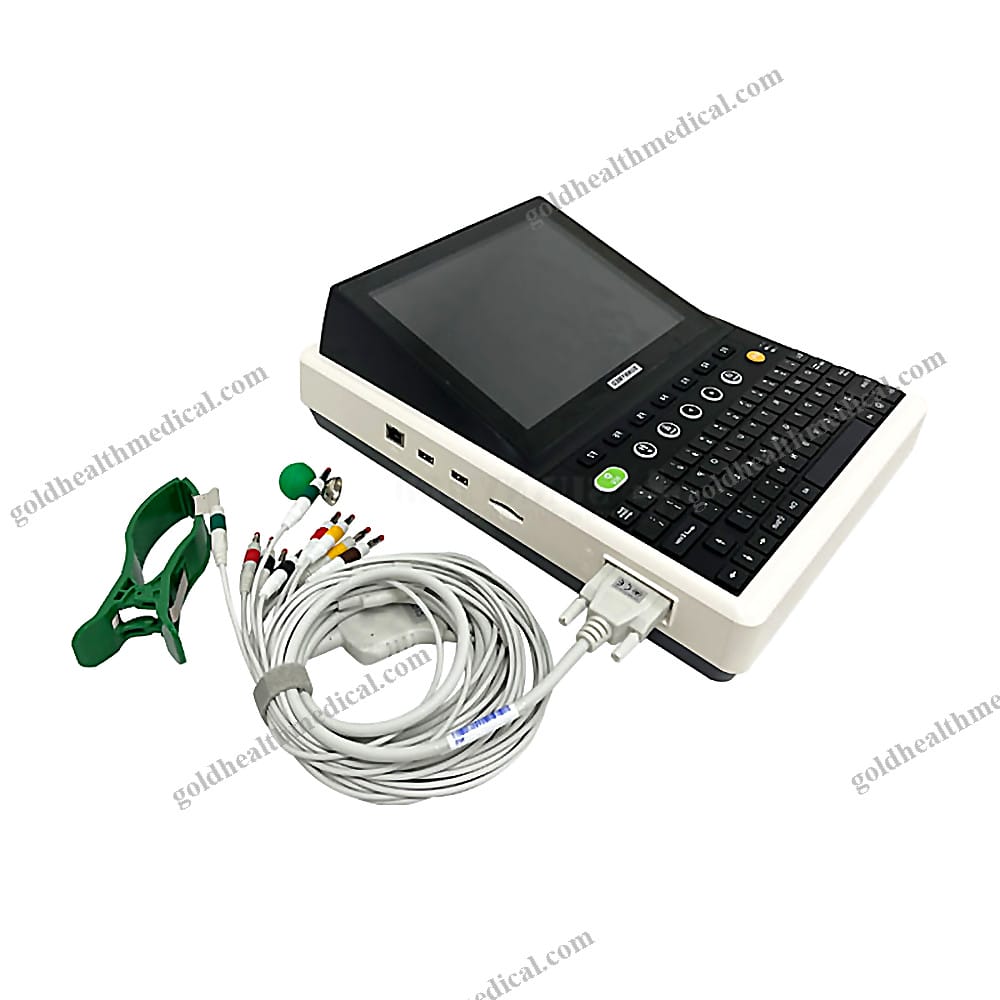

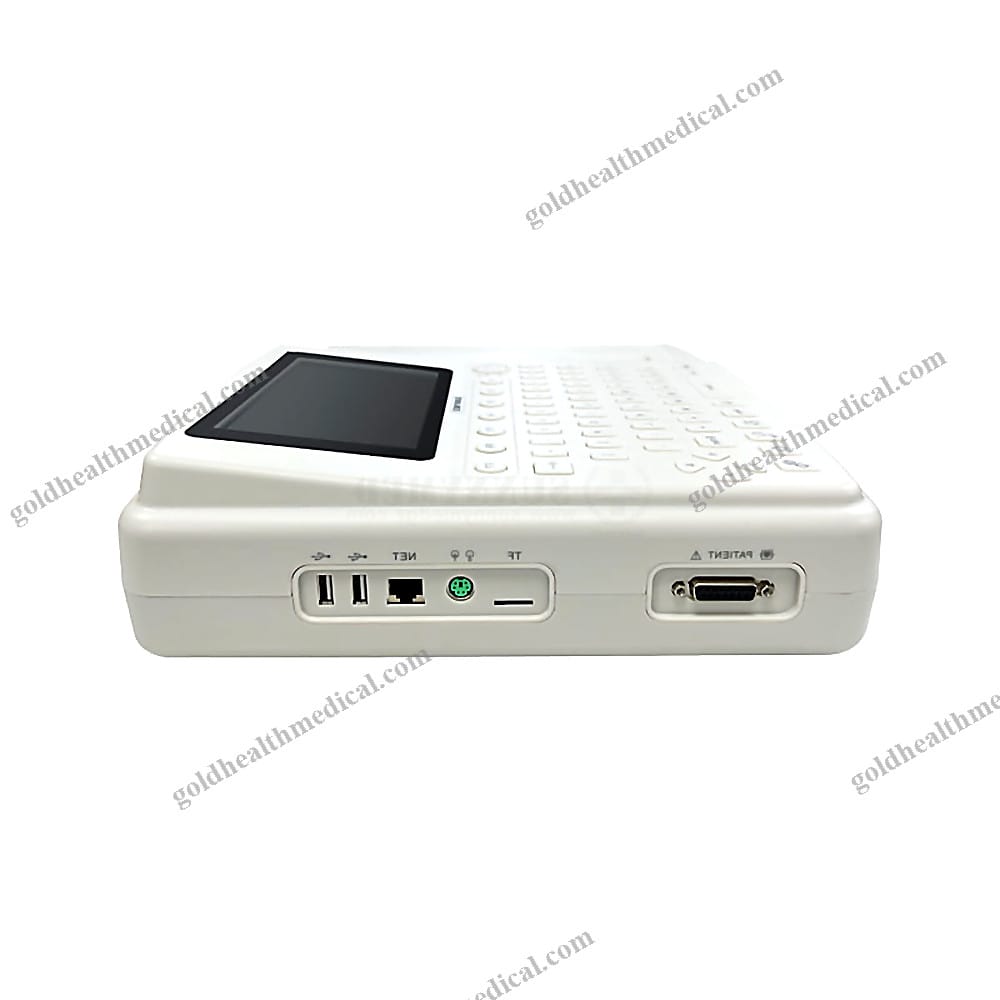

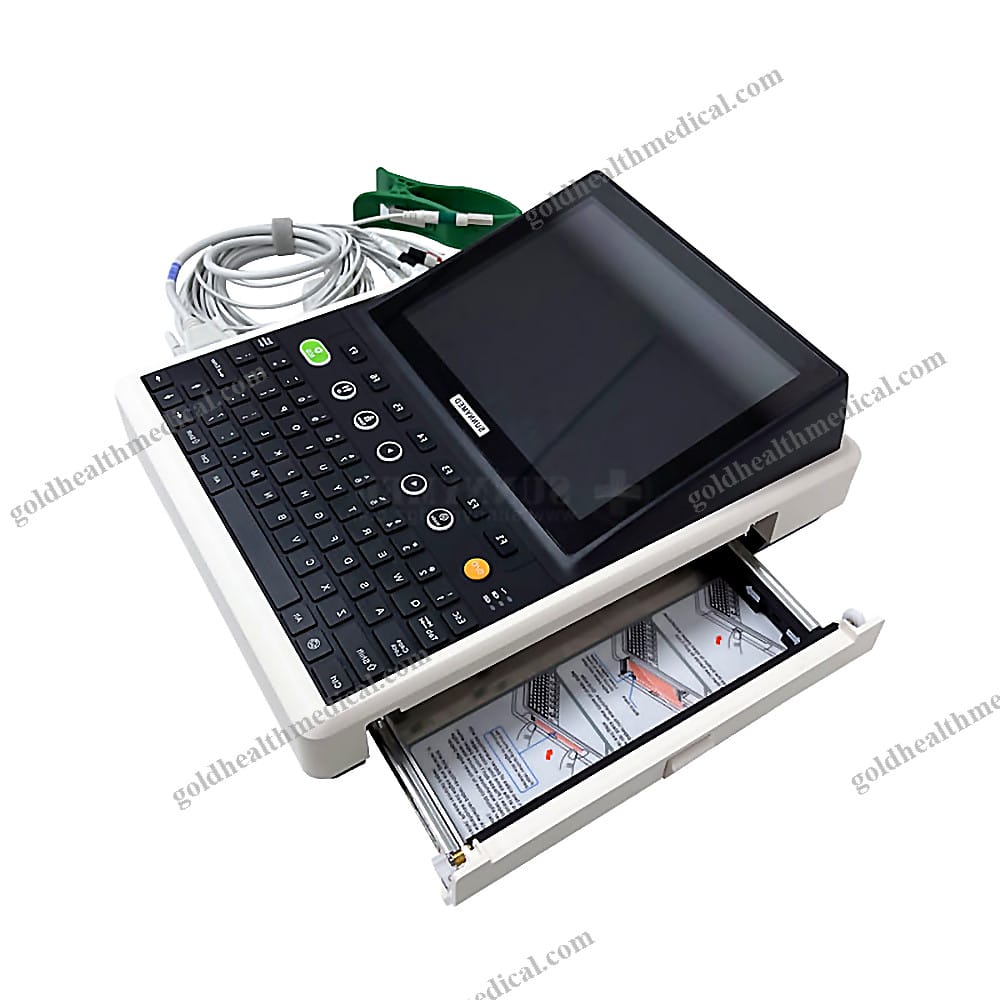

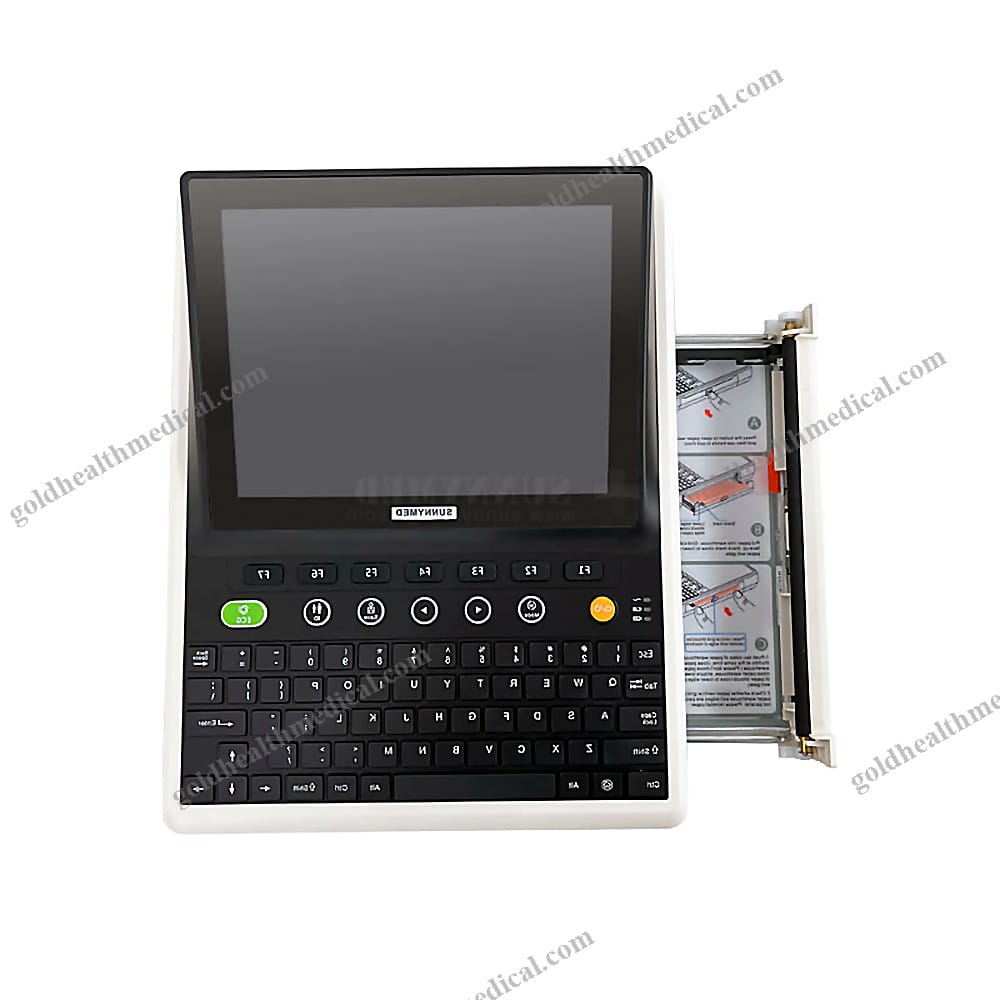

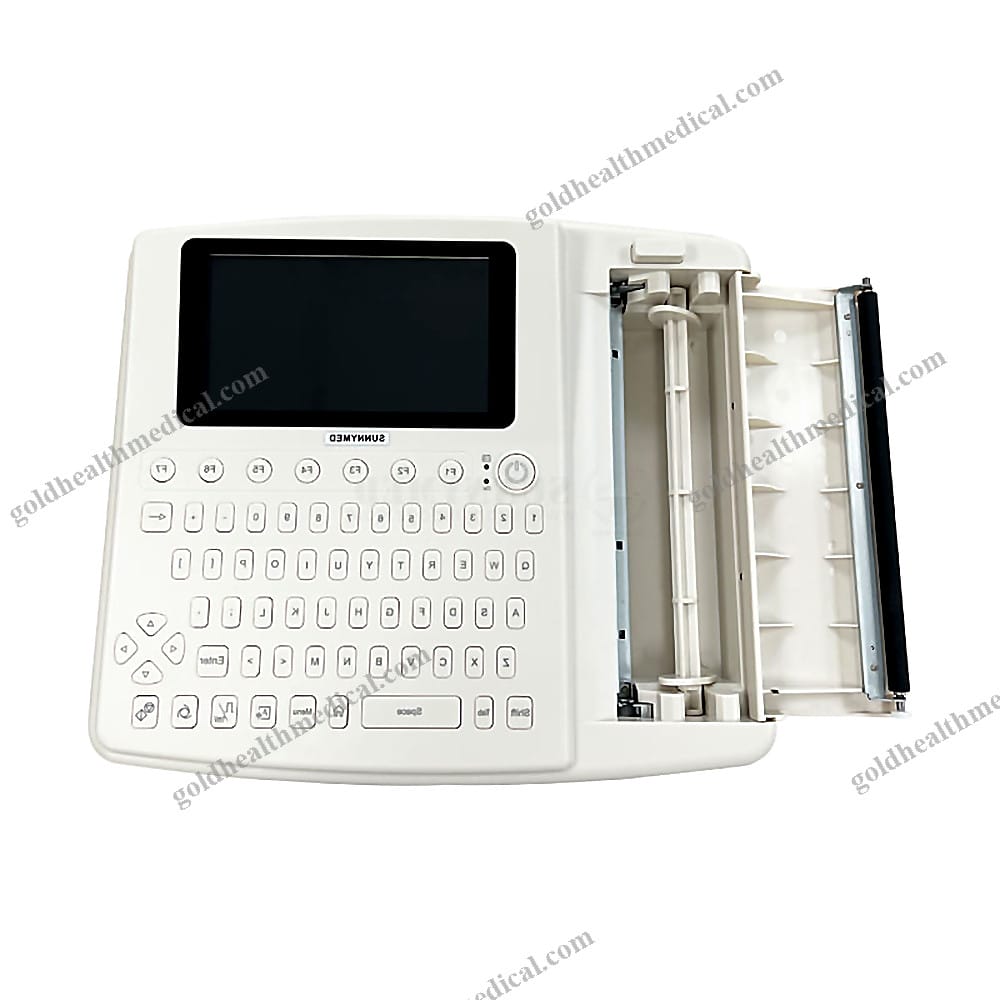

SYH008 Portable ECG Machine 12Lead
Reference: 1601017533433Household Medical Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Portable ECG Machine
Function Features of the ECG Machine
- Modern Design: Lightweight and compact, ensuring portability and ease of use in various settings.
- 12-Lead Simultaneous Acquisition: Full-screen display of 12-channel ECG waveforms for comprehensive analysis.

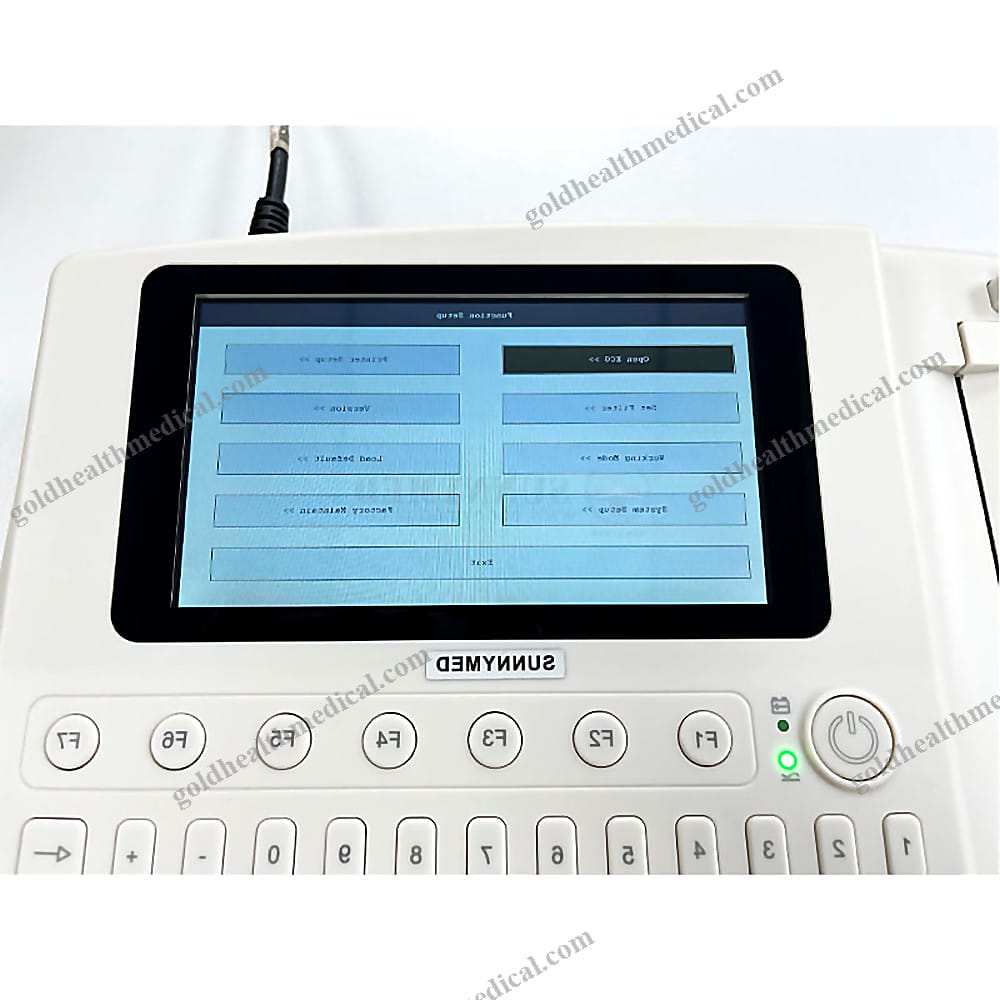

- 10.2" Color Touch-Screen: Intuitive interface with both push-button and touch operation for seamless control.
- Advanced Filters: Equipped with ADS, HUM, and EMG filters for precise signal clarity.
- Automated Functions: Automatic measurement, calculation, analysis, and waveform freezing to reduce physician workload and enhance efficiency.
- Baseline Adjustment: Automatic baseline adjustment ensures optimal recording quality.
- High-Resolution Thermal Printer: Integrated printer with 216mm thermal paper and synchronization printing at 8 dots/mm. Frequency response up to 150Hz for sharp, detailed outputs.
- Smart Detection: Lead-off and lack-of-paper detection for uninterrupted operation.
- Long-Lasting Battery: Built-in rechargeable Li-ion battery (14.8V/4400mAh) with AC/DC power conversion for extended use.
- Universal Power Supply: Adaptable to 100-240V, 50/60Hz AC power supply for global compatibility.
- Data Review and Printing: Historical data and patient information can be reviewed and printed directly from the device.
- Data Storage and Transfer: Supports USB flash disk and SD memory. Stored reports can be analyzed on a PC via ECG playback software.
Parameters of the ECG Machine
- CMRR: ≥ 100dB with AC Filter
- Calibrating Voltage: 1mV ± 3%
- Input Circuit: Floating
- Voltage Tolerance: ± 500mV
- Input Circuit Current: ≤ 0.1µA
- Time Constant: > 3.2s
- Resolution: 12bit/1000Hz
- Frequency Response: 0.05Hz ~ 150Hz
- Operation Mode: Manual/Auto
- Noise Level: ≤ 15µVp-p
- Filter: AC, EMG Filter, Anti-Drift System
- Threshold: ≤ 20µV
- Paper Speed: 12.5, 25, 50mm/s (± 3%)
- Input Impedance: > 50MΩ
- Sensitivity: 5, 10, 20mm/mV
- Patient Current Leakage: < 10µA
- Recorder: High-resolution thermal printer
- Battery: Built-in rechargeable Li-ion battery 14.8V (4000mAh)
- Recording Paper: Thermal recording paper
- Package Dimensions: 365mm × 306mm × 109mm
Why Choose GoldHealth Medical
- Expert Support: A dedicated team provides tailored recommendations and services to meet your needs.
- Customization Options: Various types and functions available, with OEM services to print your logo on the device.
- Technical Expertise: Experienced engineers ensure optimal use and support for your equipment.
Our Advantages
- Top Quality: Rigorous quality control ensures reliability and performance.
- Exceptional Service: Building long-term relationships by treating clients as partners.
- OEM Flexibility: Personalized branding options to align with your business identity.
- Competitive Pricing: High price-performance ratio for maximum value.
- Timely Delivery: Orders are shipped promptly upon completion to ensure minimal wait times.
GoldHealth Medical is committed to delivering innovative, reliable, and user-friendly medical devices that empower healthcare professionals and improve patient outcomes.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: ECG Display
Brand Name: GoldHealth Medical
Product Overview
The ECG Display by GoldHealth Medical is a cutting-edge diagnostic tool designed to deliver precision and reliability in cardiac monitoring. Featuring a 10.2-inch color touch screen, this device combines advanced technology with an intuitive interface, making it ideal for use in clinics, hospitals, and research facilities. Its sleek design and robust functionality ensure seamless integration into any professional healthcare environment.
Key Features
- High-Resolution Touch Screen: A vibrant 10.2-inch color display ensures clear visualization of ECG waveforms and data.
- Advanced Filtering Technology: Equipped with sensitive filters (ADS, HUM, EMG) to minimize noise and provide accurate readings.
- Long-Lasting Battery: Built-in rechargeable Li-ion battery (14.8V, 4000mAh) ensures uninterrupted performance during critical procedures.
- Multiple Paper Speed Options: Adjustable speeds of 12.5, 25, and 50mm/s (±3%) for versatile diagnostic applications.
- Time Constant: Greater than 3.2 seconds for enhanced signal stability and accuracy.
Technical Specifications
- Instrument Classification: Class II medical device
- Power Source: Electric (Plug-in)
- Materials: Durable acrylic and metal construction for long-term reliability
- Safety Standard Compliance: Meets GB15979-2002 standards
- Shelf Life: 1 year
Quality Assurance
- Certifications: CE-approved for safety and performance
- Warranty: Comprehensive 1-year warranty for peace of mind
- After-Sales Service: Hassle-free return and replacement policy
Applications
- Designed for use in clinics, hospitals, laboratories, and rehabilitation centers
- Suitable for both professional and home healthcare environments
GoldHealth Medical’s ECG Display is engineered to empower healthcare providers with the tools they need to deliver exceptional patient care. With its advanced features, durable design, and commitment to quality, this device sets a new standard in cardiac diagnostics.
