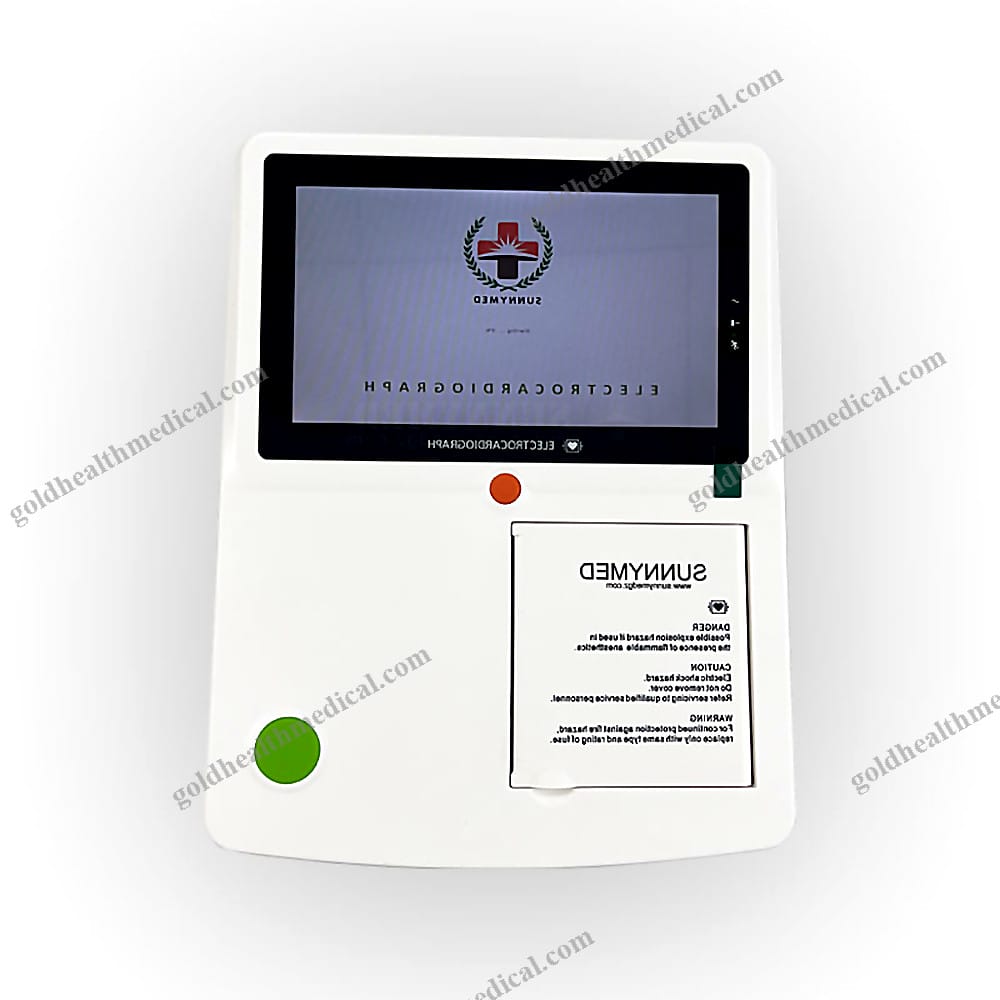

GoldHealth Medical Portable ECG Machine
Product Overview
GoldHealth Medical introduces a cutting-edge portable ECG machine designed for precision, reliability, and versatility. This advanced device is engineered to meet the needs of modern healthcare environments, offering interpretive capabilities, intuitive operation, and exceptional portability. Whether in hospitals, clinics, or home care settings, this ECG machine delivers unparalleled performance with its robust features and user-friendly design.
Key Features
- Three-channel ECG with interpretive functionality for accurate diagnostics.
- Built-in rechargeable lithium-ion battery ensures uninterrupted operation during critical procedures.
- Dual-language support (Chinese/English) for global usability.
- Simultaneous 12-lead acquisition for comprehensive cardiac analysis.

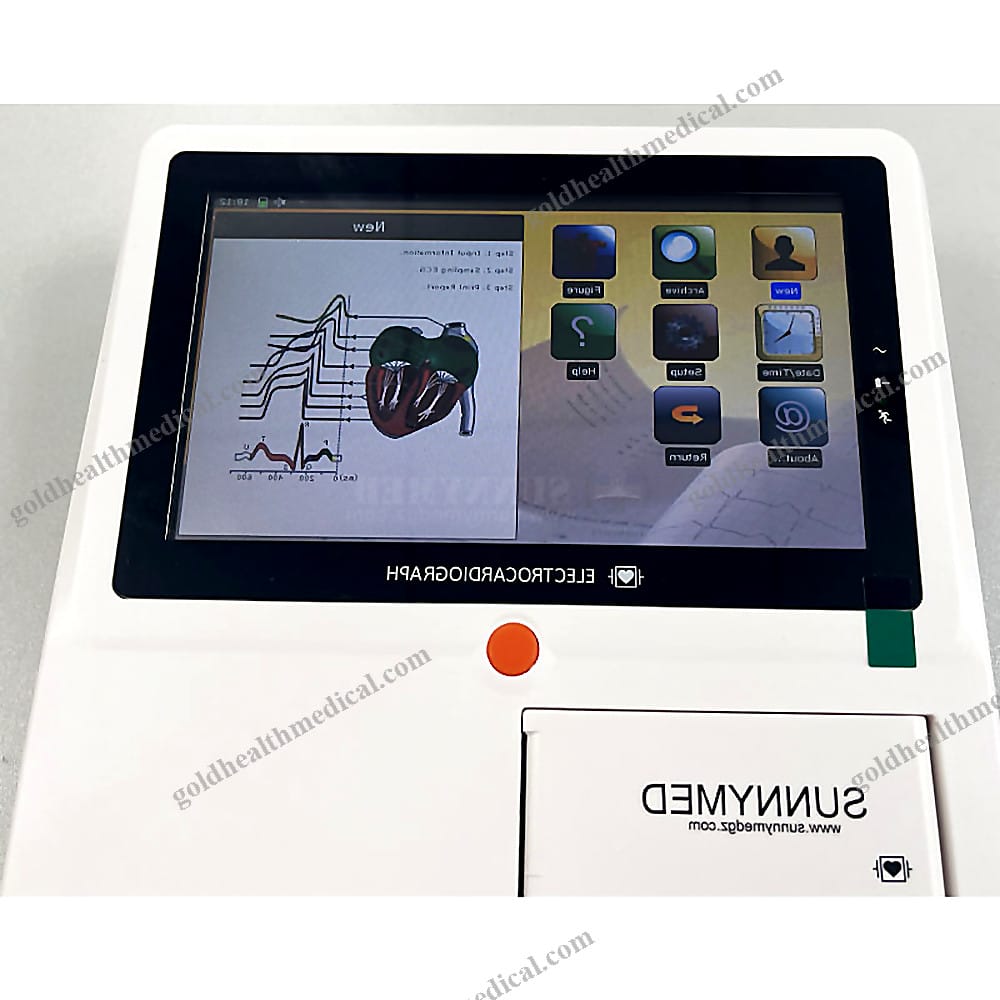

- High-resolution 5.7-inch graphic LCD (320x240) displays waveforms and status with clarity.

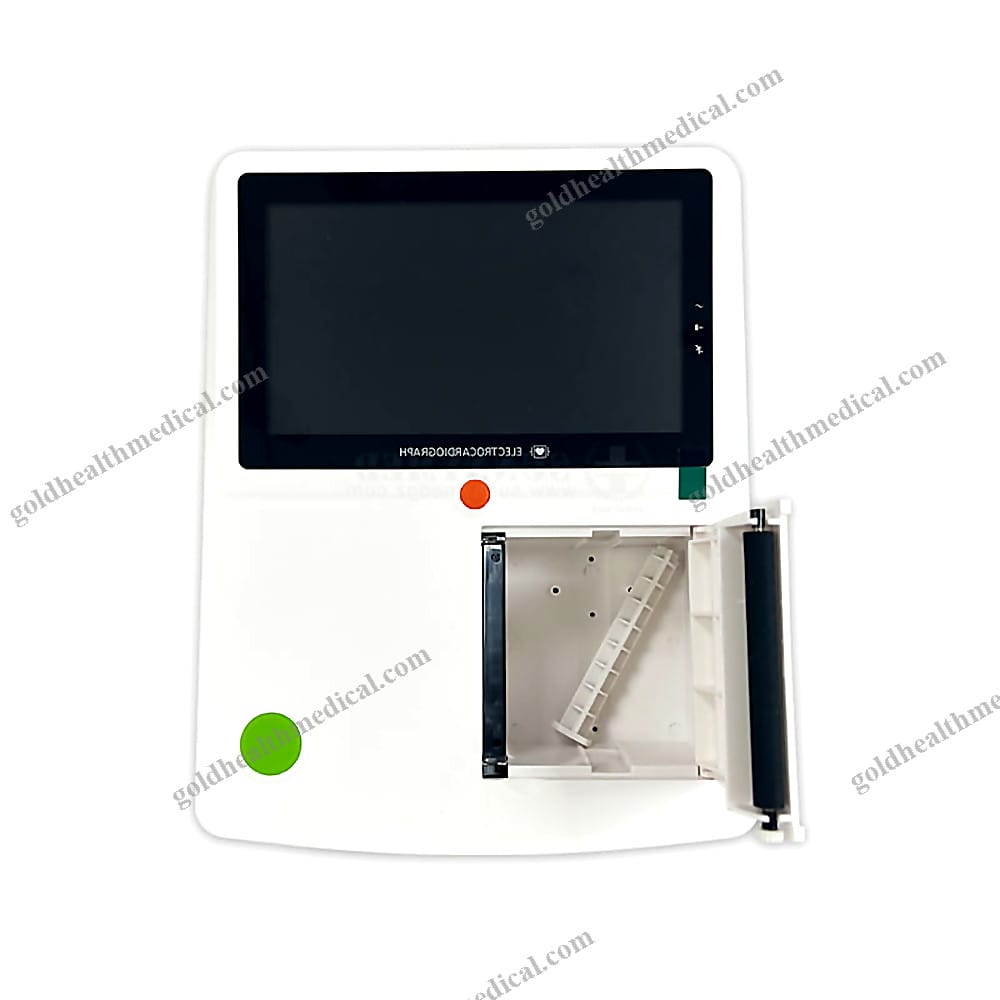

- Thermal array printing for precise and durable ECG recordings.
- Compact and lightweight design for effortless portability.
Technical Specifications
- Leads: Standard 12 leads with synchronous acquisition.
- Data Acquisition: 18-bit resolution at 1000 Hz for high-fidelity signal processing.
- Recording Modes: Manual, AUTO1, AUTO2, AUTO3 for flexible operation.
- Filters: AC, EMG, and drift filters to minimize interference.
- CMRR: ≥100 dB (with AC filter) for superior noise rejection.
- Input Circuit: Floating design with defibrillator protection for enhanced safety.
- Input Impedance: ≥2.5 MΩ for stable signal quality.
- Patient Leakage Current: <10 μA to ensure patient safety.
- Calibrating Voltage: 1 mV ±2% for accurate measurements.
- Frequency Response: 0.05 Hz to 150 Hz for comprehensive signal capture.
- Noise Level: ≤15 μVp-p for clean and reliable recordings.
- Paper Speed: 25 mm/s, 50 mm/s (±3%) for precise waveform documentation.
- Sensitivity Settings: AUTO, 2.5, 5, 10, 20 mm/mV for customizable output.
- Paper Specification: 80 mm x 30 m roll for seamless printing.
- Power Supply:
- AC: 110V/220V/110~230V, 50/60 Hz ±1 Hz, 40 VA.
- DC: 14.4V (2000 mAh) rechargeable lithium-ion battery.
- Safety Classification: IEC60601-1 Class I, Type CF for maximum safety compliance.
Why Choose GoldHealth Medical?
- Unmatched Quality: Rigorous quality control ensures consistent performance and reliability.
- Exceptional Service: Our team provides expert guidance and tailored solutions to meet your needs.
- Customization Options: OEM services available, including logo printing for brand personalization.
- Competitive Pricing: High-performance devices at an unbeatable value.
- Timely Delivery: Orders are shipped promptly upon completion to meet your deadlines.
Applications
This portable ECG machine is ideal for:
- Hospitals and clinics requiring accurate diagnostics.
- Research institutions conducting cardiac studies.
- Rehabilitation centers monitoring patient progress.
- Home healthcare providers ensuring continuous patient monitoring.
GoldHealth Medical is committed to advancing healthcare technology. Our portable ECG machine combines innovation, precision, and reliability to empower medical professionals worldwide. Partner with us to elevate your diagnostic capabilities and improve patient outcomes.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Portable ECG Machine
Product Overview:
The Portable ECG Machine by GoldHealth Medical is a cutting-edge solution designed for precision and reliability in cardiac diagnostics. Engineered with advanced data acquisition technology and versatile recording modes, this device delivers exceptional performance for medical professionals and caregivers alike. Its compact and portable design ensures seamless usability in hospitals, clinics, research labs, and even home care environments.Key Features:
- Material: Durable acrylic and metal construction for long-lasting performance.
- Power Source: Electric with plug-in power supply mode for uninterrupted operation.
- Instrument Classification: Class II medical device, ensuring safety and efficacy.
- Safety Standard: Compliant with GB15979-2002 standards for medical equipment.
Quality Certification: CE-certified, guaranteeing adherence to international quality benchmarks.
Technical Specifications:
- Lead System: Standard 12 leads with synchronous 12-lead acquisition for comprehensive cardiac analysis.
- Data Acquisition: High-resolution 18-bit/1000Hz for accurate and detailed signal processing.
- Recording Modes: Multiple options including Manual mode, AUTO1, AUTO2, and AUTO3 for customized operation.
Filters: Advanced AC, EMG, and Drift filters to minimize noise and ensure clarity in readings.
Warranty & Support:
- Warranty: 1-year comprehensive warranty for peace of mind.
After-Sale Service: Access to online technical support for prompt assistance and troubleshooting.
Packaging & Delivery:
- Packaging: Secure carton packaging with standard export protocols to ensure safe transit.
- Port of Origin: Guangzhou, China.
Supply Capacity: Up to 800 sets per month, ensuring timely availability for bulk orders.
Shelf Life: 1 year from the date of manufacture.
GoldHealth Medical’s Portable ECG Machine is more than just a diagnostic tool—it’s a reliable partner in delivering accurate, efficient, and patient-focused cardiac care. Whether you’re managing a busy hospital or providing personalized care at home, this device is engineered to meet your needs with precision and ease.
