SYD160A HighFrequency Digital XRay System 2
Reference: 1600883767022Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

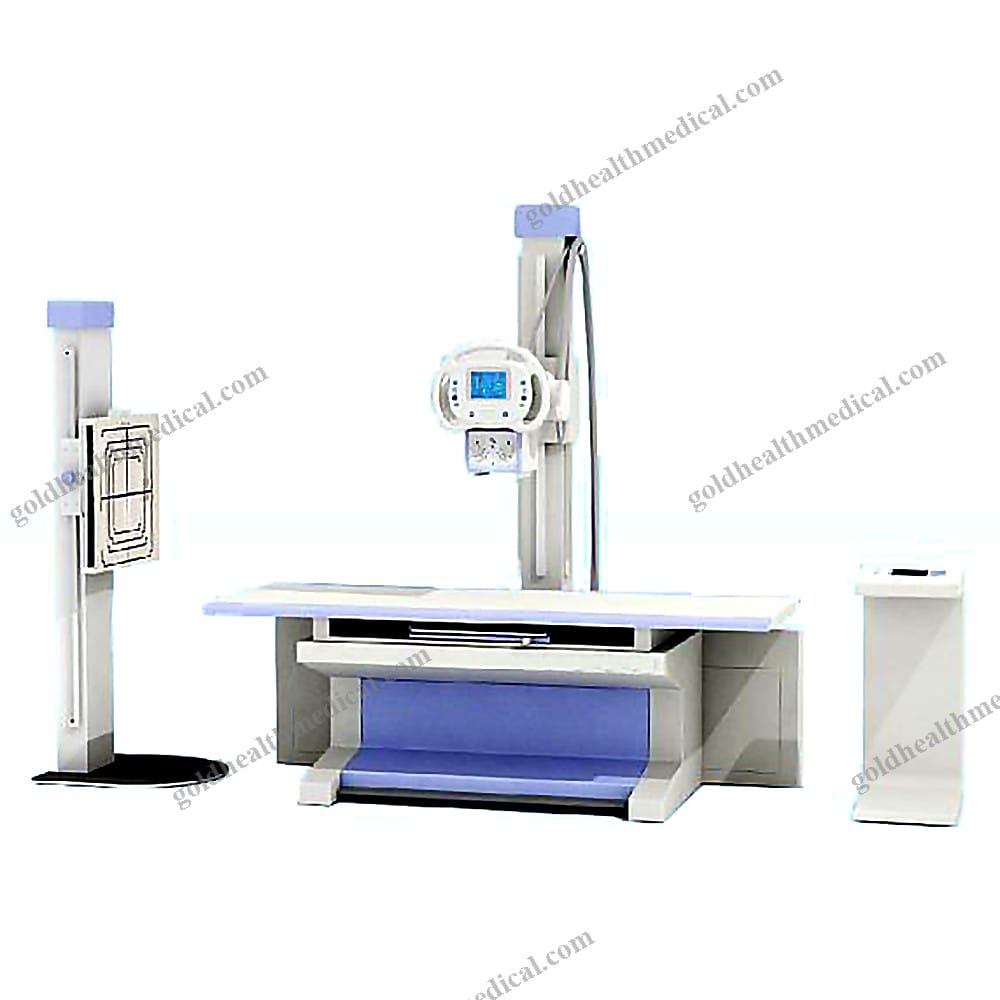

GoldHealth Medical High Frequency X-ray Radiography System
Product Overview
GoldHealth Medical presents a cutting-edge High Frequency X-ray Radiography System designed to deliver exceptional performance and precision. Engineered for versatility and safety, this system is ideal for hospitals, clinics, research institutions, and more. Its advanced features ensure superior imaging quality while prioritizing patient safety.
Key Specifications
- Power Output: 25KW
- Inverter Frequency: 40kHz
- Dual-focus: Small focus: 0.6; Large focus: 1.3
- Thermal Capacity: 212kJ (300 KHU)
- Rotary Anode Speed: 3000rpm
- Tube Voltage: 40~125kV
- Tube Current: 200mA
- mAs Range: 0.4~360mAs (Wide range for enhanced flexibility)
- Grid Density: 103L/INCH
- Grid Ratio: 10:1
- Focusing Distance: 150cm
- Stationary Type: 18"×18" (Imported)
- Power Supply: 380V±10%, 50Hz
- Capacity: ≥30KvA
Unique Features
- Intuitive Operation: Equipped with a close-table graphical LCD touch screen and wireless remote control exposure, ensuring ease of use for operators.
- Superior Imaging: Incorporates the latest compact high-frequency and high-voltage X-ray generator, delivering exceptional image quality while minimizing skin dose for enhanced patient protection.
- Precision Control: Utilizes kV and mAs numeral closed-loop control with real-time microprocessor management, ensuring accurate and repeatable output doses.
- Customizable Parameters: Pre-configured radiography parameters for multi-part, multi-posture, and multi-body types (adult and child). Operators can modify and save settings for added convenience.
- Safety Assurance: Features multiple automatic protection mechanisms and fault indicators, ensuring safe and reliable operation.
- Versatile Radiography Table: The table floats in any direction with electromagnetic braking, enabling precise and convenient patient positioning.
- Flexible X-ray Generator: The generator rotates around its axis, crossarm, and pillar stand, facilitating side and slanting projections for patients on stretchers.
- Comprehensive Bucky Stand: Designed for radiography of the head, chest, abdomen, pelvic cavity, backbone, and peripheral areas.
Standard Configuration
- Control console with close-table graphical LCD touch screen for setting radiography parameters and exposure from another room.
Why Choose GoldHealth Medical?
- Unmatched Quality: Rigorous quality control ensures reliability and performance.
- Exceptional Service: We build long-term relationships by treating clients as partners.
- Customization Options: Tailor the system with your logo and specific requirements.
- Competitive Pricing: High performance at an unbeatable value.
- Timely Delivery: Orders are shipped promptly upon completion.
Applications
This system is designed for a wide range of medical imaging needs, including hospitals, clinics, research labs, rehabilitation centers, and home healthcare settings.
Dimensions and Weight
- Packing Size: 2250×1400×1000mm (3.2 CBM)
- Net Weight: 685KG
- Gross Weight: 880KG
GoldHealth Medical is committed to advancing healthcare through innovation. Experience the future of radiography with our state-of-the-art system.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the High Frequency X-ray Radiography System – a cutting-edge solution designed for precision, reliability, and safety in medical imaging.
Product Highlights
- Advanced Power Output: Delivers an impressive 25KW, ensuring high-quality imaging even in demanding clinical environments.
- High-Frequency Inverter Technology: Operates at 40kHz, providing stable and consistent performance for accurate diagnostics.
- Rotary Anode Speed: Achieves 3000rpm, enabling rapid heat dissipation and extended tube life for uninterrupted operation.
- Precision Control: Tube voltage adjustable from 40kV to 125kV and a tube current of 200mA for optimal imaging customization.
Key Features
- Durable Construction: Crafted with premium metal and high-grade plastic components for long-lasting performance.
- Safety Assurance: Compliant with GB15979-2002 safety standards, ensuring the highest level of protection for both patients and operators.
- Class II Instrument Classification: Designed for professional-grade applications in hospitals, clinics, and research facilities.
- Compact and Efficient Design: Dimensions of 250x1400x1000mm (3.2 CBM) with a net weight of 685KG and gross weight of 880KG, making it easy to integrate into any medical setting.
Technical Specifications
- Power Source: Electricity
- Shelf Life: 1 year
- Quality Certifications: C-tick compliance for global standards
- Packaging: Standard export carton packaging tailored for digital radiography systems
- Port of Delivery: Guangzhou
Service and Support
- Comprehensive Warranty: Backed by a 1-year warranty for peace of mind.
- Onsite Installation: Ensures seamless setup and operational readiness.
- Supply Capability: Up to 500 sets per month, meeting the needs of large-scale deployments.
Applications
This system is ideal for hospitals, clinics, research institutions, rehabilitation centers, and home healthcare settings, offering unparalleled performance in medical X-ray imaging and diagnostics.
GoldHealth Medical – Elevating healthcare with innovative, reliable, and precision-engineered solutions.
