SYD034 Portable Xray System Advanced Affordable Clinical
Reference: 1601281863070High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

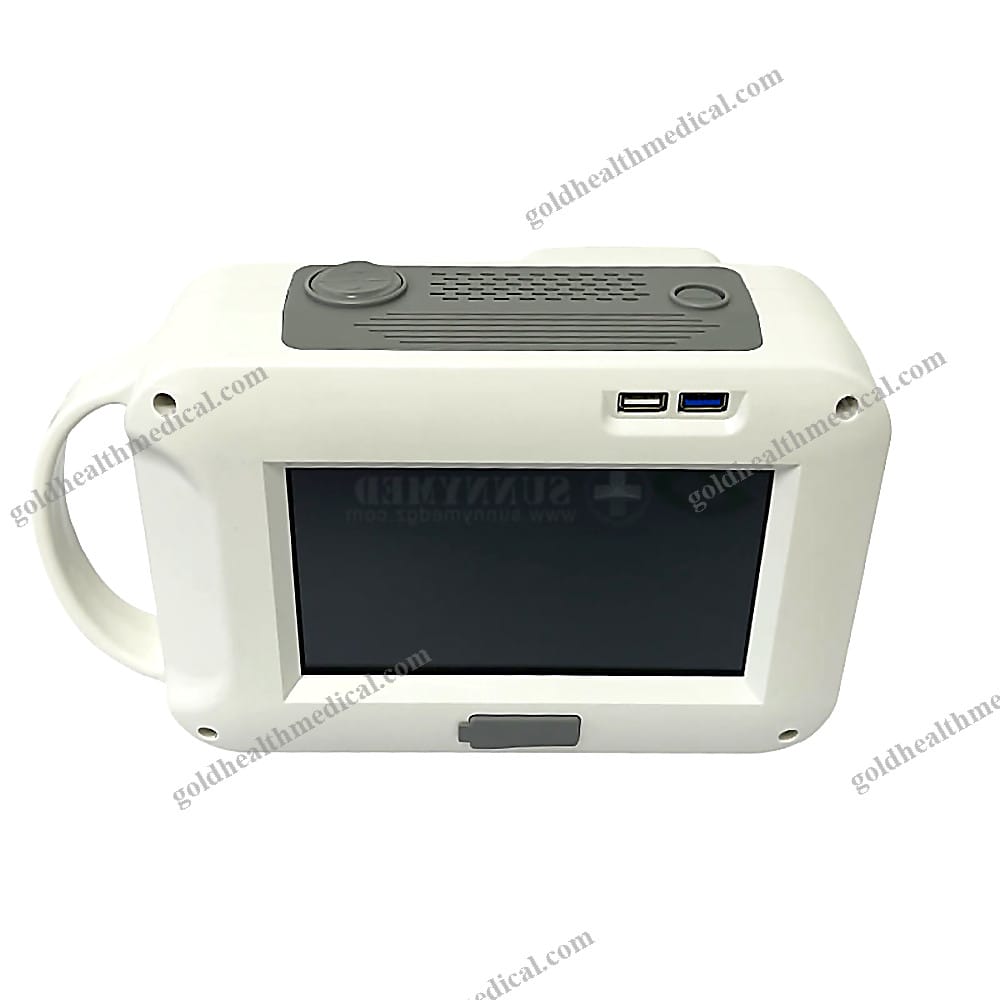

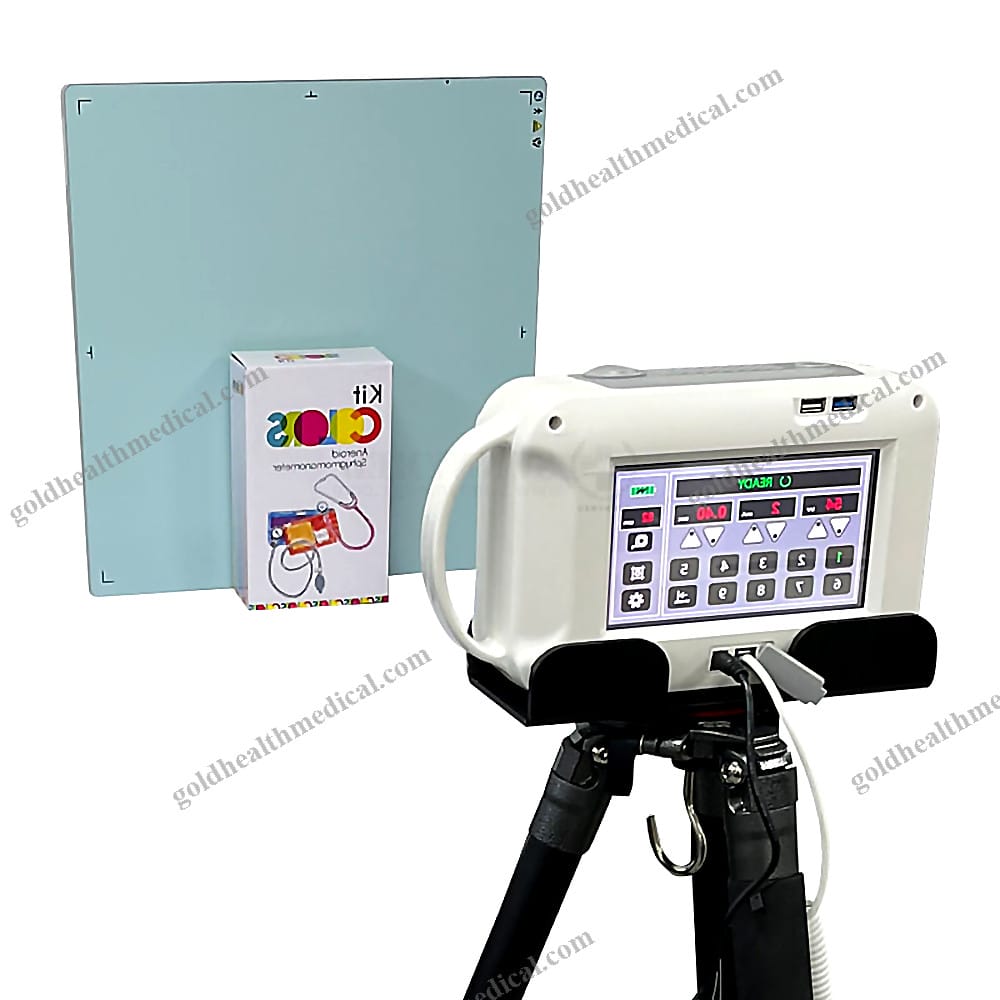

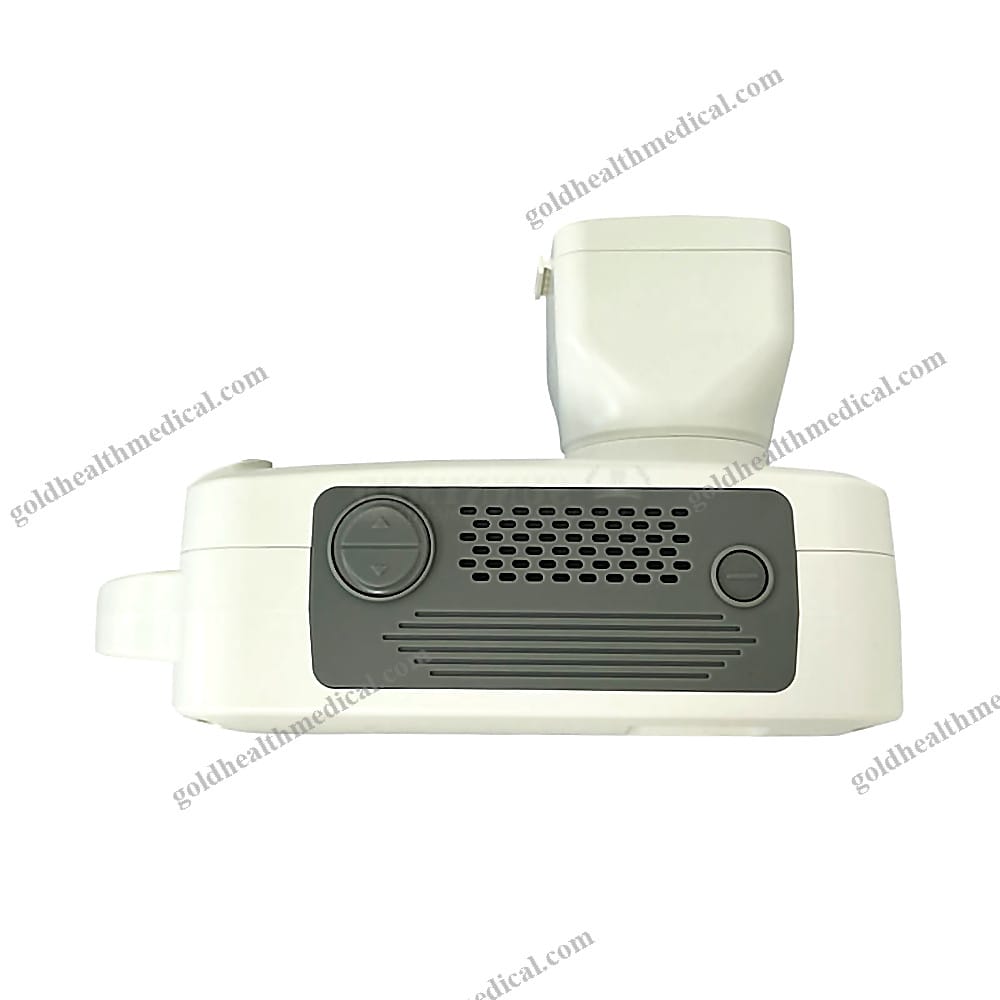

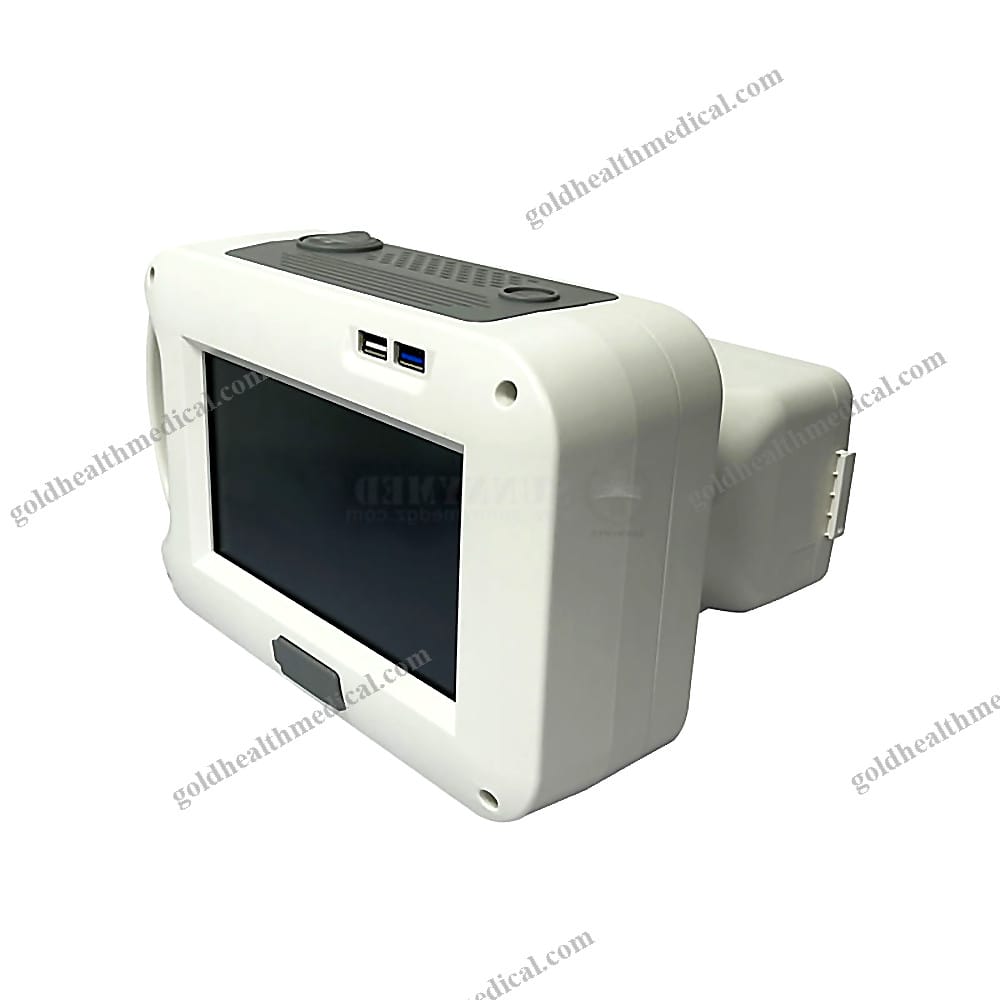

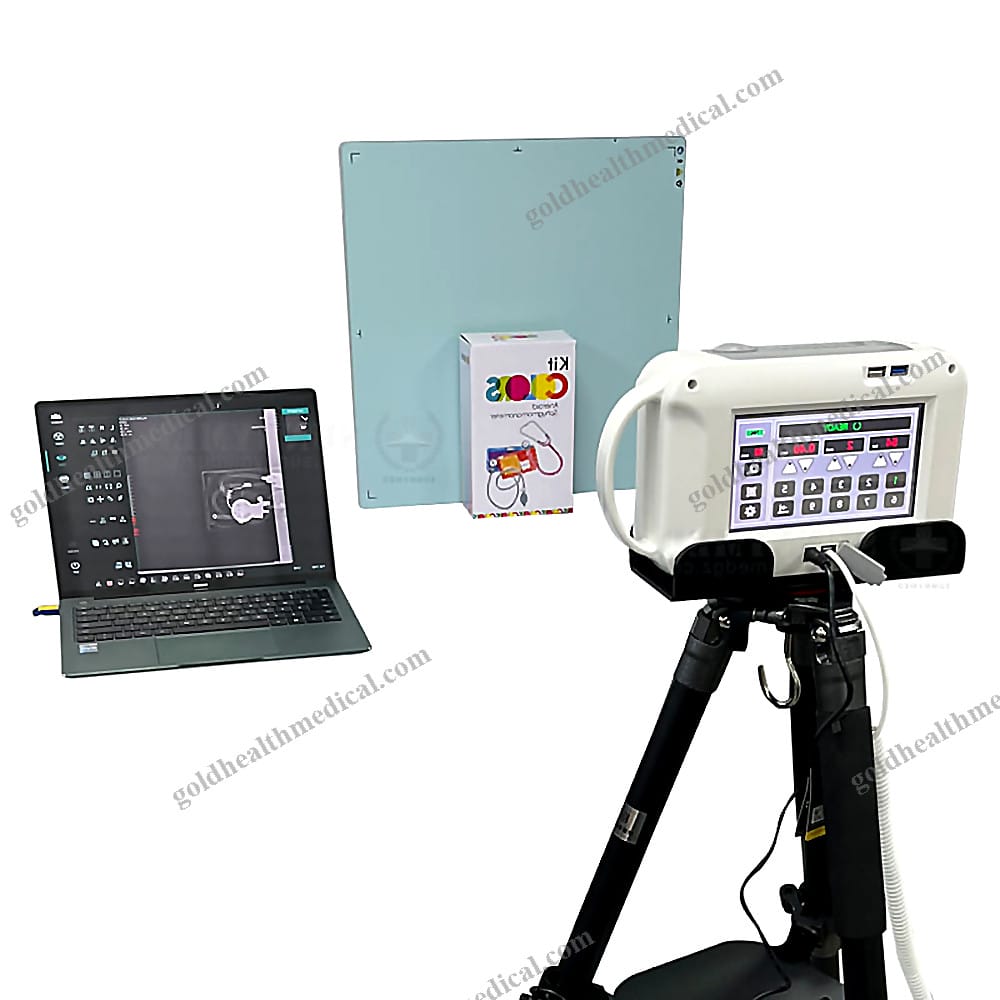

GoldHealth Medical Portable X-ray System: Revolutionizing Diagnostic Imaging
Experience the future of diagnostic imaging with GoldHealth Medical’s portable X-ray system, designed to deliver advanced clinical and veterinary solutions. Engineered for versatility and precision, this compact system is ideal for a range of professional environments.
Applications
- Comprehensive diagnostic centers
- Hospital radiology departments
- Radiological imaging centers
- Emergency rooms
- Orthopedic departments
- Lung diagnosis centers
- Veterinary hospitals
Key Features
- Compact Design: Minimal space requirements for seamless integration into any workspace.
- Low Radiation Dose: Prioritizes patient and operator safety with the lowest possible radiation exposure.
- Unmatched Efficiency: Industry-leading battery performance ensures uninterrupted operation throughout the day.
- Plug-and-Play Functionality: Equipped with an intuitive software solution and built-in workstation for immediate use—no installation or additional equipment required.
- Wireless Freedom: Completely wireless operation for enhanced mobility and flexibility.
- Superior Battery Life: Reliable power ensures consistent performance during critical procedures.
- Ease of Use: Simplified medical imaging processes for enhanced workflow efficiency.
Technical Specifications
- Dimensions: 288×268×168 mm (L x W x H)
- Weight: 3.2 kg

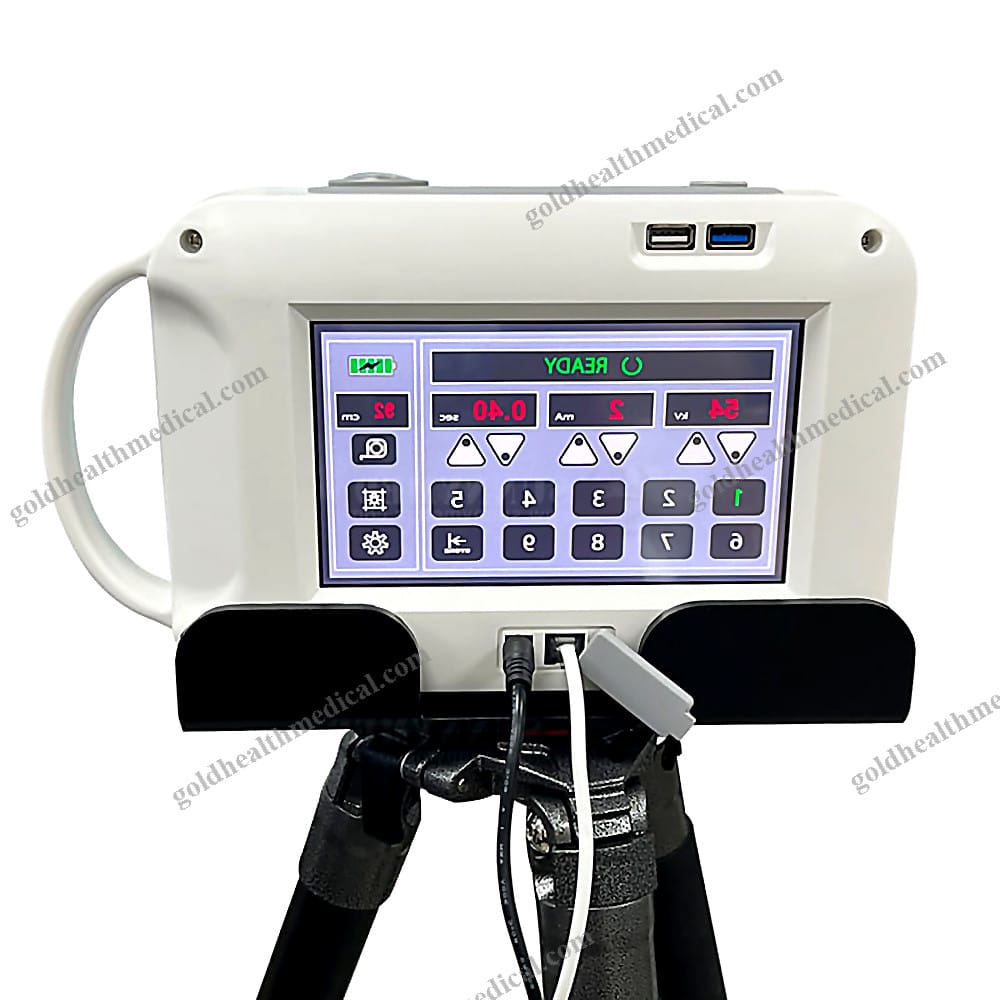

- Display: 7-inch LCD screen with a resolution of 1024x600
- Input Voltage: 220V±10% AC
- Battery: 22V, 2200mAh
- Frequency: 50Hz±1Hz
- X-ray Voltage Range: 50-70 kV (adjustable in 1kV increments)
- X-ray Current Range: 2-5mA (minimum increment: 1mA)
- Exposure Time Range: 0.03-0.20 seconds (10ms steps), 0.20-2.00 seconds (50ms steps)
- X-ray Tube Model: CEIOXW70-3
- Focal Spots: 0.3mm
Why Choose GoldHealth Medical?
GoldHealth Medical offers tailored OEM solutions to meet customer-specific needs, reducing production costs while enhancing brand value. Our commitment to quality ensures that every product is crafted with precision and care.
Packaging and Delivery
Your equipment is safeguarded with professional, eco-friendly packaging designed for convenience and efficiency. Each unit undergoes a meticulous one-to-one inspection before dispatch to ensure safety and reliability.
Complementary Products
- Full HD Endoscope Camera System: High-definition imaging with a 24-inch screen and touch screen adjustment.
- Digital Urological Ureteroscope: Flexible, disposable, and cost-effective for hospital use.
- Dry Chemistry Analyzer: Compact and fully automatic for veterinary diagnostics.
- Handheld Video Laryngoscope: Reusable or disposable options with multiple blade sizes.
FAQs
- How to Purchase?
Contact our sales team directly or place an order online.
Payment Options
Trade Assurance, Credit Card, PayPal, T/T (Bank Transfer), Western Union, L/C.
Delivery Times
- Ready stock: Shipped within 24 hours.
Custom orders: 2-7 working days.
Product Usage Support
- Video tutorials for installation, operation, and maintenance.
Real-time online video training for pre-sales and after-sales support.
Warranty and After-Sales Service
- 12-60 months warranty.
- Dedicated support with responses within 8 hours.
GoldHealth Medical is your trusted partner for innovative, high-quality medical equipment. From portable X-ray systems to advanced endoscopes, our solutions are designed to empower healthcare professionals worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Handheld X-ray Machine by GoldHealth Medical
Key Features:
- Compact and Portable Design: Engineered for ultimate mobility, this handheld X-ray machine is perfect for diverse medical environments, including clinics, hospitals, and remote care settings.
- Integrated Software Solution: Equipped with a built-in workstation and long-lasting battery, enabling seamless operation without the need for external devices.
- High Performance: Capable of capturing over 120 high-quality X-ray images on a single charge, ensuring extended usability during critical procedures.
- Advanced Display: Features a 7-inch LCD screen for clear, real-time image visualization, enhancing diagnostic accuracy.
Technical Specifications:
- Instrument Classification: Class II medical device
- Power Source: Electric, with an input voltage of 220V ±10% AC / 50Hz
- Dimensions: 288 x 268 x 168mm
- Weight: 3.2kg ± 25% for effortless handling and portability
- Material: Durable, medical-grade plastic construction
- Shelf Life: 1 year
Applications:
- Ideal for use in X-ray rooms and radiography departments
- Suitable for hospitals, clinics, research labs, rehabilitation centers, and home healthcare
Quality Assurance:
- Certified with CE and MSDS standards for safety and reliability
- Backed by a 1-Year Warranty and access to online technical support for uninterrupted service
Why Choose GoldHealth Medical?
GoldHealth Medical’s Handheld X-ray Machine redefines diagnostic imaging with its innovative design, cutting-edge technology, and user-centric features. Designed to meet the needs of modern healthcare professionals, this device ensures precision, portability, and performance in every application.
Standout Benefits:
- Reduces the need for bulky equipment with its all-in-one design
- Delivers exceptional image quality for accurate diagnostics
- Empowers healthcare providers with flexibility and efficiency
Experience the future of medical imaging with GoldHealth Medical’s Handheld X-ray Machine – where innovation meets reliability.
