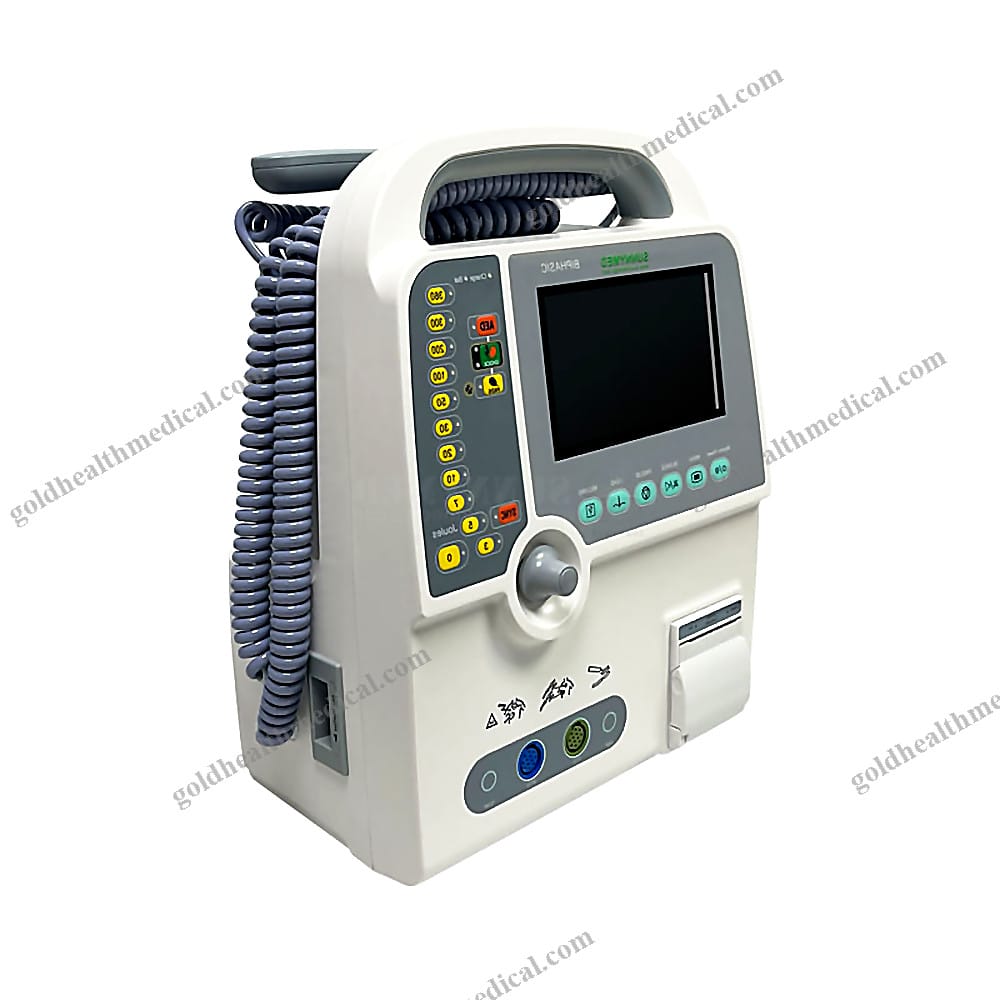

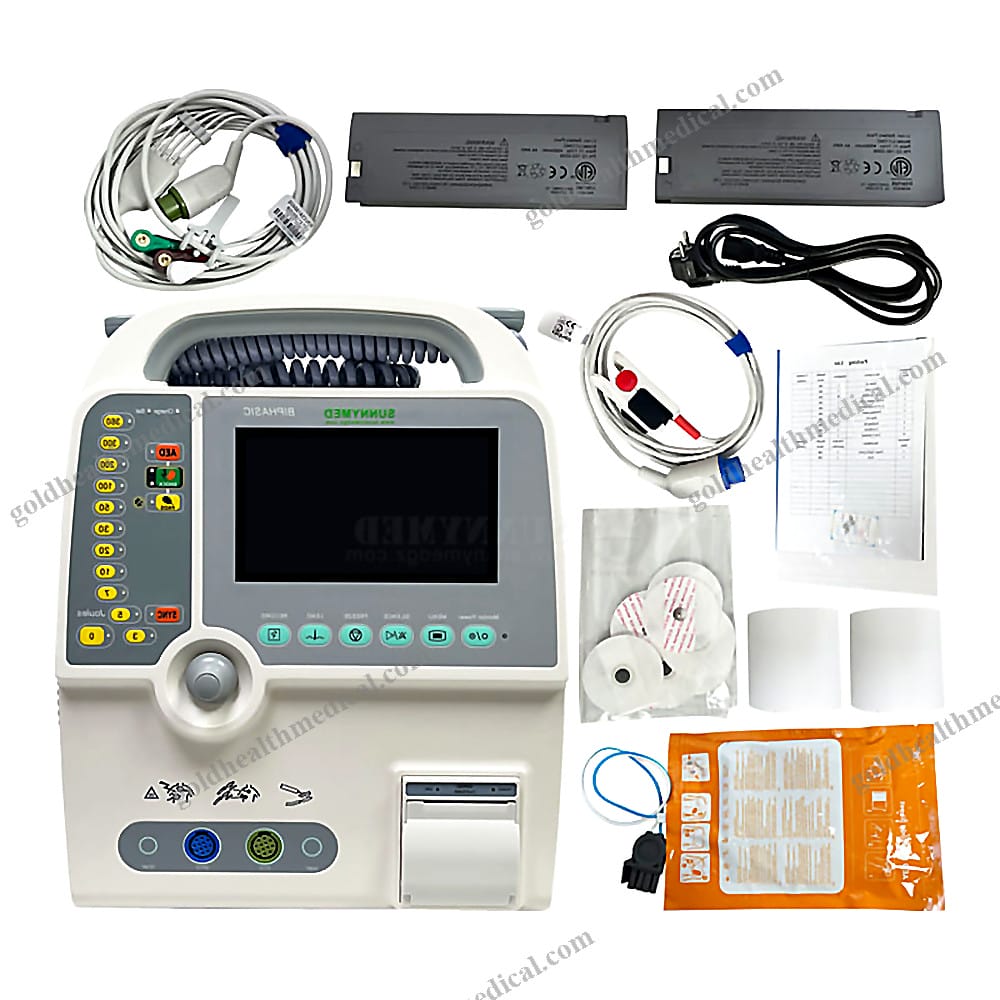

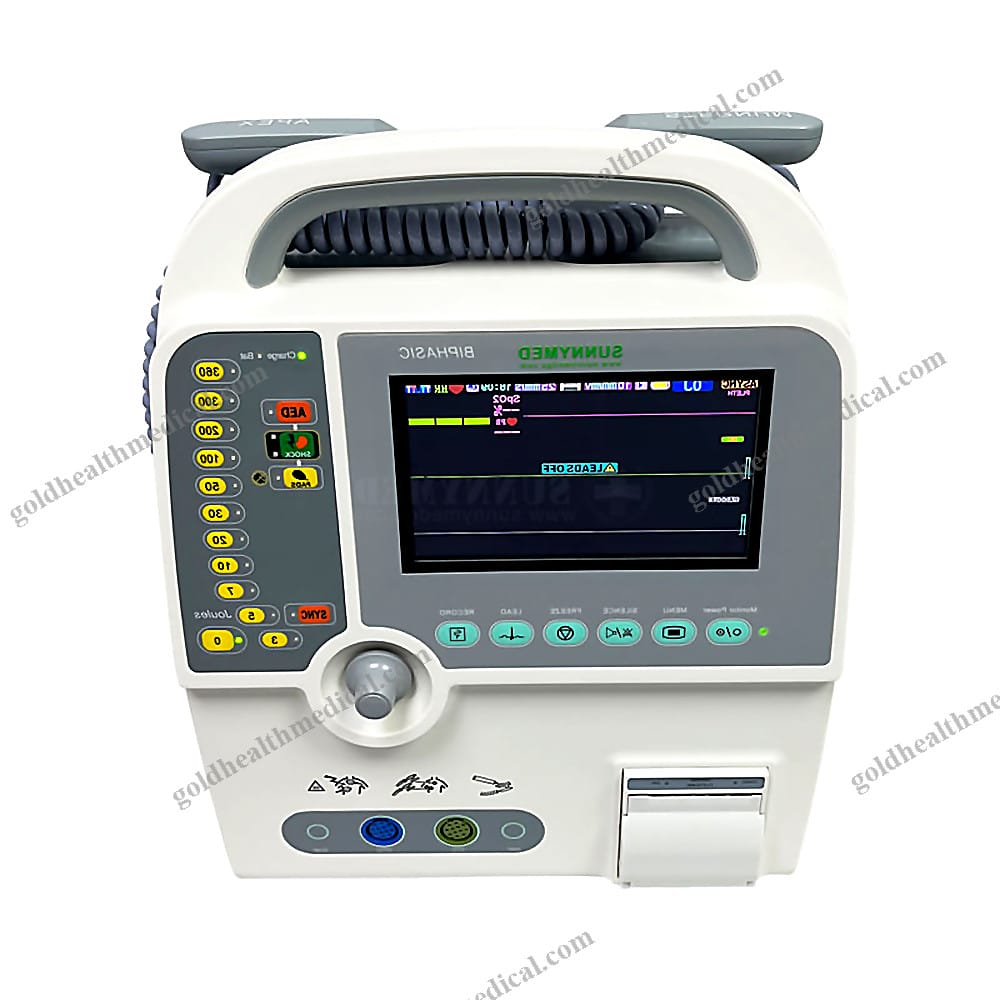

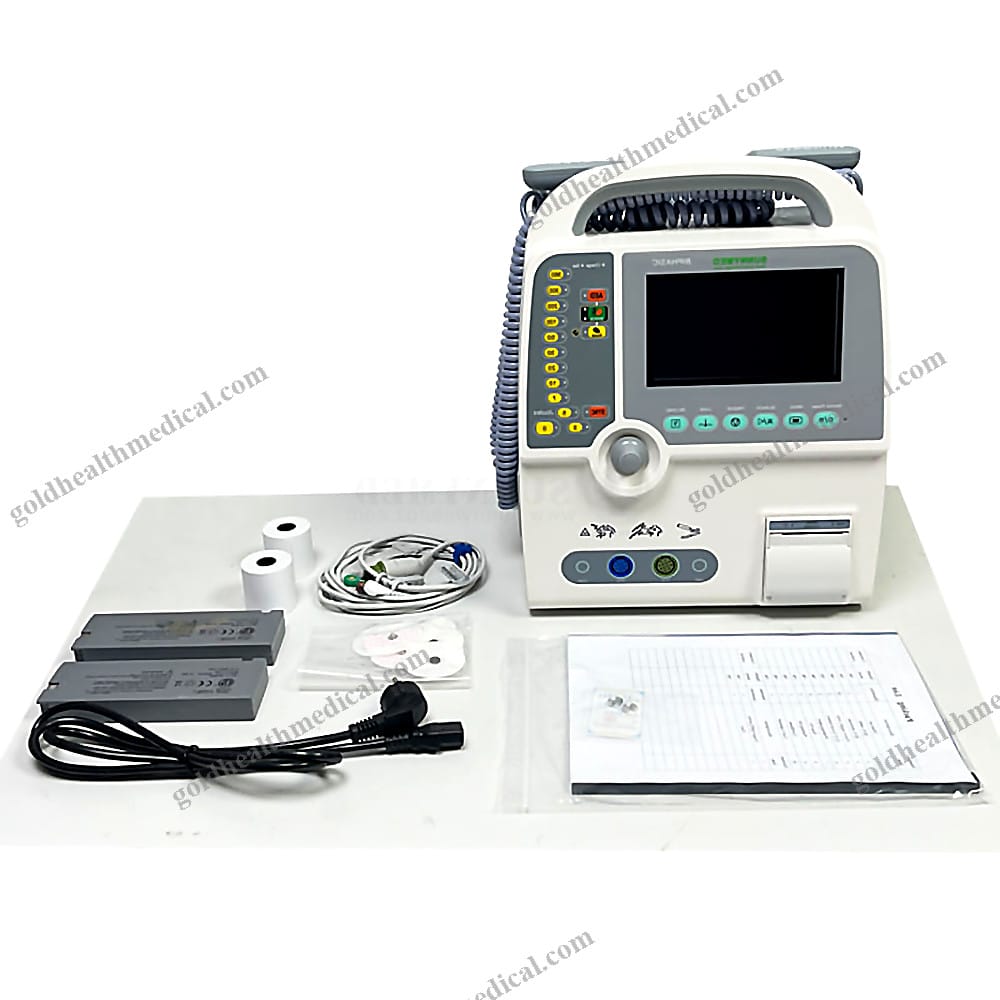

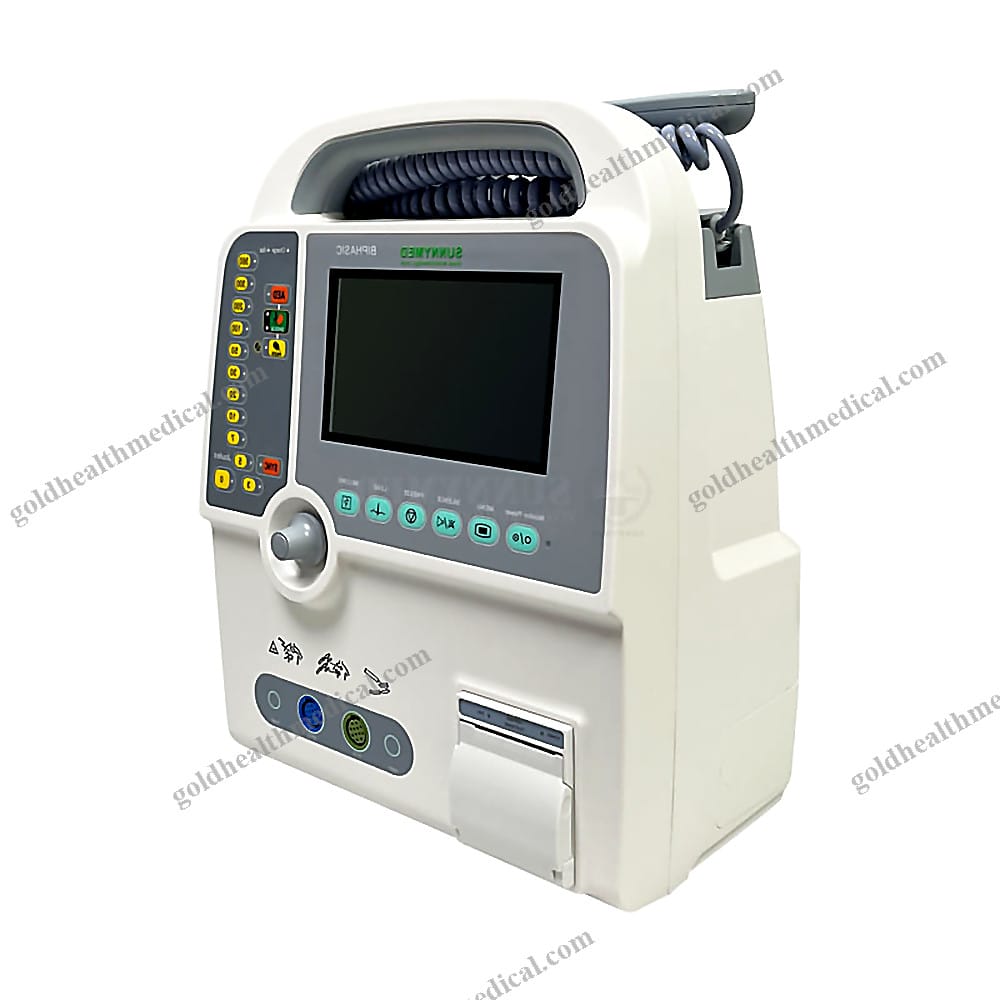

SYC029 Portable Cardiac Defibrillator for Medical Training
Reference: 1601035139106First-Aid Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Emergency Care with Advanced Defibrillation Technology
GoldHealth Medical presents a cutting-edge Portable Biphasic AED Defibrillator, designed to deliver exceptional performance in critical situations. Engineered for reliability and precision, this device is the ultimate solution for hospitals, clinics, and emergency responders seeking high-quality life support equipment.
Key Features
- Optional SPO2 Monitoring: Enhances patient assessment with real-time oxygen saturation data.
- Intuitive Voice Prompts: Guides users through every step, ensuring confidence even in high-pressure scenarios.
- Built-in Recording System: Captures defibrillation discharge events for accurate post-event analysis.
- ECG Waveform Display via Paddle Electrodes: Provides clear visualization of cardiac activity during treatment.
- Comprehensive Monitoring: Displays heart rate, lead selection, alarms, and delivered energy on a high-resolution screen.
Technical Specifications
- Defibrillator Modes: Manual, Synchronized, and Asynchronized.
- Energy Accuracy: Within Β±1% for precise control.
- Energy Selection: Adjustable in increments from 0 to 360 joules (nominal at 50Ξ© resistance).
- Charging Time: Reaches maximum energy in just 10 seconds.
- Paddles: Integrated adult and pediatric paddles for versatility.
- Power Supply:
- AC Power: 100Vβ240V, 50Hz/60Hz.
- Optional DC Vehicle Power: 12V.
- Battery Backup:
- Type: Rechargeable lead-acid battery (12V 2.0Ah x2).
- Charging Time: Fully charges in 4 hours.
- Capacity: Supports 120 minutes of monitoring and up to 30 discharges at 360 joules.

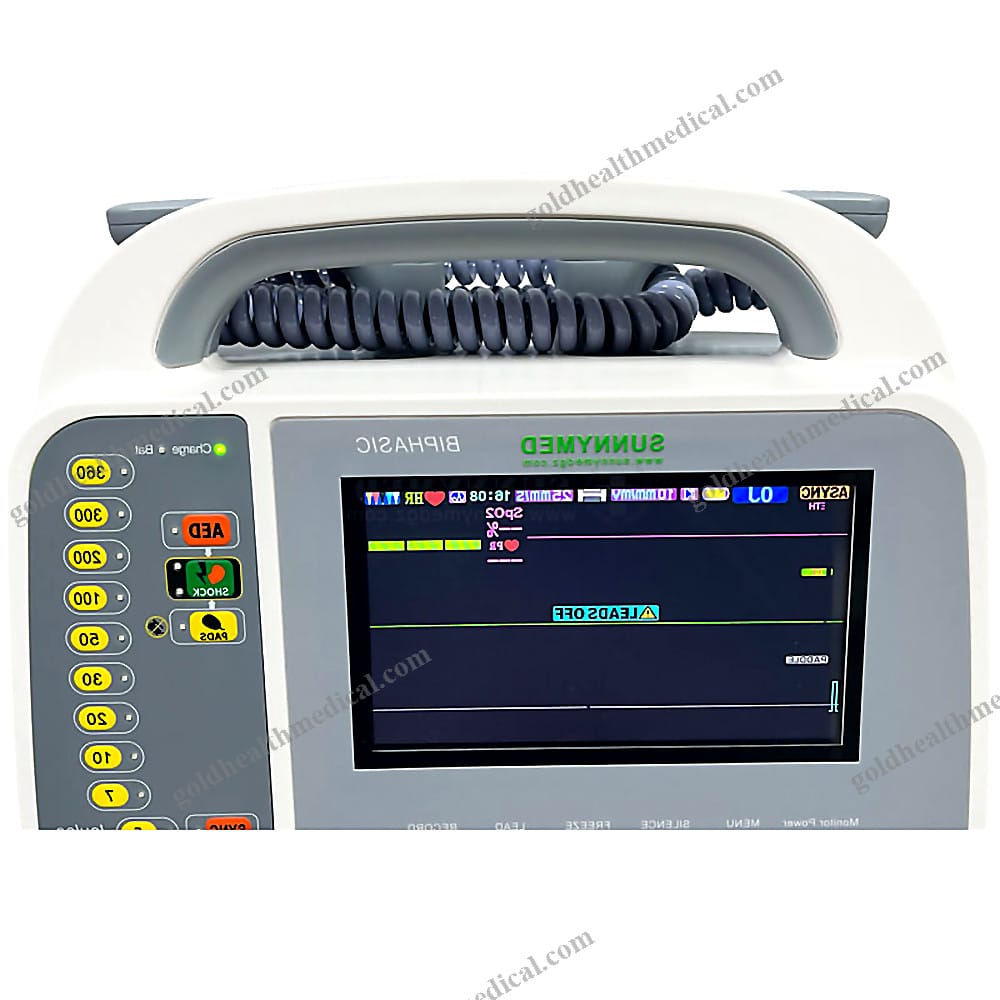

- Display:
- Screen: 7-inch diagonal TFT color display with high resolution (480x234 pixels).
- Sweep Speed: Adjustable at 12.5/25/50mm/sec.
- Information Display: Heart rate, lead selection, alarms, and delivered energy.
Advanced Capabilities
- ECG Monitoring:
- Patient Connection: Compatible with 3-lead or 5-lead ECG cables and paddles.
- Lead Selection: I, II, III, AVR, AVL, AVF, V displayed on the monitor.
- Heart Rate Range: 20β350 BPM.
- Protection: Withstands 4000VAC/50Hz isolation and resists interference from electrosurgical devices.
- Defibrillation:
- Waveform: Biphasic for optimal effectiveness.
- Modes: Manual external synchronous/asynchronous defibrillation.
- Charge Time: Less than 10 seconds to 360 joules.
- Energy Display: Selected and delivered energy shown on the monitor.
- Prompts: Voice and visual cues for seamless operation.
- Pacing:
- Modes: On-demand and fixed pacing for cardiac arrest and severe arrhythmias.
- Benefits: Non-invasive, rapid, and easy-to-use pacing improves recovery success rates.
- AED Mode:
- Patented algorithm ensures accurate automated analysis.
- Simplified settings guide clinical personnel in delivering defibrillation and basic life support.
Why Choose GoldHealth Medical?
- Versatility: Combines defibrillation, pacing, monitoring, and AED modes for comprehensive life support.
- Precision Engineering: Designed for both pre-hospital and in-hospital use, ensuring adaptability across diverse settings.
- Reliability: Built to withstand demanding environments while maintaining accuracy and performance.
- User-Centric Design: Intuitive controls and advanced features make it accessible for professionals and first responders alike.
GoldHealth Medical is committed to empowering healthcare providers with innovative tools that save lives. Our Portable Biphasic AED Defibrillator exemplifies this mission, offering unmatched functionality and dependability for every emergency scenario.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Defibrillator Automated External, a cutting-edge medical device designed to deliver precision, reliability, and ease of use in critical care scenarios. Engineered for healthcare professionals and institutions, this defibrillator combines advanced technology with user-centric design to ensure optimal performance in emergencies.
Key Features
- 7'' TFT Display: A high-resolution, intuitive interface for clear visualization of vital parameters and real-time monitoring.
- Versatile Defibrillation Modes: Supports manual, synchronized, and asynchronized defibrillation to meet diverse clinical needs.
- Comprehensive Standard Parameters: Monitors ECG, SPO2, TEMP, NIBP, and DEFIBRILLATOR functions for a holistic patient assessment.
- Universal Power Compatibility: Operates on AC power (100~240V, 50/60Hz), ensuring seamless functionality across global settings.
Technical Specifications
- Instrument Classification: Class II medical device, ensuring safety and reliability.
- Materials: Constructed with premium acrylic and metal for durability and hygiene.
- Safety Standards: Compliant with GB15979-2002 and certified with CE/ISO for quality assurance.
- Shelf Life: 1 year from the date of manufacture.
Support and Warranty
- Warranty: 1-year comprehensive warranty for peace of mind.
- After-Sale Service: Lifetime access to online technical support, ensuring uninterrupted performance.
- Userβs Manual: Included for easy setup and operation.
Applications
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare environments, the GoldHealth Medical Defibrillator Automated External is a trusted companion in life-saving interventions.
Why Choose GoldHealth Medical?
Our defibrillator stands out with its robust build, advanced monitoring capabilities, and unwavering commitment to safety. Designed to empower healthcare providers, it ensures swift, accurate, and reliable responses in critical moments.
Place of Origin: Guangdong, China
Power Source: Electric
Choose GoldHealth Medical for innovation, precision, and excellence in medical technology.
