SYC005T Portable ICU Monitor with 12 Touch
Reference: 1601205773798Examination Therapy Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Patient Monitoring

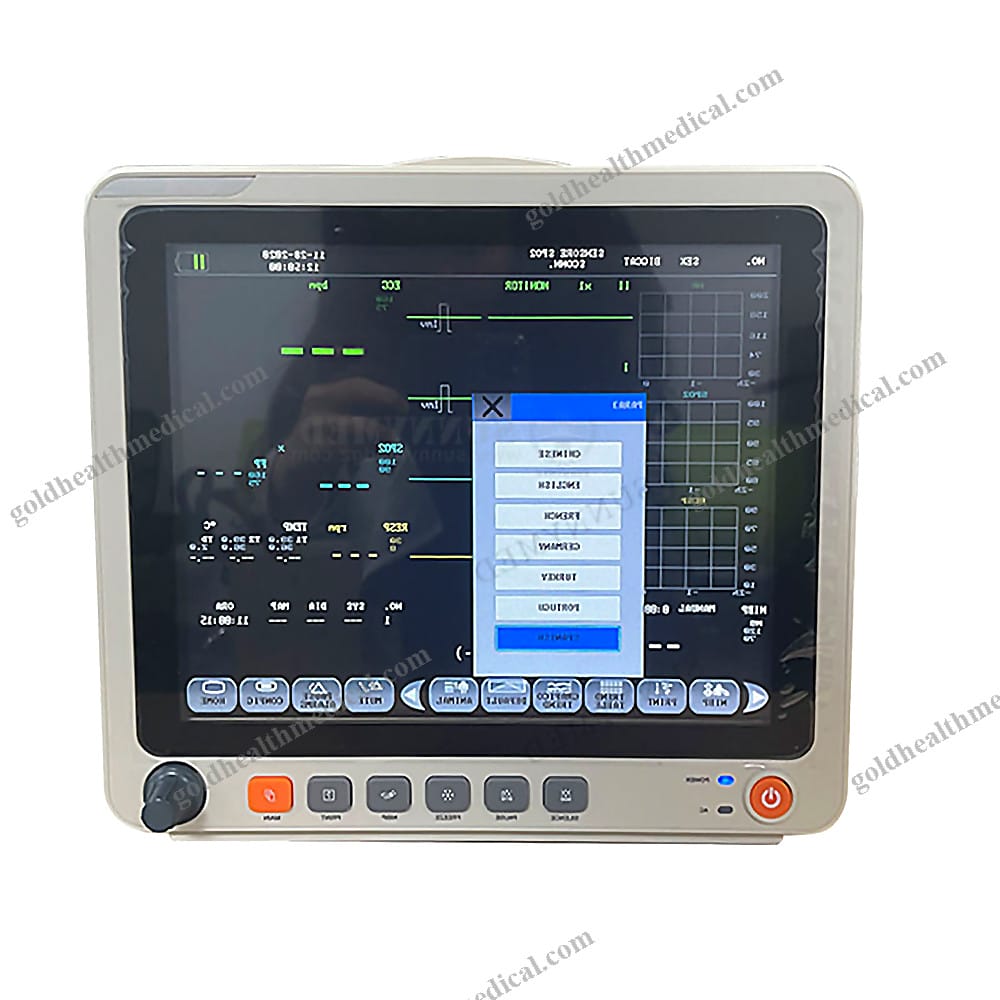

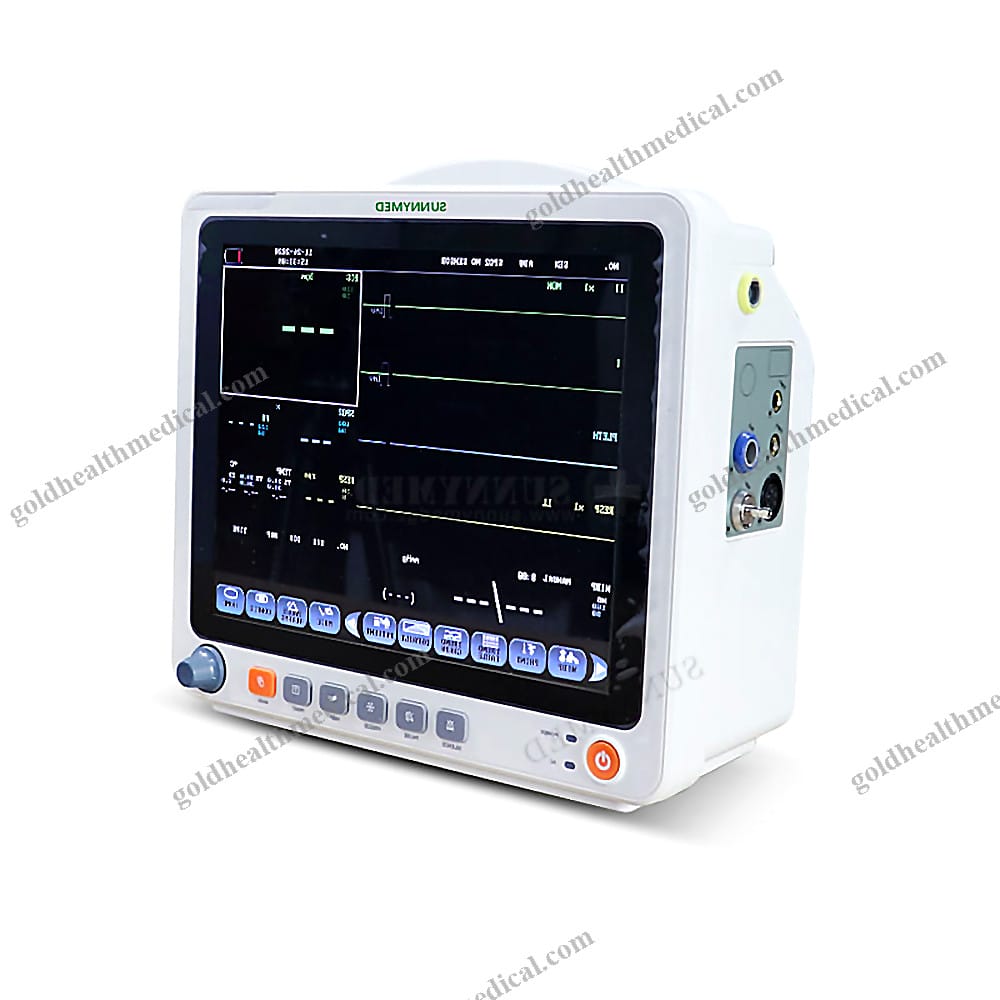

Portable Touch Screen Patient Monitor
Product Overview
GoldHealth Medical presents a cutting-edge portable patient monitor designed to elevate healthcare standards. Featuring a 12.1-inch TFT LCD touch screen, this device is ideal for bedside care, operating rooms, and ICUs. It supports an extensive range of modules including 3/5/12 Leads ECG, RESP, SPO2, NIBP, IBP, CO2, and AG.
Key Features
- Versatile Display Options: Large font, standard, full-leads, trend, and oxyCRG views.
- Extended Data Storage: Capable of storing up to 720 hours of monitoring data.
- Reliable Power Supply: Built-in detachable rechargeable lithium battery offering approximately 4 hours of use.
- Multi-language Support: Ensures global usability.
- Central Monitoring System: Enhances coordinated care.
Technical Specifications
ECG
- Lead Modes: I, II, III, AVR, AVL, AVF, V
- Gain Settings: x0.25, x0.5, x1, x2
- Heart Rate:
- Adult: 15-300 BPM
- Neonatal: 15-350 BPM
- Resolution: 1 BPM
- Accuracy: ±1%
- ST Measurement Range: -2.0 to +2.0 mV
- Accuracy: ±10%
- Pacemaker Detection: Yes
- Sweep Speeds: 12.5 mm/s, 25 mm/s, 50 mm/s
- Bandwidth:
- Diagnostic: 0.05~130 Hz
- Monitor: 0.5 - 40 Hz
- Surgery: 1 - 20 Hz
SPO2
- Measurement Range: 0-100%
- Resolution: 1%
- Accuracy: 2% (70-100%)
- Pulse Rate: 20-250 BPM
- Resolution: 1 BPM
- Accuracy: ±3 BPM
NIBP
- Work Modes: Manual, Automatic, Continuous
- Units: mmHg, kPa
- Measurement Ranges:
- Adult:
- SYS: 40-280 mmHg
- DIA: 10-225 mmHg
- MEAN: 20-240 mmHg
- Pediatric:
- SYS: 40-220 mmHg
- DIA: 10-160 mmHg
- MEAN: 20-170 mmHg
- Neonatal:
- SYS: 40-135 mmHg
- DIA: 10-100 mmHg
- MEAN: 20-110 mmHg
- Resolution: 1 mmHg
- Accuracy: ±5 mmHg
RESP
- Measurement Range: 0-150 BrPM
- Resolution: 1 BrPM
- Accuracy: ±2%
TEMP
- Measurement Range: 0-50ºC
- Resolution: 0.1ºC
- Accuracy: ±0.1ºC
Why Choose GoldHealth Medical?
GoldHealth Medical, established in 2014 and based in Guangdong, China, delivers reliable and affordable medical solutions. Our products are trusted across South America, Southeast Asia, North America, and Africa.
Additional Services
- Comprehensive Training: Video tutorials and real-time online video calls for pre-sales and after-sales support.
- Warranty: 12-60 months with an 8-hour response time for after-sales service.
- Efficient Delivery: Ready stock within 24 hours and special one-to-one inspection services.
GoldHealth Medical is committed to providing high-quality, cost-effective solutions tailored to meet the diverse needs of healthcare providers worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Patient Monitor
Product Overview
The GoldHealth Medical Patient Monitor is a cutting-edge Class II medical instrument designed for precision and reliability in healthcare environments. Featuring a sleek 12.1-inch TFT touch screen, this device offers intuitive operation and clear visualization of critical patient data. With three distinct working modes—Monitoring, Surgery, and Diagnosis—it adapts seamlessly to diverse clinical needs, ensuring optimal performance in any scenario.Key Features
- Advanced Parameter Monitoring: Tracks six essential parameters—ECG, NIBP, SpO2, TEMP, RESP, and PR—for comprehensive patient assessment.
- ECG Monitoring: Supports both 3-lead and 5-lead configurations for accurate cardiac analysis.
- SpO2 Monitoring: Measures oxygen saturation levels from 0% to 100%, ensuring reliable readings for critical care.
- NIBP Monitoring: Offers three measurement modes to accommodate varying patient conditions.
- Temperature Range: Precise temperature monitoring from 0°C to 50°C.
Data Storage: Stores up to 720 hours of monitoring data, enabling detailed review and analysis.
Design and Build
- Constructed with high-quality materials, including durable acrylic and metal, ensuring longevity and resilience in demanding environments.
Powered by an electric source for consistent and reliable operation.
Certifications and Compliance
Complies with MFDS safety standards and holds CE certification, guaranteeing adherence to international quality benchmarks.
Applications
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings, this monitor delivers unparalleled accuracy and versatility.After-Sale Support
GoldHealth Medical provides comprehensive online technical support and a 1-year warranty, ensuring peace of mind and uninterrupted service for healthcare professionals.Unique Selling Points
- Intuitive touch screen interface for effortless operation.
- Extended data storage capability for enhanced patient record-keeping.
- Versatile parameter monitoring tailored to meet diverse clinical requirements.
Experience the future of patient monitoring with GoldHealth Medical—a trusted partner in precision healthcare.
