GoldHealth Medical Portable Diagnostic Ultrasound Scanner

Product Overview

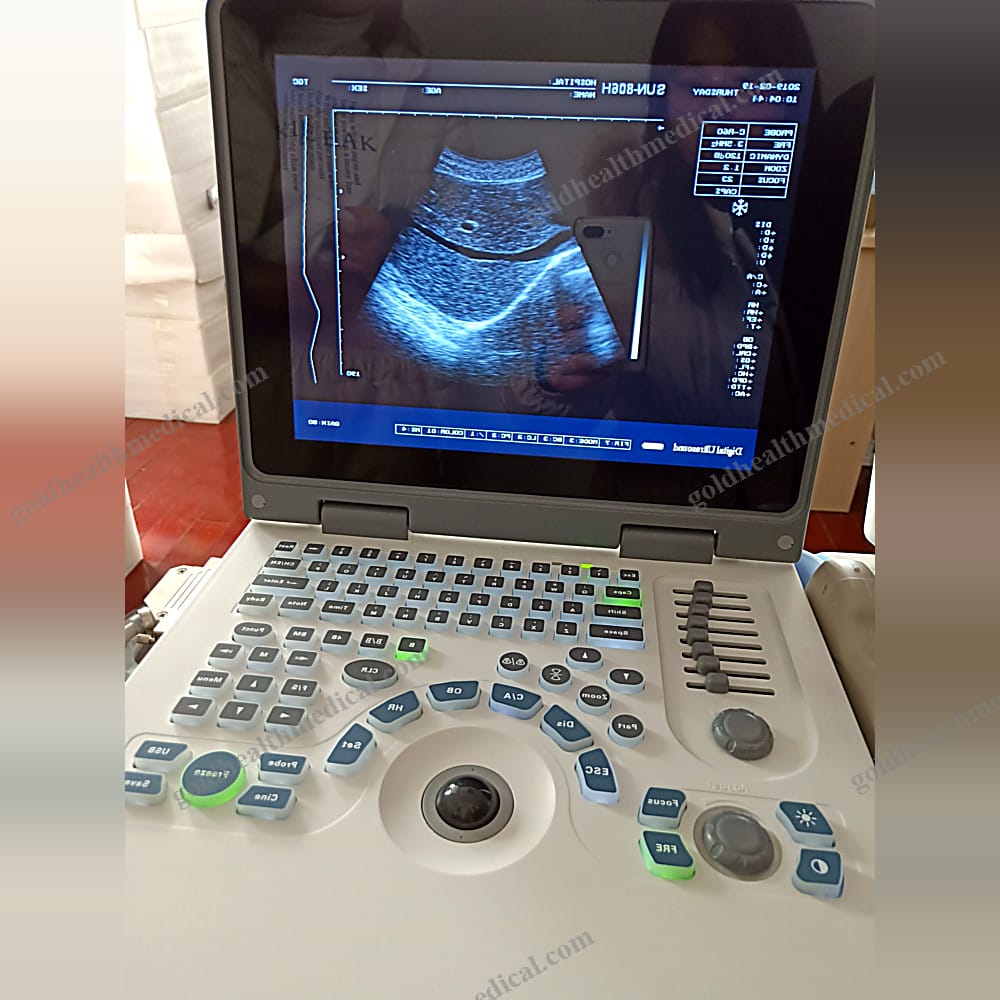

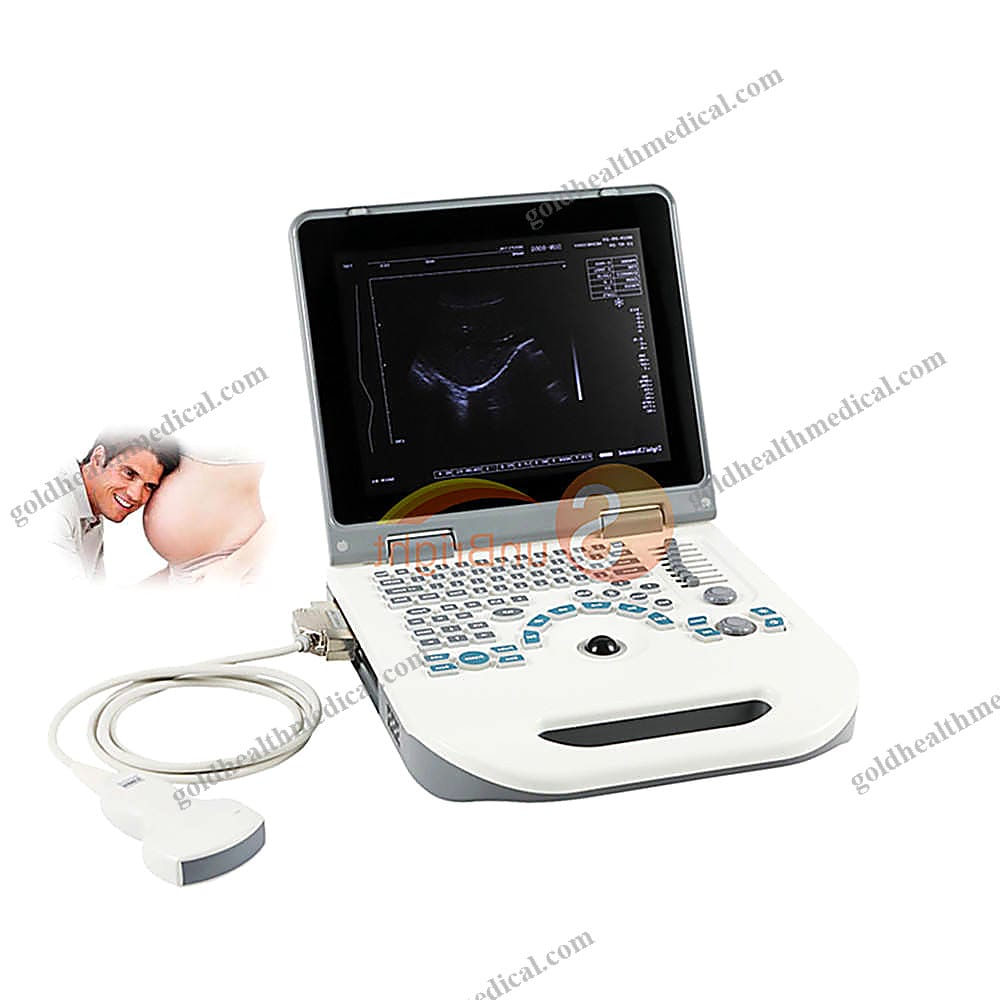

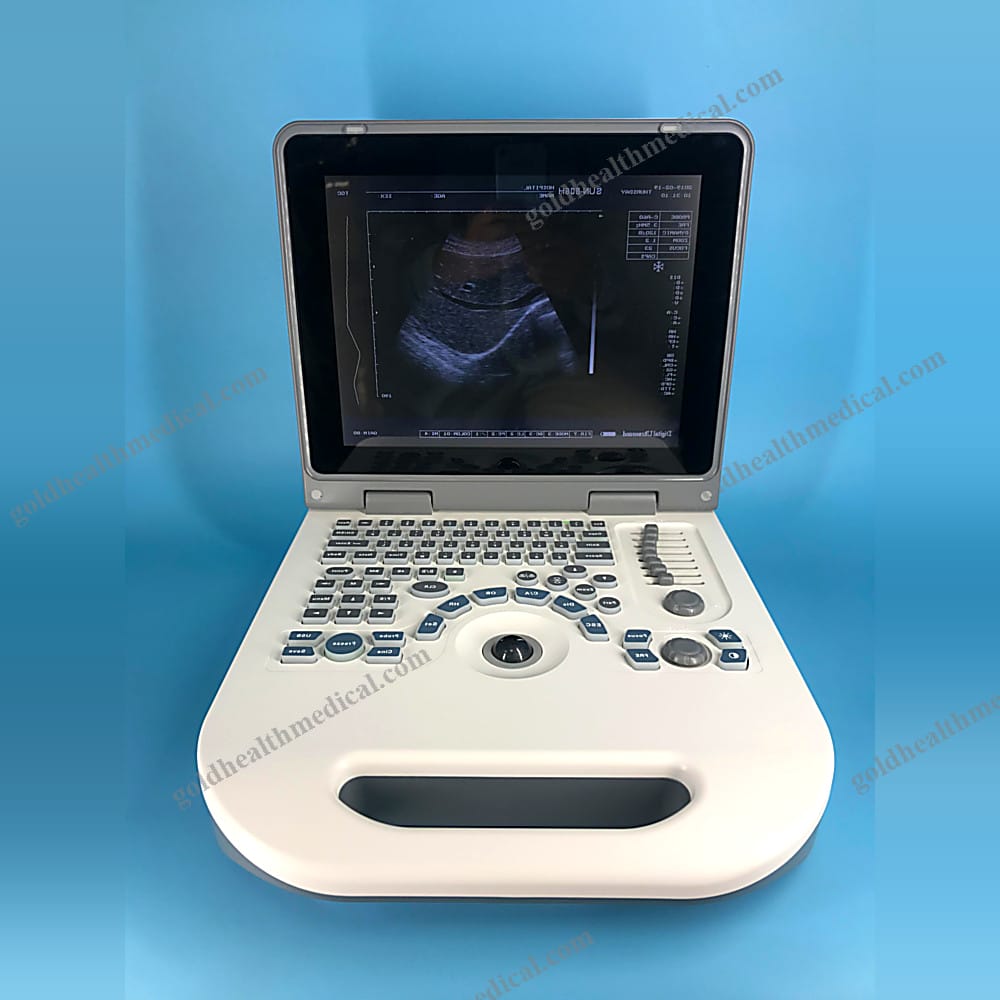

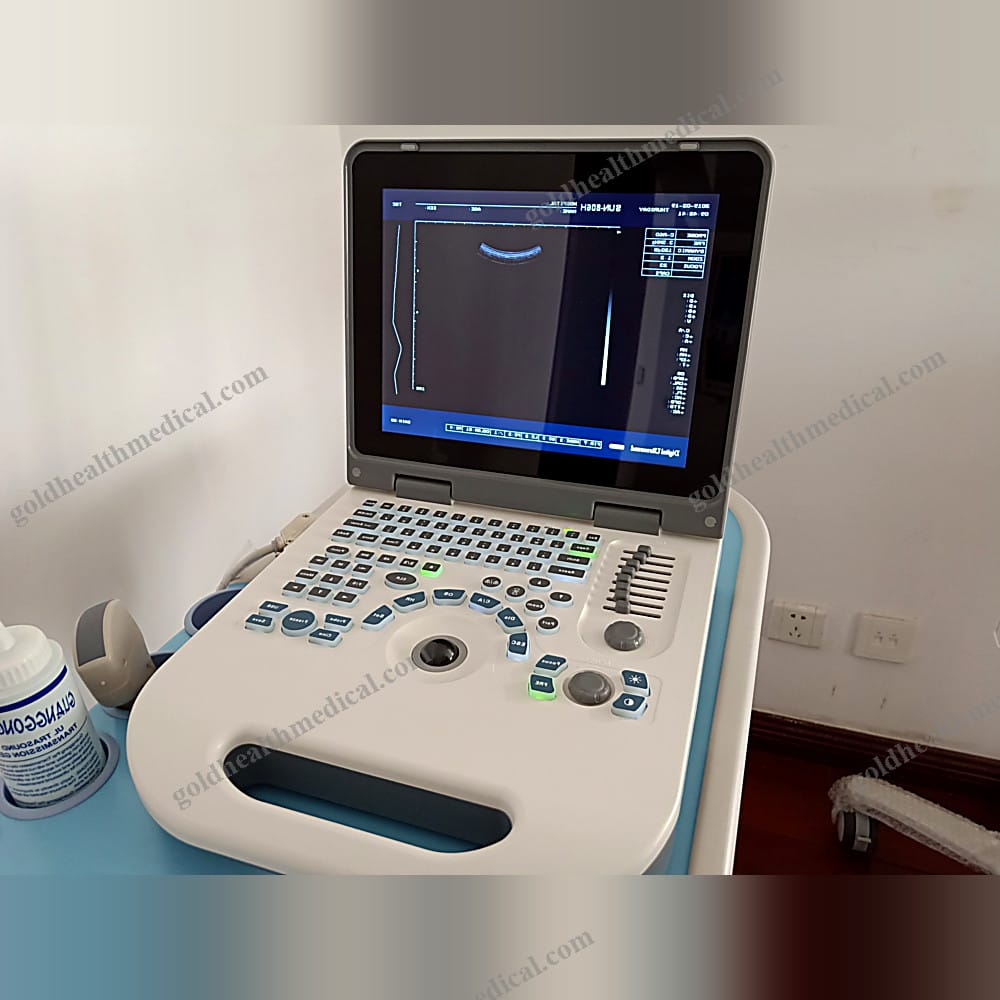

GoldHealth Medical introduces a cutting-edge portable diagnostic ultrasound scanner designed for versatility and precision. This hand-carried ultrasound machine combines advanced imaging technology with user-friendly features, making it ideal for a wide range of medical applications including general diagnostics, OB/GYN, cardiology, urinary, and small organ examinations.

Key Features

• Advanced Imaging Technology: Utilizes a 3.5 MHz electronic convex array probe with a full digital beam former (DBF), real-time dynamic aperture imaging (RDA), and full digital dynamic receive focusing (DRF).
• Superior Image Quality: Equipped with 256 levels of grey scale, dynamic digital filtering, image enhancement, and various correlation techniques for unparalleled clarity.
• Multiple Display Modes: Offers B, B/B, 4B, B+M, and M modes with image magnification factors of 0.8, 1.0, 1.2, 1.5, 1.8, and 2.0 in B mode.
• Comprehensive Measurement Tools: Includes distance, area, circumference, heart rate, and gestational week measurements (BPD, GS, CRL, FL, HC, OFD, TTD, AC).
• Large Memory Capacity: Stores up to 128 images permanently with real-time cine loop functionality and playback of 256 images post-diagnosis.
• User-Friendly Interface: Supports Chinese and English language options, 16 kinds of pseudo-color processing, real-time clock, and extensive annotation capabilities.
• Advanced Circuitry: Employs large-scale integrated circuits (FPGA, MSF), mass memory, and surface mounting technology for reliable performance.

Functional Specifications

• Probe Configurations:
• Standard: T35R60GB convex array probe

• Optional: T50R20GB micro convex probe, T65R13GB cavity probe, T75L40GB linear array probe

• Display Modes:

• T35R60GB: B, B/B, 4B, B+M, M
• T50R20GB: B, B/B, B+M, M
• T65R13GB: B

• T75L40GB: B

• Image Magnification:

• T35R60GB: 0.8, 1.0, 1.2, 1.5, 1.8, 2.0

• T65R13GB: 0.8, 1.0, 1.2, 1.5

• M Mode Scanning: Eight selectable speeds with heart rate measurement accuracy above 100 BPM.

• Zoom and Dynamic Range: Local *2.0 magnification rate with a dynamic range of 0~120dB adjustable.

• Frequency Conversion:

• T35R60GB: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz

• T65R13GB/T75L40GB: 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz

• Focus Position: 1, 2, 3, and 4-segment dynamic electron focusing with adjustable focus positions.

• Measurement Functions: Distance, circumference/area (ellipse and loci methods), volume, heart rate, gestational weeks, expected date of confinement, and fetus weight.

• Annotation Functions: Hospital name, patient’s name, age, gender, 64 body marks, full-screen character annotation, and real-time clock display.

• Puncture Guide: 3.5MHz convex array probe displays puncture guide line in B mode.

• Gain Control: 8-segment TGC and overall gain adjustment.

• Image Polarity: Left/right flip, black/white flip, up/down flip.

• Permanent Storage: Over 128 images with series playback or individual review.

• Image Processing: V correction, frame/point/line correlation, digital filtering, digital edge enhancement, and pseudo-color processing.

• Output Interface: SVGA video output for SVGA color display and workstation connection; PAL video output for PAL display and video recorder.

• USB Interface: U disk storage with BMP image format.

Configuration

• Standard: 1 host, 1 T35R60GB convex array probe, 1 power adapter, 1 power line.
• Optional: T65R13GB cavity probe, T7
