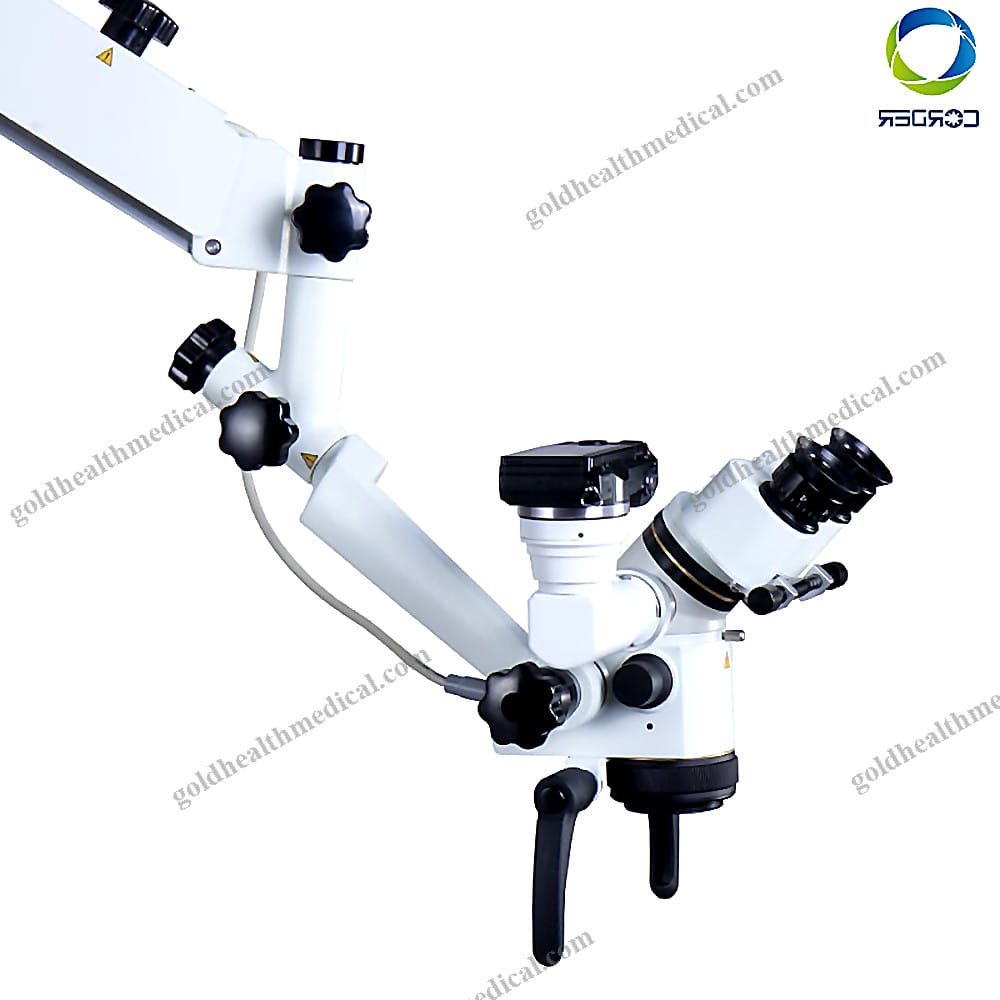

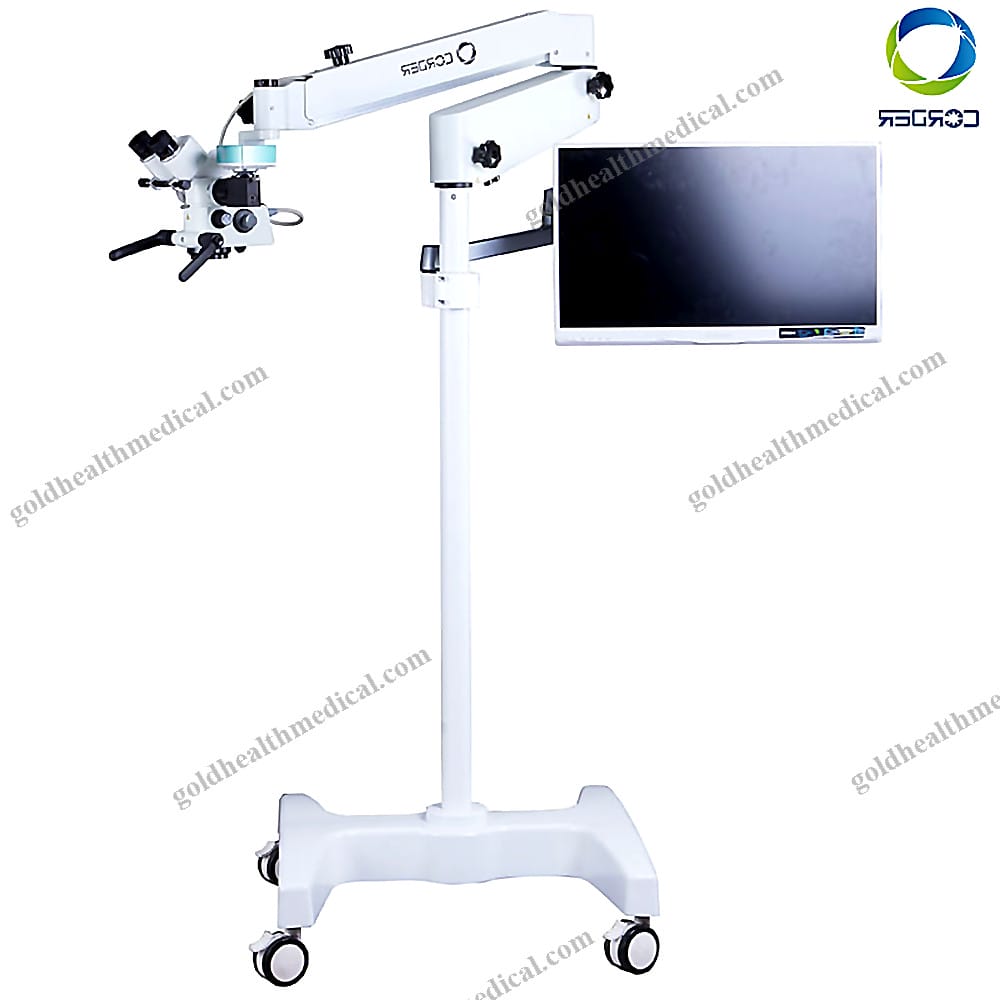

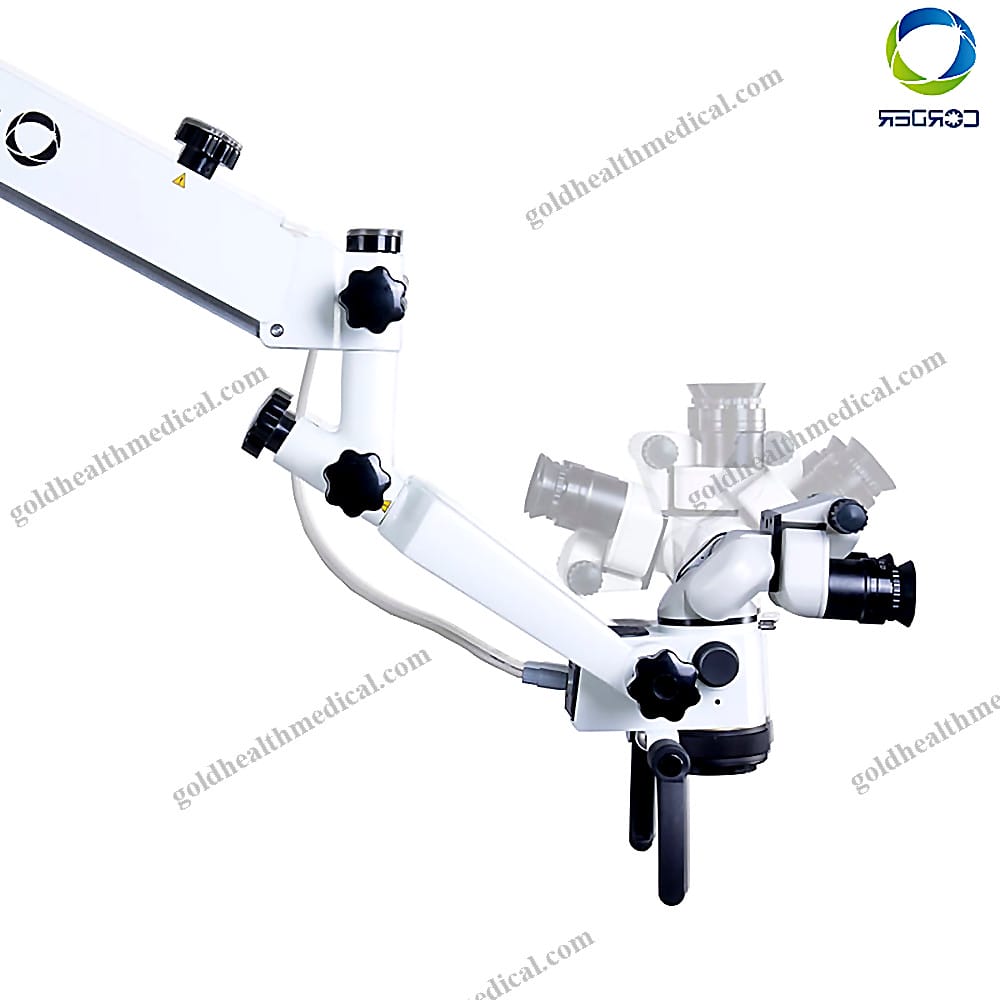

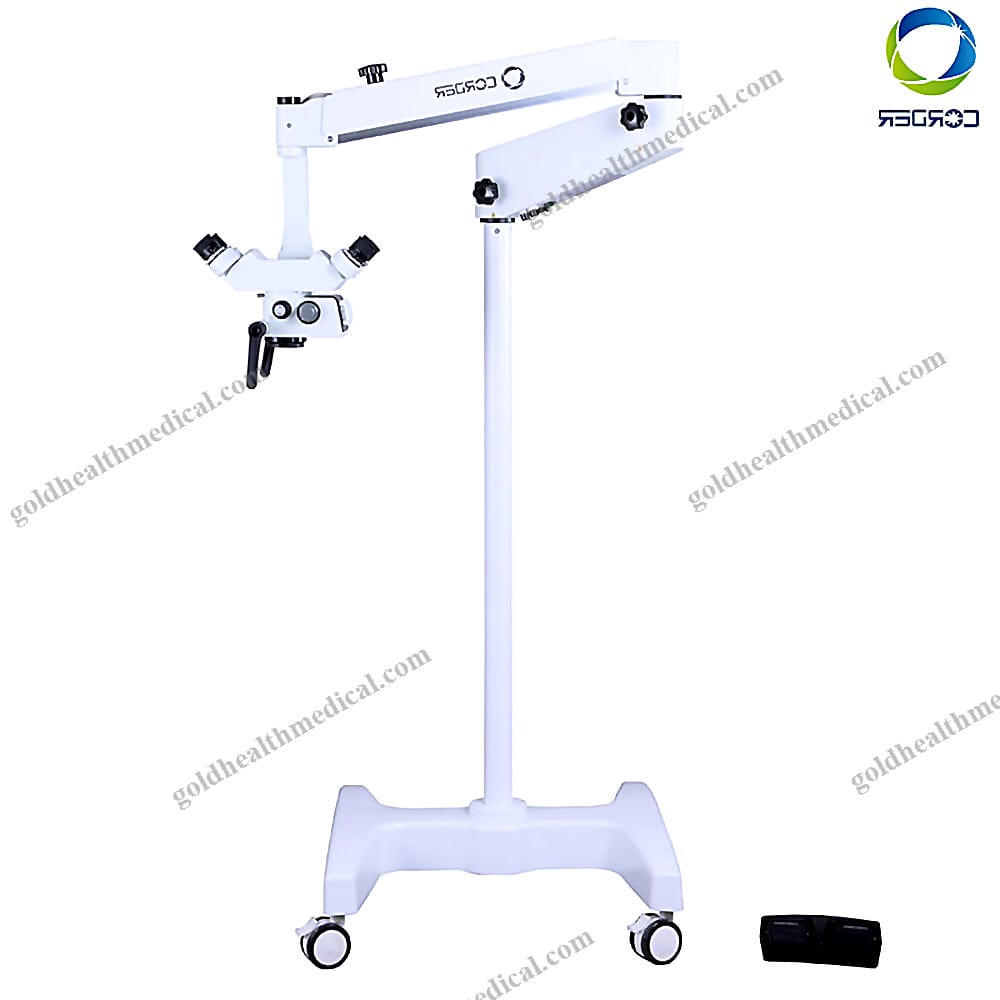

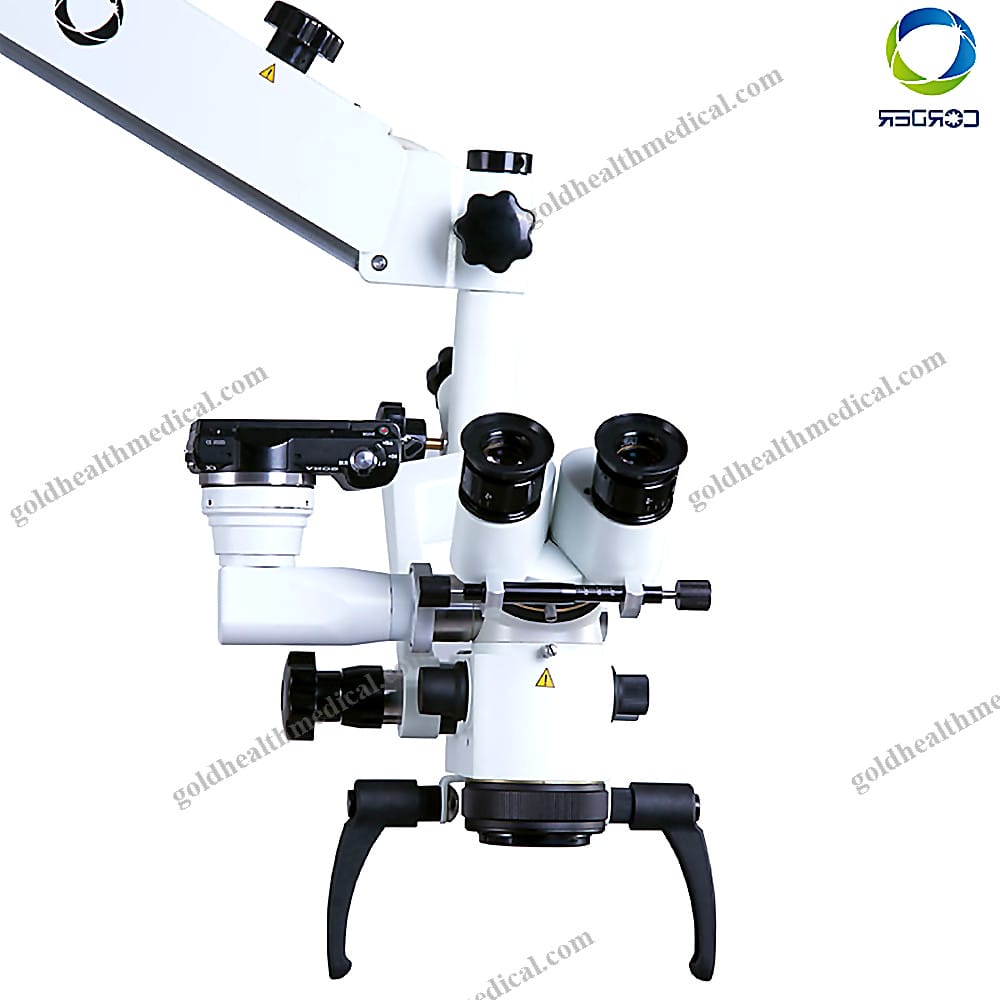

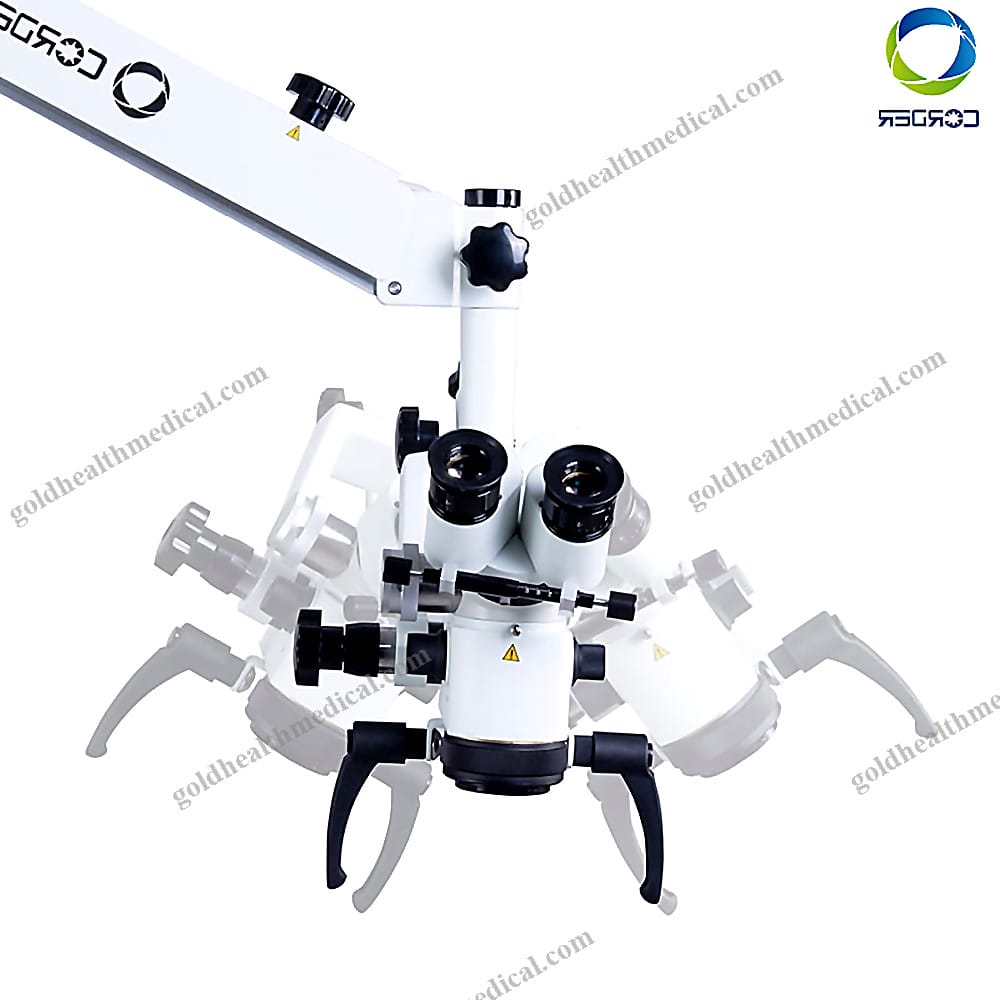

Stereo Microscope with Camera LCD for Oral Dental Surgery
Reference: 1600892363041Nerve and cardiovascular surgical instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Surgical Precision
Product Overview
GoldHealth Medical presents a state-of-the-art ENT Operating Microscope, designed to seamlessly integrate into modern medical environments. This microscope combines sleek aesthetics with unparalleled optical performance, elevating clinical treatment to new heights. Its ergonomic design ensures comfort and precision, making it an indispensable tool for medical professionals.
Key Features
- Effortless Adjustability: Easily adjust focal length without altering sitting positions or moving lenses, reducing strain on the cervical and lumbar spine.
- Advanced LED Lighting: Superior illumination with adjustable brightness and filter options to suit various treatment needs.
- Wide-Angle Eyepiece: Equipped with 12.5x/10x wide-angle eyepieces for a large field of view and 3D stereoscopic imaging. Adjustable diopter range (+6D to -6D) and eye cup height ensure comfort for users with or without glasses.
- German-Engineered Gas Spring: Optimized force structure allows precise and convenient positioning at any working angle.
- Compact and Efficient Design: Maintains a comfortable working position, preventing back and shoulder strain.
- Modular Solution: 1080P Full HD image quality with efficient image management, integrating seamlessly into digital workflows for enhanced case management and patient communication.
Product Parameters
- Function: ENT
- Electrical Data:
- Power Socket: 220V (+10%/-15%) 50Hz / 110V (+10%/-15%) 60Hz
- Power Consumption: 40VA
- Safety Class: Class I
- Microscope:
- Tube: 90-degree binocular tube
- Magnification: Manual 3-step changer (ratio 0.6, 1.0, 1.6), total magnification 3.75x, 6.25x, 12x (F 250mm) / 5 steps (ratio 0.4, 0.6, 1, 1.6, 2.5), total magnification: 3.6x, 5.4x, 9x, 14.4x, 22.5x (F 250mm)
- Stereo Base: 22mm
- Objectives: F=250mm (optional: 200mm, 300mm, 350mm, 400mm or 180mm-300mm adjustable)
- Objective Focusing: 15mm
- Eyepiece: 12.5x/10x, pupil distance 55mm~75mm, diopter adjustment +6D ~ -6D
- Field of View: 3 steps: Ξ¦53mm, Ξ¦32mm, Ξ¦20mm / 5 steps: 55.6mm, 37.1mm, 22.2mm, 13.9mm, 8.9mm
- Reset Functions: Yes
- Light Source: LED cold light with a lifetime >80,000 hours, brightness >60,000 lux, CRI>90, filter OG530, red-free filter, small spot
- Balance Arm: 120Β° balance arm
- Automatic Switching Device: Built-in arm
- Light Intensity Adjustment: Using a drive knob on the optics carrier
- Stands:
- Max Extension Range: 1193mm
- Base: 610 Γ 610 mm
- Transportation Height: 1476 mm
- Balancing Range: Min 4 kg to max 7.7 kg load on the optics carrier
- Brake System: Fine adjustable mechanical brakes for all rotation axes, with detachable brake
- System Weight: 68 kg
- Stand Options: Ceiling mount, Wall mount, Floor plate, Floor stand
- Accessories:
- Binocular Tube: 90Β° fixed or 0-200Β°
- Knobs: Sterilizable
- Tube: 90Β° binocular tube, 0-200Β° tube
- Video Adapter: Mobile phone adapter, beam splitter, CCD adapter, CCD, SLR digital camera adapter, camcorder adapter
- Ambient Conditions:
- Use: +10Β°C to +40Β°C, 30% to 75% relative humidity, 500 mbar to
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: ENT Surgical Microscope
Key Features:
- Precision Redefined: Designed specifically for ENT surgeries, this surgical microscope offers unparalleled clarity and precision, ensuring optimal outcomes in delicate procedures.
- Portable Design: Lightweight and easy to maneuver, it is perfect for use in operating rooms, clinics, or even remote medical settings.
- Advanced Optical Zoom: Featuring a specialized zoom system tailored for ENT procedures, it provides exceptional magnification and field depth.
- Durable Build: Constructed with high-quality materials, the microscope is built to withstand the rigors of daily medical use.
- Customizable Settings: Adjustable lighting and ergonomic design allow for tailored configurations to suit the needs of each medical professional.
Technical Specifications:
- Instrument Classification: Class I
- Compliance: Meets IEC 60601 standards
- Certifications: ISO certified
- Color Options: White & Blue
- Application: ENT surgeries, including ear, nose, and throat procedures
Packaging and Delivery:
- Packaging Details: Securely packed in durable cartons to ensure safe transportation.
- Port of Origin: Chengdu, China
- Supply Ability: 25 sets per month
Warranty and Support:
- Warranty: Comprehensive coverage for more than 5 years, ensuring long-term reliability.
- After-Sale Service: Dedicated online technical support to assist with any operational or technical queries.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical equipment that combines innovation, precision, and reliability. Our ENT Surgical Microscope is trusted by hospitals, clinics, and research institutions worldwide, offering a seamless blend of functionality and portability to meet the demands of modern healthcare.
