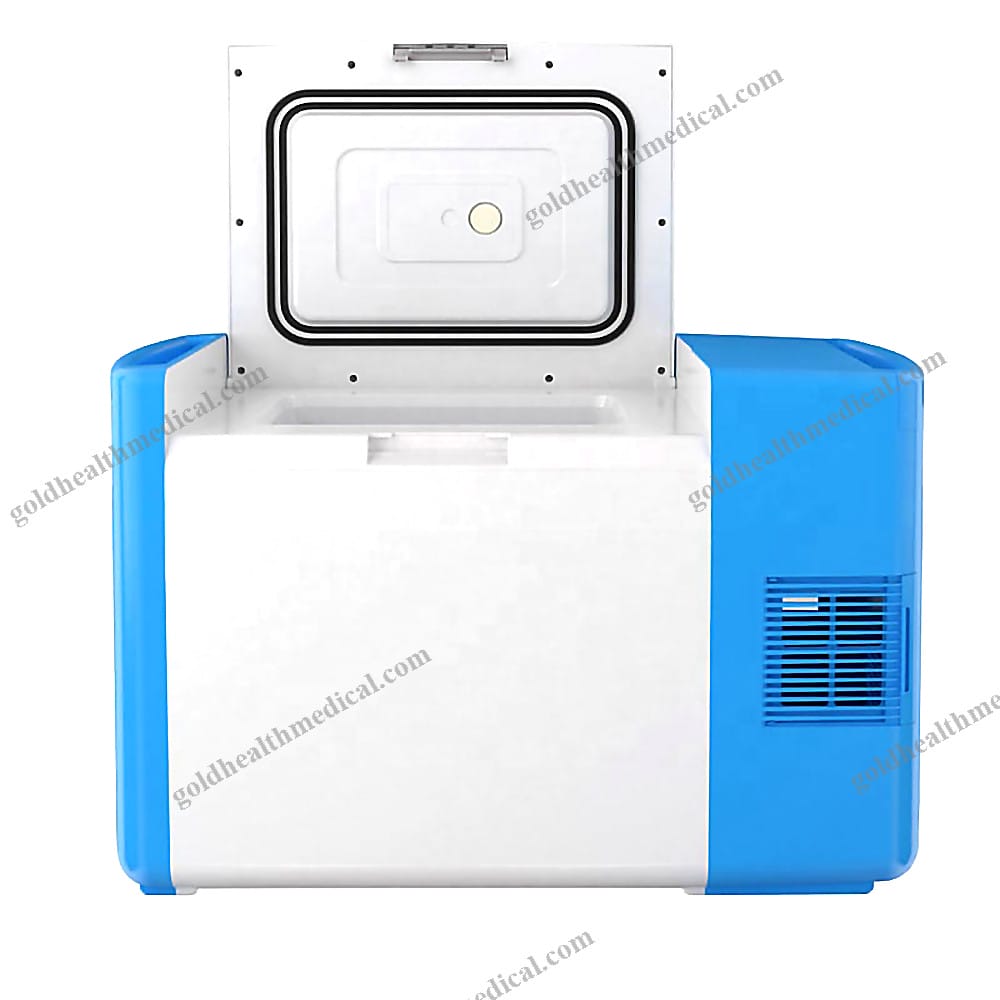

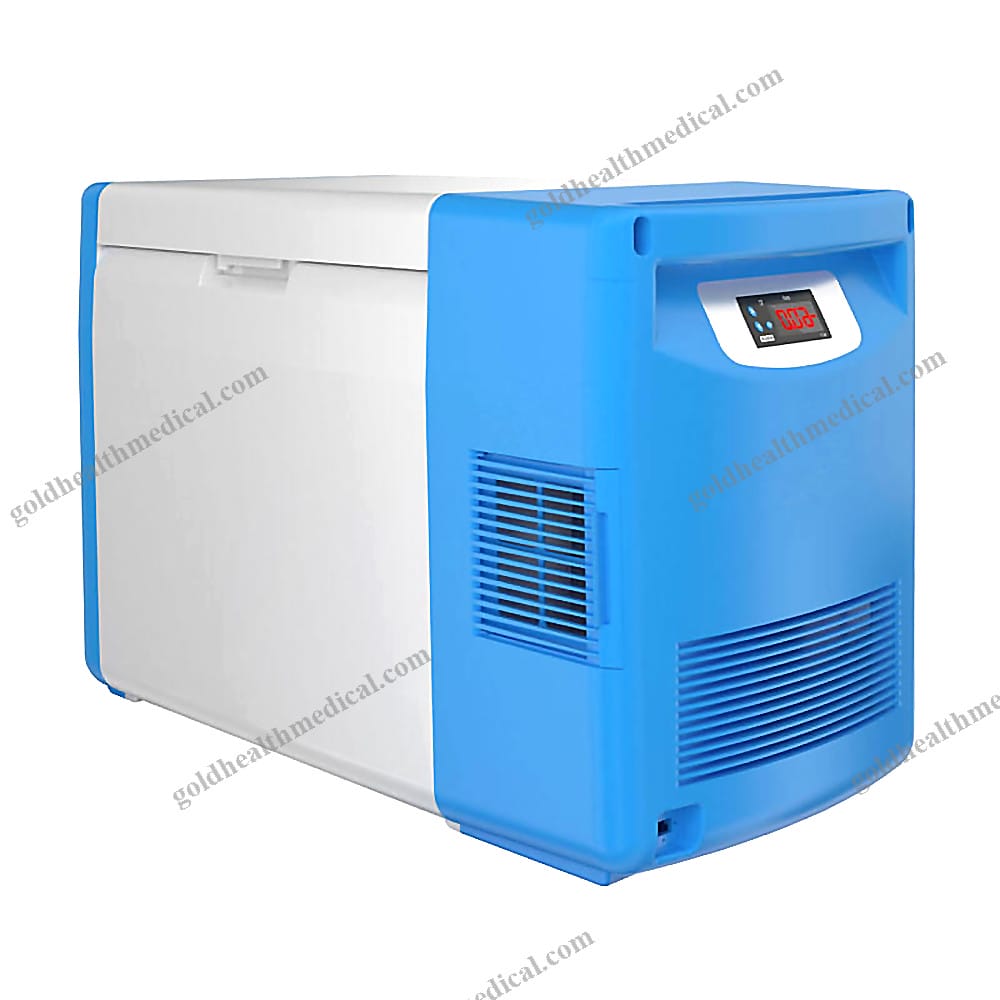

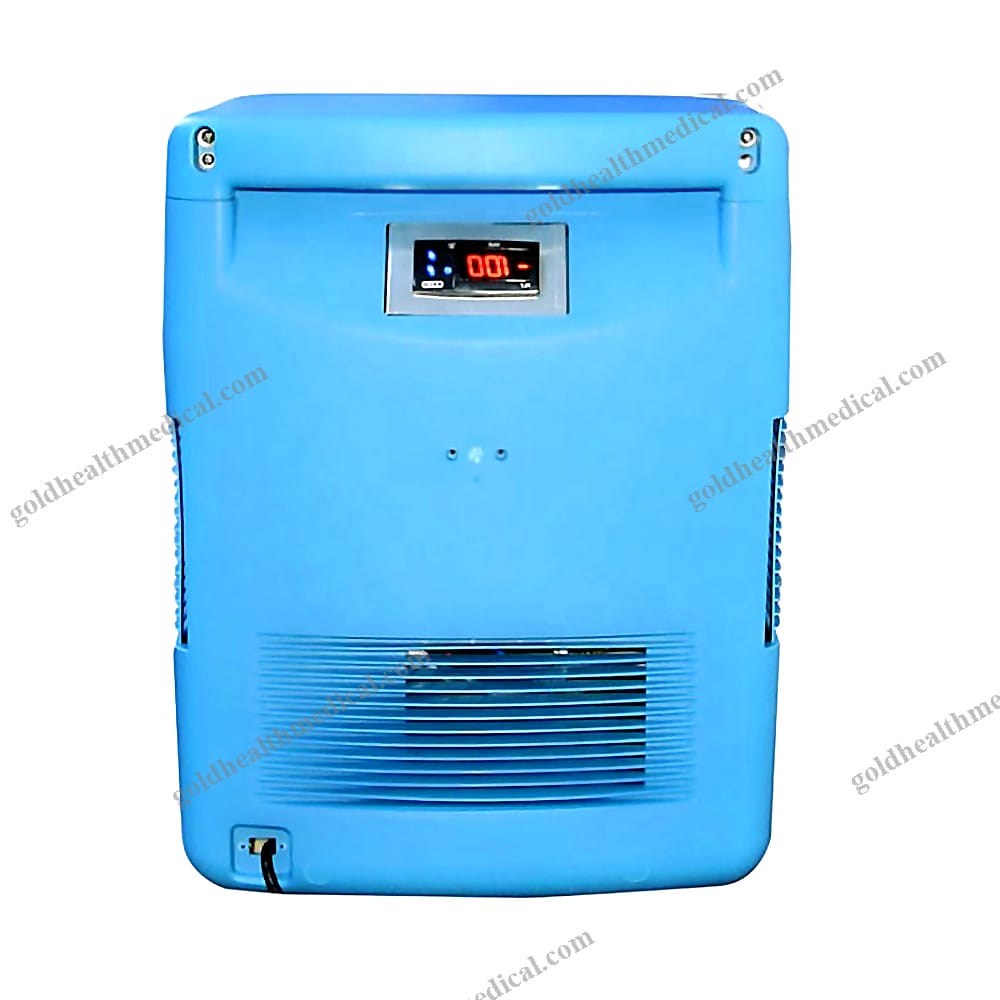

Stainless Steel Cryogenic Freezer Vaccine Cooler Box Lab Use Secop Lock
Reference: 1601366560872Medical Cryogenic Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Cryogenic Freezer
Product Overview
GoldHealth Medical introduces a cutting-edge Portable Stainless Steel Medical Cryogenic Freezer designed for ultra-low temperature storage. This advanced cooler box is engineered for the secure preservation of temperature-sensitive materials, making it ideal for laboratory, medical, and field use.
Key Features and Specifications
Application
- Storage of general (non-flammable) laboratory materials
Storage and Dimensions
- Storage Volume: 25 liters (0.9 cu.ft.)
- Interior Dimensions: 300 x 250 x 300 mm (11.8 x 9.8 x 11.8 in.)
- Exterior Dimensions: 616 x 392 x 455 mm (24.3 x 15.4 x 17.9 in.)
- Shipping Dimensions: 760 x 580 x 530 mm (29.9 x 22.8 x 20.9 in.)
- Net Weight: 17.5 kg
- Shipping Weight: 26 kg
Temperature and Power
- Temperature Range: 25°C to -86°C
- Electric Power: 100V AC to 240V AC; 50Hz, 60Hz; 12V DC to 24V DC
- Maximum Power (Current): 100W (0.5A@220V, 4.6A@24V)
- Power Consumption: 2.8KW.H/24H
Environmental and Performance
- Noise Level: <55dB
- Environmental Conditions: Non-corrosive, Non-flammable, Non-explosive, Altitude up to 2000m, Temperature 5°C to 35°C, Maximum relative humidity 80%
- Insulation: High-Performance Vacuum Insulated Panels and Polyurethane Foam
Refrigeration System
- Cooling Engine: Free-piston Stirling Engine
- Refrigerant: Helium (He), R600a CFC Free
- Heat Transport System: Gravity Driven Thermosiphon
- Defrost Method: Manual
Controller
- Controller Type: Microprocessor controls
- Security: Lockable lid
- Warm and Cold Alarms: Setpoint ± 10°C
- Control Sensor: One RTD(PT100 Class B), precision ±0.3
Performance Data
- Steady State Energy: 1.47 kWh/day (average power 75watts) at -86°C (Empty Cabinet)
- Ambient Temperature: 25ºC
- Cooling Time: 3.5 Hours from 25°C to -86°C (Empty Cabinet)
- Temperature Control Capability: Target Temperature ±2°C
Benefits
- Preserve and deliver temperature-sensitive material anywhere globally
- Easily deploy long-term storage of biological materials with low power use; can be powered by AC, mains, or a 12V DC power source
- Collect temperature-sensitive samples and specimens at remote or field locations
Unique Selling Points

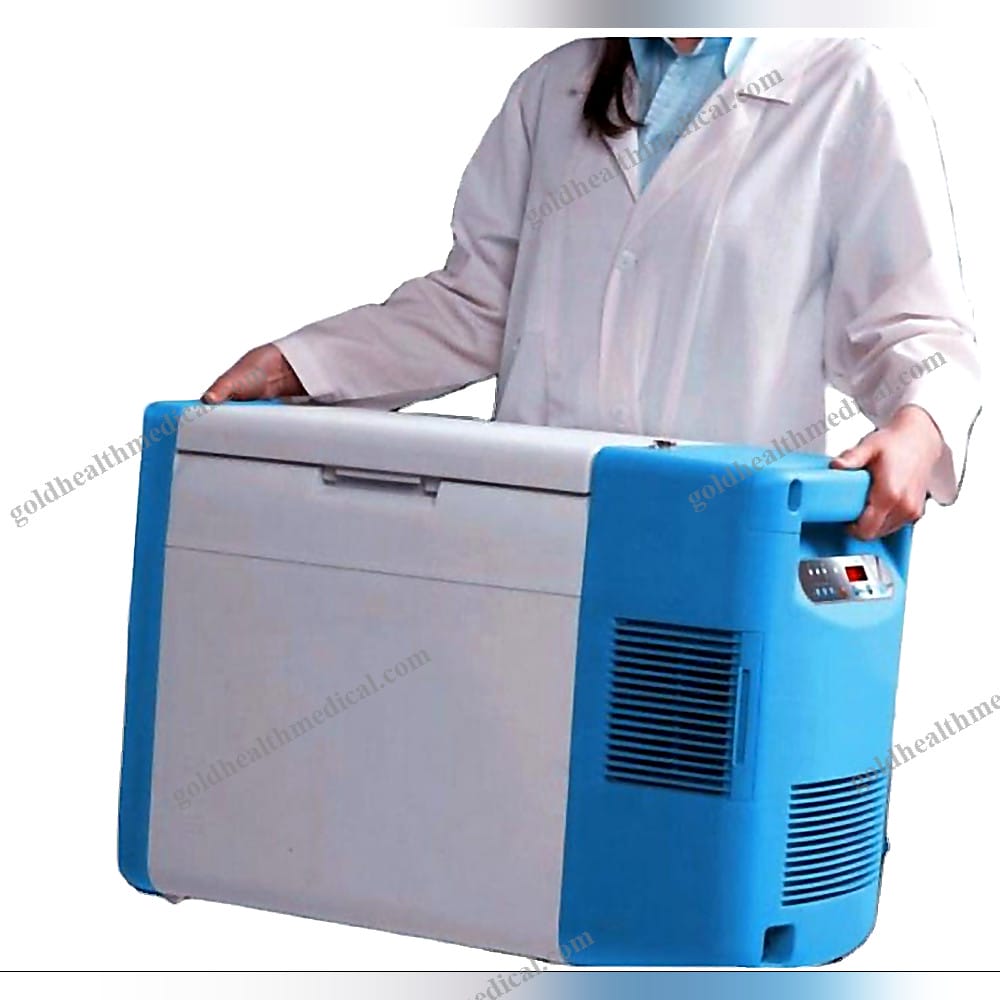

- Portable design for point-of-use cold storage
- Superior Stirling engine reliability with a remarkably small footprint and weight (21 kg, 46 lbs.), without sacrificing performance
- Industry's widest ultra-low temperature range of -86°C to -20°C
- Adaptable power input provides operational flexibility between standard AC main outlets worldwide, as well as vehicle-based 12V DC power or external battery devices
- Utilizes 100% natural refrigerants to support sustainable, environmentally friendly operations
- Optional SenseAnywhere wireless temperature logging allows for remote monitoring via cloud-based software
- Ample storage capacity for thousands of 2mL vials within a surprisingly compact frame
Product Description
The GoldHealth Medical Cryogenic Freezer is designed with advanced technology to ensure the highest standards of reliability and performance. Its innovative refrigeration system and superior insulation make it an indispensable tool for preserving critical materials under the most demanding conditions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Low Temperature Refrigerator
Product Overview
The GoldHealth Medical Low Temperature Refrigerator is a precision-engineered solution designed for the secure storage of general (non-flammable) laboratory materials. With its advanced temperature control technology and robust build, this refrigerator is ideal for hospitals, research institutions, laboratories, and even home healthcare environments. Offering unparalleled reliability and performance, it ensures the integrity of sensitive materials while maintaining energy efficiency.
Key Features
- Temperature Range: Achieves an impressive range of 25°C to -86°C, ensuring versatility for diverse storage needs.
- Temperature Accuracy: Precise to 0.1°C, guaranteeing consistent and reliable performance.
- Compressor: Equipped with a high-performance SECOP compressor, delivering quiet operation and extended durability.
- Volume Capacity: Compact yet efficient 25L internal volume, perfect for small-scale storage requirements.
- Power Supply Options: Versatile power configurations include 12V/DC or 220V, making it adaptable for various settings.
- Energy Efficiency: Consumes only 1.5 kW.h/24h, minimizing operational costs without compromising performance.
- Input Power: Rated at 80W, ensuring optimal energy usage.
Technical Specifications
- Dimensions (W x D x H): 780 x 410 x 515 mm
- Net Weight: 26 kg
- Packaging Dimensions: 57 x 53 x 170 cm
- Gross Weight: 76.5 kg
- Power Cord Options: Multiple configurations available to suit specific requirements.
Applications
- Storage of biological samples, reagents, and other non-flammable laboratory materials.
- Ideal for research labs, medical facilities, and diagnostic centers.
Why Choose GoldHealth Medical?
- Precision Engineering: Designed with cutting-edge technology to meet the highest standards of performance and reliability.
- Durability: Built to withstand demanding environments while maintaining consistent operation.
- User-Centric Design: Compact size and energy-efficient operation make it suitable for both professional and personal use.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare and research professionals worldwide. Elevate your storage capabilities with a product that combines precision, efficiency, and reliability.
