Sonoscape ESeries Portable Ultrasound Machine with 2D3
Reference: 1601080095153Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

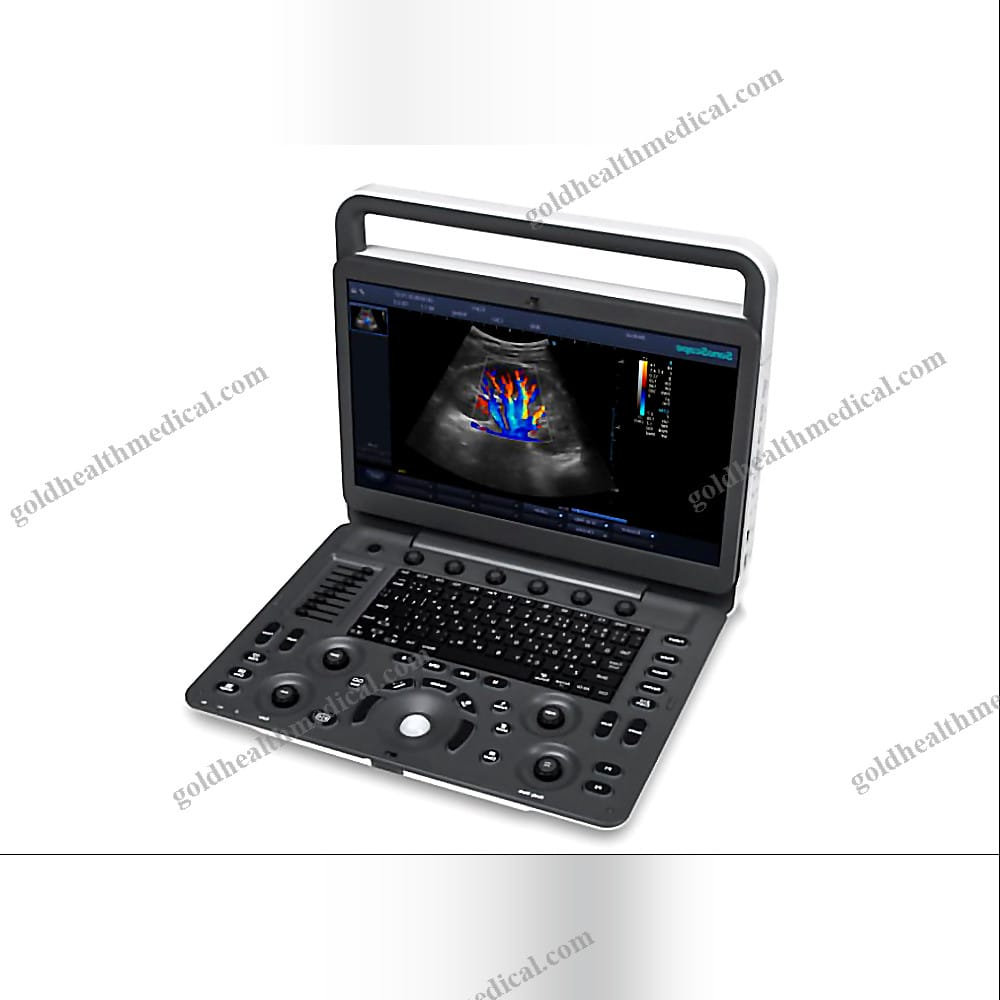

GoldHealth Medical Portable Ultrasound System
GoldHealth Medical proudly introduces a revolutionary portable color Doppler ultrasound system, meticulously engineered to deliver an exceptional balance of cost, performance, and quality. Designed for professionals in GI, OB/GYN, Cardiac, and Point-of-Care (POC) applications, this system redefines expectations with its sleek, compact design and advanced functionality.
Key Features
- 15.6-inch High-Resolution LCD Monitor: Equipped with auto-adaptive LED backlighting, the display is anti-flickering and rotatable both vertically and horizontally, ensuring optimal viewing angles.
- Advanced Imaging Technology: Delivers precise and efficient diagnosis through superior image quality.
- Versatile Applications: Suitable for GI, OB/GYN, Cardiac, and POC applications, fulfilling routine scanning needs with enhanced color mode for accurate lesion diagnosis.
- Compact and Lightweight: Dimensions of 378mm×352mm×114mm (W×H×D) and weighing approximately 6.5kg (including battery), it is highly portable.

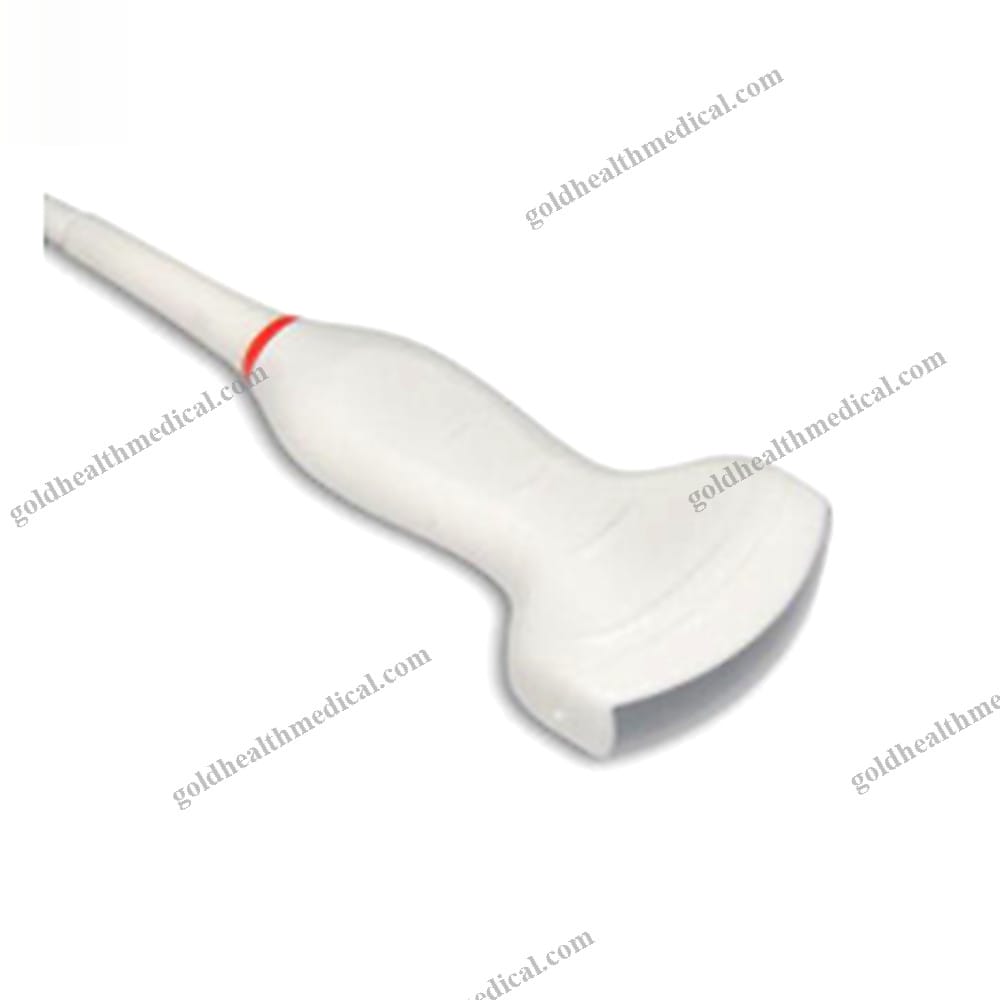

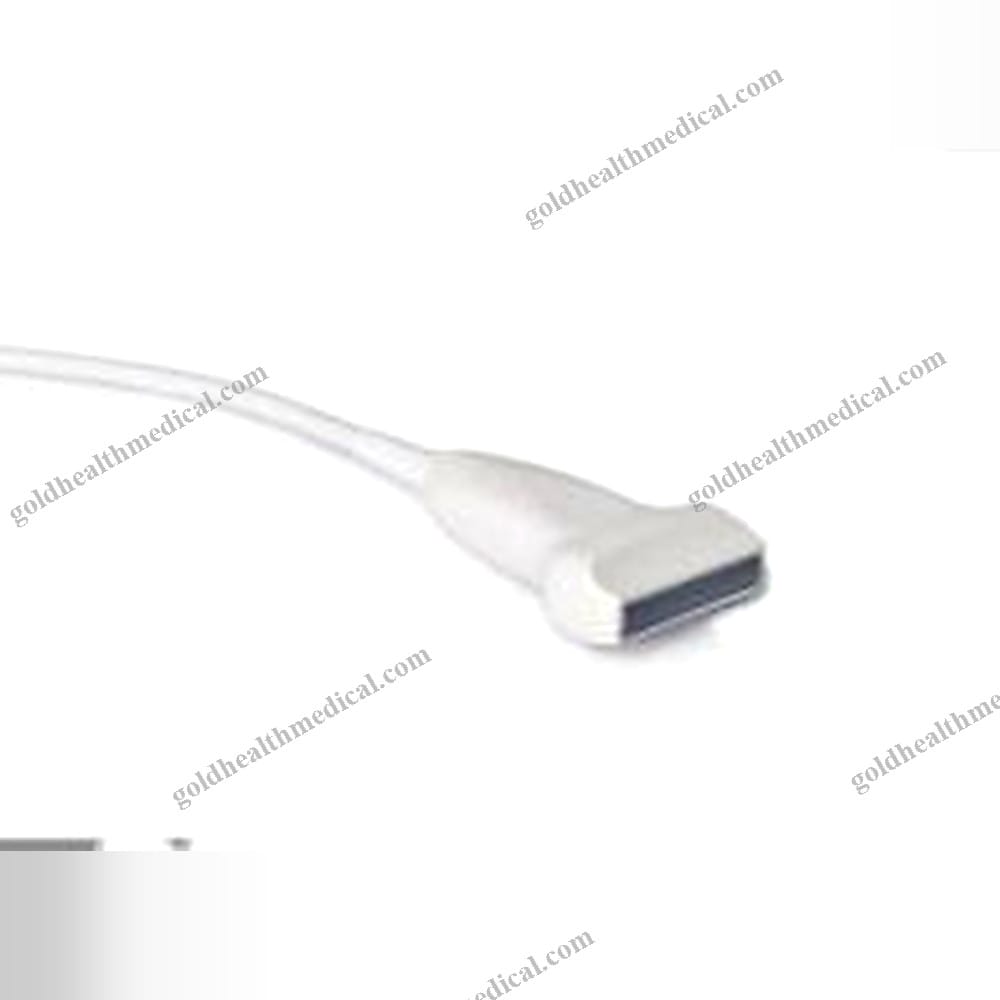

- Standard Ultrasound Functions: Includes a comprehensive library of probes for diverse applications.
Technical Specifications
- Power Source: Electric
- Instrument Classification: Class II
- Safety Standard: MFDS
- Gain: Adjustable from 0 - 255
- Frame Rate: Up to 80fps (probe dependent)
- Inversion: Up/Down, Left/Right
- Power: Adjustable from 1% - 100%
- Frequency Range: 3-step adjustable
- Display: 15.6-inch widescreen high-resolution color LCD monitor with LED backlight
- DICOM: 3.0
- Weight: Approx. 6.5kg (including battery), Approx. 6.1kg (without battery)
- Probe Port: One (two ports available by order)
- Options: CW/CMM/TDI/AMM, B Mode Prospective Saving, SR flow, Vis-Needle, 2D Panoramic Imaging, LGC: Lateral gain compensation, Wifi and ECG Module
Product Features
- Auto Image Optimization: Automatically adjusts and optimizes images with a single button press, saving time on parameter adjustments.
- Auto Focus: Ensures excellent image quality by adjusting the focus area as the ROI box moves within the scanning field.
- Automated Calculations: Enhances diagnostic confidence and saves time during patient communication.
- Auto IMT: Automatically traces carotid vessel thickness to determine vascular sclerosis levels.
- Auto Trace: Provides sensitive and accurate wave tracing, minimizing manual errors and delivering instant calculation results.
- Ease of Use: Screen zoom allows users to zoom in on ultrasound images without signal loss, providing high-resolution views for confident diagnoses.
- Wide-Scan: Enlarges ultrasound images during real-time scans using linear or convex probes for a more comprehensive view of large lesions.
- Panoramic Imaging: Offers an extended field of view for large organs or long vessels, enhancing measurement and diagnostic efficiency.
- Vis-Needle: Improves needle visualization in tissue, minimizing harm to surrounding areas and increasing the success rate of needle punctures.
Accessories

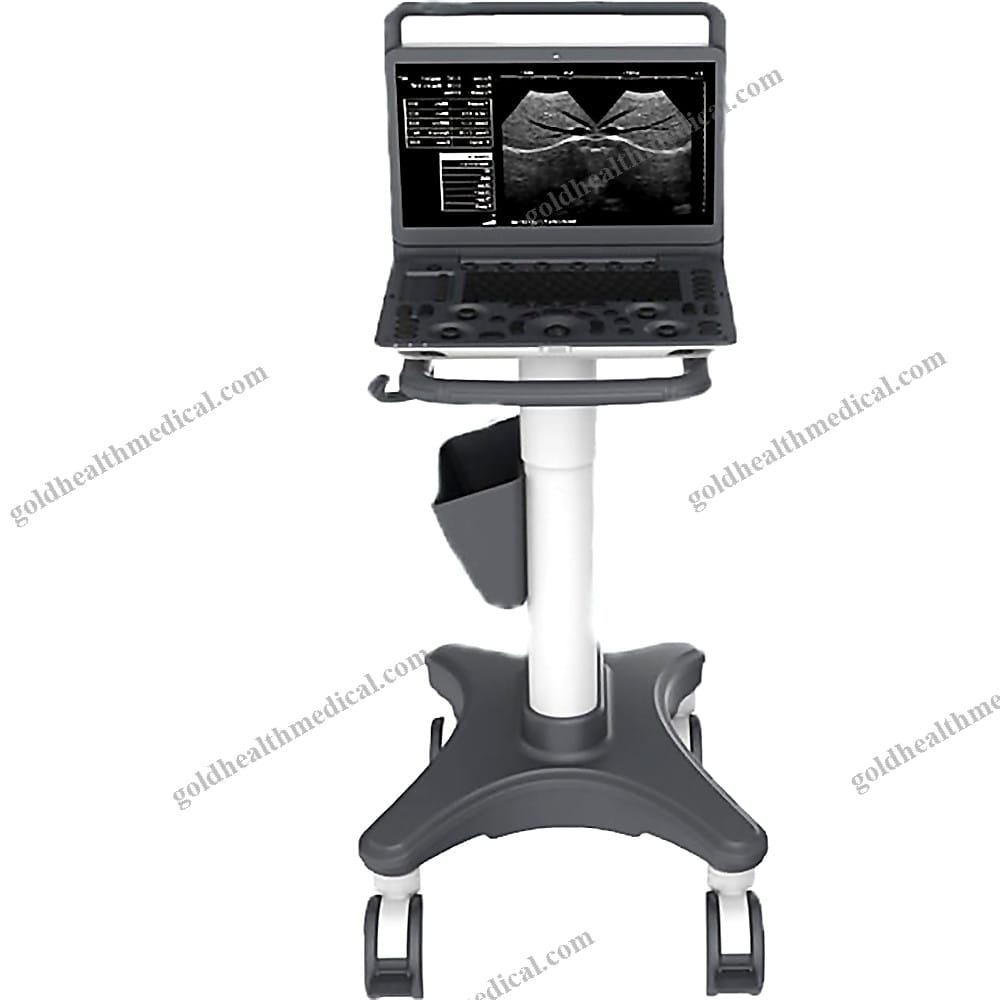

- Trolley
- Backpack
- Large Capacity Battery
- Color Ink-jet Printer: HP Officejet Pro 8000/HP Office jet Pro K5400
- B/W Video Printer: SONY UP-D897/SONY UP-X898MD
- Footswitch
- External DVD and Bluetooth Controller
GoldHealth Medical's portable ultrasound system is designed to meet the rigorous demands of modern medical environments, offering unparalleled performance and reliability. Its innovative features and user-friendly interface make it an indispensable tool for healthcare professionals worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: GoldHealth Medical Upgraded HD Screen Laptop Ultrasound
Key Features:
- Imaging Excellence: Delivers exceptional clarity with advanced imaging modes including B/2B/4B/M/THI/CFM/DPI/PW, ensuring precision across all applications.
- Versatile Applications: Designed for comprehensive diagnostic use in Abdominal, Vascular, Cardiac, Gynecology/OB, Urology, and more.
- Enhanced Display: Equipped with a 15.6-inch Upgraded HD Screen for superior image quality and ease of analysis.
- Precision Control: Features a PC backlit keyboard on the control panel with adjustable gain (1~255) for optimal customization.
Technical Specifications:
- Instrument Classification: Class II
- Safety Standard Compliance: GB/T18830-2009
- Power Source: Electric
- Scanning Depth: Up to 40 cm (3C-A probe)
- Biopsy Support: Includes 2 needle guide lines and 1 gun guide line for accurate procedures.
- ECG Functionality: Integrated ECG support for expanded diagnostic capabilities.
- Transducer Options: Offers 10 transducer choices to meet diverse clinical needs.
Quality Assurance:
- Certifications: CE, ISO
- Warranty: 2 years of comprehensive coverage
- Shelf Life: 2 years
Materials and Build:
- Constructed with durable metal and high-quality plastic for long-lasting performance.
Packaging Details:
- Single Package Size: 48 x 45 x 26 cm
- Single Gross Weight: 10.000 kg
After-Sale Support:
- Dedicated online technical support to ensure seamless operation and address any queries.
Unique Selling Points:
- Combines portability with advanced imaging technology, making it ideal for hospitals, clinics, research labs, and home healthcare settings.
- Engineered for reliability and precision, empowering medical professionals with cutting-edge diagnostic tools.
GoldHealth Medical is committed to delivering innovative solutions that redefine healthcare standards.
