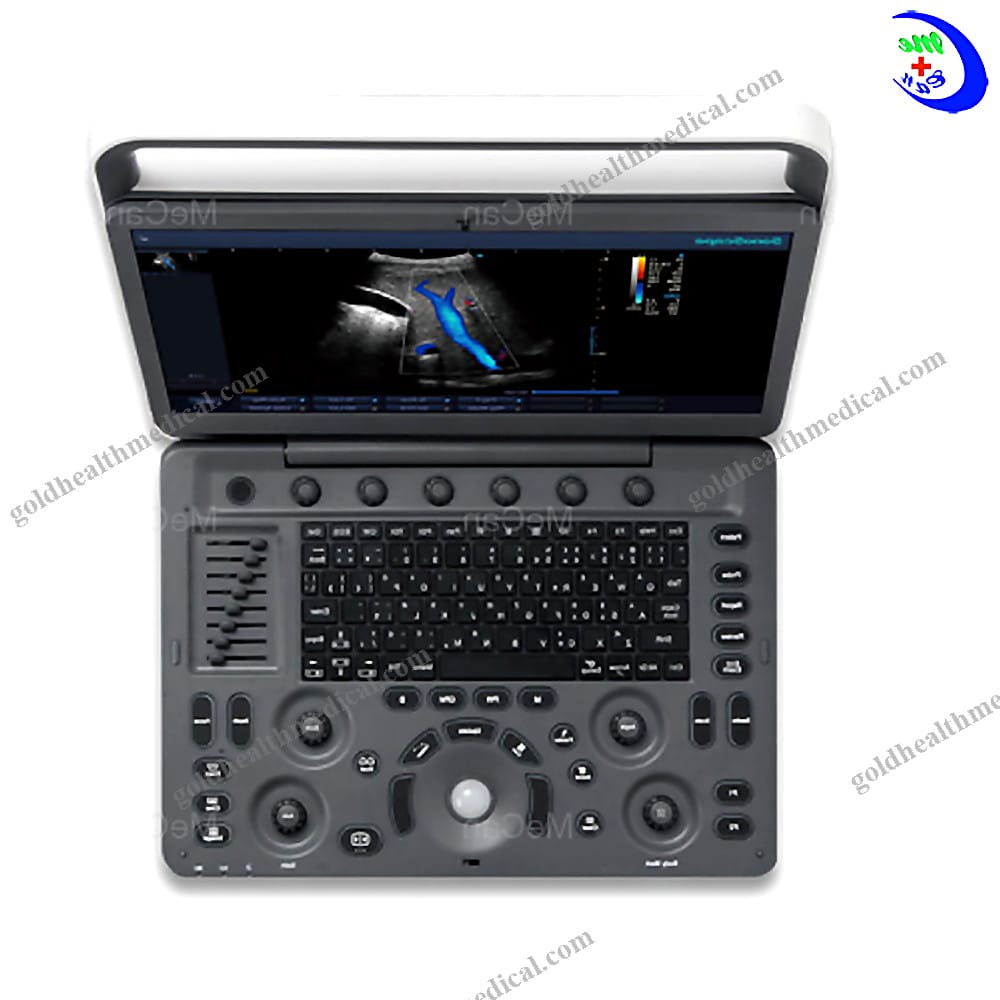

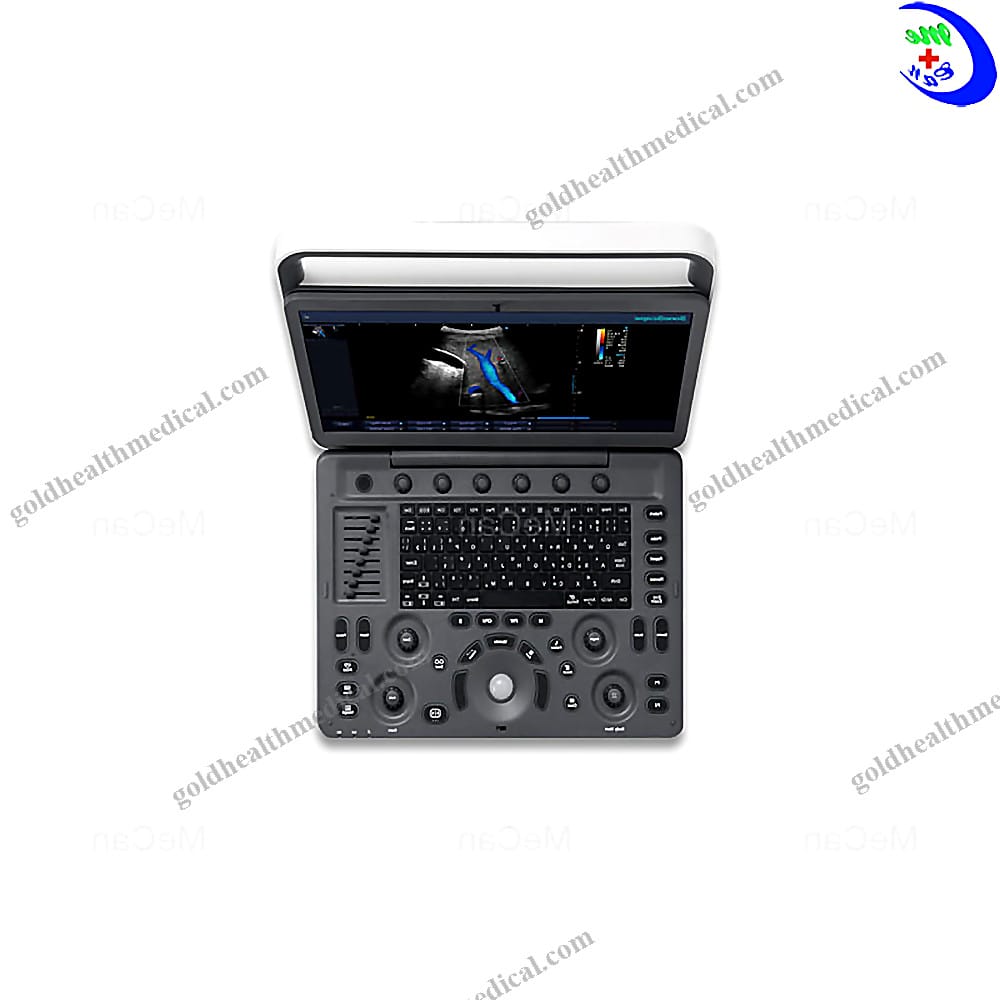

Sonoscape E2 Portable Color Doppler Ultrasound Machine
Reference: 1600948703909Ultrasonic, Optical, Electronic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Portable 4D Color Doppler Ultrasound Scanner
The GoldHealth Medical Portable 4D Color Doppler Ultrasound Scanner is a cutting-edge system designed to exceed expectations with its sleek, compact design and advanced functionality. Engineered for versatility, it supports a wide range of applications, including GI, OB/GYN, Cardiac, and Point-of-Care (POC), ensuring precision and efficiency in routine scanning. Its advanced color Doppler mode enhances diagnostic accuracy, enabling the identification of lesions with confidence.
Key Features and Specifications
General Overview
- Operating System: Built on a stable Linux platform, ensuring reliability and resistance to viruses.
- Dimensions: Compact design with maximum dimensions of 352mm (L) × 378mm (W) × 114mm (H).
- Weight: Lightweight at under 6.5kg, making it highly portable.
- Display: Equipped with a high-resolution 15.6-inch widescreen LCD monitor, anti-flickering, and capable of vertical and horizontal swiveling for optimal viewing angles.
- Keyboard: Backlit PC keyboard integrated into the control panel for ease of use in low-light environments.
- Connectivity: Supports Wi-Fi and optional Solid State Drive (SSD) for enhanced performance and data security.
- Fast Boot-Up: Ready to use within 30 seconds, with a standby mode for energy efficiency.
Applications
- Broad application range, including abdominal, OB/GYN, cardiology, urology, small parts, vascular, orthopedic, anesthesia, and musculoskeletal (MSK) imaging.
- Unique icon-based application interface for intuitive navigation.
Imaging Modes
- B Mode: Includes Dual B, Quad B, and advanced features like Compound Imaging, Speckle Reduction (u-scan), and Needle Enhancement (Vis-needle).
- Color Doppler: Directional Power Doppler Imaging (PDI), Tissue Doppler Imaging (TDI), and SR Flow Imaging for highly sensitive blood flow detection.
- M Mode: Anatomic M Mode and Color M Mode for detailed motion analysis.
- Advanced Features: Real-time Panoramic Imaging, Trapezoid Imaging, and Pulse Inversion Harmonic Imaging (PHI).
Transducers
- Supports over 10 transducer options, including linear, convex, endocavity, phased array, micro-convex, and intra-operative probes.
- Scanning methods include Electronic Convex Sector, Electronic Linear Sector, and Electronic Phased Array Sector.
Workflow Enhancements
- Image Optimization: One-button optimization in B and PW modes for streamlined workflows.
- TGC/LGC: Required for precise depth and gain adjustments.
- Zoom: Adjustable zoom with a minimum ratio of 0.8x and a maximum of 10x, including full-screen zoom.
- Biopsy Guidance: Supports two needle guide lines and one gun guide line for precision-guided procedures.
Scanning Parameters
- B Mode: Dynamic range of 20-280dB (probe-dependent), adjustable gain (1-255), and maximum depth of 40cm.
- Color Doppler Mode: Frame rate up to 209 frames per second, with adjustable pulse repetition frequency (0.5-10KHz) and wall filter settings.
- Spectral Doppler: PW and CW modes with maximum velocity ranges of 0.0576-6.14m/s and 0.0761-10.35m/s, respectively.
Image Storage and Reporting
- Cine Loop: Available for all modes, with retrospective storage of 27 seconds and prospective storage of 480 seconds.
- Image Formats: Supports JPG, BMP, and TIF formats; clip formats include WMV and AVI.
- Storage Capacity: Up to 500GB/1TB HDD or 128GB SSD.
- Reporting: Comprehensive report templates with support for TXT and PDF formats, displaying up to six images per report.
Measurements and Analysis
- Packages: Includes abdominal, OB/GYN, cardiology, urology, small parts, vascular, and orthopedic measurement packages.
- IMT Measurement: Supports Intima-Media Thickness (IMT) measurement with results displayed in reports.
- Fetal Growth Chart: Includes essential measurements like GS, CRL, BPM, HC, AC, and AFI, with customizable formulas.
Input/Output and Connectivity
- Ports: Equipped with 3 USB ports, VGA/HDMI output, S-video output, and an Ethernet port for DICOM compatibility.
- Peripheral Support: Includes DVD-R/W, footswitch, and video printer interface
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents a cutting-edge Portable Ultrasonic Diagnostic Device, designed to redefine precision and reliability in medical imaging. Engineered for versatility, this Class II medical instrument is tailored for applications across hospitals, clinics, research institutions, and home healthcare environments.
Key Features
- Advanced Imaging Technology: Delivers high-resolution color imaging for accurate diagnostics.
- Compact and Portable Design: Weighing just 4kg, it ensures effortless mobility without compromising performance.
- Multilingual Support: Offers intuitive operation in multiple languages, including Russian, French, German, Spanish, and Italian.
- Durable Construction: Crafted from premium metal and steel materials for long-lasting use.
Technical Specifications
- Power Source: Electric
- Application Areas: Abdominal diagnostics and more
- Weight: 4kg
- Shelf Life: 1 year
- Quality Certifications: CE-approved for safety and performance
Packaging Details
- Package Dimensions: 120 x 120 x 120 cm
- Gross Weight: 120.000 kg
After-Sales Support
- Warranty: Comprehensive 2-year coverage for peace of mind
- Service: Access to online technical support for seamless troubleshooting
Why Choose GoldHealth Medical?
Our Portable Ultrasonic Diagnostic Device combines innovation, durability, and user-centric design to deliver unparalleled diagnostic accuracy. Whether in a hospital, laboratory, or home setting, this device empowers healthcare professionals with the tools they need to make informed decisions.
Applications
- Hospitals and Clinics
- Research Laboratories
- Rehabilitation Centers
- Home Healthcare
GoldHealth Medical is committed to advancing healthcare technology, ensuring every diagnostic journey is precise, efficient, and reliable.
