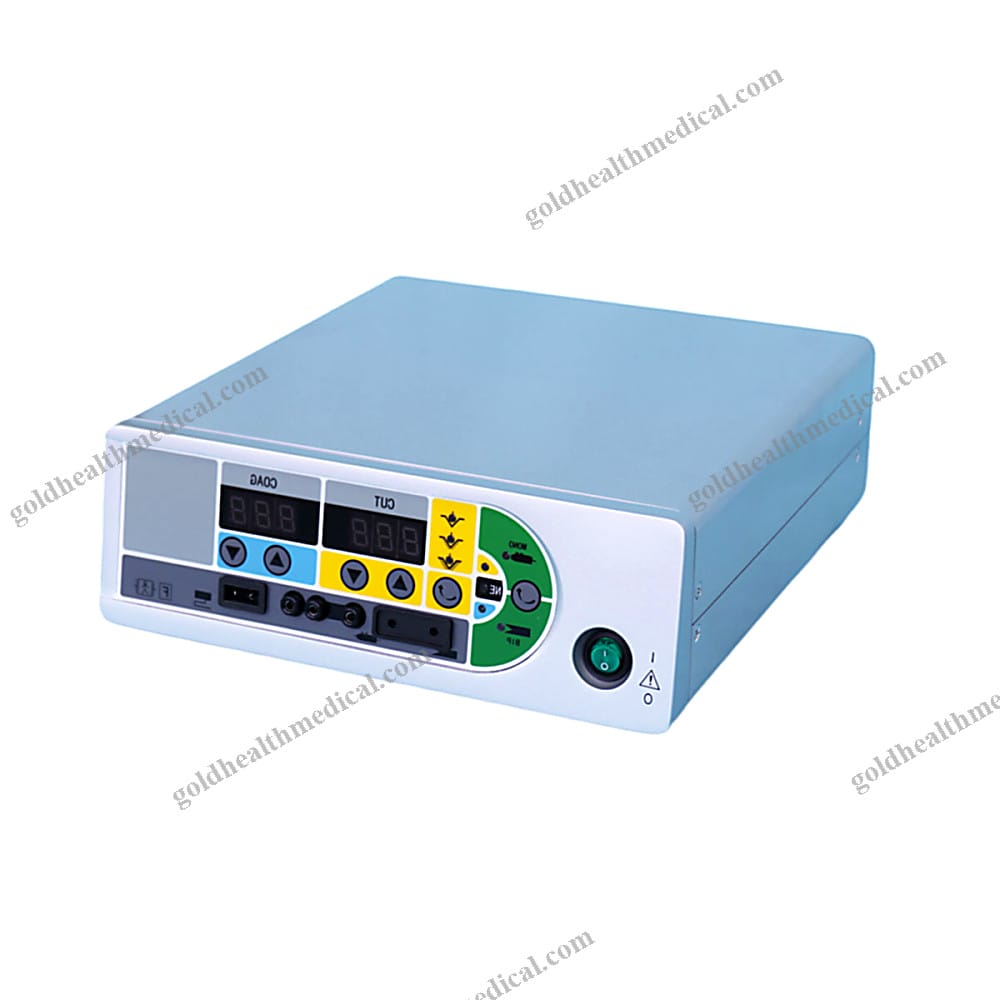

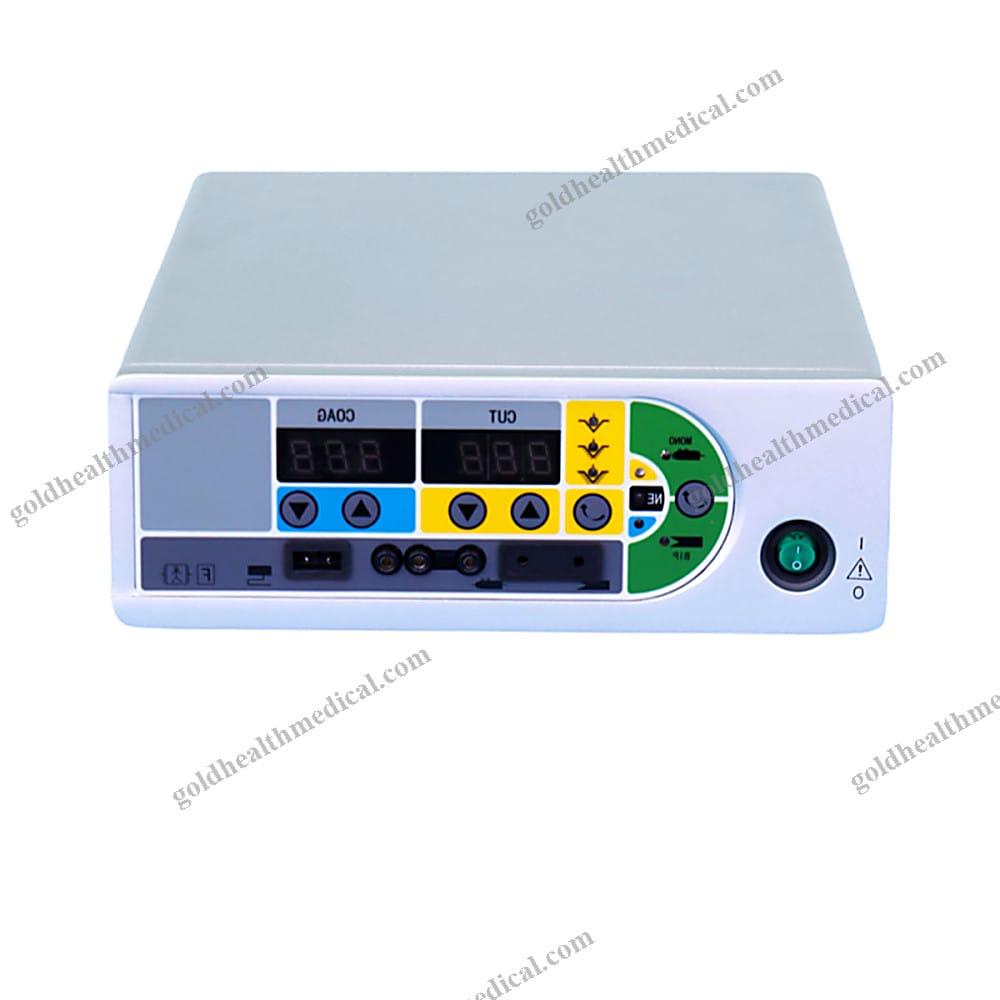

Six Mode ESU Digital Electrosurgical Unit for Human Animal Surgery
Reference: 1601372046436Medical High-Frequency Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical - Electrosurgical Unit
Engineered for precision and versatility, this advanced electrosurgical unit is designed to meet the demands of modern surgical environments. Whether for human or animal use, it delivers unparalleled performance with six specialized modes, ensuring optimal outcomes for a wide range of procedures.
Key Features
- Advanced Safety System: Equipped with a high-performance neutral electrode contact inspection system, it continuously monitors the contact area between the electrode and skin. If the contact area falls below a safe threshold, the system automatically shuts off and provides an alarm, ensuring maximum safety during procedures.
- Memory Functionality: Retains the last used settings, enabling seamless transitions between operations and reducing setup time.
- Intuitive Interface: Features a high-definition LED display with audio and visual indicators for clear, real-time feedback.
- Smart Monitoring: The main unit includes automatic monitoring and error indication functions, ensuring consistent performance and reliability.
- Stable Power Output: Automatic compensation technology stabilizes output power, minimizing energy depletion and enhancing efficiency.
- Underwater Cutting Capability: Designed for complex procedures, including organic cuts in fatty tissue areas, even underwater.
Operational Modes
- Pure Cut: Delivers refined cutting with no escharosis on the surface, ideal for delicate operations.
- Blend 1: Combines cutting with minimal coagulation for precise results.
- Blend 2: Optimized for endoscopic procedures, offering enhanced coagulation during cutting.
- Electrocoagulation 1: Provides deep coagulation with a small effect area, suitable for endoscopic applications.
- Electrocoagulation 2: Delivers rapid, soft coagulation with a larger effect area, also compatible with endoscopes.
- Bipolar Coagulation: Ensures rapid coagulation at startup, preventing tissue adhesion.
Technical Specifications
- Safety Standards: Compliant with I-type and BF-type standards.
- Ambient Temperature Range: +10°C to +40°C.
- Relative Humidity Range: 30% to 75%.
- Atmospheric Pressure: 700 to 1060 hPa.
- Power Supply: 220V ± 22V, 50Hz ± 1Hz.
- Operating Frequency: 530KHz ± 2.
- Load Capacity:
- Monopolar Cut/Coagulation: 300Ω.
- Bipolar Coagulation: 100Ω.
- Rated Output Power:
- Pure Cut: 1W to 400W (Peak Voltage 1500V).
- Mixed Cut 1: 1W to 250W (Peak Voltage 2000V).
- Mixed Cut 2: 1W to 150W (Peak Voltage 2500V).
- Electrocoagulation 1: 1W to 100W (Peak Voltage 3500V).
- Bipolar Coagulation: 1W to 50W (Peak Voltage 620V).
- Energy Consumption: ≤1400VA.
- Transport and Storage Conditions:
- Ambient Temperature Range: -40°C to +55°C.
- Relative Humidity Range: ≤93%.
- Atmospheric Pressure Range: 500hPa to 1060hPa.
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to delivering innovative, high-quality medical solutions. Our products are trusted by hospitals, clinics, and research institutions worldwide. With a focus on precision, safety, and reliability, we empower healthcare professionals to achieve exceptional results.
Experience the future of surgical technology with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: ELECTROSURGICAL UNIT by GoldHealth Medical
Key Features and Benefits:
- Precision and Safety: Designed for optimal performance in medical procedures, this electrosurgical unit delivers unparalleled precision with a cutting power of 400W and ensures patient safety with its CF-type classification.
- Advanced Technology: Operates at a frequency range of 330~460kHz, minimizing tissue damage and ensuring efficient energy delivery.
- Compact and Portable Design: Weighing just 7.5kg with dimensions of 440mm x 400mm x 280mm, it is easy to transport and fits seamlessly into any medical environment.
- Durability and Reliability: Engineered for consistent performance with a shelf life of 3 years and backed by CE quality certification.
Technical Specifications:
- Power Source: Electricity (220V±22V, 50Hz±1)
- Power Consumption: ≤1100VA (Cut function: 400W)
- Operating Frequency: 330~460kHz
- Ambient Temperature Range: 5℃ to 40℃
- Relative Humidity Range: ≤80%
- Atmospheric Pressure Range: 86.0~106.0kPa
- Weight: 7.5kg
- Dimensions: 440mm x 400mm x 280mm

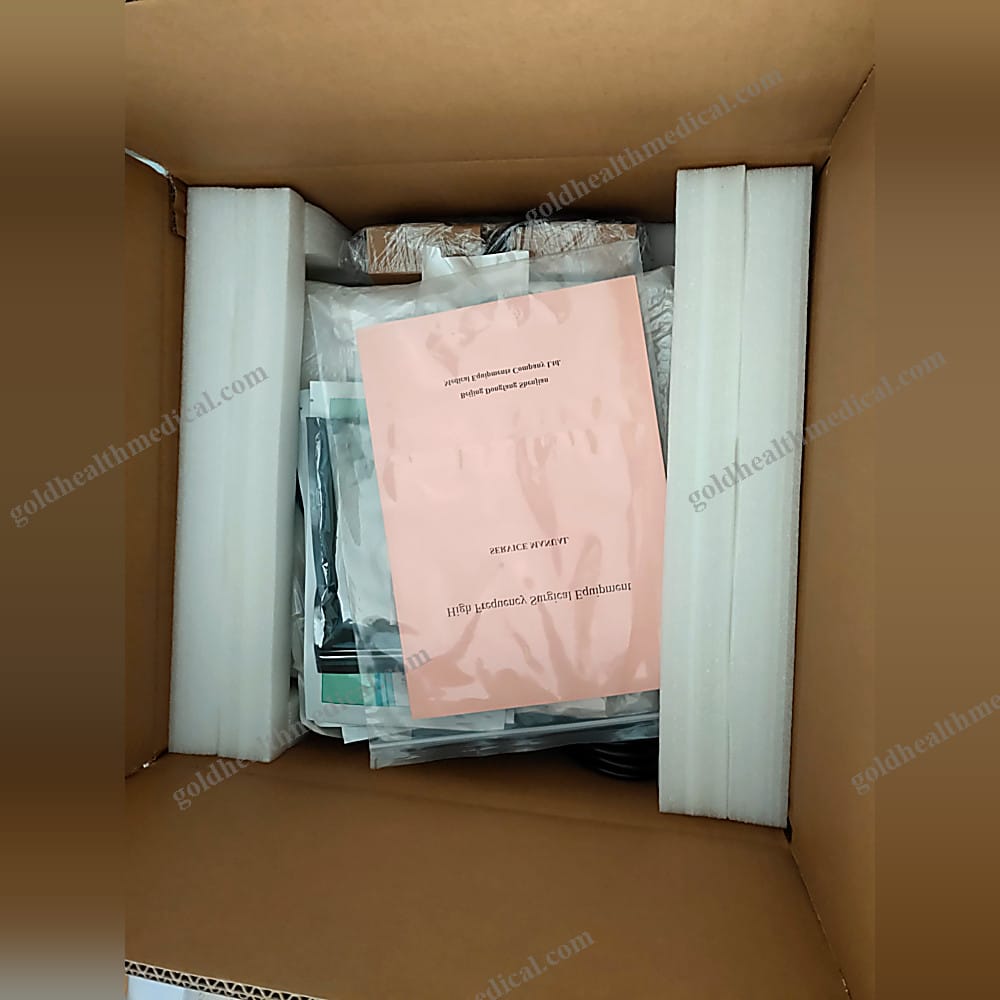

Packaging Details:
- Single Package Size: 44cm x 40cm x 28cm
- Single Gross Weight: 7.5kg
Warranty and Support:
- Warranty Period: Comprehensive coverage for peace of mind.
- After-Sale Service: Dedicated support to ensure uninterrupted performance.
- Free Spare Parts: Included to maximize the lifespan and reliability of the unit.
Applications:
Ideal for hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home healthcare settings. Designed to meet the needs of medical professionals and caregivers alike, this electrosurgical unit combines cutting-edge technology with user-friendly functionality.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare providers to deliver exceptional patient care. Our products are meticulously engineered to meet the highest industry standards, ensuring safety, reliability, and performance.
Stand Out Feature:
The ELECTROSURGICAL UNIT is a Class II medical instrument, offering advanced electrosurgical capabilities in a compact, portable design—perfect for modern healthcare environments.
