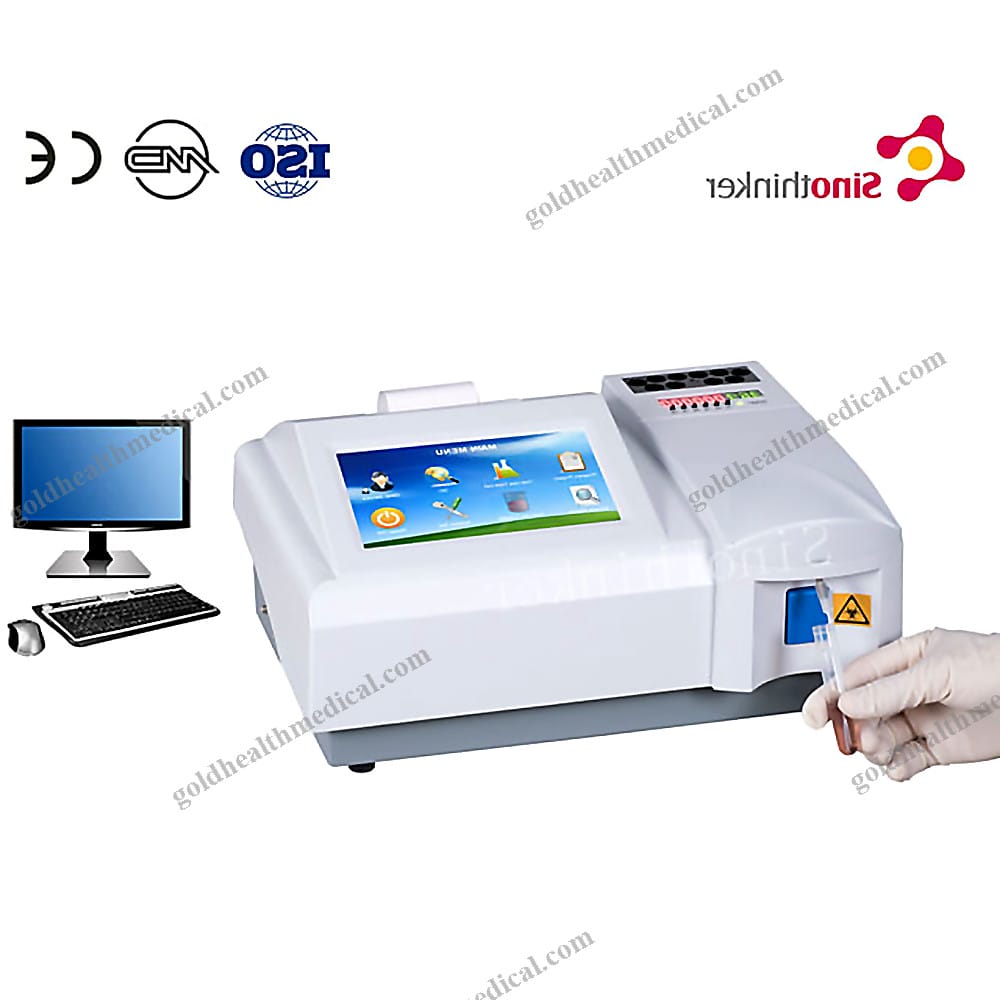

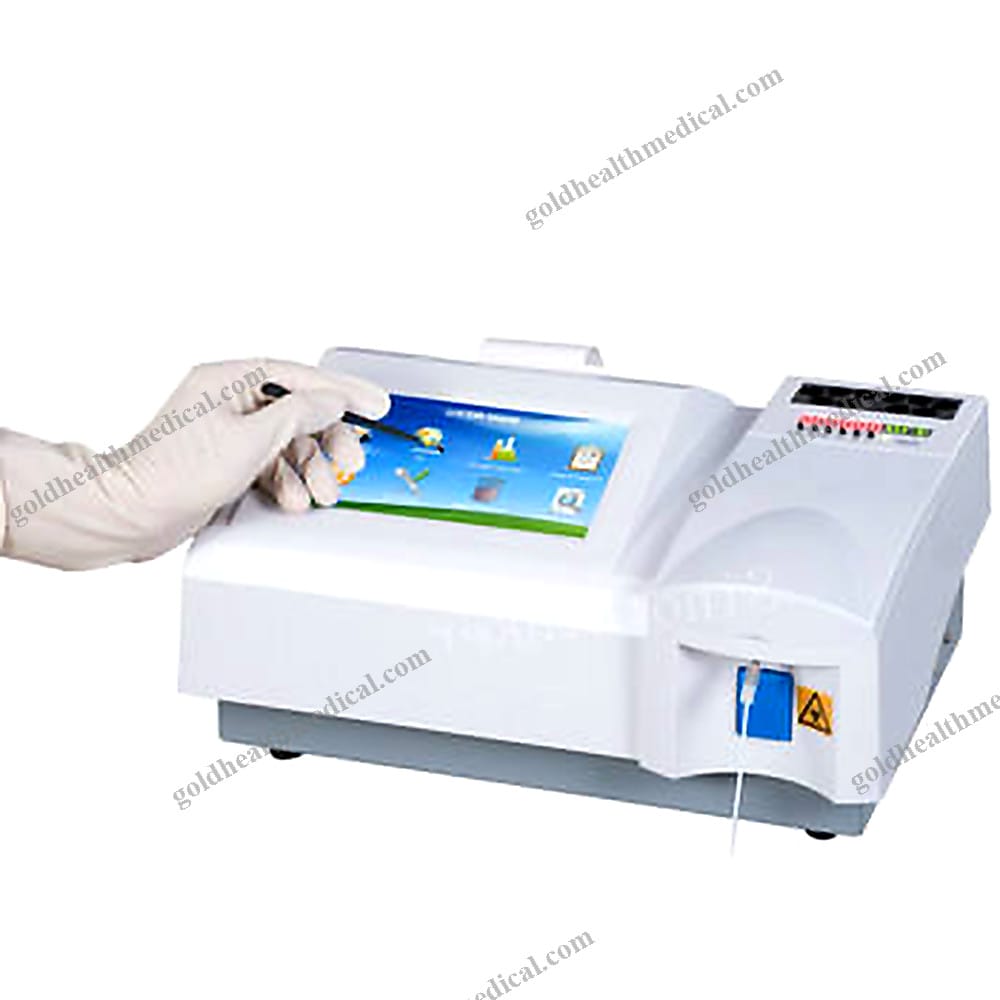

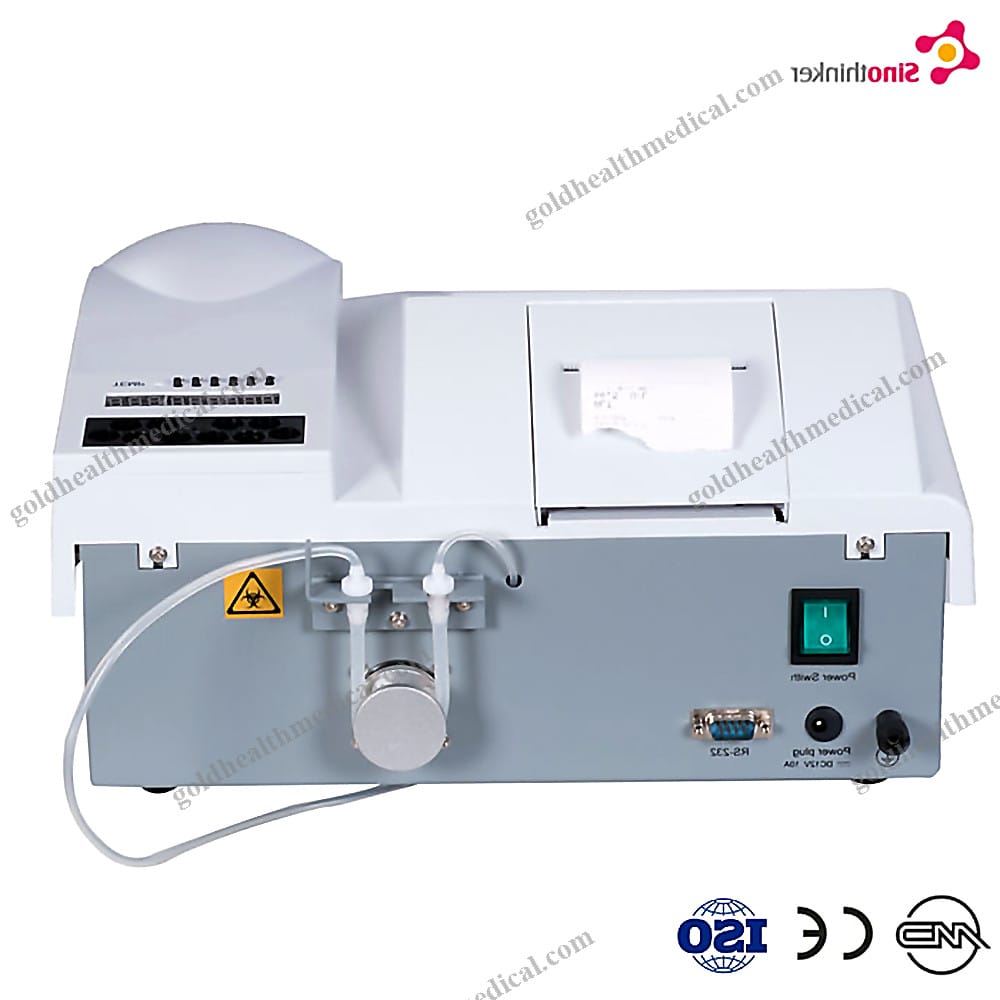

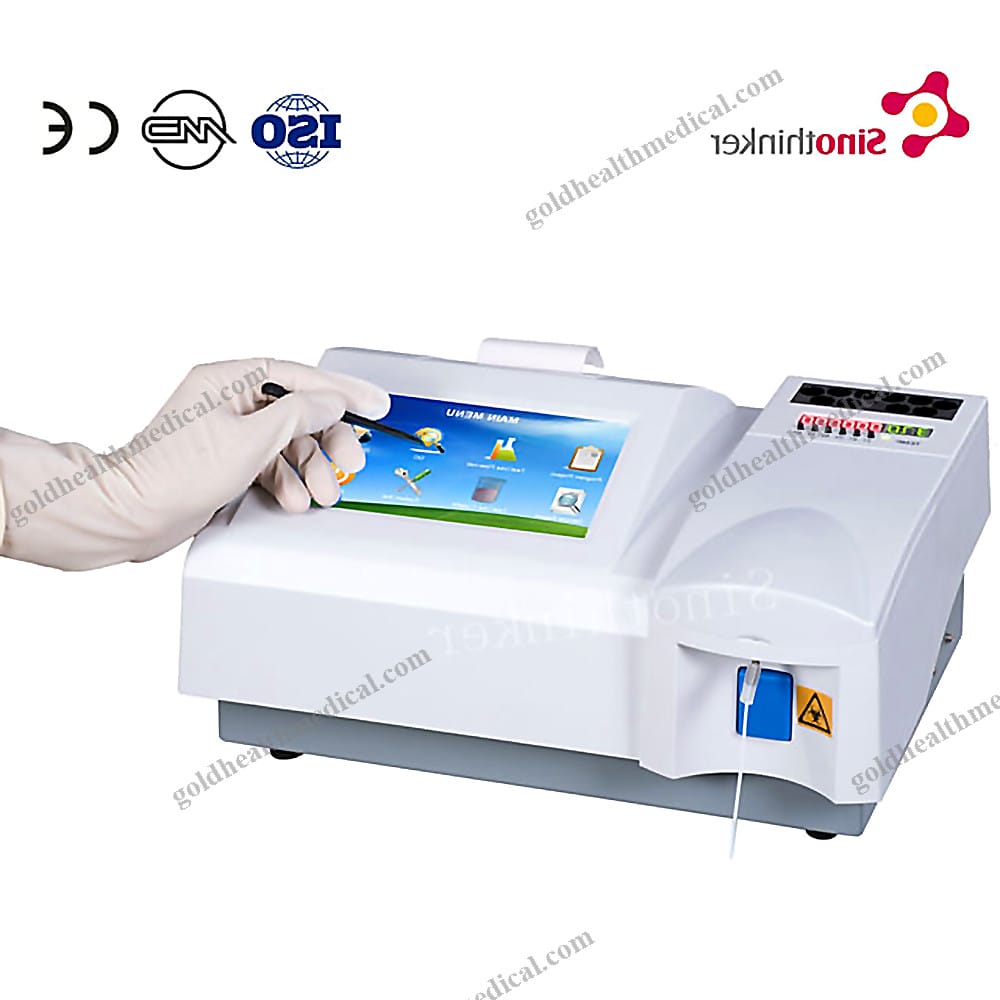

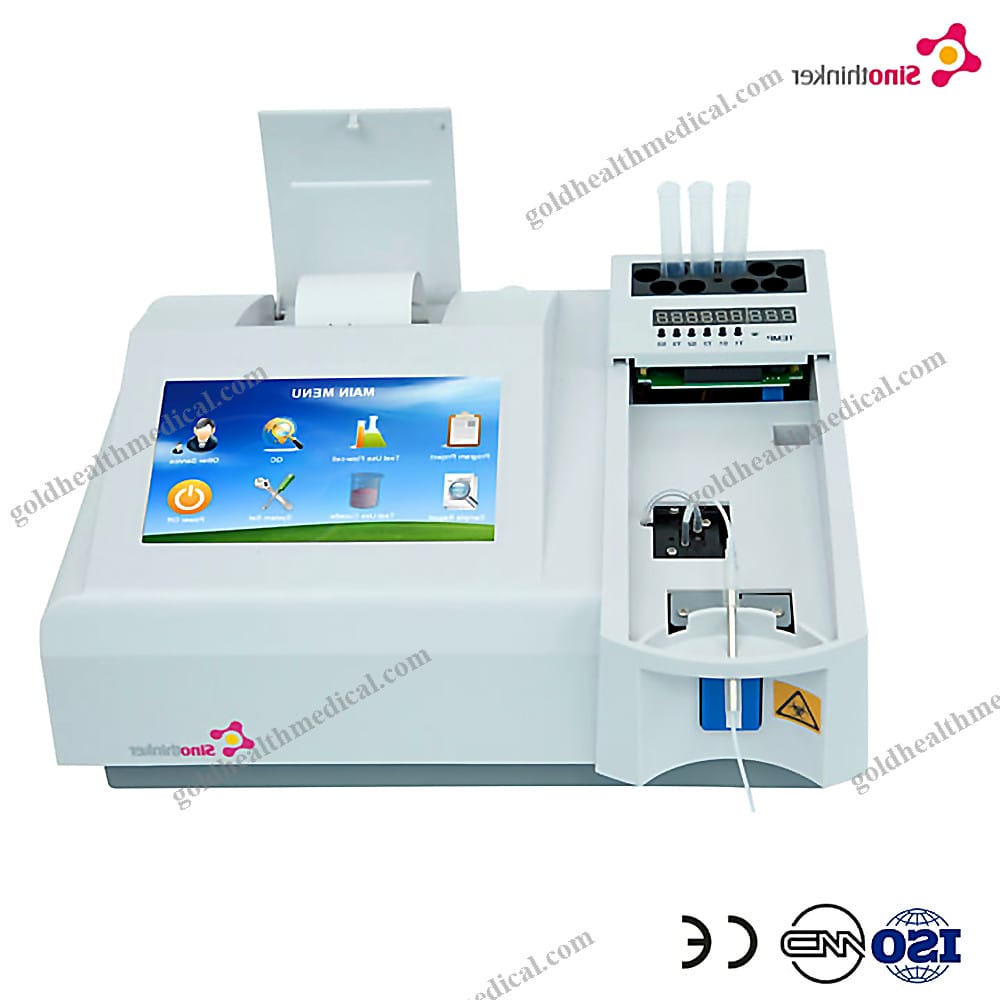

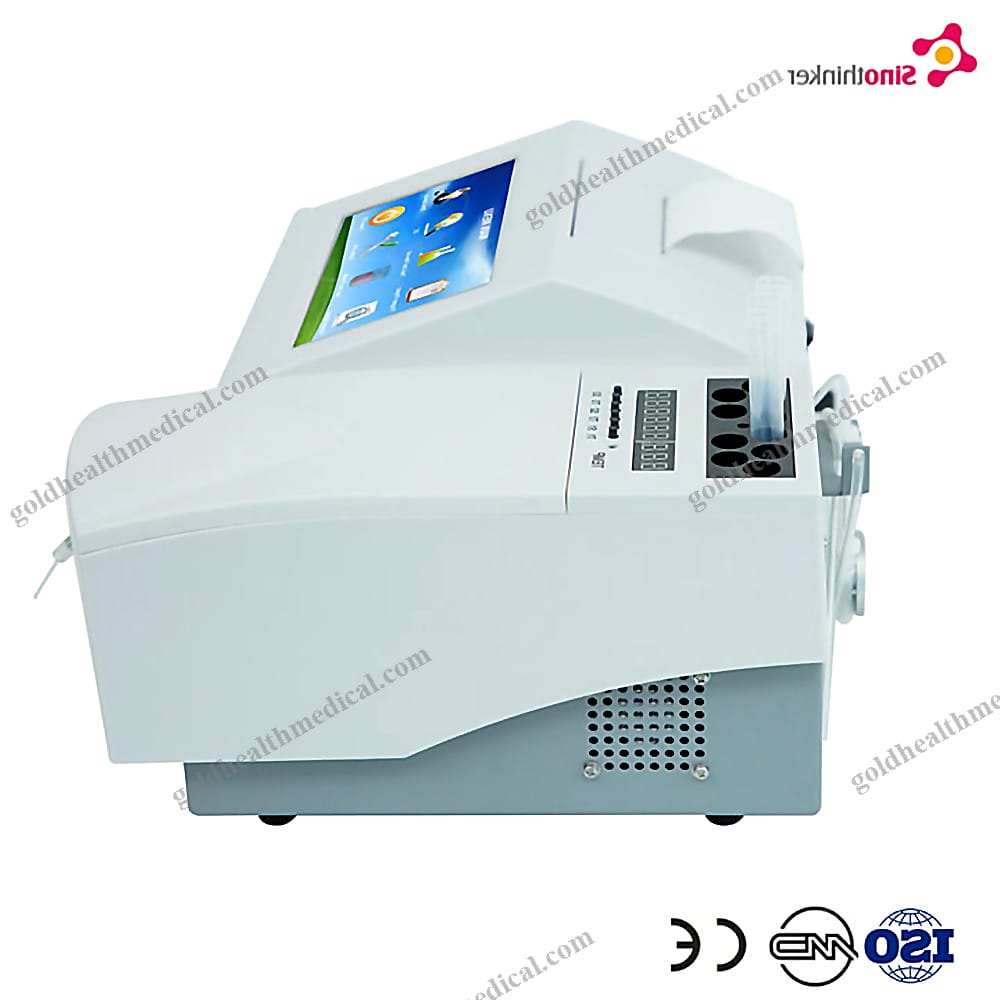

SemiAuto Biochemistry Analyzer with 12V Lamp
Reference: 1601277389562Blood Testing Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Product Overview
GoldHealth Medical presents a cutting-edge solution designed for precision and reliability in medical diagnostics. Engineered with advanced technology, this device is tailored to meet the needs of hospitals, clinics, research institutions, and more.
Key Features and Specifications
- Measurement Modes: Supports Kinetic, Endpoint, Two-point, and Absorbance testing modes.
- Wavelength Options:
- Standard Filters: 340 nm, 405 nm, 492 nm, 510 nm, 546 nm, 578 nm, 630 nm.
- One customizable position for additional flexibility.
- Wavelength Precision: ±2 nm with a bandwidth of ≤10 nm.
- Absorbance Range: 0~4.500 Abs.
- Precision: External 0.0001 Abs, Internal 0.00001 Abs.
- Performance Metrics:
- Carry-over: Less than 1%.
- Repeatability CV: Less than 1%.
- Sample Volume: 0~3000 µL (500 µL recommended for optimal results).
- Data Storage: Capable of storing over 10,000 records.
- Quality Control: Comprehensive quality control curves including X, SD, CV%, and L-J for every test item.
- Flow Cell: 32 µL for efficient sample processing.
- Printing: Integrated thermal-sensitive printer for instant results.
- Light Source: Long-life Philips 6V 10W Halogen Lamp, ensuring consistent performance.
- Power Supply: 100~240VAC, 50-60Hz, 100VA for global compatibility.
- Processor: High-speed ARM series micro CPU for rapid data processing.
- Operating Environment:
- Temperature: 0°C to 40°C.
- Humidity: ≤80%.
- Weight: Lightweight at 5 kg for easy portability.
- Connectivity: RS232 input/output for seamless integration.
- Dimensions: Compact design at 340(L) x 270(W) x 160(H) mm.
Unique Selling Points
- Versatility: Supports both human and veterinary applications with dedicated models.
- Open Reagent System: Compatible with a wide range of reagents, offering flexibility and cost savings.
- High Throughput: Achieves up to 60 tests per hour with dual test chambers or 30 tests per hour with a single chamber.
- Comprehensive Parameters: Measures 20 parameters with 3-color histograms for detailed analysis.
- Reliable After-Sales Support: Includes a 15-month warranty for parts, long-term technical support, and rapid issue resolution.
- Customization Options: Offers OEM/private label services to meet specific branding needs.
- Flexible Ordering: No minimum order quantity—ideal for small clinics or large institutions.
- Fast Delivery: Ships within 3 days for in-stock items or 7 days for custom orders, with multiple shipping options available.
Why Choose GoldHealth Medical?
GoldHealth Medical combines precision engineering with user-centric design to deliver a product that stands out in performance, reliability, and adaptability. Whether for clinical diagnostics, research, or veterinary use, this device ensures accurate, repeatable results while offering the flexibility to meet diverse operational needs.
Choose GoldHealth Medical for a solution that empowers healthcare professionals with confidence and efficiency.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents a cutting-edge medical instrument designed to elevate precision and efficiency in diagnostic testing. Engineered with advanced technology and robust materials, this device is tailored for professionals across hospitals, clinics, research labs, and rehabilitation centers.
Product Highlights
- Superior Build Quality: Constructed with a durable combination of high-grade metal and premium plastic, ensuring long-lasting performance in demanding environments.
- Intuitive Interface: Features a vibrant 7-inch Color LCD touchscreen display, offering seamless navigation and real-time data visualization.
- Versatile Testing Modes: Supports multiple test methodologies, including Kinetic, End Point, Two Point, and Absorbance, catering to diverse analytical needs.
- Extensive Data Storage: Capable of storing up to 10,000 samples, empowering efficient data management and analysis.
- Universal Compatibility: Equipped with RS232 input/output ports and supports mainstream languages, including English, for global usability.
Technical Specifications
- Power Supply: 100~240VAC, 50-60Hz, 100VA
- Weight: 5KG (Net), 7.5KG (Gross)
- Dimensions:
- Device: 340(L) x 270(W) x 160(H) mm
- Packaging: 50(L) x 46(W) x 29(H) cm
- Instrument Classification: Class II
- Shelf Life: 1 Year
- Warranty: 1 Year
Key Features
- Advanced Safety Standards: Designed to meet CE certification requirements, ensuring reliable and safe operation.
- Global Power Adaptability: Operates seamlessly across varying voltage ranges, making it ideal for international use.
- Comprehensive After-Sales Support: Access to online technical assistance for uninterrupted performance and troubleshooting.
Applications
This versatile instrument is suitable for a wide range of applications, including clinical diagnostics, laboratory research, rehabilitation monitoring, and home healthcare solutions. Its compact design and powerful functionality make it an indispensable tool for modern medical environments.
Experience the next generation of diagnostic excellence with GoldHealth Medical – where innovation meets precision.
