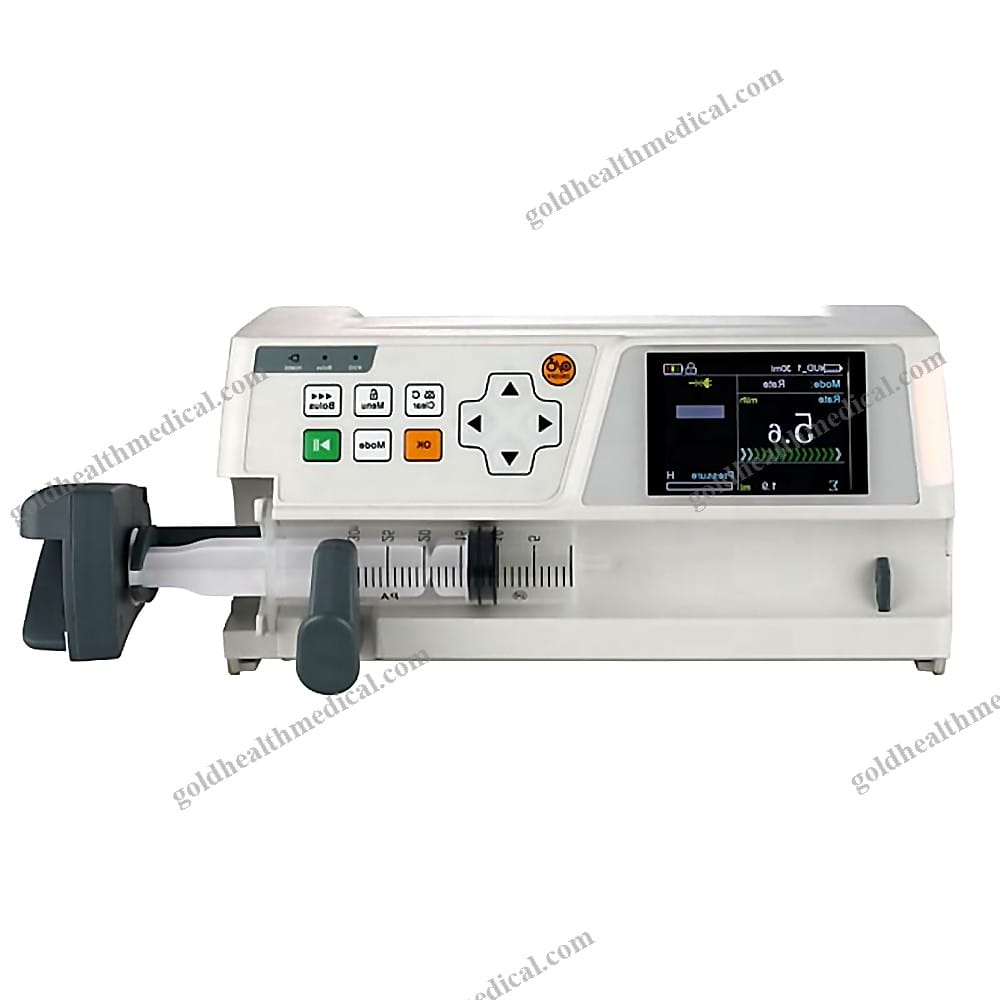

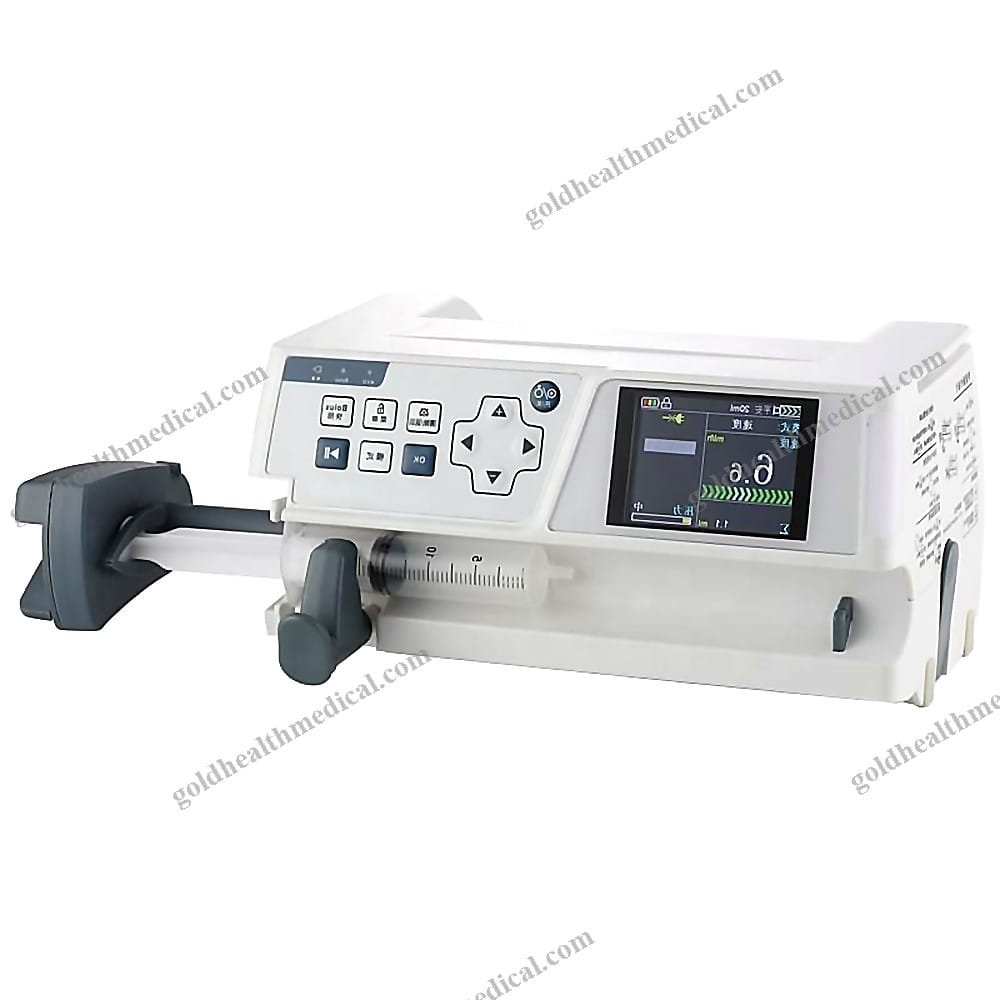

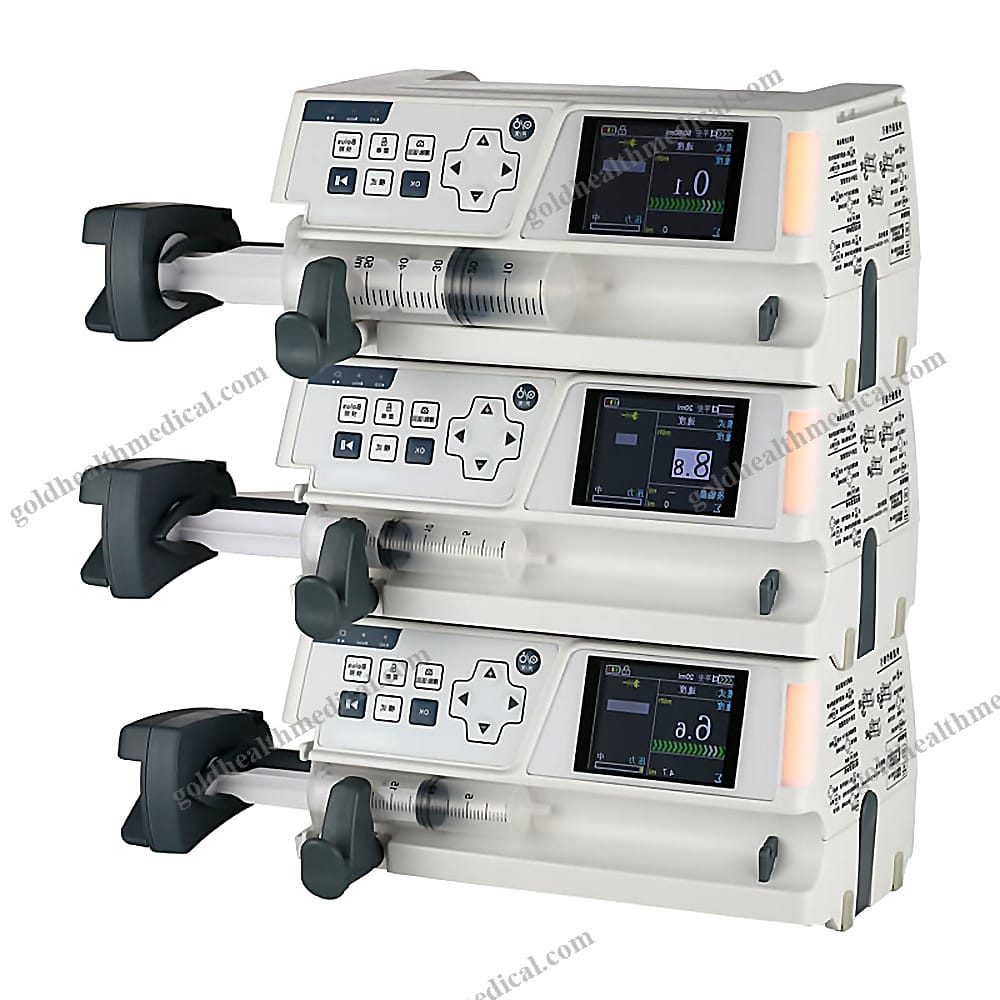

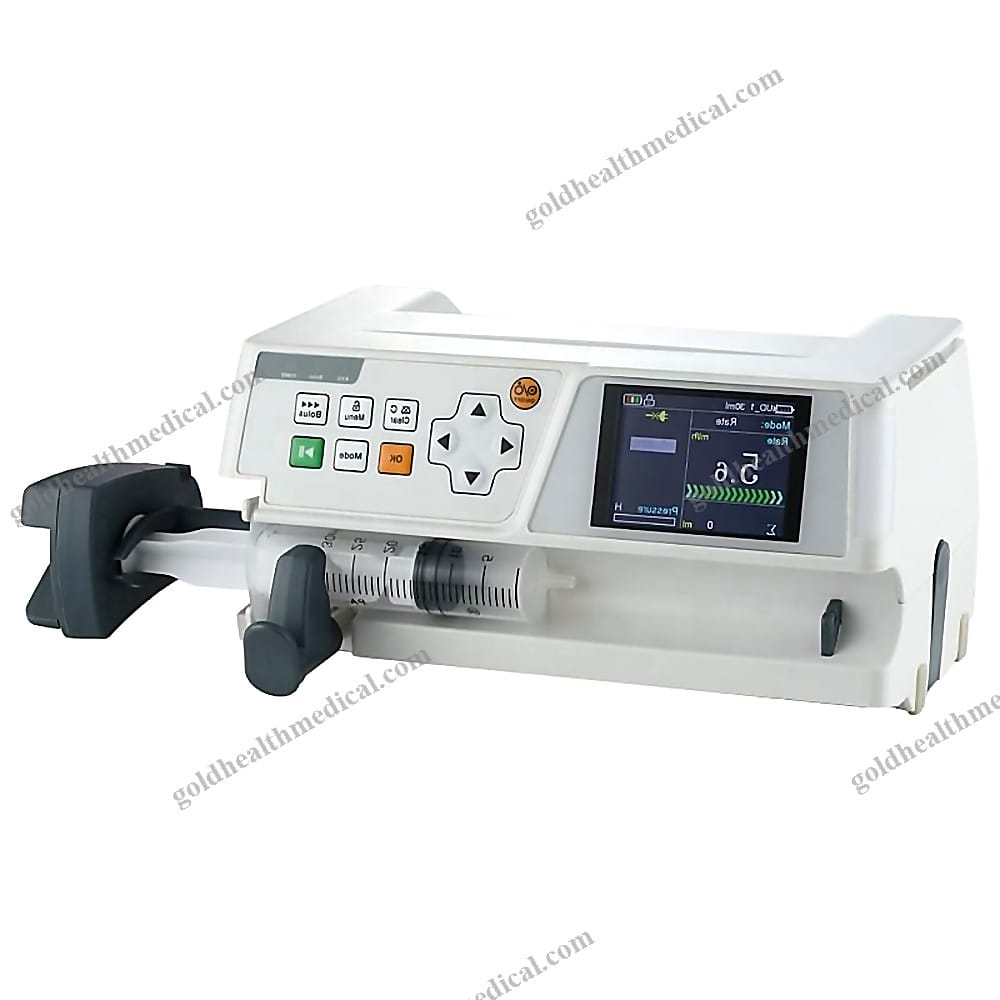

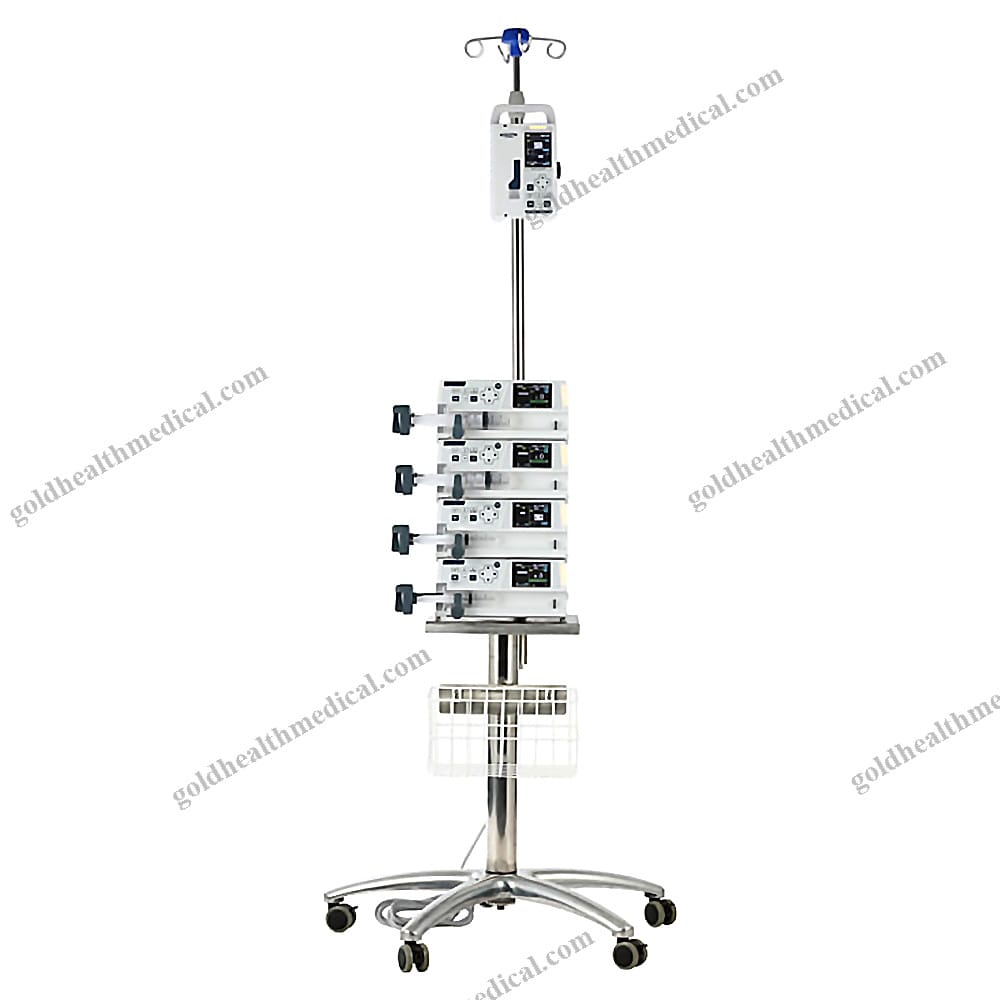

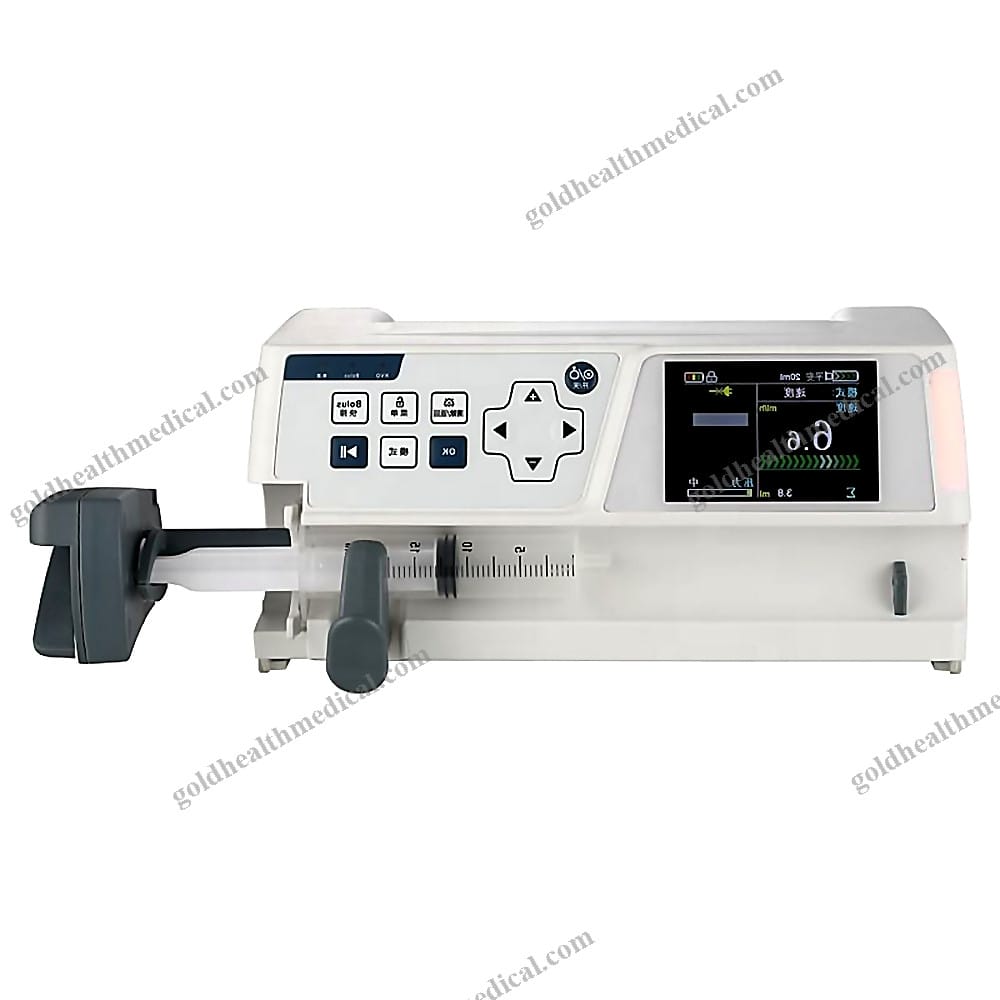

S13 Portable Infusion Pump with TFT Display Adjustable Brightness
Reference: 1600862916373Infusion, Nursing & Protective Instruments（old）
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Syringe Pump
Product Description
Experience a new era of precision and reliability with GoldHealth Medical's advanced syringe pump. Designed with a sleek, modern aesthetic and intuitive touch interface, this device sets a new standard for clinical infusion systems.
- Large-Screen TFT Display: Features adjustable brightness for optimal visibility in any clinical setting.
- User-Friendly Interface: Thoughtfully designed to align with clinical workflows and user habits, ensuring seamless operation.
- Safety and Efficiency: Compliant with IP44 waterproof ratings, making it suitable for all clinical environments. Equipped with DPS dynamic pressure display, multi-pressure alarms, and real-time patient safety monitoring.
- Enhanced Patient Safety: Anti-bolus and anti-siphon functions provide additional layers of protection. Manual and automatic bolus modes can be switched, with an adjustable KVO rate for versatile clinical applications.
Intelligent Design for Versatility
- 5 Infusion Modes: Tailored to meet the diverse needs of various medical departments.
- Flexible Mounting Options: Vertical and horizontal mounting clamps adapt effortlessly to clinical environments.
- Comprehensive Data Management: Stores over 2,000 historical records for review and export, simplifying workflow management.
- Multi-Language Support: Customizable language settings cater to global users, ensuring accessibility across regions.
Technical Specifications
- Syringe Compatibility: Supports standard syringe sizes of 5ml, 10ml, 20ml, 30ml, 50ml, and 60ml.
- Accuracy: ±2% with proper calibration.
- Rate Mode: Adjustable from 0.1ml/h to 2000.0ml/h in 0.1ml/h or 1ml/h increments.
- Time Mode: Volume range: 0.1-9999.9ml (0.1ml step); Time range: 00:01-99:59min (1min step).
- Dose Mode: Volume: 0.1-999.9ml (0.1ml step); Drug Mass: 0.1-999.9mg (0.1mg step); Dose: 0.001-9999 (0.001 step); Weight: 0.1-300kg (0.1kg step).
- Total Volume Range: 0.0-999.9ml (1ml step).
- Drug Library Mode: Available for advanced configurations.
- Sequential Mode: Available for advanced configurations.
- Purge Rate: Fully programmable and adjustable.
- KVO Rate: Adjustable from 0.0-5.0ml/h.
- DPS Occlusion Pressure: LOW: 60±(15)kPa, MEDIUM: 90±(15)kPa, HIGH: 120±(15)kPa (adjustable).
- Alarms: Comprehensive alerts for loose connections, occlusion, empty syringe, near-empty status, rate abnormalities, low battery, no battery, infusion completion, no action, and syringe plunger disengagement.
- Alarm Volume: Three levels (LOW, MEDIUM, HIGH) for customizable notification intensity.
- Bolus Rate: Programmable and adjustable from 0.1-2000ml/h, with automatic/manual bolus options.
- Bolus Volume: Range: 1.0-50.0ml (0.1ml step).
- Interface: RS-232 connectivity for seamless integration.
- Brightness: Adjustable across 10 levels for optimal visibility.
- History Records: Stores up to 2,000 events for review and export.
- Power Source: AC power supply: 100-240V (+/-10%), 50/60Hz; DC power supply: 12-15V, >15W; Built-in rechargeable lithium battery: 11.1V, 2000mAh, supporting 12 hours of continuous operation.
- Protection Class: Class I, Type CF, IPX4.
- Dimensions/Weight: 240150117mm, 2.5kg.
- Packing Size/Weight: 300260160mm, 3.5kg.
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to delivering innovative
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Infusion Pump, a cutting-edge medical device designed to deliver precision, reliability, and ease of use in critical healthcare environments. Engineered for hospitals, clinics, and home care settings, this Class I medical instrument ensures accurate fluid delivery with unmatched safety and efficiency.
Key Features and Benefits
- Precision Fluid Delivery: Ensures accurate infusion rates, enhancing patient safety and treatment outcomes.
- Durable and Lightweight Design: Constructed with high-quality plastic, offering durability without compromising portability.
- Compact and Ergonomic: With dimensions of 30x26x16 cm and a weight of just 3.5 kg, it is easy to transport and store.
- Certified for Global Standards: CE-certified, guaranteeing compliance with international safety and quality benchmarks.
- Versatile Application: Ideal for hospitals, clinics, research labs, rehabilitation centers, and home healthcare.
Technical Specifications
- Instrument Classification: Class I medical device
- Material: High-grade plastic
- Package Dimensions: 30x26x16 cm
- Gross Weight: 3.5 kg
- Supply Capacity: Up to 50 units per month
Support and Assurance
- Comprehensive Warranty: Backed by a 1-year warranty for peace of mind.
- Dedicated After-Sales Support: Access to online technical support ensures uninterrupted performance and quick resolution of queries.
Why Choose GoldHealth Medical's Infusion Pump?
GoldHealth Medical’s Infusion Pump combines innovative engineering with user-centric design, setting a new standard in infusion technology. Whether for professional or personal use, this device delivers consistent performance, making it an indispensable tool for modern healthcare.
Applications
- Hospitals and clinics
- Research institutions and laboratories
- Rehabilitation centers and nursing homes
- Home healthcare environments
Experience the future of infusion technology with GoldHealth Medical – where precision meets reliability.
