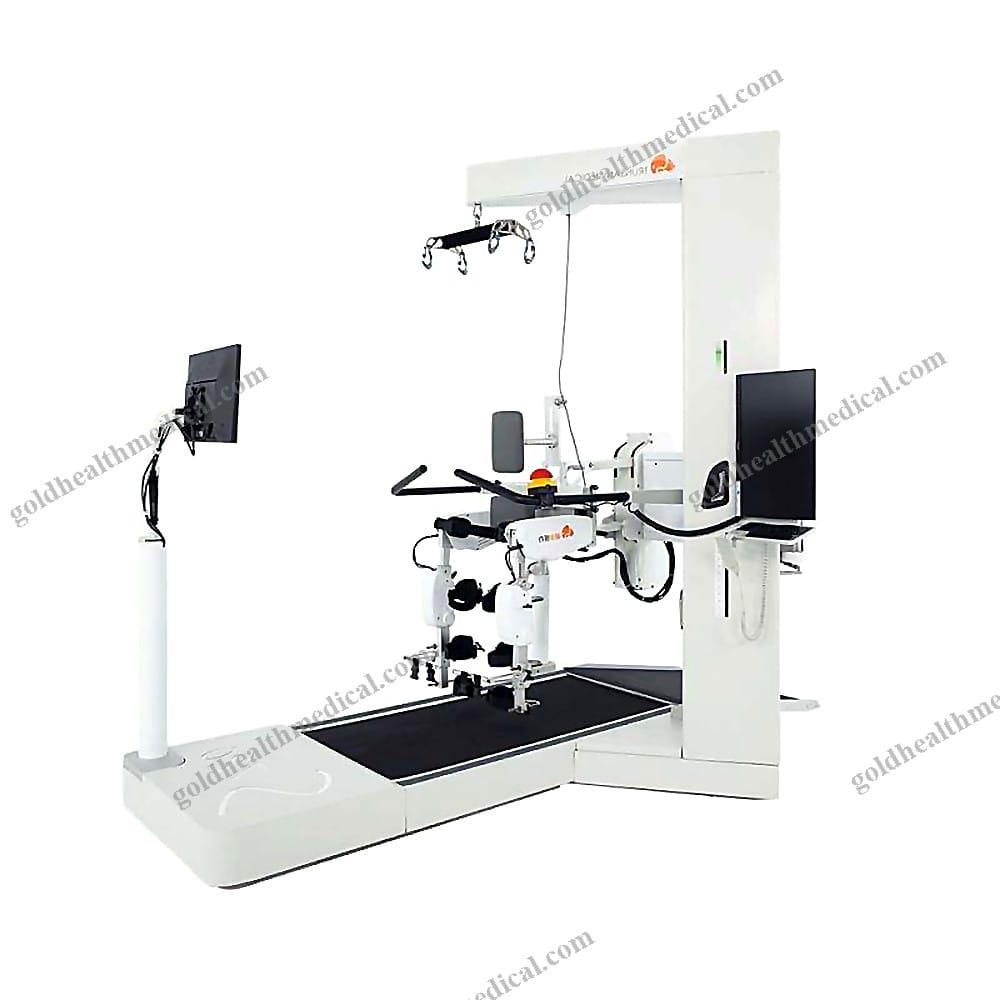

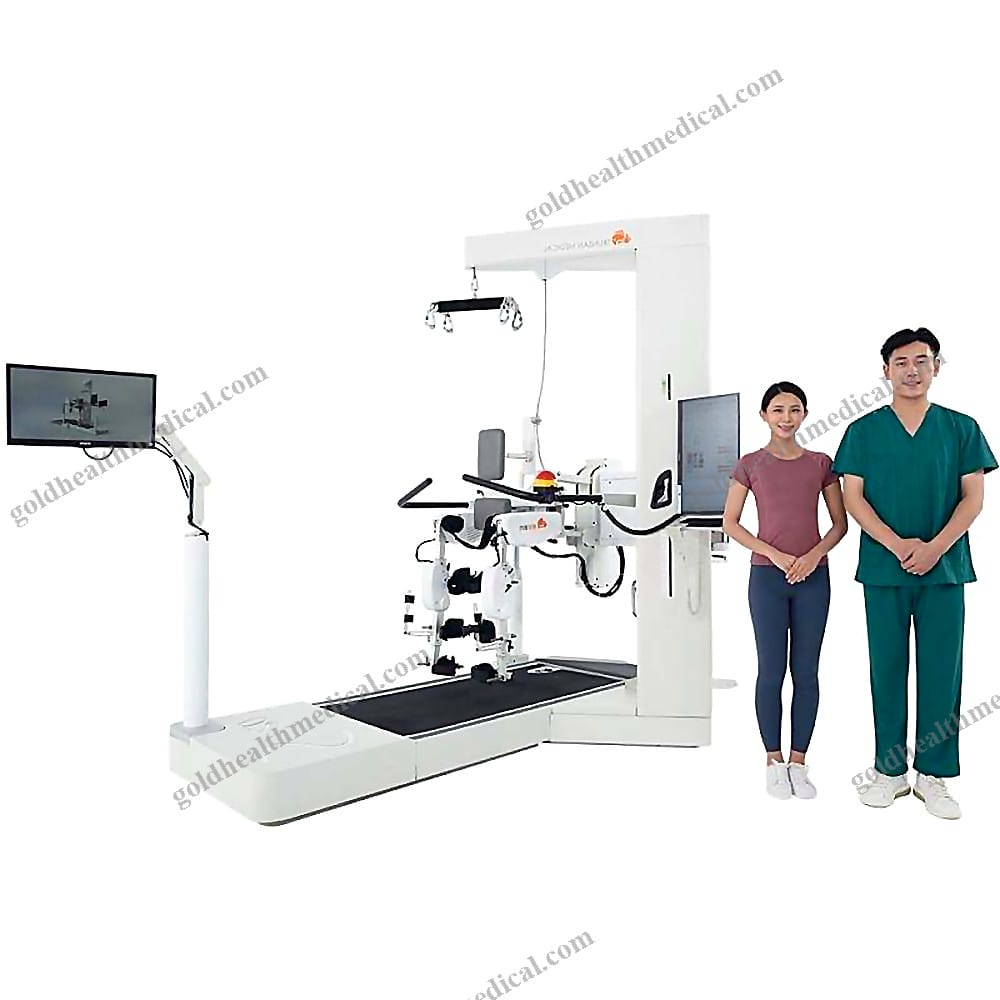

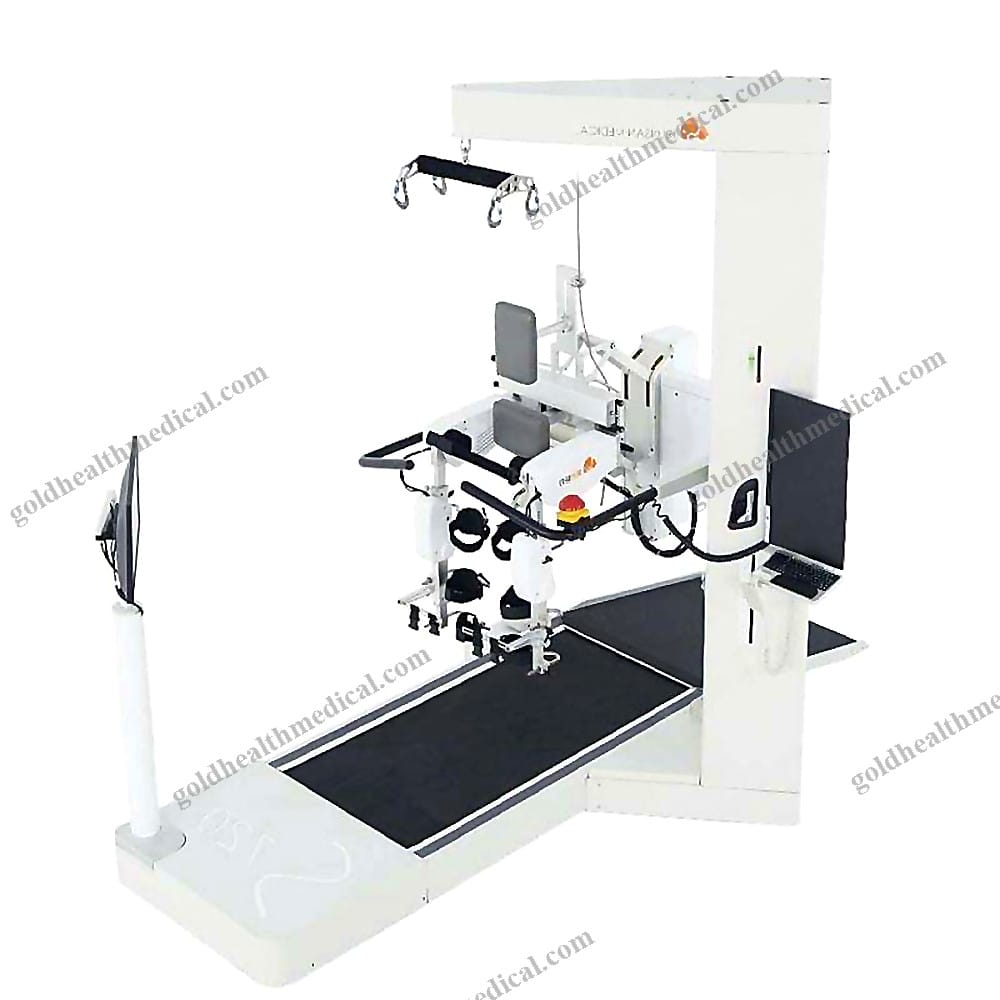

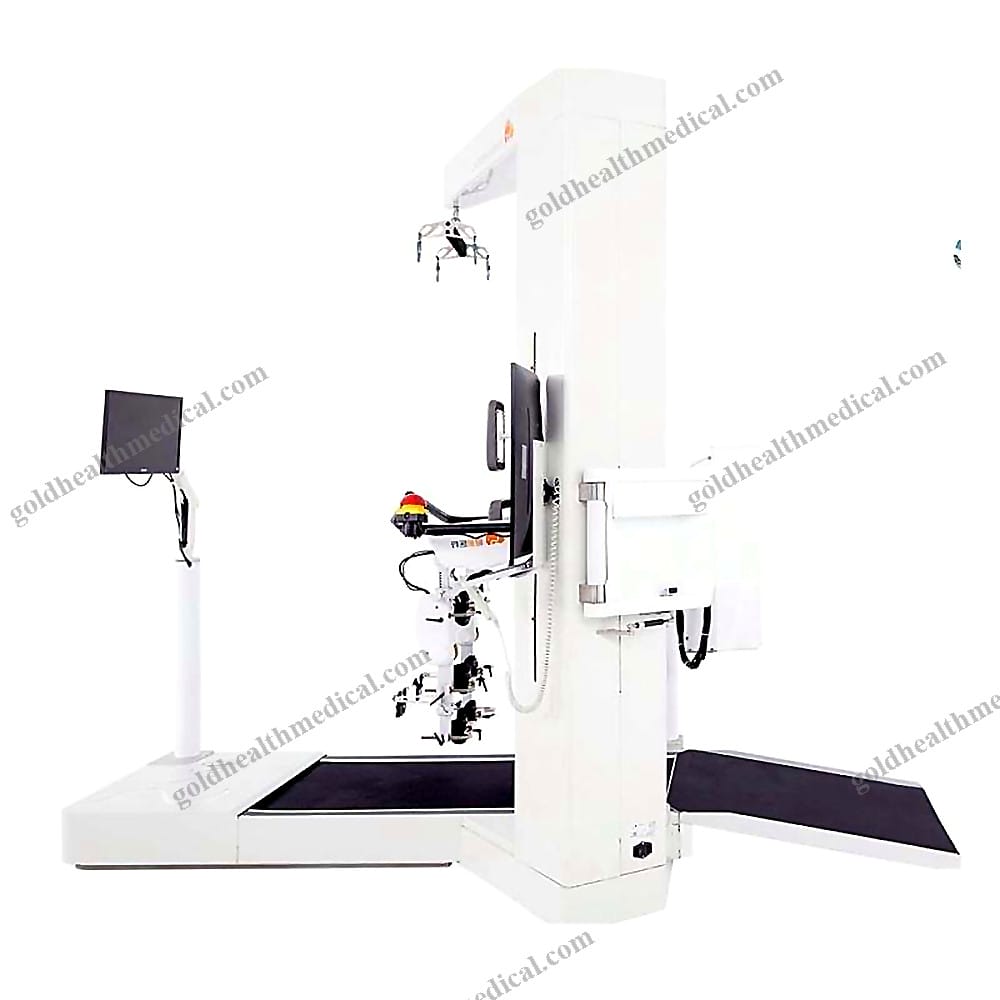

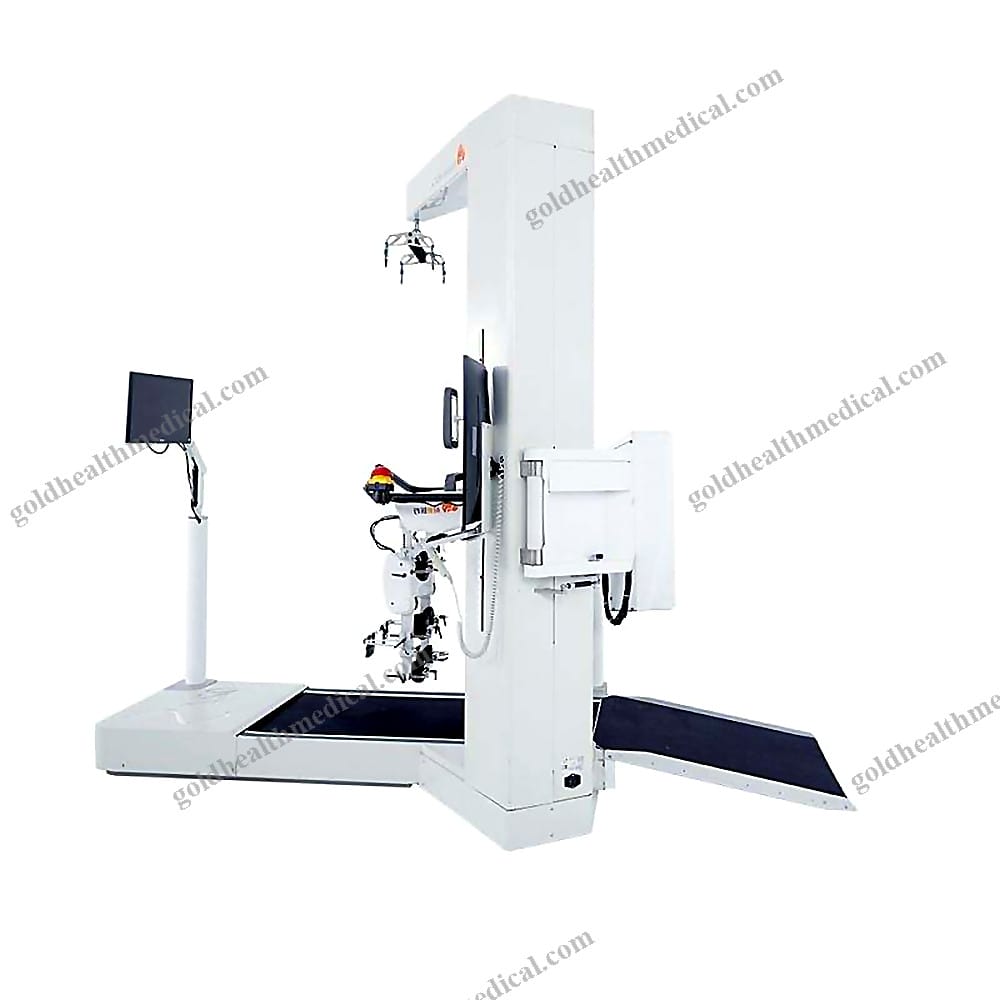

Revolutionizing Rehabilitation with GoldHealth Medical

GoldHealth Medical presents an advanced rehabilitation solution designed to redefine patient care and recovery. Our state-of-the-art system combines cutting-edge technology with user-centric design to deliver unparalleled performance and safety.

Key Features and Specifications

• Operating Platform:
  A 23-inch host computer powered by Windows 10, featuring a dual-display setup (portrait + landscape) for seamless operation and immersive training experiences.

• Human-Machine Interface:
  Dual-screen interface ensures ease of use:

• Vertical screen with wireless button and mouse for therapists.

• Horizontal screen for patients, offering engaging situational interactive training.

• Immersive Virtual Training:
  Virtual walking scenarios provide an immersive environment, enhancing treatment engagement and enjoyment.

• Walking Training Technology:

• Simulates natural human gait with real-time gait curve display.
• Training speed adjustable from 0.1 km/h to 3.5 km/h, starting at a minimum of 0.1 km/h.
• Hip joint angle range: 30°–50°.

• Knee joint angle range: 50°–80°.

• Precision Training Drivers:
  Four Panasonic servo motors control left and right legs, as well as hip and knee movements, ensuring precise speed and joint angle adjustments.

• Versatile Training Modes:
  Active and passive training modes with soft, continuously adjustable guidance force for personalized therapy.

• Advanced Gait Functionality:
  Designed based on normal physiological gait curves, the system adjusts leg parameters such as hip and knee motion, offset, step frequency, and speed for optimal results.

• Spasticity Detection:
  Adjustable sensitivity (10%–100%) detects spasticity, halting the platform and mechanical leg synchronously to ensure patient safety.

• User Information Management:
  Comprehensive recording of patient treatment data for effective progress tracking.

• Weight Support System:

• Static and dynamic support modes with a maximum weight reduction of 75 kg.

• Real-time adjustments simulate the center of gravity transfer during walking.

• Real-Time Control Platform:

• Millisecond-level fine-tuning for precise mechanical leg synchronization.
• Seamless running platform with a buffer runway to prevent injuries.

• Protects patients’ knees and ligaments with advanced safety features.

• Emergency Stop Mechanism:
  Equipped with two emergency stop switches:

• Manual emergency stop for immediate cessation of gait training and treadmill operation.
• Photoelectric switch for real-time foreign object detection.

Technical Parameters

• Power Supply: AC220V, 50Hz.
• Rated Power: 1,000 VA.
• Patient Height: Up to 200 cm.
• Patient Weight: Up to 135 kg.
• Leg Length Adjustment:
• Thigh bone rotor to knee joint: 34–47 cm.
• Knee to ankle joint: 28–36 cm.
• Joint Range of Motion:
• Hip joint: 30°–50°.
• Knee joint: 50°–80°.
• Guide Force Setting: 1%–100%.
• Training Speed: 0.1–3.5 km/h.
• Treatment Duration: 1–99 minutes.
• Spasticity Sensitivity: 10%–100%.
• Gait Offset: 20 adjustable levels.
• Weight Support Travel Range: 0–38 cm.
• Back Cushion Depth Adjustment: 0–10 cm.
• Hip Soft Cushion Depth Adjustment: 0–11 cm.
• Hip Cushion Width Adjustment: 0–22 cm.

GoldHealth Medical’s rehabilitation system is engineered to meet the diverse needs of hospitals, clinics, research institutions, and home users, ensuring safety, precision, and innovation in every step of the recovery journey.
