Precision Surgical Microscope 8x Magnification
Reference: 1601062174654Microsurgery Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

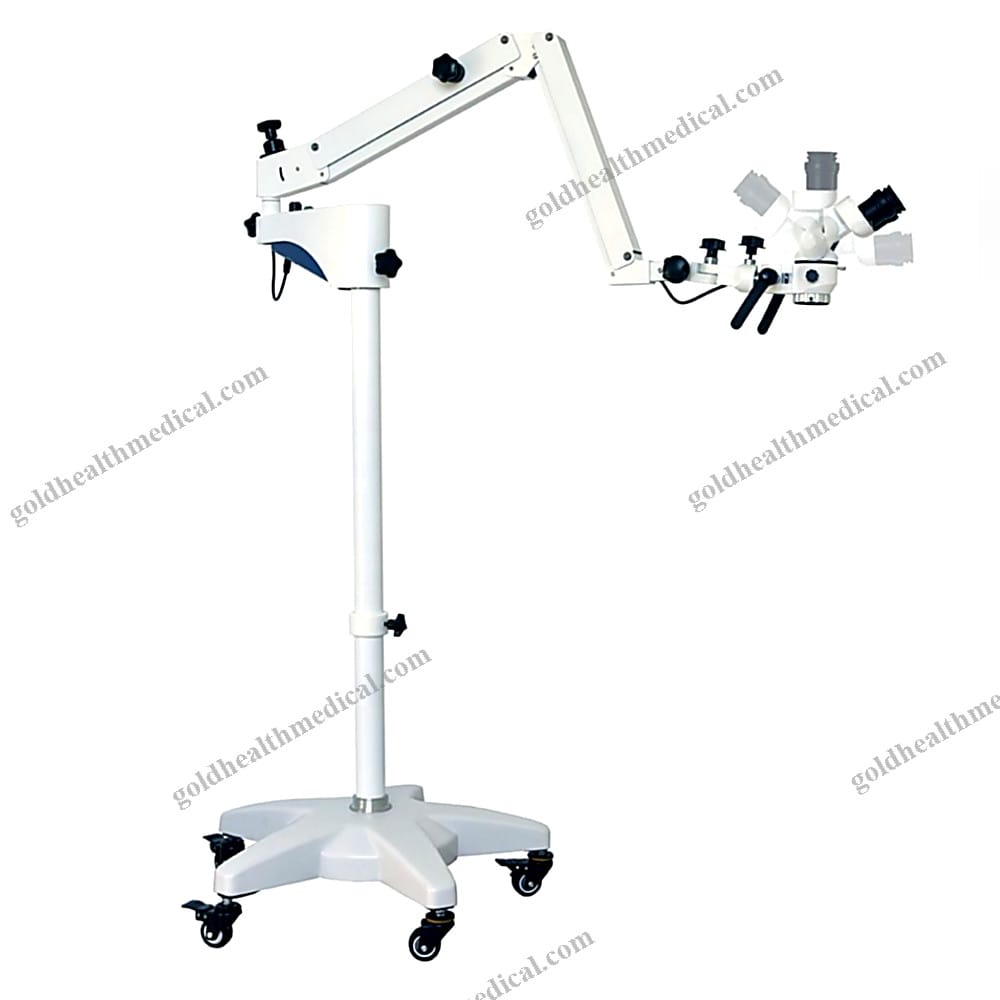

GoldHealth Medical presents the Surgical Microscope: Precision Redefined
Experience unparalleled precision with GoldHealth Medical's advanced surgical microscope. Designed for exceptional performance, this microscope is tailored for microsurgery across various medical disciplines, including ear-nose-throat, dental, ophthalmology, gynecology, and general surgery.

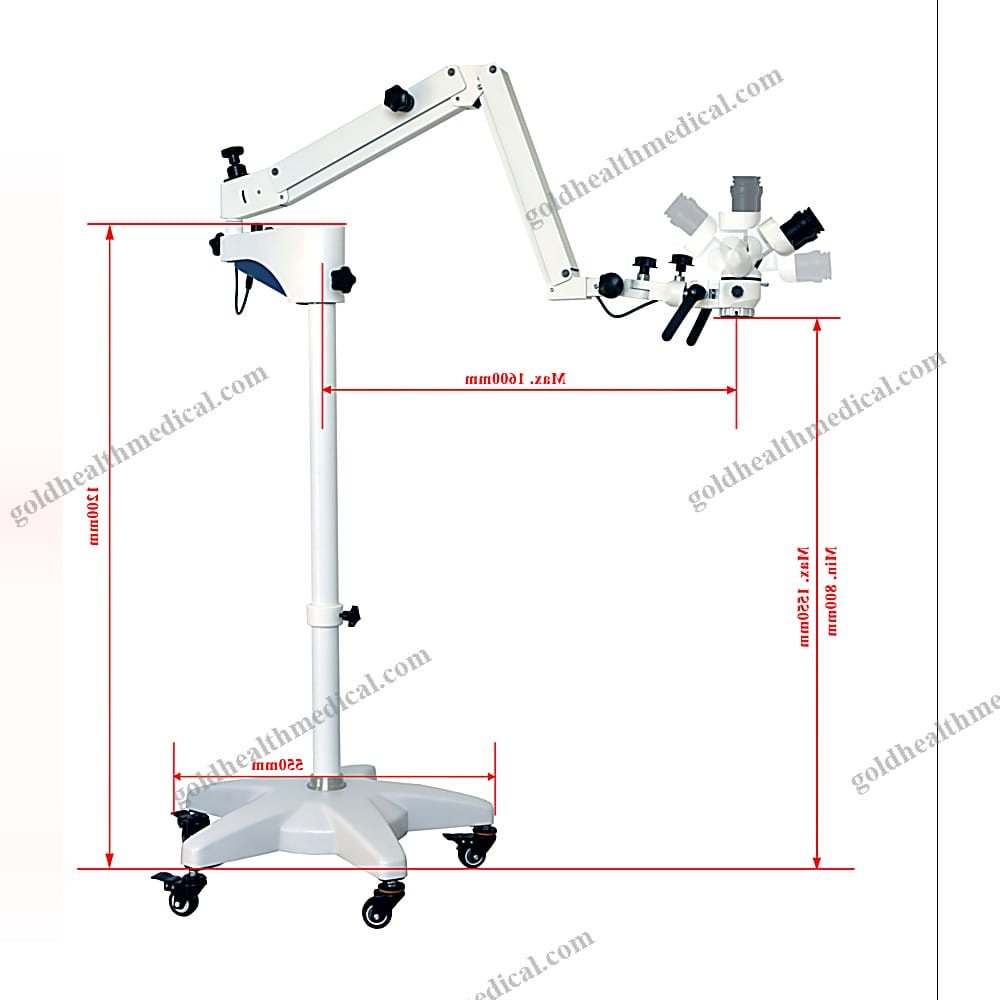

Key Features: - Binocular Observation Mirror: Convertible angle up to 180° with 8x magnification and a 12.5X eyepiece. - Three-Speed Zoom: Smooth transitions between 0.6x, 1x, and 1.6x magnifications. - Objective Lenses: Standard F=200mm and F=250mm lenses, with optional F=300mm and F=400mm lenses. - Total Magnification Range: 4.8X to 16X, ensuring detailed visualization. - Built-In Filters: Green and orange filters for enhanced clarity. - Fine-Tuning Distance: Precise adjustments up to 10mm. - LED Light Source: 10W coaxial illumination with adjustable brightness for optimal visibility. - Robust Design: Two-section arm with weight adjustment and locking device, paired with a two-section long column and five-star base for stability. - Power Supply: Efficient DC12V3A power adapter.
Optional Accessories: - Spectroscope - Camera connector - Teaching mirror - Camera and monitor setup - Monitor stand - Desktop and wall-mounted stands
Optical Characteristics:
- Focal Length of Objective:
- F=200mm
- F=250mm (optional)
- F=300mm
F=400mm (optional)
Magnification on Handwheel:
1.6X, 1X, 0.6X
Total Magnification:
- F=200mm: 12X, 7.5X, 4.7X
- F=250mm: 9.6X, 6X, 3.7X
- F=300mm: 8X, 5X, 3X
F=400mm: 6X, 3.8X, 2.3X
Linear Field (mm):
- F=200mm: 15.8, 25.3, 40.6
- F=250mm: 19.7, 31.6, 50.7
- F=300mm: 23.6, 37.9, 60.8
F=400mm: 31.5, 50.5, 81
Exit Pupil Diameter (mm):
Consistent at 1.04mm and 1.66mm across all focal lengths
Exit Pupil Distance (mm):
15.3mm
Resolution (LP/mm):
- F=200mm: 67, 44.5, 29.7
- F=250mm: 60, 35.4, 27
- F=300mm: 47.2, 31.5, 23.6
- F=400mm: 35, 27, 19.8
Unmatched Support and Service: GoldHealth Medical is committed to delivering high-quality products with comprehensive after-sales support. Our dedicated team of engineers ensures that any issues encountered during use are promptly addressed, maintaining your trust and market reputation.
Why Choose GoldHealth Medical? - Global Reach: Trusted by hospitals, clinics, and research institutions in over 130 countries. - Certified Excellence: Products meet ISO and RoHS standards, ensuring safety and reliability. - Customization Options: Add your company logo to our products for a personalized touch. - Comprehensive Warranty: Benefit from a 12-month warranty on all products, with dedicated support for accessories.
GoldHealth Medical: Empowering healthcare professionals with innovative solutions designed to enhance precision and patient outcomes.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge optical solution designed for precision and reliability in medical, laboratory, and research environments. This state-of-the-art device combines advanced engineering with user-centric design, ensuring unparalleled performance for professionals across diverse fields.
Key Features and Specifications
- Magnification Options: Offers versatile total magnifications of 3X, 4.7X, 5X, 7.5X, 8X, and 12X, catering to a wide range of applications.
- Binocular Magnification: 8X for enhanced clarity and detail.
- Interpupillary Distance Adjustment: Adjustable range of 50mm to 80mm, ensuring comfort for all users.
- Diopter Adjustment: ±5D for precise focus customization.
- Objective Focal Lengths: Dual objectives with F=200mm and F=300mm for flexible viewing options.
- Power Source: Electric, providing consistent and reliable operation.
- Instrument Classification: Class II, meeting rigorous industry standards.
- Safety Compliance: Certified by MFDS, ensuring safety and reliability in medical applications.
- Material Construction: Durable combination of metal, plastic, and steel for long-lasting performance.
Quality Assurance
- Warranty: Backed by a comprehensive 1-year warranty for peace of mind.
- Shelf Life: Designed with a shelf life of 3 years, maintaining optimal functionality over time.
- Certifications: ISO-certified, guaranteeing adherence to global quality standards.
After-Sales Support
GoldHealth Medical is committed to customer satisfaction with online technical support available to assist with any queries or troubleshooting needs.
Packaging Details
- Selling Units: Single item
- Package Dimensions: XX cm
- Gross Weight: XX kg
Applications
Ideal for hospitals, clinics, laboratories, research institutions, rehabilitation centers, and home healthcare settings, this product delivers exceptional performance and adaptability for both professional and personal use.
Why Choose GoldHealth Medical?
Our commitment to innovation, precision, and user satisfaction ensures that every product is engineered to exceed expectations. With a focus on quality and reliability, GoldHealth Medical is your trusted partner in advanced medical solutions.
