Portable Veterinary Ultrasound Scanner
Reference: 1601314571621Veterinary Diagnostic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Portable Ultrasound Scanner
Product Overview
GoldHealth Medical introduces a cutting-edge portable ultrasound scanner designed for versatility and precision. This device is engineered to meet the needs of modern healthcare environments, offering high-definition imaging and advanced functionality in a compact form.
Key Features

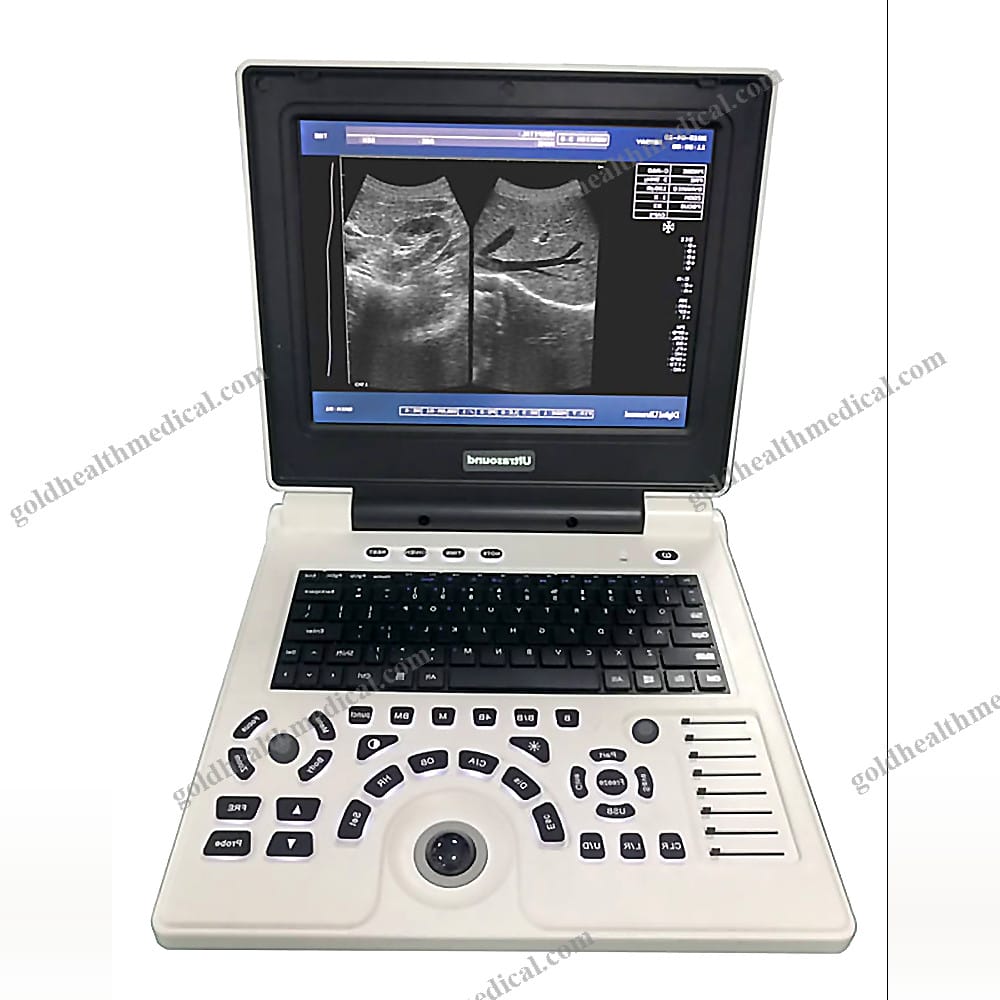

- High-Definition Display: Equipped with a 12.1-inch LCD screen featuring a resolution of 800 x 600 pixels for crystal-clear imaging.
- Advanced Power Options: Operates on both AC and DC power, with an included power adapter. A large-capacity lithium battery provides up to 2 hours of standby time.
- Precision Controls: Eight-segment TGC (Time Gain Compensation) for precise segmentation and total gain adjustment. Intuitive laptop-style operation buttons and digital encoder adjustment ensure ease of use.
- Multilingual Support: Available in both Chinese and English languages to cater to a global audience.
- Comprehensive Connectivity: Dual probe sockets, PAL and SVGA video outputs, and a high-speed USB interface supporting large-capacity USB drives. Compatible with Sony and Mitsubishi printers or other thermal printers for report image printing.
- Versatile Display Modes: Offers multiple display modes including B, B/B, 4B, B/M, and M for detailed diagnostic capabilities.
- Wide Frequency Range: Operates within a frequency range of 2.0-10.0 MHz, accommodating various clinical needs.
- Optional Probes: Includes options for 3.5 MHz convex, 6.5 MHz transvaginal, and 7.5 MHz linear probes.
- Standard Configuration: Comes with a 3.5 MHz convex probe as standard.

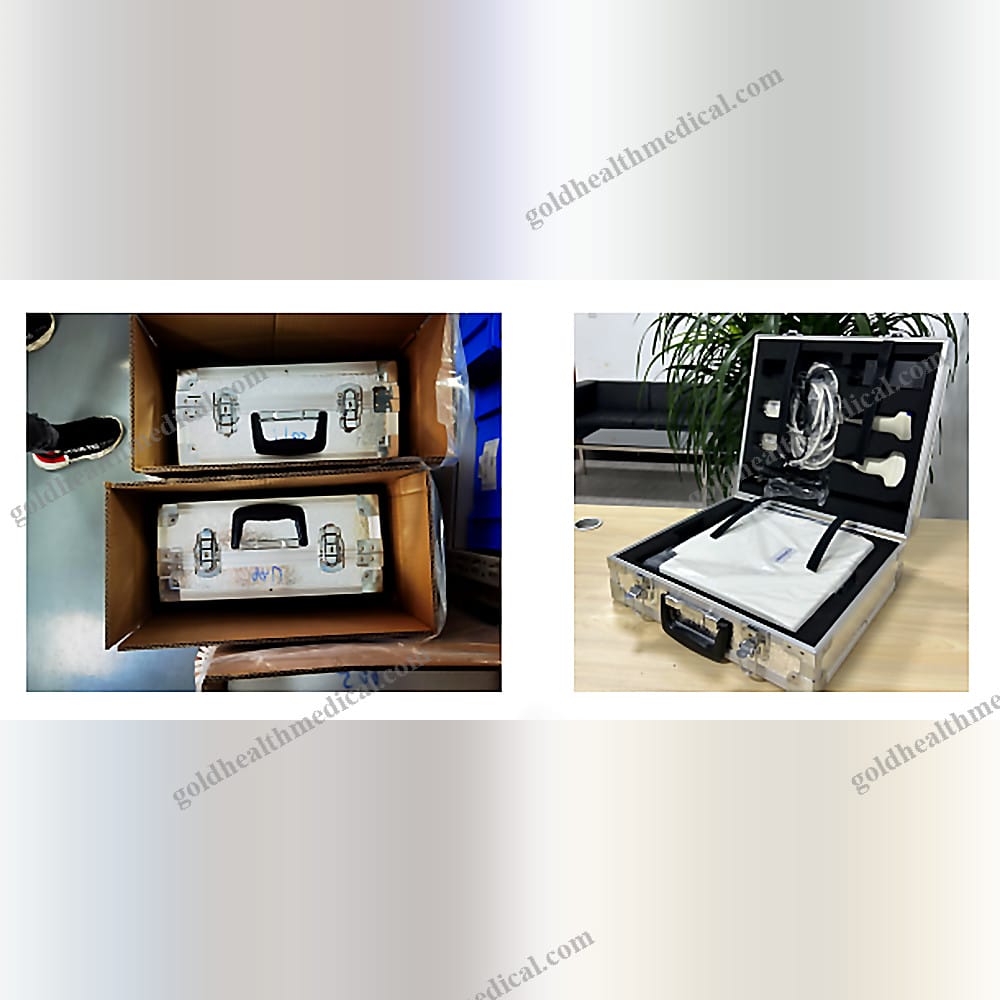

- Portable Design: Lightweight at just 5.5 kg net weight, with double-layer packaging ensuring safe transport.
Technical Specifications
- Display: 12.1-inch LCD, 800 x 600 resolution
- Power Supply: AC and DC with adapter, 5200mAh lithium battery
- Controls: Eight-segment TGC, total gain adjustment, digital encoder
- Languages: Chinese, English
- Interfaces: Dual probe socket, PAL/SVGA video output, high-speed USB
- Printers: Compatible with Sony, Mitsubishi, and other thermal printers
- Display Modes: B, B/B, 4B, B/M, M
- Frequency Range: 2.0-10.0 MHz
- Probes: Optional 3.5 MHz convex, 6.5 MHz transvaginal, 7.5 MHz linear
- Weight: 6.2 kg gross, 5.5 kg net
- Packaging Dimensions: 490 x 460 x 250 mm
Clinical Applications
This ultrasound scanner is ideal for a variety of clinical settings, providing reliable and high-quality imaging for accurate diagnostics. Its portability and advanced features make it suitable for hospitals, clinics, research institutions, and home healthcare.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative and reliable medical solutions. Our products are designed to enhance healthcare delivery, improve patient outcomes, and support medical professionals in their critical work. With a focus on quality and customer satisfaction, we aim to be your trusted partner in healthcare technology.
Explore the future of medical imaging with GoldHealth Medical's portable ultrasound scanner.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Portable Ultrasound Scanner, a cutting-edge solution designed for versatile medical and veterinary applications. Engineered with precision and portability in mind, this device is ideal for body health checks, veterinary diagnostics, and more. Its sleek design, advanced functionality, and user-friendly interface make it an indispensable tool for healthcare professionals and institutions.
Key Features and Specifications
- Brand Name: GoldHealth Medical
- Application: Medical diagnostics and veterinary health checks
- Power Source: Electric with a removable battery (5200 mAh) for uninterrupted performance
- Display: 12-inch high-resolution screen with a resolution of 800x600 pixels
- Display Modes: Multiple imaging options including B, B/B, 4B, B/M, and M modes
- Language Support: English interface for seamless operation
- Material: Durable construction using premium plastic and metal components
Performance and Usability
- Portability: Lightweight and easy to move, making it perfect for clinics, fieldwork, and home healthcare
- Battery Life: Long-lasting 5200 mAh battery ensures extended use without frequent recharging
- Versatility: Suitable for a wide range of applications, from routine health checks to specialized veterinary diagnostics
Quality Assurance
- Warranty: Comprehensive 2-year warranty for peace of mind
- Shelf Life: 3 years, ensuring long-term reliability
- Certifications: ISO-certified, meeting international quality and safety standards
- Instrument Classification: Class II medical device
Additional Benefits
- After-Sale Support: Access to online technical support for troubleshooting and guidance
- Sample Availability: Samples available upon request for evaluation
- MOQ: Flexible ordering with a minimum order quantity of just 1 set
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and high-performance medical devices. Our Portable Ultrasound Scanner combines advanced technology with practical design, empowering healthcare providers to deliver exceptional care. Whether you're managing a hospital, clinic, or veterinary practice, this device is your ultimate diagnostic companion.
Place of Origin: Chongqing, China – A hub of technological innovation and manufacturing excellence.
Experience the future of portable diagnostics with GoldHealth Medical.
