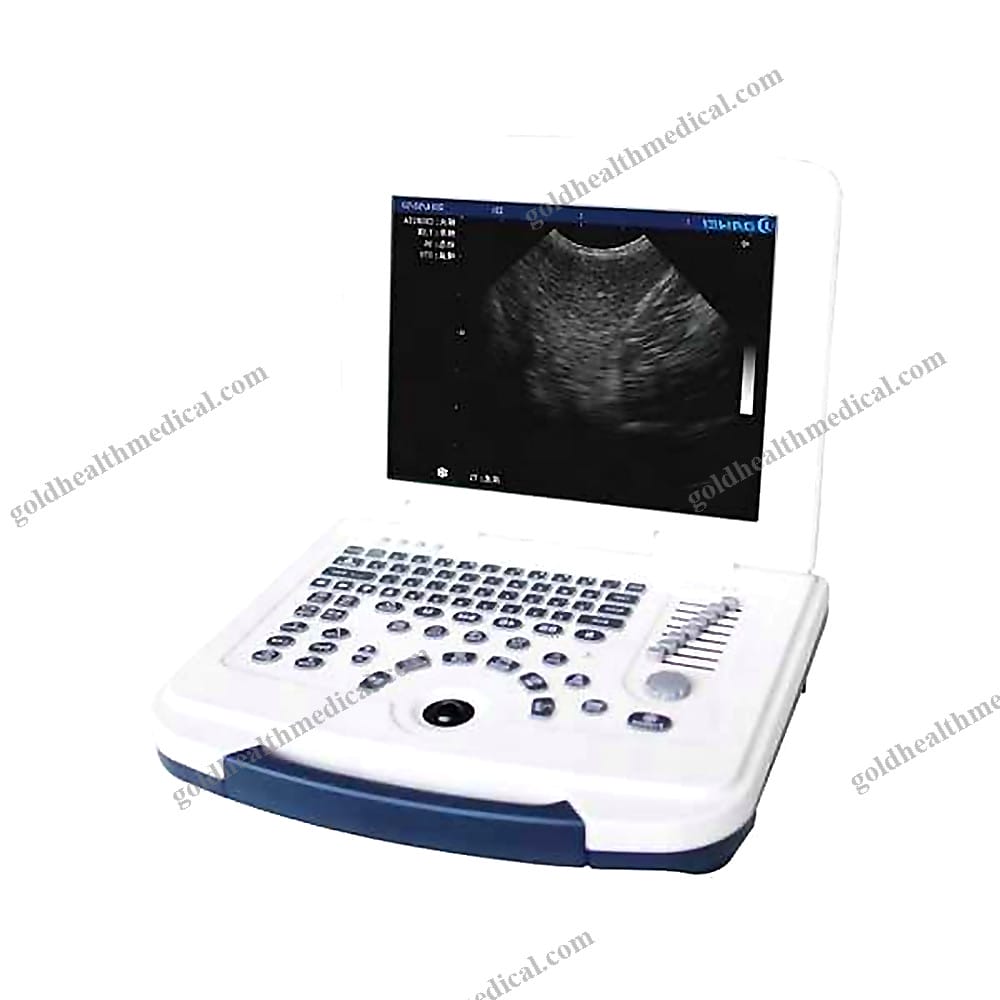

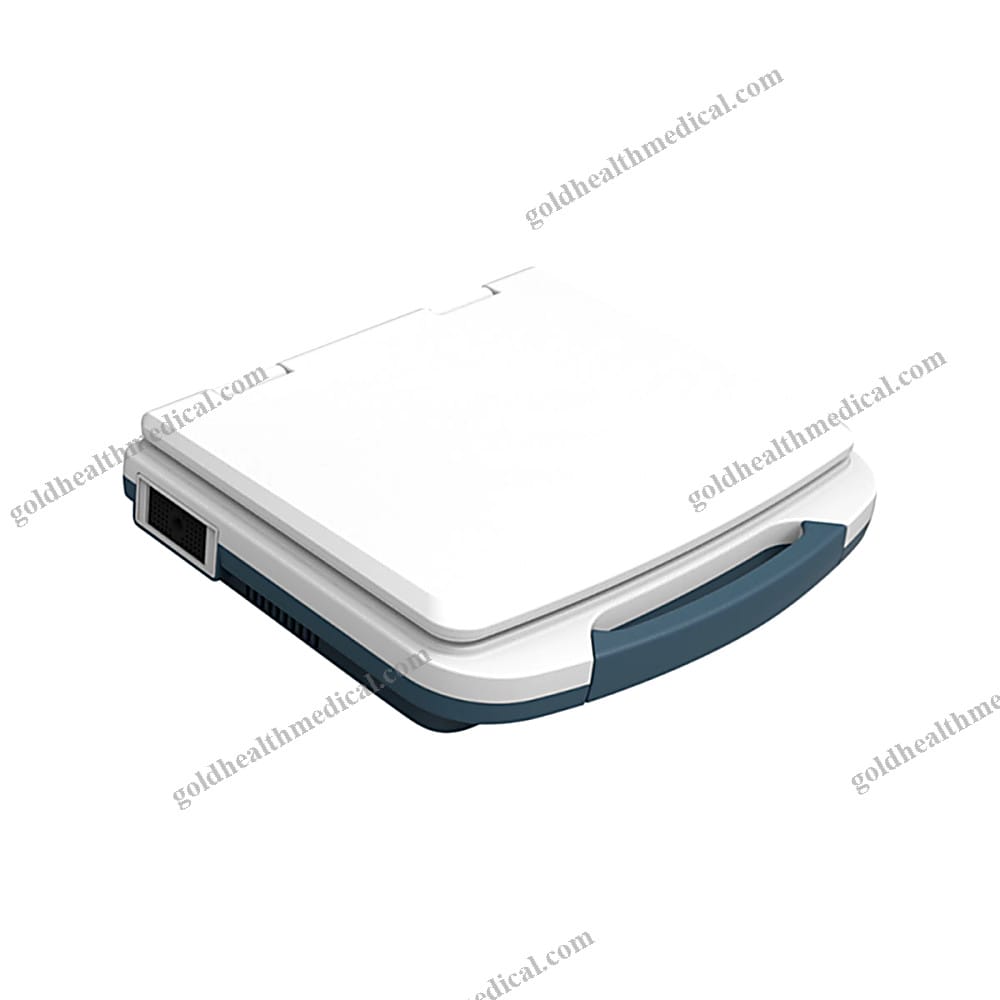

Portable Veterinary Ultrasound Scanner for Pets Livestock
Reference: 1601208586909Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Revolutionizing Veterinary Care with GoldHealth Medical
Product Overview

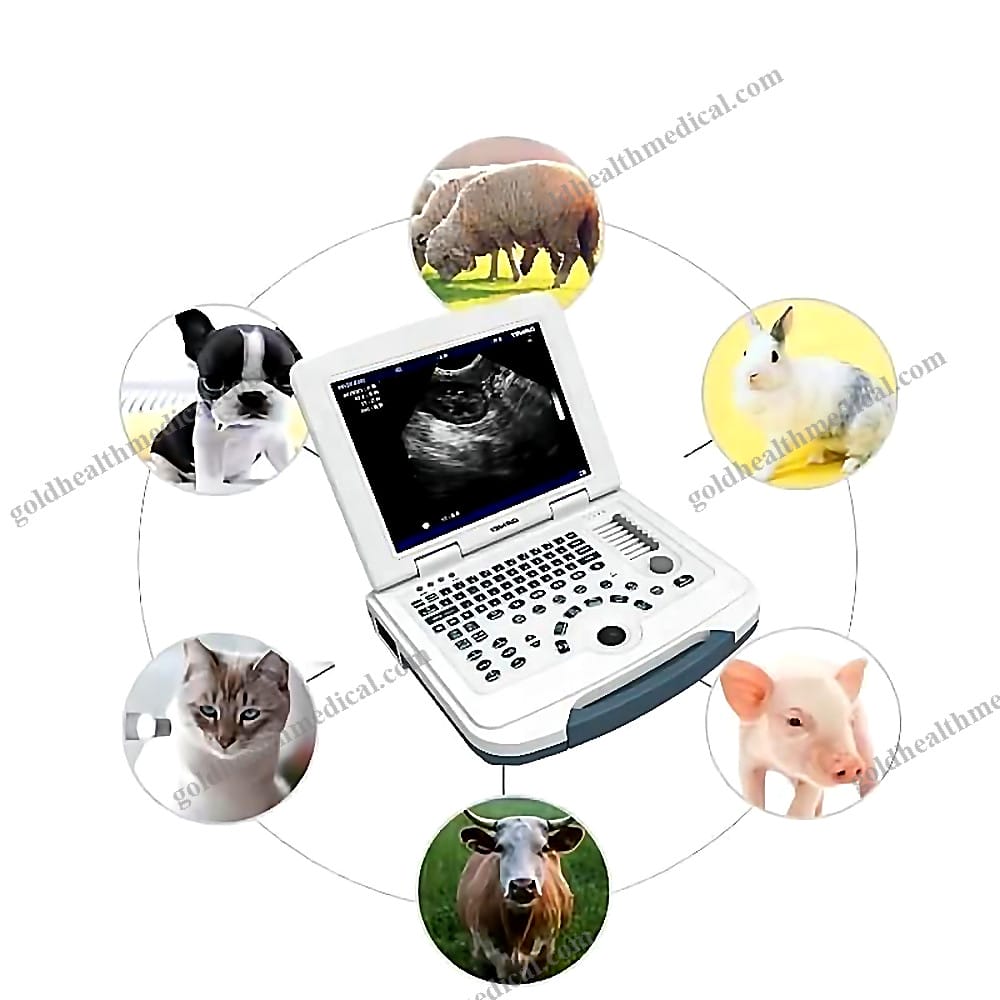

GoldHealth Medical introduces a cutting-edge handheld veterinary ultrasound scanner designed for unparalleled precision and convenience. This state-of-the-art device is tailored for a wide range of applications, including ovine, bovine, equine, swine, alpaca, feline, canine, rabbit, fish, snake, and more.
Key Features
- Crystal-Clear Imaging: Equipped with a 5-inch TFT-LCD display offering wide visual angles, high brightness, and exceptional contrast, ensuring images are clear and detailed.
- Portable Design: Lightweight and smartly designed for effortless portability, making it ideal for on-the-go diagnostics.
- Advanced OB Measurements: Provides accurate EDD and GA measurements for various species, including bovine, equine, swine, alpaca, ovine, goat, canine, feline, and rabbit.
- Extensive Storage: Capable of storing 128 permanent frames and up to 400 frames in cine loop, ensuring comprehensive data retention.
- Versatile Power Options: Operates on both AC and DC power, with a robust lithium battery offering over 180 minutes of continuous use.
Technical Specifications
- Detect Depth: ≥140mm
- Blind Zone: ≤3mm
- Monitor Size: 5-inch TFT-LCD
- Display Modes: B, B+B, B+M, M, 4B
- Image Gray Scale: 256 levels
- Image Storage: 128 frames
- Cine Loop: ≥400 frames
- Scan Depth: 120mm-220mm
- Image Flip: Up/down, left/right
- Focus Position: Adjustable
- Posture Mark: 15 options
- Image Processing: Histogram, color encode, gamma, image smoothing
- Probe Frequency: Adjustable (3 points per probe)
- Frame Correction: Adjustable
- Measurement Capabilities: Distance, circumference, heart rate, EDD, area, volume, GA, and more
- Notation Features: Date, time, name, sex, age, full-screen text editing
- Output Report: Standard format
- Output Ports: USB 2.0, VIDEO (PALD, NTSC)
- Charging Methods: Adapter, battery
- Battery Capacity: 2600mAh, continuous work ≥3 hours
- Machine Dimensions: 230mm(L) x 120mm(W) x 38mm(H)
- Net Weight: 700g
Standard Configuration
- Scanner Body: 1 unit
- Li-ion Battery: 1 unit

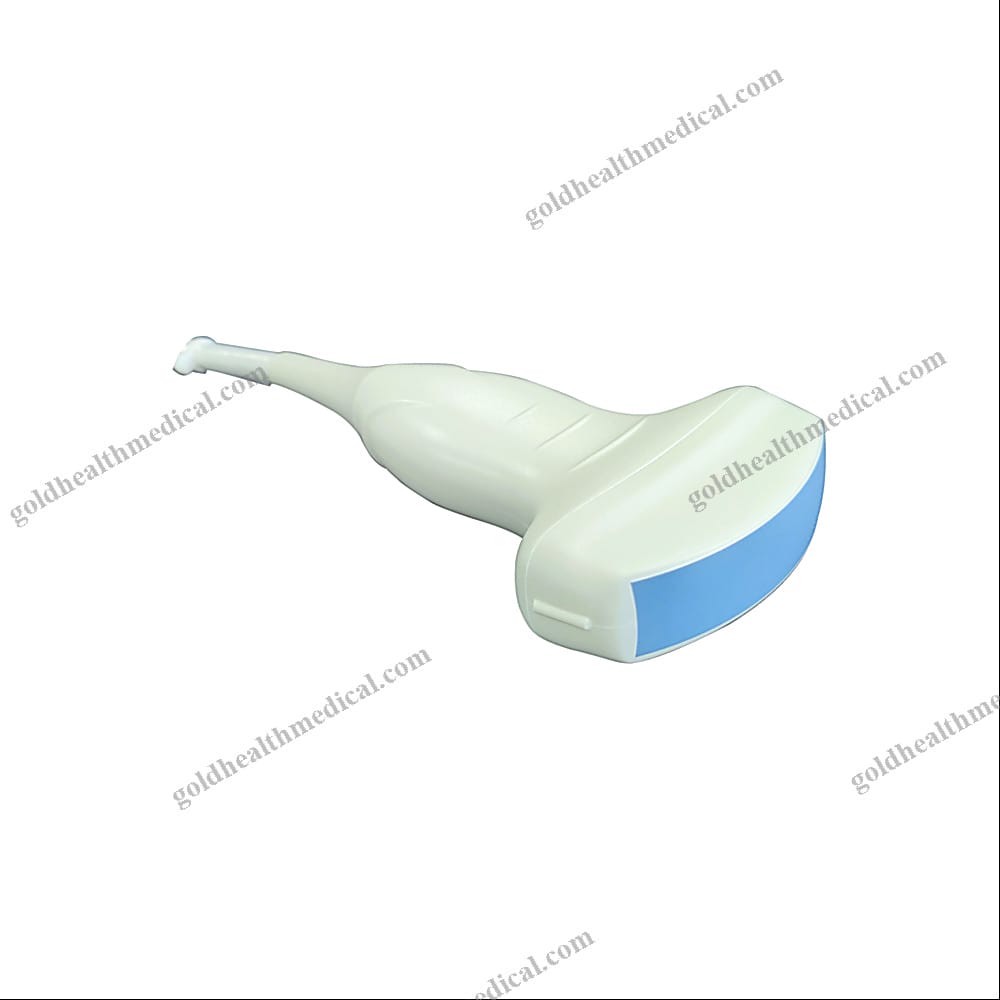

- 3.5MHz Convex Probe: 1 unit
- Charger with Wires: 1 set
- Wrap Bag: 1 unit
- CD: 1 unit
- Bottle of USG Gel: 1 unit
- Transportation Case: 1 unit
- User Manual: 1 unit
Optional Accessories

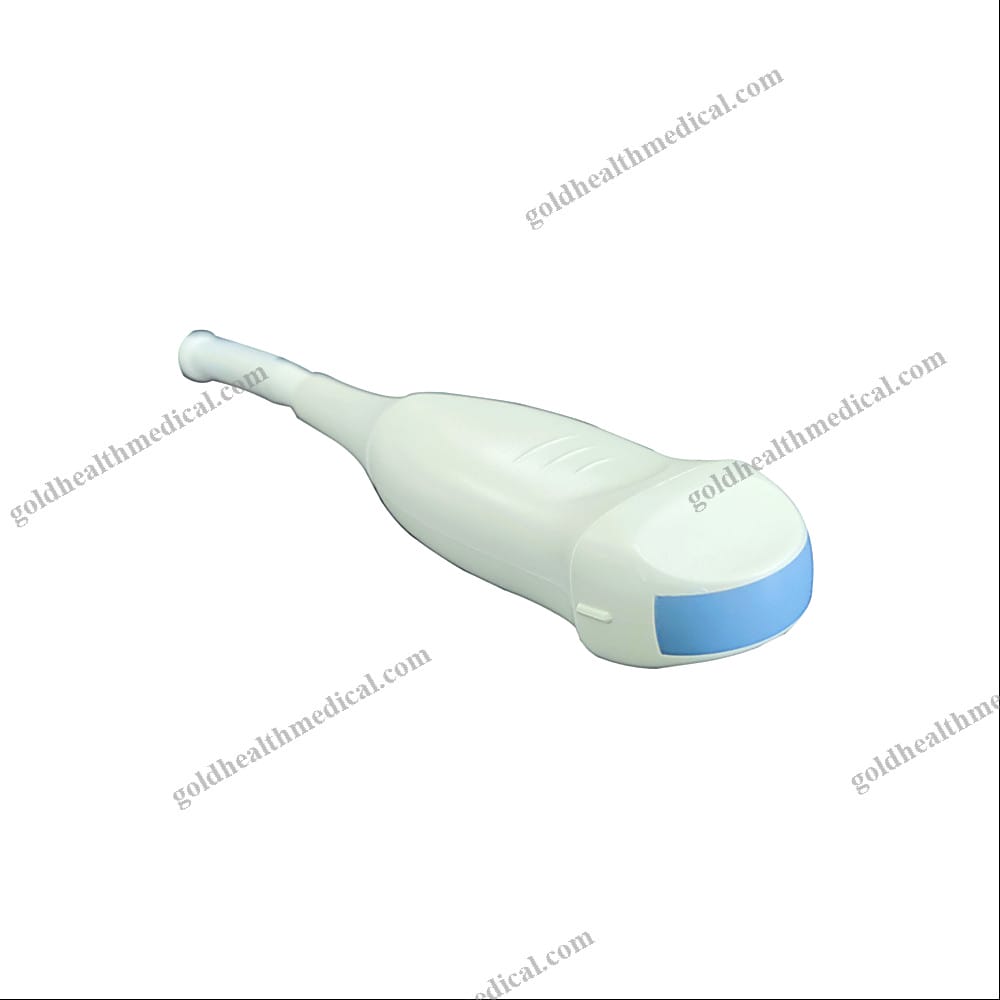

- 5.0MHz Micro-convex Probe

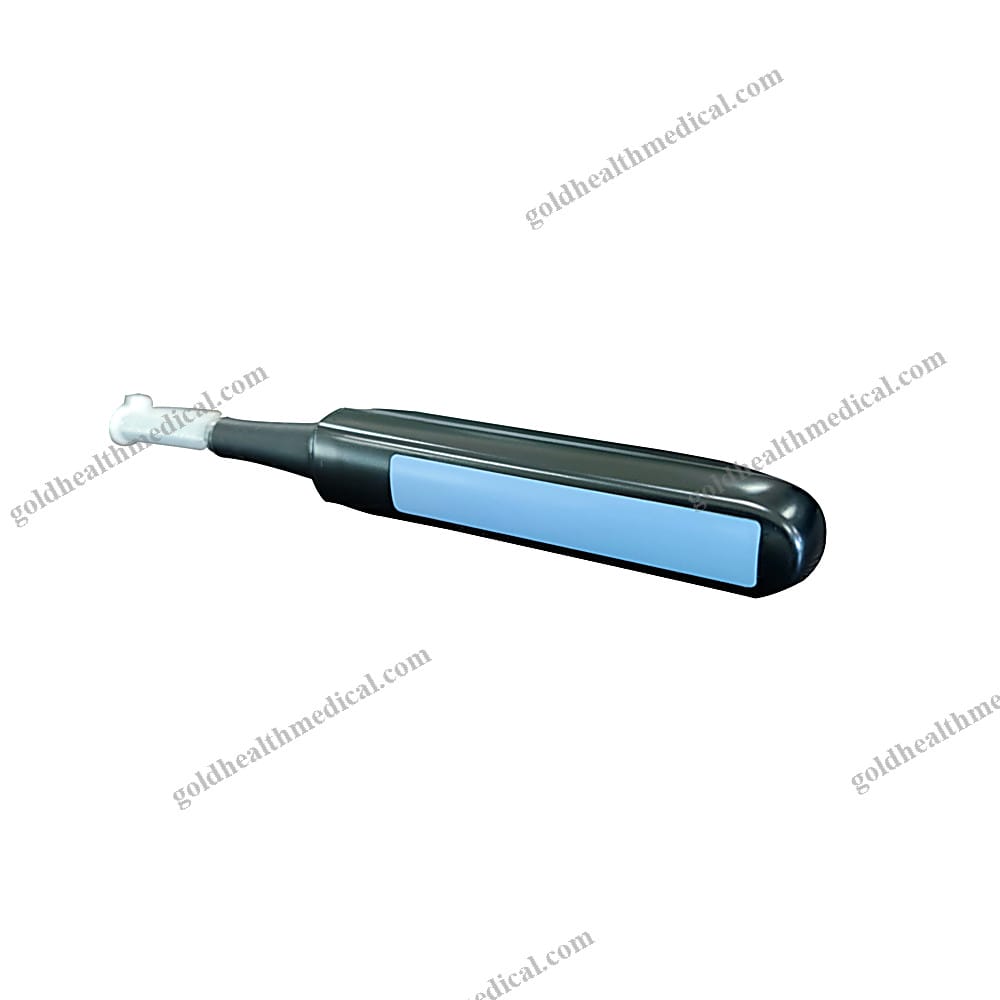

- 6.5MHz Rectal Probe
- 6.5MHz Rectal Probe with Rod
- 7.5MHz Linear Probe
- Goggle
- Li-ion Battery
- Rod of Rectal Probe
- Car Charger
- Charging Adaptation Wire (including power cord)
Why Choose GoldHealth Medical?
GoldHealth Medical stands at the forefront of veterinary innovation, delivering devices that combine advanced technology with user-centric design. Our ultrasound scanner ensures reliable performance, backed by rigorous quality assurance processes. With a commitment to excellence, we provide comprehensive after-sales support and warranty policies tailored to meet your needs.
Transform your veterinary practice with GoldHealth Medical's portable ultrasound machine, designed to deliver precision, portability, and peace of mind.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents its state-of-the-art Veterinary Ultrasound, a cutting-edge diagnostic tool designed to elevate animal healthcare. Engineered with precision and reliability in mind, this device is tailored for veterinarians, research institutions, and animal care facilities seeking unparalleled imaging performance.
Key Features and Specifications
- Monitor Size: Compact and ergonomic design with dimensions of 240x120x45mm, ensuring portability and ease of use.
- Detect Depth: Achieves an impressive depth of ≥140mm, enabling clear visualization of deeper tissues.
- Display Modes: Offers versatile imaging options including B, B+B, B+M, M, and 4B modes for comprehensive diagnostic flexibility.
- Image Gray Scale: Delivers exceptional clarity with a 256-level grayscale for detailed tissue differentiation.
- Image Storage: Equipped with a capacity to store up to 128 images, ensuring efficient record-keeping.
- Cine Loop: Supports dynamic imaging with a cine loop of ≥400 frames, allowing seamless review of motion sequences.
- Scan Depth Range: Adjustable scan depth from 120mm to 220mm, catering to diverse diagnostic needs.
- Image Flip: Provides intuitive image orientation with up/down and left/right flip functionality for enhanced usability.
Technical Excellence
- Instrument Classification: Class II medical device, ensuring safety and reliability in professional environments.
- Power Source: Fully electric operation for consistent performance.
- Material: Constructed with durable metal and high-quality plastic components for long-lasting use.
Quality Assurance
- Backed by a 2-year warranty, reflecting our confidence in the product's durability and performance.
- Certified with CE quality standards, guaranteeing compliance with international safety and quality regulations.
Packaging and Delivery
- Single Package Dimensions: 40x20x20 cm, designed for secure and efficient transportation.
- Single Gross Weight: 5.000 kg, ensuring portability without compromising robustness.
Why Choose GoldHealth Medical?
Our Veterinary Ultrasound combines advanced technology, user-centric design, and exceptional reliability to deliver a transformative diagnostic experience. Whether in a clinical setting or on the field, this device empowers professionals to achieve accurate diagnoses and improve animal health outcomes.
After-Sale Support
Benefit from online technical support, ensuring uninterrupted performance and expert assistance whenever needed.
GoldHealth Medical is committed to redefining veterinary care through innovation and excellence. Choose our Veterinary Ultrasound for a smarter, more efficient approach to animal diagnostics.
