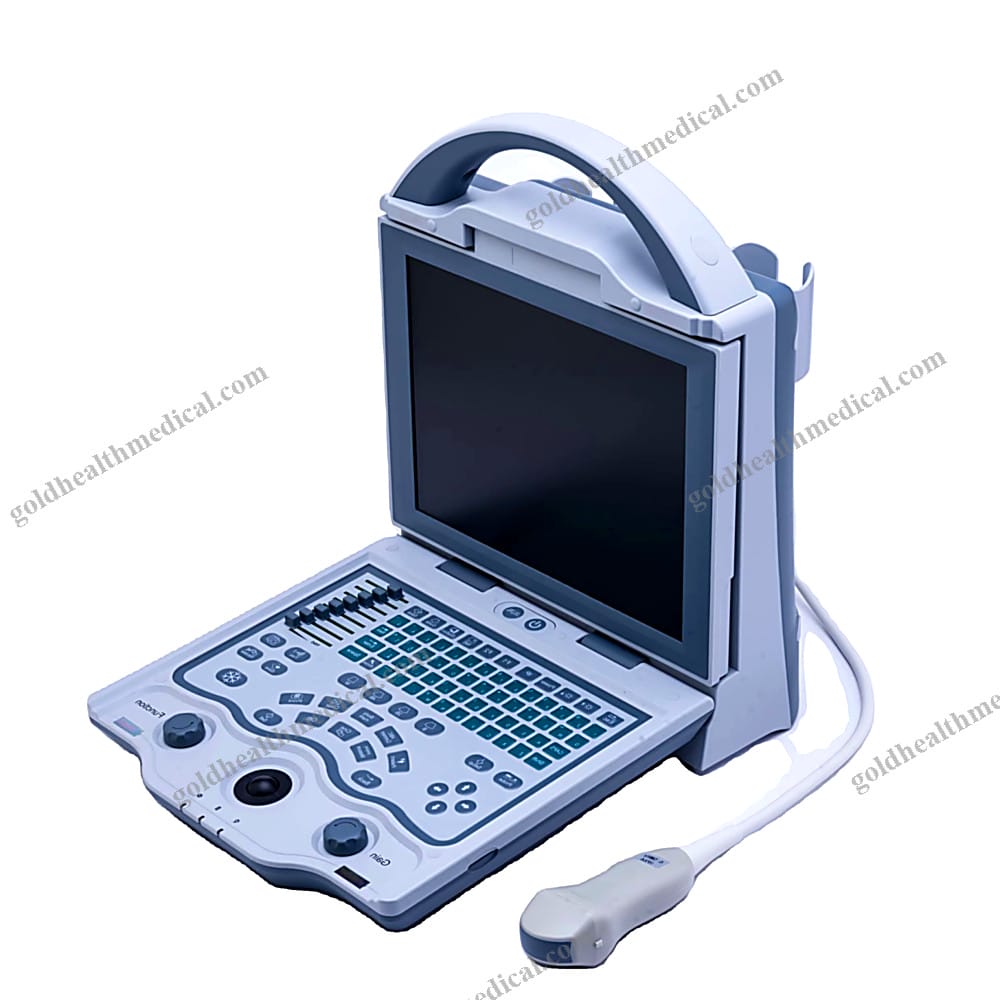

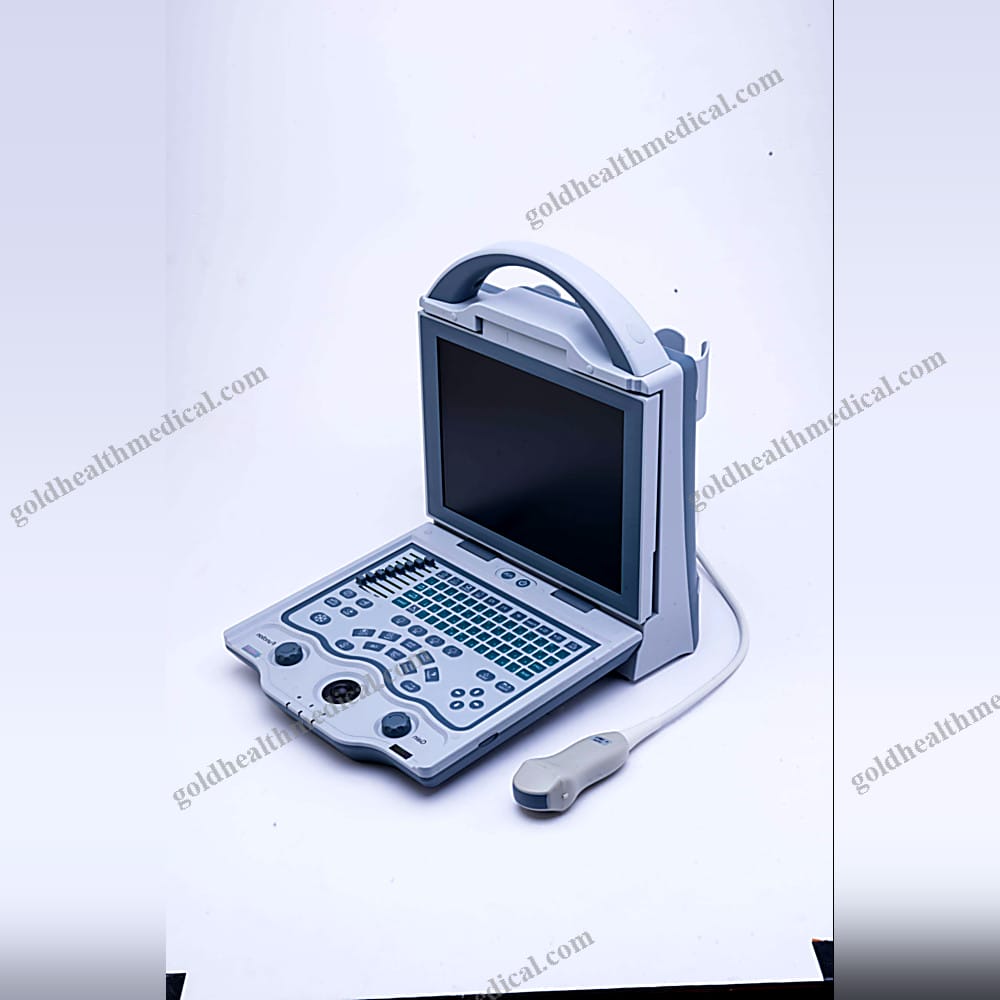

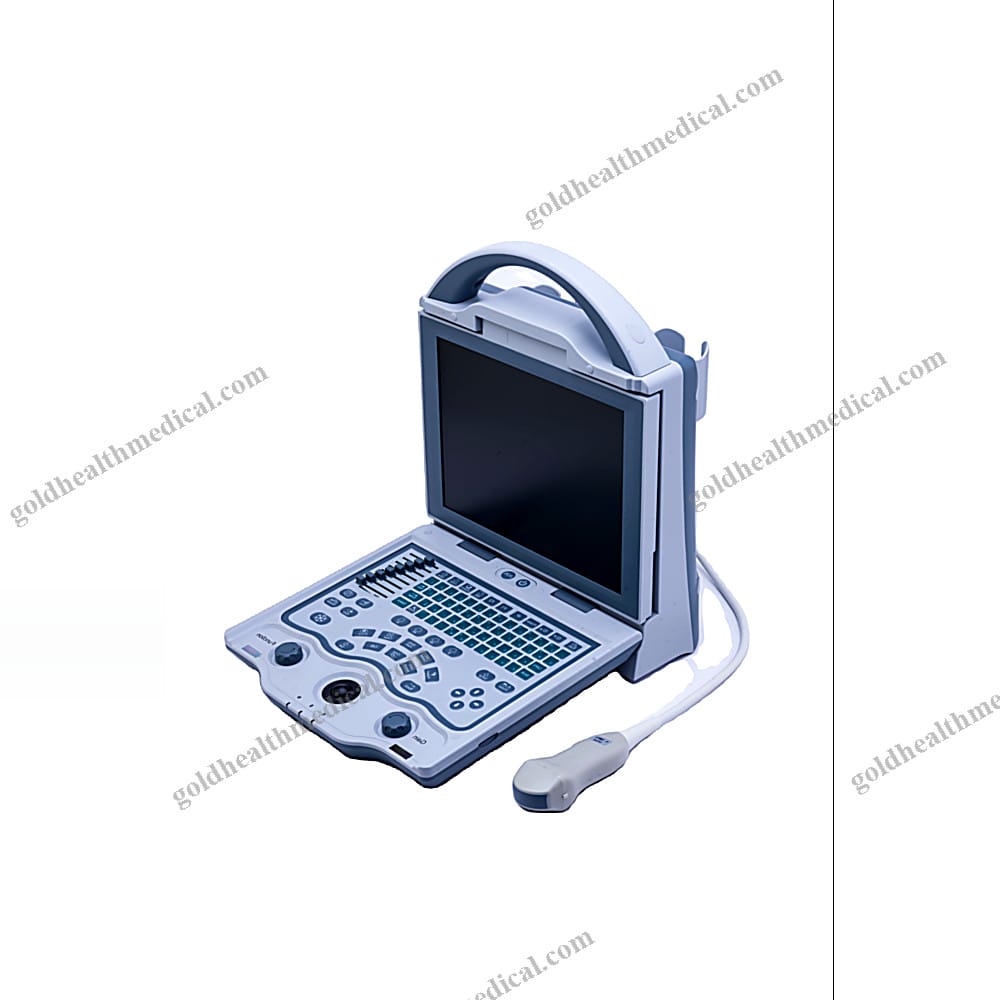

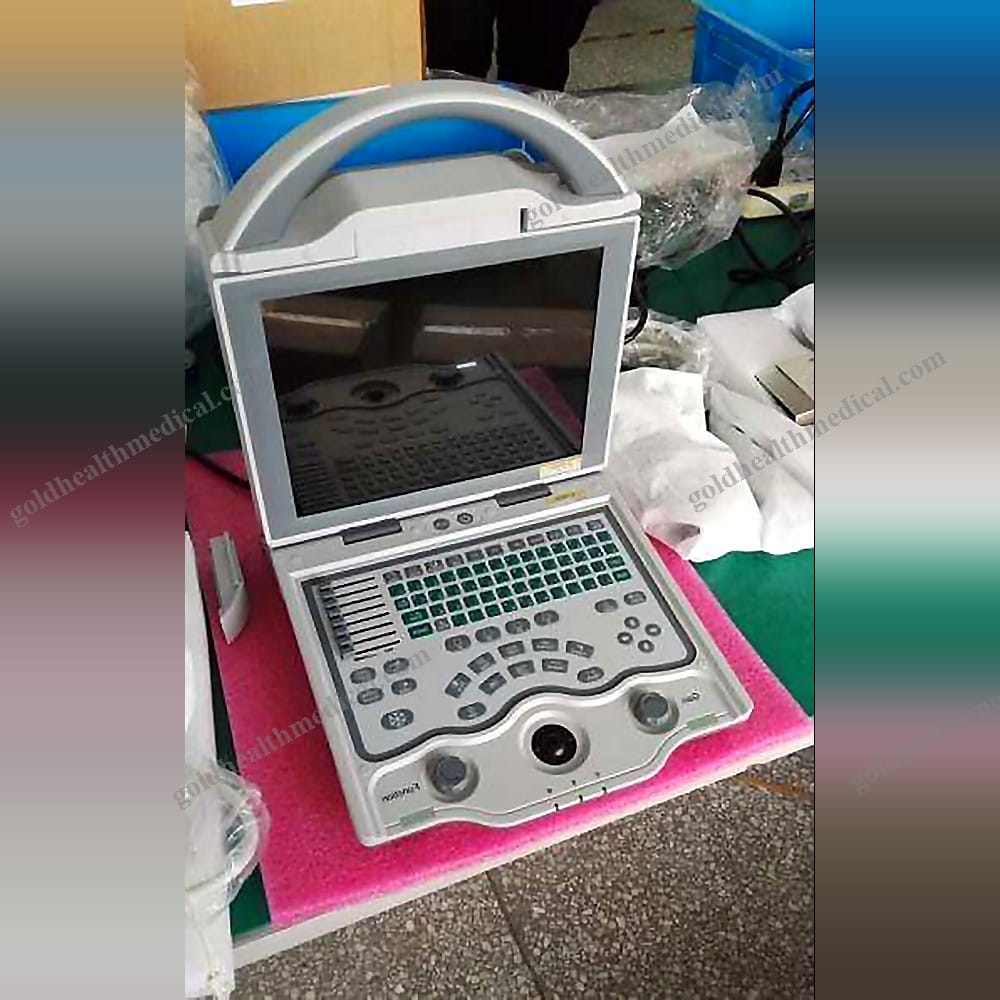

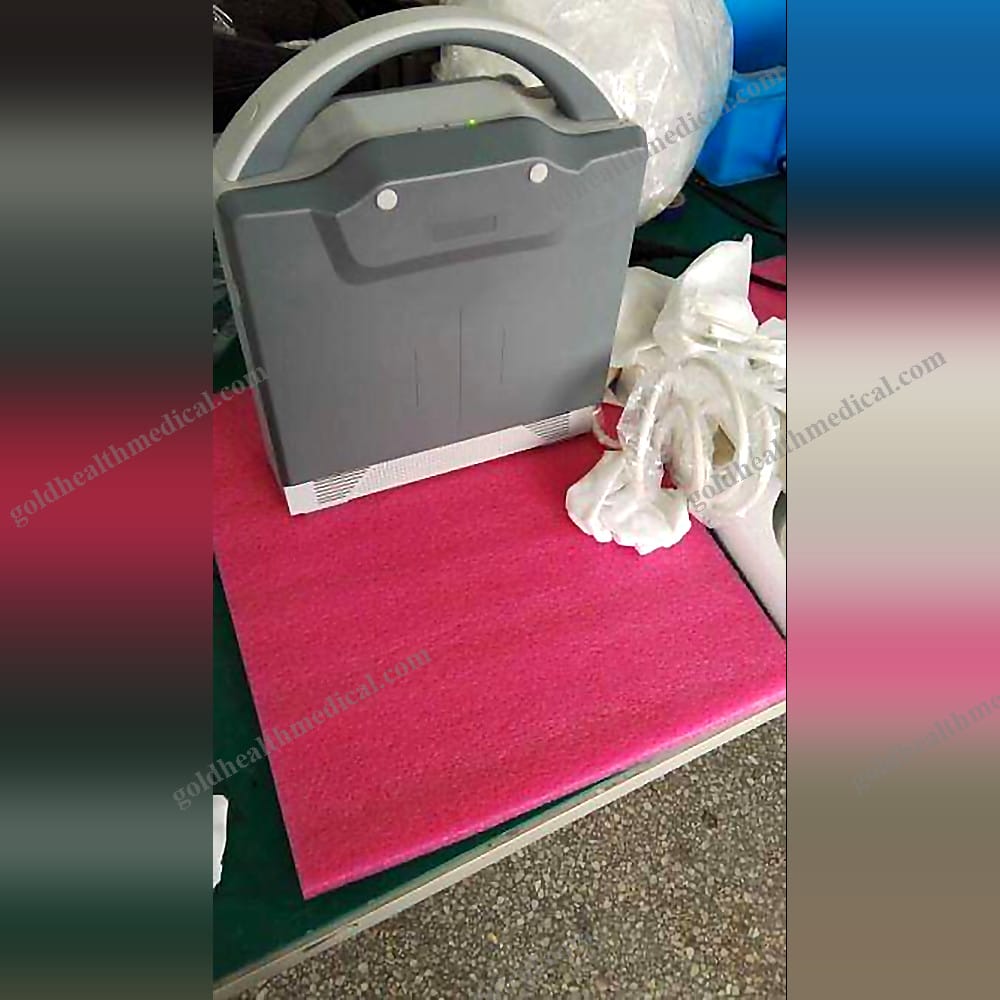

Portable Veterinary Ultrasound Machine for Pets Livestock
Reference: 1601291772661Veterinary Diagnostic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Veterinary Ultrasound Technology
GoldHealth Medical introduces a cutting-edge portable veterinary ultrasound diagnostic instrument designed for unparalleled precision and versatility. Engineered to meet the needs of modern veterinary practices, this device combines advanced imaging technology with user-friendly features.
Key Features and Technical Parameters:
- Display:
- 10.4-inch high-resolution color LED backlight display
Exceptional contrast and wide viewing angle for clear, detailed imaging
Operating System:
- Intuitive menu-driven interface
Multilingual support, including Spanish, English, French, Russian, and Portuguese
Probes and Body Marks:
- Two probe sockets with automatic probe recognition
27 customizable body marks for precise probe positioning, including options for general, bovine, canine, equine, feline, cardio, and swine applications
Imaging Modes:
- Multiple display modes: B, 2B, 4B, B/M, and M
Adjustable depth across 10 levels, with a maximum depth of 236mm
Image Quality and Control:
- Gain range: 0–127dB
- Contrast range: 27–90dB
- 256-level grayscale for exceptional clarity
- 8-step intelligent TGC (Time Gain Compensation) for optimized image uniformity
8 selectable pseudo-color options to enhance diagnostic insights
Storage and Playback:
- 4GB internal hard drive capable of storing up to 5,000 image frames permanently
Cine loop functionality with 256-frame capacity for dynamic review
Advanced Features:
- Puncture guide function with two adjustable guiding lines for precise angle and position correction
- Wireless probe compatibility for enhanced mobility and convenience
Why Choose GoldHealth Medical?
GoldHealth Medical’s ultrasound system is meticulously designed to deliver superior performance in veterinary and human diagnostic applications. Its portability, combined with advanced imaging capabilities, makes it an ideal choice for hospitals, clinics, research institutions, and fieldwork. Whether you’re conducting abdominal scans, obstetric evaluations, or cardiac assessments, this device ensures accuracy and reliability.
Applications:
- Veterinary clinics for animals such as cattle, horses, dogs, and cats
- Human diagnostic systems for diverse medical environments
- Research laboratories requiring high-definition imaging
- Mobile healthcare units and remote diagnostic setups
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals to achieve better outcomes. Experience the future of diagnostic imaging with our state-of-the-art ultrasound technology.
Technical Specifications Summary:
- Display: 10.4-inch LED, high resolution
- Languages: Spanish, English, French, Russian, Portuguese
- Body Marks: 27 types (e.g., bovine, canine, equine, etc.)
- Imaging Modes: B, 2B, 4B, B/M, M
- Depth Adjustment: 10 levels, max 236mm
- Gain: 0–127dB
- Contrast: 27–90dB
- Grayscale: 256 levels
- TGC: 8-step intelligent control
- Pseudo Colors: 8 options
- Storage: 4GB HDD (5,000 frames)
- Cine Loop: 256 frames
- Puncture Guide: 2 adjustable lines
GoldHealth Medical’s ultrasound system is a testament to precision engineering and user-centric design, setting a new standard in diagnostic excellence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: VET Ultrasound by GoldHealth Medical
Key Features and Benefits:
- Advanced Imaging Technology: Equipped with a 10.4" high-resolution color LED backlight display, delivering crystal-clear imaging in multiple modes (B, 2B, 4B, B/M, M) for precise diagnostics.
- Unmatched Versatility: Adjustable depth with 10 grades, offering a maximum depth of 236mm to accommodate a wide range of clinical applications.
- Compact and Portable Design: The main unit weighs just 4.5kg (without accessories) and measures 256150326mm (LWH), making it ideal for both stationary and mobile use in various medical settings.
- Durable and Reliable: Constructed with premium metal materials, ensuring long-lasting performance under rigorous professional use.
Technical Specifications:
- Power Source: Electric, plug-in power supply mode for consistent performance.
- Probe Type: Sector probe designed for specialized veterinary applications.
- Instrument Classification: Class II medical device, adhering to the highest safety and quality standards.
- Safety Standard Compliance: Certified to EN 149-2001+A1-2009 standards, ensuring user and patient safety.
- Quality Certification: CE-certified, guaranteeing compliance with international regulatory requirements.
- Shelf Life: 2 years, ensuring product reliability and longevity.
Service and Support:
- Comprehensive Warranty: Backed by a 2-year warranty for peace of mind.
- Customer-Centric After-Sales Service: Includes hassle-free return and replacement policies to ensure uninterrupted operations.
Applications:
- Designed specifically for veterinary use, this ultrasound system is perfect for hospitals, clinics, research institutions, rehabilitation centers, and home care environments.
Ordering Information:
- Minimum Order Quantity (MOQ): 1 PCS, making it accessible for both small and large-scale procurement.
GoldHealth Medical’s VET Ultrasound combines cutting-edge technology, ergonomic design, and exceptional durability to meet the diverse needs of modern veterinary care. Elevate your diagnostic capabilities with a device that delivers precision, portability, and reliability.
