Portable DR Xray Machine with Optional Wireless Detector
Reference: 1601267141161Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Hand Held X-Ray Machine
GoldHealth Medical proudly introduces its latest innovation in portable medical imaging: a cutting-edge handheld X-ray machine designed to redefine radiographic diagnostics. This state-of-the-art system delivers exceptional performance and precision, empowering healthcare professionals with a reliable tool for acquiring high-quality radiographic images of the human body.
Product Highlights
- Compact and Portable Design: Engineered for maximum versatility, this lightweight system requires minimal space and can be effortlessly transported, making it ideal for diverse clinical environments.
- Minimized Radiation Exposure: Advanced technology ensures the lowest possible dose of radiation to both patients and operators, prioritizing safety without compromising image quality.
- Unmatched Battery Performance: Featuring a superior polymer lithium-ion battery with 2200mAh capacity, this device offers extended operation times, ensuring uninterrupted efficiency throughout the day.

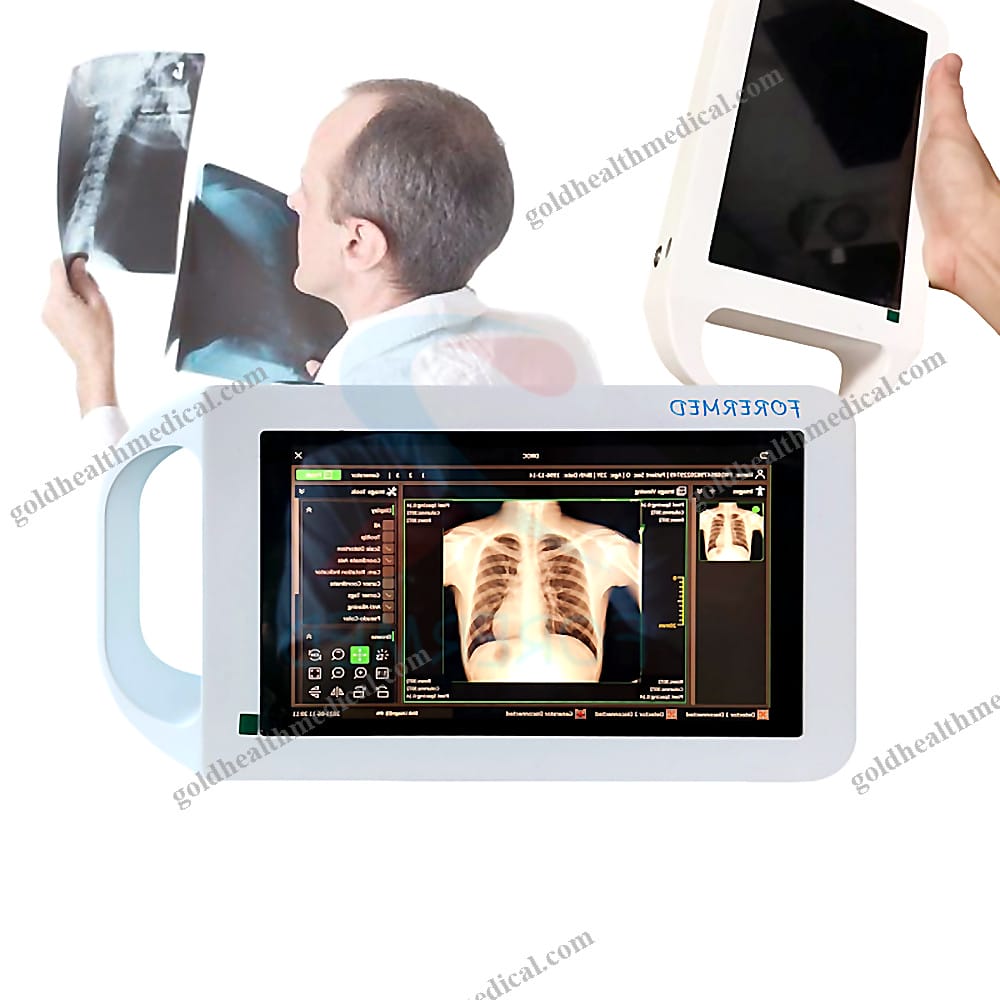

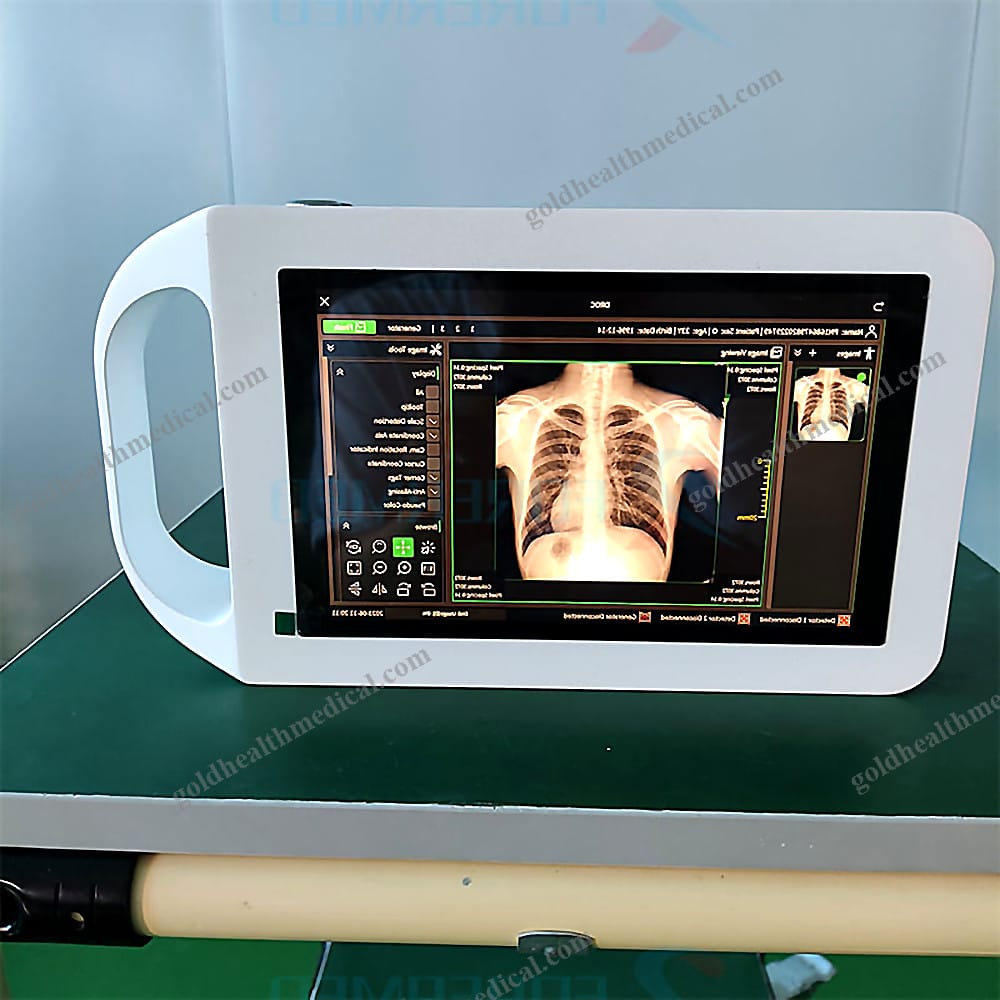

- Seamless Operation: Equipped with an intuitive 7-inch touchscreen display (1024x600 resolution), the system allows immediate operation with its integrated software solution and built-in workstation.
- Wireless Freedom: Completely wireless functionality eliminates the need for installation or additional equipment, maximizing productivity and flexibility.

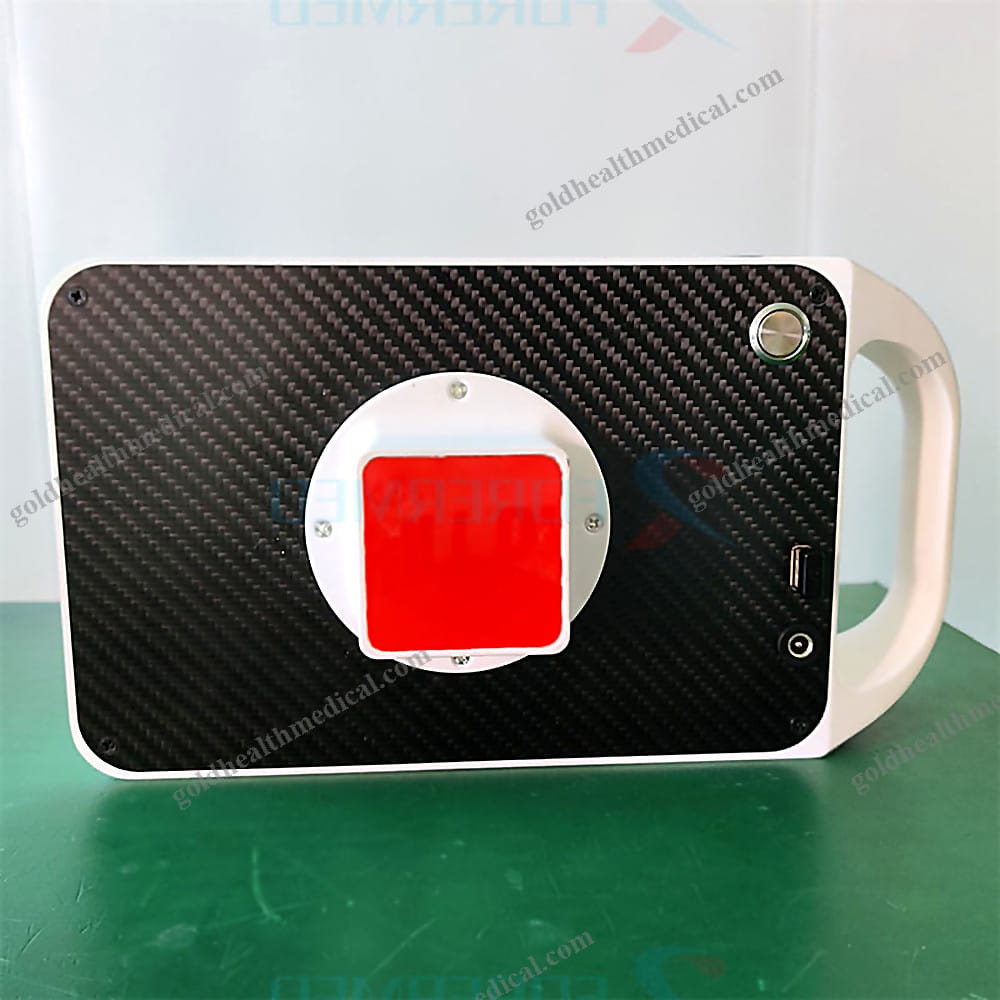

- Precision X-Ray Tube: The C.E.I OX/70-3 X-ray tube incorporates a 0.5mm aluminum inherent filter and a 0.3x0.3mm focal point for unparalleled accuracy.
Technical Specifications
- Power Supply:
- Input: Mono-phase AC power, 220V±10%, 50Hz±1Hz
- Output: 25.2 VDC, 1.5A
- Battery: 22.2V (polymer lithium-ion), 2200mAh
- X-Ray Parameters:
- kV (adjustable): 50–70 kV (step: 1 kV)
- mA (adjustable): 2–5 mA (step: 1 mA)
- X-ray release time range: 0.03–0.20 seconds (step: 10 milliseconds), 0.20–2.00 seconds (step: 50 milliseconds)
- Dimensions: 285mm x 265mm x 168mm (length × width × height)
- Weight: 3.2kg ±5%
Applications
This advanced X-ray system is tailored for diagnostic imaging of limbs and chest areas, making it an indispensable tool for: - Comprehensive diagnostic centers - Hospital radiology departments - Radiological imaging centers - Emergency rooms - Orthopedic departments - Lung diagnosis centers - Veterinary hospitals
Unique Advantages
- Enhanced Efficiency: Designed to streamline daily workflows, this system combines portability, ease of use, and high performance to deliver rapid and accurate results.

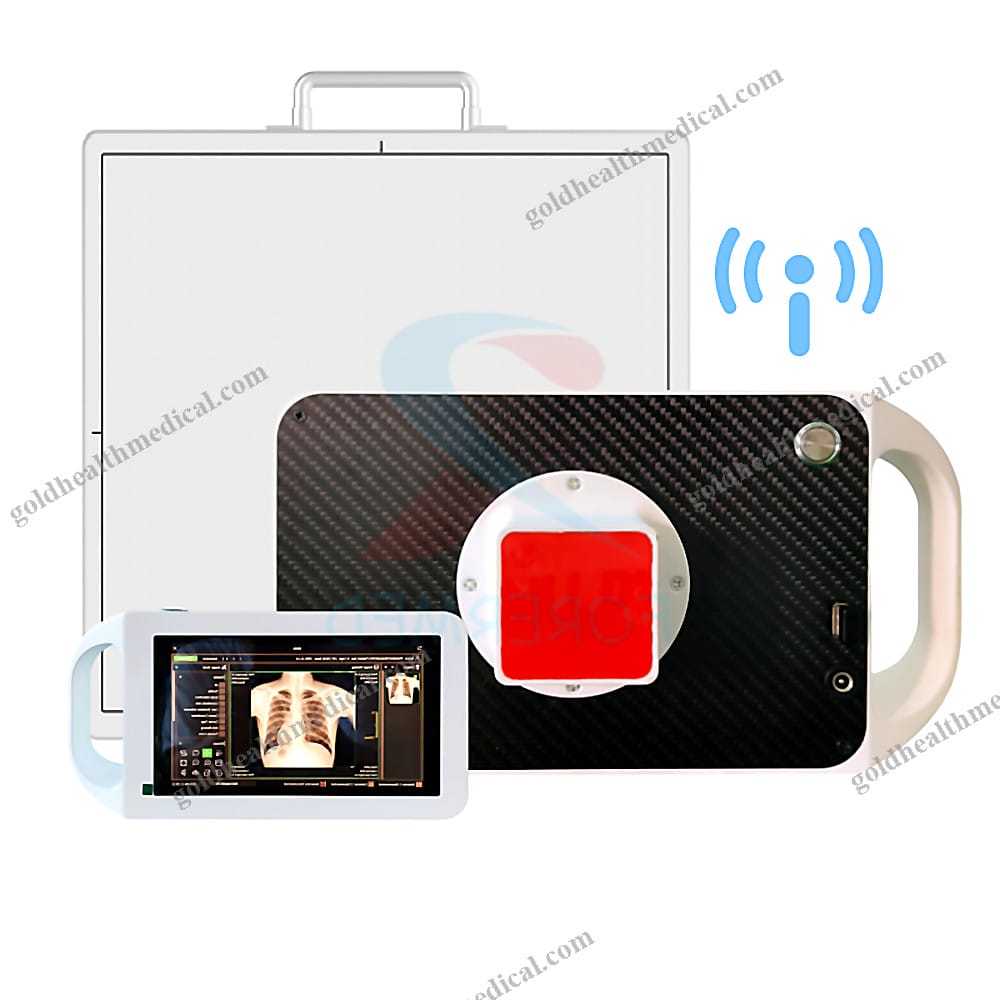

- Versatile Compatibility: Optimized for use with wireless digital flat panel detectors, ensuring superior image quality and seamless integration into existing diagnostic workflows.
- Safety and Reliability: Engineered with cutting-edge technology to minimize radiation exposure while maintaining exceptional imaging capabilities.
GoldHealth Medical’s handheld X-ray machine is a transformative solution for modern healthcare, offering unmatched precision, portability, and safety. Elevate your diagnostic capabilities with a device that combines innovation and reliability in one compact design.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Portable X-ray Machine by GoldHealth Medical
Key Features and Benefits:
- Unmatched Portability: Designed for ultimate mobility, this compact and lightweight X-ray machine is perfect for hospitals, clinics, laboratories, and even home healthcare settings.
- Advanced Imaging Precision: Achieve exceptional diagnostic clarity with a die focus of 0.8mm, ensuring sharp and detailed X-ray images every time.
- Flexible Power Options: Equipped with a rechargeable lithium battery (25.2VDC), it operates seamlessly in environments without consistent access to electricity.
- Intuitive Controls: Featuring both remote control and button-based operation, this device offers effortless usability tailored to your workflow.
Technical Specifications:
- Maximum Power Output: 800W
- kV Range: Adjustable from 40kV to 85kV for versatile imaging needs
- mA Range: Adjustable from 1mA to 16mA for precise current control
- Exposure Time Range: 0.01s to 4.0s, allowing for quick and accurate imaging
- mAs Variation Range: 0.10mAs to 10.0mAs for optimal dose management
- Power Supply Mode: Lithium battery (25.2VDC)
Applications:
- Ideal for X-ray photography in diverse settings, including hospitals, research institutions, rehabilitation centers, and remote locations.
Quality Assurance:
- Certifications: CE-approved, ensuring compliance with international safety and performance standards.
- Warranty: Backed by a comprehensive 1-year warranty for peace of mind.
- After-Sales Support: Access to online technical support to address any queries or concerns promptly.
Packaging Details:
- Single Package Size: 58 x 42 x 16 cm
- Single Gross Weight: 12.000 kg
Instrument Classification: Class II medical device
Shelf Life: 1 year
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with user-centric design to deliver reliable, high-performance medical equipment. Our portable X-ray machine is engineered to empower healthcare professionals with the tools they need to provide exceptional care, anytime and anywhere.
Place of Origin: Henan, China
Shape: Rectangular for stability and ease of use
Exposure Modes: Remote control and physical buttons for versatile operation
Die Focus: 0.8mm for superior image resolution
Portable X-ray Machine by GoldHealth Medical – Redefining Diagnostic Excellence.
