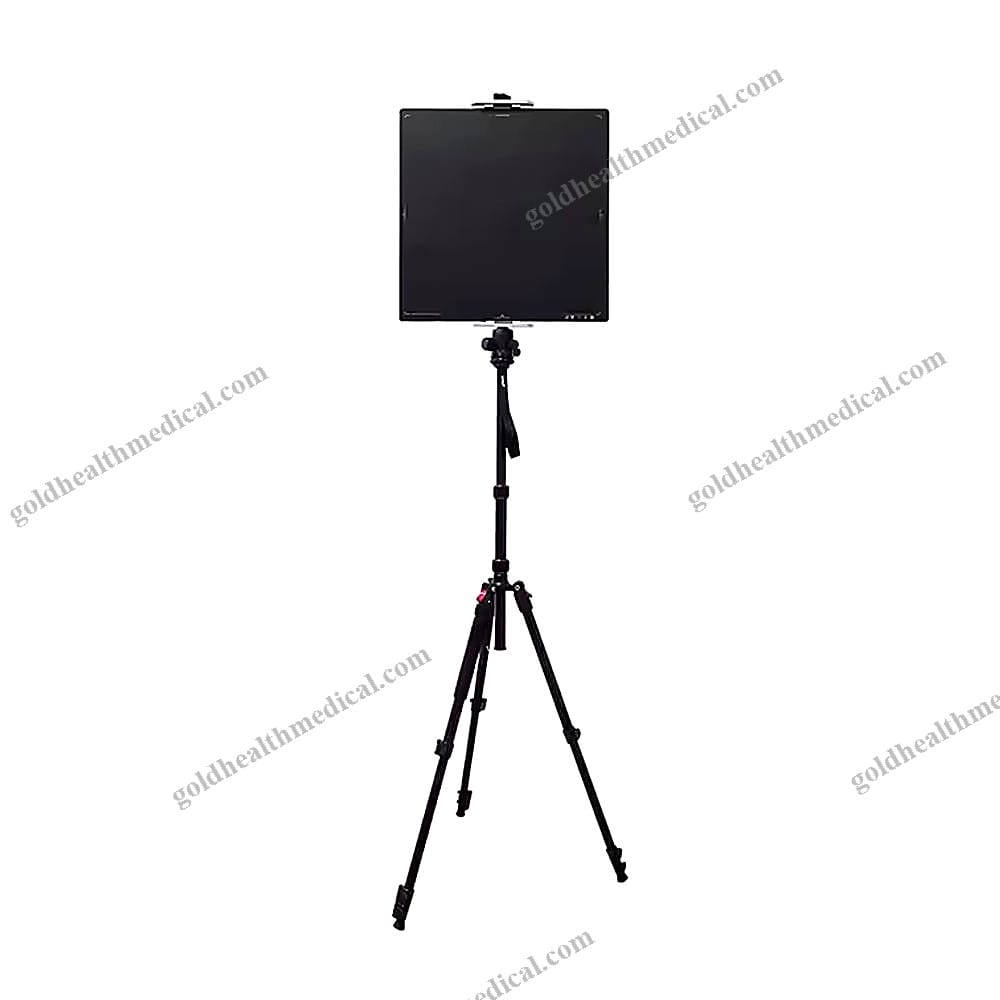

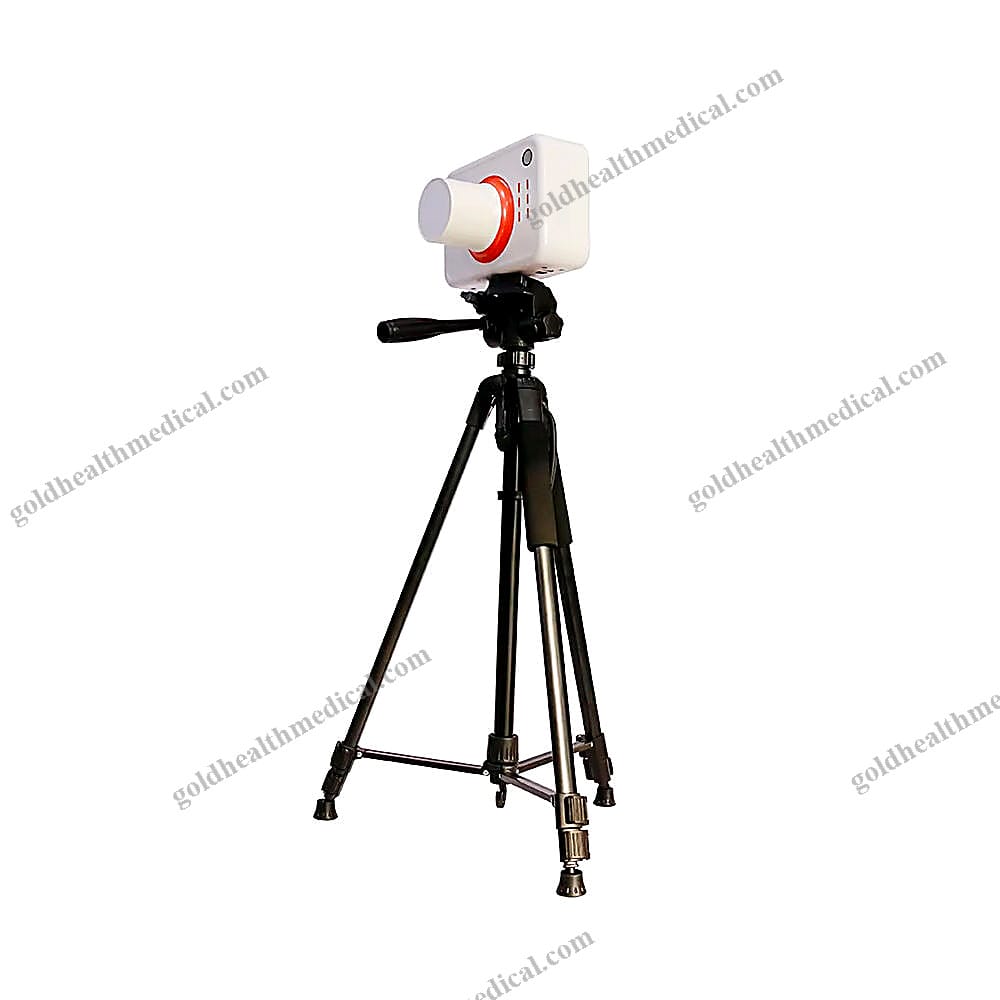

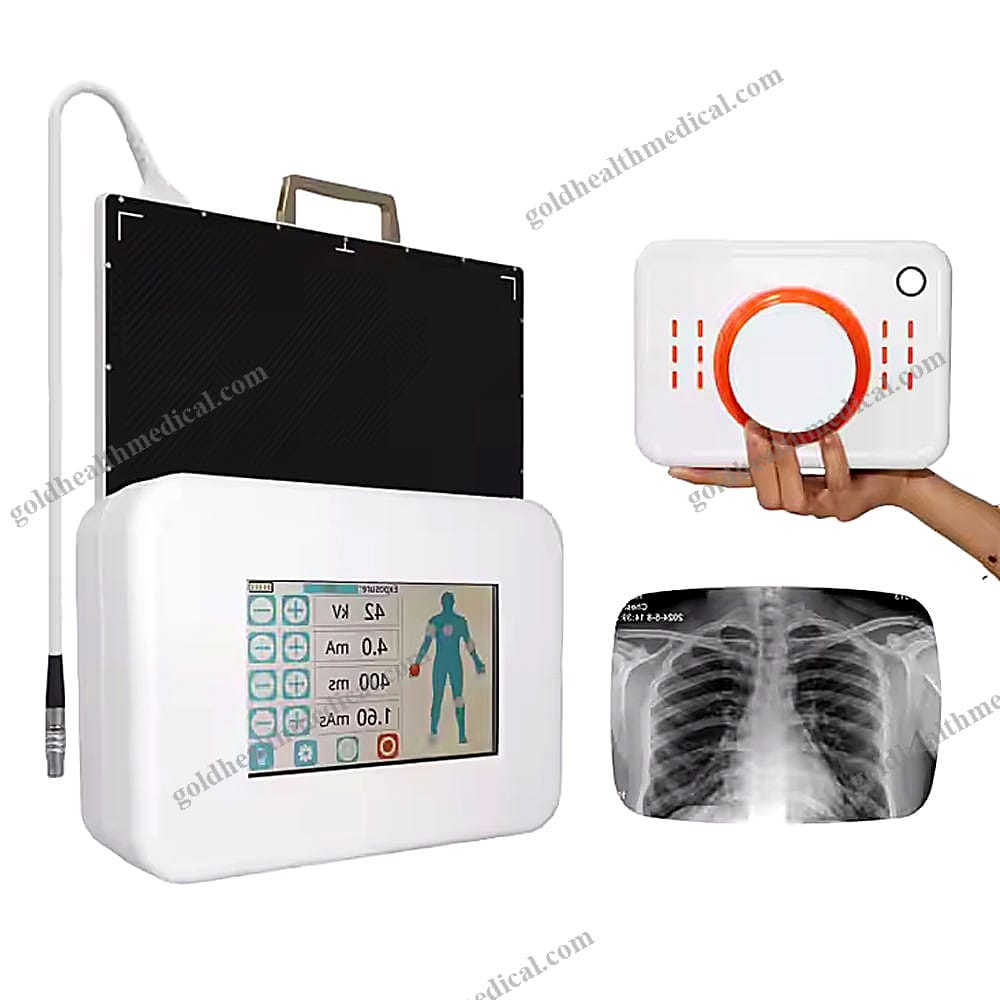

Portable DR Veterinary Xray Scanner
Reference: 1601289284391Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing X-ray Diagnostics
Introducing the Portable Combined High Frequency X-ray System, a cutting-edge solution designed to deliver exceptional diagnostic accuracy and versatility. Engineered for superior performance, this system is ideal for a wide range of medical environments, from hospitals and clinics to laboratories and field operations.
Key Features and Technical Specifications:
- Advanced High-Frequency Technology: Operates at a working frequency of 80~200kHz, ensuring consistent and reliable imaging.
- Universal Power Compatibility: Supports mains phase/voltage of 100~240VAC/48VDC, with a frequency of 50Hz/60Hz, making it adaptable to global power standards.
- Powerful Performance: Delivers a nominal/max power output of 5.6KW, with a KV range of 40~125KV.
- Rapid KV Rising Time: Achieves ≤1ms@100KV (10%~90%), ensuring quick and precise imaging.
- Exceptional Accuracy:
- KV Accuracy: ±5%
- Tube Current Accuracy: ±(5%+1mA)@210ms, ±20%@<10ms
- mAs Accuracy: ±(5%+0.2mAs)@>5ms, ±(10%+0.2mAs)@≤5ms
- Exposure Time Accuracy: ±(2%+0.2ms)@>5ms, ±(5%+1ms)@≤5ms
- Flexible Imaging Parameters:
- Output Max mA: 100mA
- mAs Range (Non-AEC): 0.1~320mAs
- Exposure Time Range: 2ms~10000ms
- Precision Focal Spot: Nominal focal spot size of 0.6mm/1.8mm, with an anode disk target angle of 15° for sharp and detailed images.
- Seamless Connectivity: Equipped with RS232 and WIFI communication options for efficient data transfer and integration.
- Compact and Portable Design: Dimensions of 390250200(mmmmmm) and a weight of 14.5 Kg make it easy to transport and deploy.
- Certified Quality: Compliant with ISO13485 standards, ensuring safety and reliability.
Why Choose GoldHealth Medical?
GoldHealth Medical stands out with its commitment to innovation, precision, and reliability. Our Portable Combined High Frequency X-ray System is designed to meet the diverse needs of modern healthcare providers, offering unparalleled flexibility and performance.
Applications:
- Clinics and hospitals
- Community health inspections
- Field operations and emergency response
- Universities and research laboratories
- Government tenders and distributors
Frequently Asked Questions:
- What is the MOQ?
- Any quantity is available to suit your needs.
- Where can it be used?
- Suitable for clinics, hospitals, laboratories, field operations, and more.
- Can you provide different power options?
- Yes, we offer various power configurations to meet specific requirements.
- Do you offer floor-mounted or mobile options?
- Yes, both floor-mounted and mobile configurations are available.
- What is the production time?
- Typically around 15 days for 1~5 sets.
GoldHealth Medical is dedicated to delivering advanced diagnostic solutions that empower healthcare professionals worldwide. Experience the future of X-ray technology with our innovative and reliable systems.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Mobile X-ray Machine by GoldHealth Medical
Key Features:
- Unmatched Durability & Convenience: Crafted with a robust metal construction, this mobile X-ray machine is designed for long-lasting performance in demanding medical environments.
- Intuitive Operation: Engineered for ease of use, ensuring medical professionals can focus on delivering accurate diagnoses without unnecessary complexity.
- Advanced Frequency Range: Operates within a working frequency of 80~200kHz, providing stable and reliable imaging performance.
- Versatile Power Compatibility: Supports both 50Hz and 60Hz power sources, making it adaptable to various global electrical standards.
Technical Specifications:
- Instrument Classification: Class II medical device, ensuring safety and precision for professional use.
- Power Source: Fully electric operation for consistent and efficient performance.
- Shelf Life: 1 year, with proper maintenance ensuring extended usability.
- Quality Certification: CE-certified, meeting rigorous international safety and quality standards.
Applications:
- Designed for doctor's diagnosis in hospitals, clinics, laboratories, and rehabilitation centers.
- Ideal for both stationary and mobile diagnostic needs, including emergency scenarios and remote healthcare settings.
Unique Advantages:
- Proven Expertise: GoldHealth Medical is a trusted professional manufacturer with a reputation for innovation and reliability in medical imaging solutions.
- Global Reach: Ships from major ports such as Guangzhou and Shenzhen, ensuring timely delivery worldwide.
- Secure Packaging: Each unit is carefully packed in a durable wooden box to prevent damage during transit.
After-Sale Support:
- Comprehensive 1-year warranty for peace of mind.
- Access to online technical support, ensuring quick resolution of any operational queries.
Design & Aesthetics:
- Sleek and functional design, available in the color shown in product images, blending seamlessly into professional medical environments.
GoldHealth Medical’s Mobile X-ray Machine is more than just a diagnostic tool—it’s a reliable partner in delivering precise, efficient, and patient-focused care.
