Portable Digital XRay Machine with 17x17 Flat Panel for
Reference: 10000014520976Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

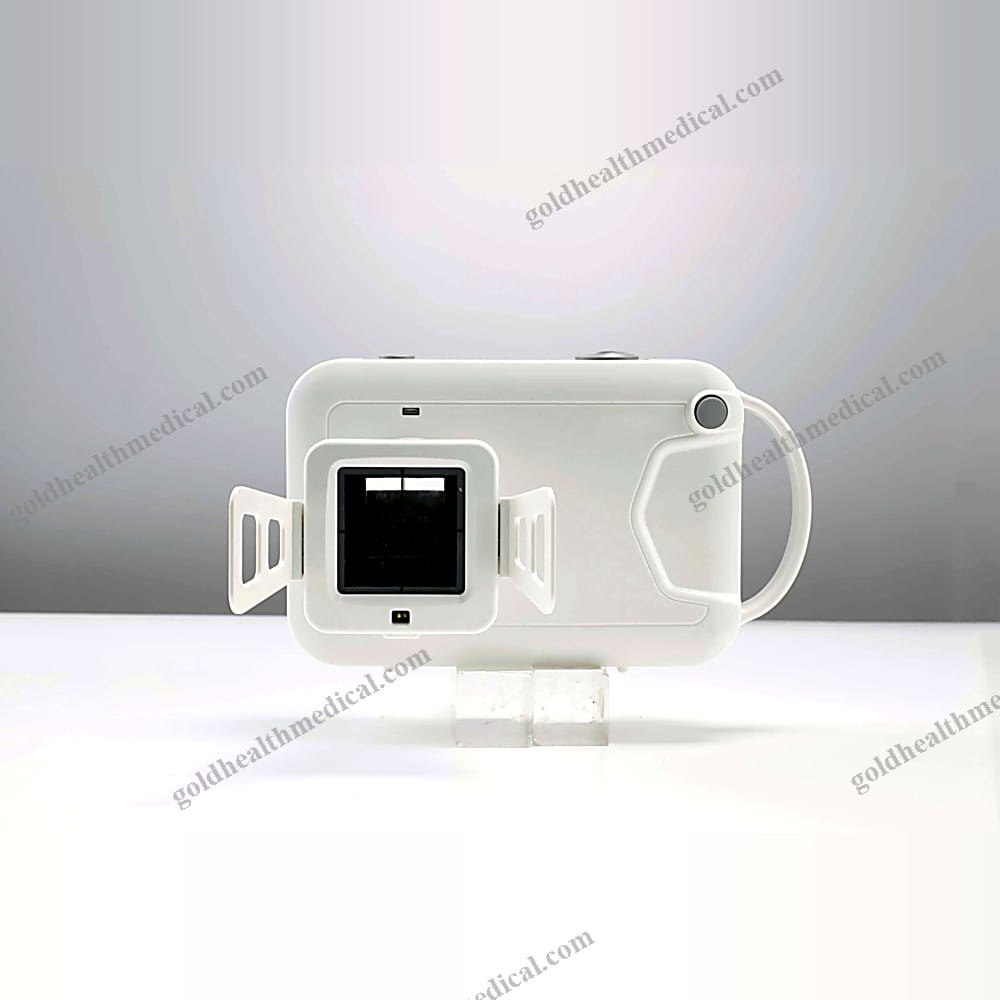

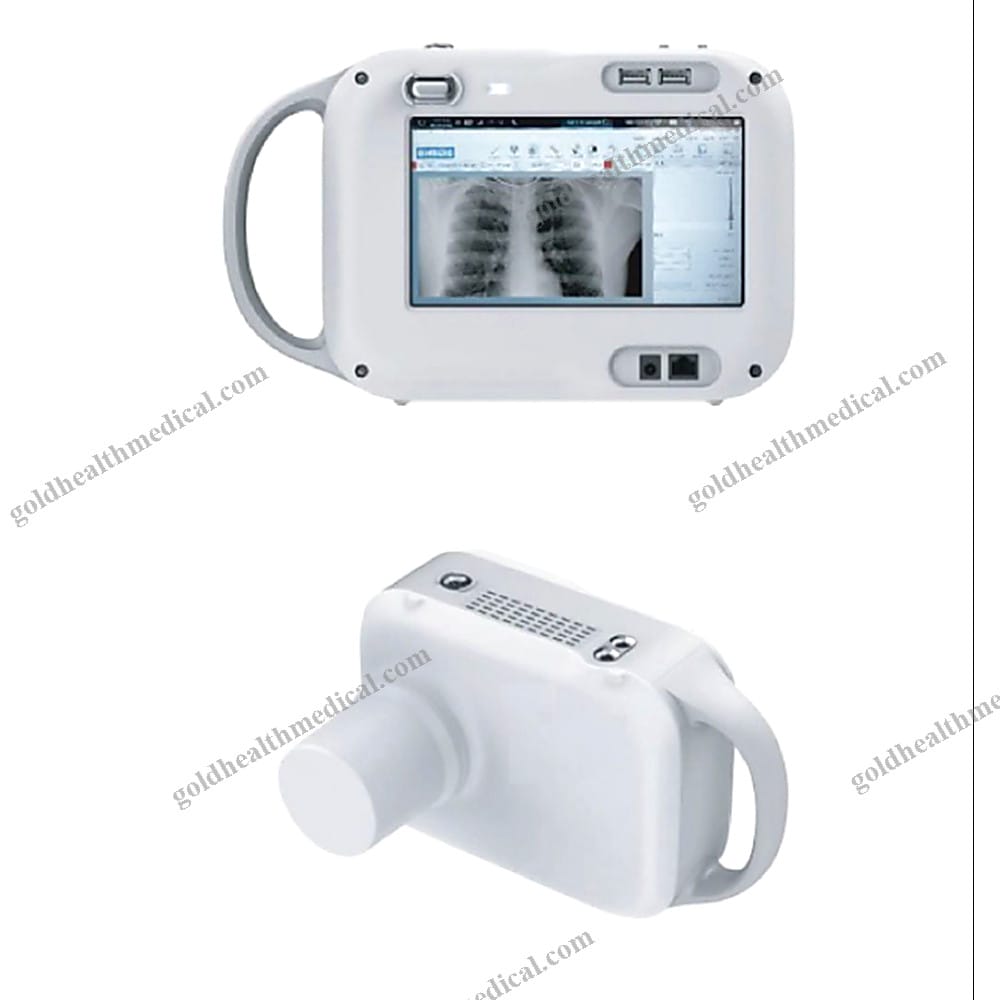

GoldHealth Medical Handheld X-ray Machine
GoldHealth Medical presents a revolutionary handheld X-ray imaging system designed to acquire high-quality radiographic images of various parts of the human body in clinical environments. This state-of-the-art device is tailored for diverse medical applications, offering precision and reliability.
Key Features
- Compact and Portable: The all-in-one design ensures ease of transport and adaptability, making it ideal for hospitals, clinics, field hospitals, remote medical services, and forensic identification.
- User-Friendly Operation: Fixed exposure parameters simplify the imaging process, ensuring consistent results.
- Battery-Powered Flexibility: Operates seamlessly on battery power, providing freedom of movement during imaging procedures.

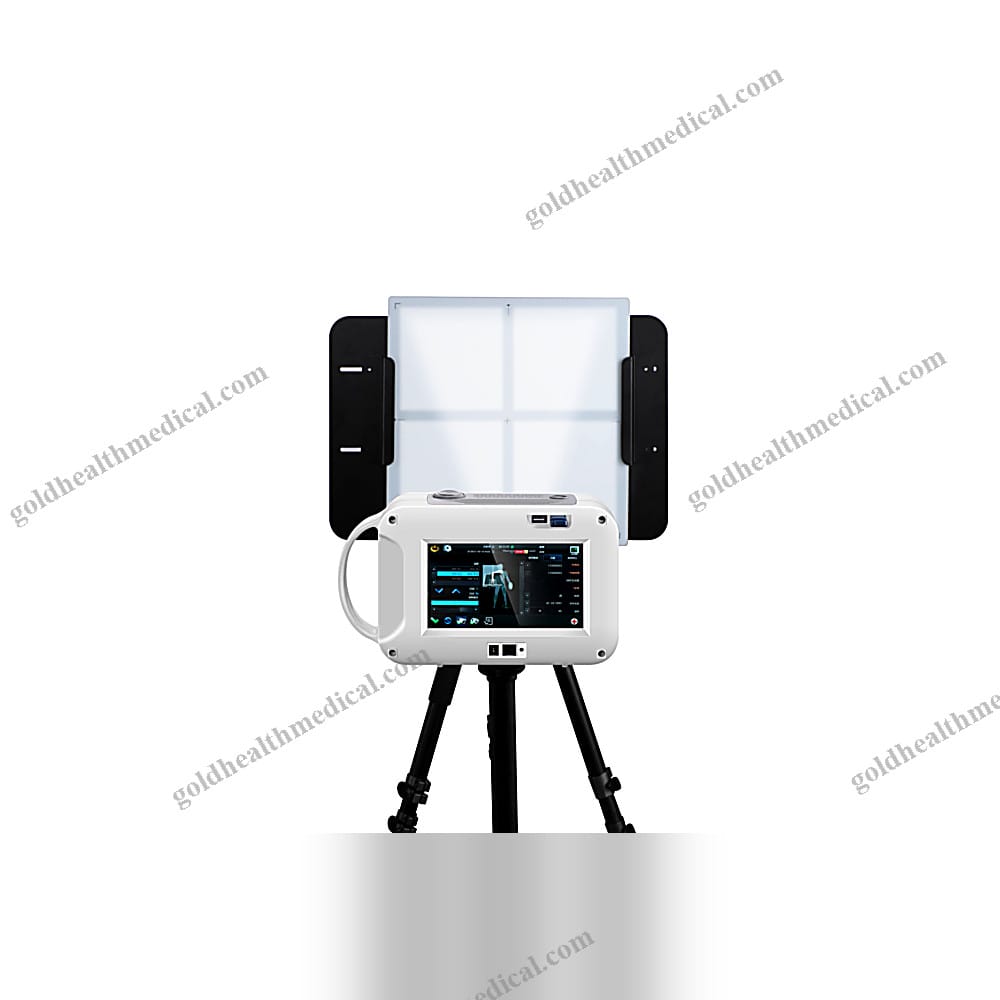

- Optional Support Bracket: Enhance stability with an optional bracket tailored to support the device during use.
Technical Specifications
- kV Range: 50 - 70 kV (adjustable in 1 kV increments)
- mA Range: 2 - 5 mA (adjustable in 1 mA increments)
- X-ray Release Time Range: 0.03 - 0.20 seconds
- Screen: 7" display with a resolution of 1024 x 600
- X-ray Tube Focus Point: 0.3 x 0.3 mm
- Detector Dimensions:
- 460 x 460 x 15 mm
- 282 x 33 x 15 mm
- Effective Imaging Area:
- 433.5 x 433.5 mm
- 244 x 307 mm
- Pixel Matrix:
- 154 µm
- 100 µm
- 120 µm
- Spatial Resolution:
- 3.1 Lp/mm
- 4.0 Lp/mm
- 3.7 Lp/mm
- Power Consumption:
- Max. 36 VA
- Max. 40 VA
- Max. 38 VA
Applications
- Comprehensive diagnostic centers
- Hospital radiology departments
- Radiological imaging centers
- Emergency rooms
- Orthopedic departments
- Lung diagnosis centers

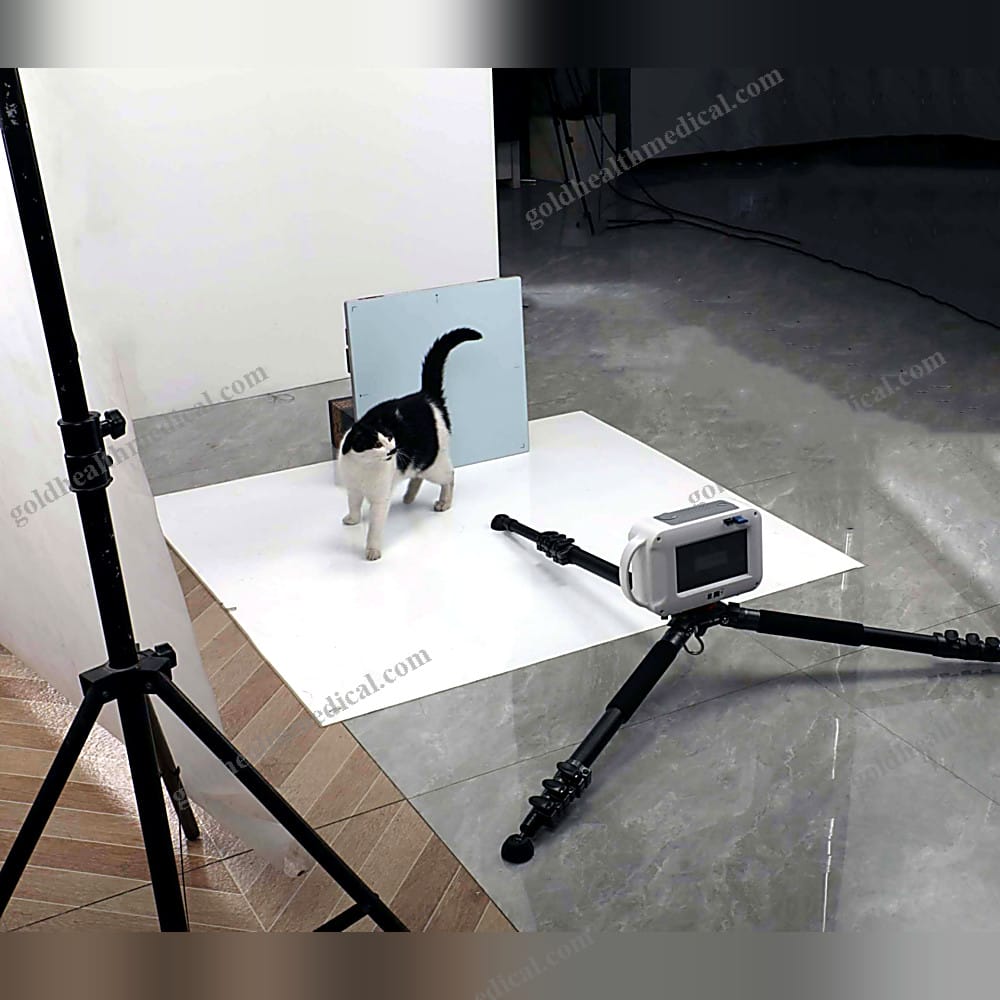

- Veterinary hospitals
Note: This system is limited to X-ray diagnosis of limbs and chest and is not suitable for mammography.
Why Choose GoldHealth Medical?
GoldHealth Medical stands out with a commitment to quality assurance, secure payment options, and exceptional after-sales service. Our expertise spans various medical equipment, including ultrasound machines, X-rays, hematology analyzers, chemistry analyzers, and veterinary equipment.
Invest in GoldHealth Medical's advanced handheld X-ray machine to elevate your diagnostic capabilities and ensure superior patient care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Key Features and Benefits:
- Precision Redefined: Equipped with a high-performance X-ray tube featuring a focus point of 0.3x0.3mm, delivering unparalleled clarity and accuracy for medical imaging.
- Advanced Imaging Technology: A 7-inch screen with a resolution of 1024x600 ensures sharp, detailed visuals, making diagnostics more reliable and efficient.
- Customizable Parameters: Adjustable kV (50-70 kV, step: 1 kV) and mA (2-5 mA, step: 1 mA) settings allow tailored imaging for diverse medical applications.
- Efficient Workflow: X-ray release time range of 0.03-0.20 seconds minimizes patient exposure while maximizing operational efficiency.
Technical Specifications:
- Effective Imaging Area:
- Large Format: 433.5 x 433.5 mm
- Small Format: 244 x 307 mm
- Detector Dimensions:
- Large Format: 460 x 460 x 15 mm
- Small Format: 282 x 33 x 15 mm
- Pixel Matrix and Resolution:
- Pixel Size Options: 154 µm, 100 µm, 120 µm
- Spatial Resolution: 3.1 Lp/mm, 4.0 Lp/mm, 3.7 Lp/mm
- Power Consumption:
- Maximum Power: 36 VA, 40 VA, 38 VA
Applications:
- Designed for medical diagnosis in radiography departments, this device excels in X-ray photography, offering exceptional performance for hospitals, clinics, and research institutions.
Quality Assurance:
- Certified with CE standards, ensuring compliance with international safety and quality benchmarks.
- Backed by a 1-Year Warranty and comprehensive online technical support for seamless after-sales service.
Shelf Life: 2 years
Place of Origin: Guangdong, China
GoldHealth Medical’s innovative solutions empower healthcare professionals with cutting-edge tools to elevate diagnostic precision and patient care.
