Portable Digital Xray Machine 5kV 10 Veterinary
Reference: 1601123143333Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Revolutionary Portable X-ray Machine by GoldHealth Medical
GoldHealth Medical introduces a groundbreaking portable X-ray machine designed to redefine flexibility and precision in medical imaging. Engineered for unparalleled convenience, this device is tailored for a wide range of applications, from hospital rooms and ambulances to disaster relief and sports events.
Key Features

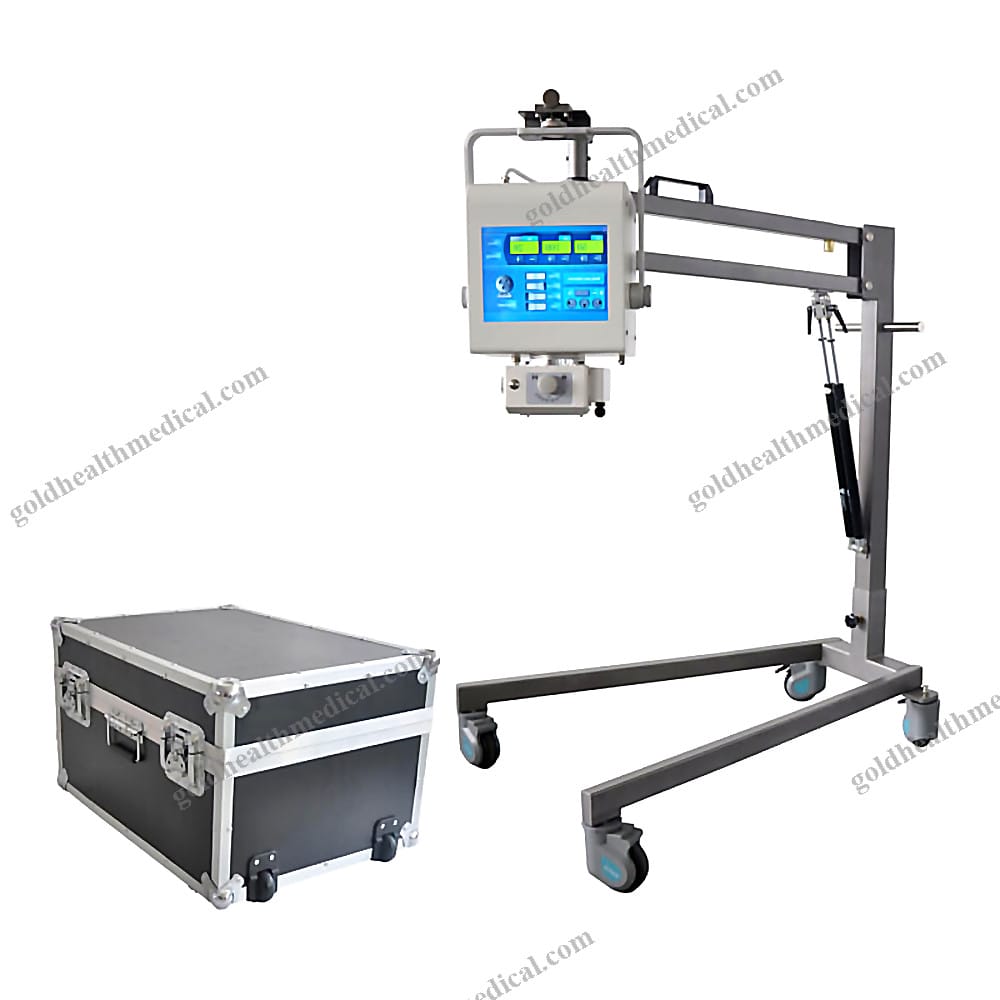

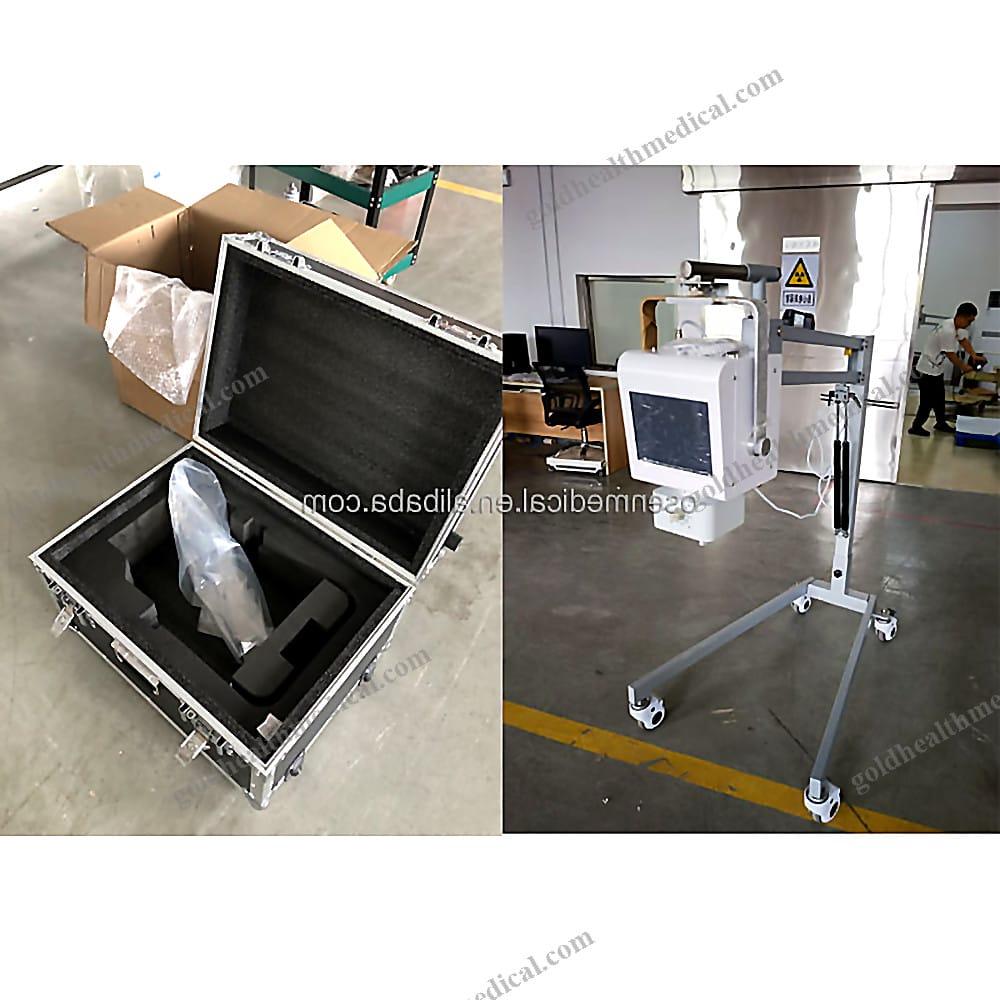

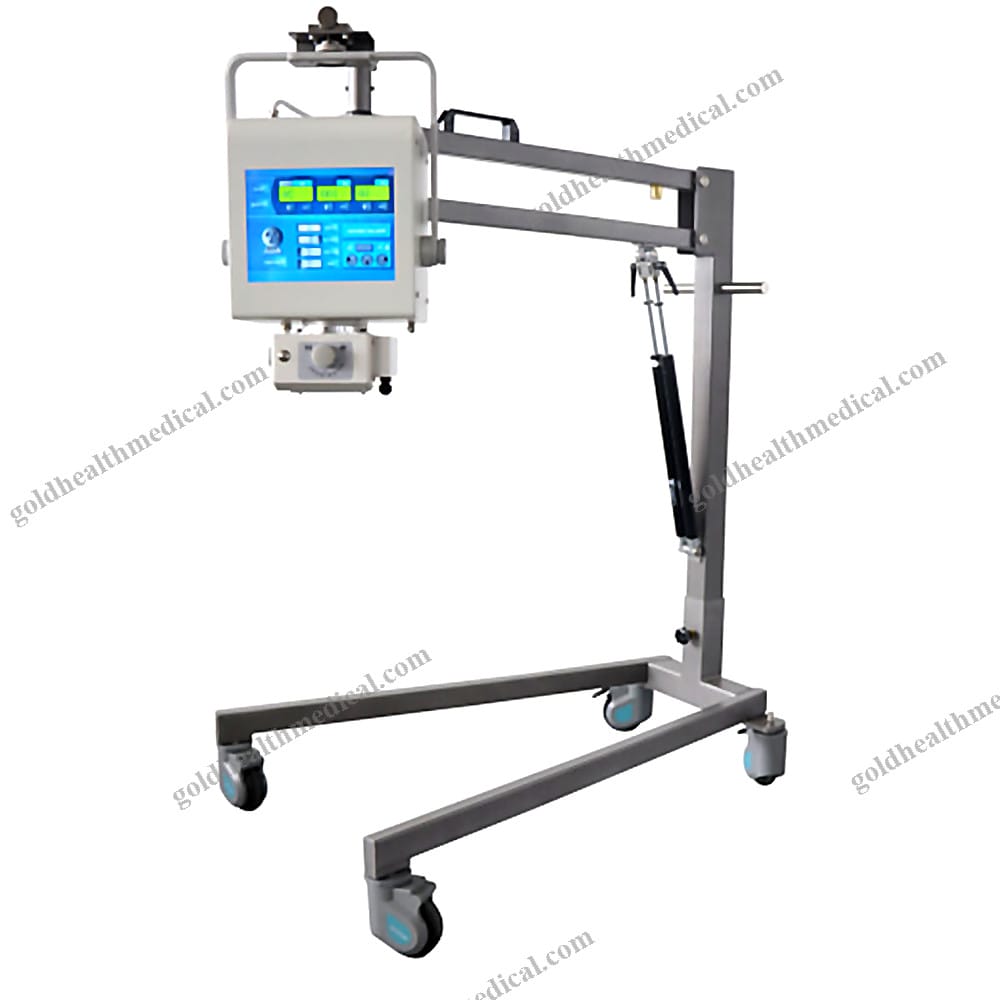

- Compact and Mobile Design: A sleek, wheeled stand ensures effortless mobility and adaptability to various positions. The main unit can be securely mounted on a portable suitcase, offering seamless transport and storage.

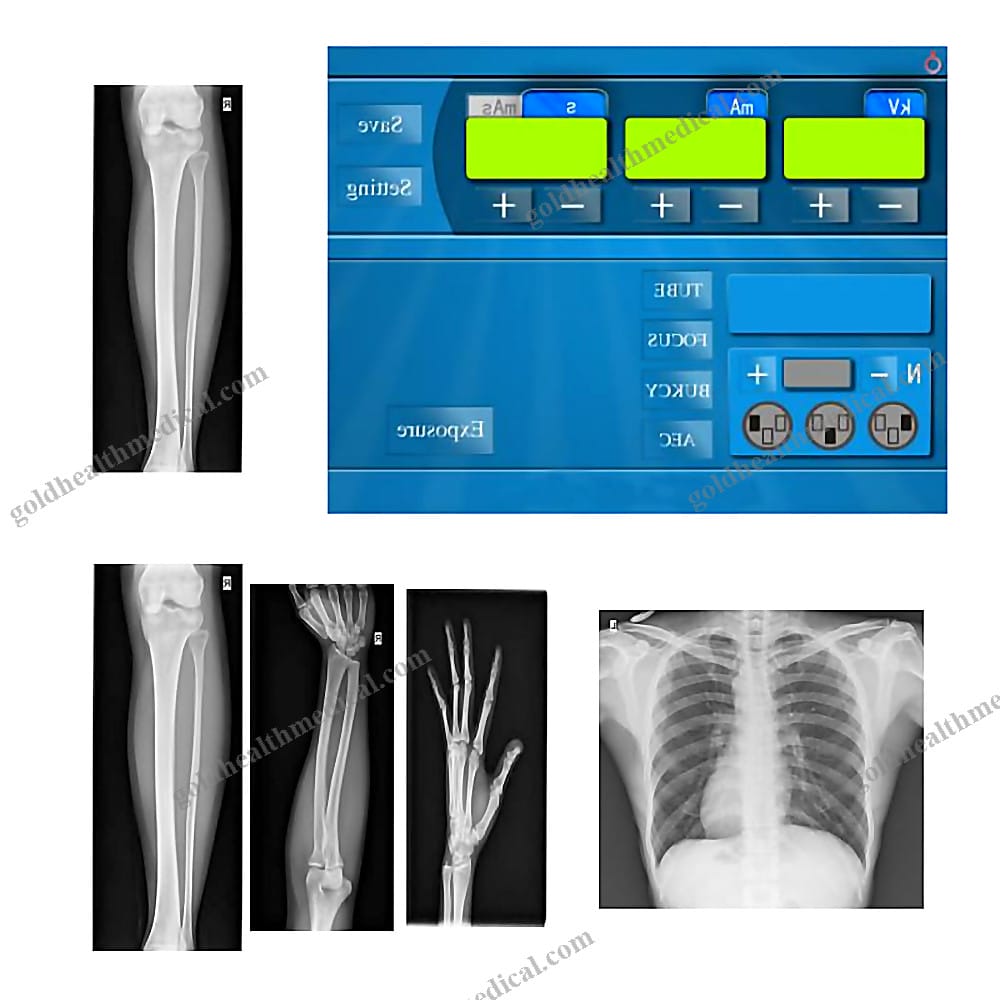

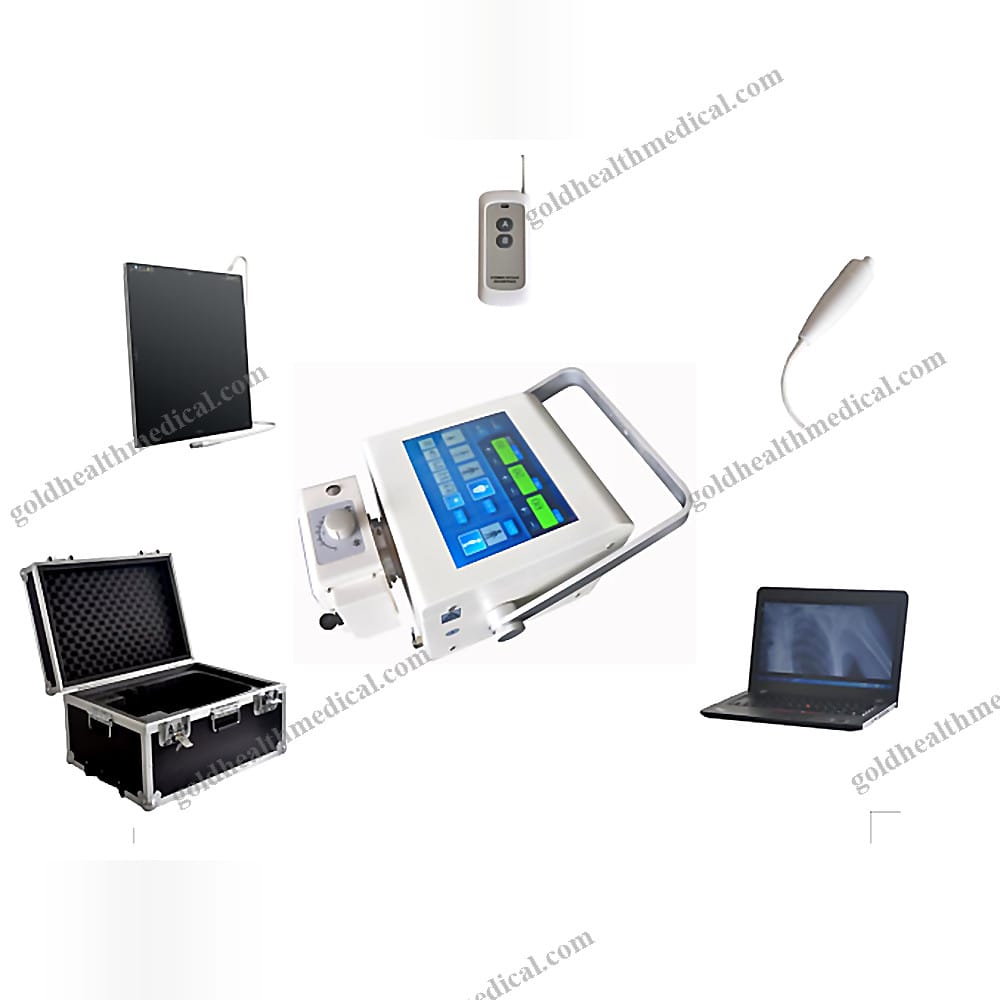

- Advanced Exposure Control: Choose between hand switch, remote control, or an intuitive touchscreen interface for precise exposure management.
- Comprehensive Safety Measures: Equipped with a lead-encased X-ray tube to prevent radiation leakage, ensuring the highest safety standards for both patients and operators.
- Intelligent Functionality: Features include a 6-period digital LED display, self-diagnostic failure protection, and high-precision control of tube voltage and current.
- Presets for Efficiency: Access 48 pre-programmed anatomical memory patterns for quick and accurate imaging.
- Dual Digital Loops: Delivers exceptional accuracy in simulation and control methods.
Technical Specifications
- Generator
- Voltage: AC220V ± 22V
- Power: 5kW
- kV Range: 40–110kV
- mA Range: 20–100mA
- mAs Range: 0.2–200mAs
- Working Frequency: ≥40kHz
Exposure Time: 0.01S–4S
X-ray Tube
- Anode Heat Storage: 56KHU
- Focus: 1.8mm
Inherent Filtration: 1mm Al/75kV
Touchscreen
Dimension: 10.4 inches
Physical Specifications
- Main Unit Weight: 19 kg
- Main Unit Dimensions: 290 × 265 × 230 mm
Applications
This versatile device is ideal for:
- Diagnosing and examining human limbs
- Emergency medical treatment in ambulances and disaster zones
- Supporting sports events and charity organizations
- Enhancing diagnostic capabilities in hospitals, clinics, and research labs
Why GoldHealth Medical Stands Out
GoldHealth Medical is committed to delivering cutting-edge medical solutions that prioritize precision, safety, and ease of use. Our portable X-ray machine is crafted with eco-friendly materials and designed for intuitive operation, ensuring reliability and efficiency in every setting.
Experience the future of medical imaging with GoldHealth Medical—where innovation meets excellence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Portable X-ray Machine by GoldHealth Medical
Overview:
Experience the future of medical imaging with GoldHealth Medical's Portable X-ray Machine. Designed for precision, durability, and versatility, this state-of-the-art device is engineered to meet the demands of modern healthcare environments. Whether in a hospital radiography department, a mobile clinic, or a home care setting, this portable X-ray machine delivers exceptional performance with minimal footprint.
Key Features and Specifications:
- Material: Constructed with high-grade metal and reinforced plastic for enhanced durability and stability.
- Power Source: Electric, with a robust 5kW power supply ensuring consistent and reliable operation.
- Application: Ideal for X-ray rooms, radiography departments, and mobile diagnostic setups.
- Functionality: Specializes in medical radiography, providing clear, high-resolution images for accurate diagnostics.
- Instrument Classification: Class II medical device, ensuring compliance with industry standards for safety and performance.
- Portability: Compact and lightweight design (78 kg gross weight) with a single package size of 128 x 52 x 25 cm, making it easy to transport and store.
- Shelf Life: 1 year, ensuring long-term usability and reliability.
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Service: Access to online technical support, ensuring uninterrupted performance and quick resolution of any issues.
Applications:
- Hospitals and clinics
- Radiography departments
- Mobile diagnostic units
- Research institutions and laboratories
- Rehabilitation centers and elderly care facilities
- Home healthcare environments
Why Choose GoldHealth Medical's Portable X-ray Machine?
- Precision Engineering: Advanced imaging technology ensures unparalleled clarity and accuracy.
- Compact Design: Lightweight and portable, it fits seamlessly into any workspace.
- Reliability: Built to withstand demanding medical environments while maintaining consistent performance.
- Ease of Use: Intuitive controls and minimal setup requirements make it accessible for all skill levels.
Packaging Details:
- Selling Units: Single item
- Package Dimensions: 128 x 52 x 25 cm
- Gross Weight: 78.000 kg
- Packaging: Securely packed in durable cartons for safe transportation.
GoldHealth Medical’s Portable X-ray Machine is more than just a diagnostic tool—it’s a commitment to advancing healthcare accessibility and quality. Elevate your practice with a device that combines cutting-edge technology with user-centric design.
