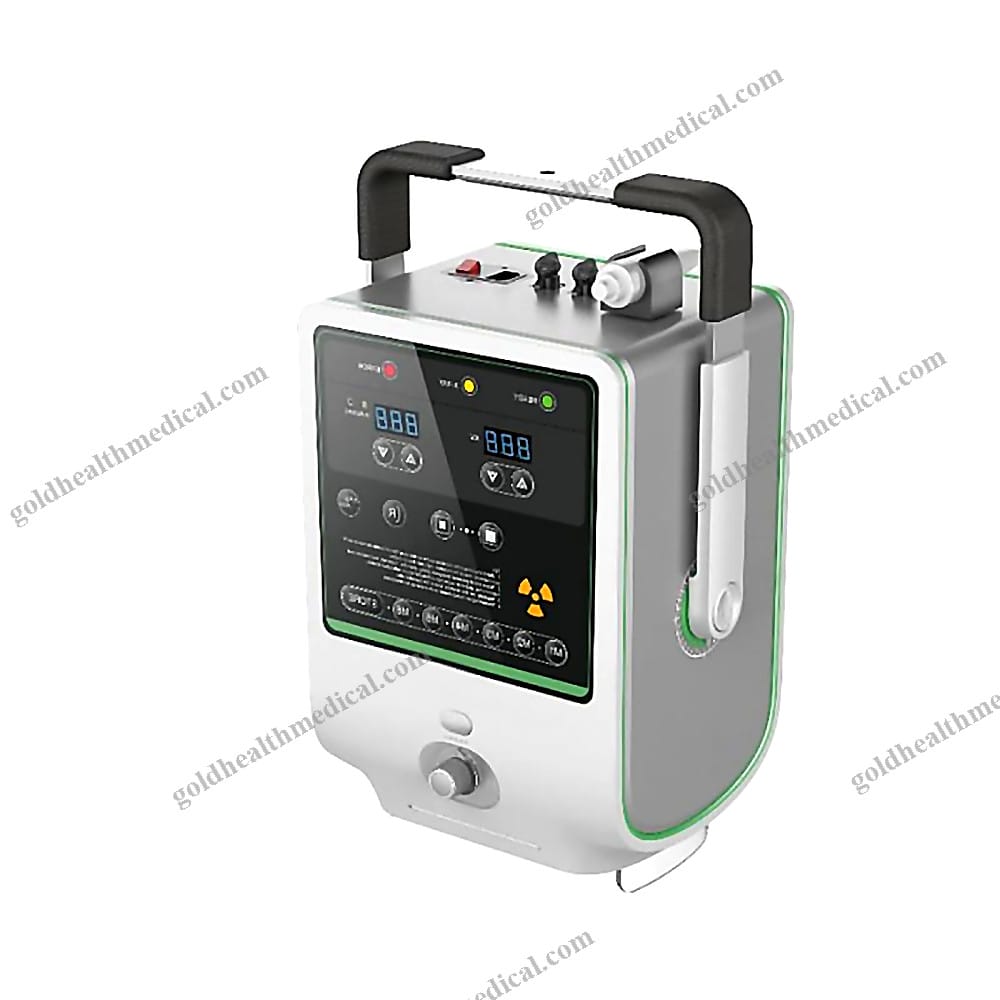

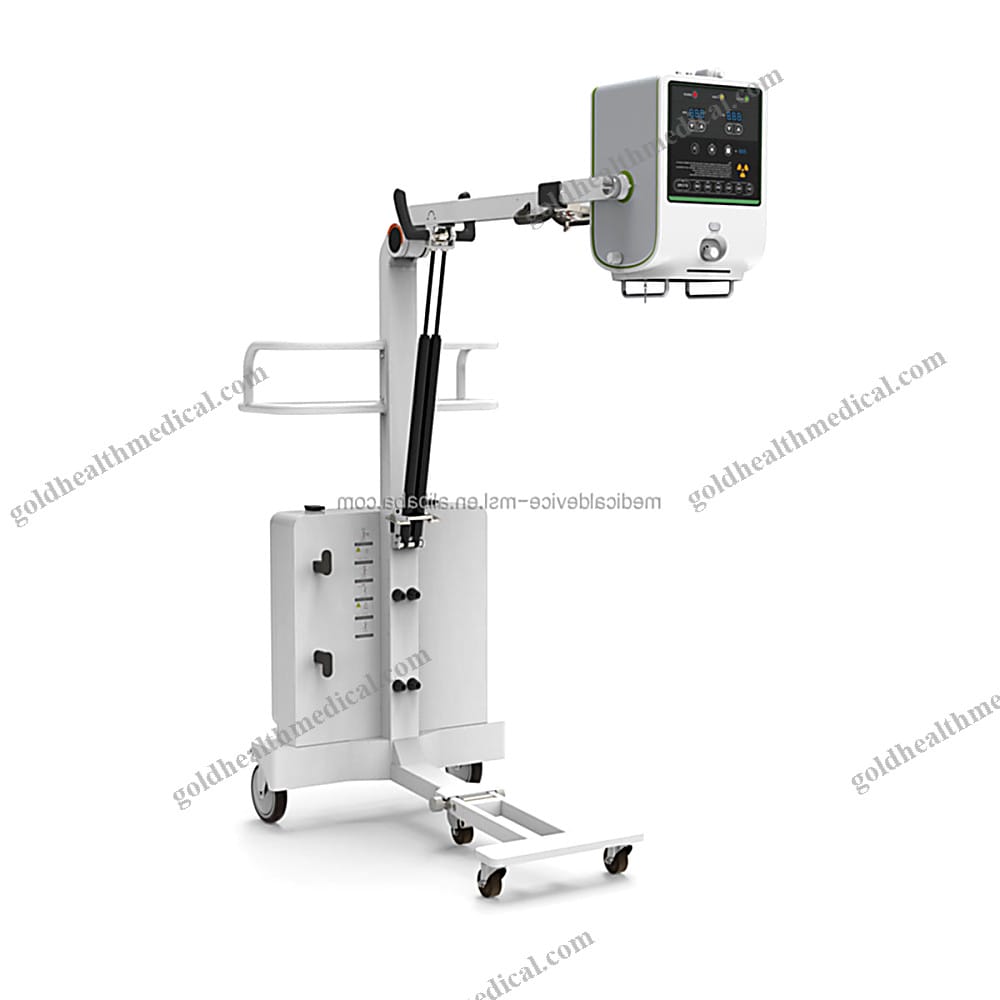

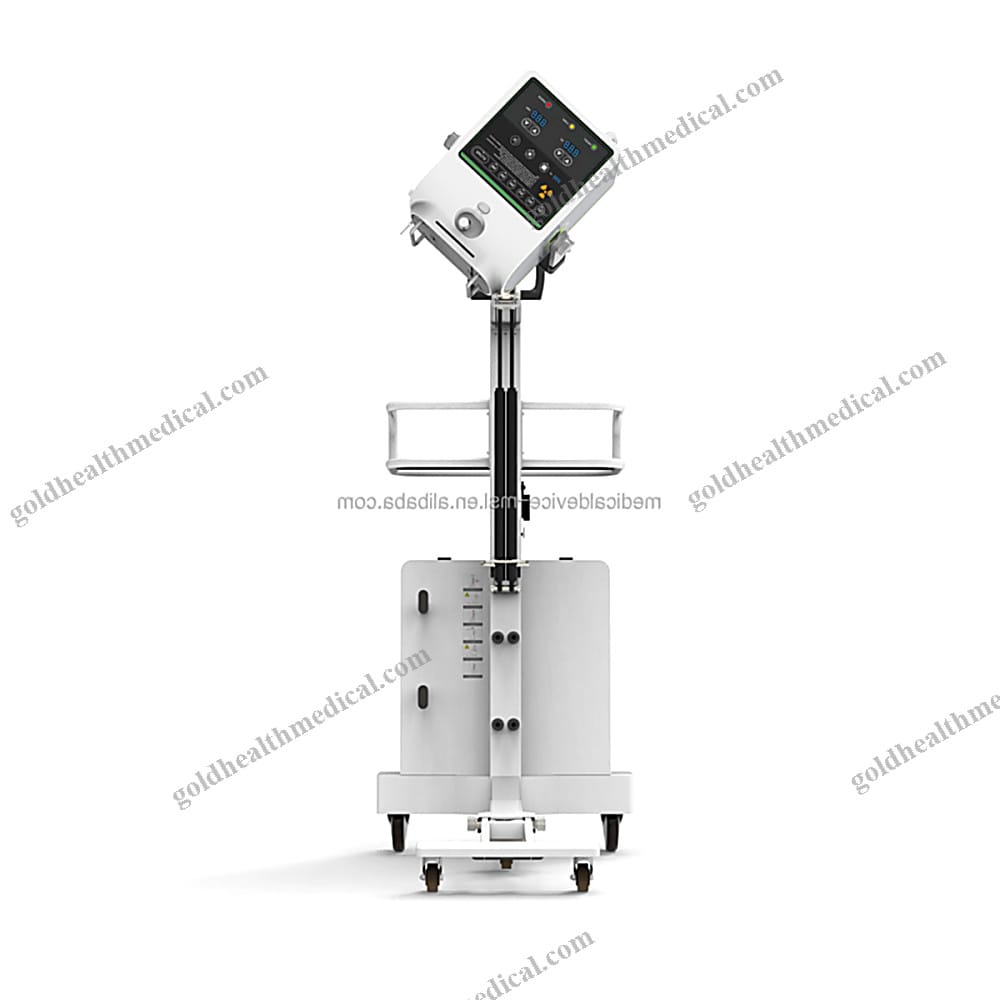

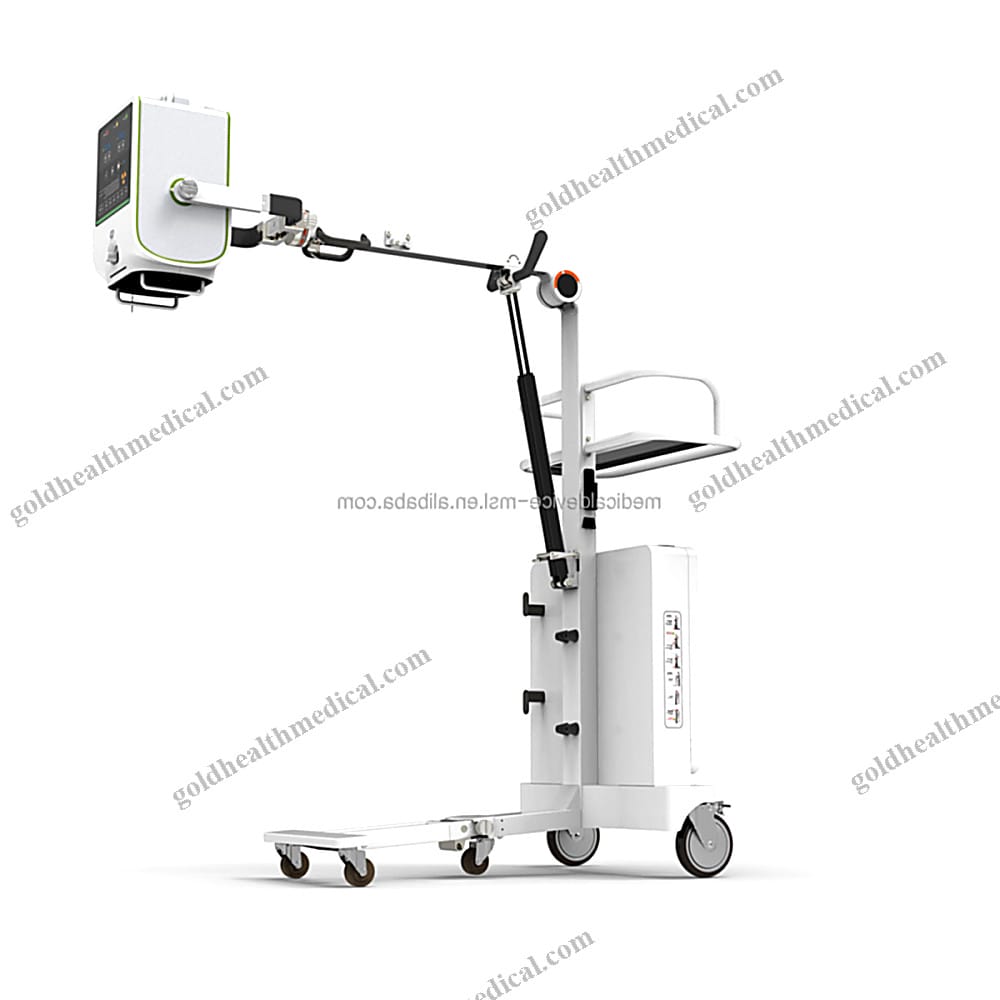

Portable Digital DR XRay with Iray Wireless Flat Panel Detector Set
Reference: 1601193460445Medical Nuclide Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Revolutionizing Radiography with GoldHealth Medical
GoldHealth Medical presents a cutting-edge mobile portable digital radiography system, designed to deliver unparalleled precision and flexibility. This advanced X-ray solution integrates a wireless 14x17 flat panel detector, empowering healthcare professionals with seamless imaging capabilities.
Key Features and Specifications:
- Focal Spot: Dual settings of 0.6 mm and 1.8 mm for exceptional image clarity.
- Angle: Adjustable up to 15° for optimal positioning.
- Input Voltage: Adaptable to both 220 V and 110 V AC, ensuring global compatibility.
- Power: High-efficiency 5.3 kW system for consistent performance.
- mA Range: Adjustable from 10 to 100 mA, accommodating diverse diagnostic needs.
- kV Range: Broad spectrum of 40 to 125 kV for versatile imaging applications.
- Bluetooth Connectivity: Streamlined wireless communication for enhanced workflow.
- X-ray Field: Maximum coverage of 43 × 43 cm² at 100 cm SID, ensuring comprehensive imaging.
Flat Panel Detector Specifications:
- Dimensions: Compact design at 460 × 460 × 15 cm³.
- Pixel Matrix: High-resolution 3072 × 3072 for detailed imaging.
- Full Image Time: Rapid processing in just 5 seconds.
- AD Conversion: Advanced 16-bit for superior image quality.
- Scintillator: CsI with direct deposition for enhanced sensitivity.
- Trigger Mode: AED for precise image capture.
- Data Interface: WiFi-enabled for seamless data transfer.
- Pixel Pitch: Fine 139 μm for sharp detail.
- Spatial Resolution: Impressive 3.6 lp/mm for clear and accurate images.
Optional Flat Panel Detector:
- Dimensions: Slightly smaller at 384 × 460 × 15 cm³.
- Pixel Matrix: 2304 × 2800 for high-definition imaging.
- Full Image Time: Equally rapid at 5 seconds.
- AD Conversion: Consistent 16-bit quality.
- Scintillator: CsI with direct deposition.
- Trigger Mode: Reliable AED functionality.
- Data Interface: WiFi connectivity.
- Pixel Pitch: 150 μm for detailed imaging.
- Spatial Resolution: 3.4 lp/mm for clear visualization.
GoldHealth Medical’s portable digital radiography system is engineered to meet the dynamic needs of modern healthcare environments. Its innovative design and robust performance make it an indispensable tool for hospitals, clinics, research institutions, and beyond. Elevate your diagnostic capabilities with a system that combines precision, portability, and power.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents an advanced medical imaging solution designed to deliver precision, reliability, and exceptional performance for healthcare professionals.
Product Highlights
- Unmatched Precision: Equipped with dual-laser technology and a dual focal spot size of 0.6mm / 1.8mm, this device ensures unparalleled accuracy in diagnostic imaging.
- Superior Imaging Quality: Achieve consistent results with a ripple of less than 5%, ensuring stable and high-quality imaging output.
- Versatile Power Supply: Operates seamlessly on AC 220V/110V ±10% at 50/60Hz, making it adaptable to various global power systems.
- Wide Range of Adjustable Parameters:
- kV Range: 40 - 125
- mA Range: 10 - 100
- mAs Range: 0.1 - 100
- Target Angle: 15°
- Durable Construction: Built with high-grade plastic and steel materials, ensuring long-lasting performance in demanding environments.
- Safety and Compliance: Meets stringent Class II instrument standards and is certified by MFDS, CE, and ISO for quality assurance.
Key Features
- Powerful Performance: Delivers up to 5.3kW of power, ensuring efficient operation for a variety of medical imaging needs.
- Extended Shelf Life: Designed with a shelf life of 3 years, maintaining optimal functionality over time.
- Comprehensive Warranty: Backed by a 3-year warranty, providing peace of mind and long-term reliability.
- Dedicated Support: Access online technical support to ensure uninterrupted performance and quick resolution of any issues.
Ideal For
- Hospitals and clinics seeking cutting-edge diagnostic tools
- Research institutions requiring precise imaging capabilities
- Rehabilitation centers and nursing homes focused on patient care
- Laboratories and medical equipment suppliers looking for trusted solutions
GoldHealth Medical is committed to empowering healthcare providers with innovative, high-quality medical devices that enhance diagnostic accuracy and improve patient outcomes.
