Portable Digital DR XRay with Iray Wireless Flat Panel Detector Set
Reference: 1600627282719Medical Nuclide Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

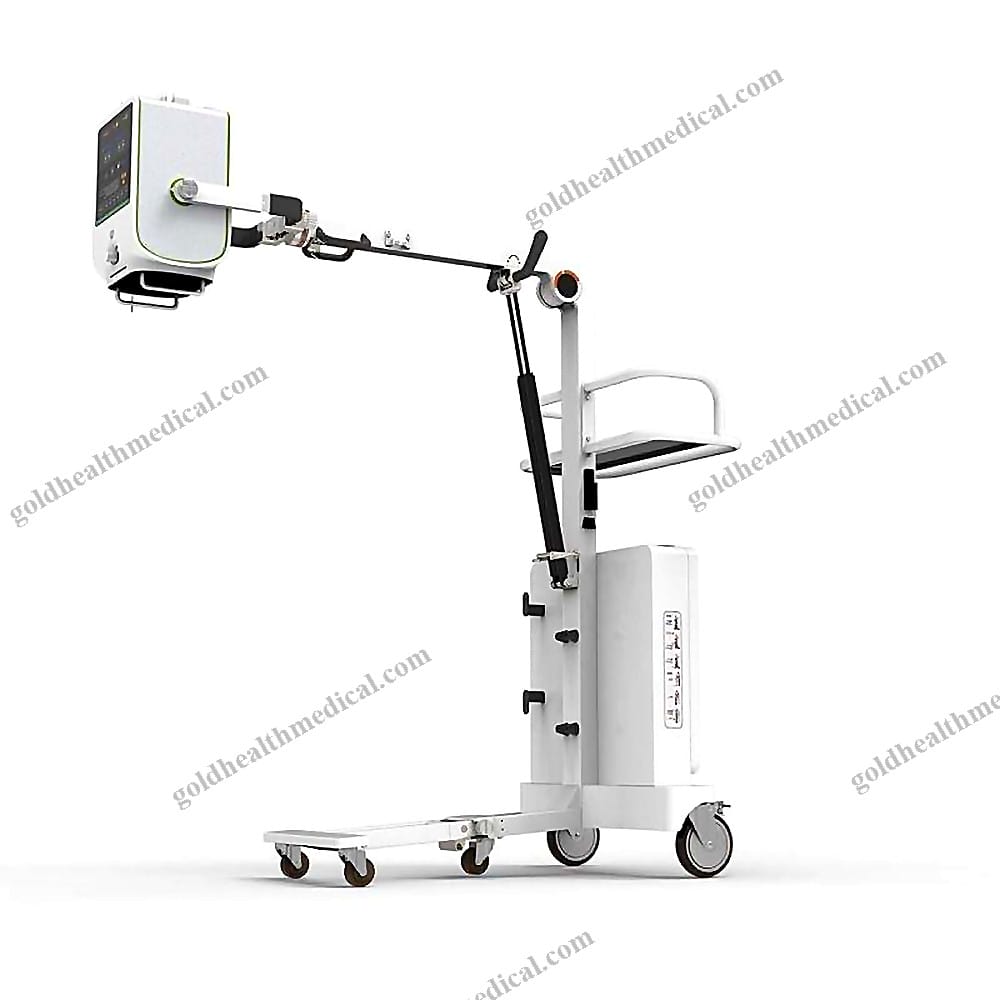

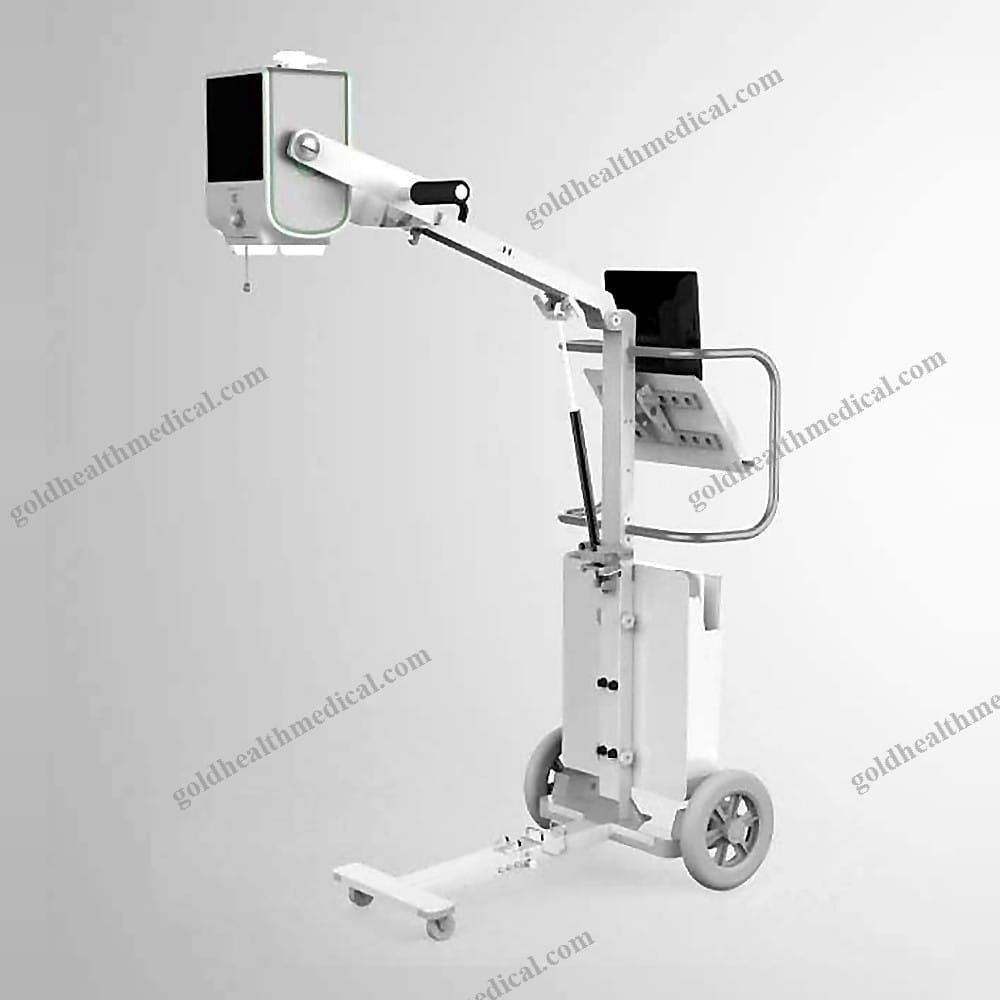

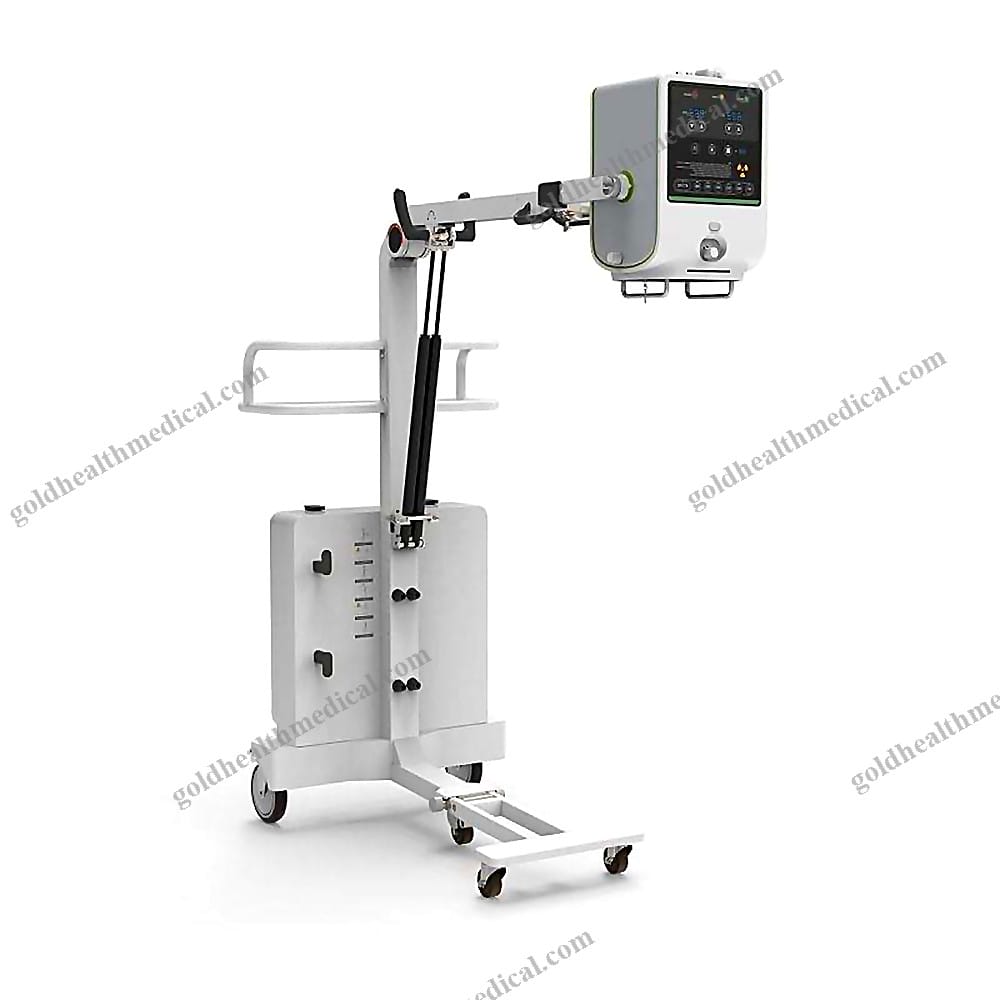

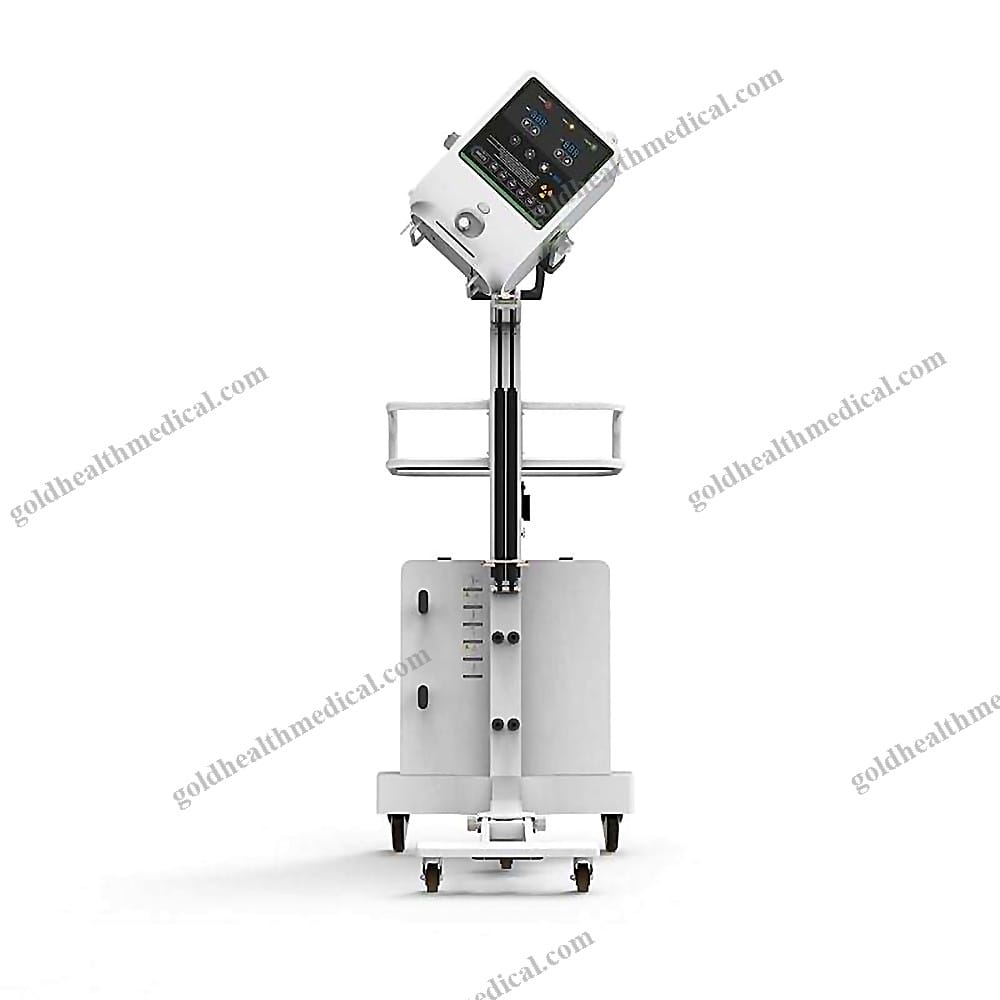

Revolutionary Mobile Portable Digital X-Ray by GoldHealth Medical
Experience the future of diagnostic imaging with GoldHealth Medical's cutting-edge mobile portable digital X-ray system. Designed for unparalleled flexibility and precision, this system is equipped with an advanced wireless 14x17 flat panel detector, making it ideal for a wide range of medical environments.
Key Features
- Precision Focal Spot: Dual focal spots of 0.6 mm and 1.8 mm ensure exceptional image clarity and diagnostic accuracy.
- Wide X-Ray Field: Covers up to 43 × 43 cm² at a 100 cm Source-to-Image Distance (SID), enabling comprehensive imaging in a single exposure.
- Versatile Power Options: Operates seamlessly on both 220 V and 110 V AC input voltages, ensuring compatibility across global standards.
- Powerful Performance: Delivers 5.3 kW of power with an mA range of 10–100 mA and a kV range of 40–125 kV, offering flexibility for diverse imaging needs.
- Wireless Connectivity: Equipped with Bluetooth and WiFi for effortless data transfer and integration into modern healthcare workflows.
Flat Panel Detector Specifications
Primary Detector
- Dimensions: 460 × 460 × 15 cm³
- Pixel Matrix: 3072 × 3072
- Full Image Time: 5 seconds
- AD Conversion: 16-bit for enhanced image depth and detail
- Scintillator: CsI with direct deposition for superior image quality
- Trigger Mode: AED (Automatic Exposure Detection)
- Pixel Pitch: 139 μm
- Spatial Resolution: 3.6 lp/mm
Optional Detector
- Dimensions: 384 × 460 × 15 cm³
- Pixel Matrix: 2304 × 2800
- Full Image Time: 5 seconds
- AD Conversion: 16-bit
- Scintillator: CsI with direct deposition
- Trigger Mode: AED
- Pixel Pitch: 150 μm
- Spatial Resolution: 3.4 lp/mm
Why Choose GoldHealth Medical?
GoldHealth Medical’s portable X-ray system redefines mobility and precision in diagnostic imaging. Its lightweight design, advanced imaging capabilities, and wireless functionality make it an indispensable tool for hospitals, clinics, research labs, and home healthcare providers. Whether you’re conducting routine exams or complex diagnostics, this system delivers consistent, high-quality results with minimal effort.
Elevate your imaging standards with GoldHealth Medical’s innovative solutions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Introduction:
Experience precision and reliability with GoldHealth Medical’s advanced radiographic system. Designed for superior imaging performance, this Class II medical instrument is engineered to meet the demands of modern healthcare environments. Whether in hospitals, clinics, or research labs, this system delivers exceptional results with its cutting-edge technology and robust build.
Key Features and Specifications:
- Power Source: Electric, AC 220V/110V ±10%, 50/60Hz
- Power Output: 5.3kW for consistent performance
- Imaging Parameters:
- kV Range: 40 - 125
- mA Range: 10 - 100
- mAs Range: 0.1 - 100
- Ripple: < 5% for stable and clear imaging
- Focal Spot Sizes: 0.6mm / 1.8mm for high-resolution imaging
- Target Angle: 15° for optimal X-ray beam alignment
- Laser Guidance: Dual-laser system ensures precise positioning
- Materials: Durable construction with high-quality plastic and steel components
Safety and Compliance:
- Complies with MFDS safety standards
- Certified with CE and ISO for quality assurance
Warranty and Support:
- Warranty Period: 3 years for peace of mind
- After-Sales Service: Comprehensive online technical support to ensure uninterrupted operation
Additional Details:
- Shelf Life: 3 years
- Place of Origin: Guangdong, China
GoldHealth Medical’s radiographic system is a trusted choice for professionals seeking accuracy, durability, and innovation in medical imaging. Elevate your diagnostic capabilities with a product designed to exceed expectations.
