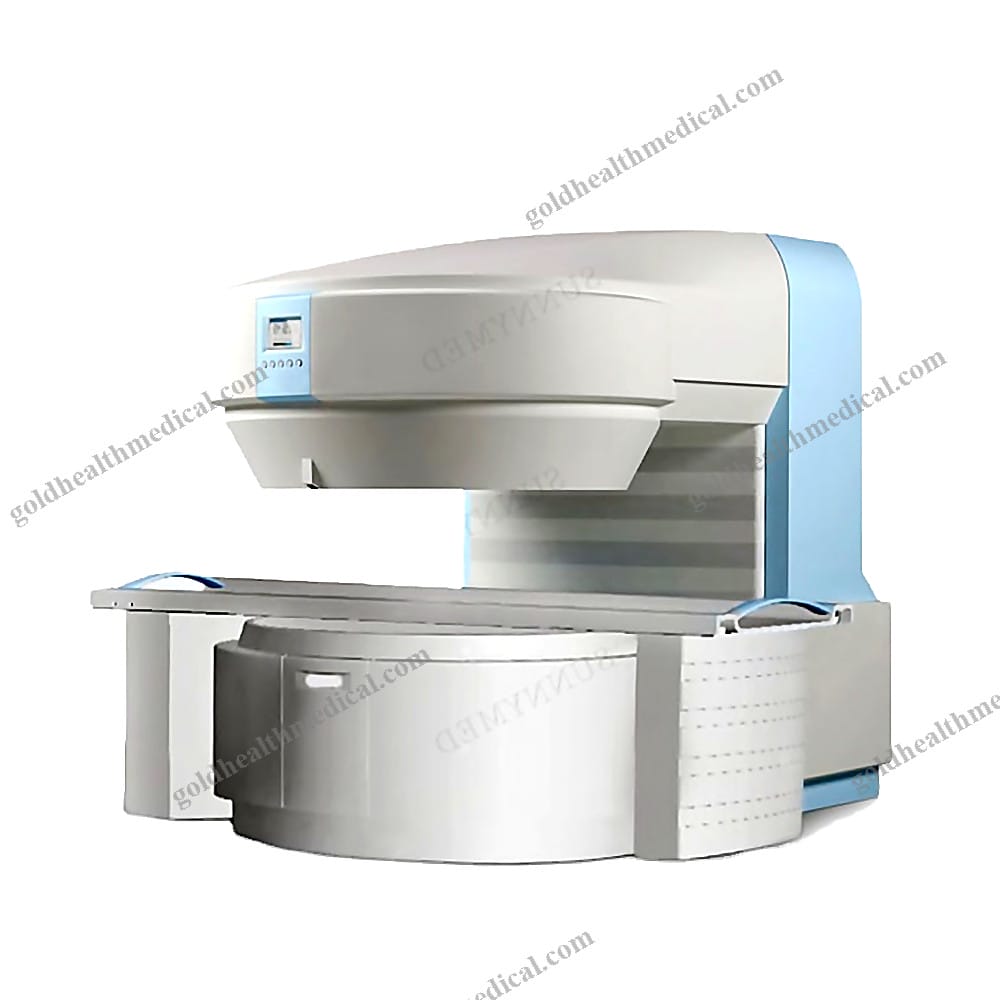

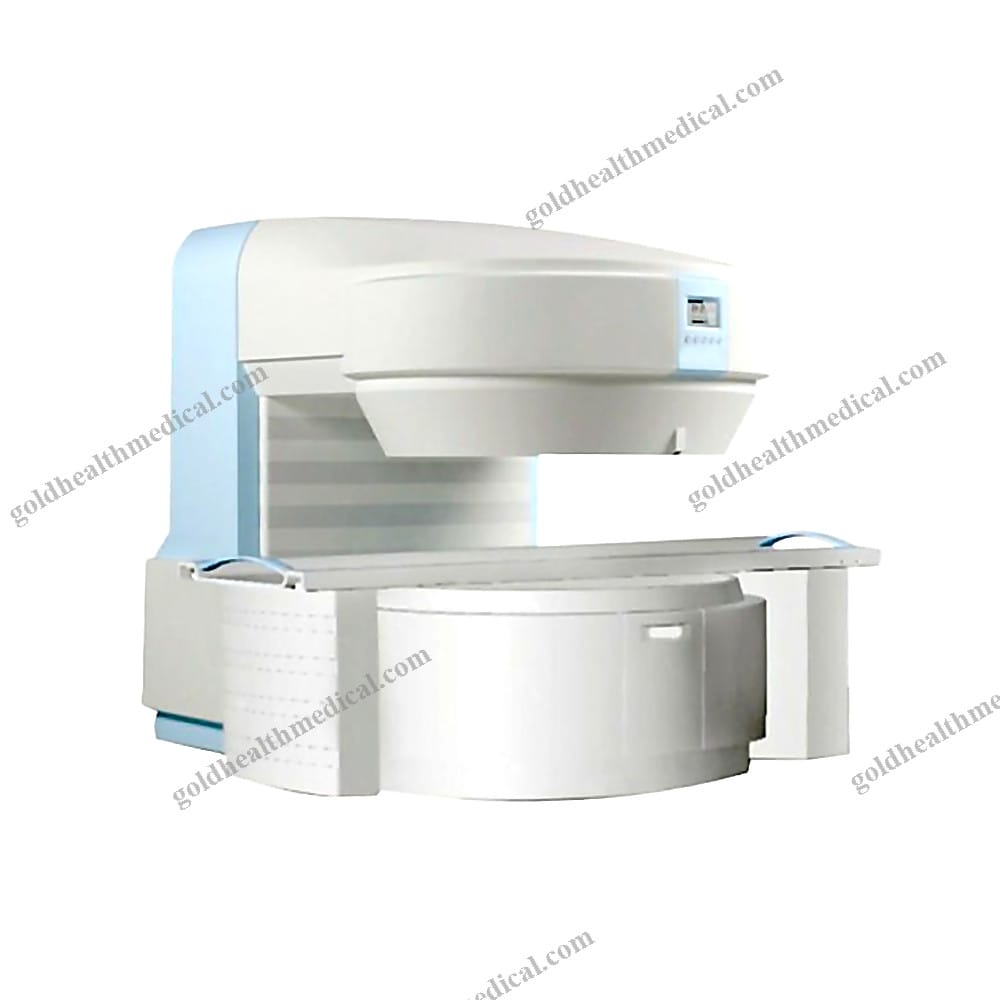

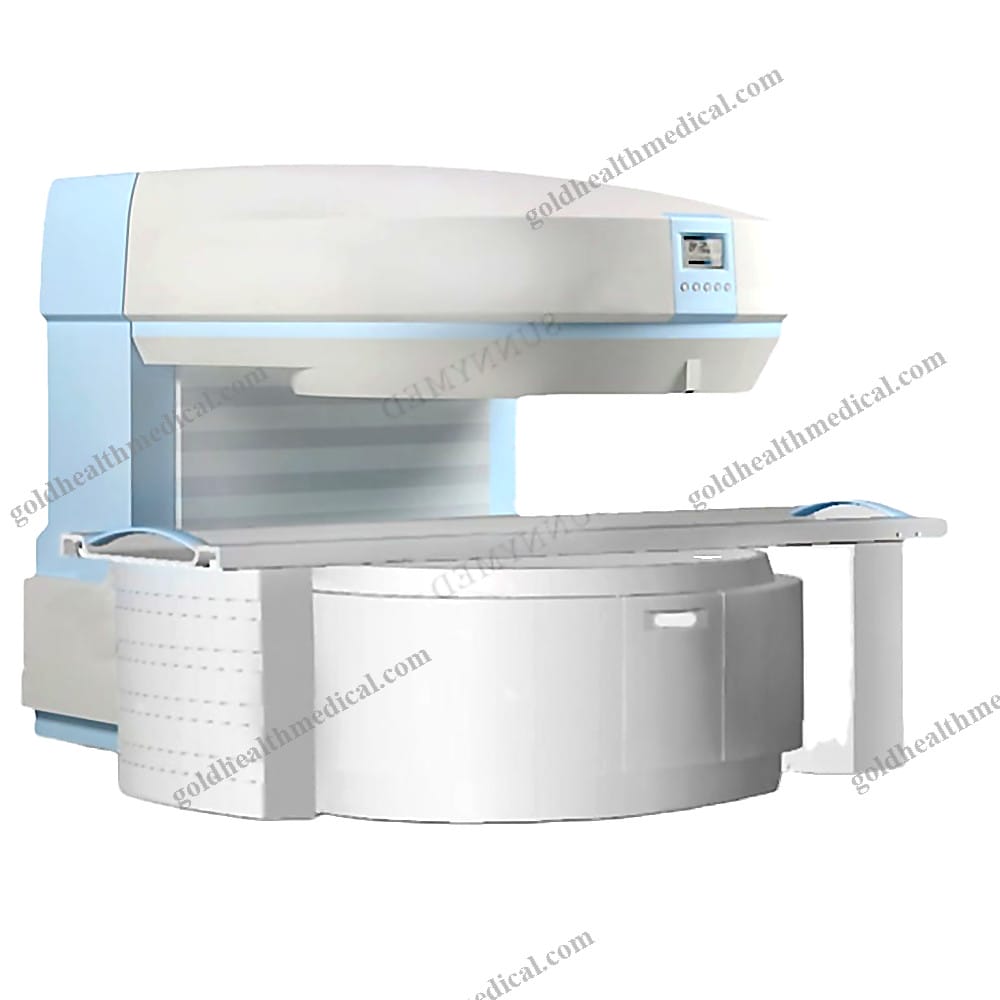

Portable CShaped MRI Scanner System
Reference: 1601159261299Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Medical Imaging with Advanced MRI Technology
GoldHealth Medical presents an innovative Magnetic Resonance Imaging (MRI) solution designed to deliver exceptional performance and patient comfort. Our MRI system is engineered for a wide range of medical environments, from hospitals and clinics to research institutions and rehabilitation centers.
Why Choose Our MRI System?
- Unmatched Value: Combining affordability with cutting-edge technology, our MRI system offers an excellent price-performance ratio.
- Comprehensive Software Suite: Equipped with powerful, user-friendly software as part of the standard configuration.
- Patient-Centric Design: Featuring a fully open C-shaped magnet, ensuring a welcoming and stress-free experience for patients.
- Space Efficiency: Requires minimal installation space—less than 50 square meters (538 sq. ft.).
- Cost-Effective Operation: Utilizes a permanent magnet, eliminating the need for helium and reducing operational expenses.
- Increased Patient Throughput: Attracts more patients and referring physicians, enhancing revenue potential.
- Optimized ROI: Lower operational costs paired with high performance ensure excellent profitability.
- Dedicated Support: Backed by a professional service team available 24/7 for seamless operation.
Technical Specifications
1.0 Magnet
- Field Strength: 0.35 Tesla (3500 Gauss)
- Magnet Type: Fully open C-shaped, 2-column design
- Material: Permanent Nd-Fe-B magnet
- Homogeneity: ≤ 2.0 ppm (Vrms) for 400mm DSV; ≤ ±1 ppm (FWHH) for 200mm DSV
- Shimming: Passive and active shimming
- Patient Gap: 400mm (cover to cover)
- Weight: 17,500 kg
- Dimensions: 1970mm x 1320mm x 1820mm
2.0 Gradient System
- Gradient Strength: Max. 25 mT/m (Gx/Gy/Gz)
- Slew Rate: 64 mT/m/ms (Gx/Gy/Gz)
3.0 RF System
- Spectrometer: Digital (4 channels)
- Transmitting Coil: Flat planar coil
- Receiving Coils: Phase array coils (Neck, Head, Large Body, Small Body, Knee)
- Optional Coils: Wrist, Shoulder, Spine, Breast, Ankle, and more
- Transmitter Amplifier Power: 6 kW
4.0 Computer System
- Operating System: Windows 2000/NT/XP
- CPU: 2.8 GHz (Dual Core Processor)
- Hard Disk: ≥ 250 GB
- RAM: 2048 MB (2 GB)
- Display: ≥ 22” TFT
- Network & Printer Interface: DICOM 3.0
- Software: BASDA BTI-035 Software
5.0 Auto Pre-Scan
- Automated pre-scan functionality for streamlined workflows.
6.0 Pulse Sequences
- Includes IR, Spin Echo (SE 2D/3D), Multi-slice Multi-echo (MSME), Gradient Echo (GRE 2D/3D), Steady State Process Gradient Echo (SSPGRE), Fast Spin Echo (FSE), Single Shot Fast Spin Echo (SSFSE), Multi-shot Fast Spin Echo (MSFSE), Inversion Recovery (IR), Inversion Recovery Fast Spin Echo (IRFSE), Short Time Inversion Recovery (STIR), Fluid Attenuated Inversion Recovery (FLAIR), MRM, MRU, MRCP, TOF 2D/3D MRA, Diffusion Weighted Imaging (DWI), and Echo Planar Imaging (EPI).
7.0 Image Parameters
- Acquisition Matrix: 64/128/256/512
- Resolution:
- 1 mm (Head, 24 cm FOV, 256x256)
- 1.5 mm (Body, 30 cm FOV, 256x256)
- 0.5 mm (Head, 24 cm FOV, 512x512)
- 0.75 mm (Body, 30 cm FOV, 512x512)
- Maximum Display Matrix: 1024x1024
- FOV: 20–400
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: 0.35T MRI Machine - Magnetic Resonance Imaging by GoldHealth Medical
Key Features and Benefits:
- Advanced Imaging Technology: Achieve exceptional clarity with a magnetic strength of 0.35T, delivering precise diagnostic results for hospitals, clinics, and research facilities.
- Self-Shielding Gradient System: Minimize external interference and ensure consistent performance in any environment, including X-ray rooms and radiography departments.
- Dynamic Range: With a dynamic range of ≥80dB, capture detailed images with superior contrast and accuracy.
- Compact and Durable Design: Constructed with high-quality metal and plastic materials, this MRI machine is built to last while maintaining a sleek blue and black aesthetic.
Technical Specifications:
- Instrument Classification: Class II medical device, ensuring safety and reliability for professional use.
- Safety Standard Compliance: Meets GB15979-2002 standards for hygiene and safety.
- Weight: 12 tons, designed for stability and optimal performance.
- Power Source: Electricity-driven for consistent operation.
- Shelf Life: 1 year from the date of manufacture.
Applications:
- Ideal for comprehensive body examinations in hospitals, diagnostic centers, and research labs.
- Supports advanced imaging needs in radiology departments and specialized medical facilities.
Certifications and Quality Assurance:
- Backed by CE and ISO certifications, guaranteeing compliance with international quality and safety standards.
After-Sale Support:
- Warranty: 1-year coverage for peace of mind.
- Online Technical Support: Access expert assistance anytime to ensure uninterrupted performance.
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with user-centric design to deliver medical equipment that meets the highest industry standards. Our 0.35T MRI machine is engineered to provide reliable, accurate, and efficient imaging solutions for healthcare professionals worldwide.
Place of Origin: Guangdong, China – A hub for innovation and precision manufacturing.
Usage: Designed for hospital-grade body examinations, this MRI machine is a trusted tool for diagnosing and monitoring a wide range of medical conditions.
Color Options: Available in a professional blue and black finish, blending seamlessly into modern medical environments.
Choose GoldHealth Medical for a smarter, safer, and more reliable approach to medical imaging.
