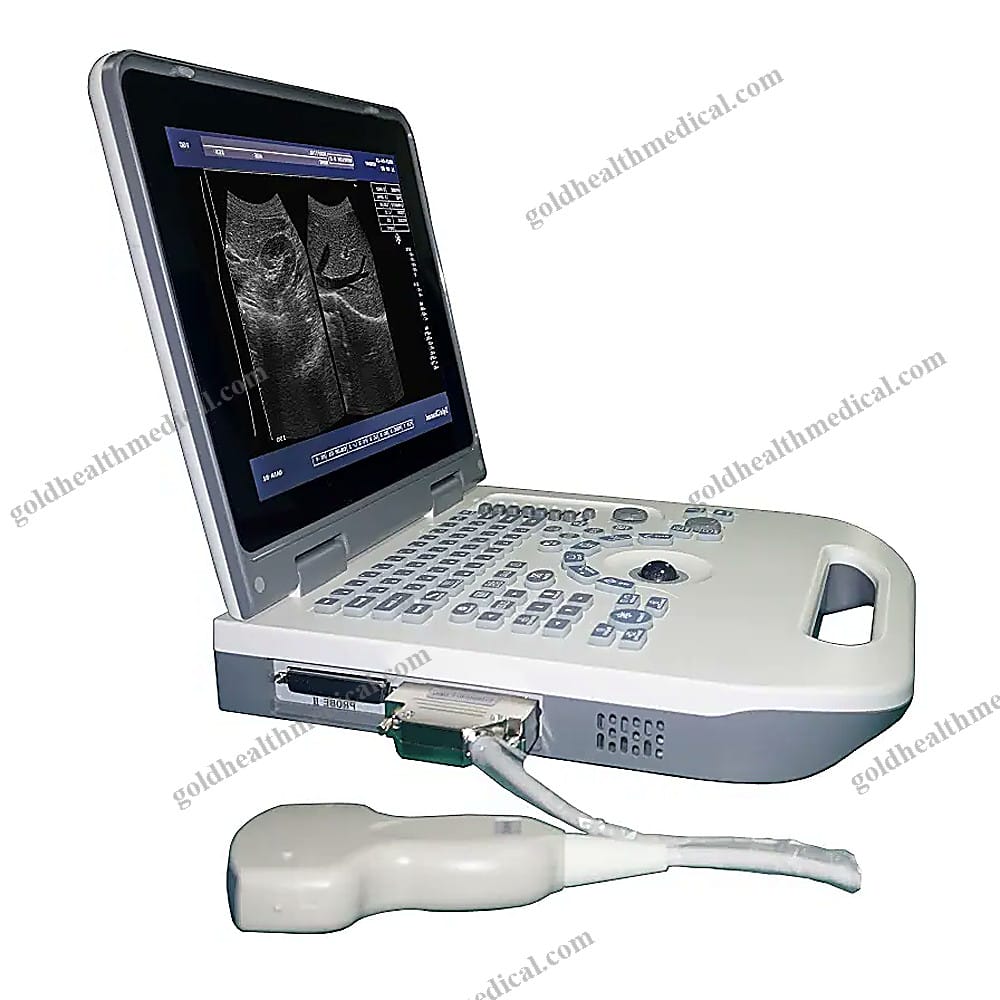

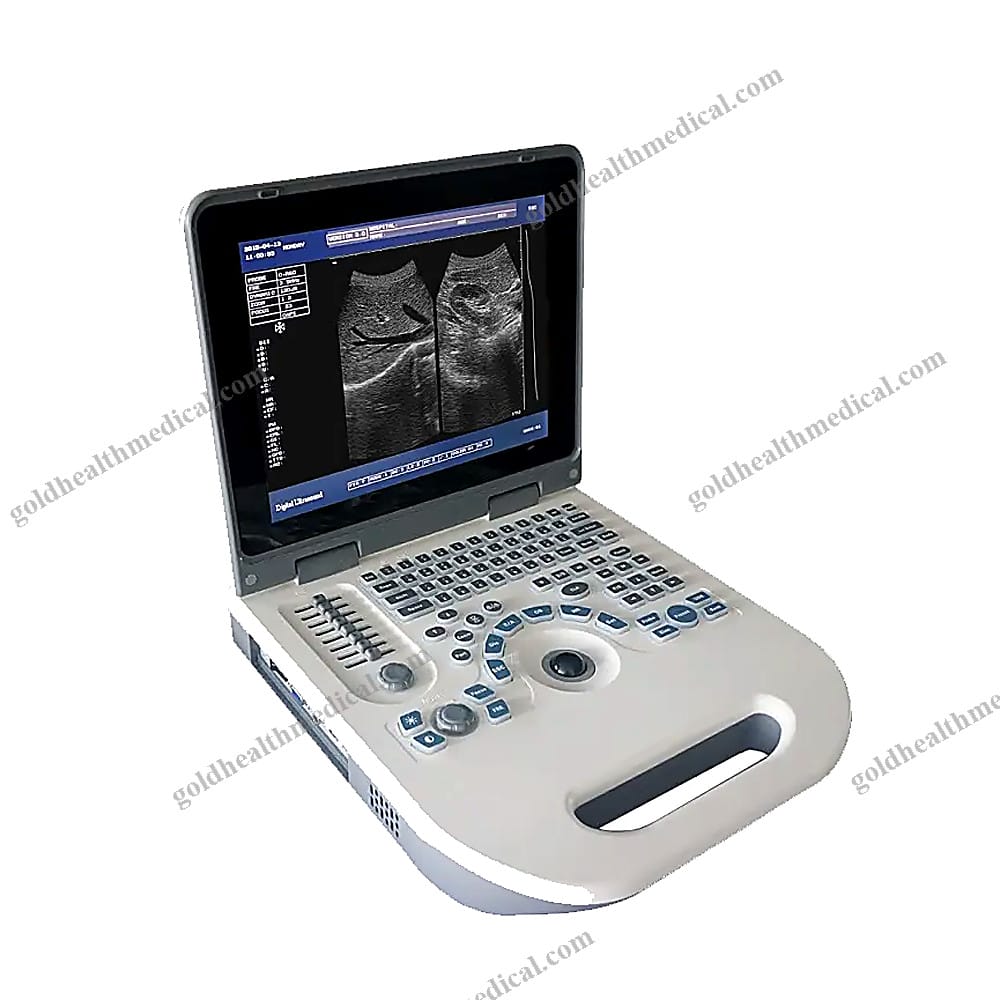

Portable Color Doppler Ultrasound Scanner for Animals
Reference: 1601280000577Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Diagnostic Imaging
Product Overview
GoldHealth Medical presents a cutting-edge ultrasound system designed to deliver exceptional imaging performance and versatile functionality. Engineered for precision and ease of use, this device is ideal for a wide range of medical applications, from routine diagnostics to advanced clinical assessments.
Key Features
- Advanced Measuring Capabilities:
- Accurate distance, circumference, area (ellipse and loci methods), and volume measurements.
Comprehensive obstetric functions, including heart rate monitoring, gestational weeks, estimated delivery date, and fetal weight calculations.
Intuitive Annotation Tools:
- Customizable annotations for hospital name, patient details (name, age, gender), and body marks.
Full-screen text annotation and real-time clock display for precise documentation.
Precision Puncture Guidance:
Equipped with a 3.5MHz convex array probe, offering clear puncture guidance in B-mode for enhanced procedural accuracy.
Enhanced Image Control:
- Independent adjustment of 8-segment TGC and overall gain for optimal image clarity.
Image polarity options, including left-right and up-down flips, for versatile viewing angles.
Dynamic Image Management:
- Real-time display of 256 consecutive images in a cine loop for seamless review.
- Playback options include series playback or individual frame inspection.
Technical Specifications
- Display Modes: B, B/B, 4B, B+M, M
- Gray Scale: 256 levels for superior image detail
- Dynamic Range: Adjustable from 0 to 120dB for enhanced contrast resolution
- Pseudo Color Options: 16 external LED display colors for diverse visualization needs
- Permanent Storage: Capacity to store up to 128 images for long-term reference
- Image Magnification: E-Zoom feature provides 2x real-time image magnification
- Focus Positioning: Dynamic electronic focusing ensures sharp and clear imaging
Probe Compatibility and Frequency Options
- Frequency Conversion:
- Five frequency settings: 2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.0MHz
High-frequency range: 5.5MHz, 6.0MHz, 6.5MHz, 7.0MHz, 7.5MHz for specialized probes
Image Multiplying Factor:
- 3.5MHz/R60 convex array probe supports six magnification modes: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0

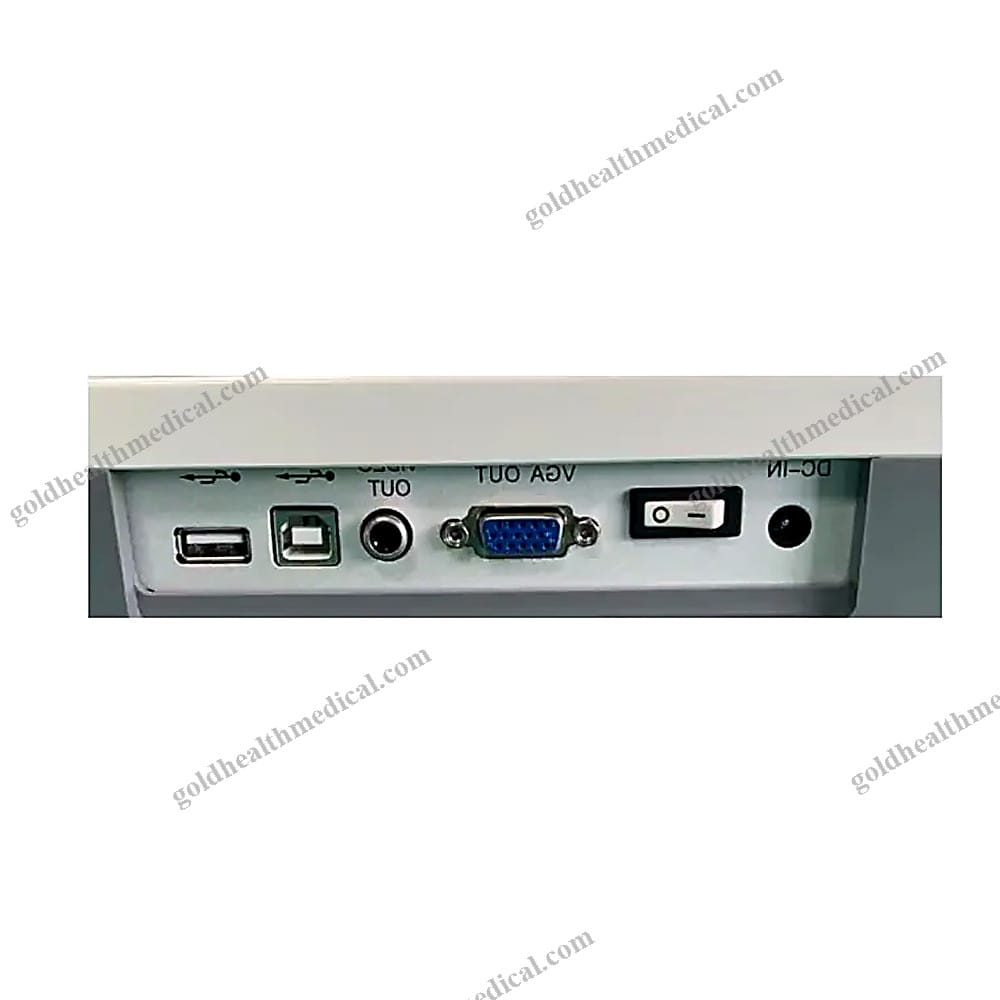

Output Interfaces
- 1 USB video output
- 1 SVGA video output compatible with SVGA color monitors
- 1 PAL video output for PAL monitors, video recorders, and image processing systems
- USB port for connecting standard printers to generate measurement reports

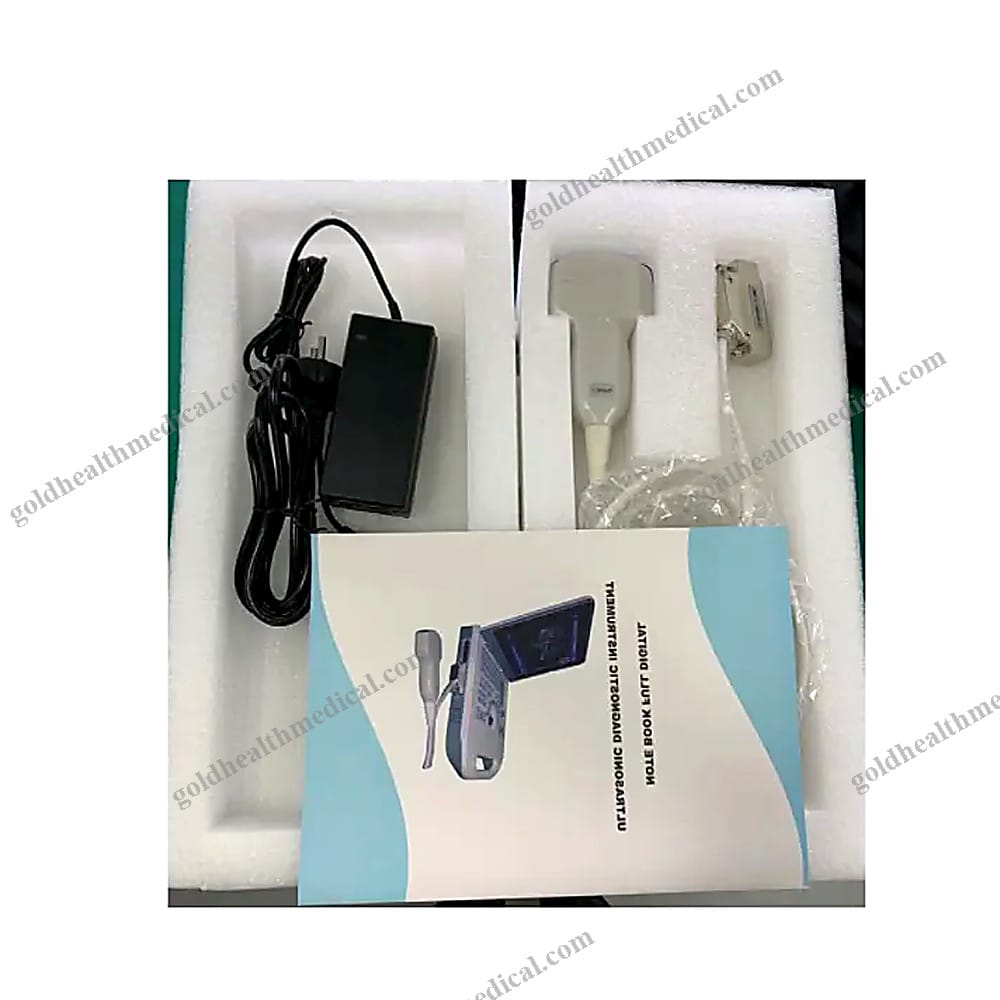

Optional Probes
- Convex
- Linear
- Trans-vaginal
- Trans-rectal
- Micro-convex
Unique Selling Points

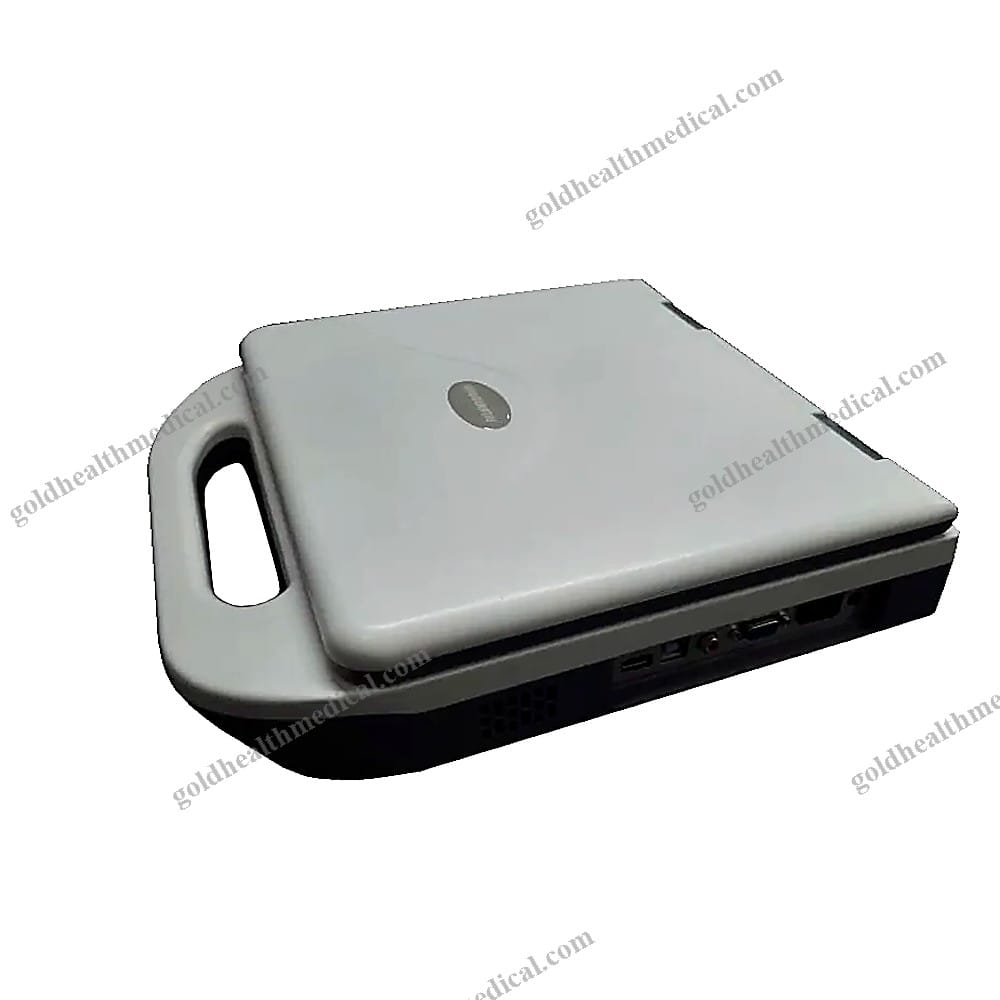

- Portability and Design: Compact laptop-style design with a 12.6" LED display and backlight keys for effortless operation.

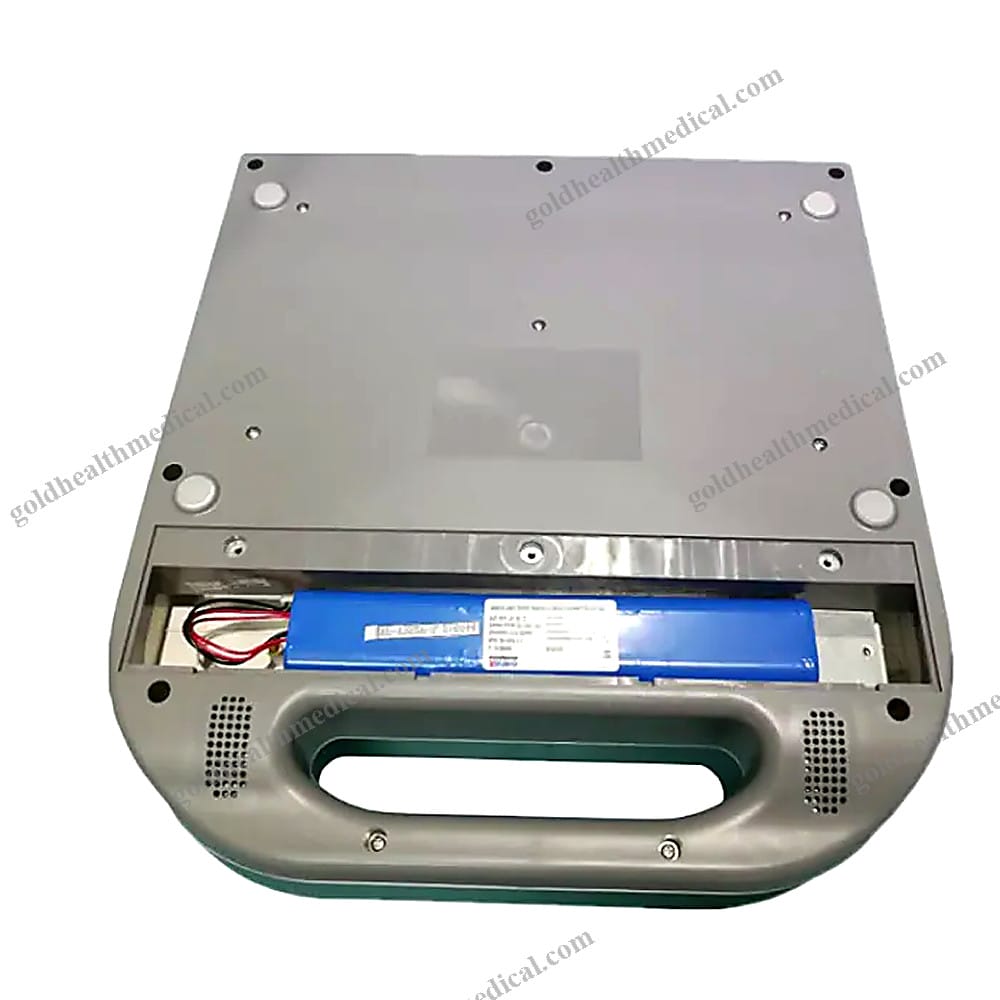

- Long-Lasting Performance: Powered by a lithium battery, ensuring uninterrupted use during critical procedures.
- Versatility Across Applications: Suitable for hospitals, clinics, research labs, rehabilitation centers, and home healthcare settings.
GoldHealth Medical’s ultrasound system combines innovation, precision, and reliability to meet the evolving needs of modern healthcare professionals. Elevate your diagnostic capabilities with a device designed to deliver unparalleled performance.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Company: GoldHealth Medical
Product Description:
The GoldHealth Medical device is a cutting-edge Class II medical instrument designed to deliver precision, durability, and safety for a wide range of healthcare applications. Engineered with a robust combination of high-quality metal and premium plastic, this device ensures long-lasting performance in demanding environments.
Key Features and Specifications:
- Power Source: Electric, providing reliable and consistent operation
- Shelf Life: 2 years, ensuring extended usability and value
- Material Composition: Constructed from durable metal and high-grade plastic for enhanced longevity
- Safety Standard Compliance: Meets the rigorous requirements of GB/T18830-2009, guaranteeing user safety and operational reliability
- Quality Certifications: CE-certified, reflecting adherence to international quality and safety standards
- Place of Origin: Proudly manufactured in Hubei, China, ensuring precision craftsmanship
Support and Warranty:
- Warranty Period: 2 years, offering peace of mind and confidence in your investment
- After-Sale Service: Comprehensive online technical support to address any queries or issues promptly
Unique Selling Points:
- Combines advanced engineering with user-centric design for seamless integration into medical workflows
- Ideal for hospitals, clinics, research labs, and home healthcare settings
- Backed by GoldHealth Medical’s commitment to innovation, quality, and customer satisfaction
Applications:
Perfectly suited for use in hospitals, clinics, laboratories, rehabilitation centers, and home care environments, this device is a versatile solution for modern healthcare needs.
