Portable Capnograph Monitor EtCO2RRSPO2
Reference: 1601024976033Emergency & Clinics Apparatuses
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

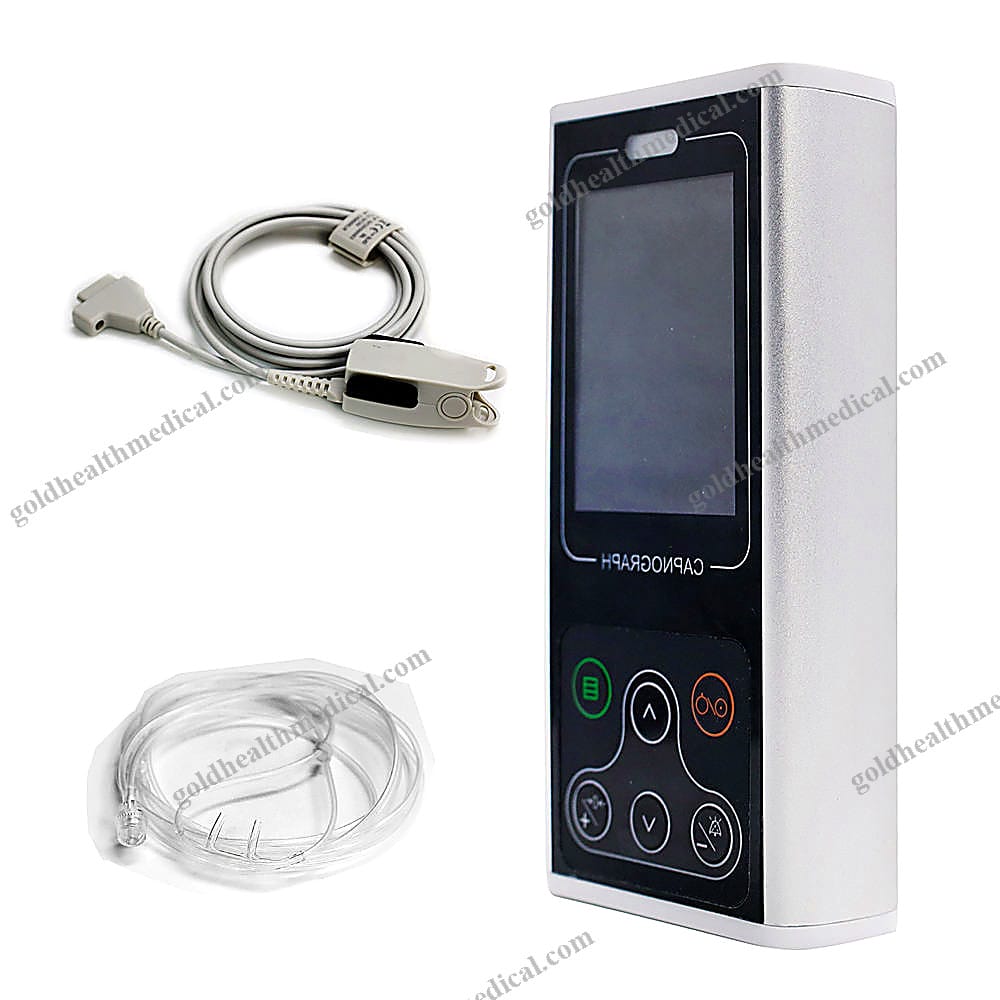

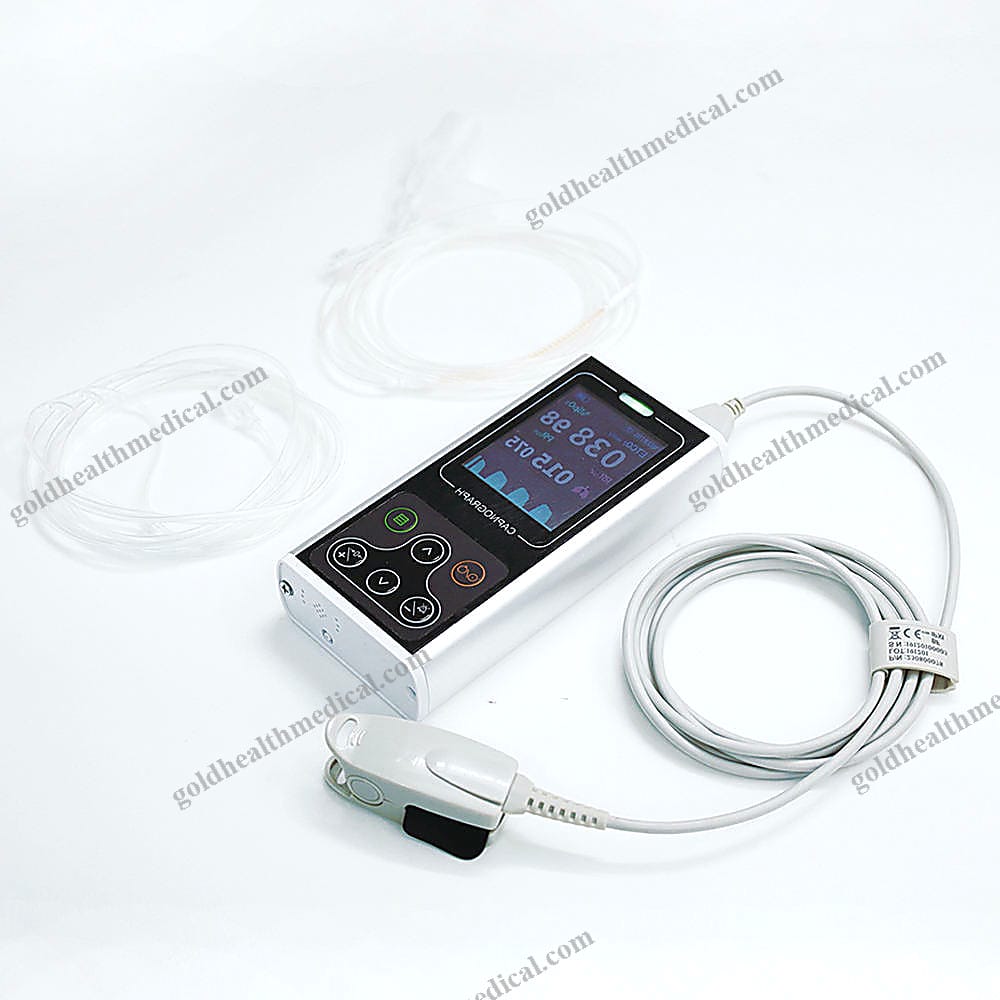

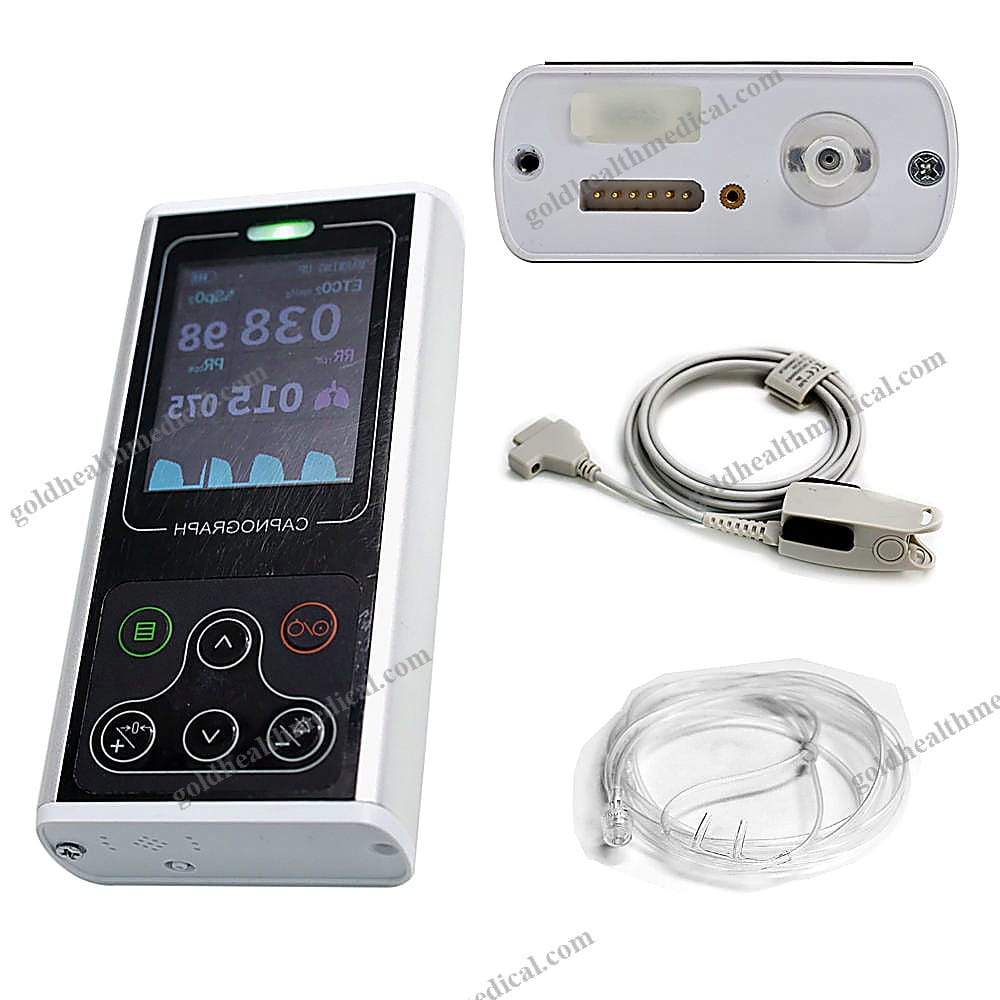

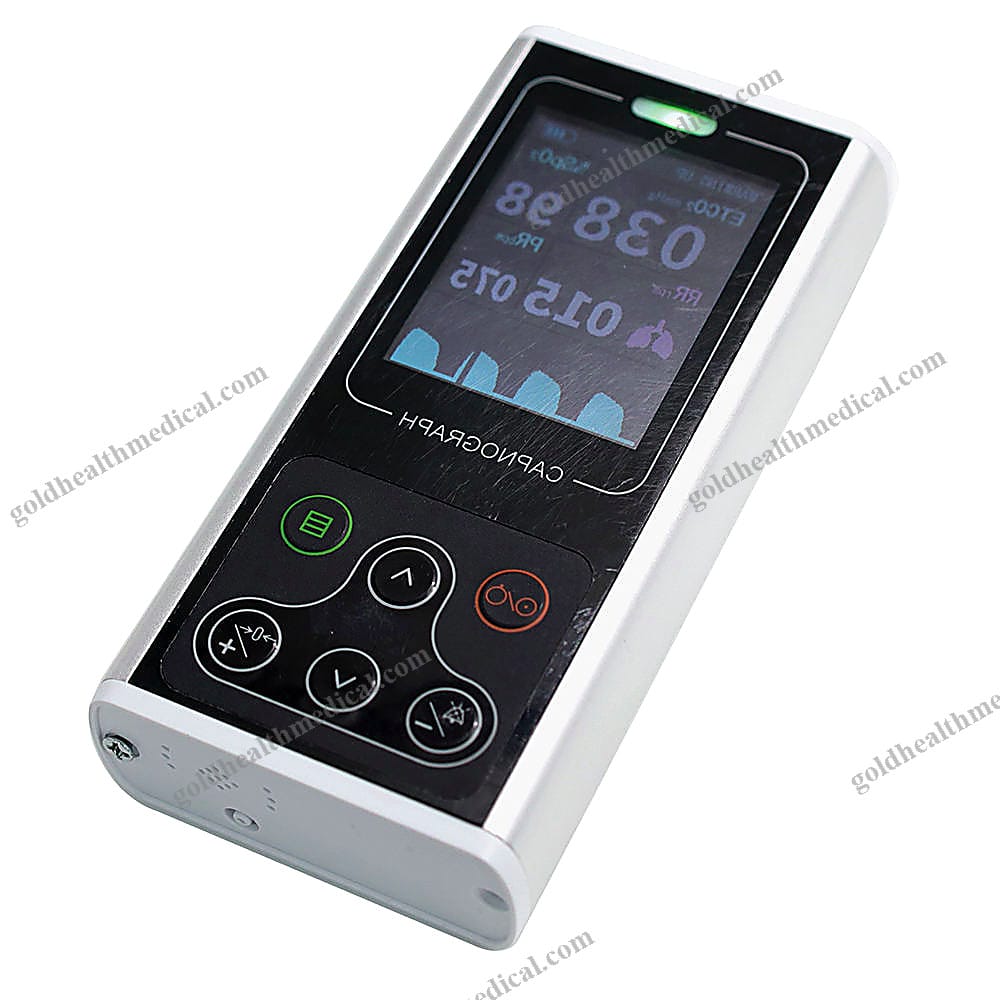

GoldHealth Medical Portable Capnograph and Patient Monitor
Introduction
The GoldHealth Medical Portable Capnograph is a cutting-edge device that utilizes the sidestream method to measure end-tidal carbon dioxide, respiration rate, and other critical parameters. This advanced monitor provides insights into pulmonary ventilation function, circulation, and pulmonary blood flow, while also detecting blood oxygen saturation and pulse. Designed for versatility, it is ideal for pre-hospital emergency transfers, emergency departments, ICUs, operating rooms, neonatal care, respiratory departments, and more. Suitable for adults, pediatrics, and neonates, this device is an indispensable tool for modern healthcare.
Key Features
- End-tidal CO2 Measurement: Accurate and reliable monitoring of carbon dioxide levels.
- Respiration Rate Measurement: Tracks breathing patterns with precision.
- SpO2 Measurement: Monitors blood oxygen saturation levels effectively.
- Pulse Rate Measurement: Provides real-time pulse rate data.
- Over-Limit Alarms: Alerts for EtCO2, respiration rate, SpO2, and pulse rate thresholds.
- Low Battery Alarm: Ensures uninterrupted monitoring with timely alerts.
Performance Specifications
- End-tidal CO2 Measurement:
- Range: 0 ~ 150 mmHg
- Resolution: 1 mmHg
- Accuracy:
- 0 ~ 40 mmHg: ±2 mmHg
- 41 ~ 70 mmHg: ±5% of readings
- 71 ~ 100 mmHg: ±8% of readings
- 101 ~ 150 mmHg: ±10% of readings
- Respiration Rate Measurement:
- Range: 2 rpm ~ 120 rpm
- Resolution: 1 rpm
- Accuracy: ±1 rpm
- SpO2 Measurement:
- Range: 30% ~ 100%
- Resolution: 1%
- Accuracy:
- 70% ~ 100%: ±2%
- 0% ~ 69%: Undefined
- Pulse Rate Measurement:
- Range: 25 bpm ~ 250 bpm
- Resolution: 1 bpm
- Accuracy: ±2 bpm or ±2%, whichever is greater
Safety Characteristics
- Device Type: Internally powered equipment
- Protection Against Electric Shock: Type BF applied part
- Protection Against Liquid Ingress: IPX1
Physical Characteristics
- Dimensions: 159 x 72 x 31 mm
- Weight: 270 g
- Working Environment:
- Temperature: 5°C ~ 40°C
- Relative Humidity: 30% ~ 75%, no condensation
- Atmospheric Pressure: 700 hPa ~ 1060 hPa
- Power Supply: DC 3.7V (rechargeable lithium batteries)
- Input Power: ≤1.5VA

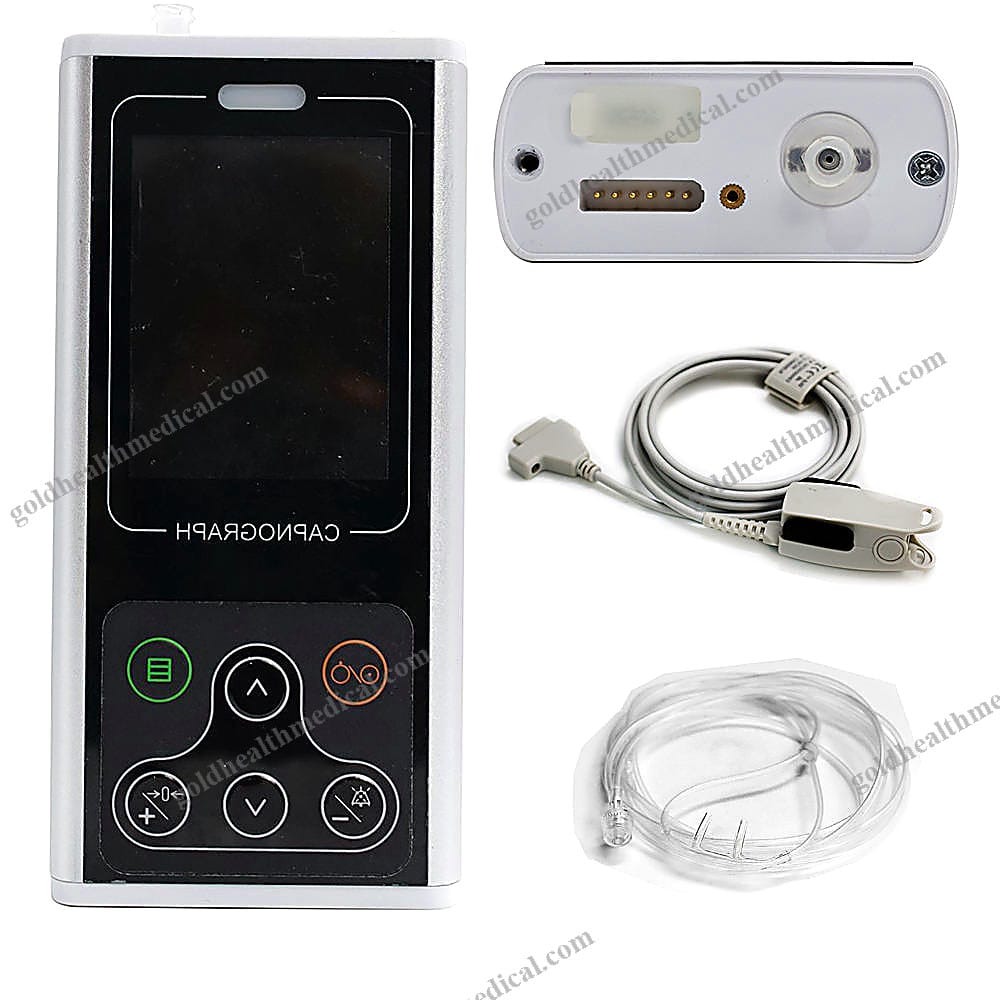

Package Included
- 1 x Portable Capnograph Device
- 1 x Blood Oxygen Probe
- 1 x Sampling Pipe
- 1 x User Manual
Optional Accessories
- Various SPO2 Probes available upon request
GoldHealth Medical’s Portable Capnograph stands out with its exceptional quality, functionality, ease of use, and cost-effective maintenance. Backed by strong technical support and timely delivery, it is the ultimate choice for healthcare professionals seeking reliable and innovative monitoring solutions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Portable Medical Capnograph Machine
- Product Name: Advanced Portable Capnograph with EtCO2 and SPO2 Monitoring
- Key Features:
- Handheld and lightweight design for ultimate portability
- Dual functionality: End-tidal CO2 (EtCO2) and SPO2 monitoring for emergency and critical care
Ideal for use in ICU, hospitals, medical laboratories, clinics, and home healthcare
Technical Specifications:
- EtCO2 Measurement Range: 0 ~ 150 mmHg
- SPO2 Measurement Range: 30% ~ 100%
- Pulse Rate Measurement Range: 25 ~ 250 bpm
- Power Source: Electricity
- Instrument Classification: Class II
Safety Standard Compliance: GB/T18830-2009
Design and Build:
- Material: Durable, medical-grade plastic for long-lasting performance
- Compact Dimensions: Single package size of 10 x 8 x 8 cm
Weight: Lightweight at just 0.500 kg for easy transport
Certifications:
CE & ISO certified for quality and safety assurance
Applications:
- Emergency care and critical patient monitoring
Suitable for ICU, hospitals, medical labs, clinics, and home use
Warranty and Support:
- Warranty: Comprehensive 1-year warranty
After-Sales Service: Dedicated online technical support to ensure seamless operation
Shelf Life: 3 years, ensuring long-term usability and reliability
GoldHealth Medical’s Portable Capnograph is engineered to deliver precision, portability, and reliability, empowering healthcare professionals with advanced monitoring capabilities in any setting.
