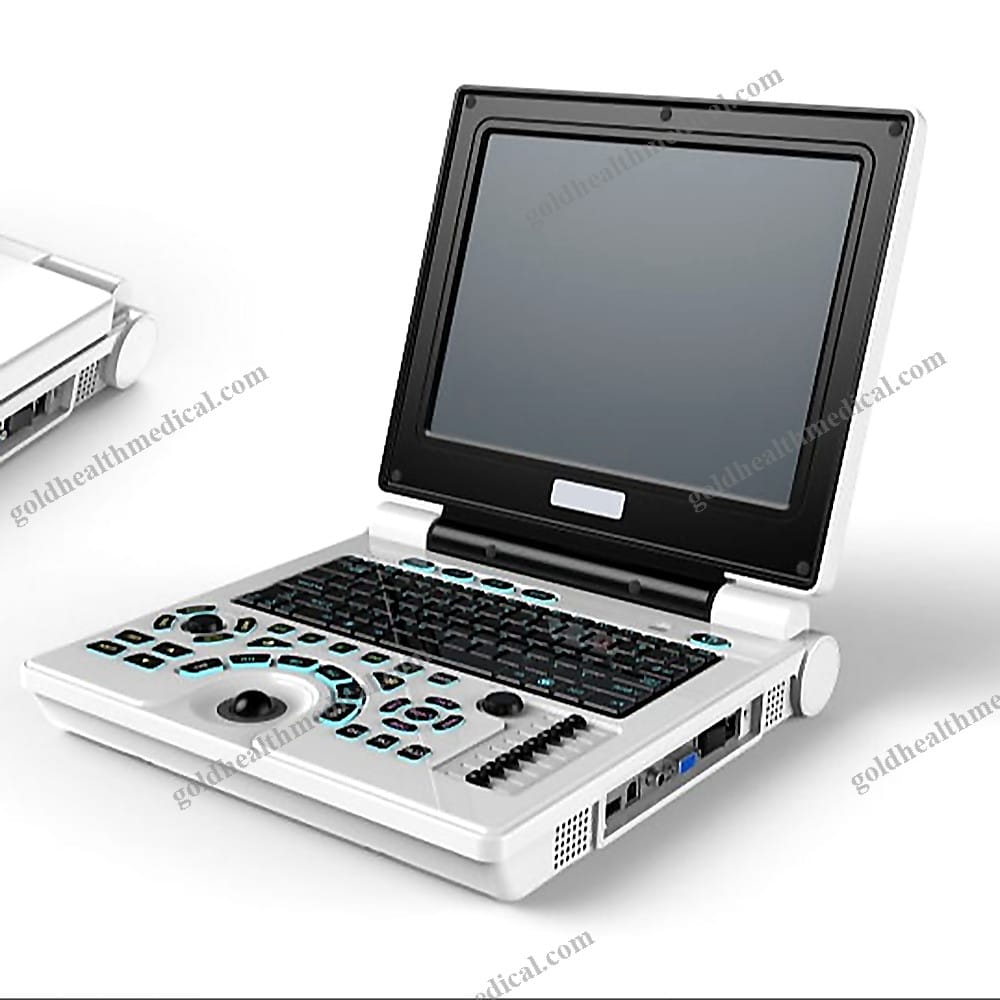

Portable BW Ultrasound Scanner with 121 Inch LED Display
Reference: 1600954292912Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Ultrasound Technology
Product Overview
GoldHealth Medical proudly presents its state-of-the-art Notebook LED Digital Ultrasound Scanner, designed to deliver unparalleled precision and versatility for a wide range of medical applications. This advanced device combines cutting-edge imaging technology with an intuitive user interface, making it an indispensable tool for healthcare professionals.
Key Features and Technical Specifications
- Display Modes: B, B/B, 4B, B+M, M
- Display Size: 12.1-inch LED display with vibrant clarity
- Image Magnification: Six zoom levels (x0.8, x1.0, x1.2, x1.5, x1.8, x2.0) for enhanced detail and penetration depth
- E-Zoom: Real-time image magnification up to 2x for precise diagnostics
- Dynamic Range: Adjustable from 0 to 120dB for optimal image contrast
- Focus Position: Dynamic electronic focusing ensures sharp and accurate imaging
- Image Processing: Advanced algorithms including 8Ξ³ corrections, point correlation, frame correlation, line correlation, digital filtering, edge enhancement, and pseudo-color processing
- Automatic Parameter Setup: Intelligent system adapts to user preferences, saving settings as default while allowing customization via the menu
- Gray Scale: 256 levels for exceptional image depth and detail
- Frequency Conversion: Five frequency ranges (2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.0MHz) with extended compatibility for high-frequency probes (5.5MHz to 7.5MHz)
- Measuring Functions: Comprehensive tools for distance, circumference/area (ellipse and loci methods), volume, heart rate, gestational weeks, expected delivery date, and fetal weight calculations
- Annotation Functionality: Customizable annotations including hospital name, patient details (name, age, gender), body marks with probe positioning, full-screen text, and real-time clock display
- Puncture Guidance: Real-time guidance in B-mode using a 3.5MHz convex array probe
- Gain Control: Eight-segment TGC and overall gain adjustments for superior image quality
- Image Polarity: Left/right and up/down flip options for flexible viewing
- Cine Loop: Real-time display of 256 consecutive images for seamless review
- Image Playback: Series playback or individual frame inspection
- Permanent Storage: Save up to 128 high-resolution images for future reference
- Output Interface: USB port for connectivity with external devices
Standard Configuration
- One host machine
- One 3.5MHz convex array probe
- One power adapter
- 11.1V 5200mAh lithium battery for extended use
- USB port for versatile connectivity
- Ergonomic computer keyboard design for intuitive and efficient operation
Optional Probes
Additional probes available to suit specific clinical needs
Design and Performance Highlights
- Display: 12.1-inch LCD color display with exceptional clarity
- Measurement Accuracy: Perimeter and area deviation β€ Β±20%
- Battery Life: Continuous operation for β₯ 2 hours
- Input Power: AC220V Β± 22V, 1.5A
- Weight: Host machine weighs approximately 5.5 kg; gross weight with packaging is about 6.2 kg
- Dimensions:
- Host: 310 Γ 338 Γ 76 mm (L Γ W Γ H)
- Packaging: 490 Γ 460 Γ 250 mm (L Γ W Γ H)
Why Choose GoldHealth Medical?
Our ultrasound scanner is engineered to meet the demands of modern healthcare environments. With its sleek design, advanced imaging capabilities, and user-friendly interface, it stands out as a reliable and innovative solution for hospitals, clinics, research institutions, and home care settings.
Unique Selling Points
- Precision Imaging: Unmatched clarity and detail for accurate diagnostics
- Versatility: Multiple display modes and frequency ranges to suit diverse applications
- Portability: Lightweight design with long-lasting battery life for on-the-go use
- Ease of Use: Intuitive controls and customizable settings for seamless operation
GoldHealth Medical is committed to empowering healthcare professionals with tools that enhance patient care and diagnostic accuracy. Experience the future of ultrasound technology today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Notebook LED Digital Ultrasound Scanner, a cutting-edge diagnostic tool designed for precision, portability, and ease of use. Engineered to meet the demands of modern healthcare, this device is ideal for hospitals, clinics, research institutions, and home healthcare environments.
Key Features and Specifications
- Display:
- 12.1-inch high-resolution LED screen with 256-level grayscale for exceptional image clarity.
Multiple display modes: B, B/B, 4B, B+M, M for versatile diagnostic applications.
Performance:
- Dynamic range: 0~120dB adjustable, ensuring optimal image quality across various conditions.
- Real-time E-zoom functionality magnifies images up to 2x for enhanced detail examination.
Dynamic electronic focusing for precise and consistent imaging.
Storage and Memory:
Permanent storage capacity for up to 128 images, enabling efficient record-keeping and review.
Design and Build:
- Constructed with premium metal and steel materials for durability and reliability.
Compact and lightweight notebook design for portability and convenience.
Certifications and Compliance:
- ISO13485 quality certification ensures adherence to international medical device standards.
- Class II medical instrument classification for safety and performance.
Compliant with MFDS safety standards, guaranteeing user and patient protection.
Power Source:
Fully manual operation, eliminating dependency on external power sources for greater flexibility.
Warranty and Support:
- Comprehensive 1-year warranty for peace of mind.
Access to online technical support for seamless after-sales service.
Additional Details:
- Shelf life: 1 year from the date of manufacture.
- Place of origin: Henan, China.
- Packaging: Securely packed in durable boxes for safe transportation.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and high-quality medical solutions. Our Notebook LED Digital Ultrasound Scanner combines advanced technology with user-centric design, empowering healthcare professionals to achieve accurate diagnoses and improve patient outcomes.
Supply Capability
- Monthly supply capacity: 100 sets.
- Shipping port: Shenzhen.
Experience the future of diagnostic imaging with GoldHealth Medicalβs Notebook LED Digital Ultrasound Scanner.
