Portable BW Medical Ultrasound Machine
Reference: 1601040159439Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

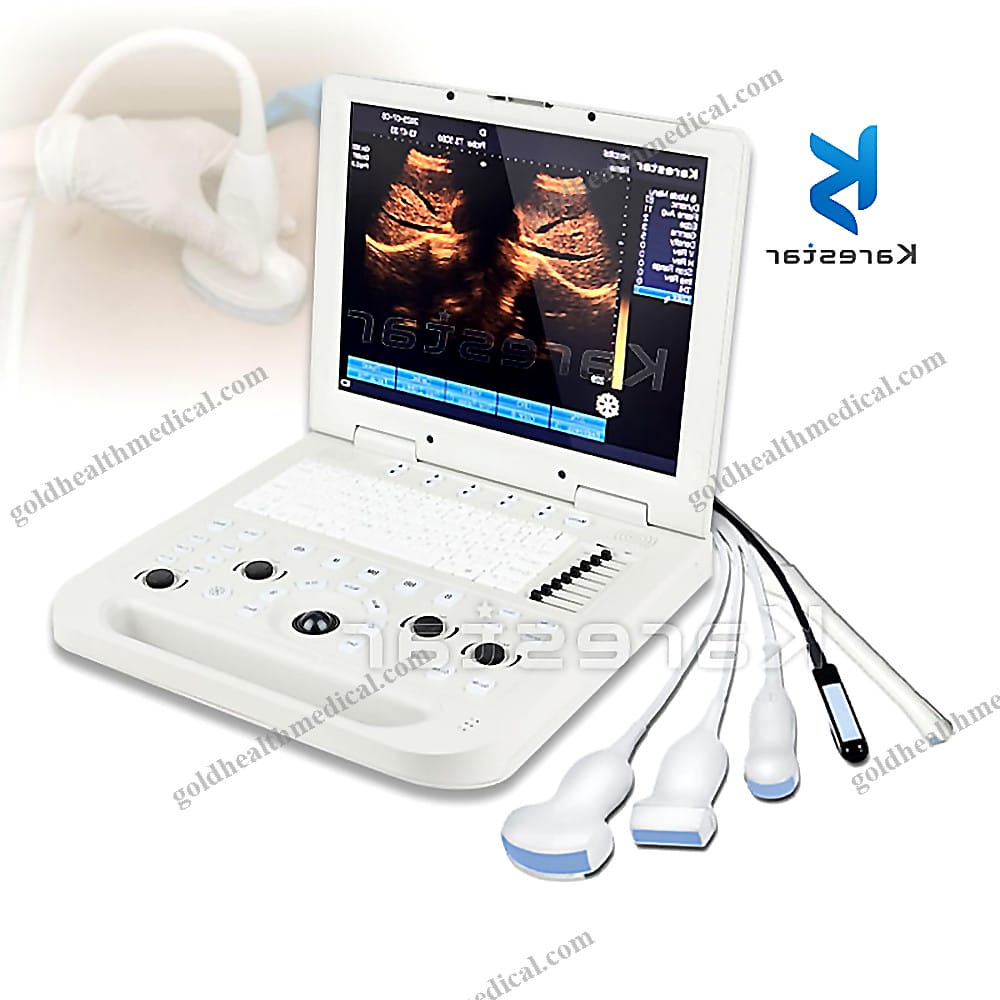

GoldHealth Medical Portable Ultrasound Machine
Product Overview
GoldHealth Medical introduces a cutting-edge portable ultrasound machine designed to deliver unparalleled imaging performance and versatility. Engineered for precision and ease of use, this device is ideal for a wide range of medical applications, ensuring reliable diagnostics in any setting.
Key Features
- High-Resolution Display: Equipped with a 15-inch high-definition medical-grade screen offering 1024x768 resolution for crystal-clear imaging.
- Extended Battery Life: Powered by a removable 6000 mAh lithium battery housed in an independent compartment, providing up to 4 hours of continuous operation even during power outages.

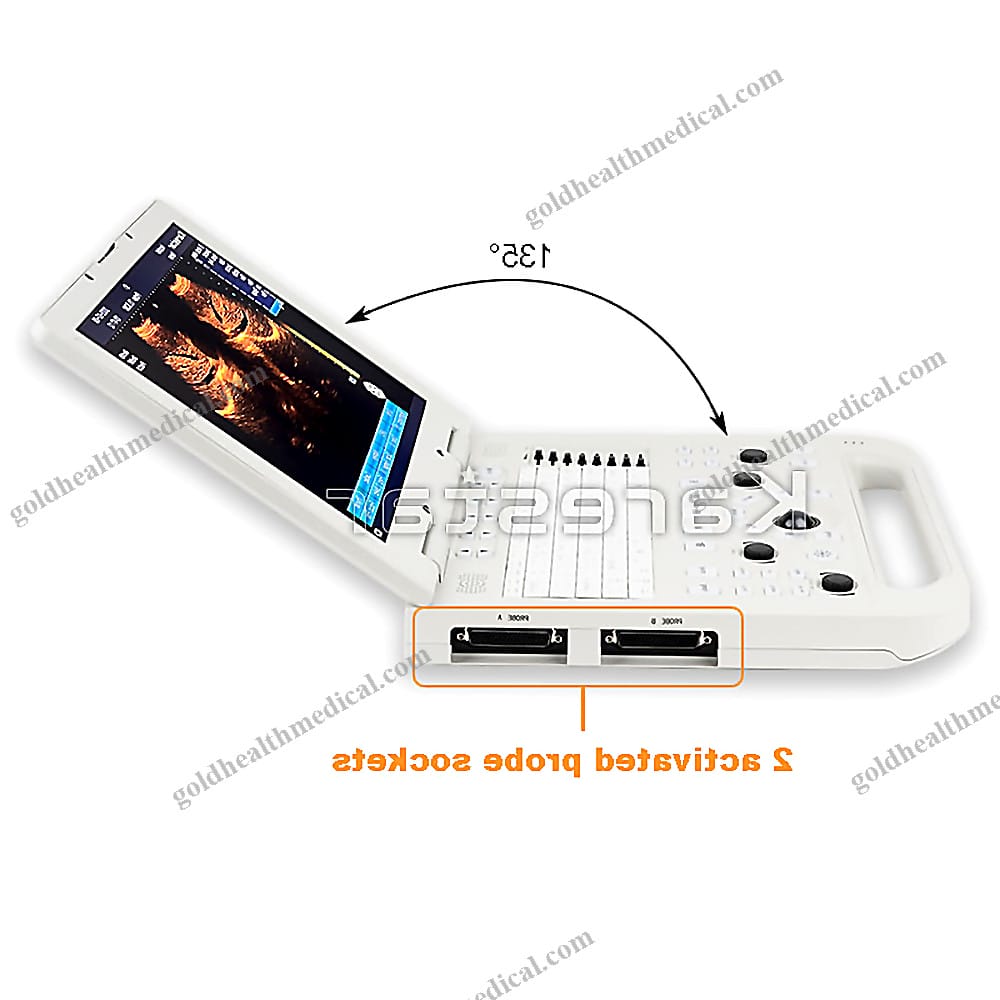

- Versatile Connectivity: Includes 2 probe sockets with automatic probe identification, 2 USB ports, VGA, DICOM, and video interfaces for seamless integration into existing systems.
- Advanced Imaging Modes: Supports multiple imaging modes such as B, B|B, 4B, B+M, and M, enabling comprehensive diagnostic capabilities.
- Wide Range of Applications: Designed for abdomen, obstetrics, gynecology, endovaginal, small parts, musculoskeletal, vascular, urology, endorectal, and pediatric examinations.
- Enhanced Functionality: Features cine loop playback, gain range of 0-100dB, and 8 pseudo-color options for detailed visualization.
- User-Friendly Interface: Simple operation with an intuitive design, ready for immediate use, and available in six languages: Chinese, English, Russian, Spanish, Portuguese, and French.
Technical Specifications

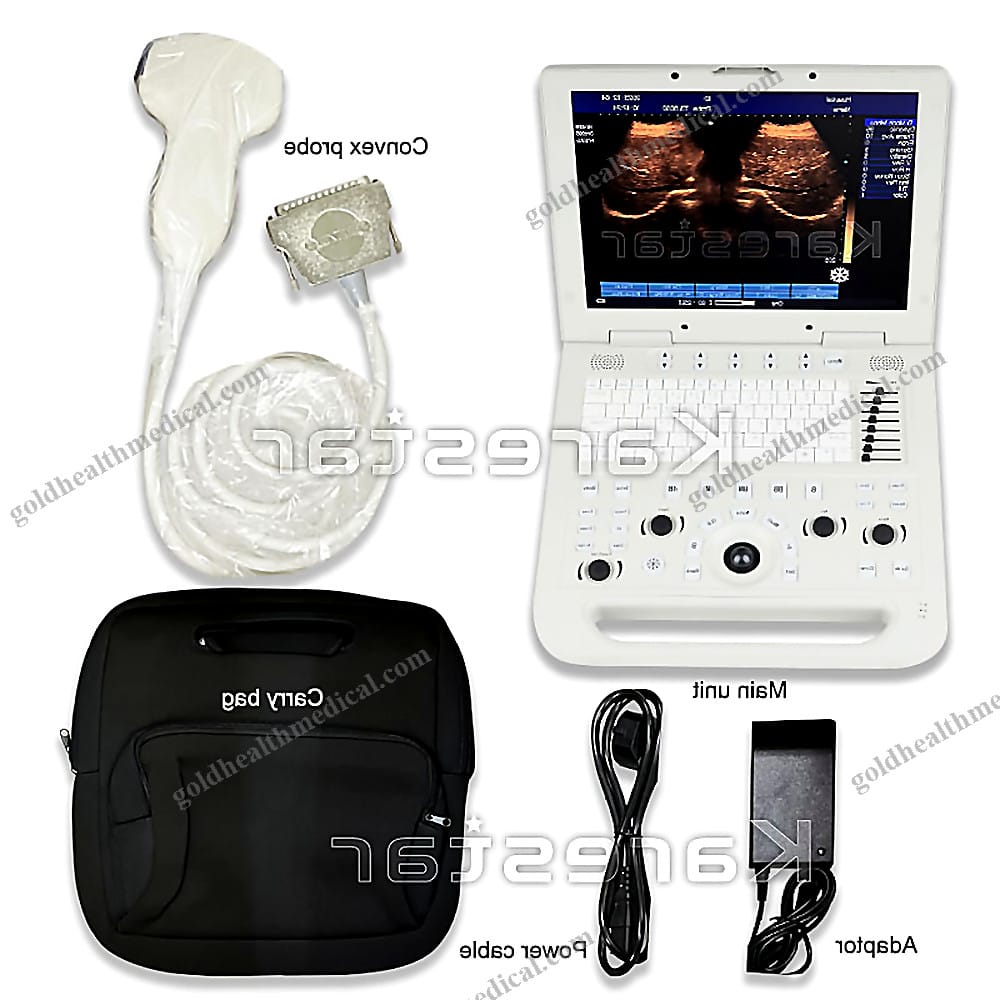

- Standard Configuration:
- Main unit with 15-inch display and 2 probe connectors
- Optional probes include 3.5MHz convex, linear array, trans-vaginal, and micro-convex probes
- Portable carrying bag and AC adapter included
- Probe Specifications:
- Convex Array Probe: Central frequency 3.5 MHz (2.0β10.0 MHz), pitch 0.516mm, radius 60mm, 96 elements
- Linear Array Probe: Central frequency 7.5 MHz (5.0β10.0 MHz), pitch 0.352mm, 96 elements
- Trans-Vaginal Probe: Central frequency 6.5 MHz (5.0β9.0 MHz), pitch 0.216mm, radius 10mm, 96 elements
- Micro-Convex Probe: Central frequency 4.0 MHz (2.0β5.5 MHz), 96 elements
- Physical Specifications:
- Equipment size: 360mm Γ 355mm Γ 65mm
- Weight: Less than 5kg
- Performance Highlights:
- Movie playback with 256 frames, frame-by-frame and pause functionality for image preservation and measurement
- Four-stage electronic focusing and 18 body position markers for precise imaging
- Five-stage frequency conversion for all probes
- Advanced image processing: Upper/lower mirror, left/right mirror, black/white flip, and 256 grey levels
- Permanent storage: 16GB built-in memory with optional external U-disk support
- Puncture guidance with adjustable puncture line positioning and dynamic target tracking
- Enhanced depth display with 16 magnification modes for accurate lesion diagnosis
- Dynamic range: 0β135dB with 8 Ξ³ correction options and digital edge enhancement
Unique Selling Points
- Precision and Versatility: Combines advanced imaging technologies with a compact, portable design, making it suitable for diverse medical environments.

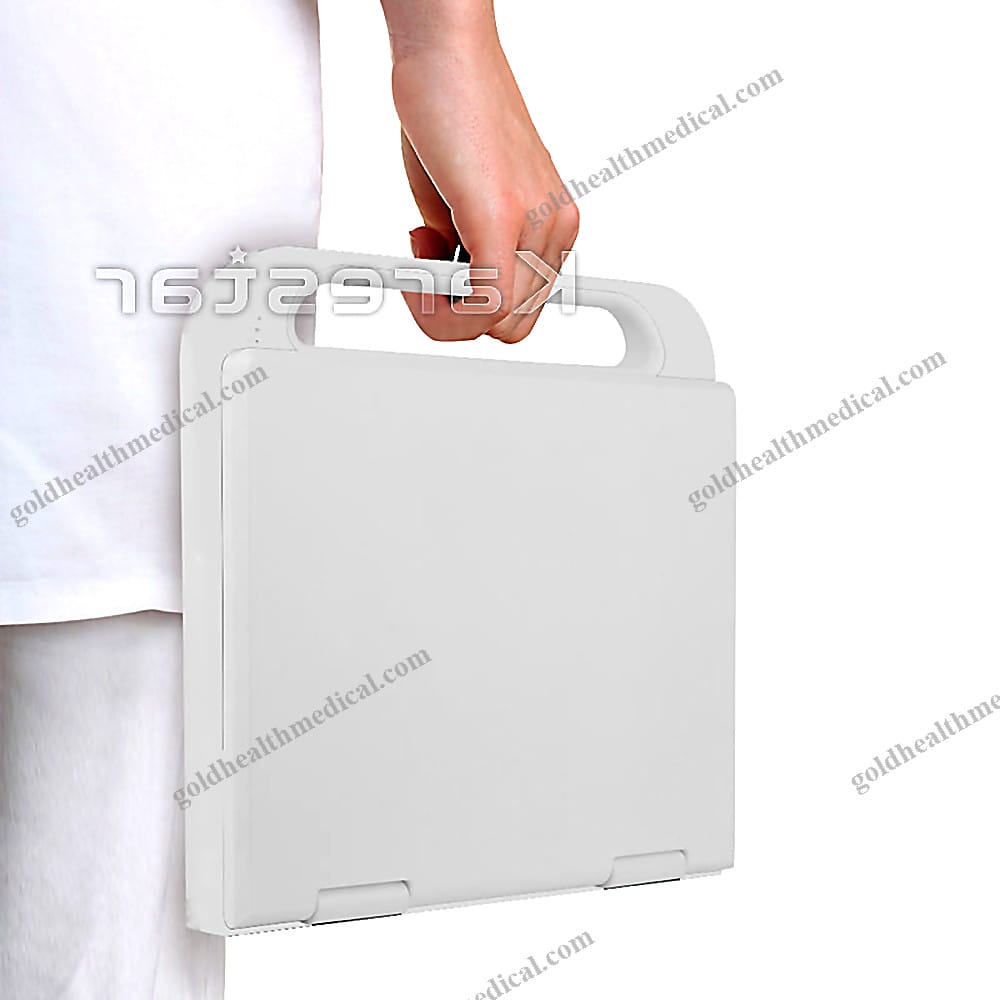

- Unmatched Portability: Lightweight and battery-powered, ensuring uninterrupted performance even in remote or emergency settings.
- Comprehensive Diagnostic Tools: From musculoskeletal assessments to vascular imaging, this device meets the needs of modern healthcare professionals.
- Future-Ready Features: DICOM compatibility and optional 3D software integration for enhanced diagnostic capabilities.
Applications
- Abdomen, Obstetrics, Gynecology, Endovaginal, Small Parts, Musculoskeletal, Vascular, Urology, Endorectal, Pediatrics
GoldHealth Medicalβs portable ultrasound machine redefines diagnostic excellence, empowering healthcare providers with a tool that is as reliable as it is innovative.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Power Source: Electricity
Shelf Life: 2 years
Quality Certification: CE
Product Highlights
- Advanced Display Technology: Equipped with a 15-inch large LED display, offering crystal-clear imaging for precise diagnostics.
- Long-Lasting Battery: Built-in lithium battery provides up to 4 hours of continuous operation, ensuring reliability during critical procedures.
- Versatile Scanning Modes: Supports multiple scanning modes including B, B|B, 4B, B+M, and M, catering to diverse clinical needs.
- Wide Range of Applications: Ideal for OB/GYN, abdomen, pediatrics, urology, small organs, musculoskeletal (MSK), and more.
Technical Specifications
- Material: High-grade metal and durable plastic construction for enhanced longevity.
- Instrument Classification: Class II medical device, adhering to the highest safety standards.
- Safety Standard Compliance: Meets GB/T18830-2009 requirements for medical equipment safety.
- Place of Origin: Jiangsu, China β renowned for advanced manufacturing capabilities.
Key Features
- ARM Platform: Delivers fast computing power for seamless operation and reduced processing time.
- HD Imaging: Provides high-definition imaging for accurate and detailed visualization.
- Optional 3D Functionality: Elevates diagnostic capabilities with optional 3D imaging features.
- Multi-Language Support: Includes Chinese, English, Russian, Spanish, Portuguese, and French language options for global usability.
Connectivity and Ports

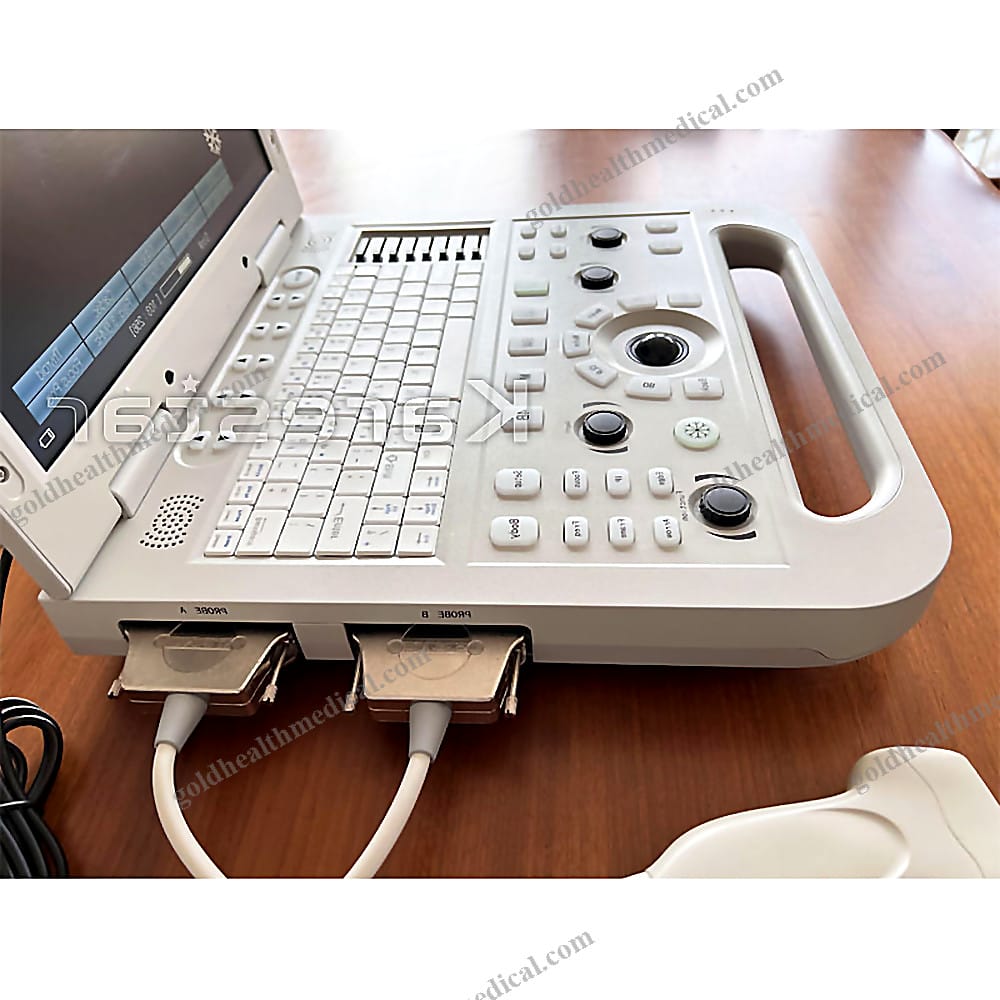

- Probe Sockets: 2 probe sockets for flexible operation.

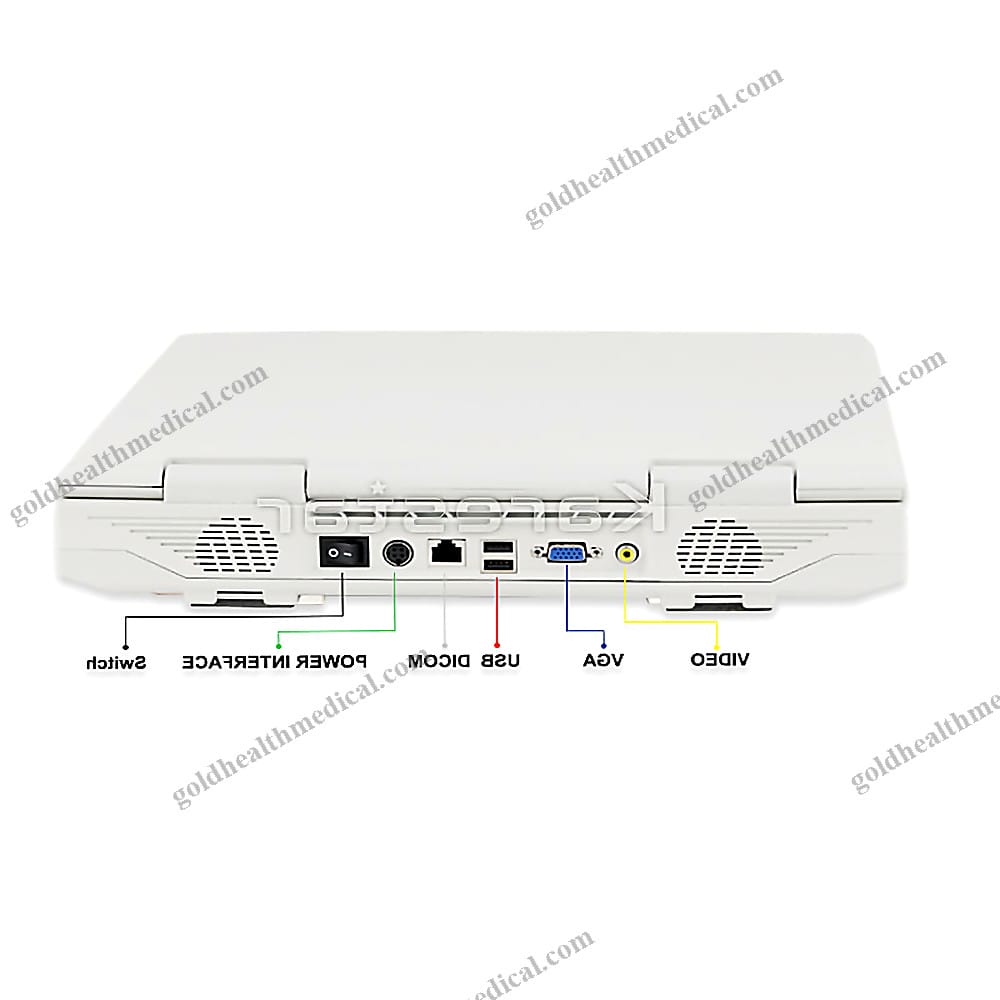

- Ports: Equipped with Video, 2 USB, VGA, and DICOM ports for comprehensive data management and connectivity.
Packaging Details
- Package Dimensions: 50 x 50 x 24 cm
- Gross Weight: 7.900 kg
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with user-centric design to deliver medical devices that empower healthcare professionals. Our products are engineered for precision, durability, and versatility, ensuring they meet the demands of modern medical environments. With a focus on innovation and quality, we provide solutions that enhance patient care and streamline workflows.
Warranty and After-Sales Support
- Comprehensive warranty coverage for peace of mind.
- Dedicated after-sales service to ensure uninterrupted performance.
- Hassle-free return and replacement policies for customer satisfaction.
Experience the next level of medical imaging with GoldHealth Medical β where precision meets innovation.
