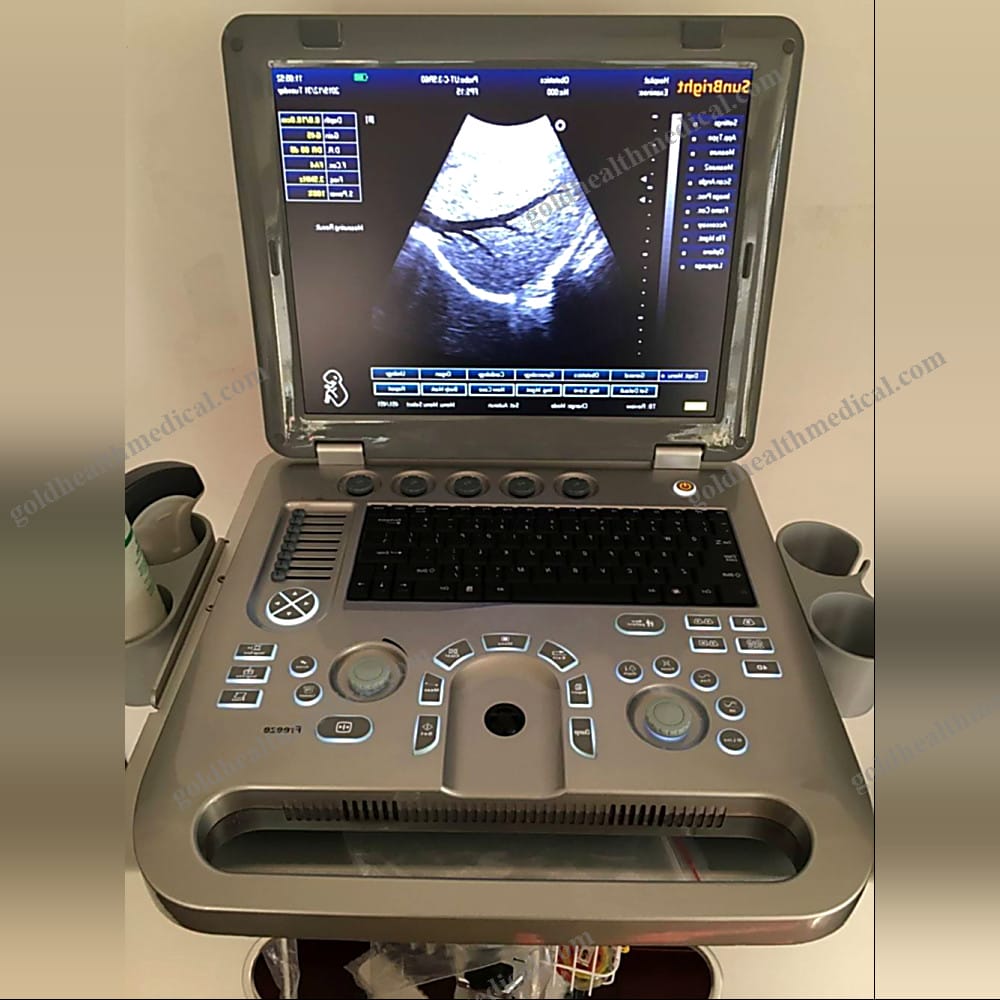

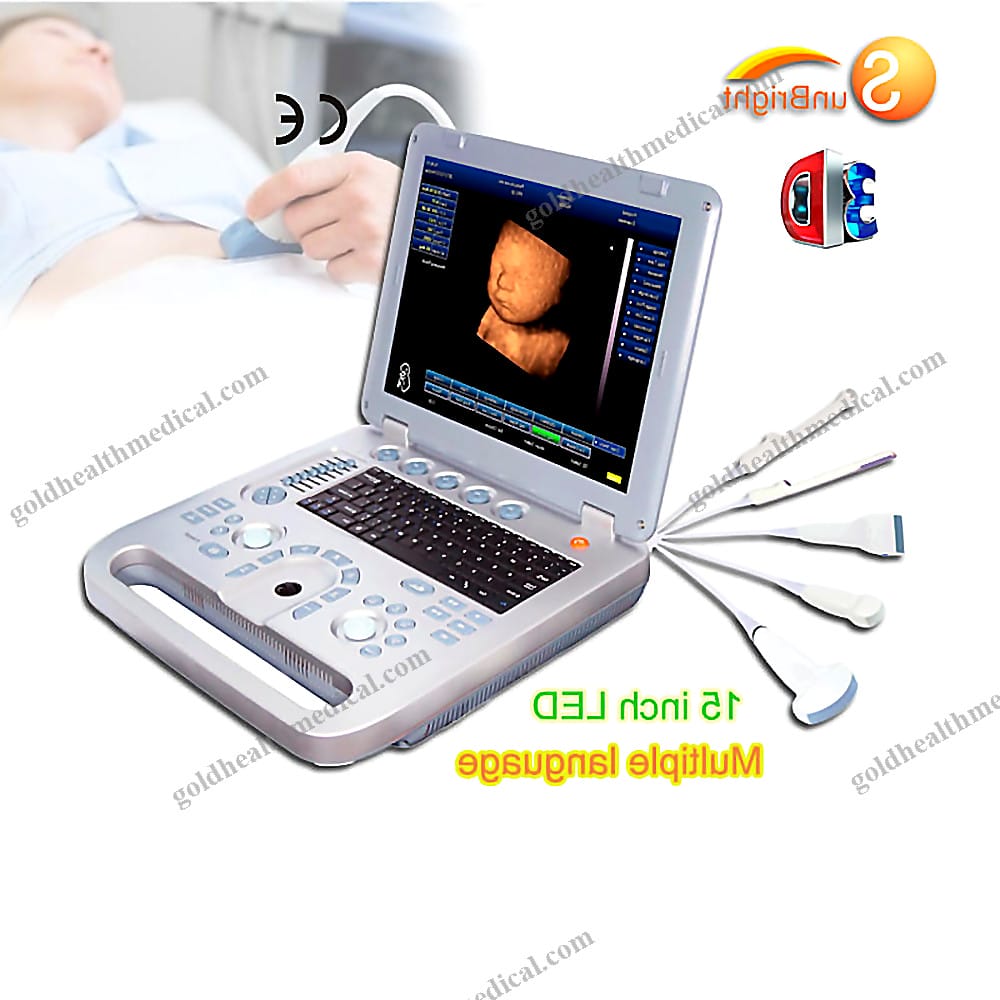

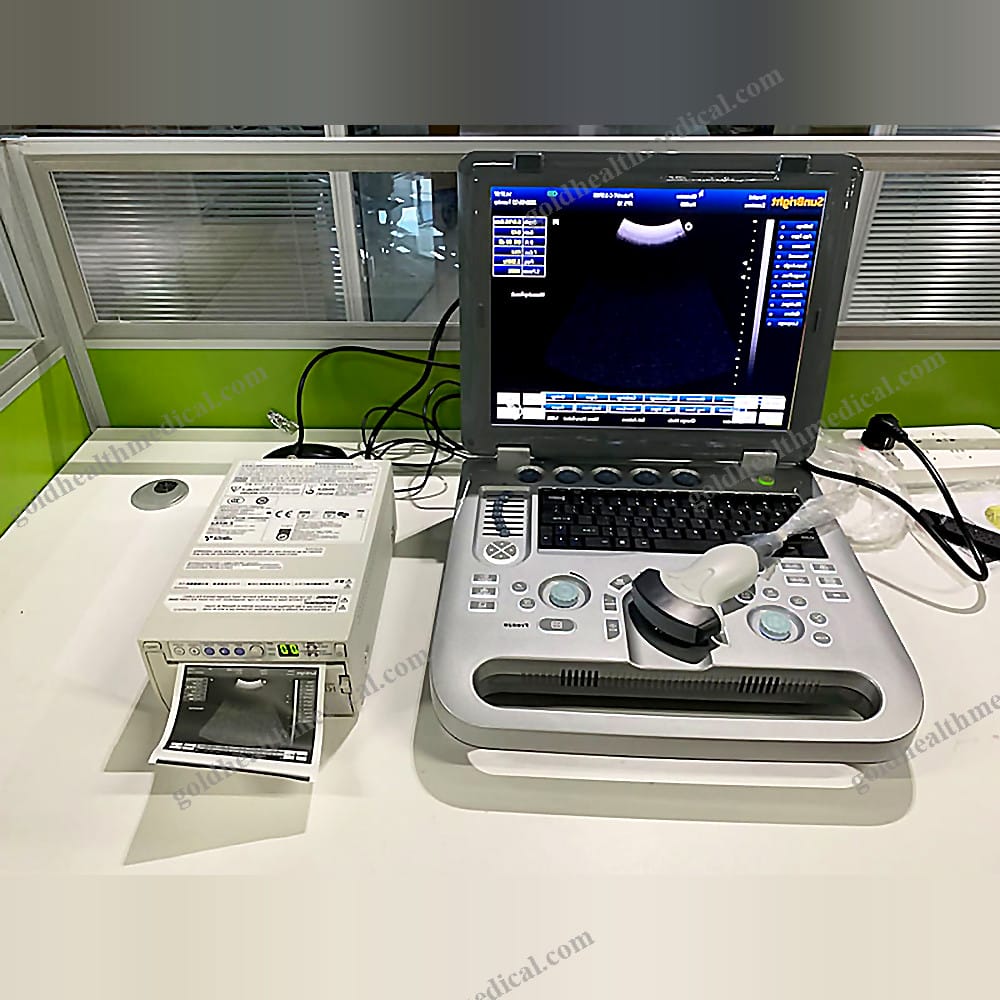

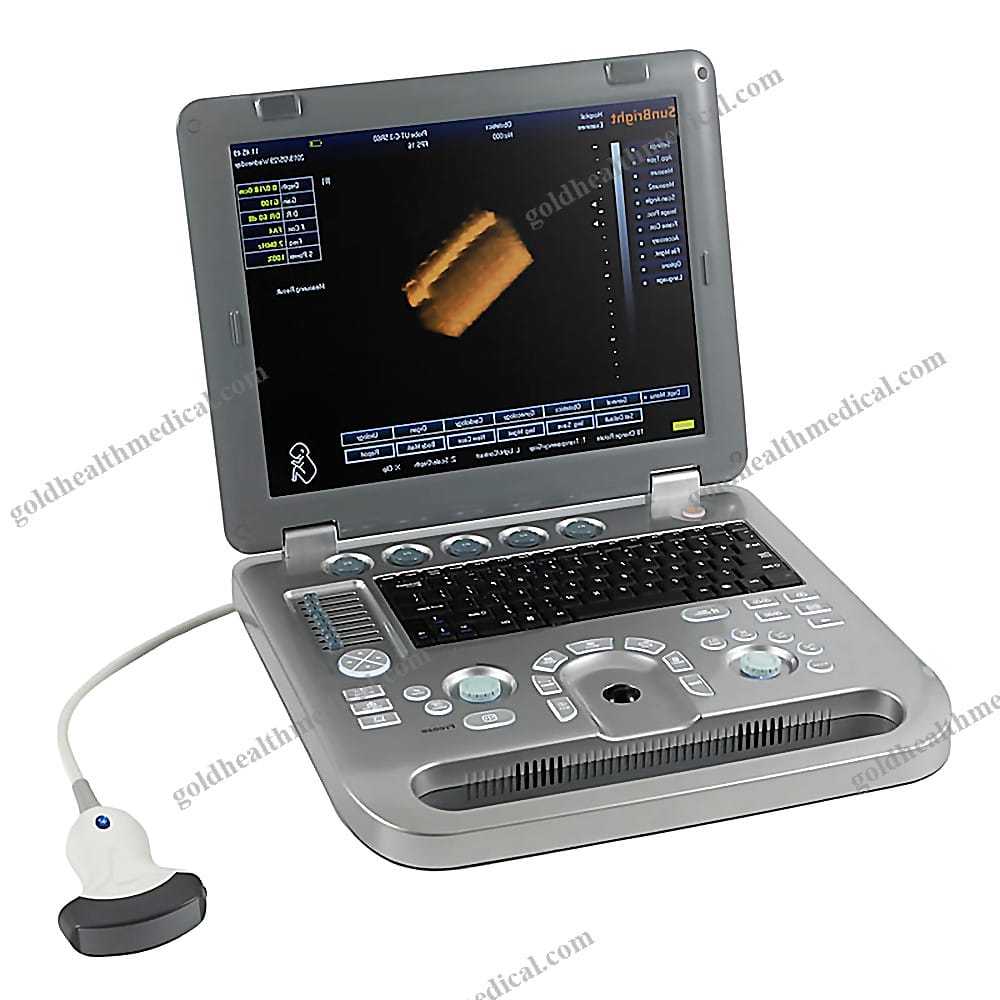

Portable 3D Ultrasound Machine with Echocardiography System
Reference: 1600265505523Ultrasonic, Optical, Electronic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Revolutionizing Medical Imaging with GoldHealth Medical
Introducing a cutting-edge portable 3D ultrasound machine designed to elevate diagnostic precision and operational efficiency. Engineered by GoldHealth Medical, this device seamlessly integrates advanced echography and echocardiography capabilities, making it an indispensable tool for modern healthcare environments.
Key Features and Benefits
- PC-Based Flexibility: Connect effortlessly to any printer brand, ensuring seamless integration into your existing workflows.
- Built-In 3D Software: Activated free during our New Promotion, enabling advanced imaging without additional costs.
- Long-Lasting Battery: Equipped with a built-in battery that provides up to 3 hours of continuous operation during power outages.
- Comprehensive Auto-Reports: Includes six specialized auto-reporting and measurement tools for OB/GYN, Cardiac, Urology, Small Organs, Muscle, and Vascular applications.
- Large LED Monitor: A 15-inch high-resolution display with a 175-degree viewing angle ensures superior image clarity and ease of use.
- Intuitive Operation Guidance: Real-time tips displayed at the bottom of the screen guide users through each step, enhancing usability.
- Multi-Language Support: Available in English, Chinese, Spanish, Portuguese, Russian, Arabic, and French, catering to a global audience.
- Superior Image Quality: Delivers exceptional image quality with advanced processing technologies for unparalleled diagnostic accuracy.
Technical Specifications
- Design Options: Available in two colors with a handheld carrying bag for portability.
- Dimensions: 35cm in length and 6cm in thickness.
- Display: Full digital 15-inch LED display with 3D ultrasound capabilities.
- Platform: PC-based platform for versatile functionality.

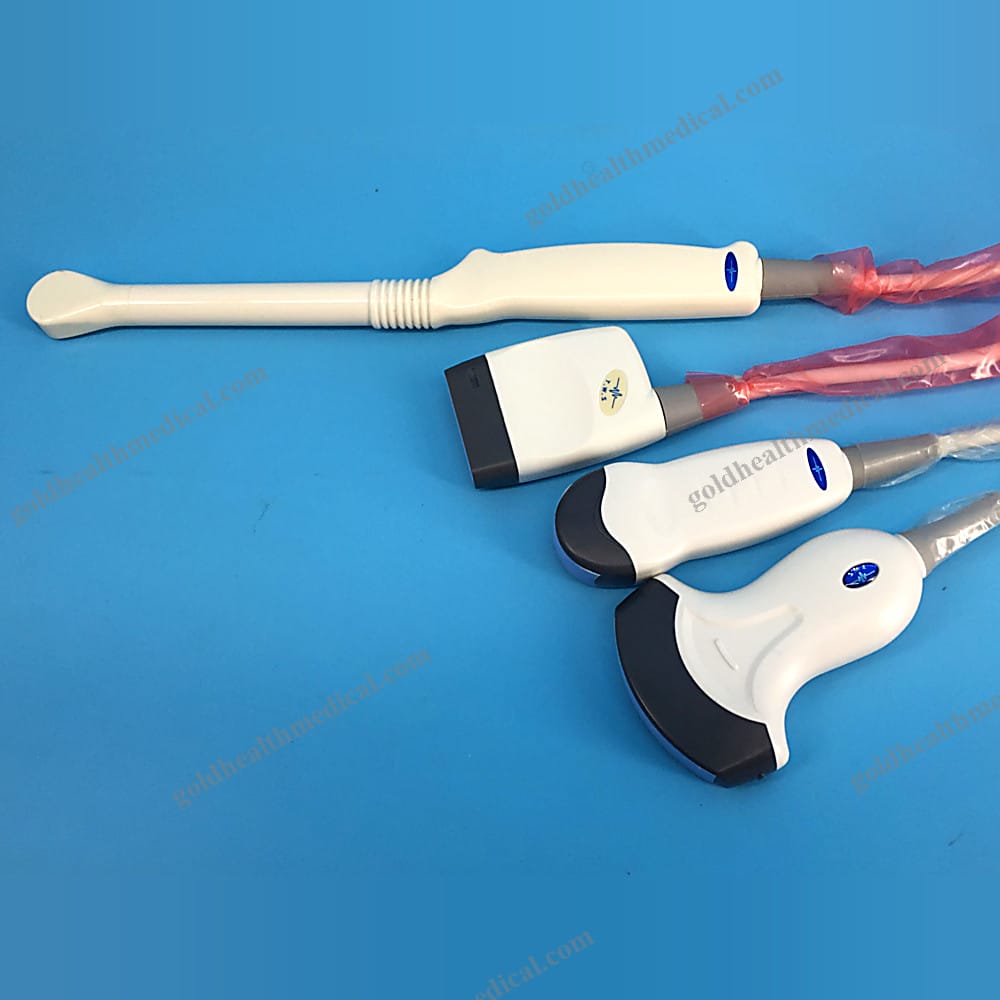

- Probes:
- 3.5MHz R60/R50 convex probe (2.0MHz to 5.0MHz multi-frequency)
- 7.5MHz L40 linear probe (5.0MHz to 10.0MHz multi-frequency)
- 6.5MHz R10/R13 transvaginal probe (5.0MHz to 8.0MHz multi-frequency)
- 3.5MHz R20 cardiac probe (2.0MHz to 5.0MHz multi-frequency)
- Beam Forming: DBF, RDA, DRA, DRF, DFS with dynamic frequency scanning from 2.0 to 12.0MHz.
- Dynamic Range: ≥100dB with 4-step switching functions.
- Image Processing Technologies: Frame correlation, Gamma correction, edge enhancement, image smoothing, denoising, automatic gain adjustment, and more.
- Image Magnification: Stepless magnification and dynamic real-time PIP local zoom functions.
- Cine Loop: 512-frame auto/manual cine loop with multi-screen capabilities.

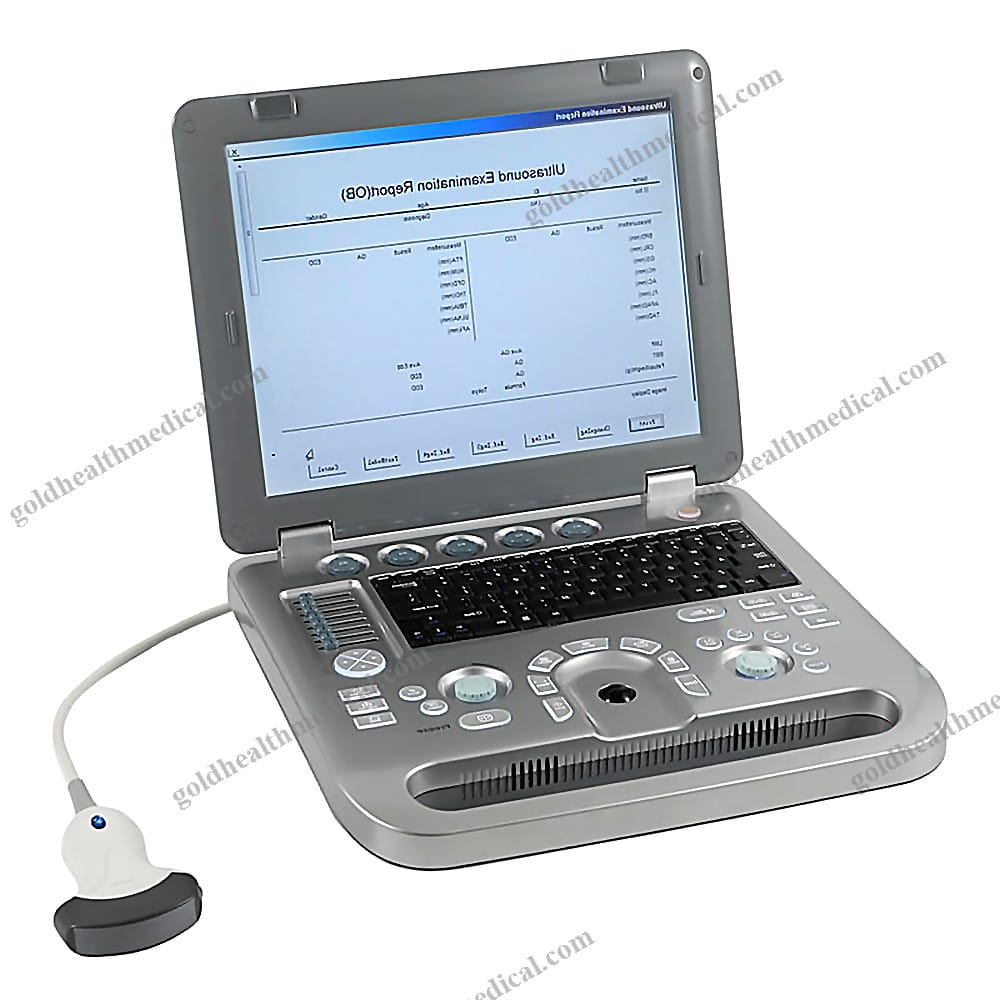

- Image Management: Comprehensive system for organizing, browsing, comparing, saving, printing, and transferring images.
- Measurement and Calculation: Automatic calculations for perimeter, area, body surface area, volume, and more.
- Assist Tools: Puncture guide, distogram, sectional drawing, and real-time navigation support.
- Auto-Measure Software: Specialized for OB/GYN, small organs, cardiac, urology, and other applications.
- Patient Database: Save, search, and manage all patient data with multiple OB measurement reports and growth curves.
- Ports: VGA, S-Video, TV video, USB2.0, RJ-45 network port, and more.
- Saving Modes: Compatible with various storage devices including soft disk, hard disk, flash disk, CF card, and SD card.
- Printer Compatibility: Works with jet printers, laser printers, video printers, and video recorders.
- Presetting Formulas: Customizable diagnostic and measurement formulas for different races.
Standard Configuration
- Portable main unit with 3D software (free during promotion)
- One convex probe
- Lithium battery
- Carrying bag
- 15-inch high-resolution LCD
- Two USB ports, one VGA out port, one video port, one power inlet
- Comprehensive measurement and calculation software packages
- 18-month warranty for the main unit and 12-month warranty for probes
GoldHealth Medical’s portable 3D ultrasound machine is not just a device; it’s a comprehensive solution designed to meet the diverse needs of hospitals, clinics, research institutions, and home users. Experience unparalleled precision, flexibility, and ease of use with our state-of-the-art imaging technology.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Product Overview
GoldHealth Medical presents an advanced ultrasound device designed to deliver exceptional imaging performance across a wide range of medical specialties. Engineered with precision and versatility in mind, this device is ideal for use in hospitals, clinics, research institutions, and even home healthcare settings. Its robust design and cutting-edge features make it an indispensable tool for modern medical professionals.
Key Features
- Specialty Applications: Tailored for general imaging, OB/GYN, vascular, cardiology, urinary, small organs, and more.
- Imaging Modes: Includes 2D imaging and free-hand 3D capabilities for enhanced diagnostic accuracy.
- Image/Video Formats: Supports multiple formats including AVI, JPG, BMP, PNG, TIF, and DICOM for seamless integration into existing workflows.
- TGC Control: 8-segment TGC with precise near/far gain adjustment for optimal image clarity.
- Cine Loop: 512 frames (Auto/Manual) for detailed review and analysis of dynamic imaging.
- Multi-language Support: English, Chinese, Spanish, Portuguese, and French to cater to a global audience.
Technical Specifications
- Power Source: Electricity
- Battery Life: Continuous operation for over 3 hours, ensuring uninterrupted performance during critical procedures.
- Connectivity:
- 2 USB ports for versatile data transfer.
- Compatible with USB flash drives and laser printers for efficient documentation.
- Materials: Durable metal and high-quality plastic construction for long-lasting reliability.
- Shelf Life: 2 years
Quality Assurance
- Certifications: CE-certified to meet international safety and quality standards.
- Warranty: Comprehensive warranty coverage to ensure peace of mind.
- After-Sale Service: Dedicated support for maintenance, troubleshooting, and technical assistance.
Packaging and Delivery
- Package Dimensions: 49 x 49 x 26 cm
- Gross Weight: 12.500 kg
- Selling Unit: Single item
GoldHealth Medical’s ultrasound device combines innovation, reliability, and versatility to empower healthcare providers with the tools they need to deliver exceptional patient care.
